INFINITI G-CONVERTIBLE 2010 Owners Manual

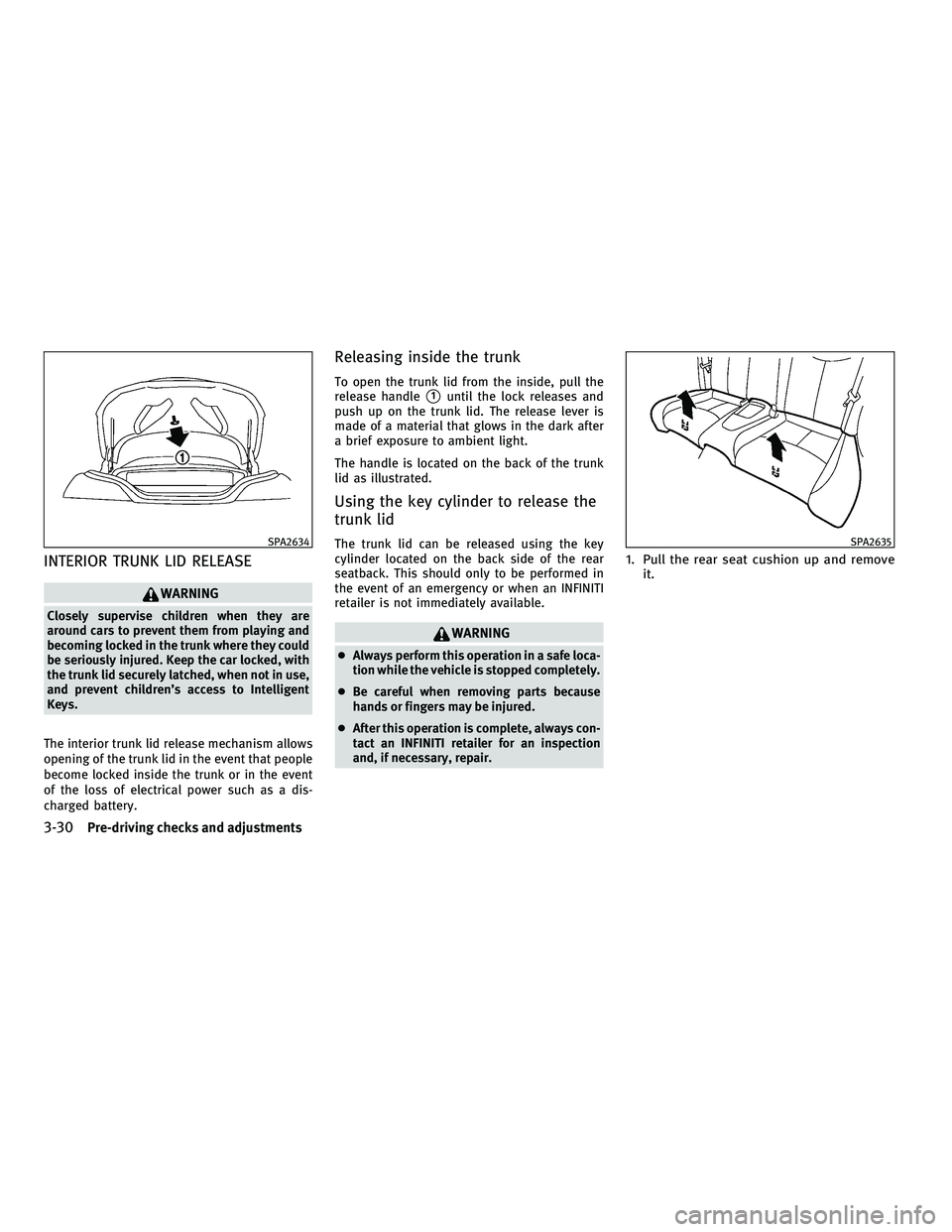

INTERIOR TRUNK LID RELEASE
WARNING
Closely supervise children when they are
around cars to prevent them from playing and
becoming locked in the trunk where they could
be seriously injured. Keep the car locked, with
the trunk lid securely latched, when not in use,
and prevent children’s access to Intelligent
Keys.
The interior trunk lid release mechanism allows
opening of the trunk lid in the event that people
become locked inside the trunk or in the event
of the loss of electrical power such as a dis-
charged battery.
Releasing inside the trunk
To open the trunk lid from the inside, pull the
release handle
1until the lock releases and
push up on the trunk lid. The release lever is
made of a material that glows in the dark after
a brief exposure to ambient light.
The handle is located on the back of the trunk
lid as illustrated.
Using the key cylinder to release the
trunk lid
The trunk lid can be released using the key
cylinder located on the back side of the rear
seatback. This should only to be performed in
the event of an emergency or when an INFINITI
retailer is not immediately available.
WARNING
● Always perform this operation in a safe loca-
tion while the vehicle is stopped completely.
● Be careful when removing parts because
hands or fingers may be injured.
● After this operation is complete, always con-
tact an INFINITI retailer for an inspection
and, if necessary, repair.
1. Pull the rear seat cushion up and remove it.
SPA2634SPA2635
3-30Pre-driving checks and adjustments
—
—
10/14/09—tbrooks

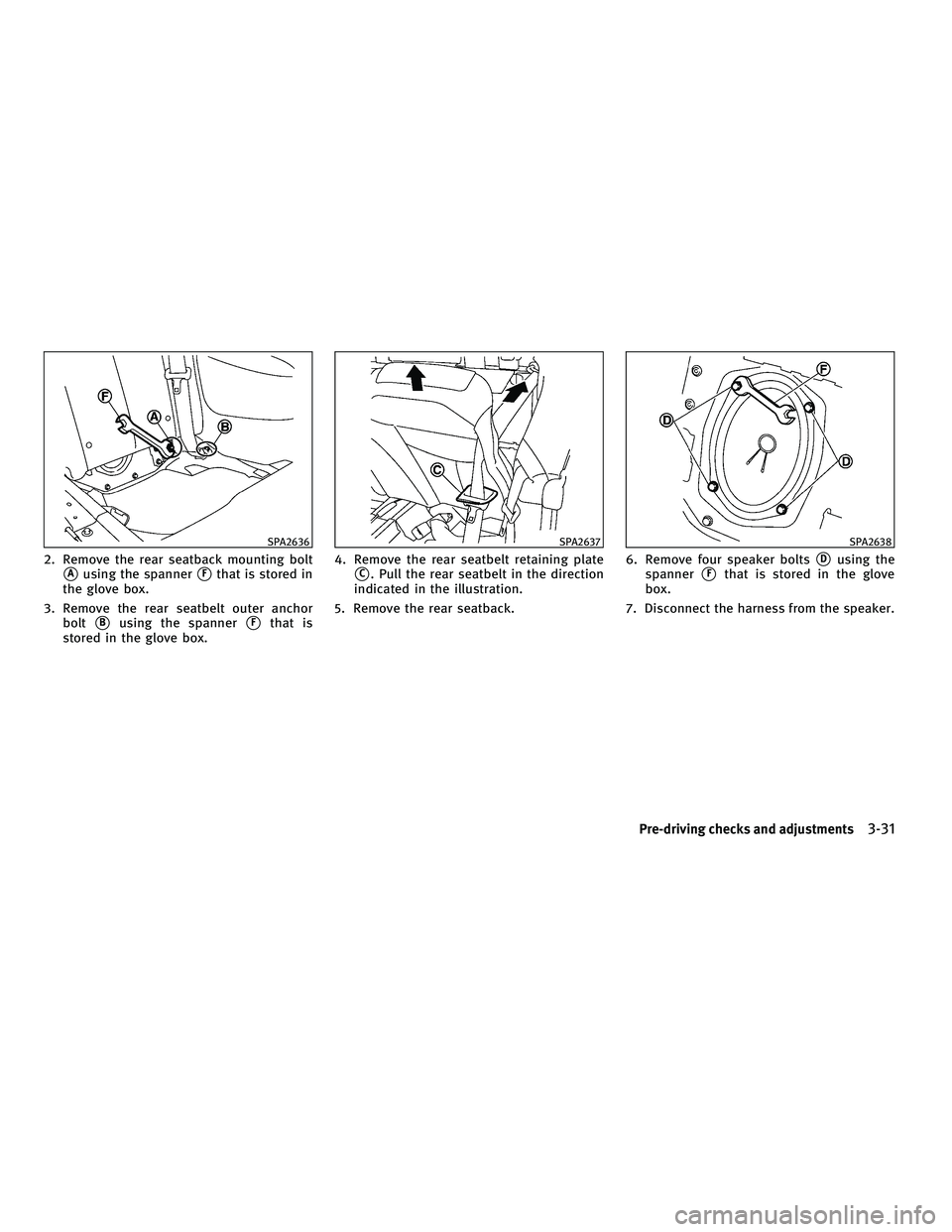

2. Remove the rear seatback mounting bolt
Ausing the spannerFthat is stored in
the glove box.
3. Remove the rear seatbelt outer anchor bolt
Busing the spannerFthat is
stored in the glove box. 4. Remove the rear seatbelt retaining plate
C. Pull the rear seatbelt in the direction
indicated in the illustration.
5. Remove the rear seatback. 6. Remove four speaker boltsDusing the
spanner
Fthat is stored in the glove
box.
7. Disconnect the harness from the speaker.
SPA2636SPA2637SPA2638
Pre-driving checks and adjustments3-31
—
—
10/14/09—tbrooks


8. Insert the mechanical key into the keycylinder. 9. Turn the mechanical key clockwise, using
the spanner
Fthat is stored in the glove
box.OPENING THE FUEL-FILLER DOOR
To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the left side of the door.
● Push the door handle request switch with
the Intelligent Key carried with you.
● Push the UNLOCK button on the Intelligent
Key.
● Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle.
● Push the power door lock switch to the
UNLOCK position.
SPA2639SPA2640SPA1562A
FUEL-FILLER DOOR
3-32Pre-driving checks and adjustments
—
—
10/14/09—tbrooks


To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
●Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause
the malfunction indicator
light (MIL) to come on. ●
Never pour fuel into the throttle body to at-
tempt to start your vehicle.
● Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can cause
an explosion of flammable liquid, vapor or
gas in any vehicle or trailer. To reduce the
risk of serious injury or death when filling
portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel contain- ers for flammable liquid.
CAUTION
●If fuel is spilled on the vehicle body, flush it
away with water to avoid paint damage.
● Insert the cap straight into the fuel-filler
tube, then tighten until the fuel-filler cap
clicks. Failure to tighten the fuel-filler cap
properly may cause the
malfunction
indicator light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten or in-
stall the cap and continue to drive the ve-
hicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer.
● If your vehicle is equipped with the LOOSE
FUEL CAP warning, the LOOSE FUEL CAP
warning will illuminate if the fuel-filler cap is
not properly tightened. Failure to tighten the
fuel-filler cap properly after the LOOSE FUEL
CAP warning illuminates may cause the
malfunction indicator light (MIL) to
illuminate.
Pre-driving checks and adjustments3-33
—
—
04/28/10—pattie


Put the fuel-filler cap on the cap holderA
while refueling.
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise toremove.
2. Put the fuel-filler cap on the cap holder (A) while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into thefuel-filler tube.
2. Turn the fuel-filler cap clockwise until it clicks. The fuel-filler cap is a ratcheting
type.
LOOSE FUEL CAP warning (if so
equipped)
The LOOSE FUEL CAP warning appears on the
dot matrix liquid crystal display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled.
To turn off the warning, perform the following:
1. Remove and install the fuel-filler cap assoon as possible. (See FUEL-FILLER
CAP.).
2. Tighten the fuel-filler cap until it clicks.
3. Push the reset switch (A) on the right side of the combination meter panel for about
1 second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap.
WARNING
●Do not adjust the steering wheel while driv-
ing. You could lose control of your vehicle
and cause an accident.
● Do not adjust the steering wheel any closer
to you than is necessary for proper steering
operation and comfort. The driver’s air bag
inflates with great force. If you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the air bag if you are up against it when
it inflates. Always sit back against the seat-
back and as far away as practical from the
steering wheel. Always use the seat belts.
SPA2403SPA2802
TILT/TELESCOPIC STEERING
3-34Pre-driving checks and adjustments
—
—
04/28/10—diane

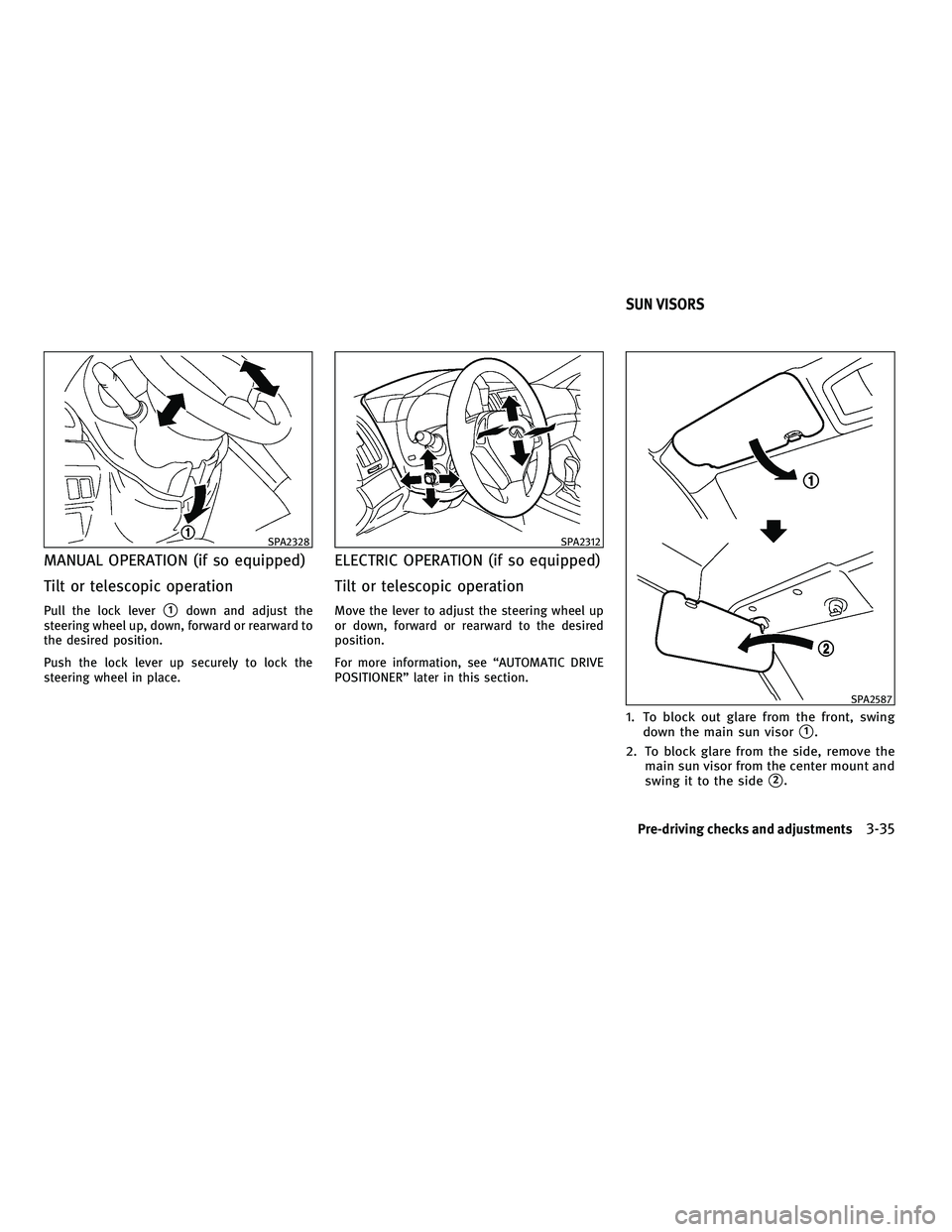

MANUAL OPERATION (if so equipped)
Tilt or telescopic operation
Pull the lock lever1down and adjust the
steering wheel up, down, forward or rearward to
the desired position.
Push the lock lever up securely to lock the
steering wheel in place.
ELECTRIC OPERATION (if so equipped)
Tilt or telescopic operation
Move the lever to adjust the steering wheel up
or down, forward or rearward to the desired
position.
For more information, see “AUTOMATIC DRIVE
POSITIONER” later in this section.
1. To block out glare from the front, swing down the main sun visor
1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
2.
SPA2328SPA2312
SPA2587
SUN VISORS
Pre-driving checks and adjustments3-35
—
—
04/28/10—pattie


INSIDE MIRROR
Adjust the height and the angle of the inside
mirror to the desired position.
Manual anti-glare type
The night position1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
2when driving in day-
light hours.
WARNING
Use the night position only when necessary,
because it reduces rear view clarity.
Automatic anti-glare type
The inside mirror is designed so that it auto-
matically changes reflection according to the
intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed to
the ON position.
When the anti-glare system is turned on, the
indicator light
Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
SPA2447SPA2143SPA2450
MIRRORS
3-36Pre-driving checks and adjustments
—
—
04/28/10—pattie


Push the “” switchCto make the inside
rearview mirror operate normally. The indicator
light will turn off. Push the “I” switch
Dto turn
the system on.
Do not allow any object to cover the sensors
E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation.
For the HomeLink Universal Transceiver (if so
equipped) operation, see “HomeLink UNIVER-
SAL TRANSCEIVER” in the “2. Instruments and
controls” section.
OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear. Be
careful when moving to the right. Using only
this mirror could cause an accident. Use the
inside mirror or glance over your shoulder to
properly judge distances to other objects.
Adjusting outside mirrors
The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
1, then adjust using the con-
trol switch
2.
Defrosting outside mirrors
The outside mirrors will be heated when the
rear window defroster switch is operated.SPA2309
Pre-driving checks and adjustments3-37
—
—
04/28/10—pattie

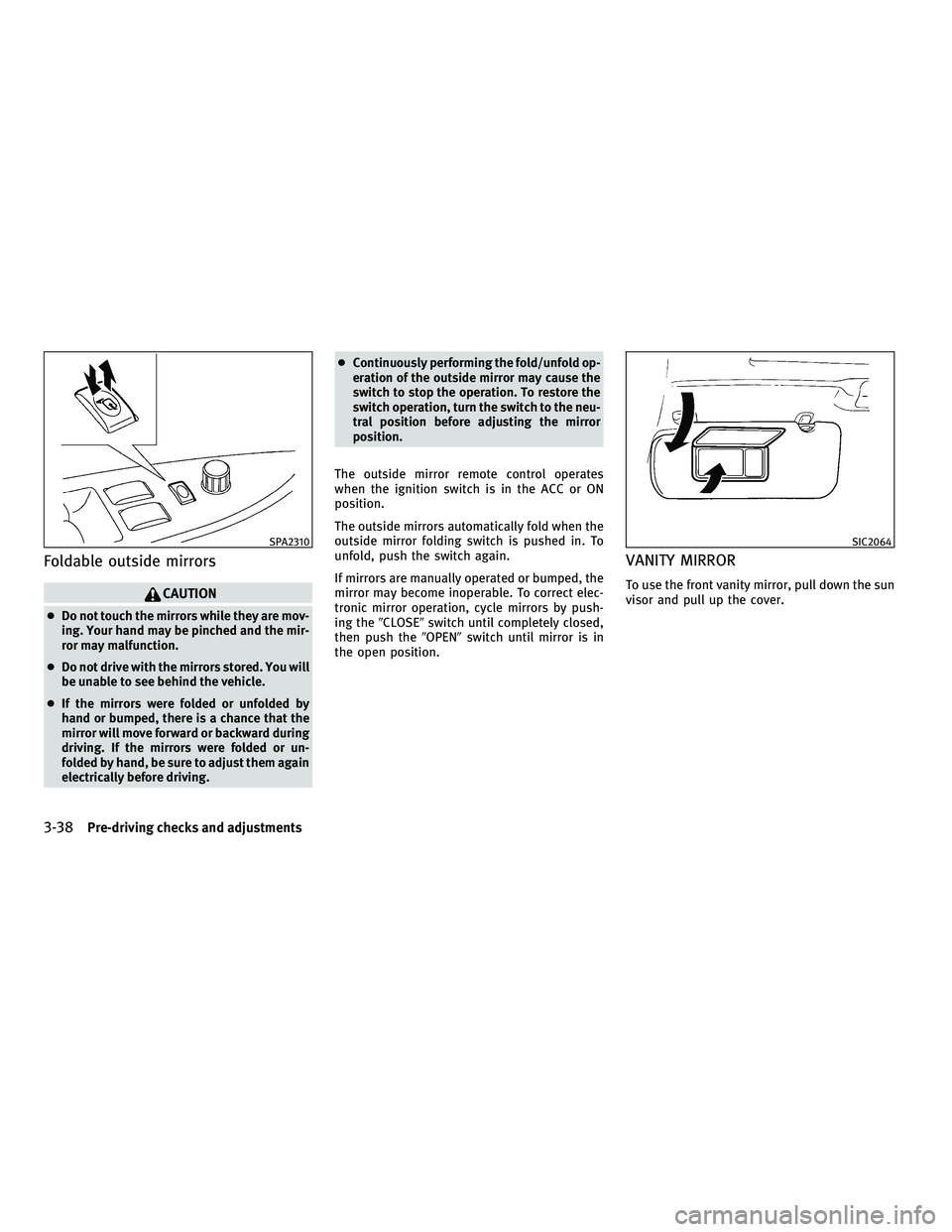

Foldable outside mirrors
CAUTION
●Do not touch the mirrors while they are mov-
ing. Your hand may be pinched and the mir-
ror may malfunction.
● Do not drive with the mirrors stored. You will
be unable to see behind the vehicle.
● If the mirrors were folded or unfolded by
hand or bumped, there is a chance that the
mirror will move forward or backward during
driving. If the mirrors were folded or un-
folded by hand, be sure to adjust them again
electrically before driving. ●
Continuously performing the fold/unfold op-
eration of the outside mirror may cause the
switch to stop the operation. To restore the
switch operation, turn the switch to the neu-
tral position before adjusting the mirror
position.
The outside mirror remote control operates
when the ignition switch is in the ACC or ON
position.
The outside mirrors automatically fold when the
outside mirror folding switch is pushed in. To
unfold, push the switch again.
If mirrors are manually operated or bumped, the
mirror may become inoperable. To correct elec-
tronic mirror operation, cycle mirrors by push-
ing the CLOSE switch until completely closed,
then push the OPENswitch until mirror is in
the open position.
VANITY MIRROR
To use the front vanity mirror, pull down the sun
visor and pull up the cover.
SPA2310SIC2064
3-38Pre-driving checks and adjustments
—
—
04/28/10—pattie


The automatic drive positioner system has two
features:
●Seat synchronization function
● Memory storage
SEAT SYNCHRONIZATION FUNCTION
The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mir-
rors will not move if the seat is adjusted over
the maximum thresholds. The system considers
that the steering wheel and outside mirror
adjustments are not necessary because the
seat may not be adjusted for the driving posi-
tion. Note that the function is set to disabled as
the factory default setting. The seat synchronization function operates un-
der the following conditions:
●
The ignition switch is in the ON position.
● The selector lever is in the P (Park) position
(Automatic Transmission models) or the
parking brake is applied (Manual Transmis-
sion models).
● The seatback is raised.
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function
is automatically disabled. Restart the function
by selecting a previously stored seat memory
position using the memory switches (1 or 2). An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in
the seat memory, restart the function by adjust-
ing the steering wheel and outside mirrors
manually for your best driving position and then
drive the vehicle above 4 MPH (7 km/h).
SPA2659
AUTOMATIC DRIVE POSITIONER (if so
equipped)
Pre-driving checks and adjustments3-39
—
—
04/28/10—pattie
