INFINITI G-CONVERTIBLE 2010 Owners Manual

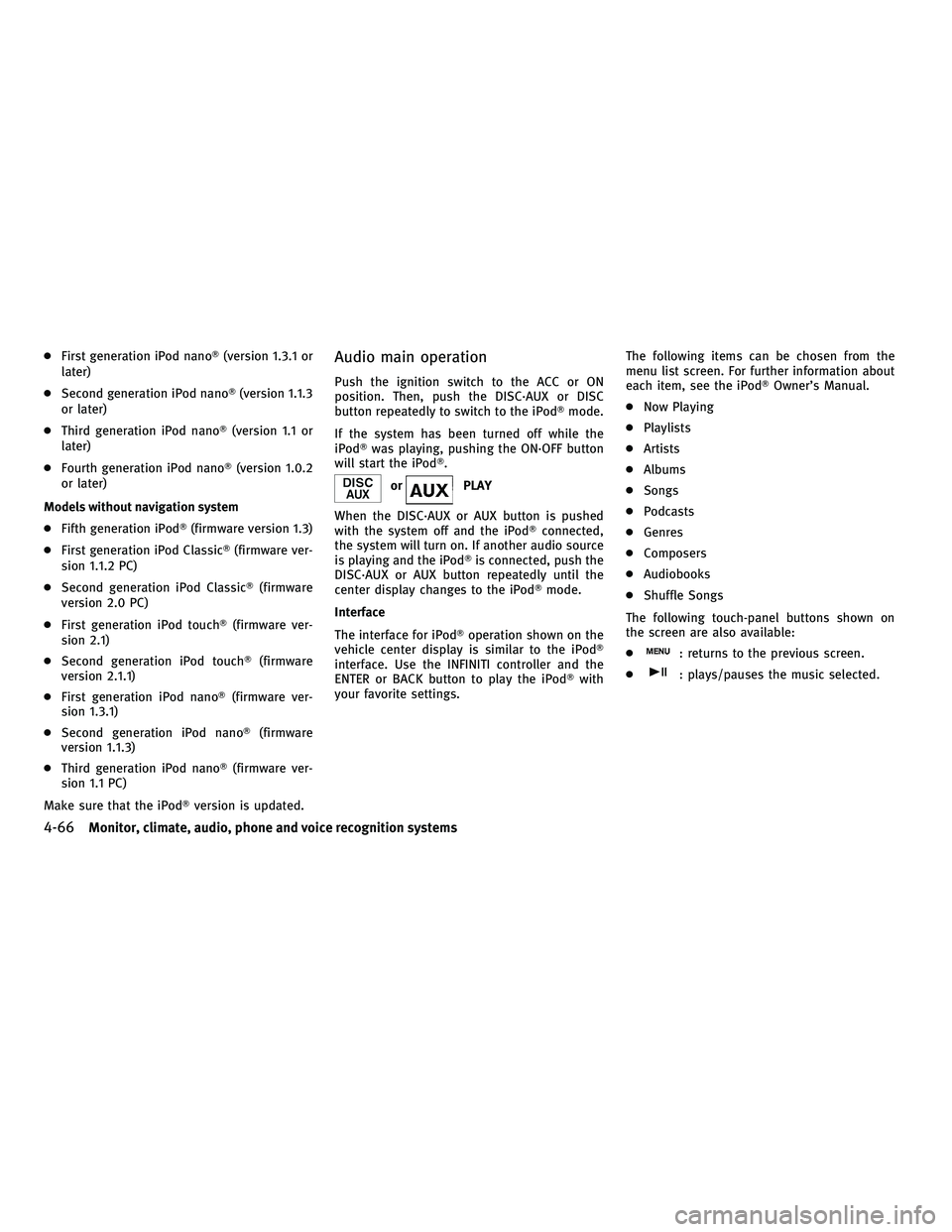

●First generation iPod nano (version 1.3.1 or
later)
● Second generation iPod nano (version 1.1.3
or later)
● Third generation iPod nano (version 1.1 or
later)
● Fourth generation iPod nano (version 1.0.2
or later)
Models without navigation system
● Fifth generation iPod (firmware version 1.3)
● First generation iPod Classic (firmware ver-
sion 1.1.2 PC)
● Second generation iPod Classic (firmware
version 2.0 PC)
● First generation iPod touch (firmware ver-
sion 2.1)
● Second generation iPod touch (firmware
version 2.1.1)
● First generation iPod nano (firmware ver-
sion 1.3.1)
● Second generation iPod nano (firmware
version 1.1.3)
● Third generation iPod nano (firmware ver-
sion 1.1 PC)
Make sure that the iPod version is updated.Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX or DISC
button repeatedly to switch to the iPod mode.
If the system has been turned off while the
iPod was playing, pushing the ON·OFF button
will start the iPod.
orPLAY
When the DISC·AUX or AUX button is pushed
with the system off and the iPod connected,
the system will turn on. If another audio source
is playing and the iPod is connected, push the
DISC·AUX or AUX button repeatedly until the
center display changes to the iPod mode.
Interface
The interface for iPod operation shown on the
vehicle center display is similar to the iPod
interface. Use the INFINITI controller and the
ENTER or BACK button to play the iPod with
your favorite settings. The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod
Owner’s Manual.
● Now Playing
● Playlists
● Artists
● Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle Songs
The following touch-panel buttons shown on
the screen are also available:
●
: returns to the previous screen.
●
: plays/pauses the music selected.
4-66Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks

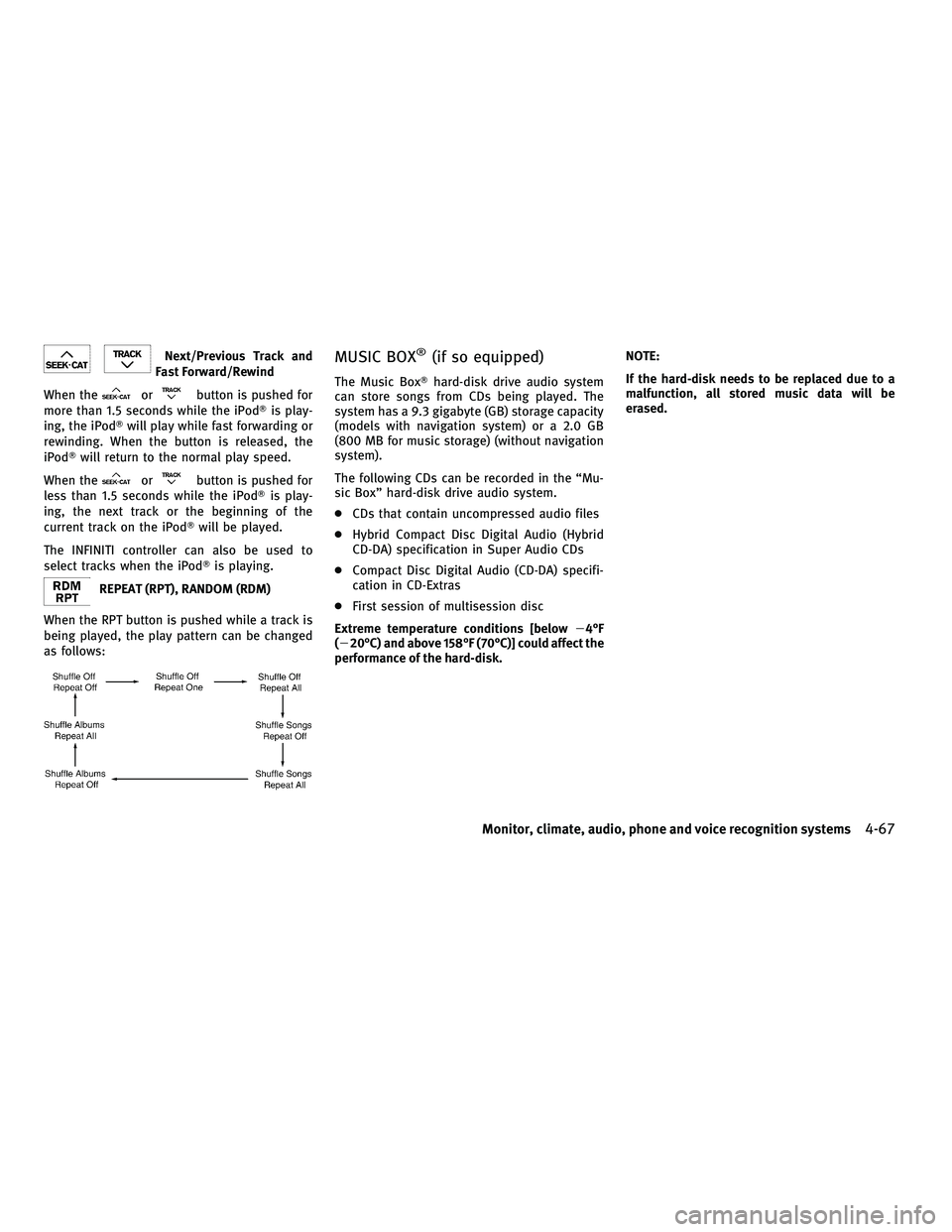

Next/Previous Track and
Fast Forward/Rewind
When the
orbutton is pushed for
more than 1.5 seconds while the iPod is play-
ing, the iPod will play while fast forwarding or
rewinding. When the button is released, the
iPod will return to the normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the iPod is play-
ing, the next track or the beginning of the
current track on the iPod will be played.
The INFINITI controller can also be used to
select tracks when the iPod is playing.
REPEAT (RPT), RANDOM (RDM)
When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:
MUSIC BOX®(if so equipped)
The Music Box hard-disk drive audio system
can store songs from CDs being played. The
system has a 9.3 gigabyte (GB) storage capacity
(models with navigation system) or a 2.0 GB
(800 MB for music storage) (without navigation
system).
The following CDs can be recorded in the “Mu-
sic Box” hard-disk drive audio system.
● CDs that contain uncompressed audio files
● Hybrid Compact Disc Digital Audio (Hybrid
CD-DA) specification in Super Audio CDs
● Compact Disc Digital Audio (CD-DA) specifi-
cation in CD-Extras
● First session of multisession disc
Extreme temperature conditions [below 4°F
(20°C) and above 158°F (70°C)] could affect the
performance of the hard-disk. NOTE:
If the hard-disk needs to be replaced due to a
malfunction, all stored music data will be
erased.
Monitor, climate, audio, phone and voice recognition systems4-67
—
—
05/12/10—tbrooks


Recording CDs
1. Operate the audio system to play a CD. Forthe details of playing CDs, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” or “REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” or
“REC” key is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
● Individual tracks can be deleted from the
hard-disk drive after the CD is recorded.
● The order of the tracks may not be changed
while recording.
Models with navigation system
SAA2513
Models without navigation system
SAA2612
Models with navigation system
SAA2514
Models without navigation system
SAA2613
4-68Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks


If the title information of the track being re-
corded is stored either in the hard-disk drive or
in the CD, the title is automatically displayed on
the screen. For title acquisition from the hard-
disk drive, music recognition technology and
related data are provided by Gracenote.
If a track is not recorded successfully due to
skipping sounds, the
mark is displayed
behind the track number.
The “Music Box” hard disk drive cannot perform
recording under the following conditions.
● There is not enough space in the hard-disk
● The number of albums reaches the maximum
of 500.
● The number of tracks reaches the maximum
of 3,000.
Automatic recording
If the “Automatic Recording” function is turned
to ON, recording starts when a CD is inserted.
(See “Music Box settings” later in this section.)
Stopping recording
To stop the recording, select the “Stop REC” key
button by touching the screen or using the
INFINITI controller.
If the CD is ejected, the audio system is turned
off or the ignition switch is pushed to the OFF
position, the recording also stops.
Playing recorded songs
Select the “Music Box” audio system by using
one of the following methods.
● Push the audio source switch on the steering
wheel repeatedly until the center display
changes to the Music Box mode. (See
“STEERING-WHEEL-MOUNTED CONTROLS
FOR AUDIO” later in this section.)
● Push the DISC·AUX or DISC button repeat-
edly until the center display changes to the
Music Box mode.
● Give voice commands. (See “INFINITI VOICE
RECOGNITION SYSTEM (models with naviga-
tion system)” later in this section.)
Stopping playback
The system stops playing when:
a. another mode (radio, CD, DVD, USB memory or iPod) is selected.
b. the audio system is turned off.
c. the ignition switch is pushed to the LOCK position.
Models with navigation system
SAA2515
Models without navigation system
SAA2614
Monitor, climate, audio, phone and voice recognition systems4-69
—
—
10/15/09—tbrooks

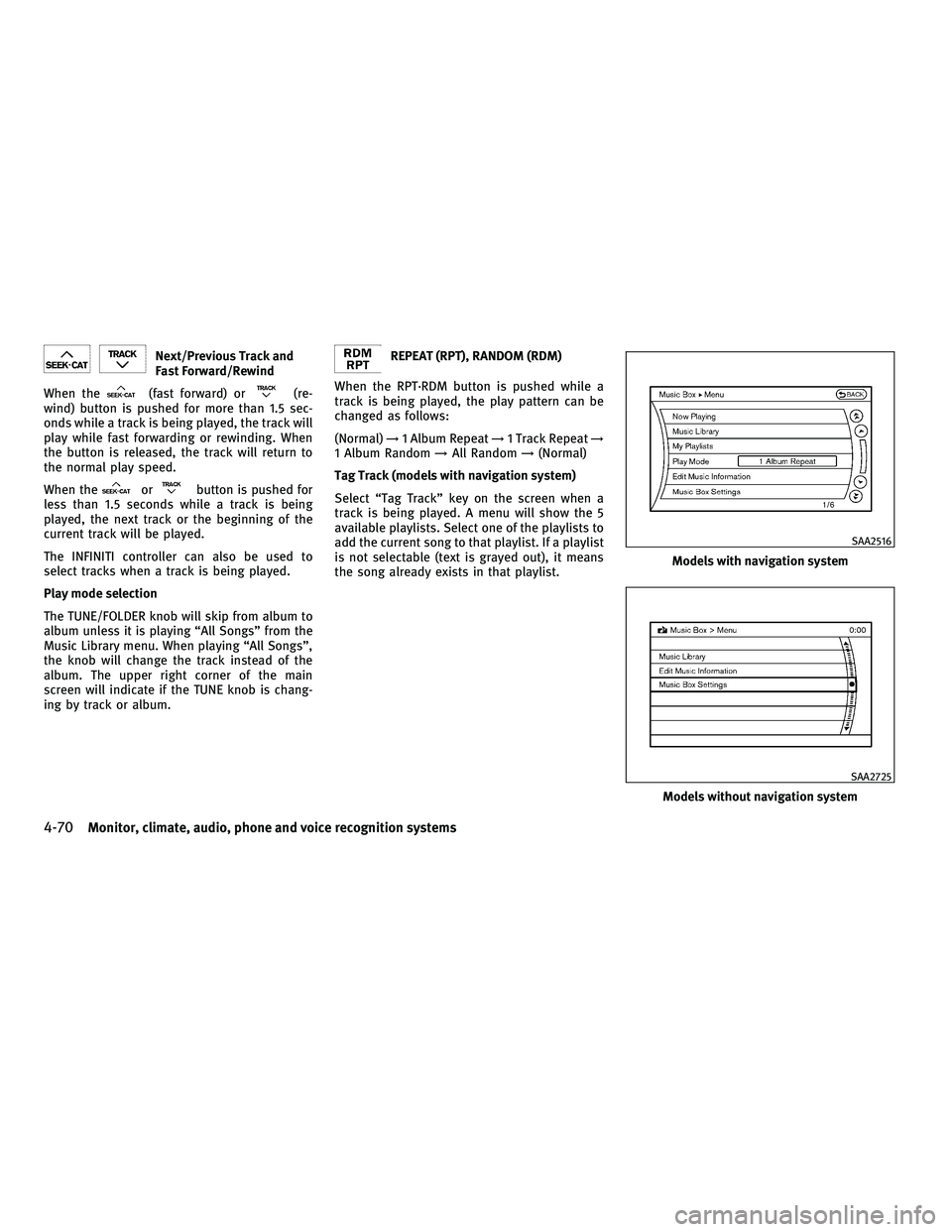

Next/Previous Track and
Fast Forward/Rewind
When the
(fast forward) or(re-
wind) button is pushed for more than 1.5 sec-
onds while a track is being played, the track will
play while fast forwarding or rewinding. When
the button is released, the track will return to
the normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while a track is being
played, the next track or the beginning of the
current track will be played.
The INFINITI controller can also be used to
select tracks when a track is being played.
Play mode selection
The TUNE/FOLDER knob will skip from album to
album unless it is playing “All Songs” from the
Music Library menu. When playing “All Songs”,
the knob will change the track instead of the
album. The upper right corner of the main
screen will indicate if the TUNE knob is chang-
ing by track or album.
REPEAT (RPT), RANDOM (RDM)
When the RPT·RDM button is pushed while a
track is being played, the play pattern can be
changed as follows:
(Normal) →1 Album Repeat →1 Track Repeat →
1 Album Random →All Random →(Normal)
Tag Track (models with navigation system)
Select “Tag Track” key on the screen when a
track is being played. A menu will show the 5
available playlists. Select one of the playlists to
add the current song to that playlist. If a playlist
is not selectable (text is grayed out), it means
the song already exists in that playlist.
Models with navigation system
SAA2516
Models without navigation system
SAA2725
4-70Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks

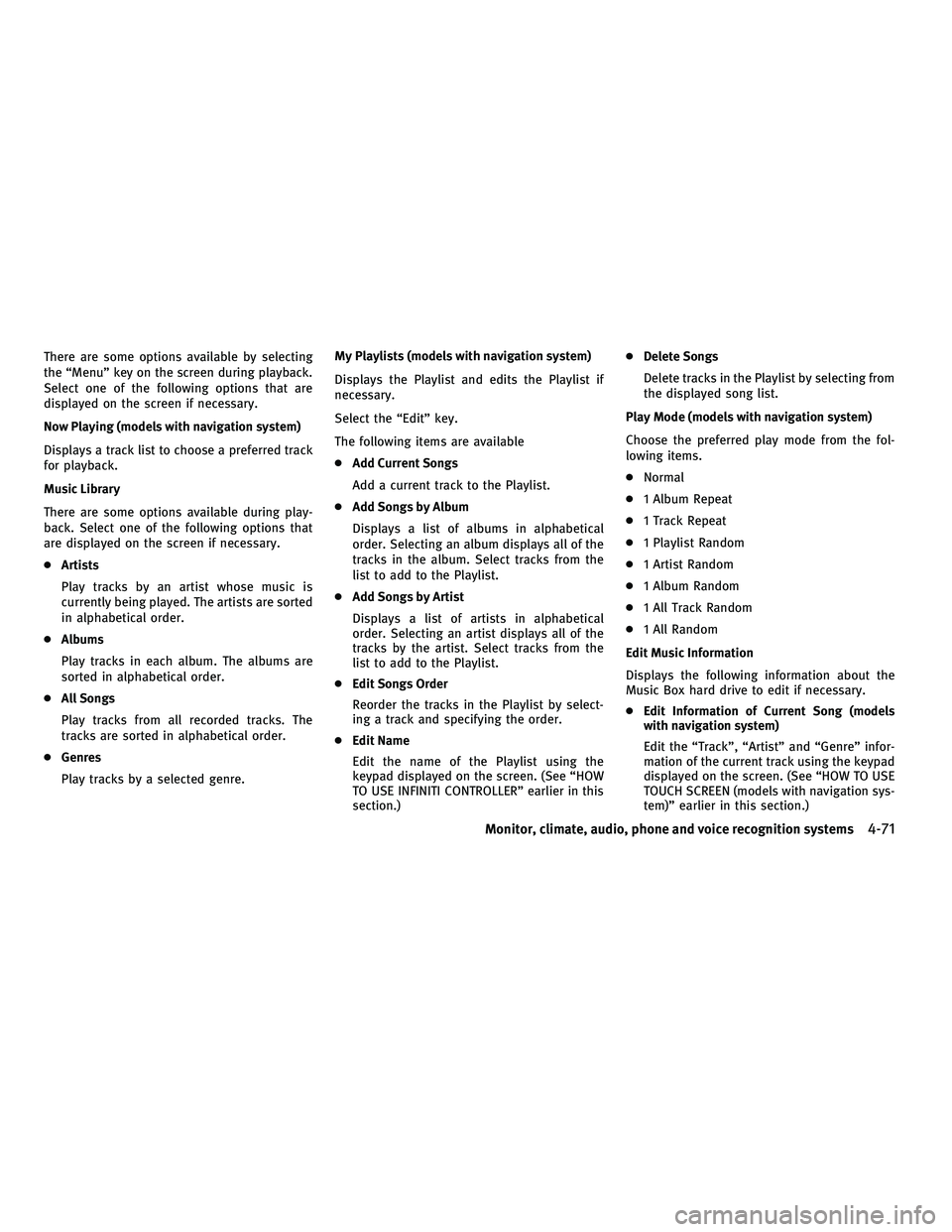

There are some options available by selecting
the “Menu” key on the screen during playback.
Select one of the following options that are
displayed on the screen if necessary.
Now Playing (models with navigation system)
Displays a track list to choose a preferred track
for playback.
Music Library
There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary.
●Artists
Play tracks by an artist whose music is
currently being played. The artists are sorted
in alphabetical order.
● Albums
Play tracks in each album. The albums are
sorted in alphabetical order.
● All Songs
Play tracks from all recorded tracks. The
tracks are sorted in alphabetical order.
● Genres
Play tracks by a selected genre. My Playlists (models with navigation system)
Displays the Playlist and edits the Playlist if
necessary.
Select the “Edit” key.
The following items are available
●
Add Current Songs
Add a current track to the Playlist.
● Add Songs by Album
Displays a list of albums in alphabetical
order. Selecting an album displays all of the
tracks in the album. Select tracks from the
list to add to the Playlist.
● Add Songs by Artist
Displays a list of artists in alphabetical
order. Selecting an artist displays all of the
tracks by the artist. Select tracks from the
list to add to the Playlist.
● Edit Songs Order
Reorder the tracks in the Playlist by select-
ing a track and specifying the order.
● Edit Name
Edit the name of the Playlist using the
keypad displayed on the screen. (See “HOW
TO USE INFINITI CONTROLLER” earlier in this
section.) ●
Delete Songs
Delete tracks in the Playlist by selecting from
the displayed song list.
Play Mode (models with navigation system)
Choose the preferred play mode from the fol-
lowing items.
● Normal
● 1 Album Repeat
● 1 Track Repeat
● 1 Playlist Random
● 1 Artist Random
● 1 Album Random
● 1 All Track Random
● 1 All Random
Edit Music Information
Displays the following information about the
Music Box hard drive to edit if necessary.
● Edit Information of Current Song (models
with navigation system)
Edit the “Track”, “Artist” and “Genre” infor-
mation of the current track using the keypad
displayed on the screen. (See “HOW TO USE
TOUCH SCREEN (models with navigation sys-
tem)” earlier in this section.)
Monitor, climate, audio, phone and voice recognition systems4-71
—
—
10/15/09—tbrooks

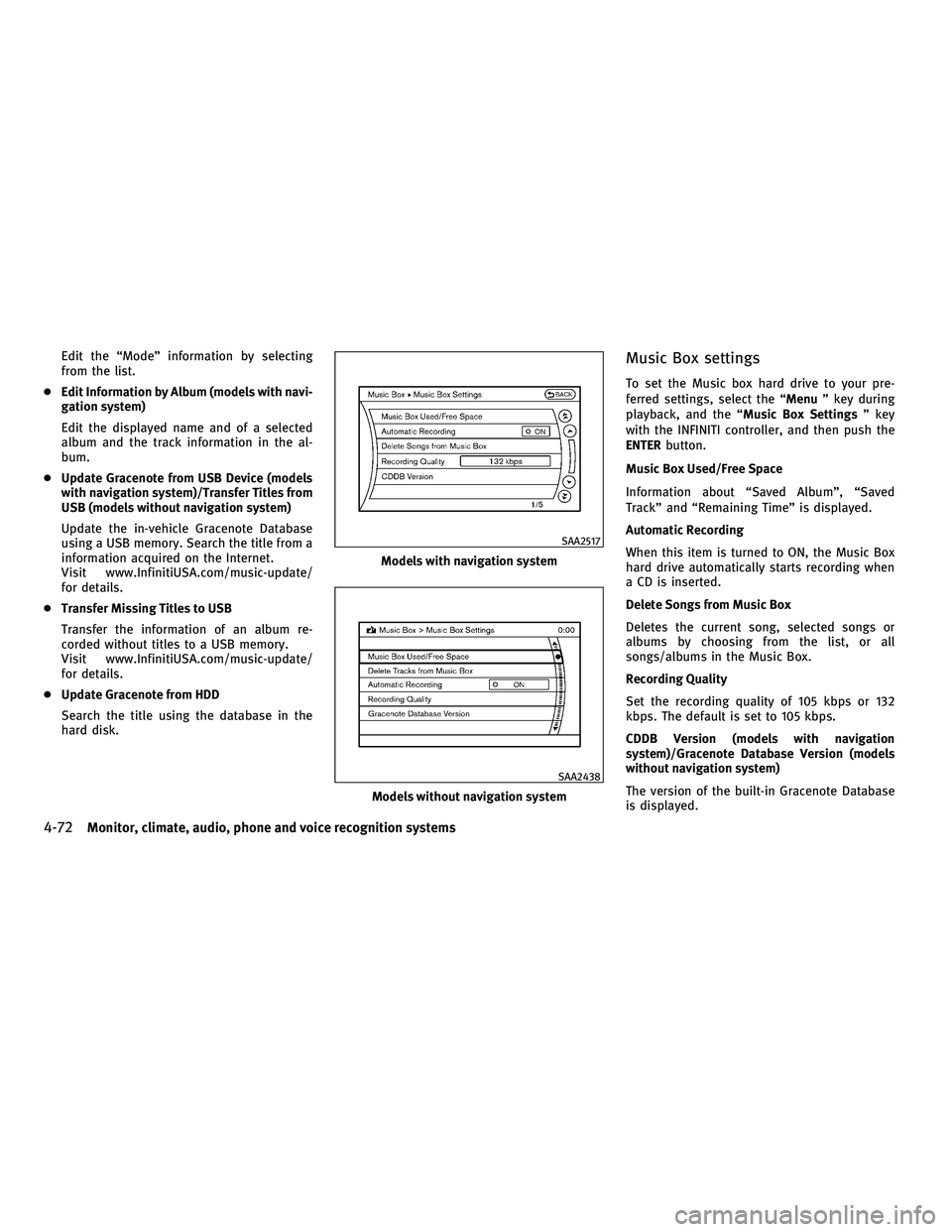

Edit the “Mode” information by selecting
from the list.
● Edit Information by Album (models with navi-
gation system)
Edit the displayed name and of a selected
album and the track information in the al-
bum.
● Update Gracenote from USB Device (models
with navigation system)/Transfer Titles from
USB (models without navigation system)
Update the in-vehicle Gracenote Database
using a USB memory. Search the title from a
information acquired on the Internet.
Visit www.InfinitiUSA.com/music-update/
for details.
● Transfer Missing Titles to USB
Transfer the information of an album re-
corded without titles to a USB memory.
Visit www.InfinitiUSA.com/music-update/
for details.
● Update Gracenote from HDD
Search the title using the database in the
hard disk.Music Box settings
To set the Music box hard drive to your pre-
ferred settings, select the “Menu ” key during
playback, and the “Music Box Settings ” key
with the INFINITI controller, and then push the
ENTER button.
Music Box Used/Free Space
Information about “Saved Album”, “Saved
Track” and “Remaining Time” is displayed.
Automatic Recording
When this item is turned to ON, the Music Box
hard drive automatically starts recording when
a CD is inserted.
Delete Songs from Music Box
Deletes the current song, selected songs or
albums by choosing from the list, or all
songs/albums in the Music Box.
Recording Quality
Set the recording quality of 105 kbps or 132
kbps. The default is set to 105 kbps.
CDDB Version (models with navigation
system)/Gracenote Database Version (models
without navigation system)
The version of the built-in Gracenote Database
is displayed.
Models with navigation system
SAA2517
Models without navigation system
SAA2438
4-72Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks

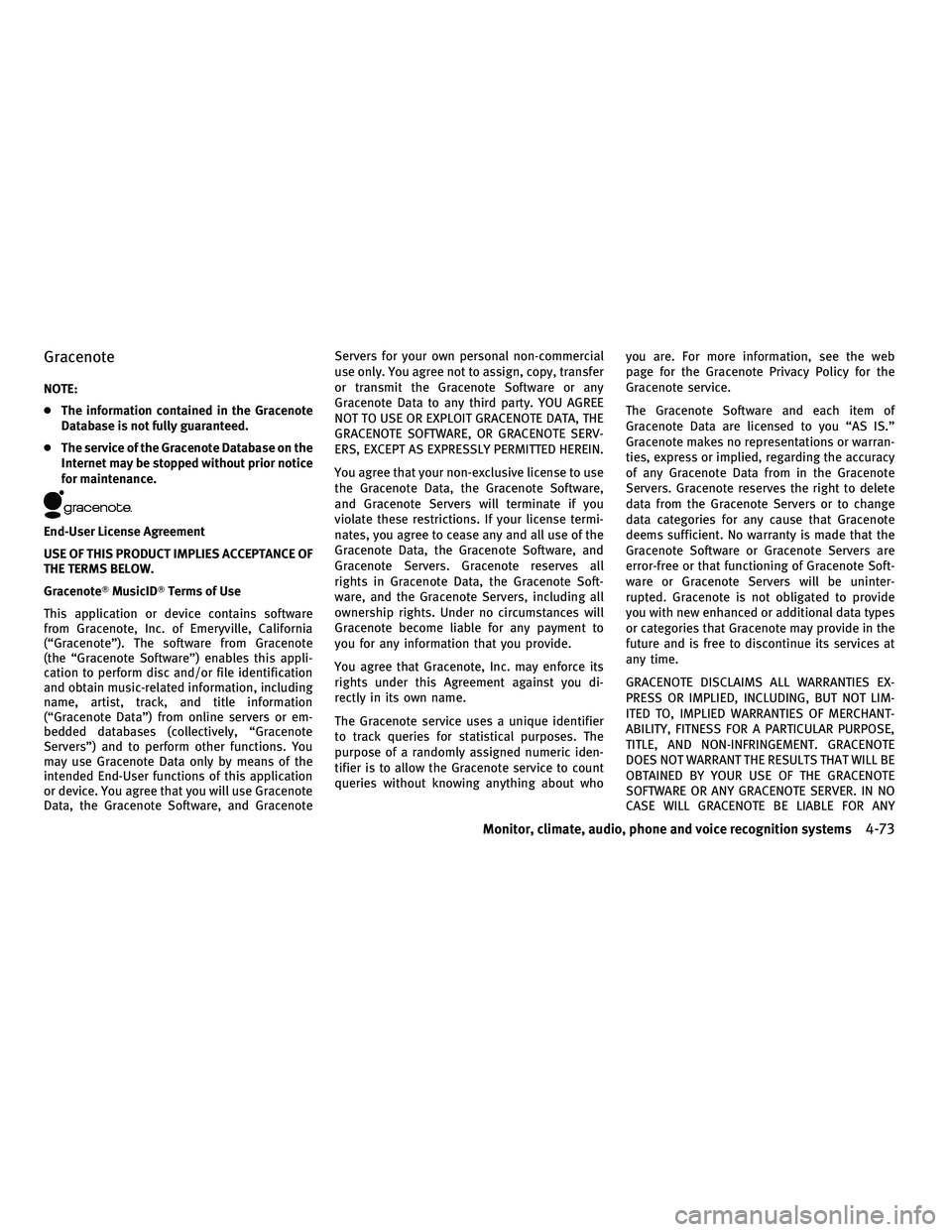

Gracenote
NOTE:
●The information contained in the Gracenote
Database is not fully guaranteed.
● The service of the Gracenote Database on the
Internet may be stopped without prior notice
for maintenance.
End-User License Agreement
USE OF THIS PRODUCT IMPLIES ACCEPTANCE OF
THE TERMS BELOW.
Gracenote MusicIDTerms of Use
This application or device contains software
from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote
(the “Gracenote Software”) enables this appli-
cation to perform disc and/or file identification
and obtain music-related information, including
name, artist, track, and title information
(“Gracenote Data”) from online servers or em-
bedded databases (collectively, “Gracenote
Servers”) and to perform other functions. You
may use Gracenote Data only by means of the
intended End-User functions of this application
or device. You agree that you will use Gracenote
Data, the Gracenote Software, and Gracenote Servers for your own personal non-commercial
use only. You agree not to assign, copy, transfer
or transmit the Gracenote Software or any
Gracenote Data to any third party. YOU AGREE
NOT TO USE OR EXPLOIT GRACENOTE DATA, THE
GRACENOTE SOFTWARE, OR GRACENOTE SERV-
ERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your non-exclusive license to use
the Gracenote Data, the Gracenote Software,
and Gracenote Servers will terminate if you
violate these restrictions. If your license termi-
nates, you agree to cease any and all use of the
Gracenote Data, the Gracenote Software, and
Gracenote Servers. Gracenote reserves all
rights in Gracenote Data, the Gracenote Soft-
ware, and the Gracenote Servers, including all
ownership rights. Under no circumstances will
Gracenote become liable for any payment to
you for any information that you provide.
You agree that Gracenote, Inc. may enforce its
rights under this Agreement against you di-
rectly in its own name.
The Gracenote service uses a unique identifier
to track queries for statistical purposes. The
purpose of a randomly assigned numeric iden-
tifier is to allow the Gracenote service to count
queries without knowing anything about who
you are. For more information, see the web
page for the Gracenote Privacy Policy for the
Gracenote service.
The Gracenote Software and each item of
Gracenote Data are licensed to you “AS IS.”
Gracenote makes no representations or warran-
ties, express or implied, regarding the accuracy
of any Gracenote Data from in the Gracenote
Servers. Gracenote reserves the right to delete
data from the Gracenote Servers or to change
data categories for any cause that Gracenote
deems sufficient. No warranty is made that the
Gracenote Software or Gracenote Servers are
error-free or that functioning of Gracenote Soft-
ware or Gracenote Servers will be uninter-
rupted. Gracenote is not obligated to provide
you with new enhanced or additional data types
or categories that Gracenote may provide in the
future and is free to discontinue its services at
any time.
GRACENOTE DISCLAIMS ALL WARRANTIES EX-
PRESS OR IMPLIED, INCLUDING, BUT NOT LIM-
ITED TO, IMPLIED WARRANTIES OF MERCHANT-
ABILITY, FITNESS FOR A PARTICULAR PURPOSE,
TITLE, AND NON-INFRINGEMENT. GRACENOTE
DOES NOT WARRANT THE RESULTS THAT WILL BE
OBTAINED BY YOUR USE OF THE GRACENOTE
SOFTWARE OR ANY GRACENOTE SERVER. IN NO
CASE WILL GRACENOTE BE LIABLE FOR ANY
Monitor, climate, audio, phone and voice recognition systems4-73
—
—
10/15/09—tbrooks


CONSEQUENTIAL OR INCIDENTAL DAMAGES OR
FOR ANY LOST PROFITS OR LOST REVENUES.
Copyright
Music recognition technology and related data
are provided by Gracenote. Gracenote is the
industry standard in music recognition technol-
ogy and related content delivery. For more
information, please visit www.gracenote.com.
CD and music-related data from Gracenote, Inc.,
copyright © 2000-2009 Gracenote. Gracenote
Software, copyright © 2000-2009 Gracenote.
This product and service may practice one or
more of the following U.S. Patents: #5,987,525;
#6,061,680; #6,154,773, #6,161,132,
#6,230,192, #6,230,207, #6,240,459,
#6,330,593, and other patents issued or pend-
ing. Some services supplied under license from
Open Globe, Inc. for U.S. Patent: #6,304,523.
Gracenote and CDDB are registered trademarks
of Gracenote. The Gracenote logo and logotype,
and the “Powered by Gracenote” logo are trade-
marks of Gracenote.

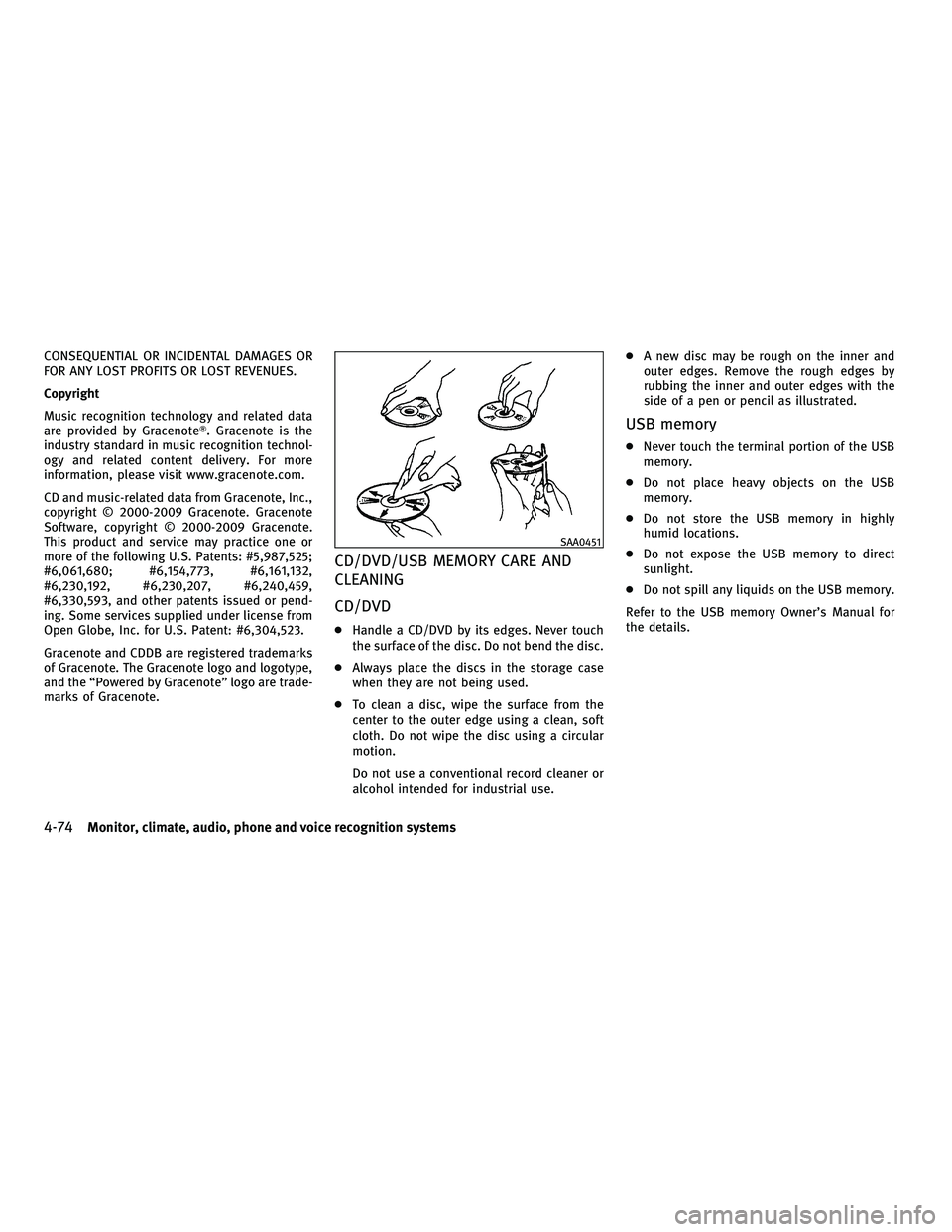

CD/DVD/USB MEMORY CARE AND
CLEANING
CD/DVD
● Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the disc.
● Always place the discs in the storage case
when they are not being used.
● To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use. ●
A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memory
● Never touch the terminal portion of the USB
memory.
● Do not place heavy objects on the USB
memory.
● Do not store the USB memory in highly
humid locations.
● Do not expose the USB memory to direct
sunlight.
● Do not spill any liquids on the USB memory.
Refer to the USB memory Owner’s Manual for
the details.
SAA0451
4-74Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks

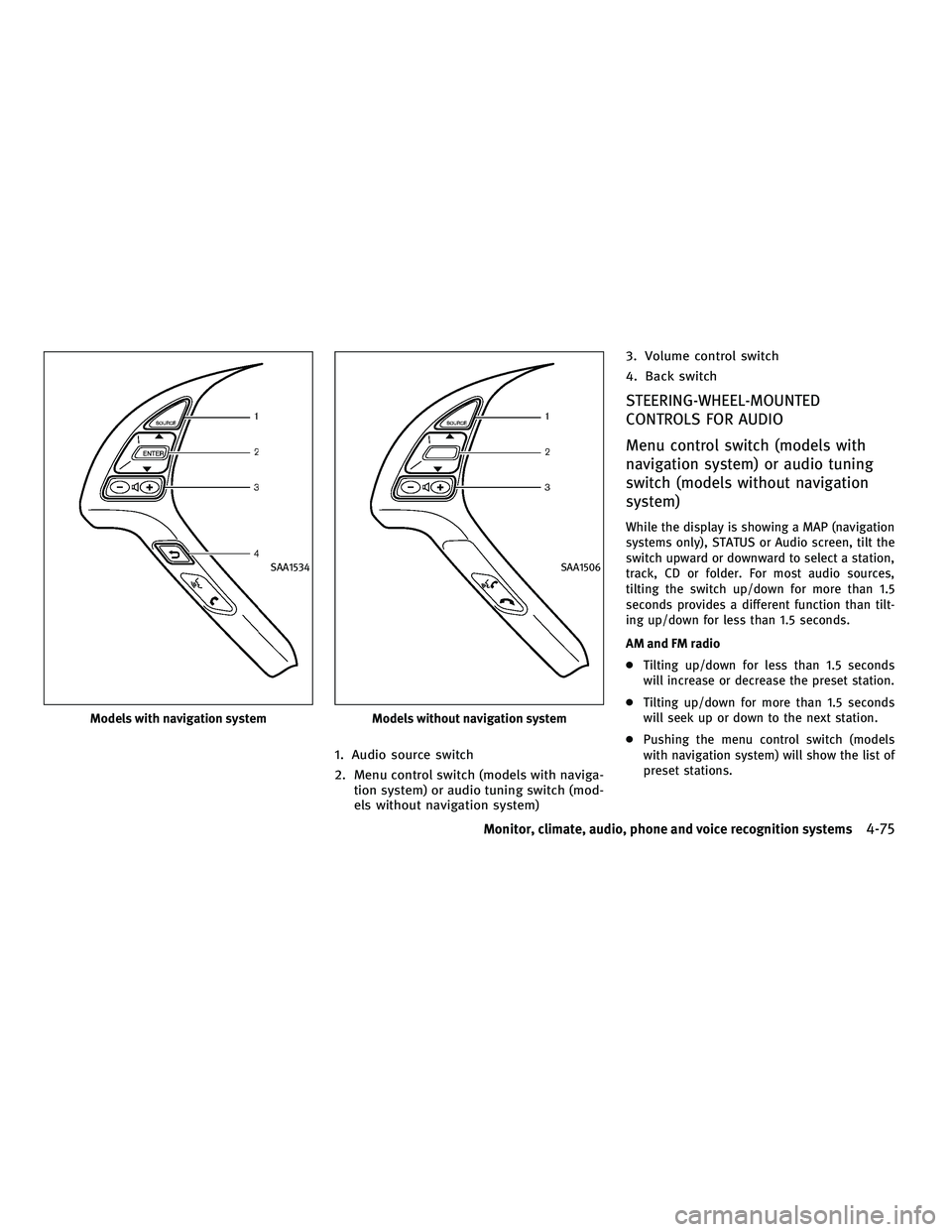

1. Audio source switch
2. Menu control switch (models with naviga-tion system) or audio tuning switch (mod-
els without navigation system) 3. Volume control switch
4. Back switch
STEERING-WHEEL-MOUNTED
CONTROLS FOR AUDIO
Menu control switch (models with
navigation system) or audio tuning
switch (models without navigation
system)
While the display is showing a MAP (navigation
systems only), STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilt-
ing up/down for less than 1.5 seconds.
AM and FM radio
●
Tilting up/down for less than 1.5 seconds
will increase or decrease the preset station.
● Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
● Pushing the menu control switch (models
with navigation system) will show the list of
preset stations.
Models with navigation system
SAA1534
Models without navigation system
SAA1506
Monitor, climate, audio, phone and voice recognition systems4-75
—
—
10/15/09—tbrooks
