engine INFINITI G-CONVERTIBLE 2011 Owners Manual

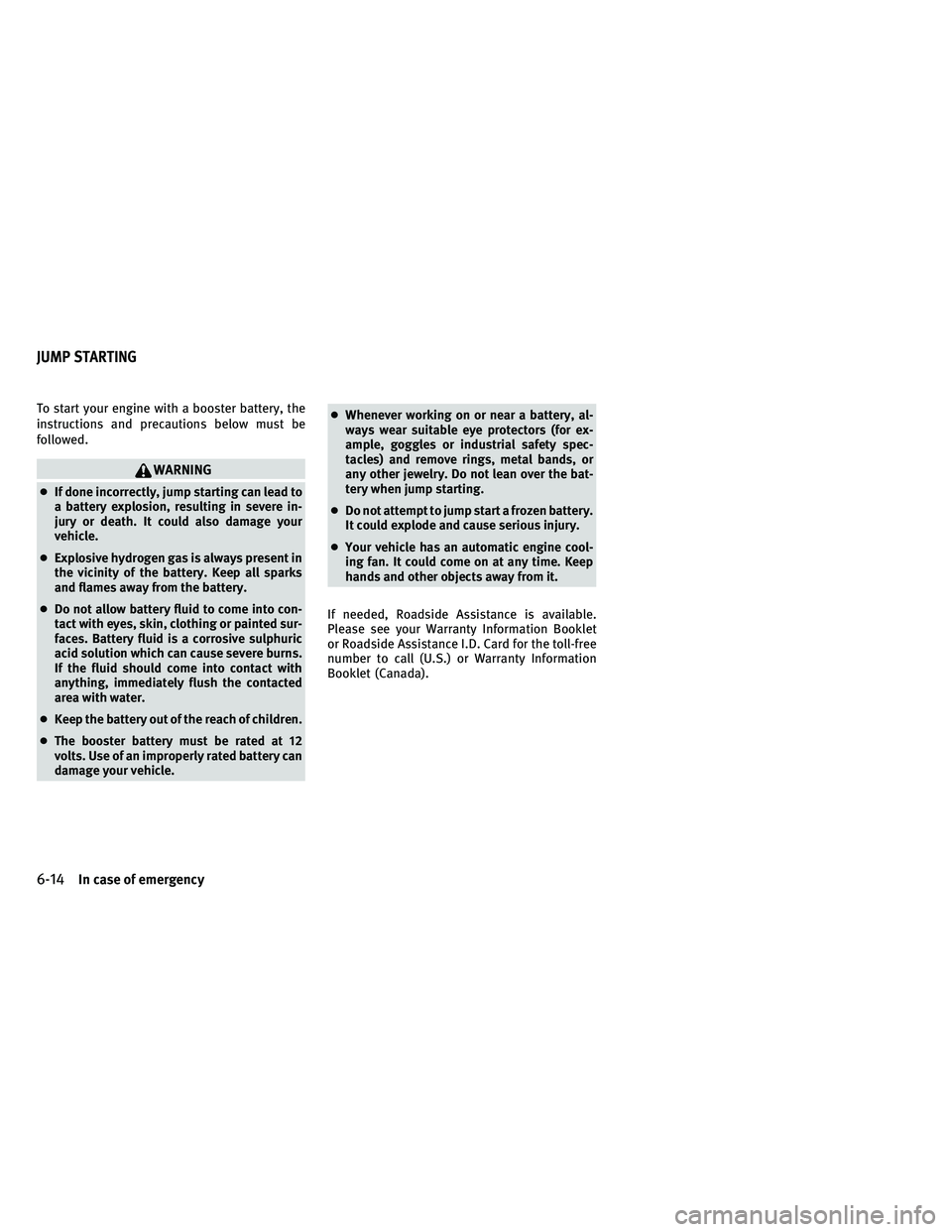

To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING
●If done incorrectly, jump starting can lead to
a battery explosion, resulting in severe in-
jury or death. It could also damage your
vehicle.
● Explosive hydrogen gas is always present in
the vicinity of the battery. Keep all sparks
and flames away from the battery.
● Do not allow battery fluid to come into con-
tact with eyes, skin, clothing or painted sur-
faces. Battery fluid is a corrosive sulphuric
acid solution which can cause severe burns.
If the fluid should come into contact with
anything, immediately flush the contacted
area with water.
● Keep the battery out of the reach of children.
● The booster battery must be rated at 12
volts. Use of an improperly rated battery can
damage your vehicle. ●
Whenever working on or near a battery, al-
ways wear suitable eye protectors (for ex-
ample, goggles or industrial safety spec-
tacles) and remove rings, metal bands, or
any other jewelry. Do not lean over the bat-
tery when jump starting.
● Do not attempt to jump start a frozen battery.
It could explode and cause serious injury.
● Your vehicle has an automatic engine cool-
ing fan. It could come on at any time. Keep
hands and other objects away from it.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
JUMP STARTING
6-14In case of emergency

WARNING
Always follow the instructions below. Failure to
do so could result in damage to the charging
system and cause personal injury.
1. If the booster battery is in another vehicle
A, position the two vehicles (AandB)
to bring their batteries into close proxim-
ity to each other.
Do not allow the two vehicles to touch.
2. Apply the parking brake. 3.
Automatic Transmission model:
Move the selector lever to the P (Park)
position.
Manual Transmission model:
Move the shift lever to the N (Neutral) posi-
tion.
4. Switch off all unnecessary electrical sys-
tems (headlights, heater, air conditioner,
etc.).
5. Remove the vent caps on the battery (if so equipped). Cover the battery with a firmly
wrung out moist cloth
Cto reduce explo-
sion hazard. 6. Connect jumper cables in the sequence as
illustrated (
1→2→3→4).
For models with a steering wheel lock
mechanism: If the battery is disconnected or
discharged, the steering wheel will lock and
cannot be turned. Supply power using
jumper cables before pushing the ignition
switch and disengaging the steering lock.
CAUTION
●Always connect positive (+) to positive (+)
and negative () to body ground (as illus-
trated) — not to the battery.
● Make sure the jumper cables do not touch
moving parts in the engine compartment and
that clamps do not contact any other metal.
7. Start the engine of the booster vehicleA
and let it run for a few minutes.
8. Keep the engine speed of the booster vehicle
Aat about 2,000 rpm, and start
the engine of the vehicle
Bbeing jump
started.
SCE0653
In case of emergency6-15

CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
9. After starting your engine, carefully dis-connect the negative cable and then the
positive cable (
4→3→2→1).
10. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to
cover the vent holes as it may be con-
taminated with corrosive acid.
Do not attempt to start the engine by pushing.
CAUTION
●Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
CAUTION
● Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake.
2. Automatic Transmission model:
Move the selector lever to the P (Park)
position.
Manual Transmission model:
Move the shift lever to the N (Neutral) posi-
tion.
Do not stop the engine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
6-16In case of emergency

3. Turn off the air conditioner. Open all thewindows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
4. If engine overheating is caused by climb- ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
5. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
6. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
7. Visually check the drive belt for damage or looseness. Also check if the cooling fan
is running. The radiator hoses and radia-
tor should not leak water. If coolant is
leaking or the cooling fan does not run,
stop the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
8. After the engine cools down, check the coolant level in the reservoir with the
engine running. Add coolant to the reser-
voir if necessary. Have your vehicle re-
paired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada). When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.WARNING
●
Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and drivetrain
are in working condition. If any unit is dam-
aged, dollies must be used.
● Always attach safety chains before towing.
TOWING YOUR VEHICLE
In case of emergency6-17

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VQ37VHR engine ............................... 8-6
Engine cooling system ............................. 8-7
Checking engine coolant level ................... 8-7
Changing engine coolant ........................ 8-8
Engine oil ........................................ 8-8
Checking engine oil level ....................... 8-8
Changing engine oil and filter ................... 8-9
Automatic transmission fluid .......................8-11
Power steering fluid ............................... 8-11
Brake and clutch fluid ............................ 8-12
Brake fluid ................................... 8-12
Clutch fluid (if so equipped) ....................8-12
Window washer fluid ............................. 8-13
Battery .......................................... 8-13
Jump starting ................................. 8-15Variable voltage control system
...................8-15
Drive belt ........................................ 8-16
Spark plugs ..................................... 8-16
Replacing spark plugs ......................... 8-17
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-18
Cleaning ...................................... 8-18
Replacing ..................................... 8-18
Brakes .......................................... 8-19
Self-adjusting brakes .......................... 8-19
Brake pad wear warning ....................... 8-19
Fuses ........................................... 8-20
Engine compartment ........................... 8-20
Passenger compartment ....................... 8-21
Intelligent Key battery replacement ................8-22
Lights ........................................... 8-24
Headlights .................................... 8-25
Exterior

and interior lights ..................... 8-25
Wheels and tires ................................. 8-27
Tire pressure .................................. 8-27
Tire labeling .................................. 8-30
Types of tires ................................. 8-32
Tire chains ................................... 8-32
Changing wheels and tires..................... 8-33

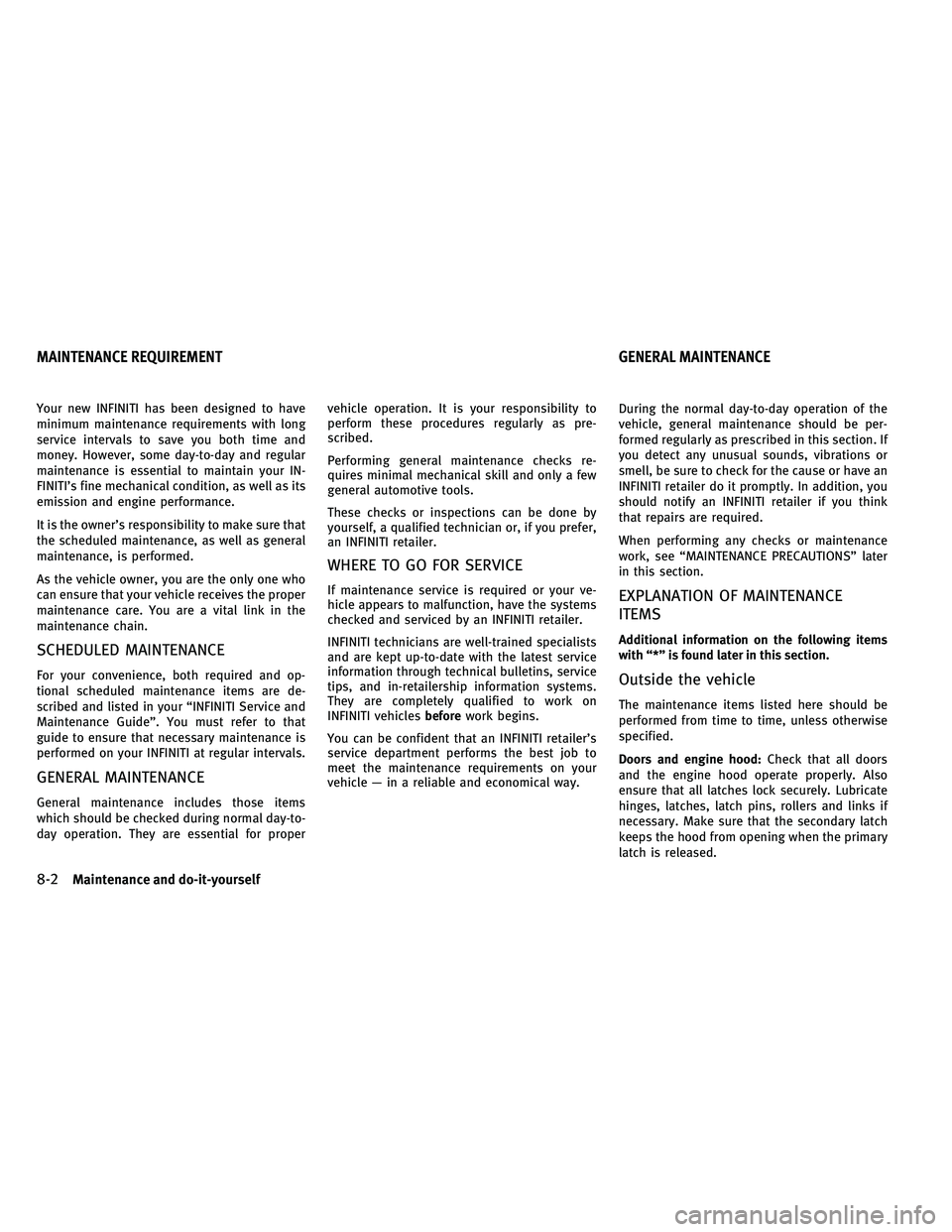

Your new INFINITI has been designed to have
minimum maintenance requirements with long
service intervals to save you both time and
money. However, some day-to-day and regular
maintenance is essential to maintain your IN-
FINITI’s fine mechanical condition, as well as its
emission and engine performance.
It is the owner’s responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCE
For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “INFINITI Service and
Maintenance Guide”. You must refer to that
guide to ensure that necessary maintenance is
performed on your INFINITI at regular intervals.
GENERAL MAINTENANCE
General maintenance includes those items
which should be checked during normal day-to-
day operation. They are essential for propervehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer,
an INFINITI retailer.
WHERE TO GO FOR SERVICE
If maintenance service is required or your ve-
hicle appears to malfunction, have the systems
checked and serviced by an INFINITI retailer.
INFINITI technicians are well-trained specialists
and are kept up-to-date with the latest service
information through technical bulletins, service
tips, and in-retailership information systems.
They are completely qualified to work on
INFINITI vehicles
beforework begins.
You can be confident that an INFINITI retailer’s
service department performs the best job to
meet the maintenance requirements on your
vehicle — in a reliable and economical way. During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have an
INFINITI retailer do it promptly. In addition, you
should notify an INFINITI retailer if you think
that repairs are required.
When performing any checks or maintenance
work, see “MAINTENANCE PRECAUTIONS” later
in this section.EXPLANATION OF MAINTENANCE
ITEMS
Additional information on the following items
with “*” is found later in this section.
Outside the vehicle
The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood:
Check that all doors
and the engine hood operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
MAINTENANCE REQUIREMENT GENERAL MAINTENANCE
8-2Maintenance and do-it-yourself

Seats:Check seat position controls such as
seat adjusters, seatback recliners, etc. to en-
sure they operate smoothly and that all latches
lock securely in every position. Check that the
head restraints move up and down smoothly
and that the locks (if so equipped) hold securely
in all latched positions.
Steering wheel: Check for changes in the steer-
ing conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating prop-
erly.
Windshield defroster: Check that the air comes
out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Windshield wiper and washer*: Check that the
wipers and washers operate properly and that
the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines. Vehicles operated in high temperatures or un-
der severe condition require frequent checks of
the battery fluid level.
Brake and clutch fluid levels*:
Make sure that
the brake and clutch fluid levels are between
the MAX and MIN lines on the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belt*: Make sure that the drive belt
is not frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level surface and turning off the
engine. Wait more than 15 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by an INFINITI retailer. (See
“PRECAUTIONS WHEN STARTING AND DRIVING”
in the “5. Starting and driving” section for
exhaust gas (Carbon monoxide).)
Fluid leaks: Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from
the air conditioner after use is normal. If you should notice any leaks or if gasoline fumes are
evident, check for the cause and have it cor-
rected immediately.
Power steering fluid level* and lines:
Check the
level with the engine off. Check the lines for
proper attachment, leaks, cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, being careful
to clean those areas where mud and dirt may
accumulate. For additional information, see
“CLEANING EXTERIOR” in the “7. Appearance
and care” section.
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself

When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precautions
which should be closely observed.
WARNING
●Park the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. For
manual transmission models, move the shift
lever to N (Neutral). For automatic transmis-
sion models, move the selector lever to P
(Park).
● Be sure the ignition switch is in the OFF or
LOCK position when performing any parts
replacement or repairs.
● Never connect or disconnect the battery or
any transistorized component while the ig-
nition switch is in the ON position.
● Never leave the engine or automatic trans-
mission related component harnesses dis-
connected while the ignition switch is in the
ON position.
● If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts. ●
It is advisable to secure or remove any loose
clothing and remove any jewelry, such as
rings, watches, etc. before working on your
vehicle.
● Always wear eye protection whenever you
work on your vehicle.
● If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
● Never get under the vehicle while it is sup-
ported only by a jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Keep smoking materials, flame and sparks
away from fuel tank and the battery.
● Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
key is in the OFF position and the engine is
not running. To avoid injury, always discon-
nect the negative battery cable before work-
ing near the fan.
● The fuel filter or fuel lines should be serviced
by an INFINITI retailer because the fuel lines
are under high pressure even when the en-
gine is off.
CAUTION
● Do not work under the hood while the engine
is hot. Turn the engine off and wait until it
cools down.
● Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil,
coolant, and/or other vehicle fluids can dam-
age the environment. Always conform to lo-
cal regulations for disposal of vehicle fluid.
This “8. Maintenance and do-it-yourself” sec-
tion gives instructions regarding only those
items which are relatively easy for an owner to
perform.
A genuine INFINITI Service Manual is also avail-
able. (See “OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION” in the “9. Tech-
nical and consumer information” section.)
You should be aware that incomplete or im-
proper servicing may result in operating diffi-
culties or excessive emissions, and could affect
your warranty coverage. If in doubt about any
servicing, we recommend that it be done by an
INFINITI retailer.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5

VQ37VHR ENGINE
1. Fuse/fusible link holder
2. Battery
3. Engine oil filler cap
4. Brake fluid reservoir5. Clutch fluid reservoir (Manual Transmis-
sion models)
6. Window washer fluid reservoir
7. Power steering fluid reservoir
8. Air cleaner 9. Radiator filler cap
10. Drive belt location
11. Engine coolant reservoir
12. Engine oil dipstick
SSI0345
ENGINE COMPARTMENT CHECK
LOCATIONS
8-6Maintenance and do-it-yourself

The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine NISSAN
Long Life Antifreeze/Coolant (blue) and 50% water
to provide year-round anti-freeze and coolant pro-
tection. The antifreeze solution contains rust and
corrosion inhibitors. Additional engine cooling
system additives are not necessary.
WARNING
●Never remove the radiator or coolant reservoir
cap when the engine is hot. Wait until the
engine and radiator cool down. Serious burns
could be caused by high pressure fluid escap-
ing from the radiator. See precautions in “IF
YOUR VEHICLE OVERHEATS” in the “6. In case
of emergency” section of this manual.
● The radiator is equipped with a pressure
type radiator cap. To prevent engine dam-
age, use only a genuine NISSAN radiator cap.
CAUTION
●When adding or replacing coolant, be sure to
use only Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent. Genu-
ine NISSAN Long Life Antifreeze/Coolant (blue)
is pre-diluted to provide antifreeze protection
to 34°F (37°C). If additional freeze protec-
tion is needed due to weather where you oper-
ate your vehicle, add Genuine NISSAN Long
Life Antifreeze/Coolant (blue) concentrate fol-
lowing the directions on the container. If an
equivalent coolant other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue) is used,
follow the coolant manufacturer’s instructions
to maintain minimum antifreeze protection to
34°F (37°C). The use of other types of cool-
ant solutions other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue) or equivalent
may damage the engine cooling system.
●The life expectancy of the factory-fill coolant
is 105,000 miles (168,000 km) or 7 years. Mix-
ing any other type of coolant other than Genu-
ine NISSAN Long Life Antifreeze/Coolant
(blue), including Genuine NISSAN Long Life
Antifreeze/Coolant (green), or the use of non-
distilled water will reduce the life expectancy
of the factory-fill coolant. Refer to the INFINITI
Service and Maintenance Guide for more
details.
CHECKING ENGINE COOLANT LEVEL
Check the coolant level in the reservoir tank
when the engine is cold. If the coolant level is
below the MIN level
2, open the reservoir tank
cap and add coolant up to the MAX level
1.If
the reservoir tank is empty, check the coolant
level in the radiator when the engine is cold. If
there is insufficient coolant in the radiator, fill
the radiator with coolant up to the filler opening
and also add it to the reservoir tank up to the
MAX level
1.
Tighten the cap securely after adding engine
coolant.
If the cooling system frequently requires cool-
ant, have it checked by an INFINITI retailer.
SDI2043
ENGINE COOLING SYSTEM
Maintenance and do-it-yourself8-7
