INFINITI G-CONVERTIBLE 2011 Owners Manual

Pull the lever toward you5to operate the
washer. Then the wiper will also operate several
times.
RAIN-SENSING AUTO WIPER SYSTEM
(if so equipped)
The rain-sensing auto wiper system can auto-
matically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield.
To set the rain-sensing auto wiper system, push
the lever down to the AUTO position
1. The
wiper will sweep once while the ignition switch
is in the ON position. The rain sensor sensitivity level can be adjusted
by turning the knob toward the front
2(High)
or toward the rear
3(Low).
● High — High sensitive operation
● Low — Low sensitive operation
To turn the rain-sensing auto wiper system off,
push up the lever to the OFF position, or pull
down the lever to the LO or HI position.
CAUTION
Do not touch the rain sensor and around it when
the wiper switch is in the AUTO position and the
ignition switch is in the ON position. The wipers
may operate unexpectedly and cause to an in-
jury or a wiper damage.
● The rain-sensing auto wipers are intended for
use during rain. If the switch is left in the
AUTO position, the wipers may operate unex-
pectedly when dirt, fingerprints, oil film or
insects are stuck on or around the sensor.
The wipers may also operate when exhaust
gas or moisture affect the rain sensor.
● The rain-sensing auto wipers may not oper-
ate if rain does not hit the rain sensor even if
it is raining.SIC4190
2-30Instruments and controls

●When the windshield glass is coated with
water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
● Be sure to turn off the rain-sensing auto wiper
system when you use a car wash.
● Using genuine wiper blades is recommended
for proper operation of the rain-sensing auto
wiper system. (See “WINDSHIELD WIPER
BLADES” in the “8. Maintenance and do-it-
yourself” section for wiper blade replace-
ment.)
To defog/defrost the rear window glass and
outside mirrors, start the engine and push the
switch
1on. The indicator light2will come
on. Push the switch again to turn the defroster
off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear win-
dow, be careful not to scratch or damage the
rear window defroster.
XENON HEADLIGHTS
WARNING
HIGH VOLTAGE
● When xenon headlights are on, they produce
a high voltage. To prevent an electric shock,
never attempt to modify or disassemble.
Always have your xenon headlights replaced
at an INFINITI retailer.
● Xenon headlights provide considerably more
light than conventional headlights. If they
are not correctly aimed, they might
temporarily blind an oncoming driver or the
driver ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your vehicle to
an INFINITI retailer and have the headlights
adjusted correctly.
SIC3239
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH
Instruments and controls2-31

When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
●The life of xenon headlights will be shortened
by frequent on-off operation. It is generally
desirable not to turn off the headlights for
short intervals (for example, when the ve-
hicle stops at a traffic signal). Even when the
daytime running lights are active (Canada
only), the xenon headlights do not turn on.
This way the life of the xenon headlights is
not reduced.
● If the xenon headlight bulb is close to burn-
ing out, the brightness will drastically de-
crease, the light will start blinking, or the
color of the light will become reddish. If one
or more of the above signs appear, contact an
INFINITI retailer.
HEADLIGHT SWITCH
Lighting
1Turn the switch to theposition:
The front park, side marker, tail, license
plate and instrument lights will come on.
2Turn the switch to theposition:
Headlights will come on and all the other
lights remain on.
Autolight system
The autolight system allows the headlights to
be set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO position
1.
2. Push the ignition switch to the ON posi- tion.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,orposition.
SIC3267SIC3268
2-32Instruments and controls

The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes.
Automatic headlights off delay :
You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.
For automatic headlights off delay setting, see
“Light Off Delay” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section.Be sure not to put anything on top of the photo
sensor
Alocated on the top of the instrument
panel. The photo sensor controls the autolight;
if it is covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.Headlight beam select
1To select the low beam, put the lever in
the neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low
beam.
3Pulling the lever toward you will flash the headlight high beam even when the
headlight switch is in the OFF position.
SIC4192SIC3269
Instruments and controls2-33

Battery saver system
A chime will sound when the driver side door is
opened with the light switch in theorposition and the ignition switch in the
ACC, OFF or LOCK position.
When the headlight switch is in the
orposition while the ignition switch is in
the ON position, the lights will automatically
turn off 5 minutes after the ignition switch has
been pushed to the OFF position.
When the headlight switch remains in the
orposition after the lights auto-
matically turn off, the lights will turn on when
the ignition switch is pushed to the ON posi-
tion.
CAUTION
● When you turn on the headlight switch again
after the lights automatically turn off, the
lights will not turn off automatically. Be sure
to turn the light switch to the OFF position
when you leave the vehicle for extended pe-
riods of time, otherwise the battery will be
discharged.
● Never leave the light switch on when the
engine is not running for extended periods of
time even if the headlights turn off
automatically.
Daytime running light system
(Canada only)
The daytime running lights automatically illumi-
nate when the engine is started with the park-
ing brake released. The daytime running lights
operate with the headlight switch in the OFF,
AUTO or
position. Turn the headlight
switch to theposition for full illumination
when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illumi-
nate once the parking brake is released. The
daytime running lights will remain on until the
ignition switch is pushed to the OFF position.
SIC3257
2-34Instruments and controls

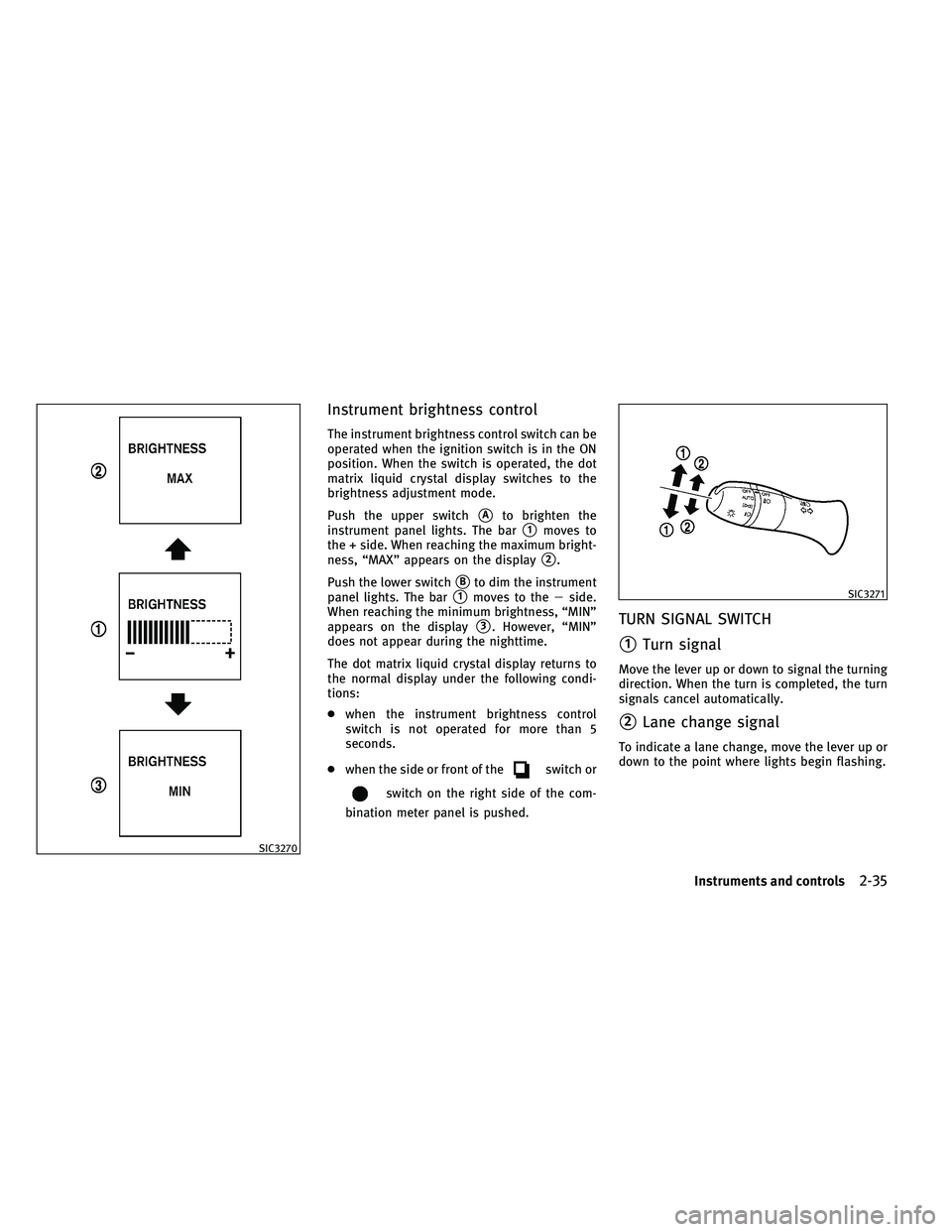

Instrument brightness control
The instrument brightness control switch can be
operated when the ignition switch is in the ON
position. When the switch is operated, the dot
matrix liquid crystal display switches to the
brightness adjustment mode.
Push the upper switch
Ato brighten the
instrument panel lights. The bar
1moves to
the + side. When reaching the maximum bright-
ness, “MAX” appears on the display
2.
Push the lower switch
Bto dim the instrument
panel lights. The bar
1moves to the side.
When reaching the minimum brightness, “MIN”
appears on the display
3. However, “MIN”
does not appear during the nighttime.
The dot matrix liquid crystal display returns to
the normal display under the following condi-
tions:
● when the instrument brightness control
switch is not operated for more than 5
seconds.
● when the side or front of the
switch or
switch on the right side of the com-
bination meter panel is pushed.
TURN SIGNAL SWITCH
1Turn signal
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
2Lane change signal
To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
SIC3270
SIC3271
Instruments and controls2-35

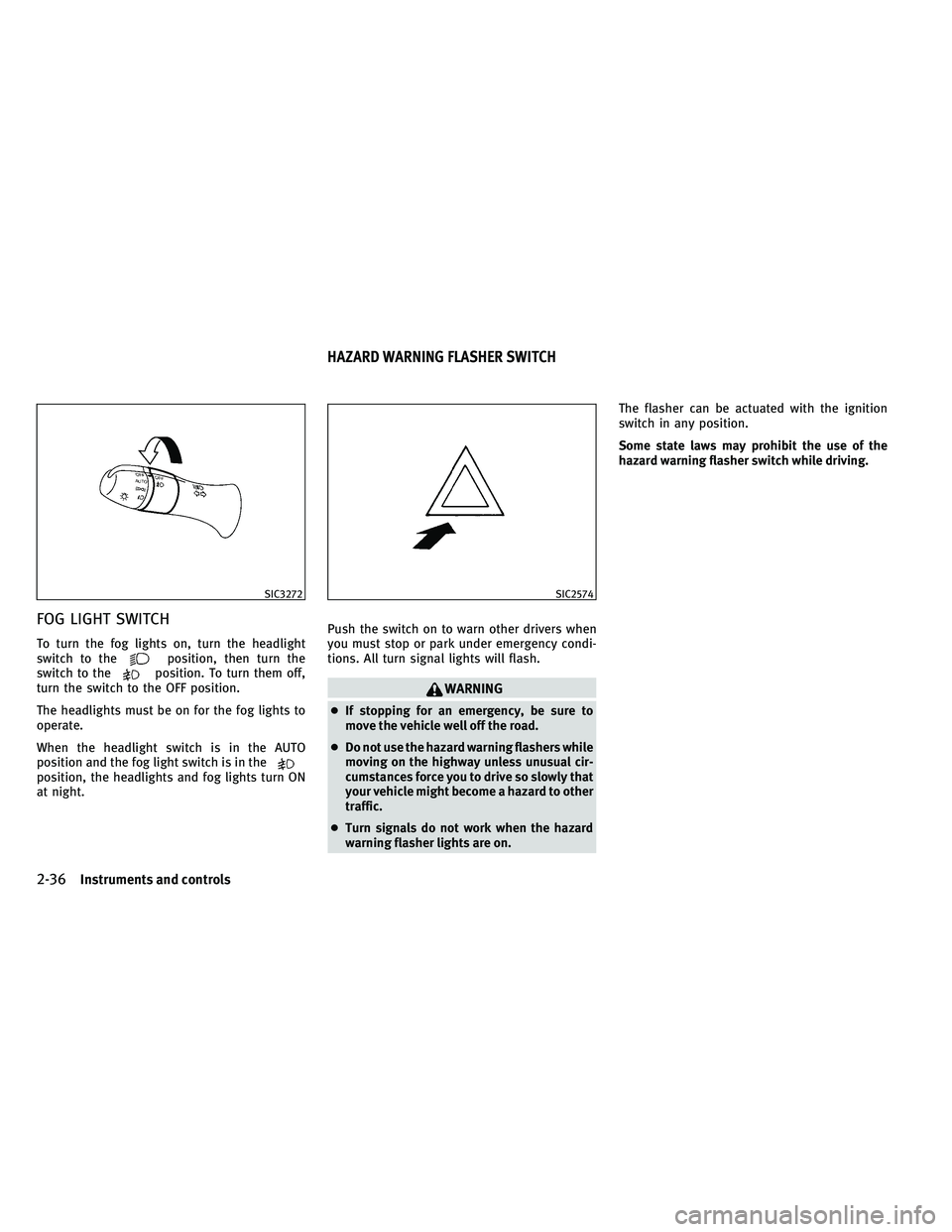

FOG LIGHT SWITCH
To turn the fog lights on, turn the headlight
switch to theposition, then turn the
switch to theposition. To turn them off,
turn the switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight switch is in the AUTO
position and the fog light switch is in the
position, the headlights and fog lights turn ON
at night. Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.
WARNING
●
If stopping for an emergency, be sure to
move the vehicle well off the road.
● Do not use the hazard warning flashers while
moving on the highway unless unusual cir-
cumstances force you to drive so slowly that
your vehicle might become a hazard to other
traffic.
● Turn signals do not work when the hazard
warning flasher lights are on. The flasher can be actuated with the ignition
switch in any position.
Some state laws may prohibit the use of the
hazard warning flasher switch while driving.
SIC3272SIC2574
HAZARD WARNING FLASHER SWITCH
2-36Instruments and controls

To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so could
affect proper operation of the supplemental
front air bag system. Tampering with the
supplemental front air bag system may result
in serious personal injury.
WARNING
Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in those body parts in contact with
the seat. Use of the seat heater by such people
could result in serious injury.
CAUTION
●The battery could run down if the seat heater
is operated while the engine is not running.
● Do not use the seat heater for extended pe-
riods or when no one is using the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.
● Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the heater.
● Any liquid spilled on the heated seat should
be removed immediately with a dry cloth.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials. ●
If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.SIC3312
HORN HEATED SEATS (if so equipped)
Instruments and controls2-37

The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Turn the control knob
Ato the right1
and select the desired heat range.
●For high heat, turn the knob to the right
1.
● For low heat, turn the knob to the left
2.
● The indicator light
Bwill illuminate when
the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a thermistor,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
The climate controlled seat warms up or cools
down the front seats by blowing warm or cool
air from the surface of the seat. The switches
located on the center console can be operated
independently of each other.
The surface temperature of the climate con-
trolled seats is automatically controlled at an
optimum temperature. However, adjust the tem-
perature using the control knob if the seats are
too hot or cold.
1. Start the engine.
2. Turn the control knob
Ato the heat side
1or to the cool side2. The indicator
light
Bon the control knob will illumi-
nate.
SSS0911SIC4040
CLIMATE CONTROLLED SEATS (if so
equipped)
2-38Instruments and controls

3. Adjust the desired amount of the air usingthe control knob
A.
4. When the vehicle’s interior is warmed or cooled, and/or before you leave the ve-
hicle, be sure to turn the control knob to
the OFF position (center). The indicator
light
Bon the control knob goes off at
the OFF position.
To check the air filter for the climate con-
trolled seat, contact an INFINITI retailer.
CAUTION
● Do not place objects in front of the intake
inlet located behind the front seat. Doing so
could cause improper operation or interrup-
tion of the operation.
● The battery could run down if the climate
controlled seat is operated while the engine
is not running.
● Do not use the climate controlled seat for
extended periods or when no one is using
the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated. ●
Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the climate
controlled seat.
● Any liquid spilled on the seat should be re-
moved immediately with a dry cloth.
● The climate controlled seat has air filters. Do
not operate the climate controlled seat with-
out the air filters. This may result in damage
to the system.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials.
● If any malfunctions are found or the climate
controlled seat does not operate, turn the
switch off and have the system checked by
an INFINITI retailer. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
JVS0022X
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH
Instruments and controls2-39
