INFINITI G-CONVERTIBLE 2011 Owners Manual

16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
Cruise set switch indicator :
The indicator is displayed while the vehicle
speed is controlled by the cruise control sys-
tem. If the indicator blinks while the engine is
running, it may indicate that the cruise control
system is not functioning properly. Have the
system checked by an INFINITI retailer.See “CRUISE CONTROL” in the “5. Starting and
driving” section for details.
19. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
The indicator is displayed when the Intelligent
Cruise Control (ICC) system main switch is
pushed. When the main switch is pushed again,
the indicator disappears. While the main switch
indicator is displayed, the ICC system is
operational.
2-20Instruments and controls

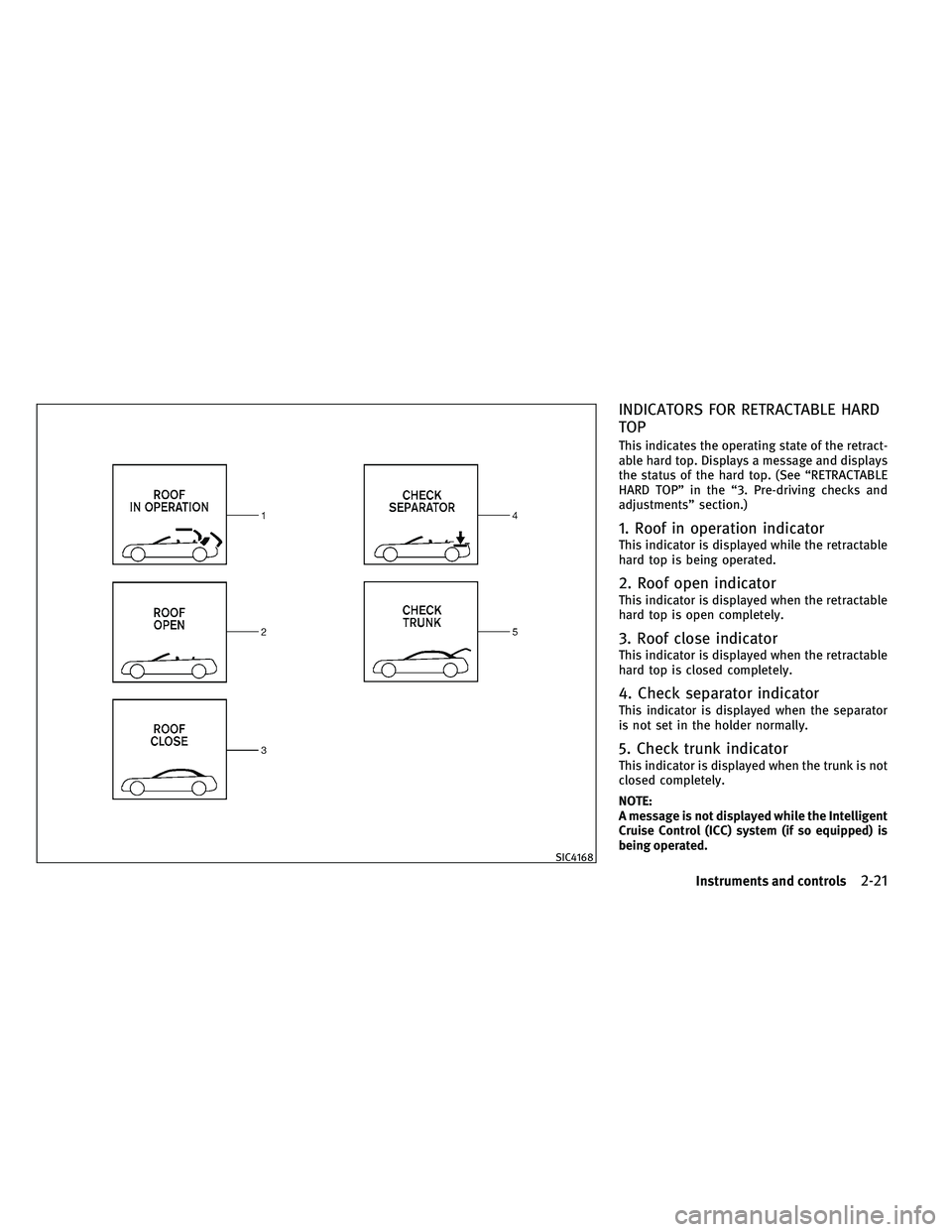

INDICATORS FOR RETRACTABLE HARD
TOP
This indicates the operating state of the retract-
able hard top. Displays a message and displays
the status of the hard top. (See “RETRACTABLE
HARD TOP” in the “3. Pre-driving checks and
adjustments” section.)
1. Roof in operation indicator
This indicator is displayed while the retractable
hard top is being operated.
2. Roof open indicator
This indicator is displayed when the retractable
hard top is open completely.
3. Roof close indicator
This indicator is displayed when the retractable
hard top is closed completely.
4. Check separator indicator
This indicator is displayed when the separator
is not set in the holder normally.
5. Check trunk indicator
This indicator is displayed when the trunk is not
closed completely.
NOTE:
A message is not displayed while the Intelligent
Cruise Control (ICC) system (if so equipped) is
being operated.
SIC4168
Instruments and controls2-21

INDICATORS FOR MAINTENANCE
1. Engine oil replacement indicator
This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“TRIP COMPUTER” later in this section.)
2. Oil filter replacement indicator
This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See
“TRIP COMPUTER” later in this section.)
3. Tire replacement indicator
This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “TRIP COM-
PUTER” later in this section.)
4. “OTHER” indicator
This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “TRIP COMPUTER”
later in this section.)
More maintenance reminders are also available
on the center display. (See “HOW TO USE INFO
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section.)
SIC3281
2-22Instruments and controls

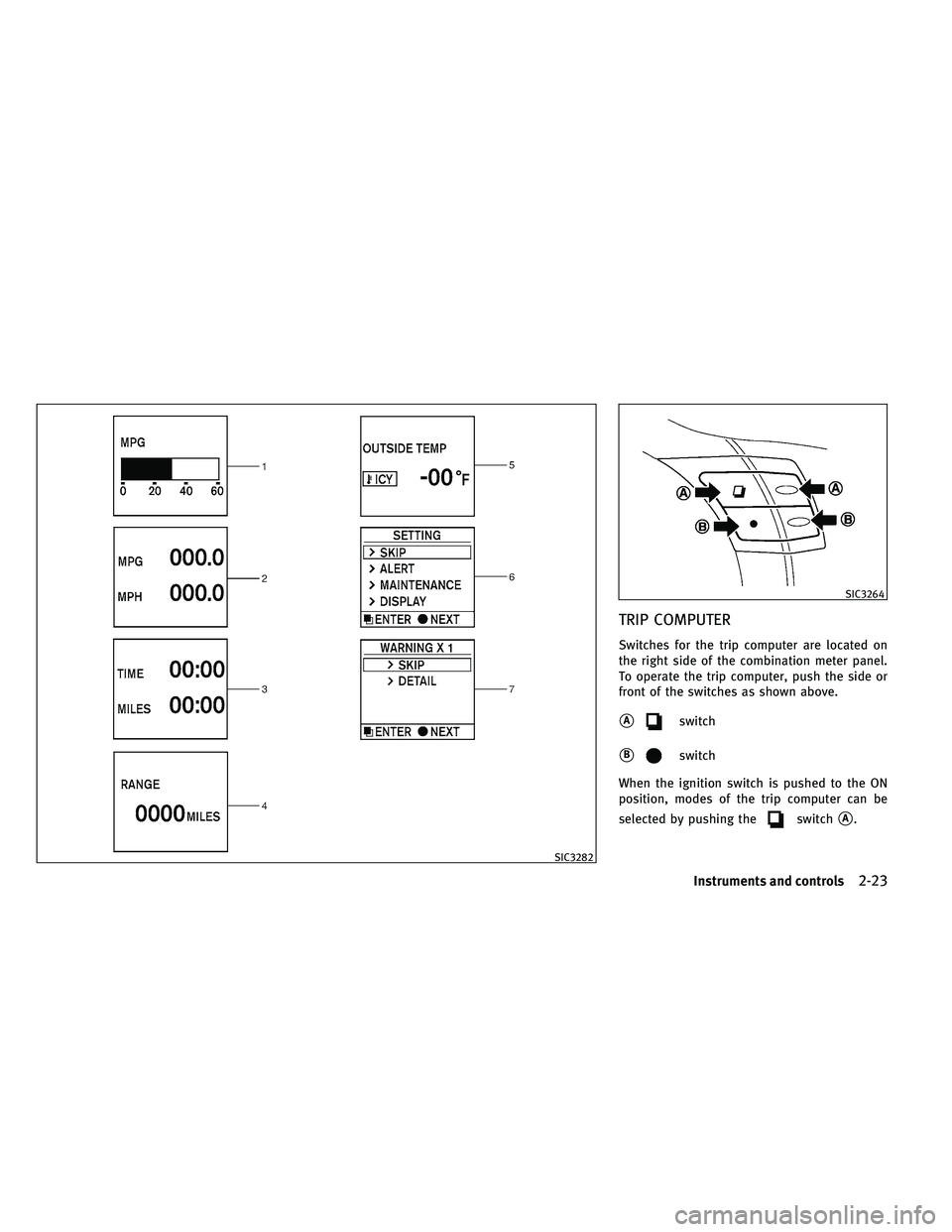

TRIP COMPUTER
Switches for the trip computer are located on
the right side of the combination meter panel.
To operate the trip computer, push the side or
front of the switches as shown above.
Aswitch
Bswitch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switchA.
SIC3282
SIC3264
Instruments and controls2-23

Each time theswitchAis pushed, the
display will change as follows:
Current fuel consumption →Average fuel con-
sumption and speed →Elapsed time and trip
odometer →Distance to empty (dte) →Outside
air temperature (ICY) →Setting →Warning check
1. Current fuel consumption
The current fuel consumption mode shows the
current fuel consumption.
2. Average fuel consumption (MPG or
l (liter)/100 km) and speed (MPH or
km/h)
Fuel consumption :
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch
Bfor longer than 1 second. (The average speed
is also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”.
Speed :
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the
switchBfor longer than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
3. Elapsed time and trip odometer
(mls or km)
Elapsed time :
The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switchBfor longer than
1 second. (The trip odometer is also reset at the
same time.)
Trip odometer :
The trip odometer mode shows the total dis-
tance the vehicle has been driven since the last
reset. Resetting is done by pushing the
switchBfor longer than 1 second. (The
elapsed time is also reset at the same time.)
4. Distance to empty (dte — mls or km)
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
● If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
● When driving uphill or rounding curves, the
fuel in the tank shifts, which may momen-
tarily change the display.
5. Outside air temperature (ICY — °F
or °C)
The outside air temperature is displayed in °F or
°C in the range of 22 to 131°F (30 to 55°C).
The outside air temperature mode includes a
low temperature warning feature. If the outside
air temperature is below 37°F (3°C), the warning
is displayed on the screen.
The outside temperature sensor is located in front
of the radiator. The sensor may be affected by
road or engine heat, wind directions and other
driving conditions. The display may differ from
the actual outside temperature or the tempera-
ture displayed on various signs or billboards.
2-24Instruments and controls

6. Setting
Setting cannot be made while driving. A mes-
sage “Setting can only be operated when
stopped” is also displayed on the dot matrix
crystal display.
The
switchAandswitchBare
used in the setting mode to select and decide a
menu.
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
ALERT :
There are 3 submenus under the alert menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● TIME TO REST
Select this submenu to specify when the
“time to rest” indicator activates. ●
ICY
Select this submenu to display the low out-
side temperature warning.
MAINTENANCE :
There are 5 submenus under the maintenance
menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● ENGINE OIL
Select this submenu to set or reset the
distance for changing the engine oil.
● OIL FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
● TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires. DISPLAY :
There are 3 submenus under the display menu.
●
BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English or
French for display.
● UNIT
Select this submenu to choose the unit from
MPG or l/100 km.
7. Warning check
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
DETAIL :
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
Instruments and controls2-25

Your vehicle has two types of security systems,
as follows:
●Vehicle security system
● INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the
doors, hood, or trunk lid when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when unat-
tended. Be aware of your surroundings, and
park in secure, well-lit areas whenever pos-
sible.
Many devices offering additional protection,
such as component locks, identification mark-
ers, and tracking systems, are available at auto
supply stores and specialty shops. Your INFINITI
retailer may also offer such equipment. Check
with your insurance company to see if you may
be eligible for discounts for various theft pro-
tection features.
How to arm the vehicle security
system
1. Close all windows.
The system can be armed even if the windows
are open.
2. Push the ignition switch to the OFF posi-
tion.
3. Remove the Intelligent Key from the ve- hicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request
switch, power door lock switch or me-
chanical key.
SIC4169SIC2045
SECURITY SYSTEMS
2-26Instruments and controls

5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.
Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.
Vehicle security system activation
The vehicle security system will give the follow-
ing alarm:
● The headlights blink and the horn sounds
intermittently.
● The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
●
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key, or when the ignition switch
is pushed to the ACC or ON position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC rules for
INFINITI Vehicle Immobilizer System (CONT
ASSY - CARD SLOT)
This device complies with part 15 of the FCC
Rules and RSS-210 of Industry Canada. Opera-
tion is subject to the following two conditions;
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that
may cause undesired operation of the device.
CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S AUTHOR-
ITY TO OPERATE THE EQUIPMENT.
Instruments and controls2-27

Security indicator light
The security indicator light is located on the
meter panel. It indicates the status of the
INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the LOCK position. This function indicates the
security systems equipped on the vehicle are
operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, this light will remain on while
the ignition switch is in the ON position.If the light still remains on and/or the engine will
not start, see an INFINITI retailer for INFINITI Ve-
hicle Immobilizer System service as soon as
possible. Please bring all Intelligent Keys that
you have when visiting an INFINITI retailer for
service.
WARNING
In freezing temperatures the washer solution
may freeze on the windshield and obscure your
vision which may lead to an accident. Warm
windshield with the defroster before you wash
the windshield.
CAUTION
●
Do not operate the washer continuously for
more than 30 seconds.
● Do not operate the washer if the reservoir
tank is empty.
● Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
SIC2045
WINDSHIELD WIPER AND WASHER SWITCH
2-28Instruments and controls

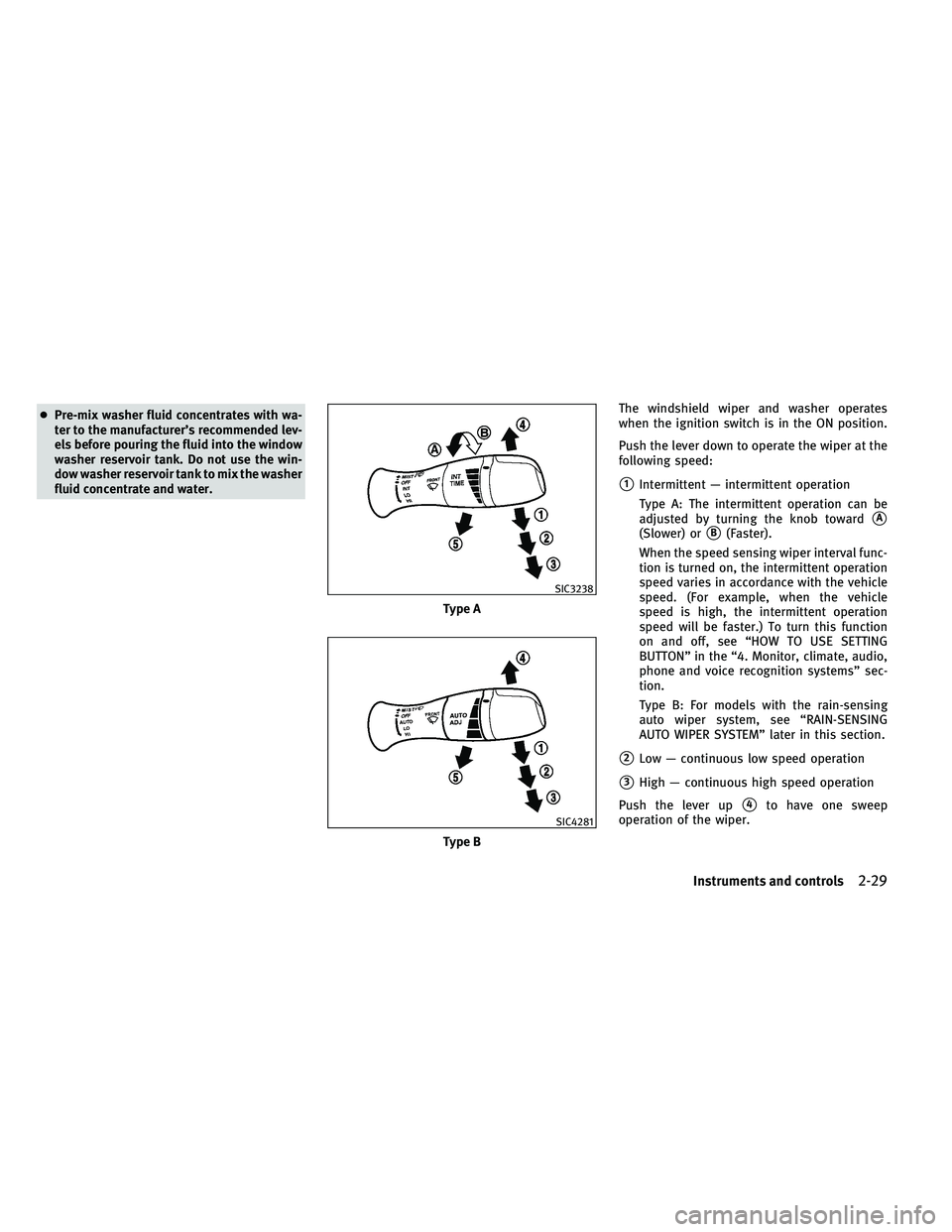

●Pre-mix washer fluid concentrates with wa-
ter to the manufacturer’s recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the washer
fluid concentrate and water. The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
1Intermittent — intermittent operation
Type A: The intermittent operation can be
adjusted by turning the knob toward
A
(Slower) orB(Faster).
When the speed sensing wiper interval func-
tion is turned on, the intermittent operation
speed varies in accordance with the vehicle
speed. (For example, when the vehicle
speed is high, the intermittent operation
speed will be faster.) To turn this function
on and off, see “HOW TO USE SETTING
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” sec-
tion.
Type B: For models with the rain-sensing
auto wiper system, see “RAIN-SENSING
AUTO WIPER SYSTEM” later in this section.
2Low — continuous low speed operation
3High — continuous high speed operation
Push the lever up
4to have one sweep
operation of the wiper.
Type A
SIC3238
Type B
SIC4281
Instruments and controls2-29
