7. “PUSH” warning (Automatic
Transmission models)
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:SHIFT “P” warning →(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER CAP” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning
This warning appears when the low tire pres-
sure warning light in the meter illuminates and
low tire pressure is detected. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
Instruments and controls2-19

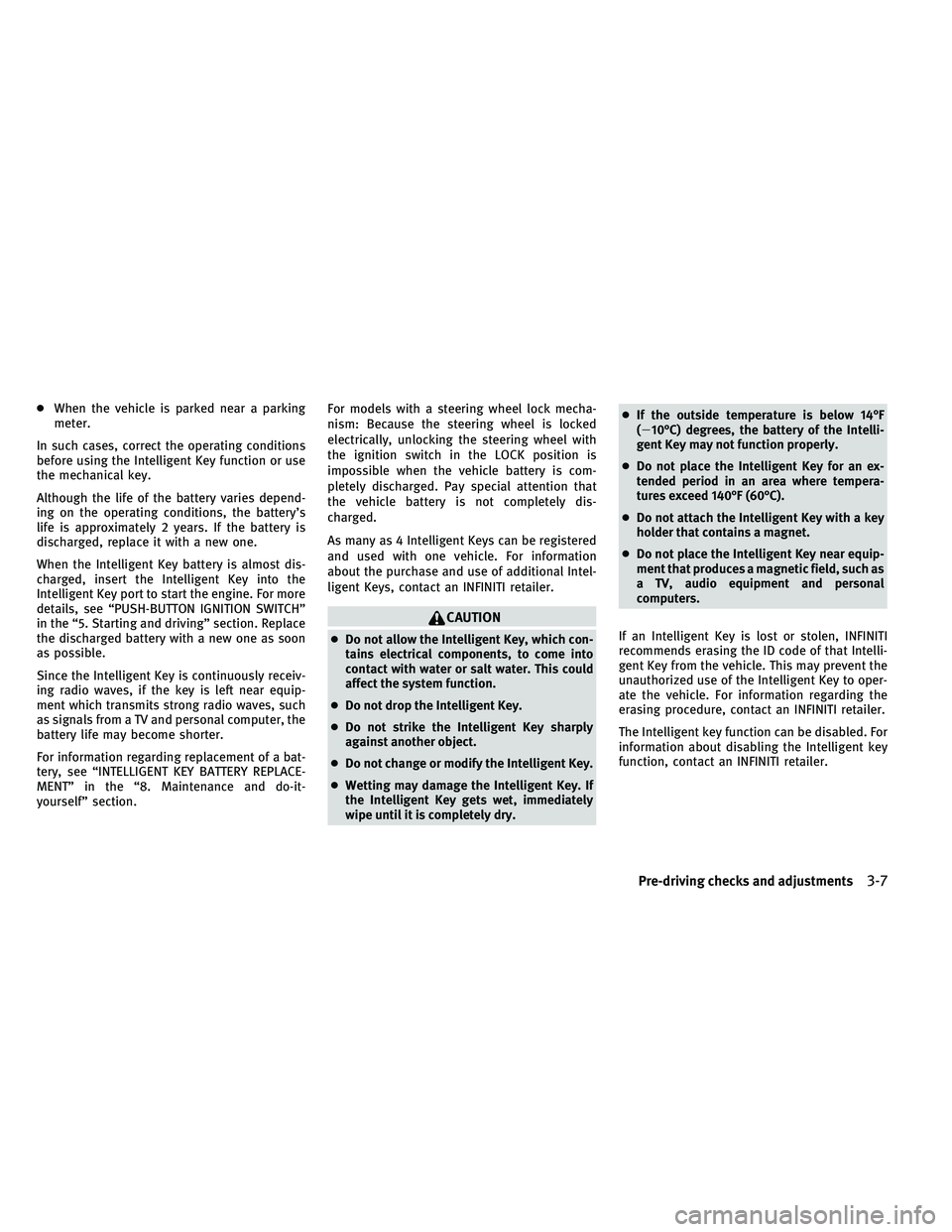

●When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. For more
details, see “PUSH-BUTTON IGNITION SWITCH”
in the “5. Starting and driving” section. Replace
the discharged battery with a new one as soon
as possible.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section. For models with a steering wheel lock mecha-
nism: Because the steering wheel is locked
electrically, unlocking the steering wheel with
the ignition switch in the LOCK position is
impossible when the vehicle battery is com-
pletely discharged. Pay special attention that
the vehicle battery is not completely dis-
charged.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information
about the purchase and use of additional Intel-
ligent Keys, contact an INFINITI retailer.
CAUTION
●
Do not allow the Intelligent Key, which con-
tains electrical components, to come into
contact with water or salt water. This could
affect the system function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent Key.
● Wetting may damage the Intelligent Key. If
the Intelligent Key gets wet, immediately
wipe until it is completely dry. ●
If the outside temperature is below 14°F
(10°C) degrees, the battery of the Intelli-
gent Key may not function properly.
● Do not place the Intelligent Key for an ex-
tended period in an area where tempera-
tures exceed 140°F (60°C).
● Do not attach the Intelligent Key with a key
holder that contains a magnet.
● Do not place the Intelligent Key near equip-
ment that produces a magnetic field, such as
a TV, audio equipment and personal
computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to oper-
ate the vehicle. For information regarding the
erasing procedure, contact an INFINITI retailer.
The Intelligent key function can be disabled. For
information about disabling the Intelligent key
function, contact an INFINITI retailer.
Pre-driving checks and adjustments3-7

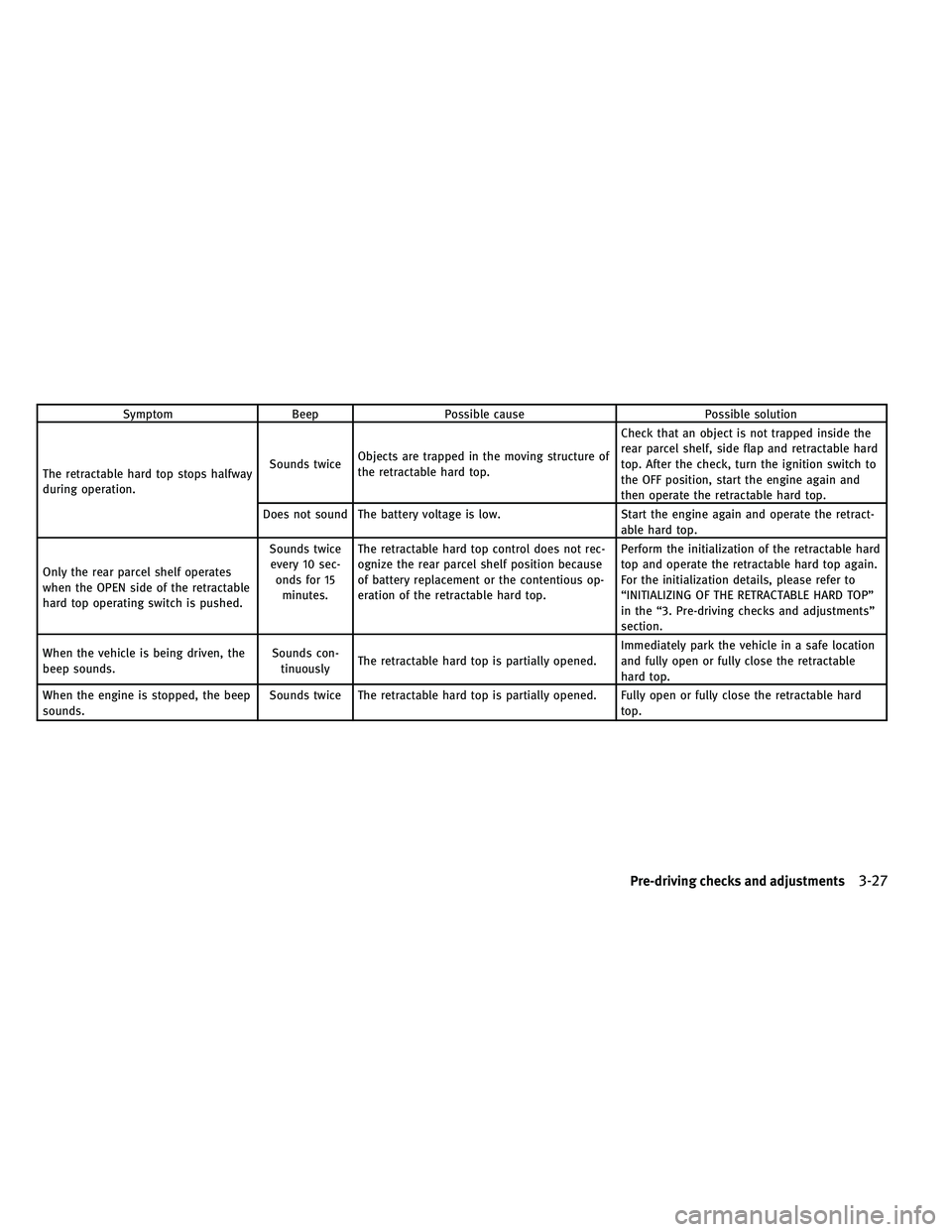

SymptomBeepPossible cause Possible solution
The retractable hard top stops halfway
during operation. Sounds twice
Objects are trapped in the moving structure of
the retractable hard top. Check that an object is not trapped inside the
rear parcel shelf, side flap and retractable hard
top. After the check, turn the ignition switch to
the OFF position, start the engine again and
then operate the retractable hard top.
Does not sound The battery voltage is low. Start the engine again and operate the retract-
able hard top.
Only the rear parcel shelf operates
when the OPEN side of the retractable
hard top operating switch is pushed. Sounds twice
every 10 sec- onds for 15 minutes. The retractable hard top control does not rec-
ognize the rear parcel shelf position because
of battery replacement or the contentious op-
eration of the retractable hard top. Perform the initialization of the retractable hard
top and operate the retractable hard top again.
For the initialization details, please refer to
“INITIALIZING OF THE RETRACTABLE HARD TOP”
in the “3. Pre-driving checks and adjustments”
section.
When the vehicle is being driven, the
beep sounds. Sounds con-
tinuously The retractable hard top is partially opened. Immediately park the vehicle in a safe location
and fully open or fully close the retractable
hard top.
When the engine is stopped, the beep
sounds. Sounds twice The retractable hard top is partially opened. Fully open or fully close the retractable hard
top.
Pre-driving checks and adjustments3-27

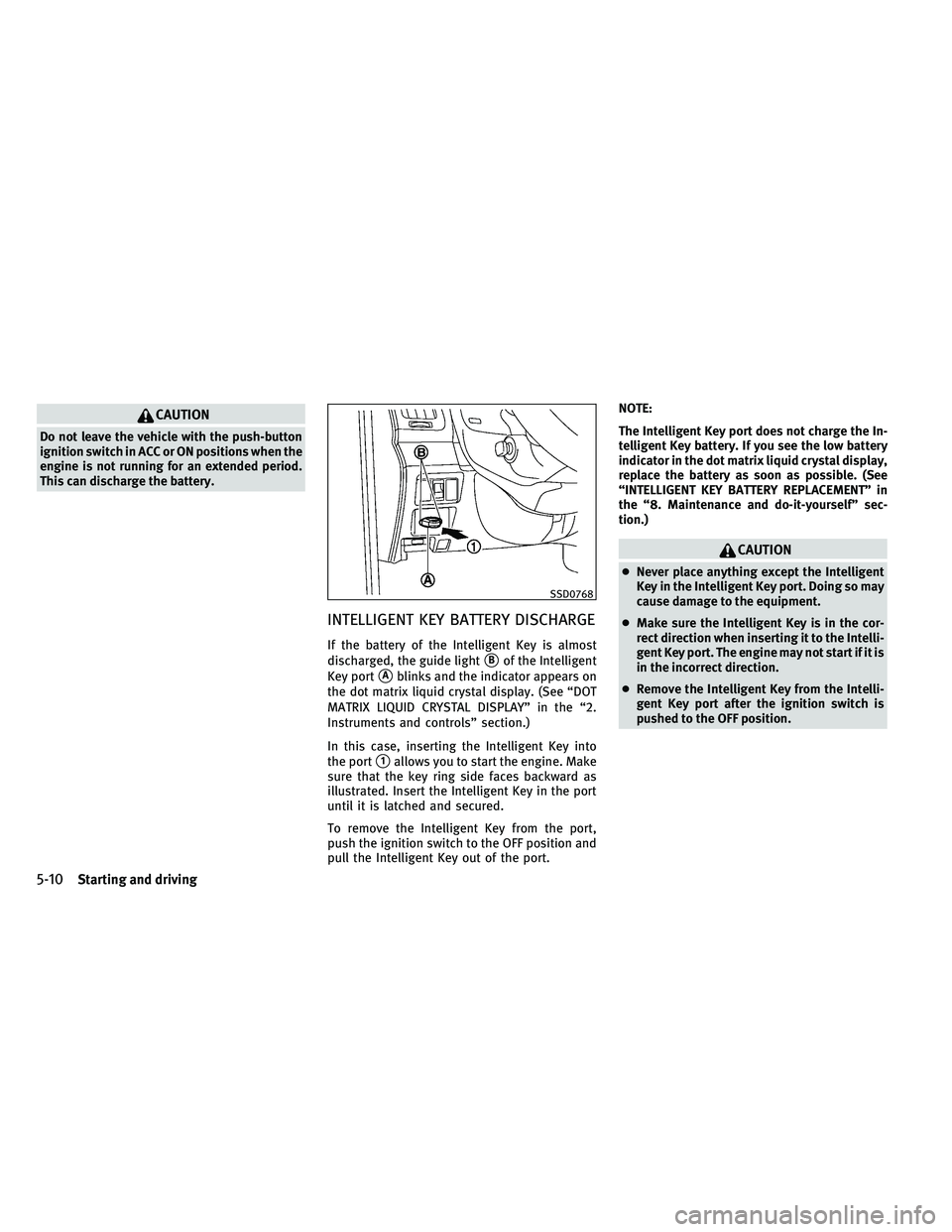

CAUTION
Do not leave the vehicle with the push-button
ignition switch in ACC or ON positions when the
engine is not running for an extended period.
This can discharge the battery.
INTELLIGENT KEY BATTERY DISCHARGE
If the battery of the Intelligent Key is almost
discharged, the guide light
Bof the Intelligent
Key port
Ablinks and the indicator appears on
the dot matrix liquid crystal display. (See “DOT
MATRIX LIQUID CRYSTAL DISPLAY” in the “2.
Instruments and controls” section.)
In this case, inserting the Intelligent Key into
the port
1allows you to start the engine. Make
sure that the key ring side faces backward as
illustrated. Insert the Intelligent Key in the port
until it is latched and secured.
To remove the Intelligent Key from the port,
push the ignition switch to the OFF position and
pull the Intelligent Key out of the port. NOTE:
The Intelligent Key port does not charge the In-
telligent Key battery. If you see the low battery
indicator in the dot matrix liquid crystal display,
replace the battery as soon as possible. (See
“INTELLIGENT KEY BATTERY REPLACEMENT” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
CAUTION
●
Never place anything except the Intelligent
Key in the Intelligent Key port. Doing so may
cause damage to the equipment.
● Make sure the Intelligent Key is in the cor-
rect direction when inserting it to the Intelli-
gent Key port. The engine may not start if it is
in the incorrect direction.
● Remove the Intelligent Key from the Intelli-
gent Key port after the ignition switch is
pushed to the OFF position.
SSD0768
5-10Starting and driving

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VQ37VHR engine ............................... 8-6
Engine cooling system ............................. 8-7
Checking engine coolant level ................... 8-7
Changing engine coolant ........................ 8-8
Engine oil ........................................ 8-8
Checking engine oil level ....................... 8-8
Changing engine oil and filter ................... 8-9
Automatic transmission fluid .......................8-11
Power steering fluid ............................... 8-11
Brake and clutch fluid ............................ 8-12
Brake fluid ................................... 8-12
Clutch fluid (if so equipped) ....................8-12
Window washer fluid ............................. 8-13
Battery .......................................... 8-13
Jump starting ................................. 8-15Variable voltage control system
...................8-15
Drive belt ........................................ 8-16
Spark plugs ..................................... 8-16
Replacing spark plugs ......................... 8-17
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-18
Cleaning ...................................... 8-18
Replacing ..................................... 8-18
Brakes .......................................... 8-19
Self-adjusting brakes .......................... 8-19
Brake pad wear warning ....................... 8-19
Fuses ........................................... 8-20
Engine compartment ........................... 8-20
Passenger compartment ....................... 8-21
Intelligent Key battery replacement ................8-22
Lights ........................................... 8-24
Headlights .................................... 8-25
Exterior

and interior lights ..................... 8-25
Wheels and tires ................................. 8-27
Tire pressure .................................. 8-27
Tire labeling .................................. 8-30
Types of tires ................................. 8-32
Tire chains ................................... 8-32
Changing wheels and tires..................... 8-33

When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precautions
which should be closely observed.
WARNING
●Park the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. For
manual transmission models, move the shift
lever to N (Neutral). For automatic transmis-
sion models, move the selector lever to P
(Park).
● Be sure the ignition switch is in the OFF or
LOCK position when performing any parts
replacement or repairs.
● Never connect or disconnect the battery or
any transistorized component while the ig-
nition switch is in the ON position.
● Never leave the engine or automatic trans-
mission related component harnesses dis-
connected while the ignition switch is in the
ON position.
● If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts. ●
It is advisable to secure or remove any loose
clothing and remove any jewelry, such as
rings, watches, etc. before working on your
vehicle.
● Always wear eye protection whenever you
work on your vehicle.
● If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
● Never get under the vehicle while it is sup-
ported only by a jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Keep smoking materials, flame and sparks
away from fuel tank and the battery.
● Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
key is in the OFF position and the engine is
not running. To avoid injury, always discon-
nect the negative battery cable before work-
ing near the fan.
● The fuel filter or fuel lines should be serviced
by an INFINITI retailer because the fuel lines
are under high pressure even when the en-
gine is off.
CAUTION
● Do not work under the hood while the engine
is hot. Turn the engine off and wait until it
cools down.
● Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil,
coolant, and/or other vehicle fluids can dam-
age the environment. Always conform to lo-
cal regulations for disposal of vehicle fluid.
This “8. Maintenance and do-it-yourself” sec-
tion gives instructions regarding only those
items which are relatively easy for an owner to
perform.
A genuine INFINITI Service Manual is also avail-
able. (See “OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION” in the “9. Tech-
nical and consumer information” section.)
You should be aware that incomplete or im-
proper servicing may result in operating diffi-
culties or excessive emissions, and could affect
your warranty coverage. If in doubt about any
servicing, we recommend that it be done by an
INFINITI retailer.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5

NOTE:
If the extended storage switch malfunctions, or
if the fuse is open, it is not necessary to replace
the switch. In this case, remove the extended
storage switch and replace it with a new fuse of
the same rating.
How to remove the extended storage switch:
1. To remove the extended storage switch,be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
1found on each
side of the storage switch.
5. Pull the storage switch straight out from the fuse box
2.
Replace the battery as follows:
1. Release the lock knob at the back of the
Intelligent Key and remove the mechanical
key. 2. Insert a flat-blade screwdriver wrapped
with a cloth into the slit of the corner and
twist it to separate the upper part from
the lower part.
3. Replace the battery with a new one.
Recommended battery: CR2032 or equiva-
lent.
● Do not touch the internal circuit and
electric terminals as it could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the
bottom of the case.
SDI2451
INTELLIGENT KEY BATTERY REPLACEMENT
Maintenance and do-it-yourself8-22

10 Index
A
ABS (Anti-lock Braking System) ........5-51
Advanced air bag system ............1-41
Air bag system Advanced air bag system ..........1-41
Door-mounted curtain side-impact
supplemental air bag system .......1-45
Front passenger air bag and status
light ..................... .1-42
Front-seat mounted side-impact
supplemental air bag system .......1-45
Air bag warning labels .............1-48
Air bag warning light ...........1-48, 2-12
Air cleaner housing filter ............8-17
Air conditioner Air conditioner service ...........4-36
Air conditioner specification label .....9-12
Air conditioning system refrigerant
and lubricant recommendations . . .4-36, 9-6
Automatic climate control .........4-29
In-cabin microfilter .............4-36
Alarm, How to stop alarm (see vehicle
security system) ................ .2-27
Alcohol, drugs and driving ...........5-7
Antenna .................... .4-84
Anti-lock Braking System (ABS) ........5-51
Anti-lock braking system (ABS) warning
light ....................... .2-9
Appearance care Exterior appearance care ..........7-2
Interior appearance care ...........7-4 Ashtrays (See cigarette lighter and
ashtrays)
.................... .2-42
Audible reminders ............... .2-15
Audio operation precautions ..........4-37
Audio system ................. .4-37
Steering wheel audio controls .......4-82
Auto closure .................. .3-28
Autolight system ............... .2-32
Automatic Automatic adjusting function (front
windows) ................. .2-48
Automatic climate control ......4-30, 4-33
Automatic transmission fluid (ATF) . . . .8-11
Climate control .............. .4-29
Door locks .................. .3-5
Drive

positioner .............. .3-37
Driving with automatic transmission . . .5-12
Seat positioner .............. .3-37
Average fuel consumption and speed . . . .2-24
Avoiding collision and rollover .........5-5
B
Battery ..................... .8-13
Battery saver system ............2-34
Intelligent Key ............... .8-22
Variable voltage control system ......8-15
Before starting the engine ...........5-11
Bluetooth hands-free phone system
(models with navigation system) .......4-85
Bluetooth hands-free phone system
(models without navigation system) .....4-96Bluetooth
streaming audio ..........4-66
Booster seats ................. .1-31
Brake Anti-lock Braking System (ABS) ......5-51
Brake and clutch fluid ...........8-12
Brake fluid ................. .8-12
Brake system ............... .5-48
Parking brake operation ..........5-18
Warning light ................ .2-9
Break-in schedule ............... .5-42
Brightness control Display ON/OFF button ...........4-7
Instrument panel ............. .2-35
Bulb check/instrument panel ..........2-8
Bulb replacement ............... .8-24
C
Cabin air filter ................. .4-36
Capacities and recommended fuel/
lubricants .................... .9-2
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
CD/CF/USB memory care and cleaning . . . .4-81
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Booster

seats ............... .1-31
Installation using LATCH Lower Anchors .1-23
Installation using the seat belts ......1-25
Precautions on child restraints .......1-19
Child safety .................. .1-13
Chimes, Audible reminders ...........2-15

FluidAutomatic transmission fluid (ATF) .....8-11
Brake and clutch fluid ............8-12
Brake fluid ................. .8-12
Capacities and recommended fuel/
lubricants .................. .9-2
Engine coolant ................ .8-7
Engine oil .................. .8-8
Power steering fluid .............8-11
Window washer fluid .............8-13
FM-AM-SAT radio with Compact Disc (CD)
player ...................... .4-53
Fog light switch ................ .2-36
Front passenger air bag and status light . . .1-42
Front power seat adjustment ...........1-3
Front seat, Front seat adjustment ........1-3
Front-seat active head restraints ........1-10
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ................ .5-43
Fuel economy information (display) .....4-9
Fuel octane rating .............. .9-3
Fuel recommendation .............9-3
Fuel-filler cap ................ .3-30
Fuel-filler door ............... .3-30
Gauge ..................... .2-7
LOOSE FUEL CAP warning ..........3-32
Fuses ...................... .8-20
Fusible links .................. .8-20
G
Garage door opener, HomeLink Universal
Transceiver ................... .2-51Gascap.....................
.3-30
Gauge ....................... .2-4
Engine coolant temperature gauge .....2-6
Fuel gauge .................. .2-7
Odometer ................... .2-5
Speedometer ................. .2-5
Tachometer ................. .2-6
Trip computer ............... .2-23
General
maintenance .............. .8-2
Glove box .................... .2-44
H
Hands-free phone system, Bluetooth
(models with navigation system) ........4-85
Hands-free phone system, Bluetooth
(models without navigation system) ......4-96
Hard top If the top does not open or close .....3-24
Indicators for retractable hard top
(dot matrix) .............. .2-21, 3-22
Initializing .................. .3-25
Operating using the Intelligent Key . . . .3-25
Retractable hard top operation .......3-18
Hazard warning flasher switch .........2-36
Head restraints .................. .1-7
Headlights Bulb replacement ............. .8-25
Headlight switch .............. .2-32
Xenon headlights .............. .2-31
Heated seats .................. .2-37
Heater Automatic climate control ..........4-29
Engine block heater .............5-55
HomeLink Universal Transceiver ........2-51Hood release
.................. .3-17
Horn ....................... .2-37
I
Ignition switch (Push-button) ................. .5-7
Manual transmission models . . . . . . . .5-16
Immobilizer system .............. .2-27
In-cabin microfilter ............... .4-36
Indicator Dot matrix display ............. .2-16
Lights .................... .2-13
INFINITI Vehicle Immobilizer System ......2-27
INFINITI voice recognition system . . . . . . .4-109
INFO button ................... .4-8
Inside mirror .................. .3-34
Inspection/maintenance
(I/M) test.......9-22
Instrument brightness control .........2-35
Instrument panel ................ .2-3
Intelligent cruise control (ICC) system .....5-21
Preview function .............. .5-42
Intelligent Cruise Control (ICC) system
warning light .................. .2-10
Intelligent Key .................. .3-2
Intelligent Key battery discharge indicator . .2-19
Intelligent Key insertion indicator . ......2-18
Intelligent Key removal indicator ........2-18
Intelligent Key system ..............3-6
Battery replacement .............8-22
Key operating range .............3-8
Key operation ................ .3-9
Warning light ................ .2-10
Warning signals ............... .3-11
Intelligent Key warning light ..........2-10
10-3

Interior light control switch...........2-50
Interior light replacement ............8-25
Interior lights .................. .2-49
Interior trunk lid release ............3-30
iPod player operation ............. .4-71
ISOFIX child restraint .............. .1-21
J
Jump starting .................. .6-14
K
Keyless entry (See remote keyless entry
system) ..................... .3-14
Keys ........................ .3-2
For Intelligent Key system ..........3-6
L
Labels Air bag warning labels ............1-48
Air conditioner specification label .....9-12
Emission control information label .....9-11
Engine serial number ............9-10
F.M.V.S.S./C.M.V.S.S. certification
label ..................... .9-11
Tire and Loading information label .8-28, 9-11
Vehicle identification number (VIN) . . . .9-10
LATCH Lower Anchors ..............1-21
License plate, Installing front license plate . .9-12
Light Air bag warning light ............1-48
Bulb replacement ............. .8-24Fog light switch
.............. .2-36
Headlight switch .............. .2-32
Headlights bulb replacement ........8-25
Indicator lights ............... .2-13
Interior light control switch .........2-50
Interior lights ................ .2-49
Map lights ................. .2-49
Replacement ................ .8-24
Trunk light .................. .2-51
Vanity mirror lights ............. .2-51
Warning/indicator lights and audible
reminders .................. .2-9
Xenon headlights .............. .2-31
Lights, Exterior and interior light
replacement .................. .8-25
Loading
information (See vehicle loading
information) ................... .9-16
Lock Automatic door locks .............3-5
Door locks .................. .3-4
Power door lock ............... .3-4
Trunk lid .................. .3-28
Locking with mechanical key ...........3-4
Low fuel warning ................ .2-19
Low tire pressure warning light .........2-10
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ......5-3
Low washer fluid warning ............2-19
M
Maintenance Battery .................... .8-13
General maintenance .............8-2
Indicators for maintenance .........2-22Inside the vehicle
.............. .8-3
Maintenance precautions ...........8-5
Maintenance requirements . . . .......8-2
Outside the vehicle ............. .8-2
Seat belt maintenance ............1-18
Malfunction indicator light (MIL) ........2-14
Map lights ................... .2-49
Master warning light .............. .2-12
Mechanical key (Intelligent Key system) . . . .3-3
Memory storage, Automatic drive
positioner .................... .3-38
Meter Trip computer ............... .2-23
Meters and gauges ............... .2-4
Instrument brightness control .......2-35
Mirror Inside mirror ................ .3-34
Outside mirrors ............... .3-35
Vanity mirror ................ .3-36
Monitor, Rearview monitor ...........4-22
N
New vehicle break-in ..............5-42
No

key warning ................. .2-18
O
Odometer ..................... .2-5
Off-road recovery ................ .5-6
Oil Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine oil and filter ........8-9
Checking engine oil level ...........8-8
10-4
