TPMS INFINITI G-CONVERTIBLE 2011 User Guide

Every new INFINITI comes with a 4 year, unlim-
ited mileage Roadside Assistance plan. In the
event of a roadside emergency, Roadside Assis-
tance Service is available to you. Please refer to
your Warranty Information Booklet (U.S.) or
Warranty & Roadside Assistance Information
Booklet (Canada) for details. Both the Warranty
Information Booklet and Roadside Assistance
Calling Card in your Owner’s Literature Portfolio
provide the Toll-Free Number to call for assis-
tance. Roadside Assistance is provided 24
hours a day, 365 days a year, for 4 years from
the date sold to give emergency roadside help,
in the event of mechanical or nonmechanical
trouble(s) such as flat tires, out-of-gas, dead
battery, lost keys, mechanical breakdown, acci-
dent, etc.To shut off the engine in an emergency situation
while driving, perform the following procedure:
●
Rapidly push the push-button ignition
switch 3 consecutive times, or
● Push and hold the push-button ignition
switch for more than 2 seconds.TIRE PRESSURE MONITORING SYSTEM
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on the
dot matrix crystal display, one or more of your
tires is significantly under-inflated. If the ve-
hicle is being driven with low tire pressure, the
TPMS will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h). For more
details, see “WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS” in the “2. Instruments
and controls” section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.
ROADSIDE ASSISTANCE PROGRAM EMERGENCY ENGINE SHUT OFFFLAT TIRE
6-2In case of emergency

WARNING
●If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting. ●
Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors (for
models not equipped with the emergency
tire puncture repair kit).
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire (for models equipped with the emer-
gency tire puncture repair kit).
● INFINITI recommends using only NISSAN
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure (for models
equipped with the emergency tire puncture
repair kit).
REPAIRING FLAT TIRE (for models with
emergency tire puncture repair kit)
WARNING
● After using Emergency Tire Sealant to repair
a minor tire puncture, do not drive the ve-
hicle at speeds faster than 50 MPH (80
km/h).
● Immediately after using the Emergency Tire
Sealant to repair a minor tire puncture, take
your vehicle to an INFINITI retailer to inspect,
and repair or replace the tire. The Emergency
Tire Sealant cannot permanently seal a
punctured tire. Continuing operation of the
vehicle without a permanent tire repair can
lead to a crash.
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire.
● INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure.
In case of emergency6-3

7.When the tire pressure is at the specified
amount, turn the air compressor off. If the
pressure cannot be inflated to the specified
amount, the air compressor can be turned
off at the minimum of 26 psi (180 kPa).
Remove the power plug from the power
outlet and quickly remove the hose from
the tire valve. Attach the protective cap and
valve cap. Properly stow the emergency tire
puncture repair kit in the trunk.
CAUTION
To avoid serious personal injury when stowing
the emergency tire puncture repair kit:
– Keep the sealant bottle screwed into thecompressor. Failure to do so can cause
the sealant to spray into the air and get
into your eyes or on the skin.
8. Immediately drive the vehicle for 10 min-
utes or 2 miles (3 km) at a speed of 50
MPH (80 km/h) or less. 9. After driving, make sure that the air
compressor switch is in the OFF posi-
tion, then screw the hose securely onto
the tire valve. Check the tire pressure
with the pressure gauge. The temporary
repair is completed if the tire pressure
does not drop.
Make sure the pressure is adjusted to the
pressure that is specified on the tire and
loading information label before driving.
10. If the tire pressure drops, repeat the steps from 5 to 9. If the pressure drops
again or under 19 psi (130 kPa), the tire
cannot be repaired with this tire repair
kit. Contact an INFINITI retailer.
The sealant bottle and hose can not be
reused to repair another punctured tire.
Contact an INFINITI retailer to purchase
replacements.
After repairing tire
See an INFINITI retailer for tire
repair/replacement as soon as possible.
WARNING
●After using Emergency Tire Sealant to repair a
minor tire puncture, do not drive the vehicle at
speeds faster than 50 MPH (80 km/h).
● Immediately after using Emergency Tire
Sealant to repair a minor tire puncture, take
your vehicle to an INFINITI retailer to inspect,
and repair or replace the tire. The Emergency
Tire Sealant cannot permanently seal a
punctured tire. Continuing operation of the
vehicle without a permanent tire repair can
lead to a crash.
● If you used Emergency Tire Sealant to repair
a minor tire puncture, your INFINITI retailer
will also need to replace the TPMS sensor in
addition to repairing or replacing the tire.
● INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure.
CHANGING FLAT TIRE (for models with
spare tire)
If you have a flat tire, follow the instructions
below.
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
6-8In case of emergency

When driving in areas using road salt or other
corrosive materials, check lubrication fre-
quently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking the
tires, make sure no wheel nuts are missing, and
check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires cannot be rotated, as front
tires are a different size from rear tires and the
direction of wheel rotation is fixed in each tire.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If nec-
essary, adjust the pressure in all tires, includ-
ing the spare, to the pressure specified. Check
carefully for damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS) trans-
mitter components: Replace the TPMS transmit-
ter grommet seal, valve core and cap when the
tires are replaced due to wear or age. Tire, wheel alignment and balance:
If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Windshield: Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks or
wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc. Accelerator pedal:
Check the pedal for smooth
operation and make sure the pedal does not
catch or require uneven effort. Keep the floor
mat away from the pedal.
Automatic transmission P (Park) mechanism: On
a fairly steep hill, check that the vehicle is held
securely with the selector lever in the P (Park)
position without applying any brakes.
Brake pedal: Check the pedal for smooth opera-
tion. If the brake pedal suddenly goes down
further than normal, the pedal feels spongy or
the vehicle seems to take longer to stop, see an
INFINITI retailer immediately. Keep the floor mat
away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake opera-
tion regularly. The vehicle should be securely
held on a fairly steep hill with only the parking
brake applied. If the parking brake needs ad-
justed, see an INFINITI retailer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjust-
ers and retractors) operate properly and
smoothly, and are installed securely. Check the
belt webbing for cuts, fraying, wear or damage.
Maintenance and do-it-yourself8-3

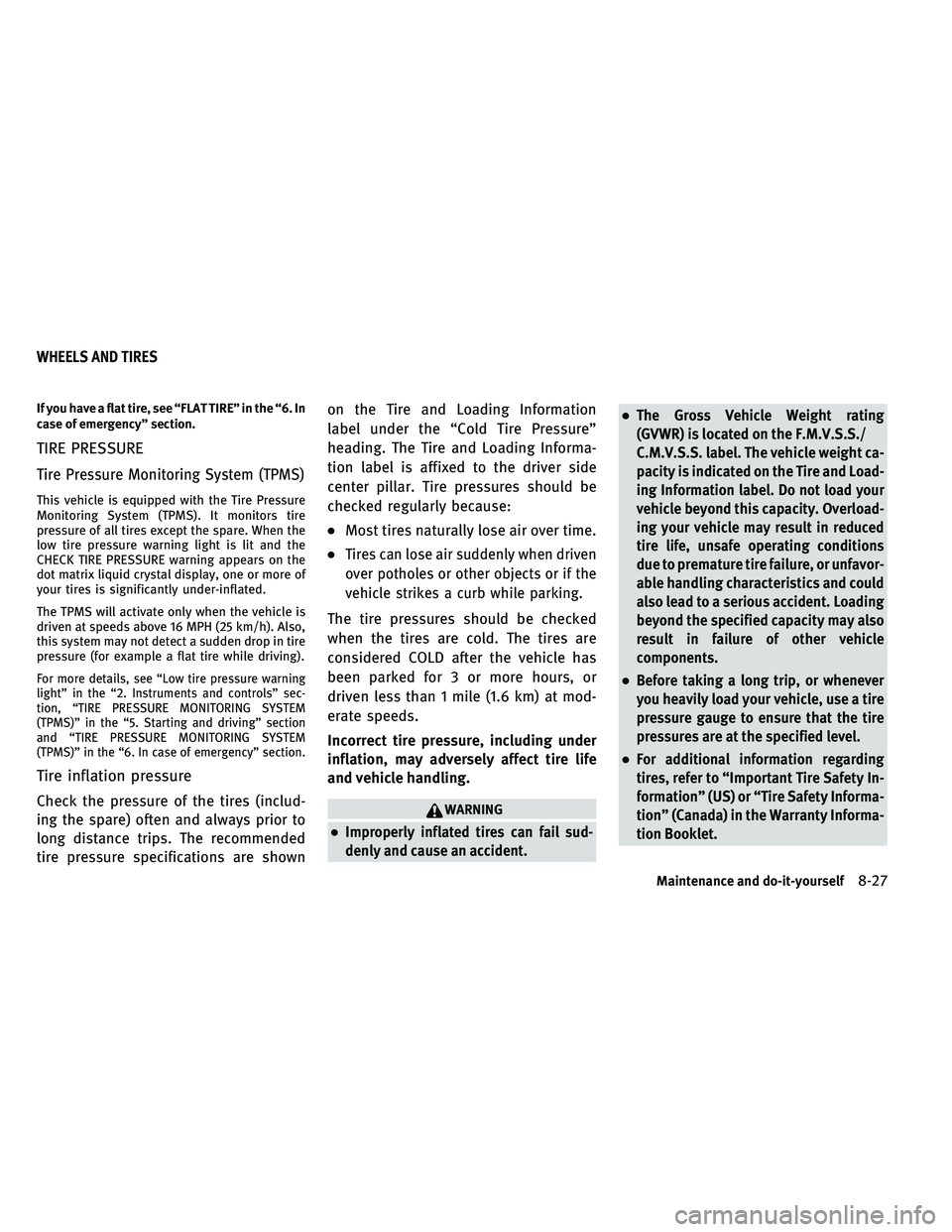

If you have a flat tire, see “FLAT TIRE” in the “6. In
case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System (TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on the
dot matrix liquid crystal display, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h). Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving).
For more details, see “Low tire pressure warning
light” in the “2. Instruments and controls” sec-
tion, “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “5. Starting and driving” section
and “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “6. In case of emergency” section.
Tire inflation pressure
Check the pressure of the tires (includ-
ing the spare) often and always prior to
long distance trips. The recommended
tire pressure specifications are shownon the Tire and Loading Information
label under the “Cold Tire Pressure”
heading. The Tire and Loading Informa-
tion label is affixed to the driver side
center pillar. Tire pressures should be
checked regularly because:
●Most tires naturally lose air over time.
●Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
Incorrect tire pressure, including under
inflation, may adversely affect tire life
and vehicle handling.
WARNING
●Improperly inflated tires can fail sud-
denly and cause an accident.
●The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.S./
C.M.V.S.S. label. The vehicle weight ca-
pacity is indicated on the Tire and Load-
ing Information label. Do not load your
vehicle beyond this capacity. Overload-
ing your vehicle may result in reduced
tire life, unsafe operating conditions
due to premature tire failure, or unfavor-
able handling characteristics and could
also lead to a serious accident. Loading
beyond the specified capacity may also
result in failure of other vehicle
components.
●Before taking a long trip, or whenever
you heavily load your vehicle, use a tire
pressure gauge to ensure that the tire
pressures are at the specified level.
●For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
WHEELS AND TIRES
Maintenance and do-it-yourself8-27

TYPES OF TIRES
WARNING
●When changing or replacing tires, be sure all
four tires are of the same type (Example:
Summer, All Season or Snow) and construc-
tion. An INFINITI retailer may be able to help
you with information about tire type, size,
speed rating and availability.
● Replacement tires may have a lower speed
rating than the factory equipped tires, and
may not match the potential maximum ve-
hicle speed. Never exceed the maximum
speed rating of the tire.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire side- wall. Snow tires have better snow traction than
All Season tires and may be more appropriate in
some areas.
Summer tires
INFINITI specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating to
the original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.
If you install snow tires, they must be the same
size, brand, construction and tread pattern on
all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction capa-
bilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.
TIRE CHAINS
Use of tire chains may be prohibited according
to location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure they are the proper size for the tires
on your vehicle and are installed according to
the chain manufacturer’s suggestions.
Use only
SAE Class S chains. Class “S” chains are used
on vehicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component re-
quired to accommodate the use of a winter
traction device (tire chains or cables). The mini-
mum clearances are determined using the fac-
tory equipped tire size. Other types may dam-
age your vehicle. Use chain tensioners when
8-32Maintenance and do-it-yourself

●The original tires have built-in tread
wear indicators. When wear indicators
are visible, the tire(s) should be
replaced.
●Tires degrade with age and use. Have
tires, including the spare, over 6 years
old checked by a qualified technician,
because some tire damage may not be
obvious. Replace the tires as necessary
to prevent tire failure and possible per-
sonal injury.
●Improper service of the spare tire may
result in serious personal injury. If it is
necessary to repair the spare tire, con-
tact an INFINITI retailer.
●For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity as originally equipped. (See “SPECIFICATIONS”
in the “9. Technical and consumer information”
section for recommended types and sizes of
tires and wheels.)
WARNING
●
The use of tires other than those recom-
mended or the mixed use of tires of different
brands, construction (bias, bias-belted or ra-
dial), or tread patterns can adversely affect
the ride, braking, handling, ground clear-
ance, body-to-tire clearance, tire chain
clearance, speedometer calibration, head-
light aim and bumper height. Some of these
effects may lead to accidents and could re-
sult in serious personal injury.
●
If the wheels are changed for any reason, al-
ways replace with wheels which have the
same off-set dimension. Wheels of a different
off-set could cause premature tire wear, de-
grade vehicle handling characteristics and/or
interference with the brake discs/drums. Such
interference can lead to decreased braking ef-
ficiency and/or early brake pad/shoe wear.
See “WHEELS AND TIRES” in the “9. Technical
and consumer information” section of this
manual for wheel off-set dimensions.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not install a damaged or deformed wheel
or tire even if it has been repaired. Such
wheels or tires could have structural damage
and could fail without warning.
● The use of retread tire is not recommended.
● For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
8-34Maintenance and do-it-yourself

Interior light control switch...........2-50
Interior light replacement ............8-25
Interior lights .................. .2-49
Interior trunk lid release ............3-30
iPod player operation ............. .4-71
ISOFIX child restraint .............. .1-21
J
Jump starting .................. .6-14
K
Keyless entry (See remote keyless entry
system) ..................... .3-14
Keys ........................ .3-2
For Intelligent Key system ..........3-6
L
Labels Air bag warning labels ............1-48
Air conditioner specification label .....9-12
Emission control information label .....9-11
Engine serial number ............9-10
F.M.V.S.S./C.M.V.S.S. certification
label ..................... .9-11
Tire and Loading information label .8-28, 9-11
Vehicle identification number (VIN) . . . .9-10
LATCH Lower Anchors ..............1-21
License plate, Installing front license plate . .9-12
Light Air bag warning light ............1-48
Bulb replacement ............. .8-24Fog light switch
.............. .2-36
Headlight switch .............. .2-32
Headlights bulb replacement ........8-25
Indicator lights ............... .2-13
Interior light control switch .........2-50
Interior lights ................ .2-49
Map lights ................. .2-49
Replacement ................ .8-24
Trunk light .................. .2-51
Vanity mirror lights ............. .2-51
Warning/indicator lights and audible
reminders .................. .2-9
Xenon headlights .............. .2-31
Lights, Exterior and interior light
replacement .................. .8-25
Loading
information (See vehicle loading
information) ................... .9-16
Lock Automatic door locks .............3-5
Door locks .................. .3-4
Power door lock ............... .3-4
Trunk lid .................. .3-28
Locking with mechanical key ...........3-4
Low fuel warning ................ .2-19
Low tire pressure warning light .........2-10
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ......5-3
Low washer fluid warning ............2-19
M
Maintenance Battery .................... .8-13
General maintenance .............8-2
Indicators for maintenance .........2-22Inside the vehicle
.............. .8-3
Maintenance precautions ...........8-5
Maintenance requirements . . . .......8-2
Outside the vehicle ............. .8-2
Seat belt maintenance ............1-18
Malfunction indicator light (MIL) ........2-14
Map lights ................... .2-49
Master warning light .............. .2-12
Mechanical key (Intelligent Key system) . . . .3-3
Memory storage, Automatic drive
positioner .................... .3-38
Meter Trip computer ............... .2-23
Meters and gauges ............... .2-4
Instrument brightness control .......2-35
Mirror Inside mirror ................ .3-34
Outside mirrors ............... .3-35
Vanity mirror ................ .3-36
Monitor, Rearview monitor ...........4-22
N
New vehicle break-in ..............5-42
No

key warning ................. .2-18
O
Odometer ..................... .2-5
Off-road recovery ................ .5-6
Oil Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine oil and filter ........8-9
Checking engine oil level ...........8-8
10-4

Driver-side memory.............3-37
Heated seats ................ .2-37
Seats ..................... .1-2
Security system, Vehicle security system . . .2-26
Security system (INFINITI Vehicle
Immobilizer System), Engine start .......2-27
Selector lever Shift lock release .............. .5-16
Separator, Retractable hard top ........3-20
Servicing climate control ............4-36
SETTING button ................. .4-12
Shift “P” warning (Automatic Transmission
models) ..................... .2-18
Shift lock release, Transmission ........5-16
Shifting Automatic transmission ...........5-12
Manual transmission .............5-16
Sliding front passenger’s seat ..........1-5
Sonar system .................. .5-45
Sonar system off switch .............5-47
Spare tire .................... .9-8
Spark plugs ................... .8-16
Speedometer ................... .2-5
Starting Before starting the engine ..........5-11
Jump starting ................ .6-14
Precautions when starting and driving . . .5-2
Push starting ................ .6-16
Starting the engine ............. .5-11
STATUS button .................. .4-7
Status light, Front passenger air bag .....1-42
Steering Power steering fluid .............8-11
Power steering system ...........5-47
Steering lock ................. .5-9
Steering lock release malfunction indicator
................... .2-18
Steering-wheel-mounted controls for
audio .................... .4-82
Tilt/telescopic steering ...........3-33
Storage ..................... .2-43
Storage box .................. .2-46
Sun visors ................... .3-34
Supplemental
air bag warning labels .....1-48
Supplemental air bag warning light . . .1-48, 2-12
Supplemental restraint system .........1-35
Precautions on supplemental restraint
system .................... .1-35
Switch Autolight switch .............. .2-32
Fog light switch .............. .2-36
Hazard warning flasher switch .......2-36
Headlight switch .............. .2-32
Ignition switch ............... .5-12
Ignition switch manual transmission
models .................... .5-16
Power door lock switch ............3-5
Rear window and outside mirror defroster
switch .................... .2-31
Retractable hard top switch .....3-23, 3-25
Turn signal switch ............. .2-35
Vehicle dynamic control (VDC) off switch .2-39
T
Tachometer ................... .2-6
Temperature gauge, Engine coolant
temperature gauge ............... .2-6
Theft (INFINITI Vehicle Immobilizer System),
Engine start ................... .2-27
Thigh extension ................. .1-5Three-way catalyst
................ .5-2
Tilt/telescopic steering .............3-33
Tire Pressure, Low tire pressure warning
light ..................... .2-10
Sealant .................... .6-3
Tire replacement indicator . . .......2-22
Tires Emergency tire puncture repair kit .....6-3
Flat tire .................... .6-2
Low tire pressure warning system ......5-3
Spare tire .................. .8-35
Tire and Loading information label .8-28, 9-11
Tire chains ................. .8-32
Tire dressing ................. .7-3
Tire pressure ................ .8-27
Tire pressure monitoring system
(TPMS) .................. .5-3, 6-2
Tire rotation ................ .8-33
Types of tires ................ .8-32
Uniform
tire quality grading .........9-19
Wheel/tire size ............... .9-8
Wheels and tires .............. .8-27
Top, Retractable hard top ............3-18
Touch screen system .............. .4-4
Towing Flat towing ................. .9-19
Tow truck towing .............. .6-17
Towing a trailer ............... .9-19
TPMS, Tire pressure monitoring system .....5-3
TPMS, Tire pressure warning system ......6-2
Trailer towing .................. .9-19
Transceiver, HomeLink Universal
Transceiver ................... .2-51
Transmission Automatic transmission fluid (ATF) .....8-11
10-6

Driving with automatic transmission . . . .5-12
Driving with manual transmission.....5-16
Transmission selector lever lock release. .5-16
Transmitter (See remote keyless entry
system) ..................... .3-14
Traveling or registering your vehicle in
another country ................. .9-9
Trip computer ................. .2-23
Trip odometer ................. .2-24
Trunk Interior trunk lid release ..........3-30
Light ..................... .2-51
Trunk lid .................. .3-28
Trunk lid release switch ...........3-28
Trunk open request switch .........3-28
Trunk release power cancel switch .....3-29
Turn signal switch ............... .2-35
U
Underbody cleaning ............... .7-3
Uniform tire quality grading ...........9-19
USB memory operation .............4-62
V
Vanity mirror .................. .3-36
Vanity mirror lights ............... .2-51
Variable voltage control system ........8-15
Vehicle Dimensions ................. .9-9
Identification number (VIN) .........9-10
Loading information .............9-16
Recovery (freeing a stuck vehicle) .....6-19
Security system .............. .2-26Vehicle dynamic control (VDC) off switch .2-39
Vehicle dynamic control (VDC) system . . .5-52
Vehicle dynamic control (VDC) warning
light
..................... .2-13
Vehicle information and settings (display) .4-7
Ventilators ................... .4-28
Voice command (Bluetooth Hands-Free
Phone System) ................ .4-101
Voice command (INFINITI voice recognition
system) ................. .4-115, 4-125
Voice recognition system ...........4-109
Voice recognition, Alternate command
mode ...................... .4-122
Voice recognition, Standard mode ......4-109
W
Walk-in

mechanism ............... .1-6
Warning Dot matrix display ............. .2-16
Hazard warning flasher switch .......2-36
Lights ..................... .2-9
Tire pressure monitoring system
(TPMS) .................. .5-3, 6-2
Warning/indicator lights and audible
reminders .................. .2-8
Warning labels, Air bag warning labels . . . .1-48
Warning light Air bag warning light .........1-48, 2-12
Anti-lock braking system (ABS) warning
light ...................... .2-9
Brake warning light ............. .2-9
Intelligent Key warning light ........2-10
Low tire pressure warning light .......2-10
Seat belt warning light ...........2-12 Warranty, Emission control system
warranty
.................... .9-20
Washer switch, Windshield wiper and
washer switch ................. .2-28
Washing ..................... .7-2
Waxing ...................... .7-2
Wheel/tire size ................. .9-8
Wheels and tires ................ .8-27
Cleaning aluminum alloy wheels .......7-3
Window washer fluid .............. .8-13
Window(s) Automatic adjusting function ........2-48
Cleaning ................... .7-3
Power windows .............. .2-46
Windshield wiper and washer switch .....2-28
Wiper Rain-sensing auto wiper system ......2-30
Windshield wiper and washer switch . . .2-28
Wiper blades ................ .8-18
X
Xenon headlights ................ .2-31
10-7
