engine INFINITI G-CONVERTIBLE 2011 Owner's Manual

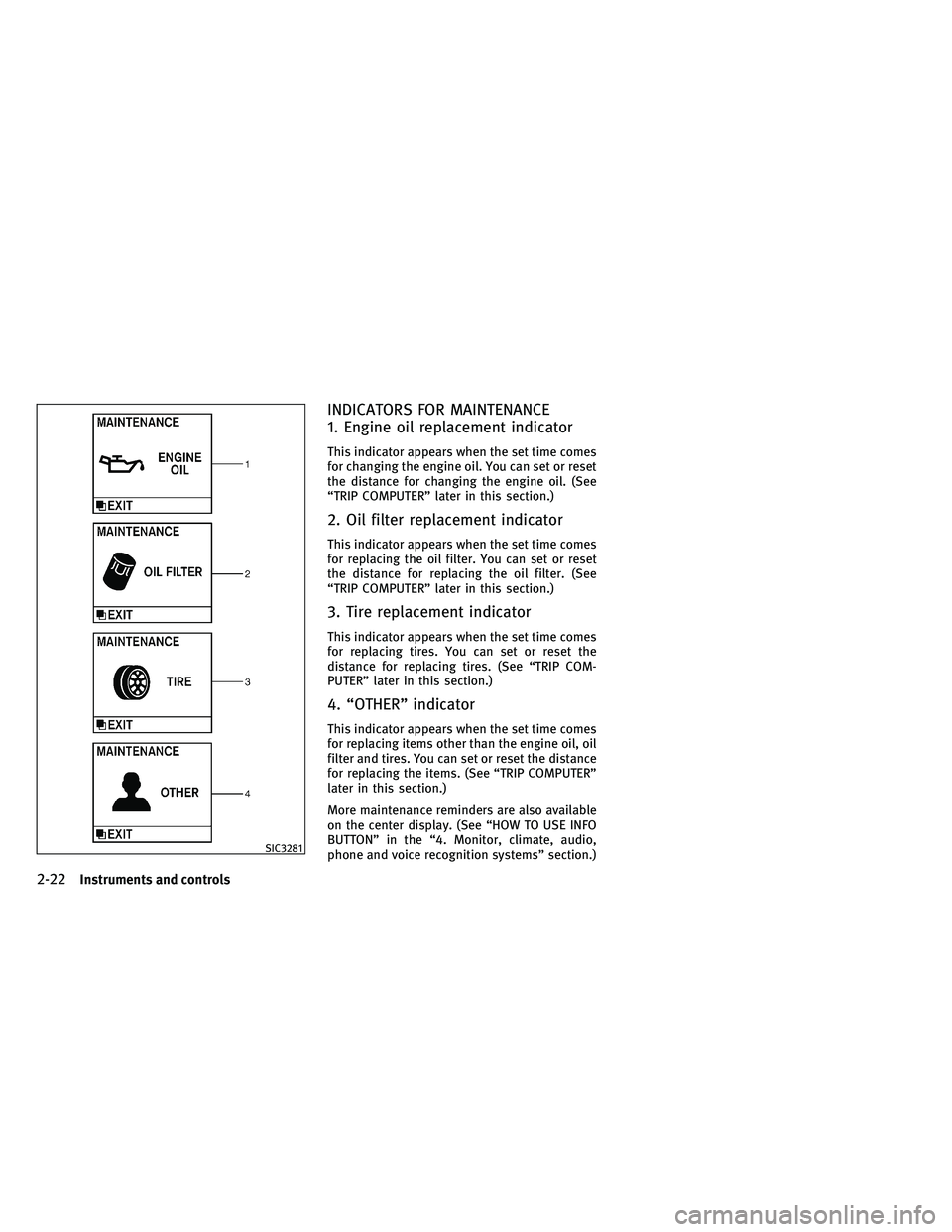

INDICATORS FOR MAINTENANCE
1. Engine oil replacement indicator
This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“TRIP COMPUTER” later in this section.)
2. Oil filter replacement indicator
This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See
“TRIP COMPUTER” later in this section.)
3. Tire replacement indicator
This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “TRIP COM-
PUTER” later in this section.)
4. “OTHER” indicator
This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “TRIP COMPUTER”
later in this section.)
More maintenance reminders are also available
on the center display. (See “HOW TO USE INFO
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section.)
SIC3281
2-22Instruments and controls

Each time theswitchAis pushed, the
display will change as follows:
Current fuel consumption →Average fuel con-
sumption and speed →Elapsed time and trip
odometer →Distance to empty (dte) →Outside
air temperature (ICY) →Setting →Warning check
1. Current fuel consumption
The current fuel consumption mode shows the
current fuel consumption.
2. Average fuel consumption (MPG or
l (liter)/100 km) and speed (MPH or
km/h)
Fuel consumption :
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch
Bfor longer than 1 second. (The average speed
is also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”.
Speed :
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the
switchBfor longer than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
3. Elapsed time and trip odometer
(mls or km)
Elapsed time :
The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switchBfor longer than
1 second. (The trip odometer is also reset at the
same time.)
Trip odometer :
The trip odometer mode shows the total dis-
tance the vehicle has been driven since the last
reset. Resetting is done by pushing the
switchBfor longer than 1 second. (The
elapsed time is also reset at the same time.)
4. Distance to empty (dte — mls or km)
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
● If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
● When driving uphill or rounding curves, the
fuel in the tank shifts, which may momen-
tarily change the display.
5. Outside air temperature (ICY — °F
or °C)
The outside air temperature is displayed in °F or
°C in the range of 22 to 131°F (30 to 55°C).
The outside air temperature mode includes a
low temperature warning feature. If the outside
air temperature is below 37°F (3°C), the warning
is displayed on the screen.
The outside temperature sensor is located in front
of the radiator. The sensor may be affected by
road or engine heat, wind directions and other
driving conditions. The display may differ from
the actual outside temperature or the tempera-
ture displayed on various signs or billboards.
2-24Instruments and controls

6. Setting
Setting cannot be made while driving. A mes-
sage “Setting can only be operated when
stopped” is also displayed on the dot matrix
crystal display.
The
switchAandswitchBare
used in the setting mode to select and decide a
menu.
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
ALERT :
There are 3 submenus under the alert menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● TIME TO REST
Select this submenu to specify when the
“time to rest” indicator activates. ●
ICY
Select this submenu to display the low out-
side temperature warning.
MAINTENANCE :
There are 5 submenus under the maintenance
menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● ENGINE OIL
Select this submenu to set or reset the
distance for changing the engine oil.
● OIL FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
● TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires. DISPLAY :
There are 3 submenus under the display menu.
●
BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English or
French for display.
● UNIT
Select this submenu to choose the unit from
MPG or l/100 km.
7. Warning check
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
DETAIL :
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
Instruments and controls2-25

5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.
Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.
Vehicle security system activation
The vehicle security system will give the follow-
ing alarm:
● The headlights blink and the horn sounds
intermittently.
● The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
●
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key, or when the ignition switch
is pushed to the ACC or ON position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC rules for
INFINITI Vehicle Immobilizer System (CONT
ASSY - CARD SLOT)
This device complies with part 15 of the FCC
Rules and RSS-210 of Industry Canada. Opera-
tion is subject to the following two conditions;
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that
may cause undesired operation of the device.
CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S AUTHOR-
ITY TO OPERATE THE EQUIPMENT.
Instruments and controls2-27

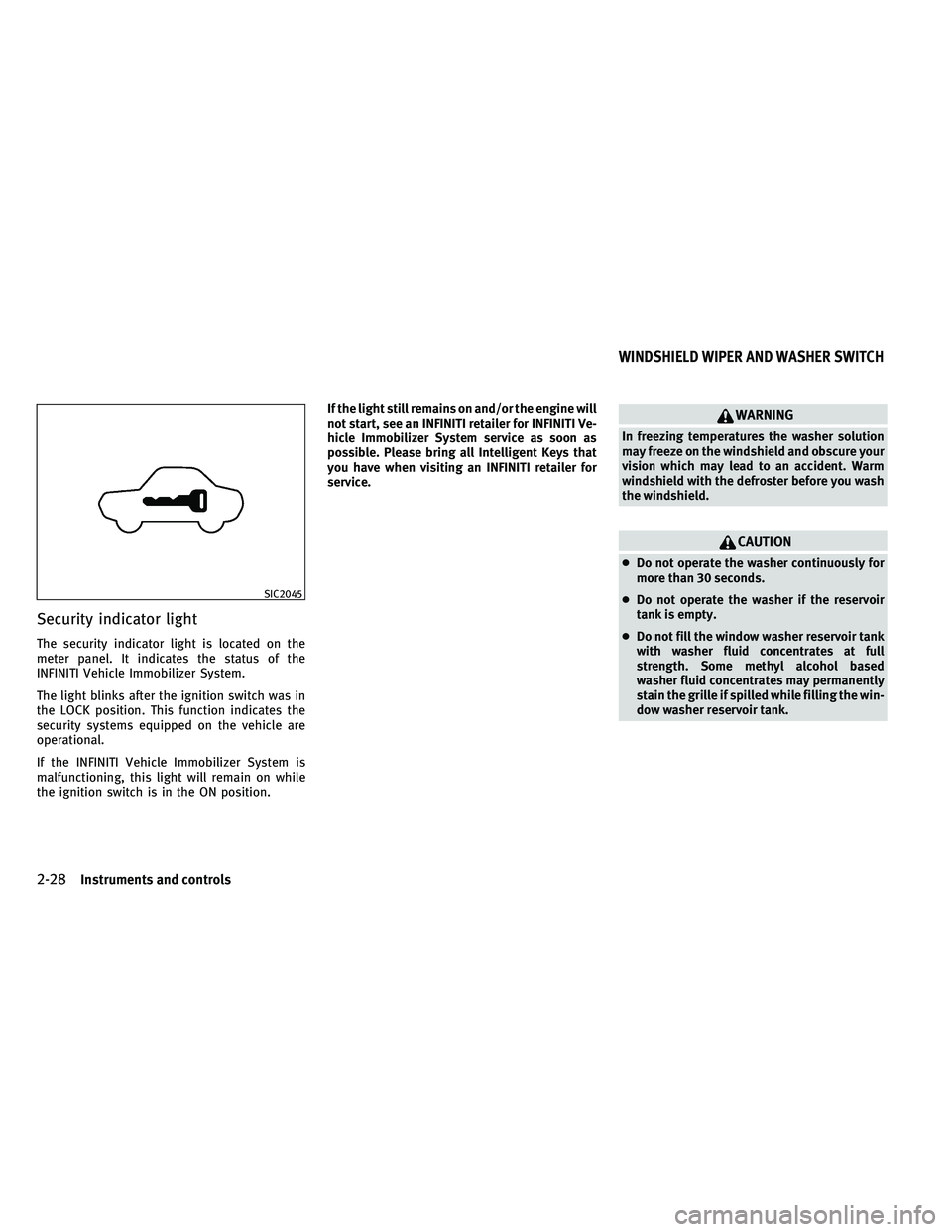

Security indicator light
The security indicator light is located on the
meter panel. It indicates the status of the
INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the LOCK position. This function indicates the
security systems equipped on the vehicle are
operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, this light will remain on while
the ignition switch is in the ON position.If the light still remains on and/or the engine will
not start, see an INFINITI retailer for INFINITI Ve-
hicle Immobilizer System service as soon as
possible. Please bring all Intelligent Keys that
you have when visiting an INFINITI retailer for
service.
WARNING
In freezing temperatures the washer solution
may freeze on the windshield and obscure your
vision which may lead to an accident. Warm
windshield with the defroster before you wash
the windshield.
CAUTION
●
Do not operate the washer continuously for
more than 30 seconds.
● Do not operate the washer if the reservoir
tank is empty.
● Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
SIC2045
WINDSHIELD WIPER AND WASHER SWITCH
2-28Instruments and controls

●When the windshield glass is coated with
water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
● Be sure to turn off the rain-sensing auto wiper
system when you use a car wash.
● Using genuine wiper blades is recommended
for proper operation of the rain-sensing auto
wiper system. (See “WINDSHIELD WIPER
BLADES” in the “8. Maintenance and do-it-
yourself” section for wiper blade replace-
ment.)
To defog/defrost the rear window glass and
outside mirrors, start the engine and push the
switch
1on. The indicator light2will come
on. Push the switch again to turn the defroster
off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear win-
dow, be careful not to scratch or damage the
rear window defroster.
XENON HEADLIGHTS
WARNING
HIGH VOLTAGE
● When xenon headlights are on, they produce
a high voltage. To prevent an electric shock,
never attempt to modify or disassemble.
Always have your xenon headlights replaced
at an INFINITI retailer.
● Xenon headlights provide considerably more
light than conventional headlights. If they
are not correctly aimed, they might
temporarily blind an oncoming driver or the
driver ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your vehicle to
an INFINITI retailer and have the headlights
adjusted correctly.
SIC3239
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH
Instruments and controls2-31

Battery saver system
A chime will sound when the driver side door is
opened with the light switch in theorposition and the ignition switch in the
ACC, OFF or LOCK position.
When the headlight switch is in the
orposition while the ignition switch is in
the ON position, the lights will automatically
turn off 5 minutes after the ignition switch has
been pushed to the OFF position.
When the headlight switch remains in the
orposition after the lights auto-
matically turn off, the lights will turn on when
the ignition switch is pushed to the ON posi-
tion.
CAUTION
● When you turn on the headlight switch again
after the lights automatically turn off, the
lights will not turn off automatically. Be sure
to turn the light switch to the OFF position
when you leave the vehicle for extended pe-
riods of time, otherwise the battery will be
discharged.
● Never leave the light switch on when the
engine is not running for extended periods of
time even if the headlights turn off
automatically.
Daytime running light system
(Canada only)
The daytime running lights automatically illumi-
nate when the engine is started with the park-
ing brake released. The daytime running lights
operate with the headlight switch in the OFF,
AUTO or
position. Turn the headlight
switch to theposition for full illumination
when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illumi-
nate once the parking brake is released. The
daytime running lights will remain on until the
ignition switch is pushed to the OFF position.
SIC3257
2-34Instruments and controls

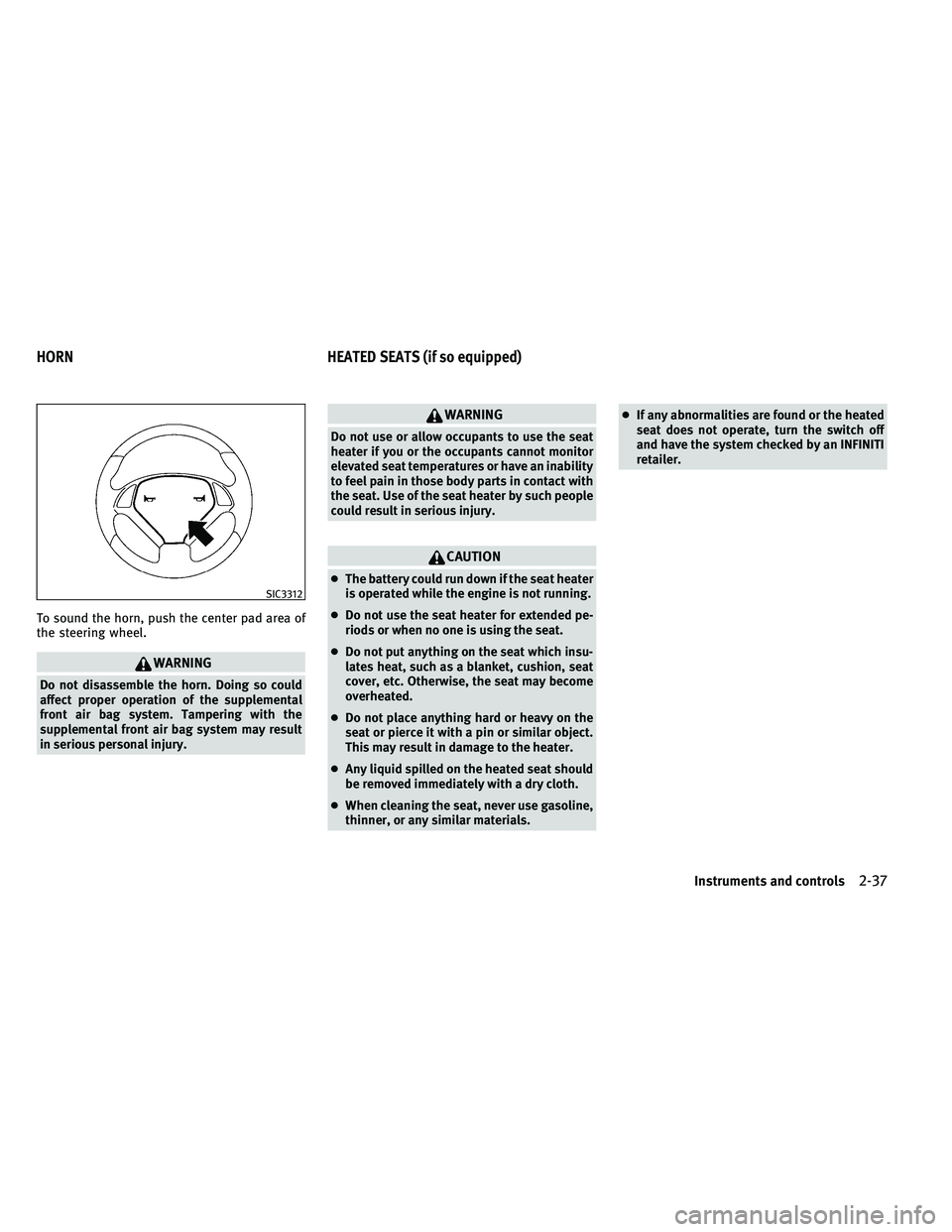

To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so could
affect proper operation of the supplemental
front air bag system. Tampering with the
supplemental front air bag system may result
in serious personal injury.
WARNING
Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in those body parts in contact with
the seat. Use of the seat heater by such people
could result in serious injury.
CAUTION
●The battery could run down if the seat heater
is operated while the engine is not running.
● Do not use the seat heater for extended pe-
riods or when no one is using the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.
● Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the heater.
● Any liquid spilled on the heated seat should
be removed immediately with a dry cloth.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials. ●
If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.SIC3312
HORN HEATED SEATS (if so equipped)
Instruments and controls2-37

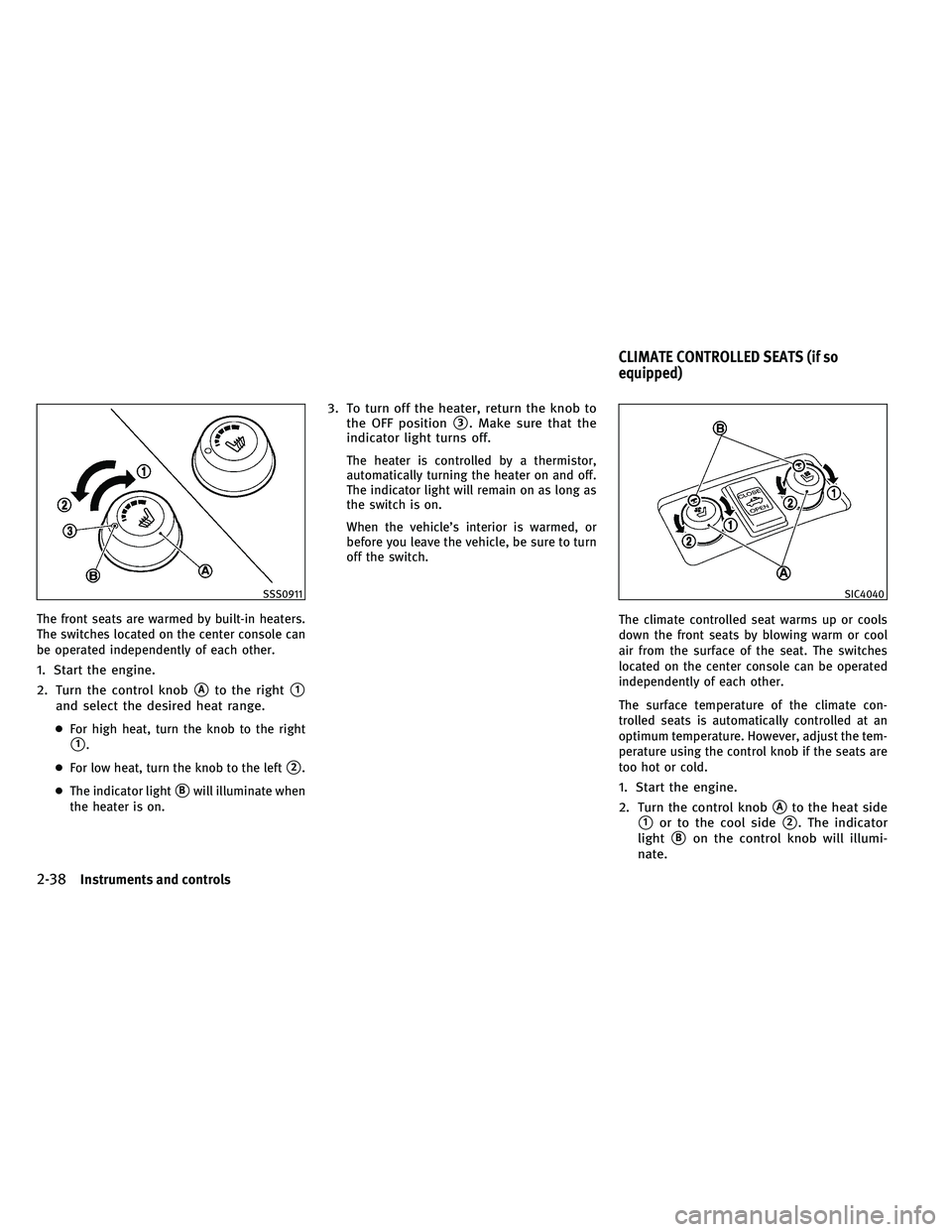

The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Turn the control knob
Ato the right1
and select the desired heat range.
●For high heat, turn the knob to the right
1.
● For low heat, turn the knob to the left
2.
● The indicator light
Bwill illuminate when
the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a thermistor,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
The climate controlled seat warms up or cools
down the front seats by blowing warm or cool
air from the surface of the seat. The switches
located on the center console can be operated
independently of each other.
The surface temperature of the climate con-
trolled seats is automatically controlled at an
optimum temperature. However, adjust the tem-
perature using the control knob if the seats are
too hot or cold.
1. Start the engine.
2. Turn the control knob
Ato the heat side
1or to the cool side2. The indicator
light
Bon the control knob will illumi-
nate.
SSS0911SIC4040
CLIMATE CONTROLLED SEATS (if so
equipped)
2-38Instruments and controls

3. Adjust the desired amount of the air usingthe control knob
A.
4. When the vehicle’s interior is warmed or cooled, and/or before you leave the ve-
hicle, be sure to turn the control knob to
the OFF position (center). The indicator
light
Bon the control knob goes off at
the OFF position.
To check the air filter for the climate con-
trolled seat, contact an INFINITI retailer.
CAUTION
● Do not place objects in front of the intake
inlet located behind the front seat. Doing so
could cause improper operation or interrup-
tion of the operation.
● The battery could run down if the climate
controlled seat is operated while the engine
is not running.
● Do not use the climate controlled seat for
extended periods or when no one is using
the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated. ●
Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the climate
controlled seat.
● Any liquid spilled on the seat should be re-
moved immediately with a dry cloth.
● The climate controlled seat has air filters. Do
not operate the climate controlled seat with-
out the air filters. This may result in damage
to the system.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials.
● If any malfunctions are found or the climate
controlled seat does not operate, turn the
switch off and have the system checked by
an INFINITI retailer. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
JVS0022X
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH
Instruments and controls2-39
