Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.)If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
1.
2. To set the clock backward, push the but- ton
2.
3. To move forward or backward faster, push and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section.
SIC3325
CLOCK
2-40Instruments and controls

The power outlet is located in the center con-
sole box and storage box (if so equipped).
CAUTION
●The outlet and plug may be hot during or
immediately after use.
● Do not use with accessories that exceed a 12
volt, 120W (10A) power draw. Do not use
double adapters or more than one electrical
accessory.
● Use power outlet with the engine running to
avoid discharging the vehicle battery. ●
Avoid using power outlet when the air condi-
tioner, headlights or rear window defroster
is on.
● This power outlet is not designed for use
with a cigarette lighter unit.
● Push the plug in as far as it will go. If good
contact is not made, the plug may overheat
or the internal temperature fuse may blow.
● Before inserting or disconnecting a plug, be
sure the electrical accessory being used is
turned OFF.
● When not in use, be sure to close the cap. Do
not allow water to contact the outlet.
Automatic transmission models
SIC4302
Automatic transmission models
SIC4316
Manual transmission models
SIC4684
POWER OUTLETS
Instruments and controls2-41

INTERIOR LIGHT CONTROL SWITCH
The interior light control switch has three posi-
tions: ON, DOOR and OFF.
ON position
When the switch is in the ON position1the
map lights will illuminate.
DOOR position
When the switch is in the DOOR position2, the
map lights will illuminate under the following
conditions:
● ignition switch is switched to the OFF or
LOCK position
– remain on for about 15 seconds.
● doors are unlocked by pushing the UNLOCK
button on the Intelligent Key or door handle
request switch with the ignition switch in the
LOCK position
– remain on for about 15 seconds.
● any door is opened and then closed with the
ignition switch in the LOCK position
– remain on for about 15 seconds.
● any door is opened with the ignition switch
in the ACC or ON position
– remain on while the door is opened. When the door is closed, the lights go off.
The lights will also turn off after 15 minutes when
the lights remain illuminated after the ignition
switch has been pushed to the OFF or LOCK po-
sition to prevent the battery from becoming dis-
charged. When the auto interior illumination is set to the
OFF position (see “VEHICLE INFORMATION AND
SETTINGS” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section),
the lights will illuminate under the following
condition:
●
any door is opened with the ignition switch
in any position
– remain on while the door is opened. When the door is closed, the lights go off.
OFF position
When the switch is in the OFF position3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a dis-
charged battery.
SIC4044
2-50Instruments and controls

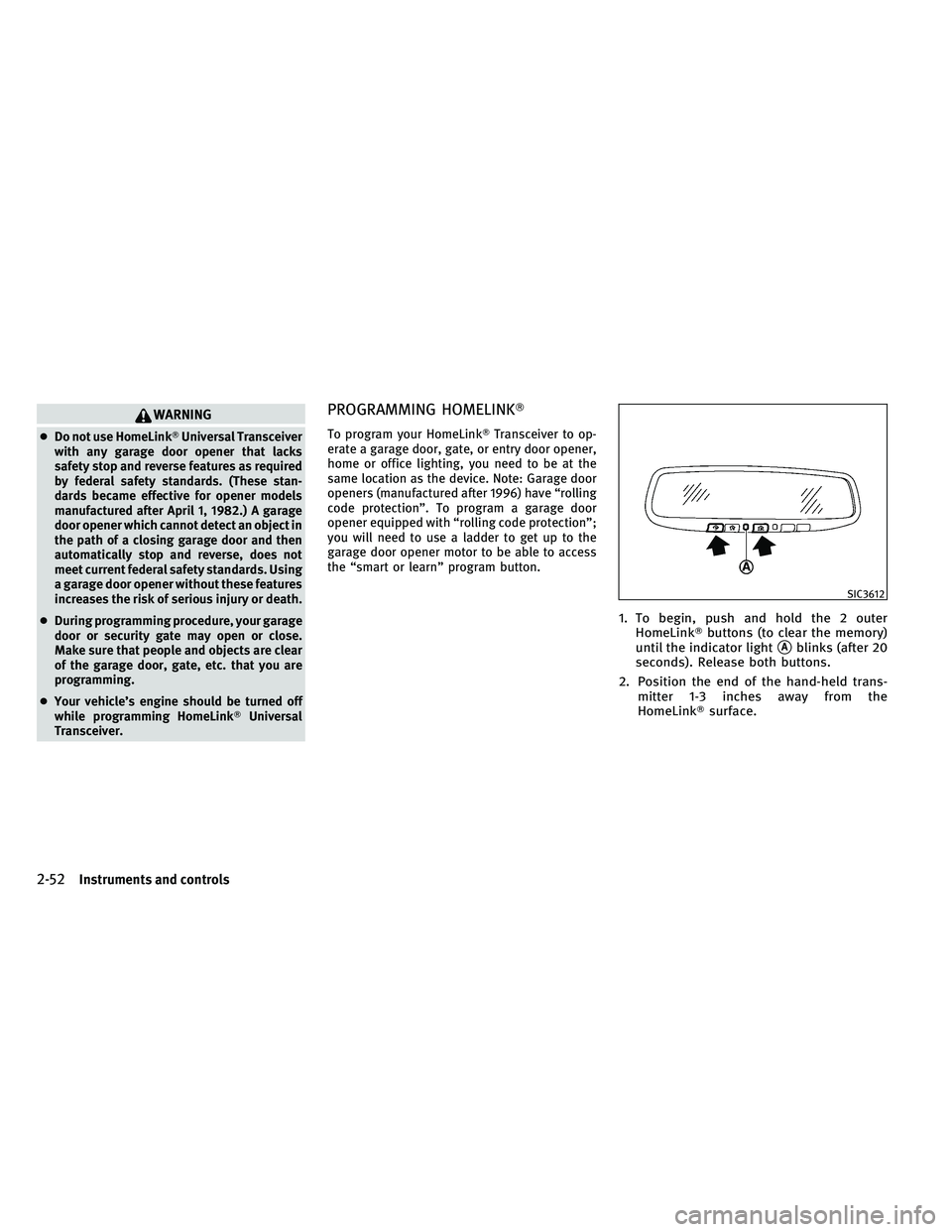

WARNING
●Do not use HomeLink Universal Transceiver
with any garage door opener that lacks
safety stop and reverse features as required
by federal safety standards. (These stan-
dards became effective for opener models
manufactured after April 1, 1982.) A garage
door opener which cannot detect an object in
the path of a closing garage door and then
automatically stop and reverse, does not
meet current federal safety standards. Using
a garage door opener without these features
increases the risk of serious injury or death.
● During programming procedure, your garage
door or security gate may open or close.
Make sure that people and objects are clear
of the garage door, gate, etc. that you are
programming.
● Your vehicle’s engine should be turned off
while programming HomeLink Universal
Transceiver.
PROGRAMMING HOMELINK
To program your HomeLink Transceiver to op-
erate a garage door, gate, or entry door opener,
home or office lighting, you need to be at the
same location as the device. Note: Garage door
openers (manufactured after 1996) have “rolling
code protection”. To program a garage door
opener equipped with “rolling code protection”;
you will need to use a ladder to get up to the
garage door opener motor to be able to access
the “smart or learn” program button.
1. To begin, push and hold the 2 outer HomeLink buttons (to clear the memory)
until the indicator light
Ablinks (after 20
seconds). Release both buttons.
2. Position the end of the hand-held trans- mitter 1-3 inches away from the
HomeLink surface.
SIC3612
2-52Instruments and controls

●When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. For more
details, see “PUSH-BUTTON IGNITION SWITCH”
in the “5. Starting and driving” section. Replace
the discharged battery with a new one as soon
as possible.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section. For models with a steering wheel lock mecha-
nism: Because the steering wheel is locked
electrically, unlocking the steering wheel with
the ignition switch in the LOCK position is
impossible when the vehicle battery is com-
pletely discharged. Pay special attention that
the vehicle battery is not completely dis-
charged.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information
about the purchase and use of additional Intel-
ligent Keys, contact an INFINITI retailer.
CAUTION
●
Do not allow the Intelligent Key, which con-
tains electrical components, to come into
contact with water or salt water. This could
affect the system function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent Key.
● Wetting may damage the Intelligent Key. If
the Intelligent Key gets wet, immediately
wipe until it is completely dry. ●
If the outside temperature is below 14°F
(10°C) degrees, the battery of the Intelli-
gent Key may not function properly.
● Do not place the Intelligent Key for an ex-
tended period in an area where tempera-
tures exceed 140°F (60°C).
● Do not attach the Intelligent Key with a key
holder that contains a magnet.
● Do not place the Intelligent Key near equip-
ment that produces a magnetic field, such as
a TV, audio equipment and personal
computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to oper-
ate the vehicle. For information regarding the
erasing procedure, contact an INFINITI retailer.
The Intelligent key function can be disabled. For
information about disabling the Intelligent key
function, contact an INFINITI retailer.
Pre-driving checks and adjustments3-7

TROUBLESHOOTING GUIDE
SymptomPossible causeAction to take
When pushing the ignition switch to
stop the engine The SHIFT P warning appears on the
display and the inside warning chime
sounds continuously (Automatic
Transmission models). The selector lever is not in the P
(Park) position.
Shift the selector lever to the P
(Park) position.
When shifting the selector lever to
the P (Park) position. The inside warning chime sounds
continuously. The ignition switch is in the ACC or
ON position.Push the ignition switch to the OFF
position.
When opening the driver’s door to
get out of the vehicle The inside warning chime sounds
continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF
position.
The Intelligent Key is in the Intelli-
gent Key port. Remove the Intelligent Key from the
Intelligent Key port.
When closing the door after getting
out of the vehicle The NO KEY warning appears on the
display, the outside chime sounds 3
times and the inside warning chime
sounds for a few seconds.
The ignition switch is in the ACC or
ON position.
Push the ignition switch to the OFF
position.
The SHIFT P warning appears on the
display and the outside chime
sounds continuously (Automatic
Transmission models). The ignition switch is in the ACC or
OFF position and the selector lever is
not in the P (Park) position.
Move the selector lever to the P
(Park) position and push the ignition
switch to the OFF position.
When closing the door with the in-
side lock knob turned to LOCK The outside chime sounds for a few
seconds and all the doors unlock. The Intelligent Key is inside the ve-
hicle or trunk.Carry the Intelligent Key with you.
3-12Pre-driving checks and adjustments

Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2318
HOOD
Pre-driving checks and adjustments3-17

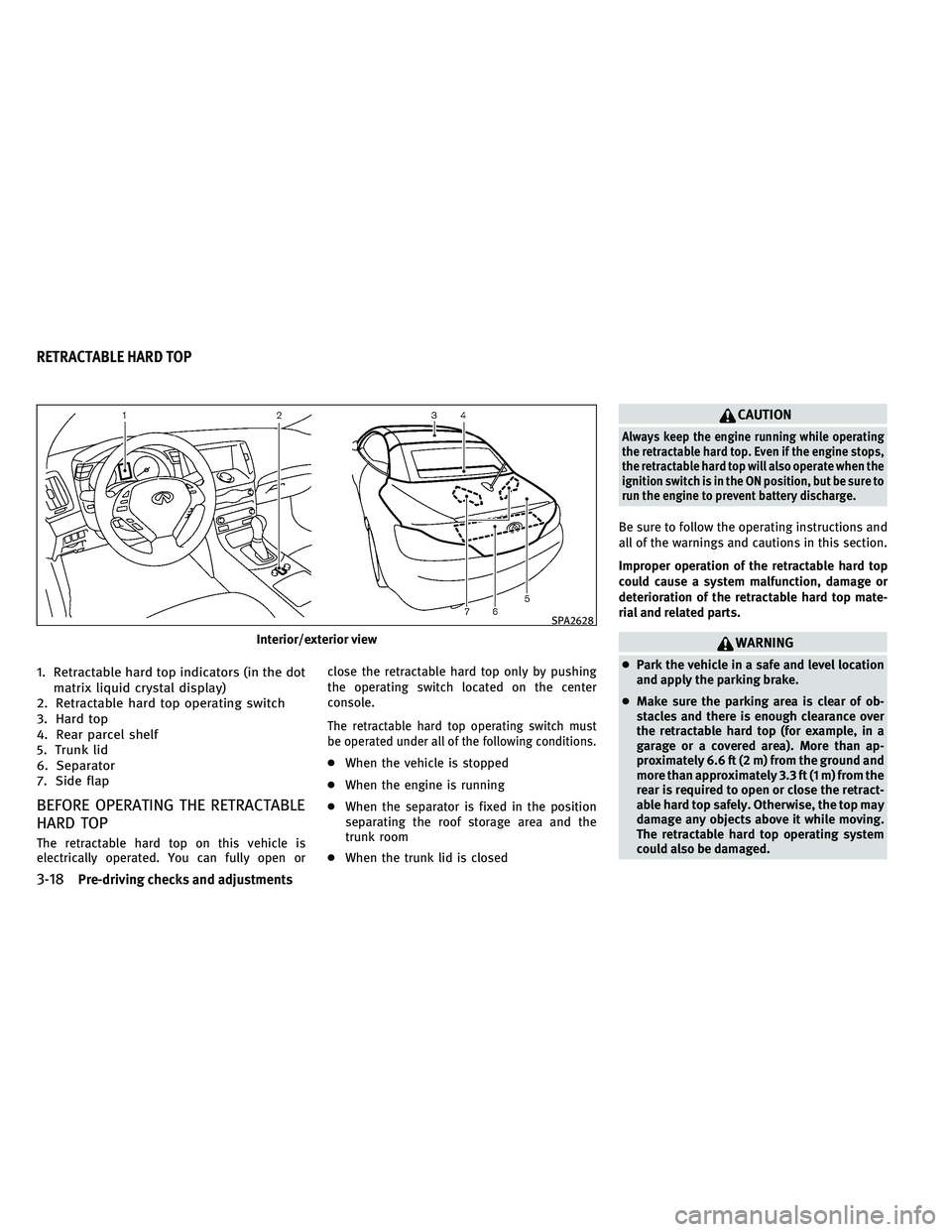

1. Retractable hard top indicators (in the dotmatrix liquid crystal display)
2. Retractable hard top operating switch
3. Hard top
4. Rear parcel shelf
5. Trunk lid
6. Separator
7. Side flap
BEFORE OPERATING THE RETRACTABLE
HARD TOP
The retractable hard top on this vehicle is
electrically operated. You can fully open or close the retractable hard top only by pushing
the operating switch located on the center
console.
The retractable hard top operating switch must
be operated under all of the following conditions.
●
When the vehicle is stopped
● When the engine is running
● When the separator is fixed in the position
separating the roof storage area and the
trunk room
● When the trunk lid is closed
CAUTION
Always keep the engine running while operating
the retractable hard top. Even if the engine stops,
the retractable hard top will also operate when the
ignition switch is in the ON position, but be sure to
run the engine to prevent battery discharge.
Be sure to follow the operating instructions and
all of the warnings and cautions in this section.
Improper operation of the retractable hard top
could cause a system malfunction, damage or
deterioration of the retractable hard top mate-
rial and related parts.
WARNING
●Park the vehicle in a safe and level location
and apply the parking brake.
● Make sure the parking area is clear of ob-
stacles and there is enough clearance over
the retractable hard top (for example, in a
garage or a covered area). More than ap-
proximately 6.6 ft (2 m) from the ground and
more than approximately 3.3 ft (1 m) from the
rear is required to open or close the retract-
able hard top safely. Otherwise, the top may
damage any objects above it while moving.
The retractable hard top operating system
could also be damaged.
Interior/exterior view
SPA2628
RETRACTABLE HARD TOP
3-18Pre-driving checks and adjustments

OPENING THE RETRACTABLE HARD
TOP
1. Make sure the trunk lid is securely closedbefore operating the retractable hard top.
2. Apply the parking brake and move the selector lever to the P (Park) position (for
the automatic transmission models) or
the shift lever to the N (Neutral) position
(for the manual transmission models).
3. Start the engine. 4. Push the OPEN side of the retractable
hard top operating switch and hold it until
the retractable hard top is fully opened.
●When the OPEN side of the retractable
hard top operating switch is pushed a
beep sounds.
● “ROOF IN OPERATION” is displayed on the
dot matrix liquid crystal display while the
retractable hard top is in motion.
● The windows will automatically be fully
opened.
5. Release the switch when the retractable hard top is fully opened.
●When the retractable hard top is fully
opened, a beep sounds.
● “ROOF OPEN” is displayed on the dot
matrix liquid crystal display when the
retractable hard top is fully opened.
CAUTION
Be sure to fully open or fully close the retract-
able hard top and do not stop using the operat-
ing switch half way through the roof opening or
closing process. If the retractable hard top is
only partially opened, significant damage to
the retractable hard top could occur.
SPA2632
Pre-driving checks and adjustments3-23

CLOSING THE RETRACTABLE HARD
TOP
1. Make sure the trunk lid is securely closedbefore operating the retractable hard top.
2. Apply the parking brake and move the selector lever to the P (Park) position (for
the automatic transmission models) or
the shift lever to the N (Neutral) position
(for the manual transmission models).
3. Start the engine. 4. Push the CLOSE side of the retractable
hard top operating switch and hold it until
the retractable hard top is fully closed.
●When the CLOSE side of the retractable
hard top operating switch is pushed a
beep sounds.
● “ROOF IN OPERATION” is displayed on the
dot matrix liquid crystal display while the
retractable hard top is in motion.
● The windows will automatically be fully
opened.
5. Release the switch when the retractable hard top is fully closed.
●When the retractable hard top is fully
closed, a beep sounds.
● “ROOF CLOSED” is displayed on the dot
matrix liquid crystal display when the
retractable hard top is fully closed.
IF THE RETRACTABLE HARD TOP DOES
NOT OPEN OR CLOSE ELECTRICALLY
If you cannot operate the retractable hard top
with the operating switch, first check whether
all the following operating conditions are satis-
fied.
● The vehicle is stopped
● The engine is running ●
The separator is fixed in the position sepa-
rating the roof storage area and the trunk
room
● Make sure that no objects interfere with the
rear parcel shelf, the side flaps and the
retractable hard top.
● The trunk lid is closed
If the retractable hard top still does not move
under the above conditions or has any system
malfunction, see an INFINITI retailer as soon as
possible.
WARNING
● Do not drive with the retractable hard top
partially opened.
● When the buzzer continuously sounds while
the vehicle is being driven, immediately park
the car in a safe location and check that the
retractable hard top is not partially open
● If the retractable hard top cannot be oper-
ated properly, see an INFINITI retailer as
soon as possible to have your vehicle
checked.
SPA2633
3-24Pre-driving checks and adjustments
