OPERATING THE RETRACTABLE HARD
TOP USING THE INTELLIGENT KEY
The retractable hard top can be opened using
the request switch. This operation cannot close
the retractable hard top.
Opening the retractable hard top
Carry the Intelligent Key with you. Push the door
handle request switch (driver’s or passenger’s)
Aand hold it until the retractable hard top is
fully open.
INITIALIZING OF THE RETRACTABLE
HARD TOP
After replacing the battery or when repeating
open and close operations without fully open-
ing or closing the retractable hard top, the
retractable hard top may not operate normally.
If this situation occurs, perform initialization of
the retractable hard top according to the follow-
ing procedures.
1. Start the engine.
2. Push the OPEN side of the retractable
hard top operating switch and hold it.
3. Release the OPEN side of the retractable hard top operating switch when the beep
sounds once. The initialization of the re-
tractable hard top is complete.
If the beep sounds twice when releasing the
OPEN side of the retractable hard top operating
switch during the initialization, repeat the pro-
cedures from step 2.
CAUTION
After the initialization, if the retractable hard
top does not operate normally, immediately
contact INFINITI retailer for an inspection. NOTE:
The following functions do not operate normally
when the initialization of the retractable hard
top is not complete.
– The retractable hard top does not open or
close when pushing the OPEN side of the re-
tractable hard top operating switch. (Only the
rear parcel shelf operates.)
– The retractable hard top indicator does not appear on the dot matrix liquid crystal dis-
play.
– The air conditioner airflow is fixed at the level when the retractable hard top is being closed.
– The audio volume is fixed at the level when the retractable hard top is being closed.
– For the models with the navigation system, the Voice Recognition function (VR) is not op-
erative.
SPA2585
Pre-driving checks and adjustments3-25

TROUBLESHOOTING GUIDE
If the retractable hard top stops halfway during operation or does not operate normally, follow the procedures shown in the following table. If the
procedures in the following table do not solve the symptom, immediately contact INFINITI retailer for the inspection.
SymptomBeepPossible cause Possible solution
The OPEN side of the retractable hard
top operating switch is pushed, but
the retractable hard top does not
operate. Sounds twice
The OPEN side of the retractable hard top op-
erating switch is pushed while the retractable
hard top is fully open, or the CLOSE side of
the retractable hard top operating switch is
pushed while the retractable hard top is fully
closed. Push the CLOSE side of the retractable hard top
operating switch when the retractable hard top
is fully open. Push the OPEN side of the retract-
able hard top operating switch when the re-
tractable hard top is fully closed.
Sounds twice The selector lever (automatic transmission
models only) or the shift lever (manual trans-
mission models only) is in the R (Reverse)
position. Shift the selector lever (automatic transmission
models only) to the P (Park) or N (Neutral)
position, or shift the shift lever (manual trans-
mission model only) to the N (Neutral) position,
and then operate the retractable hard top.
Sounds twice The trunk lid is opened. Fully close the trunk lid.
Does not sound The battery voltage is low. Start the engine again and operate the retract-
able hard top.
Sounds twice The separator in the trunk room is not cor-
rectly set. Set the separator correctly. For details, refer to
“Separator” earlier in this section.
Does not sound The retractable hard top is in the deactivation mode in order to avoid motor overheating by
the continuous operation of the retractable
hard top. Wait for approximately 20 minutes without op-
erating the retractable hard top and then oper-
ate the retractable hard top.
3-26Pre-driving checks and adjustments

SymptomBeepPossible cause Possible solution
The retractable hard top stops halfway
during operation. Sounds twice
Objects are trapped in the moving structure of
the retractable hard top. Check that an object is not trapped inside the
rear parcel shelf, side flap and retractable hard
top. After the check, turn the ignition switch to
the OFF position, start the engine again and
then operate the retractable hard top.
Does not sound The battery voltage is low. Start the engine again and operate the retract-
able hard top.
Only the rear parcel shelf operates
when the OPEN side of the retractable
hard top operating switch is pushed. Sounds twice
every 10 sec- onds for 15 minutes. The retractable hard top control does not rec-
ognize the rear parcel shelf position because
of battery replacement or the contentious op-
eration of the retractable hard top. Perform the initialization of the retractable hard
top and operate the retractable hard top again.
For the initialization details, please refer to
“INITIALIZING OF THE RETRACTABLE HARD TOP”
in the “3. Pre-driving checks and adjustments”
section.
When the vehicle is being driven, the
beep sounds. Sounds con-
tinuously The retractable hard top is partially opened. Immediately park the vehicle in a safe location
and fully open or fully close the retractable
hard top.
When the engine is stopped, the beep
sounds. Sounds twice The retractable hard top is partially opened. Fully open or fully close the retractable hard
top.
Pre-driving checks and adjustments3-27

To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
●Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the malfunction indicator light to
come on. ●
Never pour fuel into the throttle body to at-
tempt to start your vehicle.
● Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can cause
an explosion of flammable liquid, vapor or
gas in any vehicle or trailer. To reduce the
risk of serious injury or death when filling
portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel contain- ers for flammable liquid.
CAUTION
●If fuel is spilled on the vehicle body, flush it
away with water to avoid paint damage. ●
Insert the cap straight into the fuel-filler
tube, then tighten until a single click is
heard. Failure to tighten the fuel-filler cap
properly may cause the
malfunction
indicator light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten or in-
stall the cap and continue to drive the ve-
hicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer.
● The LOOSE FUEL CAP warning will appear if
the fuel-filler cap is not properly tightened.
Failure to tighten the fuel-filler cap properly
after the LOOSE FUEL CAP warning appears
may cause the
Malfunction Indicator
Light (MIL) to illuminate.
Pre-driving checks and adjustments3-31

Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback.
3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON position
and push the memory switch (1 or 2) fully for
at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2) fully
for at least 1 second.
The driver’s seat, steering column and out-
side mirrors will move to the memorized
position with the indicator light flashing,
and then the light will stay on for approxi-
mately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
Pre-driving checks and adjustments3-39

1. “AUX” button (P. 4-37)
2. “RADIO AM·FM ” band selector button
(P. 4-37)
3. INFINITI controller (P. 4-4)
4. “
OFF ” brightness control and dis-
play ON/OFF button (P. 4-7)
5. “INFO ” vehicle information button
(P. 4-8)
6. “DISC ” selector button (P. 4-37)
7. “STATUS ” status display button (P. 4-7)
8. “SETTING ” button (P. 4-12)
When you use this system, make sure the
engine is running. If you use the system with the engine not run-
ning (ignition ON or ACC) for a long time, it will
use up all the battery power, and the engine will
not start.
Models without navigation system
SAA1524
Models with navigation system
SAA1541
Models without navigation system
SAA1508
Monitor, climate, audio, phone and voice recognition systems4-3

Maintenance information
The maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance infor-
mation.
1. Set the interval (mileage) of the mainte-nance schedule. To determine the recom-
mended maintenance interval, refer to
your “INFINITI Service and Maintenance
Guide”.
2. To display the reminder automatically when the desired distance is reached,
select the “Reminder” key.
3. Reset the driving distance to the new maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between “US” and
“Metric”. (See “HOW TO USE SETTING BUTTON”
later in this section.)
SAA2481
Models with navigation system
SAA2482
SAA2830
Models without navigation system
SAA2722
4-10Monitor, climate, audio, phone and voice recognition systems

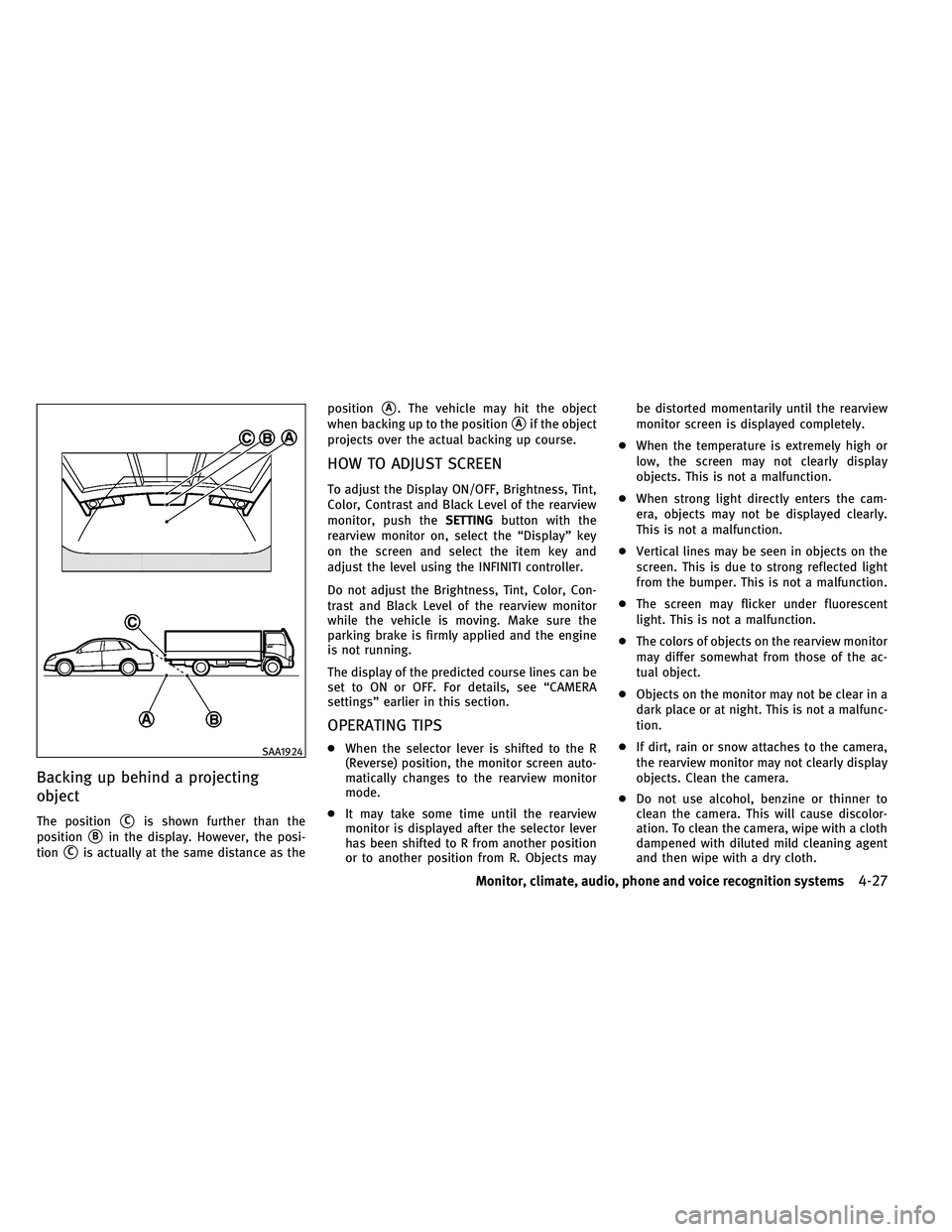

Backing up behind a projecting
object
The positionCis shown further than the
position
Bin the display. However, the posi-
tion
Cis actually at the same distance as the position
A. The vehicle may hit the object
when backing up to the position
Aif the object
projects over the actual backing up course.
HOW TO ADJUST SCREEN
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the rearview
monitor, push the SETTINGbutton with the
rearview monitor on, select the “Display” key
on the screen and select the item key and
adjust the level using the INFINITI controller.
Do not adjust the Brightness, Tint, Color, Con-
trast and Black Level of the rearview monitor
while the vehicle is moving. Make sure the
parking brake is firmly applied and the engine
is not running.
The display of the predicted course lines can be
set to ON or OFF. For details, see “CAMERA
settings” earlier in this section.
OPERATING TIPS
● When the selector lever is shifted to the R
(Reverse) position, the monitor screen auto-
matically changes to the rearview monitor
mode.
● It may take some time until the rearview
monitor is displayed after the selector lever
has been shifted to R from another position
or to another position from R. Objects may be distorted momentarily until the rearview
monitor screen is displayed completely.
● When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
● When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
● Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the rearview monitor
may differ somewhat from those of the ac-
tual object.
● Objects on the monitor may not be clear in a
dark place or at night. This is not a malfunc-
tion.
● If dirt, rain or snow attaches to the camera,
the rearview monitor may not clearly display
objects. Clean the camera.
● Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolor-
ation. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.SAA1924
Monitor, climate, audio, phone and voice recognition systems4-27

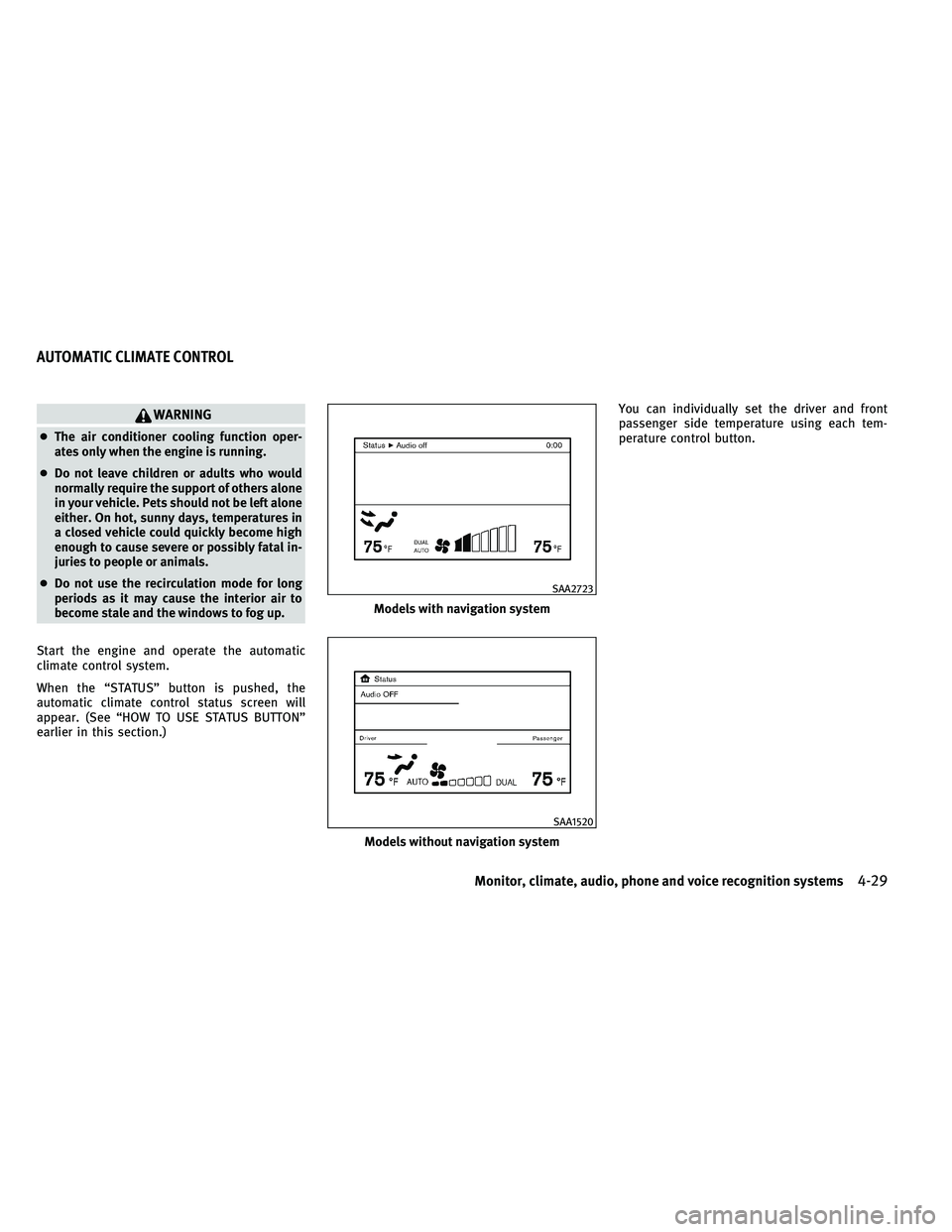

WARNING
●The air conditioner cooling function oper-
ates only when the engine is running.
● Do not leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. On hot, sunny days, temperatures in
a closed vehicle could quickly become high
enough to cause severe or possibly fatal in-
juries to people or animals.
● Do not use the recirculation mode for long
periods as it may cause the interior air to
become stale and the windows to fog up.
Start the engine and operate the automatic
climate control system.
When the “STATUS” button is pushed, the
automatic climate control status screen will
appear. (See “HOW TO USE STATUS BUTTON”
earlier in this section.) You can individually set the driver and front
passenger side temperature using each tem-
perature control button.
Models with navigation system
SAA2723
Models without navigation system
SAA1520
AUTOMATIC CLIMATE CONTROL
Monitor, climate, audio, phone and voice recognition systems4-29

●The air flow control is not in the front
defogger mode (the indicator light on the
“
” front defogger button is turned off).
● The outside temperature is about 32°F (0°C)
or more.
● The outside odor and exhaust gas detection
sensor detects industrial odors such as pulp
or chemicals and exhaust gas such as gaso-
line or diesel.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with Plasmacluster ion that are
emitted from the ventilator.
After 5 minutes, the sensor detects outside
odors and exhaust gas and automatically alter-
nates between the recirculation mode and out-
side air circulation mode.
OPERATING TIPS
When the engine coolant temperature and out-
side air temperature are low, the air flow from
the foot outlets may not operate for a maximum
of 150 seconds. This is not a malfunction. After
the coolant temperature warms up, air will flow
normally from the foot outlets. The sunload sensor
Aon the instrument panel
helps maintain a constant temperature. Do not
put anything on or around this sensor.
IN-CABIN MICROFILTER
Type A:
The climate control system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner
heats, defogs, and ventilates efficiently, replace
the filter in accordance with the maintenance
schedule in the INFINITI Service and Mainte-
nance Guide. To replace the filter, contact an
INFINITI retailer. The filter should be replaced if air flow is ex-
tremely decreased or when windows fog up eas-
ily when operating heater or air conditioning
system.
Type B:
The climate control system is equipped with a
natural grape seed polyphenol filter which col-
lects and neutralizes dirt, pollen, dust, etc. To
make sure that the air conditioner heats, defogs
and ventilates efficiently, replace the filter in
accordance with the maintenance schedule in
the INFINITI Service and Maintenance Guide. To
replace the filter, contact an INFINITI retailer.
The filter should be replaced if the air flow de-
creases significantly or if windows fog up easily
when operating the heater or air conditioner.SERVICING CLIMATE CONTROL
The climate control system in your INFINITI is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not
harm the earth’s ozone layer. However, special
charging equipment and lubricant are required
when servicing your INFINITI air conditioner.
Using improper refrigerants or lubricants will
cause severe damage to your climate control
system. (See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
SIC2768
4-36Monitor, climate, audio, phone and voice recognition systems
