INFINITI G-CONVERTIBLE 2011 Owners Manual

2. Securely install the vehicle recovery hook
1stored with jacking tools as illustrated.
Make sure that the hook is properly secured
in the original place after use.Front (Aerodynamic Package models):
1. To remove the hook cover1from the
bumper, use a suitable tool.
2. Pull the cover up
2and then pull it out.
3. Securely install the vehicle recovery hook stored with jacking tools.
Aerodynamic Package models
SCE0964
6-20In case of emergency

Rear :
Do not use the tie down hook
2for towing or
vehicle recovery.
CAUTION
● Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle. Otherwise, the
vehicle body will be damaged.
● Do not use the vehicle tie downs to free a
vehicle stuck in sand, snow, mud, etc.
● Never tow a vehicle using the vehicle tie
downs or recovery hooks. ●
Always pull the cable straight out from the
front of the vehicle. Never pull on the vehicle
at an angle.
● Pulling devices should be routed so they do
not touch any part of the suspension, steer-
ing, brake or cooling systems.
● Pulling devices such as ropes or canvas
straps are not recommended for use in ve-
hicle towing or recovery.
Rocking a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
●Shift back and forth between R (Reverse)
and D (Drive) (automatic transmission
models) or 1st and R (Reverse) (manual
transmission models). ●
Apply the accelerator as little as possible
to maintain the rocking motion.
● Release the accelerator pedal before
shifting between R (Reverse) and D (Drive)
(automatic transmission models) or 1st
and R (Reverse) (manual transmission
models).
● Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing ser-
vice to remove the vehicle.
Rear
SCE0894
In case of emergency6-21

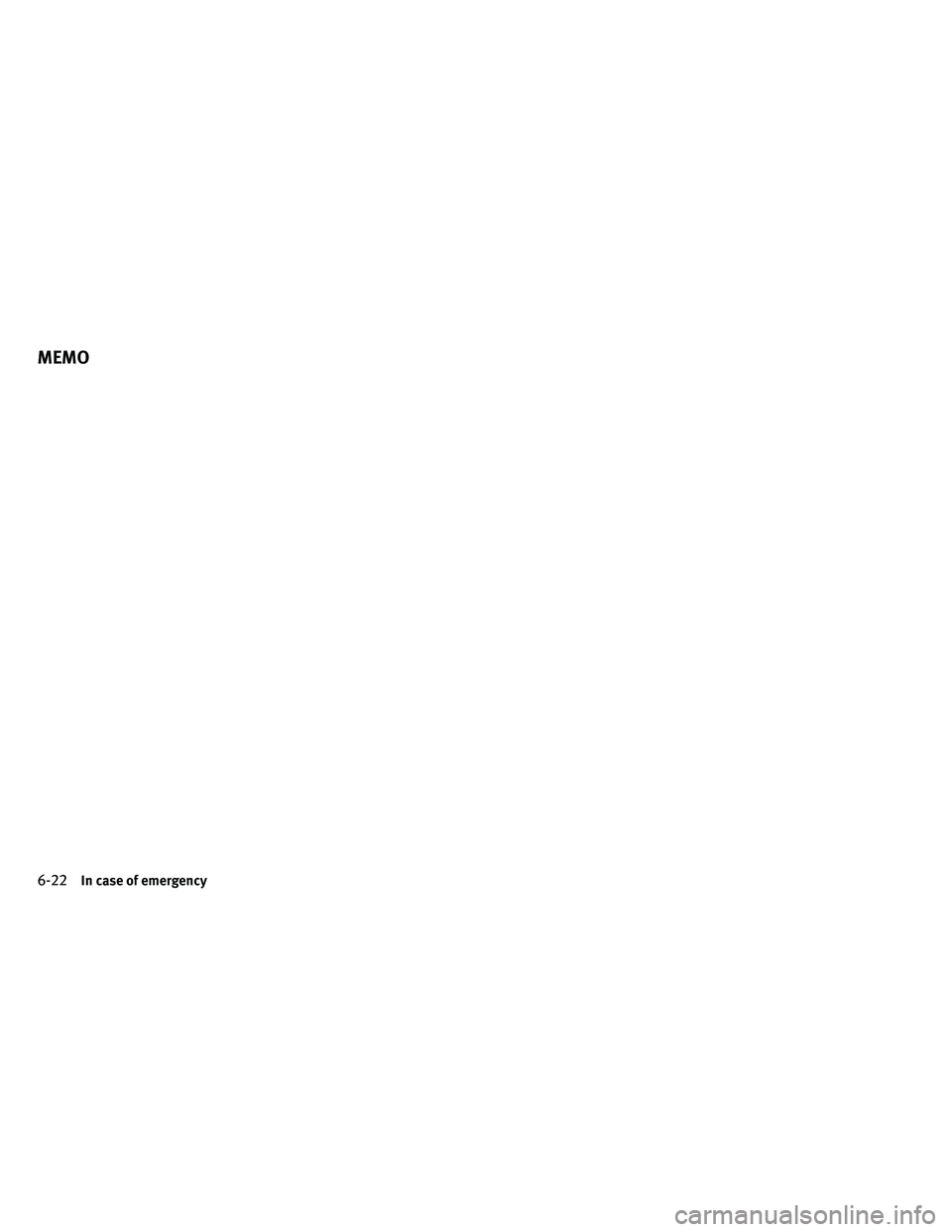

MEMO
6-22In case of emergency

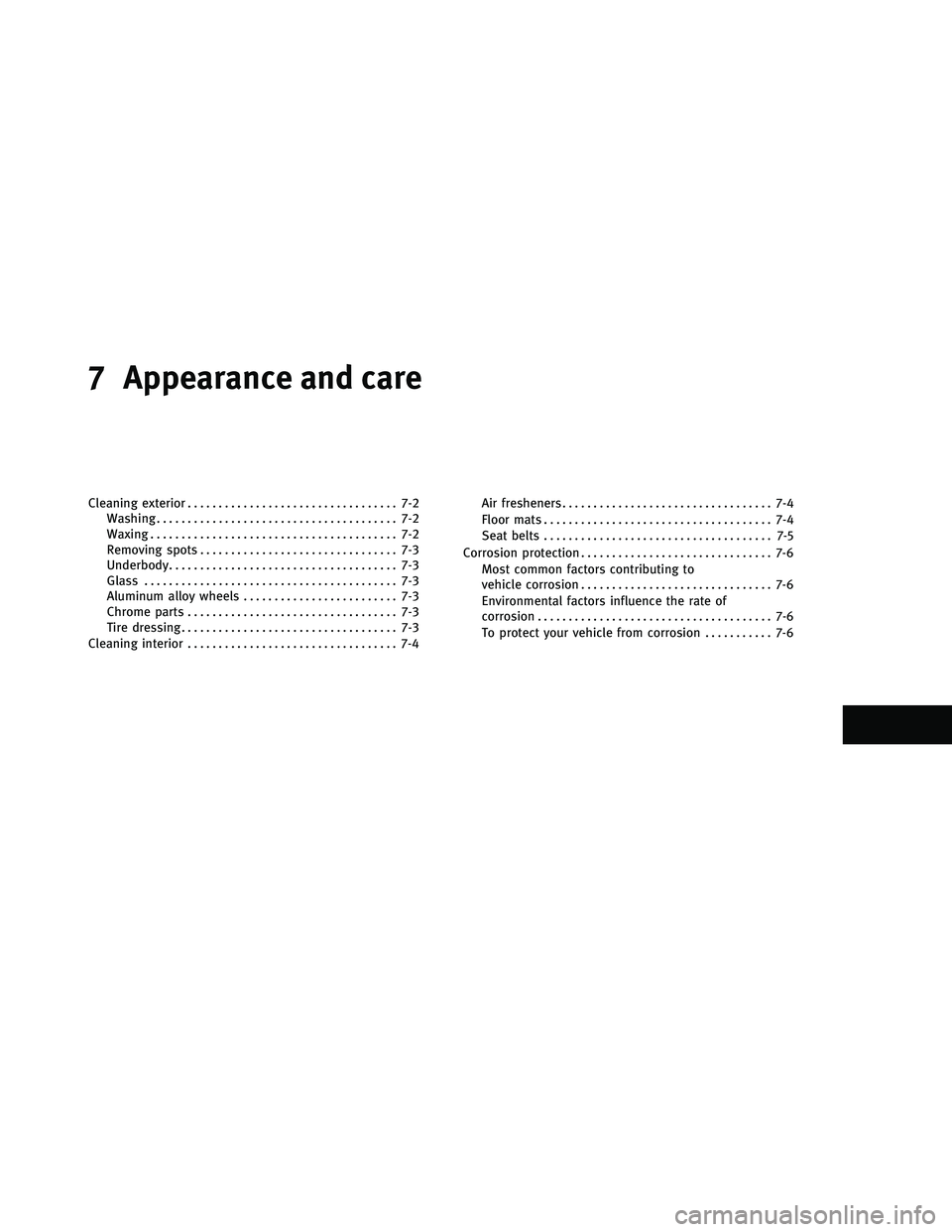

7 Appearance and care
Cleaning exterior.................................. 7-2
Washing ....................................... 7-2
Waxing ........................................ 7-2
Removing spots ................................ 7-3
Underbody ..................................... 7-3
Glass ......................................... 7-3
Aluminum alloy wheels ......................... 7-3
Chrome parts .................................. 7-3
Tire dressing ................................... 7-3
Cleaning interior .................................. 7-4 Air fresheners
.................................. 7-4
Floor mats ..................................... 7-4
Seat belts ..................................... 7-5
Corrosion protection ............................... 7-6
Most common factors contributing to
vehicle corrosion ............................... 7-6
Environmental factors influence the rate of
corrosion ...................................... 7-6
To protect your vehicle from corrosion ........... 7-6

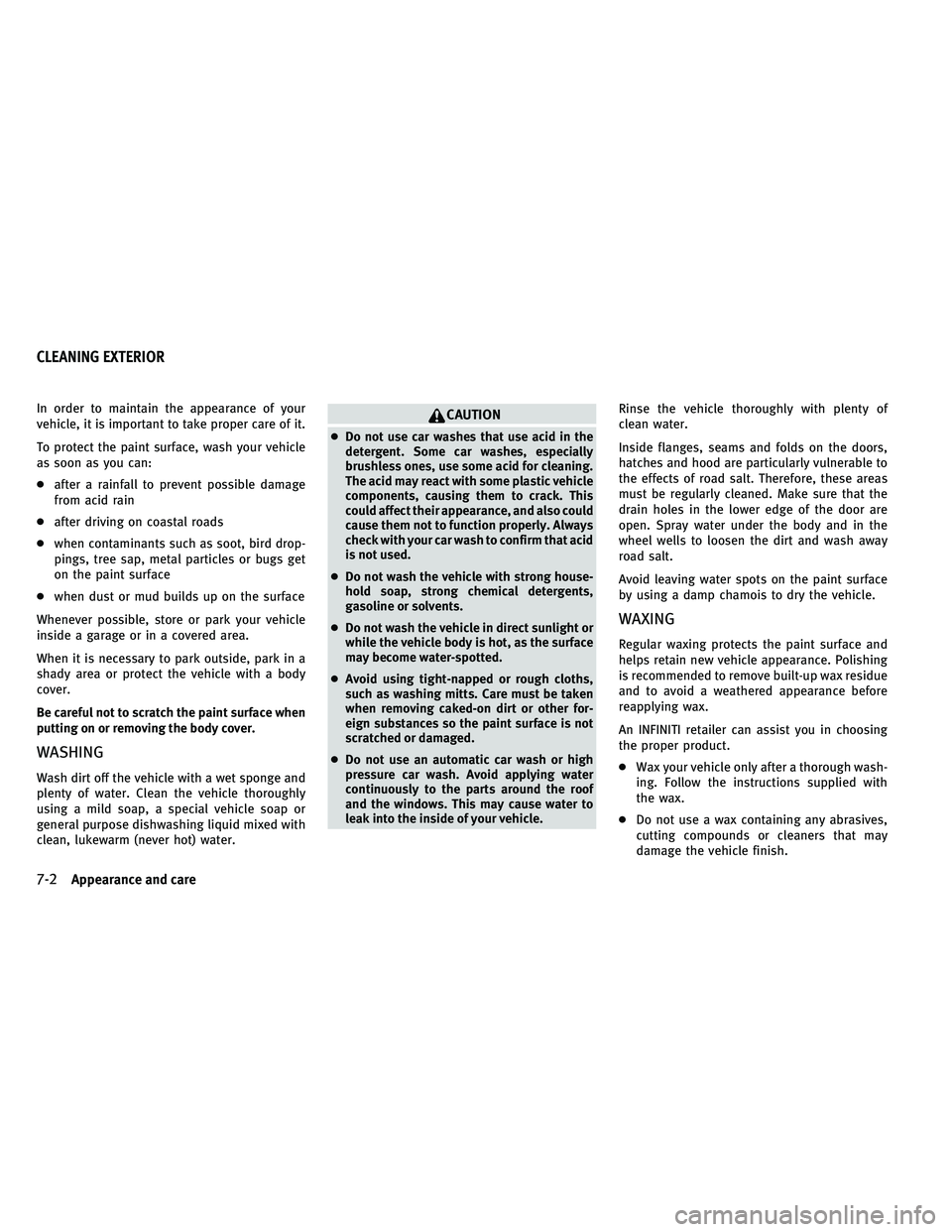

In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
To protect the paint surface, wash your vehicle
as soon as you can:
●after a rainfall to prevent possible damage
from acid rain
● after driving on coastal roads
● when contaminants such as soot, bird drop-
pings, tree sap, metal particles or bugs get
on the paint surface
● when dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface when
putting on or removing the body cover.
WASHING
Wash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.
CAUTION
● Do not use car washes that use acid in the
detergent. Some car washes, especially
brushless ones, use some acid for cleaning.
The acid may react with some plastic vehicle
components, causing them to crack. This
could affect their appearance, and also could
cause them not to function properly. Always
check with your car wash to confirm that acid
is not used.
● Do not wash the vehicle with strong house-
hold soap, strong chemical detergents,
gasoline or solvents.
● Do not wash the vehicle in direct sunlight or
while the vehicle body is hot, as the surface
may become water-spotted.
● Avoid using tight-napped or rough cloths,
such as washing mitts. Care must be taken
when removing caked-on dirt or other for-
eign substances so the paint surface is not
scratched or damaged.
● Do not use an automatic car wash or high
pressure car wash. Avoid applying water
continuously to the parts around the roof
and the windows. This may cause water to
leak into the inside of your vehicle. Rinse the vehicle thoroughly with plenty of
clean water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
WAXING
Regular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
An INFINITI retailer can assist you in choosing
the proper product.
●
Wax your vehicle only after a thorough wash-
ing. Follow the instructions supplied with
the wax.
● Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
CLEANING EXTERIOR
7-2Appearance and care

Machine compound or aggressive polishing on
a base coat/clear coat paint finish may dull the
finish or leave swirl marks.
REMOVING SPOTS
Remove tar and oil spots, industrial dust, in-
sects, and tree sap as quickly as possible from
the paint surface to avoid lasting damage or
staining. Special cleaning products are avail-
able at an INFINITI retailer or any automotive
accessory stores.
UNDERBODY
In areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.
GLASS
Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for
glass to become coated with a film after the
vehicle is parked in the hot sun. Glass cleaner
and a soft cloth will easily remove this film.
CAUTION
When cleaning the inside of the windows, do
not use sharp-edged tools, abrasive cleaners or
chlorine-based disinfectant cleaners. They
could damage the electrical conductors, radio
antenna elements or rear window defroster
elements.
ALUMINUM ALLOY WHEELS
Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
CAUTION
Follow the directions below to avoid staining or
discoloring the wheels:
●Do not use a cleaner that uses strong acid or
alkali contents to clean the wheels.
● Do not apply wheel cleaners to the wheels
when they are hot. The wheel temperature
should be the same as ambient temperature.
● Rinse the wheel to completely remove the
cleaner within 15 minutes after the cleaner is
applied.
CHROME PARTS
Clean chrome parts regularly with a non- abra-
sive chrome polish to maintain the finish.
TIRE DRESSING
INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
● Use a water-based tire dressing. The coating
on the tire dissolves more easily with an
oil-based tire dressing.
● Apply a light coat of tire dressing to help
prevent it from entering the tire
tread/grooves (where it would be difficult to
remove).
● Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is com-
pletely removed from the tire tread/grooves.
● Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
Appearance and care7-3

Occasionally remove loose dust from the inte-
rior trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl
and leather surfaces with a clean, soft cloth
dampened in mild soap solution, then wipe
clean with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot steam
cleaners) on the seat. This can damage the seat
or occupant classification sensor. This can also
affect the operation of the air bag system and
result in serious personal injury.
CAUTION
●Never use benzine, thinner, or any similar
material. ●
Small dirt particles can be abrasive and damag-
ing to the leather surfaces and should be re-
moved promptly. Do not use saddle soap, car
waxes, polishes, oils, cleaning fluids, solvents,
detergents or ammonia-based cleaners as they
may damage the leather’s natural finish.
● Only use fabric protectors approved by
INFINITI.
● Do not use glass or plastic cleaner on meter
or gauge lens covers. It may damage the lens
cover.
AIR FRESHENERS
Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
● Hanging-type air fresheners can cause per-
manent discoloration when they contact ve-
hicle interior surfaces. Place the air fresh-
ener in a location that allows it to hang free
and not contact an interior surface.
● Liquid-type air fresheners typically clip on
the vents. These products can cause imme-
diate damage and discoloration when
spilled on interior surfaces.
Carefully read and follow the manufacturer’s
instructions before using air fresheners.

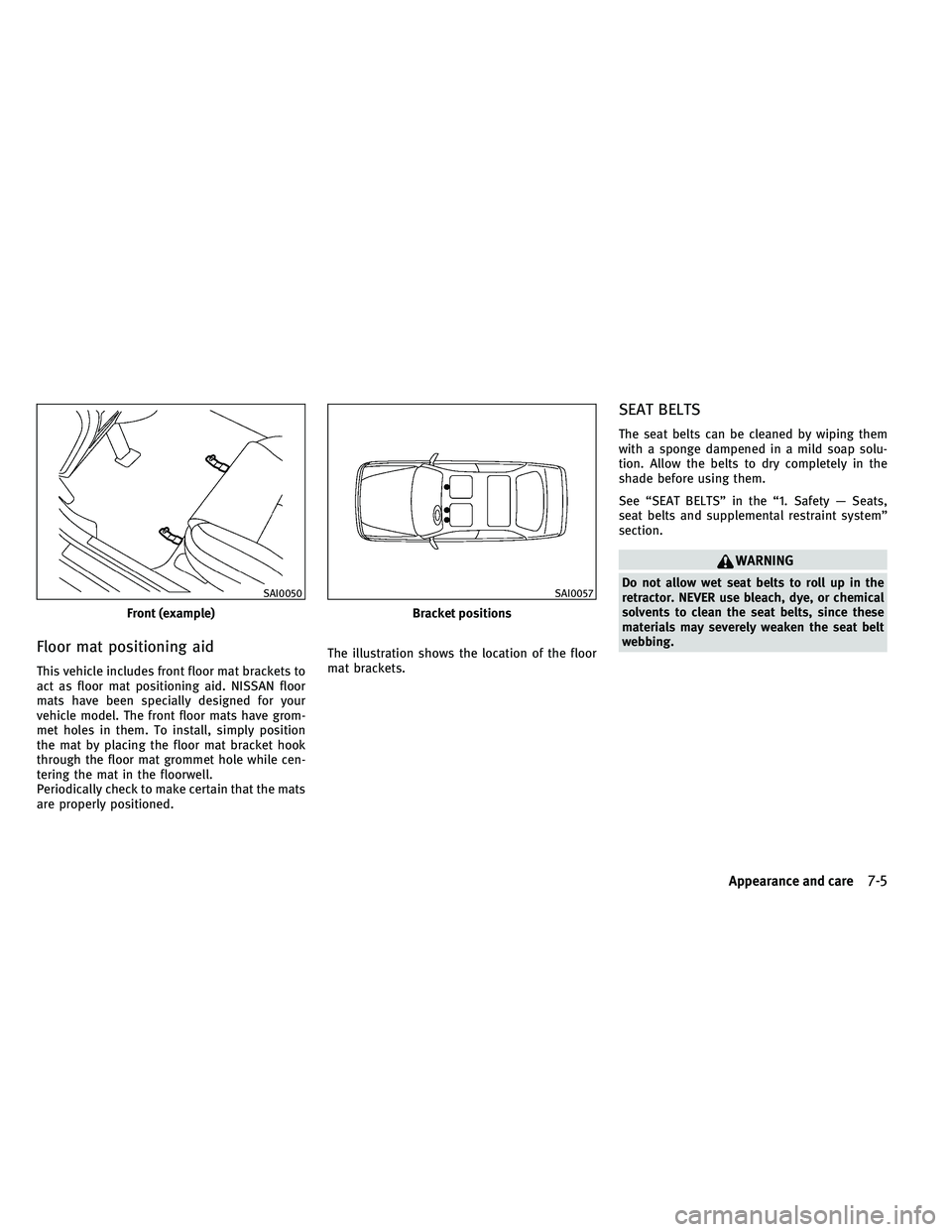

FLOOR MATS
WARNING
To avoid potential pedal interference that may
result in a collision or injury:
● NEVER place a floor mat on top of another
floor mat in the driver front position.
● Use only genuine NISSAN floor mats specifi-
cally designed for use in your vehicle model.
See your INFINITI retailer for more
information.
● Properly position the mats in the floorwell
using the floor mat positioning aid. See
“Floor mat positioning aid” later in this
section.
The use of NISSAN floor mats can extend the life
of your vehicle carpet and make it easier to
clean the interior. Mats should be maintained
with regular cleaning and replaced if they be-
come excessively worn.
CLEANING INTERIOR
7-4Appearance and care

Floor mat positioning aid
This vehicle includes front floor mat brackets to
act as floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The front floor mats have grom-
met holes in them. To install, simply position
the mat by placing the floor mat bracket hook
through the floor mat grommet hole while cen-
tering the mat in the floorwell.
Periodically check to make certain that the mats
are properly positioned.The illustration shows the location of the floor
mat brackets.
SEAT BELTS
The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solu-
tion. Allow the belts to dry completely in the
shade before using them.
See “SEAT BELTS” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section.
WARNING
Do not allow wet seat belts to roll up in the
retractor. NEVER use bleach, dye, or chemical
solvents to clean the seat belts, since these
materials may severely weaken the seat belt
webbing.
Front (example)
SAI0050
Bracket positions
SAI0057
Appearance and care7-5

MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION
●The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
● Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.
ENVIRONMENTAL FACTORS INFLUENCE
THE RATE OF CORROSION
Moisture
Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.
Relative humidity
Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing where
atmospheric pollution exists, or where road salt
is used.
Temperature
A temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.
Air pollution
Industrial pollution, the presence of salt in the
air in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint sur-
faces.
TO PROTECT YOUR VEHICLE FROM
CORROSION
● Wash and wax your vehicle often to keep the
vehicle clean.
● Always check for minor damage to the paint
and repair it as soon as possible.
● Keep drain holes at the bottom of the doors
open to avoid water accumulation.
● Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION
● NEVER remove dirt, sand or other debris from
the passenger compartment by washing it
out with a hose. Remove dirt with a vacuum
cleaner.
● Never allow water or other liquids to come in
contact with electronic components inside
the vehicle as this may damage them.
Chemicals used for road surface deicing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake
lines, brake cables, floor pan and fenders.
In winter, the underbody must be cleaned peri-
odically.
For additional protection against rust and cor-
rosion, which may be required in some areas,
consult an INFINITI retailer.
CORROSION PROTECTION
7-6Appearance and care

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VQ37VHR engine ............................... 8-6
Engine cooling system ............................. 8-7
Checking engine coolant level ................... 8-7
Changing engine coolant ........................ 8-8
Engine oil ........................................ 8-8
Checking engine oil level ....................... 8-8
Changing engine oil and filter ................... 8-9
Automatic transmission fluid .......................8-11
Power steering fluid ............................... 8-11
Brake and clutch fluid ............................ 8-12
Brake fluid ................................... 8-12
Clutch fluid (if so equipped) ....................8-12
Window washer fluid ............................. 8-13
Battery .......................................... 8-13
Jump starting ................................. 8-15Variable voltage control system
...................8-15
Drive belt ........................................ 8-16
Spark plugs ..................................... 8-16
Replacing spark plugs ......................... 8-17
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-18
Cleaning ...................................... 8-18
Replacing ..................................... 8-18
Brakes .......................................... 8-19
Self-adjusting brakes .......................... 8-19
Brake pad wear warning ....................... 8-19
Fuses ........................................... 8-20
Engine compartment ........................... 8-20
Passenger compartment ....................... 8-21
Intelligent Key battery replacement ................8-22
Lights ........................................... 8-24
Headlights .................................... 8-25
Exterior

and interior lights ..................... 8-25
Wheels and tires ................................. 8-27
Tire pressure .................................. 8-27
Tire labeling .................................. 8-30
Types of tires ................................. 8-32
Tire chains ................................... 8-32
Changing wheels and tires..................... 8-33
