3. Remove the jacking tool case.
4. Remove the retainer by turning it counter-clockwise, and then remove the spare
tire. 5. Remove the jack storage lid, and then
remove the jack.
Jacking up the vehicle and removing
the damaged tire
WARNING
●Never get under the vehicle while it is sup-
ported only by the jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Use only the jack provided with your vehicle
to lift the vehicle. Do not use the jack pro-
vided with your vehicle on other vehicles.
The jack is designed for lifting only your ve-
hicle during a tire change.
● Use the correct jack-up points. Never use any
other part of the vehicle for jack support.
● Never jack up the vehicle more than
necessary.
● Never use blocks on or under the jack.
● Do not start or run the engine while vehicle is
on the jack, as it may cause the vehicle to
move. This is especially true for vehicles
with limited slip differentials.
● Do not allow passengers to stay in the ve-
hicle while it is on the jack.
SCE0800SCE0801
6-10In case of emergency

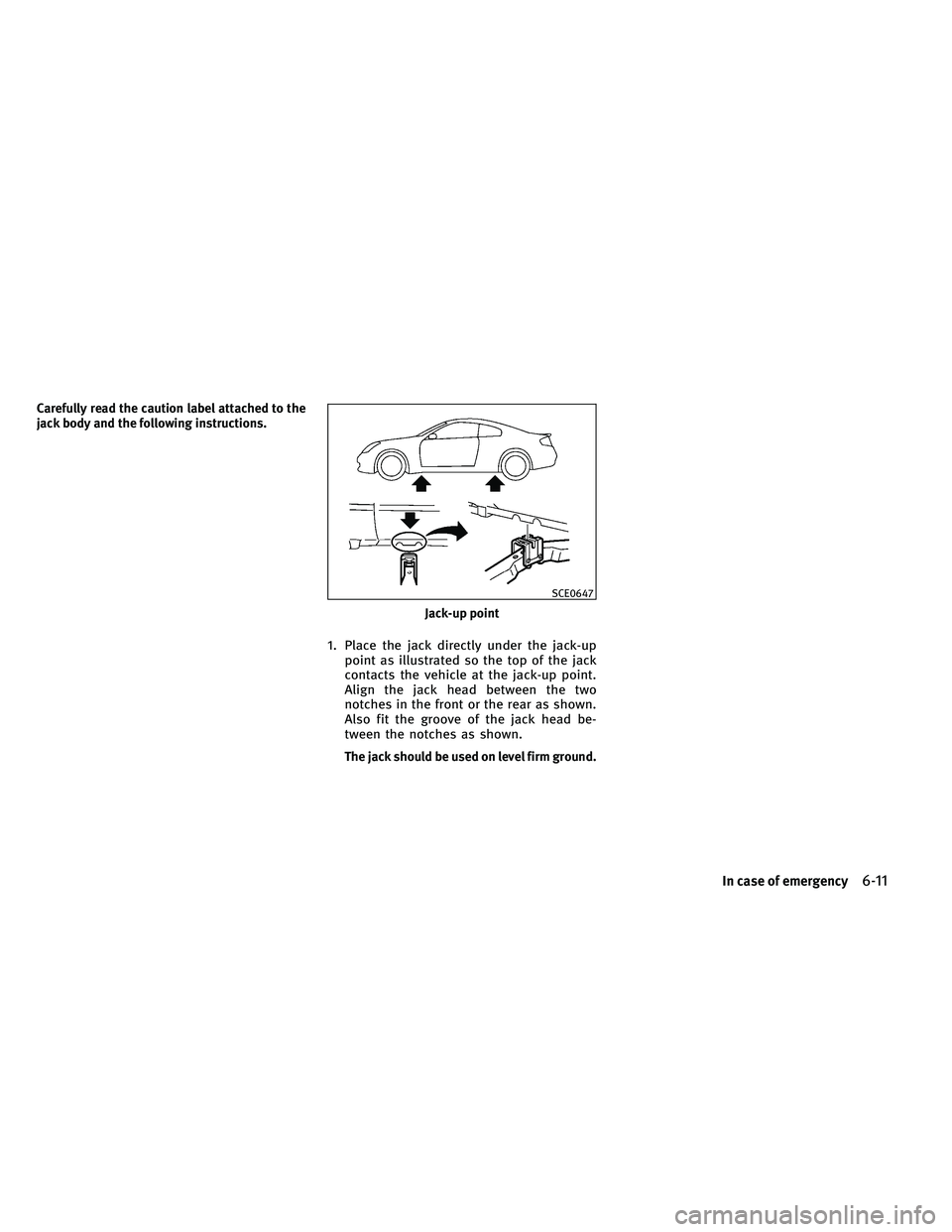

Carefully read the caution label attached to the
jack body and the following instructions.
1. Place the jack directly under the jack-uppoint as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head be-
tween the notches as shown.
The jack should be used on level firm ground.
Jack-up point
SCE0647
In case of emergency6-11

2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the ground.
3. To lift the vehicle, securely hold the jack lever and rod with both hands as shown
above. Carefully raise the vehicle until the
tire clears the ground. Remove the wheel
nuts, and then remove the tire.Installing the spare tire
The T-type spare tire is designed for emergency
use. (See specific instructions under the head-
ing “WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section.)
1. Clean any mud or dirt from the surfacebetween the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight. Check that all
the wheel nuts contact the wheel surface
horizontally.
When replacing a front tire, make sure that
the hole in the spare tire wheel is aligned
with the pin on the brake rotor.
SCE0504SCE0661
6-12In case of emergency

3. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the se-
quence as illustrated (
1,2,3,4,5)
until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts se-
curely in the sequence as illustrated.
Lower the vehicle completely.
WARNING
●Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become
loose or come off. This could cause an
accident.
● Do not use oil or grease on the wheel studs or
nuts. This could cause the nuts to become
loose.
● Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.). ●
As soon as possible, tighten the wheel
nuts to the specified torque with a torque
wrench.
Wheel nut tightening torque: 80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to
specifications at all times. It is recommended
that the wheel nuts be tightened to specifica-
tions at each lubrication interval.
● Adjust tire pressure to the COLD pressure.
COLD pressure:
After the vehicle has been parked for 3 hours
or more or driven less than 1 mile (1.6 km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to the
driver side center pillar.
5. Securely store the flat tire and jacking equipment in the vehicle.
6. Place the jacking tool case and the trunk floor board over the damaged tire.
7. Close the trunk.
WARNING
● Always make sure that the spare tire and
jacking equipment are properly secured af-
ter use. Such items can become dangerous
projectiles in an accident or sudden stop.
● The spare tire is designed for emergency
use. See specific instructions under the
heading “WHEELS AND TIRES” in the “8.
Maintenance and do-it-yourself” section.
If needed Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
In case of emergency6-13

To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING
●If done incorrectly, jump starting can lead to
a battery explosion, resulting in severe in-
jury or death. It could also damage your
vehicle.
● Explosive hydrogen gas is always present in
the vicinity of the battery. Keep all sparks
and flames away from the battery.
● Do not allow battery fluid to come into con-
tact with eyes, skin, clothing or painted sur-
faces. Battery fluid is a corrosive sulphuric
acid solution which can cause severe burns.
If the fluid should come into contact with
anything, immediately flush the contacted
area with water.
● Keep the battery out of the reach of children.
● The booster battery must be rated at 12
volts. Use of an improperly rated battery can
damage your vehicle. ●
Whenever working on or near a battery, al-
ways wear suitable eye protectors (for ex-
ample, goggles or industrial safety spec-
tacles) and remove rings, metal bands, or
any other jewelry. Do not lean over the bat-
tery when jump starting.
● Do not attempt to jump start a frozen battery.
It could explode and cause serious injury.
● Your vehicle has an automatic engine cool-
ing fan. It could come on at any time. Keep
hands and other objects away from it.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
JUMP STARTING
6-14In case of emergency

WARNING
Always follow the instructions below. Failure to
do so could result in damage to the charging
system and cause personal injury.
1. If the booster battery is in another vehicle
A, position the two vehicles (AandB)
to bring their batteries into close proxim-
ity to each other.
Do not allow the two vehicles to touch.
2. Apply the parking brake. 3.
Automatic Transmission model:
Move the selector lever to the P (Park)
position.
Manual Transmission model:
Move the shift lever to the N (Neutral) posi-
tion.
4. Switch off all unnecessary electrical sys-
tems (headlights, heater, air conditioner,
etc.).
5. Remove the vent caps on the battery (if so equipped). Cover the battery with a firmly
wrung out moist cloth
Cto reduce explo-
sion hazard. 6. Connect jumper cables in the sequence as
illustrated (
1→2→3→4).
For models with a steering wheel lock
mechanism: If the battery is disconnected or
discharged, the steering wheel will lock and
cannot be turned. Supply power using
jumper cables before pushing the ignition
switch and disengaging the steering lock.
CAUTION
●Always connect positive (+) to positive (+)
and negative () to body ground (as illus-
trated) — not to the battery.
● Make sure the jumper cables do not touch
moving parts in the engine compartment and
that clamps do not contact any other metal.
7. Start the engine of the booster vehicleA
and let it run for a few minutes.
8. Keep the engine speed of the booster vehicle
Aat about 2,000 rpm, and start
the engine of the vehicle
Bbeing jump
started.
SCE0653
In case of emergency6-15

CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
9. After starting your engine, carefully dis-connect the negative cable and then the
positive cable (
4→3→2→1).
10. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to
cover the vent holes as it may be con-
taminated with corrosive acid.
Do not attempt to start the engine by pushing.
CAUTION
●Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
CAUTION
● Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake.
2. Automatic Transmission model:
Move the selector lever to the P (Park)
position.
Manual Transmission model:
Move the shift lever to the N (Neutral) posi-
tion.
Do not stop the engine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
6-16In case of emergency

3. Turn off the air conditioner. Open all thewindows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
4. If engine overheating is caused by climb- ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
5. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
6. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
7. Visually check the drive belt for damage or looseness. Also check if the cooling fan
is running. The radiator hoses and radia-
tor should not leak water. If coolant is
leaking or the cooling fan does not run,
stop the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
8. After the engine cools down, check the coolant level in the reservoir with the
engine running. Add coolant to the reser-
voir if necessary. Have your vehicle re-
paired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada). When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.WARNING
●
Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and drivetrain
are in working condition. If any unit is dam-
aged, dollies must be used.
● Always attach safety chains before towing.
TOWING YOUR VEHICLE
In case of emergency6-17

For information about towing your vehicle be-
hind a recreational vehicle (RV), see “FLAT
TOWING” in the “9. Technical and consumer
information” section of this manual.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
TOWING RECOMMENDED BY INFINITI
INFINITI recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illustrated.
CAUTION
●Never tow automatic transmission models with
the rear wheels on the ground or four wheels
on the ground (forward or backward), as this
may cause serious and expensive damage to
the drivetrain. If it is necessary to tow the ve-
hicle with the front wheels raised, always use
towing dollies under the rear wheels.
● When towing rear wheel drive models with
the front wheels on the ground or on towing
dollies: Push the ignition switch to the ACC
or ON position, and secure the steering
wheel in a straight-ahead position with a
rope or similar device. For models with a
steering wheel lock mechanism: Never se-
cure the steering wheel by selecting the
LOCK position. This may damage the steer-
ing lock mechanism.
SCE0967
6-18In case of emergency

●If you have to tow manual transmission mod-
els with the rear wheels on the ground (if you
do not use towing dollies) or four wheels on
the ground:
– Push the ignition switch to the ON posi- tion and turn off all accessories.
– Always release the parking brake.
– Move the transmission shift lever to the N (Neutral) position.
– Observe the following restricted towing speeds and distances for manual trans-
mission models only:
●Rear wheels on the ground:
Speed: Below 50 MPH (80 km/h)
Distance: Less than 50 miles (80 km)
● Four wheels on the ground:
Speed: Below 70 MPH (112 km/h)
Distance: Less than 500 miles (800 km)
– If the speed or distance must necessarily be greater, remove the propeller shaft be-
fore towing to prevent damage to the
drivetrain.VEHICLE RECOVERY (Freeing a stuck
vehicle)
WARNING
●Stand clear of a stuck vehicle.
● Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed spe-
cifically for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.
Front (except for Aerodynamic Package models):1. To remove the hook cover from the bum-
per, insert a suitable tool into the mesh
and take off the removable part.
Front (except for Aerodynamic Package models)
SCE0893
In case of emergency6-19
