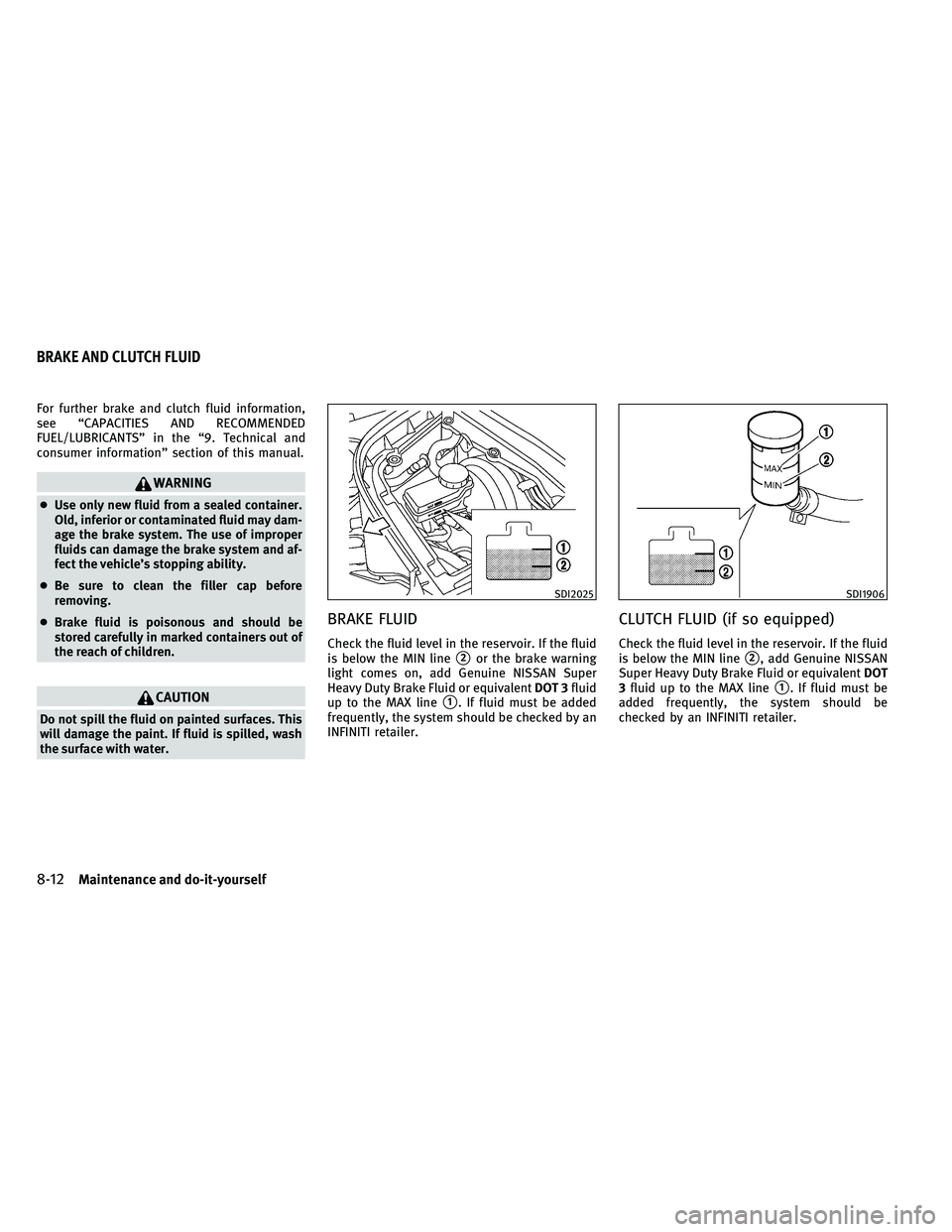

INFINITI G-CONVERTIBLE 2011 Owners Manual

For further brake and clutch fluid information,
see “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section of this manual.
WARNING
●Use only new fluid from a sealed container.
Old, inferior or contaminated fluid may dam-
age the brake system. The use of improper
fluids can damage the brake system and af-
fect the vehicle’s stopping ability.
● Be sure to clean the filler cap before
removing.
● Brake fluid is poisonous and should be
stored carefully in marked containers out of
the reach of children.
CAUTION
Do not spill the fluid on painted surfaces. This
will damage the paint. If fluid is spilled, wash
the surface with water.
BRAKE FLUID
Check the fluid level in the reservoir. If the fluid
is below the MIN line
2or the brake warning
light comes on, add Genuine NISSAN Super
Heavy Duty Brake Fluid or equivalent DOT 3fluid
up to the MAX line
1. If fluid must be added
frequently, the system should be checked by an
INFINITI retailer.
CLUTCH FLUID (if so equipped)
Check the fluid level in the reservoir. If the fluid
is below the MIN line
2, add Genuine NISSAN
Super Heavy Duty Brake Fluid or equivalent DOT
3 fluid up to the MAX line
1. If fluid must be
added frequently, the system should be
checked by an INFINITI retailer.
SDI2025SDI1906
BRAKE AND CLUTCH FLUID
8-12Maintenance and do-it-yourself

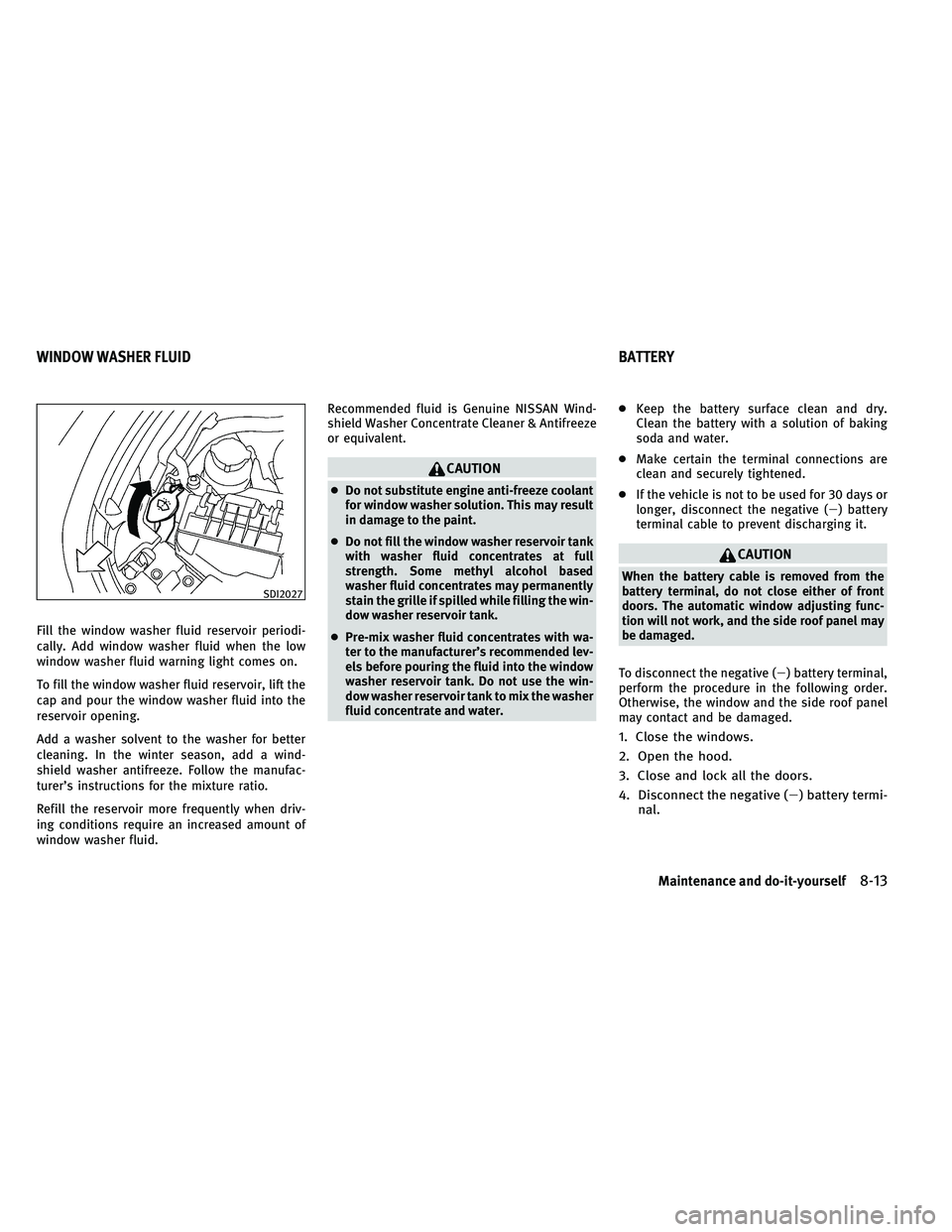

Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
window washer fluid warning light comes on.
To fill the window washer fluid reservoir, lift the
cap and pour the window washer fluid into the
reservoir opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a wind-
shield washer antifreeze. Follow the manufac-
turer’s instructions for the mixture ratio.
Refill the reservoir more frequently when driv-
ing conditions require an increased amount of
window washer fluid.Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Antifreeze
or equivalent.
CAUTION
●
Do not substitute engine anti-freeze coolant
for window washer solution. This may result
in damage to the paint.
● Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
● Pre-mix washer fluid concentrates with wa-
ter to the manufacturer’s recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the washer
fluid concentrate and water. ●
Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
● Make certain the terminal connections are
clean and securely tightened.
● If the vehicle is not to be used for 30 days or
longer, disconnect the negative () battery
terminal cable to prevent discharging it.
CAUTION
When the battery cable is removed from the
battery terminal, do not close either of front
doors. The automatic window adjusting func-
tion will not work, and the side roof panel may
be damaged.
To disconnect the negative () battery terminal,
perform the procedure in the following order.
Otherwise, the window and the side roof panel
may contact and be damaged.
1. Close the windows.
2. Open the hood.
3. Close and lock all the doors.
4. Disconnect the negative () battery termi- nal.
SDI2027
WINDOW WASHER FLUID BATTERY
Maintenance and do-it-yourself8-13

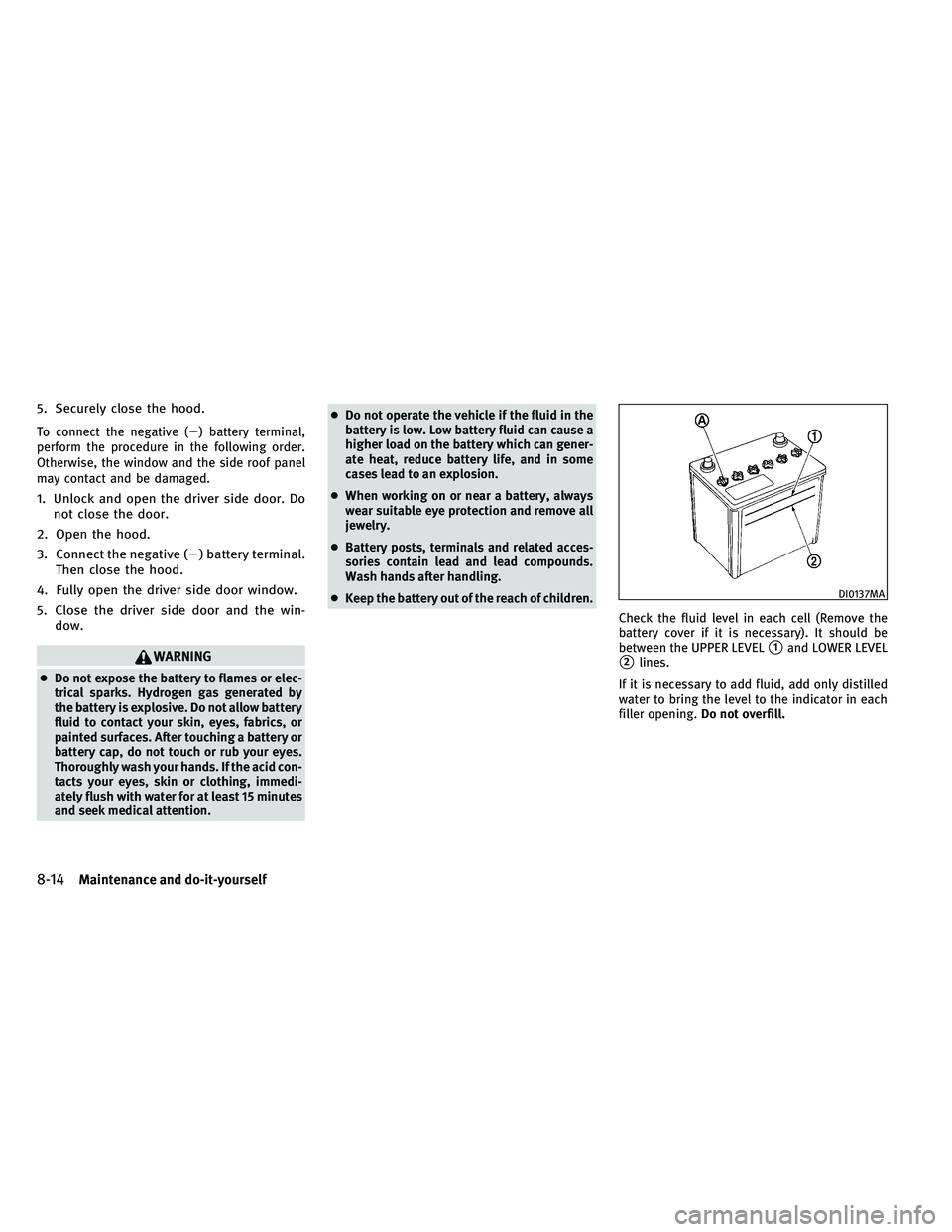

5. Securely close the hood.
To connect the negative () battery terminal,
perform the procedure in the following order.
Otherwise, the window and the side roof panel
may contact and be damaged.
1. Unlock and open the driver side door. Donot close the door.
2. Open the hood.
3. Connect the negative () battery terminal. Then close the hood.
4. Fully open the driver side door window.
5. Close the driver side door and the win- dow.
WARNING
●Do not expose the battery to flames or elec-
trical sparks. Hydrogen gas generated by
the battery is explosive. Do not allow battery
fluid to contact your skin, eyes, fabrics, or
painted surfaces. After touching a battery or
battery cap, do not touch or rub your eyes.
Thoroughly wash your hands. If the acid con-
tacts your eyes, skin or clothing, immedi-
ately flush with water for at least 15 minutes
and seek medical attention. ●
Do not operate the vehicle if the fluid in the
battery is low. Low battery fluid can cause a
higher load on the battery which can gener-
ate heat, reduce battery life, and in some
cases lead to an explosion.
● When working on or near a battery, always
wear suitable eye protection and remove all
jewelry.
● Battery posts, terminals and related acces-
sories contain lead and lead compounds.
Wash hands after handling.
● Keep the battery out of the reach of children.
Check the fluid level in each cell (Remove the
battery cover if it is necessary). It should be
between the UPPER LEVEL
1and LOWER LEVEL
2lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening. Do not overfill.
DI0137MA
8-14Maintenance and do-it-yourself

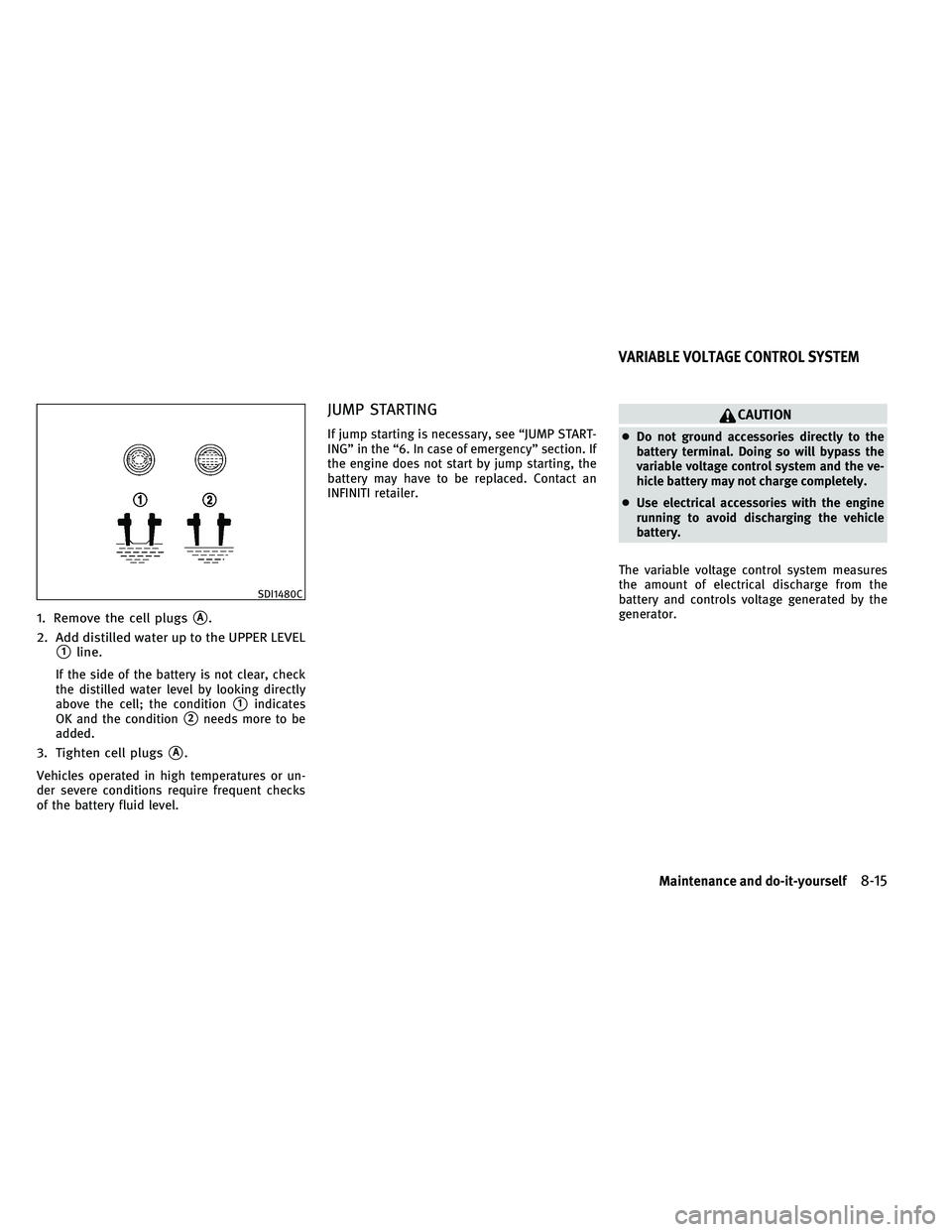

1. Remove the cell plugsA.
2. Add distilled water up to the UPPER LEVEL
1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
1indicates
OK and the condition
2needs more to be
added.
3. Tighten cell plugsA.
Vehicles operated in high temperatures or un-
der severe conditions require frequent checks
of the battery fluid level.
JUMP STARTING
If jump starting is necessary, see “JUMP START-
ING” in the “6. In case of emergency” section. If
the engine does not start by jump starting, the
battery may have to be replaced. Contact an
INFINITI retailer.
CAUTION
● Do not ground accessories directly to the
battery terminal. Doing so will bypass the
variable voltage control system and the ve-
hicle battery may not charge completely.
● Use electrical accessories with the engine
running to avoid discharging the vehicle
battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
SDI1480C
VARIABLE VOLTAGE CONTROL SYSTEM
Maintenance and do-it-yourself8-15

1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNING
Be sure the ignition switch is in the OFF or LOCK
position before servicing the drive belt. The
engine could rotate unexpectedly.
1. Visually inspect the belt for signs of un-usual wear, cuts, fraying or looseness. If
the belt is in poor condition or loose, have
it replaced or adjusted by an INFINITI
retailer.
2. Have the belt condition checked regularly.WARNING
Be sure the engine and the ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove the
spark plugs. An incorrect socket can damage
the spark plugs.
VQ37VHR engine
SDI2119
DRIVE BELT SPARK PLUGS
8-16Maintenance and do-it-yourself

REPLACING SPARK PLUGS
If replacement is required, see an INFINITI re-
tailer for servicing.
Iridium-tipped spark plugs
It is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much
longer. Follow the maintenance schedule in
“INFINITI Service and Maintenance Guide”, but
do not reuse them by cleaning or regapping.
Always replace spark plugs with recommended
or equivalent ones.Remove the retainers
1as illustrated and pull
out the filter element
2.
The filter element should not be cleaned and
reused. Replace it according to the mainte-
nance intervals. See “INFINITI Service and Main-
tenance Guide” for maintenance intervals. When replacing the filter, wipe the inside of the
air cleaner housing and the cover with a damp
cloth.
WARNING
●
Operating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans the
air, it stops flame if the engine backfires. If it
is not there, and the engine backfires, you
could be burned. Do not drive with the air
cleaner removed, and be careful when work-
ing on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or at-
tempt to start the engine with the air cleaner
removed. Doing so could result in serious
injury.
SDI2020
SDI2363
AIR CLEANER
Maintenance and do-it-yourself8-17

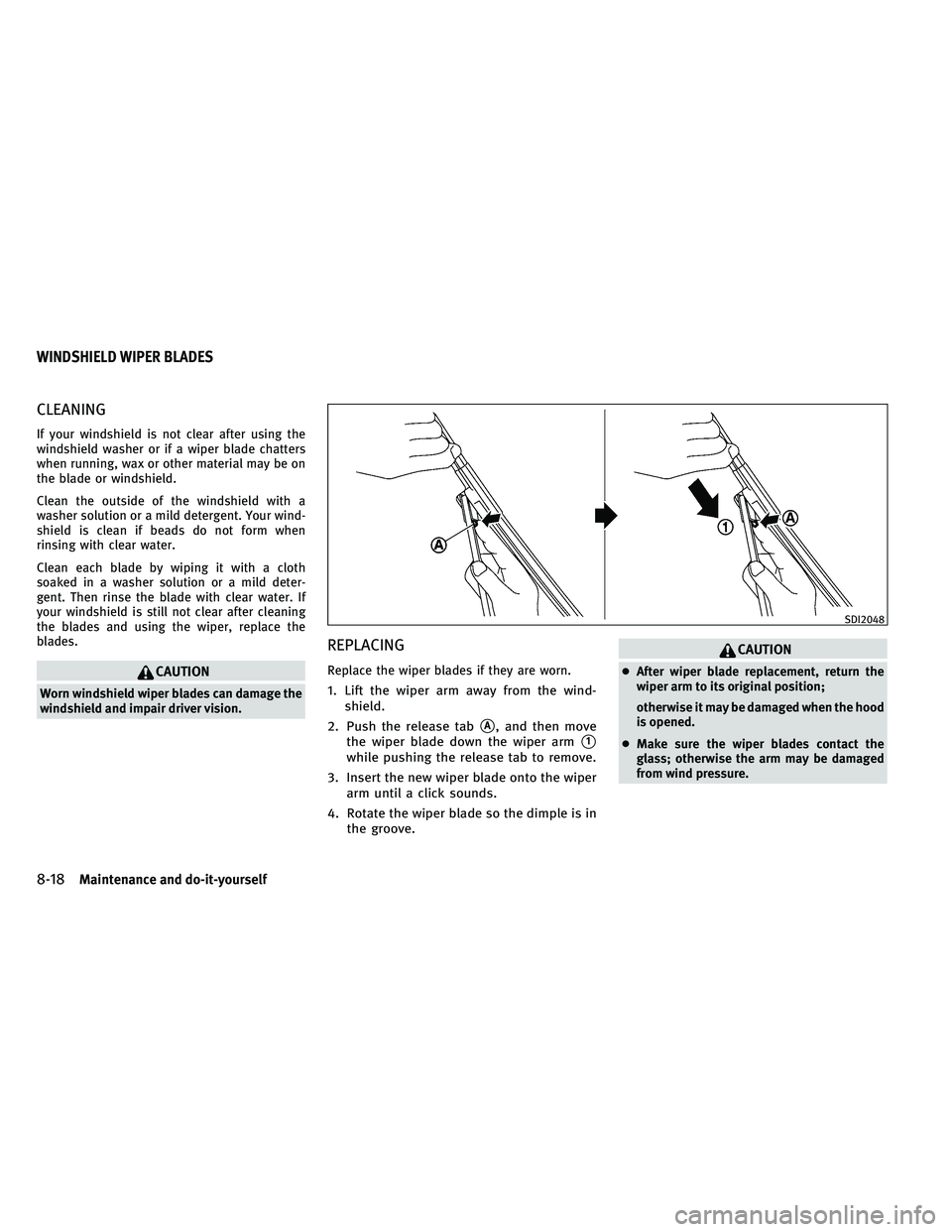

CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blade with clear water. If
your windshield is still not clear after cleaning
the blades and using the wiper, replace the
blades.
CAUTION
Worn windshield wiper blades can damage the
windshield and impair driver vision.
REPLACING
Replace the wiper blades if they are worn.
1. Lift the wiper arm away from the wind-shield.
2. Push the release tab
A, and then move
the wiper blade down the wiper arm
1
while pushing the release tab to remove.
3. Insert the new wiper blade onto the wiper arm until a click sounds.
4. Rotate the wiper blade so the dimple is in the groove.
CAUTION
●After wiper blade replacement, return the
wiper arm to its original position;
otherwise it may be damaged when the hood
is opened.
● Make sure the wiper blades contact the
glass; otherwise the arm may be damaged
from wind pressure.
SDI2048
WINDSHIELD WIPER BLADES
8-18Maintenance and do-it-yourself

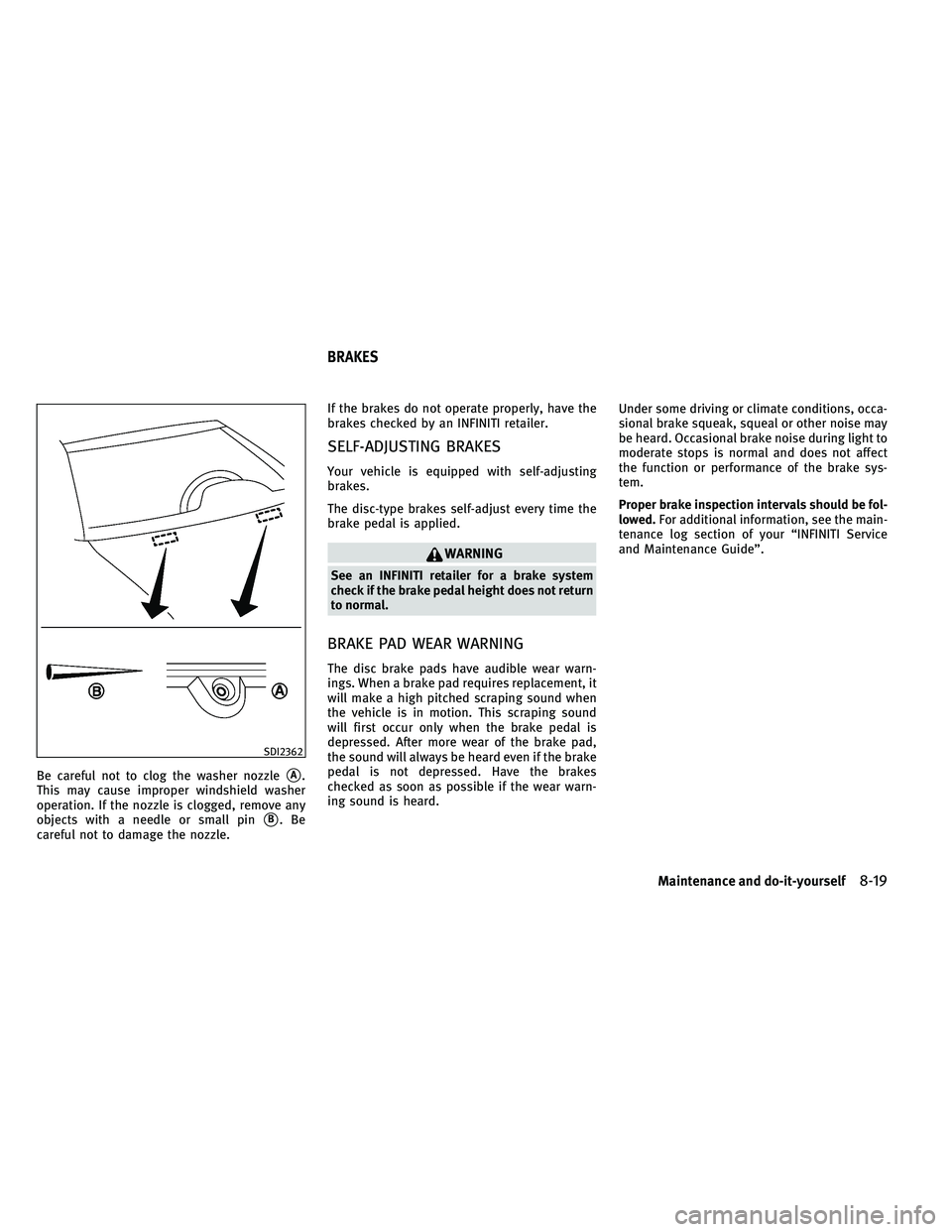

Be careful not to clog the washer nozzleA.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
B.Be
careful not to damage the nozzle. If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not return
to normal.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warn-
ing sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed.
For additional information, see the main-
tenance log section of your “INFINITI Service
and Maintenance Guide”.
SDI2362
BRAKES
Maintenance and do-it-yourself8-19

ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to
the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the engine hood and remove the cover on the battery and the fuse/fusible
link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment
fuse box. 5. If the fuse is open
A, replace it with a
new fuse
B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
Fusible links
If any electrical equipment does not operate
and the fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine INFINITI
parts.
SDI1479ASDI1754
FUSES
8-20Maintenance and do-it-yourself

PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF. 2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
A.
4. If the fuse is open, replace it with a new fuse. Spare fuses are stored in the fuse
box.
5. If a new fuse also opens, have the electri- cal system checked and repaired by an
INFINITI retailer.
Extended storage switch (if so
equipped)
To reduce battery drain, the extended storage
switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If any electrical equipment does not operate,
remove the extended storage switch and check
for an open fuse.
SDI2034SDI2704
8-21Maintenance and do-it-yourself
