INFINITI G-CONVERTIBLE 2012 Owner's Manual

1-2Safety—Seats, seat belts and supplemental restraint system
GUID-7F05BB69-4CF6-44E1-A566-DF8949BB8587
SSS0133
WARNING
. Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive
serious internal injuries.
. For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the seat with both feet on the floor and
adjust the seat belt properly. See
“Pre-
cautions on seat belt usage” (P.1-11).
. After adjustment, gently rock in the seat
to make sure it is securely locked.
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.
. The seatback should not be reclined
further than necessary for comfort. Seat
belts are most effective when the pas- senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damages.
SEATS

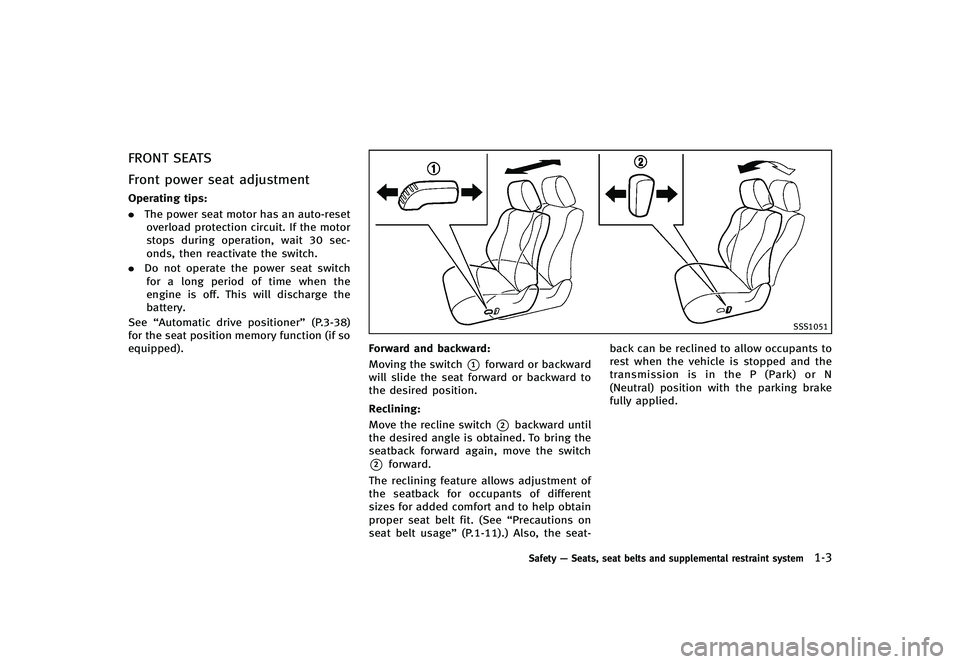

FRONT SEATSGUID-62D628C7-949F-4159-ADC8-ABF609CC4B8A
Front power seat adjustmentGUID-685BB5F9-0E84-4F1D-956F-3A0406D03632Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 sec-
onds, then reactivate the switch.
. Do not operate the power seat switch
for a long period of time when the
engine is off. This will discharge the
battery.
See “Automatic drive positioner” (P.3-38)
for the seat position memory function (if so
equipped).
SSS1051
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*1forward or backward
will slide the seat forward or backward to
the desired position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*2backward until
the desired angle is obtained. To bring the
seatback forward again, move the switch
*2forward.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. (See “Precautions on
seat belt usage” (P.1-11).) Also, the seat- back can be reclined to allow occupants to
rest when the vehicle is stopped and the
transmission is in the P (Park) or N
(Neutral) position with the parking brake
fully applied.
Safety
—Seats, seat belts and supplemental restraint system1-3

1-4Safety—Seats, seat belts and supplemental restraint system

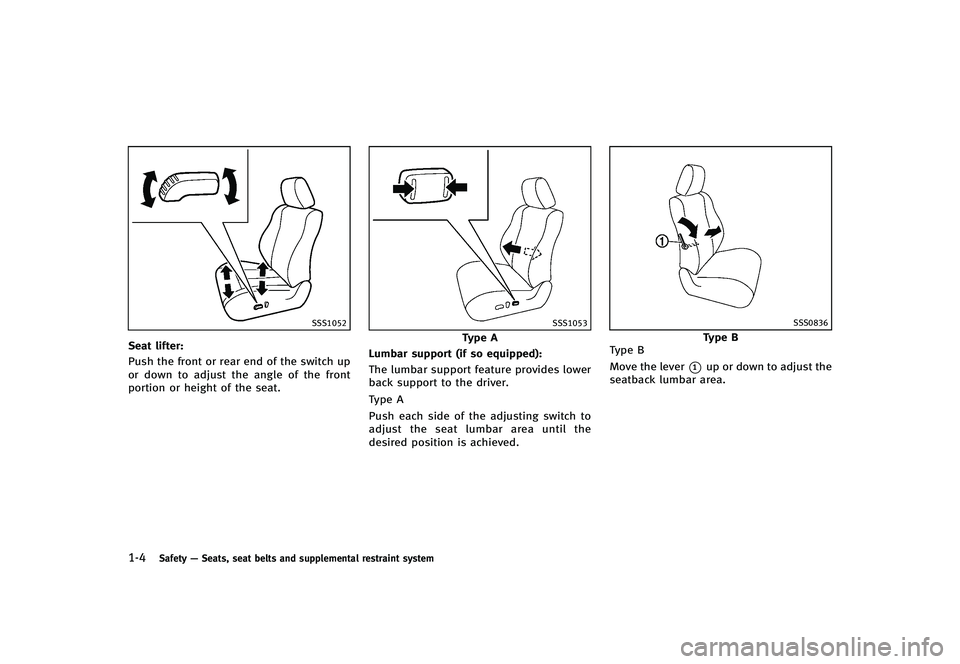

SSS1052
Seat lifter:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the front or rear end of the switch up
or down to adjust the angle of the front
portion or height of the seat.
SSS1053
Type A
Lumbar support (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower
back support to the driver.
Type A
Push each side of the adjusting switch to
adjust the seat lumbar area until the
desired position is achieved.
SSS0836
Type B
Type B
Move the lever
*1up or down to adjust the
seatback lumbar area.

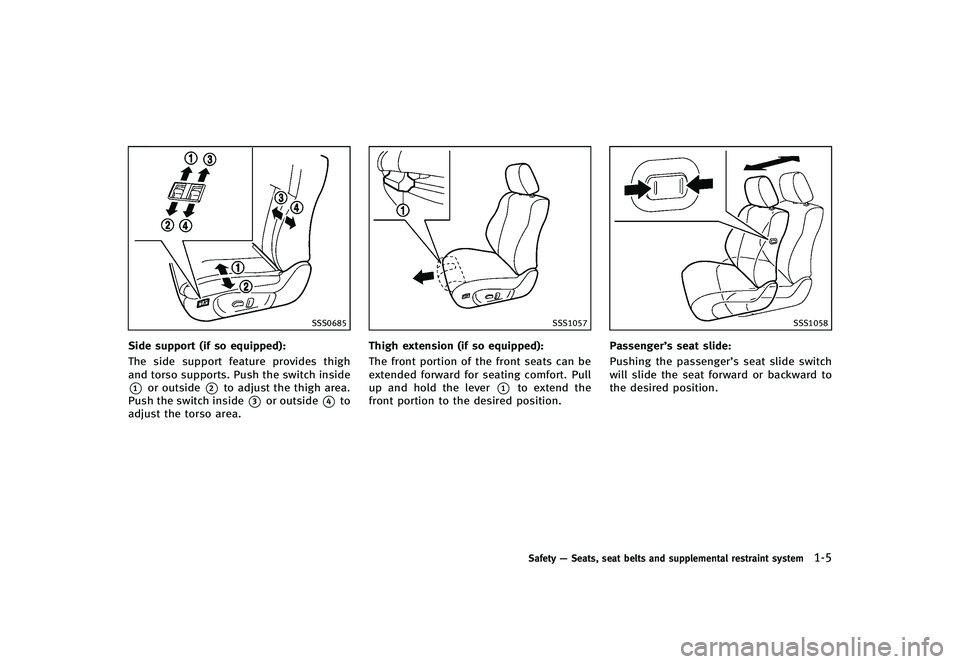

SSS0685
Side support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The side support feature provides thigh
and torso supports. Push the switch inside
*1or outside*2to adjust the thigh area.
Push the switch inside
*3or outside*4to
adjust the torso area.
SSS1057
Thigh extension (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The front portion of the front seats can be
extended forward for seating comfort. Pull
up and hold the lever
*1to extend the
front portion to the desired position.
SSS1058
Passenger’s seat slide:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the passenger’s seat slide switch
will slide the seat forward or backward to
the desired position.
Safety —Seats, seat belts and supplemental restraint system1-5

1-6Safety—Seats, seat belts and supplemental restraint system

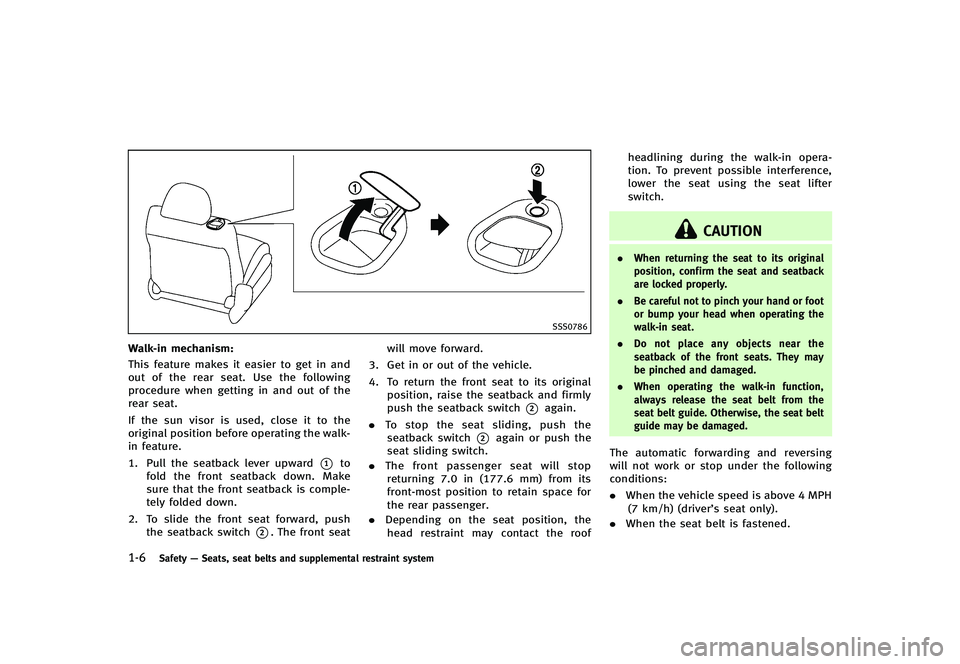

SSS0786
Walk-in mechanism:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This feature makes it easier to get in and
out of the rear seat. Use the following
procedure when getting in and out of the
rear seat.
If the sun visor is used, close it to the
original position before operating the walk-
in feature.
1. Pull the seatback lever upward
*1to
fold the front seatback down. Make
sure that the front seatback is comple-
tely folded down.
2. To slide the front seat forward, push the seatback switch
*2. The front seat will move forward.
3. Get in or out of the vehicle.
4. To return the front seat to its original position, raise the seatback and firmly
push the seatback switch
*2again.
. To stop the seat sliding, push the
seatback switch
*2again or push the
seat sliding switch.
. The front passenger seat will stop
returning 7.0 in (177.6 mm) from its
front-most position to retain space for
the rear passenger.
. Depending on the seat position, the
head restraint may contact the roof headlining during the walk-in opera-
tion. To prevent possible interference,
lower the seat using the seat lifter
switch.
CAUTION
.
When returning the seat to its original
position, confirm the seat and seatback
are locked properly.
. Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
. Do not place any objects near the
seatback of the front seats. They may
be pinched and damaged.
. When operating the walk-in function,
always release the seat belt from the
seat belt guide. Otherwise, the seat belt
guide may be damaged.
The automatic forwarding and reversing
will not work or stop under the following
conditions:
.When the vehicle speed is above 4 MPH
(7 km/h) (driver’s seat only).
. When the seat belt is fastened.

.When the selector lever is not in the P
(Park) position (Automatic Transmis-
sion model’s driver’s seat) or the
parking brake is not applied (Manual
Transmission model’s driver’s seat).
. When the door is closed.
. While the automatic drive positioner
operates (if so equipped).
. When the automatic drive positioner
switches are pushed (if so equipped).
. When the seatback switch
*2is
pushed.
. When the seat position is adjusted.
Note that the seat must be moved to the
front-most position by operating the walk-
in function or the seat adjusting switches
after the battery is disconnected. Other-
wise, the seat will not move backward
during the walk-in function.
HEAD RESTRAINTSGUID-F668742C-7157-4FDF-89FF-379FEF676D0B
WARNING
Head restraints supplement the other vehi-
cle safety systems. They may provide addi-
tional protection against injury in certain
rear end collisions. Adjust the head re-
straints properly, as specified in this sec- tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint stalks or remove the
head restraint. Do not use the seat if the
head restraint has been removed. If the
head restraint was removed, reinstall and
properly adjust the head restraint before an
occupant uses the seating position. Failure
to follow these instructions can reduce the
effectiveness of the head restraints. This
may increase the risk of serious injury or
death in a collision.
SSS0991
The illustration shows the seating posi-
tions equipped with head restraints. The
head restraints are adjustable.
Indicates the seating position is
equipped with a head restraint.
Safety —Seats, seat belts and supplemental restraint system1-7

1-8Safety—Seats, seat belts and supplemental restraint system

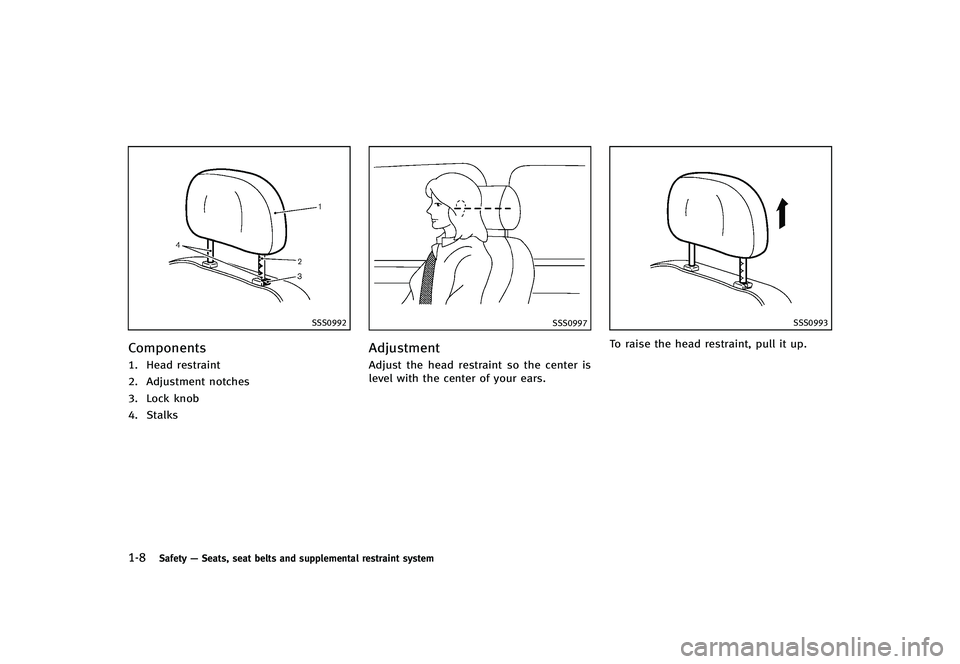

SSS0992
ComponentsGUID-582A0987-41E4-4EEC-946E-D80554620F951. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
SSS0997
AdjustmentGUID-3BF9CAE8-6E89-4B9C-9BF3-DF7D757AC66EAdjust the head restraint so the center is
level with the center of your ears.
SSS0993
To raise the head restraint, pull it up.

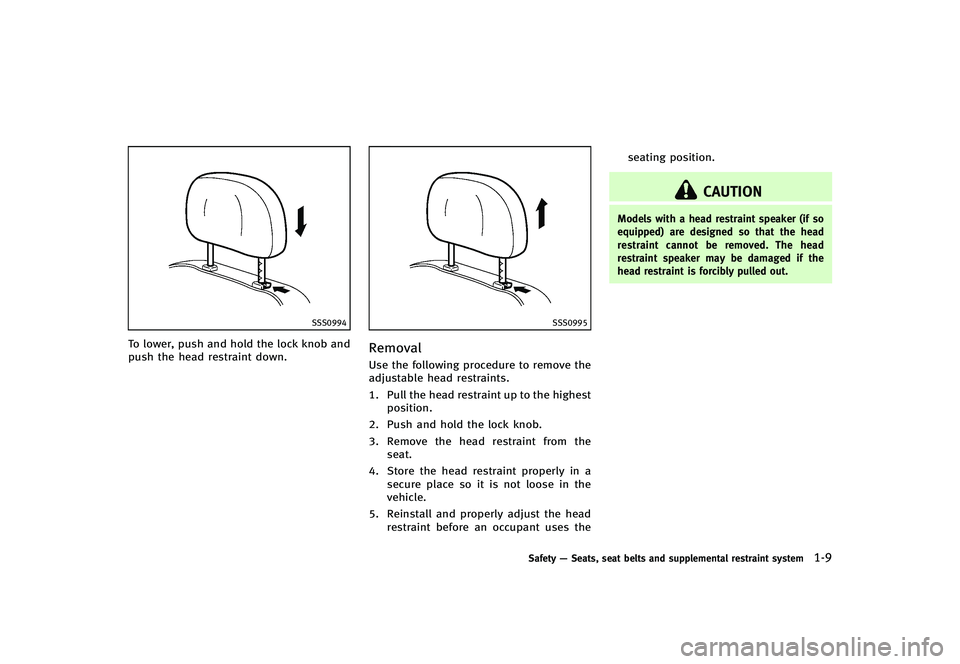

SSS0994
To lower, push and hold the lock knob and
push the head restraint down.
SSS0995
RemovalGUID-C753CE8D-5AE5-436E-ABF0-4198C4325C45Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head restraint before an occupant uses the seating position.
CAUTION
Models with a head restraint speaker (if so
equipped) are designed so that the head
restraint cannot be removed. The head
restraint speaker may be damaged if the
head restraint is forcibly pulled out.
Safety
—Seats, seat belts and supplemental restraint system1-9

1-10Safety—Seats, seat belts and supplemental restraint system

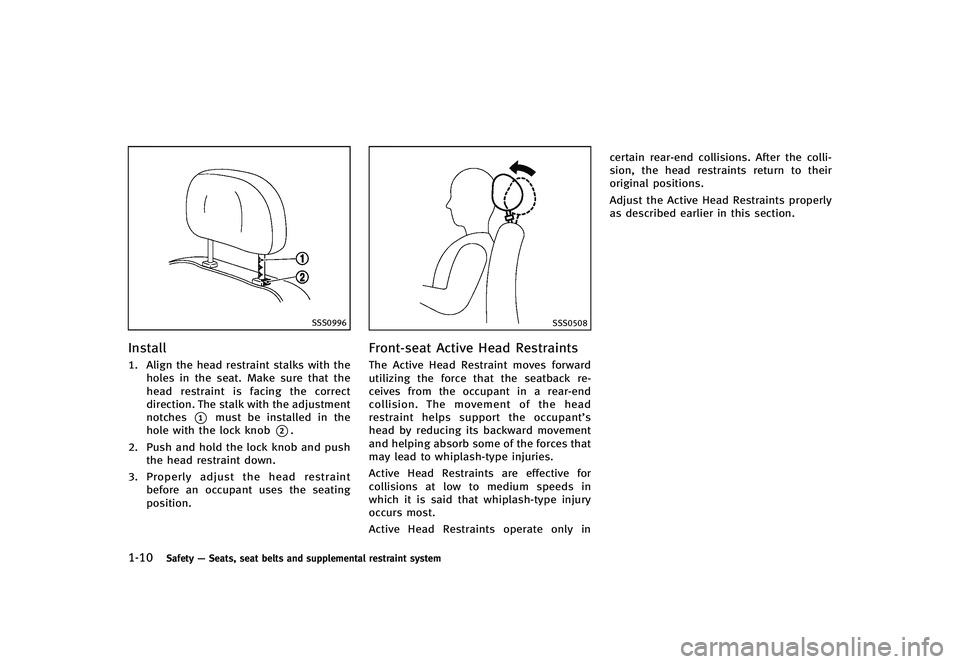

SSS0996
InstallGUID-5A848332-C8CD-4277-B184-110D654E0B511. Align the head restraint stalks with the
holes in the seat. Make sure that the
head restraint is facing the correct
direction. The stalk with the adjustment
notches
*1must be installed in the
hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint
before an occupant uses the seating
position.
SSS0508
Front-seat Active Head RestraintsGUID-0E0CAE61-FD39-4AD6-AAE1-11101907AD71The Active Head Restraint moves forward
utilizing the force that the seatback re-
ceives from the occupant in a rear-end
collision. The movement of the head
restraint helps support the occupant’s
head by reducing its backward movement
and helping absorb some of the forces that
may lead to whiplash-type injuries.
Active Head Restraints are effective for
collisions at low to medium speeds in
which it is said that whiplash-type injury
occurs most.
Active Head Restraints operate only in certain rear-end collisions. After the colli-
sion, the head restraints return to their
original positions.
Adjust the Active Head Restraints properly
as described earlier in this section.

GUID-BA971843-4FA2-4F49-954C-1D30CB2C0267
PRECAUTIONS ON SEAT BELT USAGEGUID-25CEF2F4-9F96-46FF-992A-252AE91B3D6FIf you are wearing your seat belt properly
adjusted, and you are sitting upright and
well back in your seat with both feet on the
floor, your chances of being injured or
killed in an accident and/or the severity of
injury may be greatly reduced. INFINITI
strongly encourages you and all of your
passengers to buckle up every time you
drive, even if your seating position in-
cludes a supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SSS0136A
SSS0134A
Safety—Seats, seat belts and supplemental restraint system1-11
SEAT BELTS
