INFINITI G-CONVERTIBLE 2012 Owner's Guide

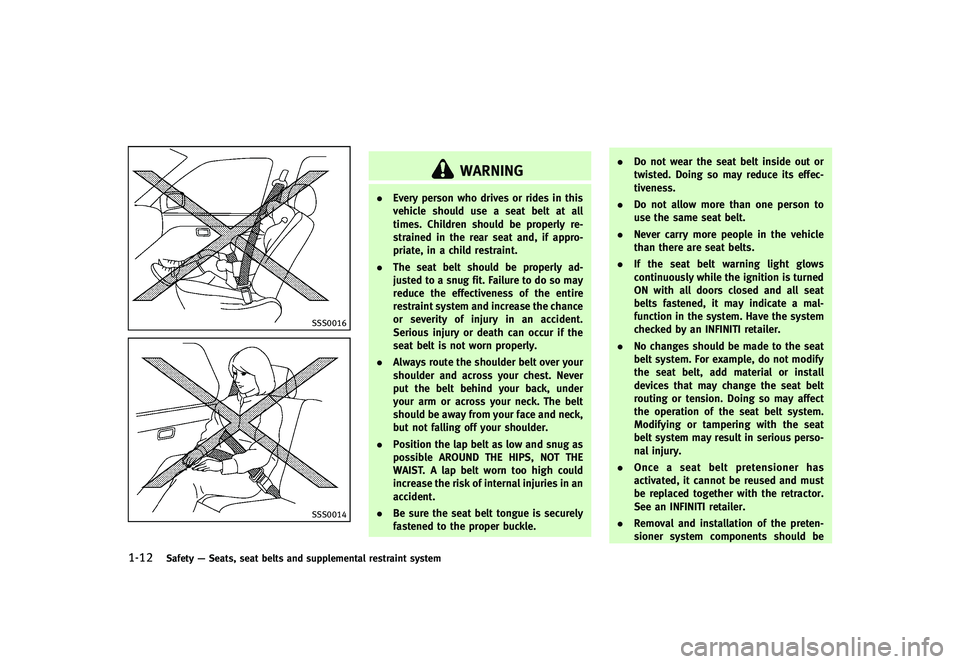

1-12Safety—Seats, seat belts and supplemental restraint system
SSS0016
SSS0014
WARNING
. Every person who drives or rides in this
vehicle should use a seat belt at all
times. Children should be properly re-
strained in the rear seat and, if appro-
priate, in a child restraint.
. The seat belt should be properly ad-
justed to a snug fit. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the chance
or severity of injury in an accident.
Serious injury or death can occur if the
seat belt is not worn properly.
. Always route the shoulder belt over your
shoulder and across your chest. Never
put the belt behind your back, under
your arm or across your neck. The belt
should be away from your face and neck,
but not falling off your shoulder.
. Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE
WAIST. A lap belt worn too high could
increase the risk of internal injuries in an
accident.
. Be sure the seat belt tongue is securely
fastened to the proper buckle. .
Do not wear the seat belt inside out or
twisted. Doing so may reduce its effec-
tiveness.
. Do not allow more than one person to
use the same seat belt.
. Never carry more people in the vehicle
than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is turned
ON with all doors closed and all seat
belts fastened, it may indicate a mal-
function in the system. Have the system
checked by an INFINITI retailer.
. No changes should be made to the seat
belt system. For example, do not modify
the seat belt, add material or install
devices that may change the seat belt
routing or tension. Doing so may affect
the operation of the seat belt system.
Modifying or tampering with the seat
belt system may result in serious perso-
nal injury.
. Once a seat belt pretensioner has
activated, it cannot be reused and must
be replaced together with the retractor.
See an INFINITI retailer.
. Removal and installation of the preten-
sioner system components should be

done by an INFINITI retailer.
. All seat belt assemblies, including re-
tractors and attaching hardware, should
be inspected after any collision by an
INFINITI retailer. INFINITI recommends
that all seat belt assemblies in use
during a collision be replaced unless
the collision was minor and the belts
show no damage and continue to oper-
ate properly.
Seat belt assemblies not in use during a
collision should also be inspected and
replaced if either damage or improper
operation is noted.
. All child restraints and attaching hard-
ware should be inspected after any
collision. Always follow the restraint
manufacturer’s inspection instructions
and replacement recommendations. The
child restraints should be replaced if
they are damaged.PREGNANT WOMENGUID-6EC948B4-A53D-4BBB-8E91-27E1626FF738INFINITI recommends that pregnant women
use seat belts. The seat belt should be
worn snug, and always position the lap
belt as low as possible around the hips,
not the waist, and place the shoulder belt
over your shoulder and across your chest.
Never run the lap/shoulder belt over your
abdominal area. Contact your doctor for
specific recommendations.
INJURED PERSONSGUID-C6109A61-2827-4D2D-9DF8-B8E4F434EE83INFINITI recommends that injured persons
use seat belts, depending on the injury.
Check with your doctor for specific recom-
mendations.
PRE-CRASH SEAT BELTS (front
seats) (if so equipped)
GUID-255811E9-1A67-4171-B1F7-723CBD8D3792The pre-crash seat belt tightens the seat
belt to help restrain front seat occupants
under emergency braking. This can help
reduce the risk of injury when a collision
occurs.
Pre-crash seat belt will not be activated
when:
.the brake pedal is not depressed
. the seat belt is not fastened .
the vehicle speed is under 10 MPH (15
km/h)
Always wear your seat belt correctly and sit
upright and well back.
If the seat belt warning light blinks even if
the driver’s and front passenger’s seat
belts are fastened, it may indicate the pre-
crash seat belt system has a malfunction.
Have your INFINITI retailer check and repair
the system.
THREE-POINT TYPE SEAT BELTGUID-29FE814D-A249-43BF-81DB-B3099A27199C
WARNING
. Every person who drives or rides in this
vehicle should use a seat belt at all
times.
. Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive
serious internal injuries.
. For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
Safety —Seats, seat belts and supplemental restraint system1-13

1-14Safety—Seats, seat belts and supplemental restraint system

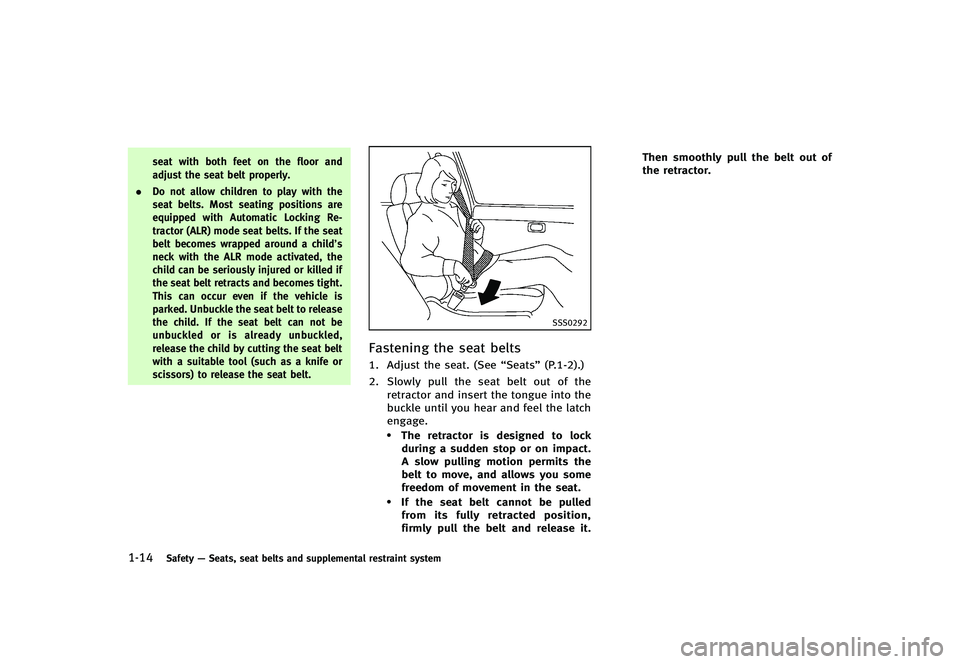

seat with both feet on the floor and
adjust the seat belt properly.
. Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the seat
belt becomes wrapped around a child’s
neck with the ALR mode activated, the
child can be seriously injured or killed if
the seat belt retracts and becomes tight.
This can occur even if the vehicle is
parked. Unbuckle the seat belt to release
the child. If the seat belt can not be
unbuckled or is already unbuckled,
release the child by cutting the seat belt
with a suitable tool (such as a knife or
scissors) to release the seat belt.
SSS0292
Fastening the seat beltsGUID-39C0531B-9EEB-4C57-95CA-E1C04EDAA3491. Adjust the seat. (See “Seats”(P.1-2).)
2. Slowly pull the seat belt out of the retractor and insert the tongue into the
buckle until you hear and feel the latch
engage.
.The retractor is designed to lockduring a sudden stop or on impact.
A slow pulling motion permits the
belt to move, and allows you some
freedom of movement in the seat.
.If the seat belt cannot be pulledfrom its fully retracted position,
firmly pull the belt and release it. Then smoothly pull the belt out of
the retractor.

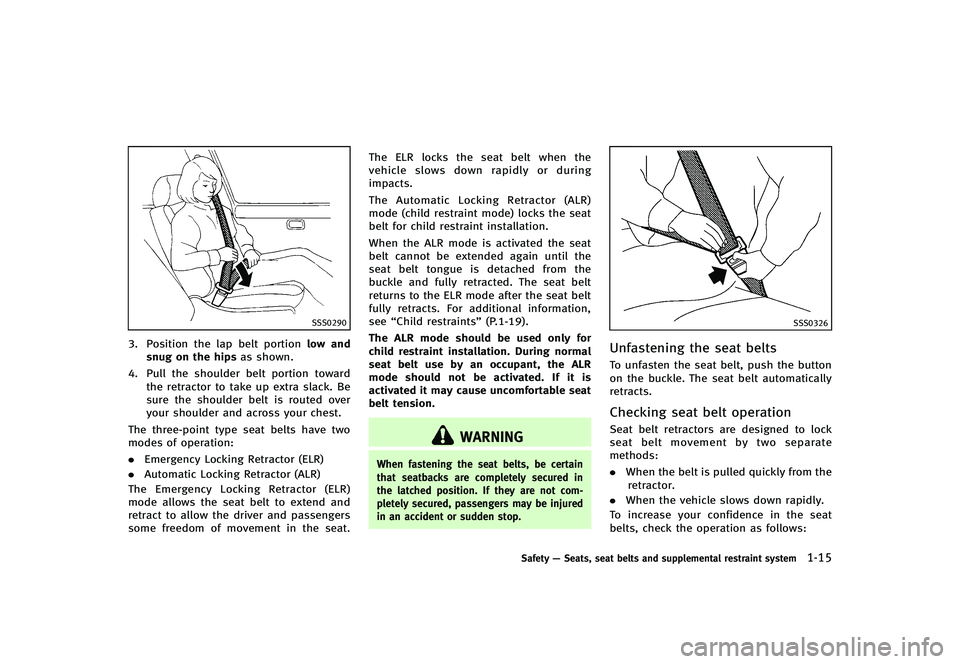

SSS0290
3. Position the lap belt portionlow and
snug on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be
sure the shoulder belt is routed over
your shoulder and across your chest.
The three-point type seat belts have two
modes of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR)
mode allows the seat belt to extend and
retract to allow the driver and passengers
some freedom of movement in the seat. The ELR locks the seat belt when the
vehicle slows down rapidly or during
impacts.
The Automatic Locking Retractor (ALR)
mode (child restraint mode) locks the seat
belt for child restraint installation.
When the ALR mode is activated the seat
belt cannot be extended again until the
seat belt tongue is detached from the
buckle and fully retracted. The seat belt
returns to the ELR mode after the seat belt
fully retracts. For additional information,
see
“Child restraints” (P.1-19).
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated it may cause uncomfortable seat
belt tension.
WARNING
When fastening the seat belts, be certain
that seatbacks are completely secured in
the latched position. If they are not com-
pletely secured, passengers may be injured
in an accident or sudden stop.
SSS0326
Unfastening the seat beltsGUID-479F51CB-09C7-4E7A-9360-87F86145A0B1To unfasten the seat belt, push the button
on the buckle. The seat belt automatically
retracts.
Checking seat belt operationGUID-D8B1FEB7-D4FC-4B50-B9BE-7BE0A3A9411DSeat belt retractors are designed to lock
seat belt movement by two separate
methods:
. When the belt is pulled quickly from the
retractor.
. When the vehicle slows down rapidly.
To increase your confidence in the seat
belts, check the operation as follows:
Safety —Seats, seat belts and supplemental restraint system1-15

1-16Safety—Seats, seat belts and supplemental restraint system

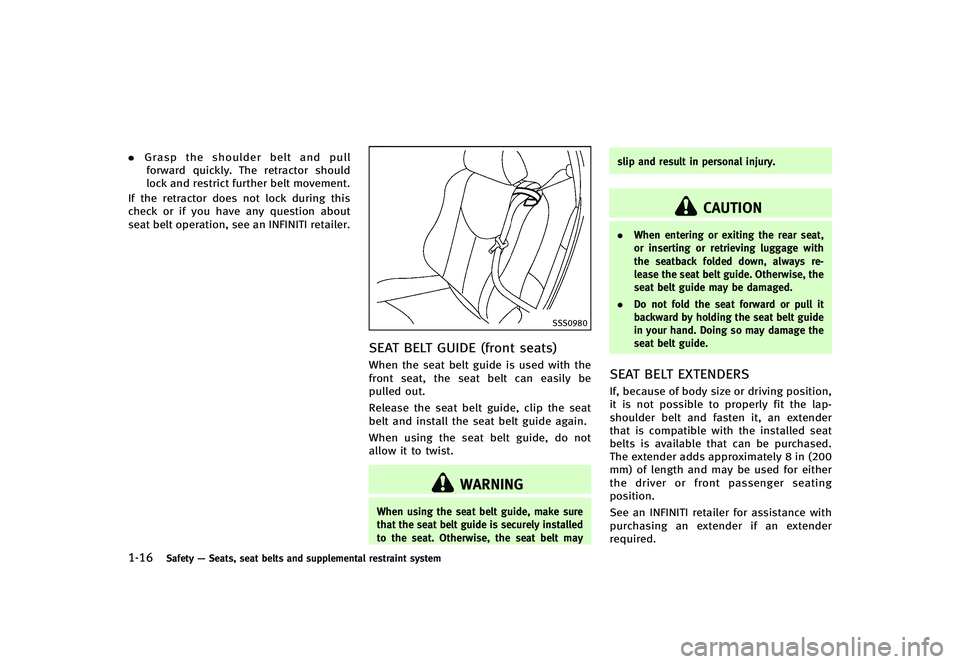

. Grasp the shoulder belt and pull
forward quickly. The retractor should
lock and restrict further belt movement.
If the retractor does not lock during this
check or if you have any question about
seat belt operation, see an INFINITI retailer.
SSS0980
SEAT BELT GUIDE (front seats)GUID-D11C958B-1C47-4E38-9E9E-CCFB9948DE8EWhen the seat belt guide is used with the
front seat, the seat belt can easily be
pulled out.
Release the seat belt guide, clip the seat
belt and install the seat belt guide again.
When using the seat belt guide, do not
allow it to twist.
WARNING
When using the seat belt guide, make sure
that the seat belt guide is securely installed
to the seat. Otherwise, the seat belt may slip and result in personal injury.
CAUTION
.
When entering or exiting the rear seat,
or inserting or retrieving luggage with
the seatback folded down, always re-
lease the seat belt guide. Otherwise, the
seat belt guide may be damaged.
. Do not fold the seat forward or pull it
backward by holding the seat belt guide
in your hand. Doing so may damage the
seat belt guide.
SEAT BELT EXTENDERSGUID-4E54DF6A-019C-44D6-9EF2-7566DF967827If, because of body size or driving position,
it is not possible to properly fit the lap-
shoulder belt and fasten it, an extender
that is compatible with the installed seat
belts is available that can be purchased.
The extender adds approximately 8 in (200
mm) of length and may be used for either
the driver or front passenger seating
position.
See an INFINITI retailer for assistance with
purchasing an extender if an extender
required.

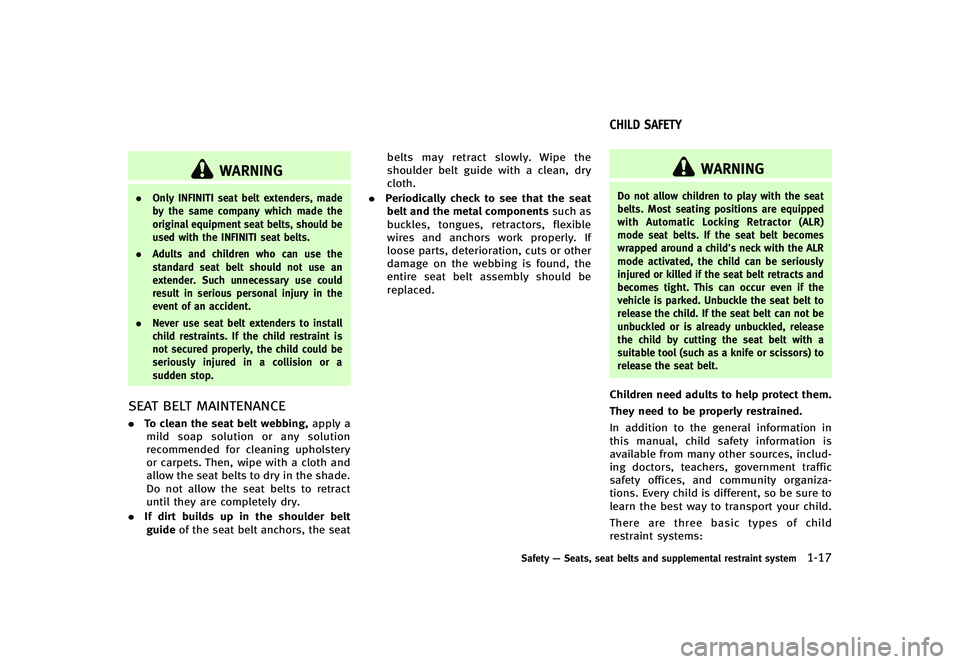

WARNING
.Only INFINITI seat belt extenders, made
by the same company which made the
original equipment seat belts, should be
used with the INFINITI seat belts.
. Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use could
result in serious personal injury in the
event of an accident.
. Never use seat belt extenders to install
child restraints. If the child restraint is
not secured properly, the child could be
seriously injured in a collision or a
sudden stop.
SEAT BELT MAINTENANCEGUID-7E255B91-2156-4332-B10B-BD10C8EFC92C.To clean the seat belt webbing, apply a
mild soap solution or any solution
recommended for cleaning upholstery
or carpets. Then, wipe with a cloth and
allow the seat belts to dry in the shade.
Do not allow the seat belts to retract
until they are completely dry.
. If dirt builds up in the shoulder belt
guide of the seat belt anchors, the seat belts may retract slowly. Wipe the
shoulder belt guide with a clean, dry
cloth.
. Periodically check to see that the seat
belt and the metal components such as
buckles, tongues, retractors, flexible
wires and anchors work properly. If
loose parts, deterioration, cuts or other
damage on the webbing is found, the
entire seat belt assembly should be
replaced.
GUID-F58DE492-C047-4B24-9C7B-CB1178C24411
WARNING
Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the ALR
mode activated, the child can be seriously
injured or killed if the seat belt retracts and
becomes tight. This can occur even if the
vehicle is parked. Unbuckle the seat belt to
release the child. If the seat belt can not be
unbuckled or is already unbuckled, release
the child by cutting the seat belt with a
suitable tool (such as a knife or scissors) to
release the seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in
this manual, child safety information is
available from many other sources, includ-
ing doctors, teachers, government traffic
safety offices, and community organiza-
tions. Every child is different, so be sure to
learn the best way to transport your child.
There are three basic types of child
restraint systems:
Safety —Seats, seat belts and supplemental restraint system1-17
CHILD SAFETY

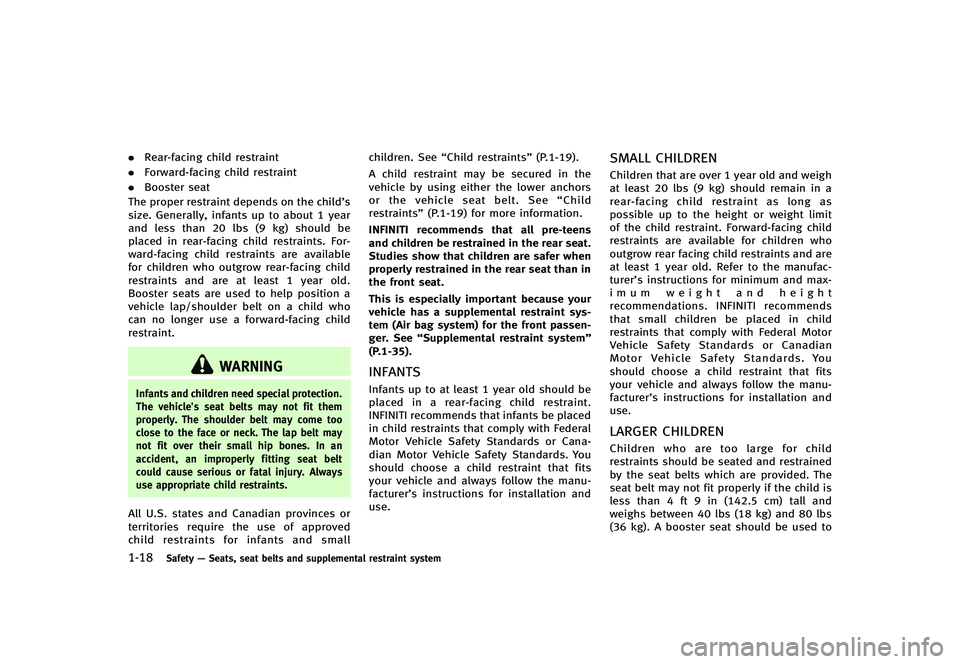

1-18Safety—Seats, seat belts and supplemental restraint system
. Rear-facing child restraint
. Forward-facing child restraint
. Booster seat
The proper restraint depends on the child’s
size. Generally, infants up to about 1 year
and less than 20 lbs (9 kg) should be
placed in rear-facing child restraints. For-
ward-facing child restraints are available
for children who outgrow rear-facing child
restraints and are at least 1 year old.
Booster seats are used to help position a
vehicle lap/shoulder belt on a child who
can no longer use a forward-facing child
restraint.
WARNING
Infants and children need special protection.
The vehicle’s seat belts may not fit them
properly. The shoulder belt may come too
close to the face or neck. The lap belt may
not fit over their small hip bones. In an
accident, an improperly fitting seat belt
could cause serious or fatal injury. Always
use appropriate child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved
child restraints for infants and small children. See
“Child restraints” (P.1-19).
A child restraint may be secured in the
vehicle by using either the lower anchors
or the vehicle seat belt. See “Child
restraints” (P.1-19) for more information.
INFINITI recommends that all pre-teens
and children be restrained in the rear seat.
Studies show that children are safer when
properly restrained in the rear seat than in
the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (Air bag system) for the front passen-
ger. See “Supplemental restraint system ”
(P.1-35).
INFANTSGUID-17C10DAD-8D9F-4370-8856-C20FF9C2414FInfants up to at least 1 year old should be
placed in a rear-facing child restraint.
INFINITI recommends that infants be placed
in child restraints that comply with Federal
Motor Vehicle Safety Standards or Cana-
dian Motor Vehicle Safety Standards. You
should choose a child restraint that fits
your vehicle and always follow the manu-
facturer’s instructions for installation and
use.
SMALL CHILDRENGUID-6720EEDF-EB1F-481B-833F-D66348297EC8Children that are over 1 year old and weigh
at least 20 lbs (9 kg) should remain in a
rear-facing child restraint as long as
possible up to the height or weight limit
of the child restraint. Forward-facing child
restraints are available for children who
outgrow rear facing child restraints and are
at least 1 year old. Refer to the manufac-
turer’s instructions for minimum and max-
imum weight and height
recommendations. INFINITI recommends
that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian
Motor Vehicle Safety Standards. You
should choose a child restraint that fits
your vehicle and always follow the manu-
facturer’s instructions for installation and
use.
LARGER CHILDRENGUID-418A2E73-8FE7-40DB-9D90-85DB5A1E3258Children who are too large for child
restraints should be seated and restrained
by the seat belts which are provided. The
seat belt may not fit properly if the child is
less than 4 ft 9 in (142.5 cm) tall and
weighs between 40 lbs (18 kg) and 80 lbs
(36 kg). A booster seat should be used to

obtain proper seat belt fit.
INFINITI recommends that a child be placed
in a commercially available booster seat if
the shoulder belt fits close to the face or
neck or if the lap portion of the seat belt
goes across the abdomen. The booster seat
should raise the child so that the shoulder
belt is properly positioned across the top,
middle portion of the shoulder and the lap
belt is low on the hips. A booster seat can
only be used in seating positions that have
a three-point type seat belt. The booster
seat should fit the vehicle seat and have a
label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
Once the child has grown so the shoulder
belt is no longer on or near the face and
neck, use the shoulder belt without the
booster seat.
WARNING
Never let a child stand or kneel on any seat
and do not allow a child in the cargo area.
The child could be seriously injured or killed
in a sudden stop or collision.
GUID-8DB05E63-B48E-41B5-8D3E-09EE403F99DD
SSS0099
SSS0100
PRECAUTIONS ON CHILD RE-
STRAINTS
GUID-9F9BC11C-54D1-4A29-A78E-A2A568E6A5D1
WARNING
.Infants and small children should always
be placed in an appropriate child re-
straint while riding in the vehicle. A child
restraint that requires a top tether strap
for installation should not be used in
this vehicle. Failure to use a child
restraint can result in serious injury or
death.
. Failure to follow the warnings and
instructions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or other
passengers in a sudden stop or collision:
—The child restraint must be used and
installed properly. Always follow all
of the child restraint manufacturer’s
instructions for installation and use.
—Infants and children should never beheld on anyone’s lap. Even the
strongest adult cannot resist the
forces of a collision.
—Do not put a seat belt around both a
Safety —Seats, seat belts and supplemental restraint system1-19
CHILD RESTRAINTS

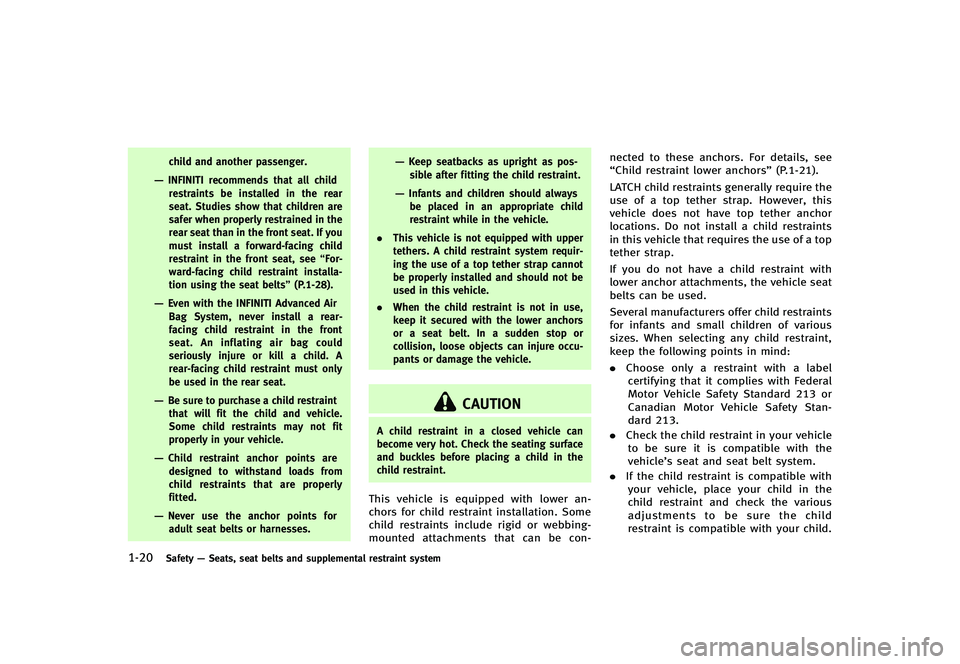

1-20Safety—Seats, seat belts and supplemental restraint system
child and another passenger.
—INFINITI recommends that all child
restraints be installed in the rear
seat. Studies show that children are
safer when properly restrained in the
rear seat than in the front seat. If you
must install a forward-facing child
restraint in the front seat, see “For-
ward-facing child restraint installa-
tion using the seat belts” (P.1-28).
—Even with the INFINITI Advanced Air
Bag System, never install a rear-
facing child restraint in the front
seat. An inflating air bag could
seriously injure or kill a child. A
rear-facing child restraint must only
be used in the rear seat.
—Be sure to purchase a child restraint
that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle.
—Child restraint anchor points aredesigned to withstand loads from
child restraints that are properly
fitted.
—Never use the anchor points foradult seat belts or harnesses.
—Keep seatbacks as upright as pos-sible after fitting the child restraint.
—Infants and children should alwaysbe placed in an appropriate child
restraint while in the vehicle.
. This vehicle is not equipped with upper
tethers. A child restraint system requir-
ing the use of a top tether strap cannot
be properly installed and should not be
used in this vehicle.
. When the child restraint is not in use,
keep it secured with the lower anchors
or a seat belt. In a sudden stop or
collision, loose objects can injure occu-
pants or damage the vehicle.
CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating surface
and buckles before placing a child in the
child restraint.
This vehicle is equipped with lower an-
chors for child restraint installation. Some
child restraints include rigid or webbing-
mounted attachments that can be con- nected to these anchors. For details, see
“Child restraint lower anchors”
(P.1-21).
LATCH child restraints generally require the
use of a top tether strap. However, this
vehicle does not have top tether anchor
locations. Do not install a child restraints
in this vehicle that requires the use of a top
tether strap.
If you do not have a child restraint with
lower anchor attachments, the vehicle seat
belts can be used.
Several manufacturers offer child restraints
for infants and small children of various
sizes. When selecting any child restraint,
keep the following points in mind:
. Choose only a restraint with a label
certifying that it complies with Federal
Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Stan-
dard 213.
. Check the child restraint in your vehicle
to be sure it is compatible with the
vehicle’s seat and seat belt system.
. If the child restraint is compatible with
your vehicle, place your child in the
child restraint and check the various
adjustments to be sure the child
restraint is compatible with your child.

Choose a child restraint that is de-
signed for your child’s height and
weight. Always follow all recommended
procedures.

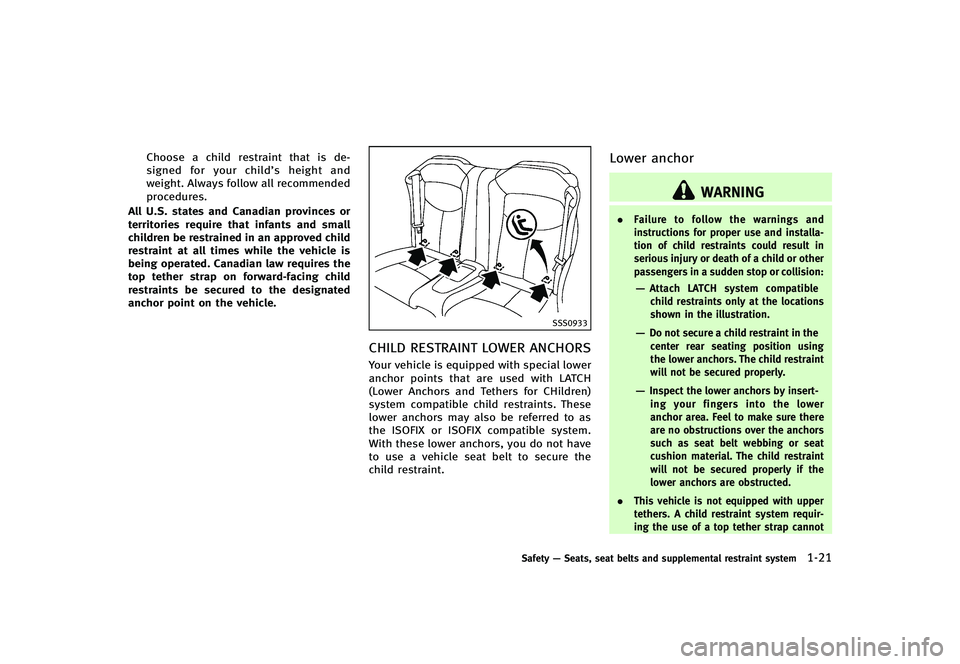

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated
anchor point on the vehicle.
SSS0933
CHILD RESTRAINT LOWER ANCHORSGUID-A239E376-2693-4055-8DE5-FCD6FC389840Your vehicle is equipped with special lower
anchor points that are used with LATCH
(Lower Anchors and Tethers for CHildren)
system compatible child restraints. These
lower anchors may also be referred to as
the ISOFIX or ISOFIX compatible system.
With these lower anchors, you do not have
to use a vehicle seat belt to secure the
child restraint.
Lower anchorGUID-0A5B2CF1-2B38-4E0D-BAB7-80941F563063
WARNING
. Failure to follow the warnings and
instructions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or other
passengers in a sudden stop or collision:
—Attach LATCH system compatible
child restraints only at the locations
shown in the illustration.
—Do not secure a child restraint in the
center rear seating position using
the lower anchors. The child restraint
will not be secured properly.
—Inspect the lower anchors by insert-ing your fingers into the lower
anchor area. Feel to make sure there
are no obstructions over the anchors
such as seat belt webbing or seat
cushion material. The child restraint
will not be secured properly if the
lower anchors are obstructed.
. This vehicle is not equipped with upper
tethers. A child restraint system requir-
ing the use of a top tether strap cannot
Safety —Seats, seat belts and supplemental restraint system1-21
