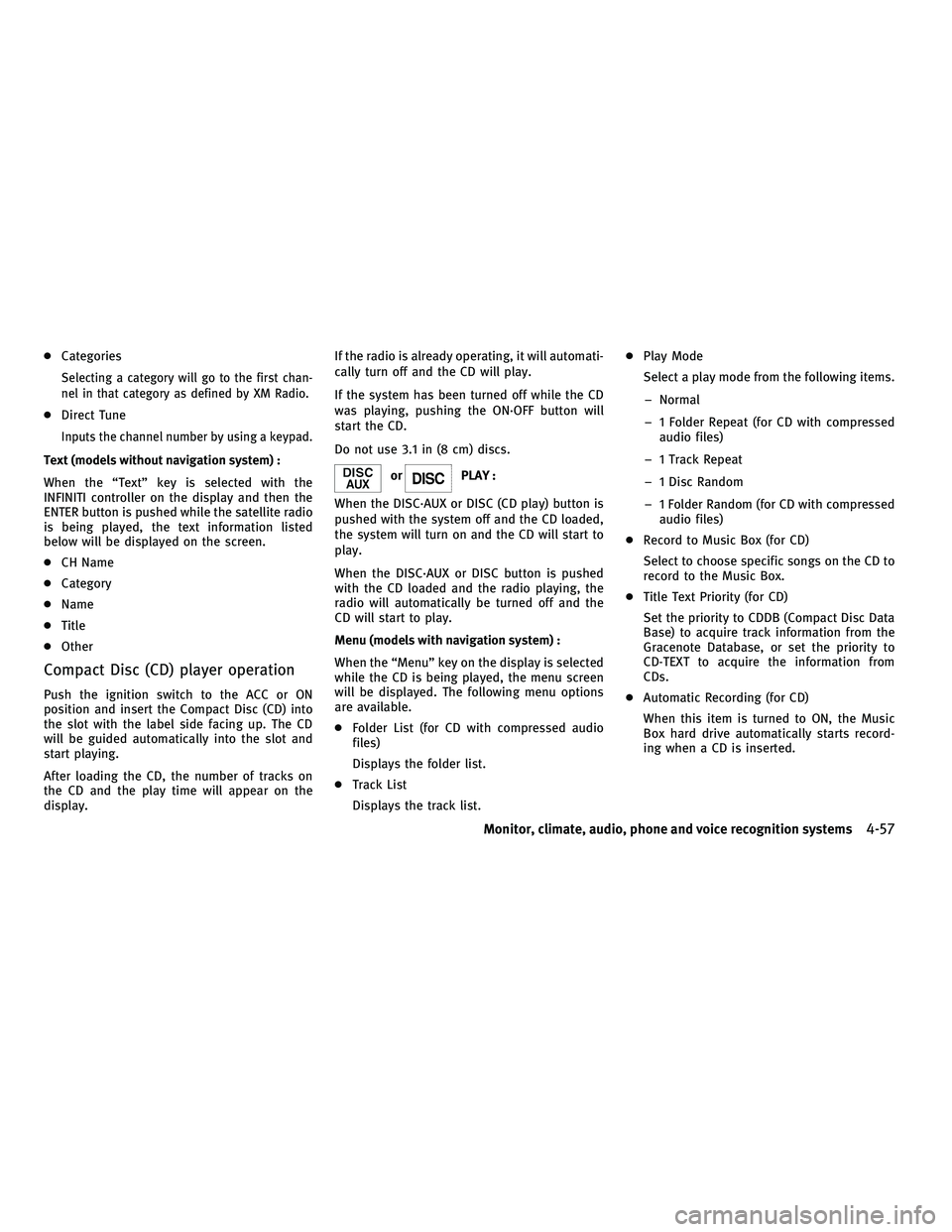

CD player INFINITI G-COUPE 2010 User Guide

●Categories
Selecting a category will go to the first chan-
nel in that category as defined by XM Radio.
●Direct Tune
Inputs the channel number by using a keypad.
Text (models without navigation system) :
When the “Text” key is selected with the
INFINITI controller on the display and then the
ENTER button is pushed while the satellite radio
is being played, the text information listed
below will be displayed on the screen.
●CH Name
● Category
● Name
● Title
● Other
Compact Disc (CD) player operation
Push the ignition switch to the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD
will be guided automatically into the slot and
start playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display. If the radio is already operating, it will automati-
cally turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the ON·OFF button will
start the CD.
Do not use 3.1 in (8 cm) discs.
orPLAY :
When the DISC·AUX or DISC (CD play) button is
pushed with the system off and the CD loaded,
the system will turn on and the CD will start to
play.
When the DISC·AUX or DISC button is pushed
with the CD loaded and the radio playing, the
radio will automatically be turned off and the
CD will start to play.
Menu (models with navigation system) :
When the “Menu” key on the display is selected
while the CD is being played, the menu screen
will be displayed. The following menu options
are available.
● Folder List (for CD with compressed audio
files)
Displays the folder list.
● Track List
Displays the track list. ●
Play Mode
Select a play mode from the following items.
– Normal
– 1 Folder Repeat (for CD with compressed audio files)
– 1 Track Repeat
– 1 Disc Random
– 1 Folder Random (for CD with compressed audio files)
● Record to Music Box (for CD)
Select to choose specific songs on the CD to
record to the Music Box.
● Title Text Priority (for CD)
Set the priority to CDDB (Compact Disc Data
Base) to acquire track information from the
Gracenote Database, or set the priority to
CD-TEXT to acquire the information from
CDs.
● Automatic Recording (for CD)
When this item is turned to ON, the Music
Box hard drive automatically starts record-
ing when a CD is inserted.
Monitor, climate, audio, phone and voice recognition systems4-57
—
—
04/21/10—debbie


DVD (DIGITAL VERSATILE DISC)
PLAYER OPERATION (models with
navigation system)
Precautions
Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the selector lever to the P (Park) position
(Automatic Transmission models) or apply the
parking brake (Manual Transmission models).
WARNING
●The driver must not attempt to operate the
DVD system or wear the headphones while
the vehicle is in motion so that full attention
may be given to vehicle operation.
● Do not attempt to modify the system to dis-
play a movie on the front screen while the
vehicle is being driven. Doing so may dis-
tract the driver and may cause a collision and
serious personal injury or death.
CAUTION
● Only operate the DVD while the vehicle en-
gine is running. Operating the DVD for ex-
tended periods of time with the engine OFF
can discharge the vehicle battery.
● Do not allow the system to get wet. Exces-
sive moisture such as spilled liquids may
cause the system to malfunction.
● While playing VIDEO-CD media, this DVD
player does not guarantee complete func-
tionality of all VIDEO-CD formats.
Display settings
To adjust the front display mode, push the
SETTING button while the DVD is being played,
select the “Others” key and then select the
“Display” key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select each key.
Then you can adjust each item using the
INFINITI controller. After changes have been
made push the BACK button to save the setting.
Playing a DVD
DISC·AUX button :
Park the vehicle in a safe location for the front
seat occupants to operate the DVD drive while
watching the images.
Push the DISC·AUX button on the instrument
panel and turn the display to the DVD mode.
When a DVD is loaded, it will be replayed
automatically.
The operation screen will be turned on when the
DISC·AUX button located on the instrument
panel is pushed while a DVD is being played,
SAA2497
Monitor, climate, audio, phone and voice recognition systems4-59
—
—
04/21/10—debbie


Replace Connected Phone :
Replace the Bluetoothconnection with a con-
nected Bluetooth cellular phone. For details
about Hands-Free Phone System, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.IPOD PLAYER OPERATION (if so
equipped)
Connecting iPod
Open the console lid and connect the iPod
cable to the USB connector. If compatible, the
battery of the iPod is charged while the con-
nection to the vehicle.
Depending on the version of the iPod, the
display on the iPod shows an INFINITI or
Accessory Attached screen when the connection
is completed. When the iPod is connected to
the vehicle, the iPod music library can only be
operated by the vehicle audio controls.
* iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
Compatibility
The following models are available:
Models with navigation system :
● Fifth generation iPod (version 1.2.3 or later)
● iPod Classic (version 1.1.1 or later)
● First generation iPod touch (version 2.0.0
or later)
● Second generation iPod touch (version
1.2.3 or later)
Automatic transmission models
SAA2974
Manual transmission models
SAA2426
Monitor, climate, audio, phone and voice recognition systems4-71
—
—
04/21/10—debbie


Recording CDs
1. Operate the audio system to play a CD. Forthe details of playing CDs, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” or “REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” or
“REC” key is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
● Individual tracks can be deleted from the
hard-disk drive after the CD is recorded.
● The order of the tracks may not be changed
while recording.
Models with navigation system
SAA2513
Models without navigation system
SAA2612
Models with navigation system
SAA2514
Models without navigation system
SAA2613
4-74Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


AUXILIARY INPUT JACKS (if so
equipped)
The auxiliary input jacks are located in the
center console. NTSC compatible devices such
as video games, camcorders and portable video
players can be connected to the auxiliary jacks.
Compatible audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary jacks.
The auxiliary jacks are color coded for identifi-
cation purposes.
●Yellow - video input
● White - left channel audio input
● Red - right channel audio input Before connecting a device to a jack, turn off the
power of the portable device.
With a compatible device connected to the
jacks, push the AUX button to switch to the AUX
mode. The output from the device will be played
through the monitor and audio system.
AUX Menu
When the “Setting” key on the display is se-
lected while in the AUX mode, the menu screen
will be displayed.
Display Mode :
Choose the display mode from the following
items.
●
Normal
● Wide
● Cinema
SAA2990SAA1567
Monitor, climate, audio, phone and voice recognition systems4-81
—
—
04/21/10—debbie


Information Commands:
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Audio Commands:
Command Action
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the XM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetoothaudio player.
AUX Turns on the AUX.
4-126Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


Car phone or CB radio.............4-85
Card holder .................. .2-47
Cargo net retainers ............. .2-49
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ......4-2
Child restraints ................ .1-20
Child restraints Booster seats ............... .1-35
Installation using LATCH .........1-25
Installation using the seat belts .....1-29
LATCH system ............... 1-22
Precautions on child restraints ......1-21
Top tether strap .............. 1-24
Child safety .................. .1-15
Child safety rear door lock ...........3-6
Chimes Audible reminders .............2-18
Seat belt warning light and chime ....2-16
Cigarette lighter and ashtrays ........2-42
Circuit breaker, Fusible link ..........8-21
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic
climate control ................ .4-28
Clock ..................... .2-40
Clutch fluid .................. .8-12
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-55
Command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-57
Compact spare tire .............. .8-39
Compass .................... .2-8
Console box ................. .2-45Controller, Center multi-function control
panel
...................... .4-4
Controls Control panel button (display) .......4-2
Heater

and air conditioner controls
(See automatic climate control) .....4-28
Coolant Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant .........8-8
Checking engine coolant level .......8-7
Corrosion protection ..............7-6
Cruise control ................. .5-19
Cruise control Fixed speed cruise control (on ICC
system) .................. .5-38
Intelligent cruise control (ICC) system . . 5-21
Cruise indicator ............... .2-22
Cup holders .................. .2-43
Current fuel consumption ...........2-25
D
Daytime running light system .........2-35
Defroster switch, Rear window and outside
mirror defroster switch ............2-32
Dimensions .................. .9-11
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance to empty .............. .2-25
Door/trunk open warning ...........2-22
Dot matrix liquid crystal display .......2-19
Drive belts .................. .8-16
Drive positioner ............... .3-28Driving
All-wheel drive (AWD) ...........5-43
Cold weather driving ...........5-55
Driving with automatic transmission . . . 5-12
Driving with manual transmission ....5-16
Precautions when starting and driving . . 5-2
DS (Drive Sport) mode .............5-14
E
Economy, Fuel ................ .5-42
Elapsed time ................. .2-25
Elapsed time and trip odometer .......2-25
Emission control information label . . . . . .9-13
Emission control system warranty ......9-23
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-42
Capacities and recommended fuel/
lubricants ..................
9-2
Changing engine coolant . . . . . . . . . 8-8
Changing engine oil and filter .......8-9
Checking engine coolant level .......8-7
Checking engine oil level . . . . . . . . . 8-8
Engine block heater ............5-56
Engine compartment check locations . . . 8-6
Engine cooling system ...........8-7
Engine oil ..................8-8
Engine oil and oil filter recommendation . 9-6
Engine oil replacement indicator ....2-23
Engine oil viscosity .............9-6
Engine serial number ...........9-12
Engine specifications ............9-8
Engine start operation indicator
(Automatic Transmission models) ....2-21
10-2
—
—
04/30/10—diane


Engine start operation indicator (Manual
Transmission models)...........2-22
If your vehicle overheats .........6-10
Starting the engine ............. 5-11
Engine coolant temperature gauge ......2-6
Entry/exit function .............. .3-28
Event Data Recorders (EDR) ..........9-25
Exhaust gas (carbon monoxide) ........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . .9-13
Filter Air cleaner housing filter .........8-17
Changing engine oil and filter .......8-9
Flashers (See hazard warning
flasher switch) ................ .2-37
Flat tire ..................... .6-2
Flat towing .................. .9-21
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-11
Brake and clutch fluid ...........8-12
Capacities and recommended fuel/
lubricants ..................9-2
Engine coolant ...............8-7
Engine oil ..................8-8
Power steering fluid ............8-11
Window washer fluid ...........8-13
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-54
Fog light switch ............... .2-37
Front passenger air bag and status light . .1-47
Front power seat adjustment ..........1-3
Front seat, Front seat adjustment .......1-3Front-seat active head restraints
.......1-11
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ............... 5-42
Fuel economy information (display) ....4-9
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Fuel-filler cap ................ 3-21
Fuel-filler door ............... 3-21
Gauge ....................2-7
Fuses ..................... .8-20
Fusible links ................. .8-21
G
Garage

door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-21
Gauge ...................... .2-4
Gauge Engine coolant temperature gauge . . . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ................2-5
Tachometer .................2-6
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-45
Golf bag stowing ............... .2-48 H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-85
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch . . ......2-37
Head restraints ................. .1-9
Headlights Bulb replacement .............8-25
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Heated seats ................. .2-38
Heater Automatic climate control .........4-28
Engine block heater ............5-56
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-17
Hook, Coat hooks .............. .2-48
Horn ...................... .2-38
Ignition switch Automatic transmission models ......5-12
Manual transmission models . . . . . . . 5-16
I
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-38
Indicator

lights ................ .2-16
Indicator, Dot matrix display .........2-19
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
10-3
—
—
04/30/10—diane


INFINITI voice recognition system......4-109
INFO button .................. .4-8
Inside mirror ................. .3-25
Inspection/maintenance (I/M) test ......9-24
Instrument brightness control ........2-36
Instrument panel ............... .2-3
Intelligent cruise control (ICC) system . . . .5-21
Intelligent cruise control (ICC) system main
switch indicator ............... .2-23
Intelligent Cruise Control (ICC) system
warning light ................. .2-14
Intelligent cruise control (ICC) system,
Preview function ............... .5-42
Intelligent Key ................. .3-2
Intelligent Key battery discharge
indicator .................... .2-22
Intelligent Key insertion indicator ......2-21
Intelligent Key removal indicator .......2-21
Intelligent Key system ..............3-7
Intelligent Key system Battery replacement ............8-22
Key operating range ............3-8
Key operation ............... 3-10
Warning light ................ 2-14
Warning signals .............. 3-12
Intelligent Key warning light .........2-14
Interior light control switch ..........2-55
Interior light replacement ...........8-25
Interior lights ................. .2-54
Interior trunk lid release ...........3-20
iPod player operation .............4-71
ISOFIX child restraint ............. .1-22 J
Jump starting .................. .6-7
K
Keyless entry (See remote keyless entry
system) .................... .3-14
Keys ....................... .3-2
Keys, For Intelligent Key system ........3-7
Labels Air bag warning labels ...........1-53
Air conditioner specification label ....9-14
Emission
control information label ....9-13
Engine serial number ...........9-12
F.M.V.S.S./C.M.V.S.S. certification
label ..................... 9-13
Tire and Loading information label . . . 9-14
Vehicle identification number (VIN) . . . 9-12
L
LATCH system ................. .1-22
License plate, Installing front license plate .9-15
Light Air bag warning light ............1-53
Bulb replacement ............. 8-23
Fog light switch .............. 2-37
Headlight switch .............. 2-33
Headlights bulb replacement .......8-25
Indicator lights ............... 2-16
Interior light control switch ........2-55
Interior lights ............... 2-54Map lights
................. 2-54
Trunk light ................. 2-56
Vanity mirror lights ............2-56
Warning/indicator lights and audible
reminders .................. 2-12
Xenon headlights ............. 2-32
Light replacement .............. .8-23
Lights, Exterior and interior light
replacement ................. .8-25
Loading information (See vehicle loading
information) .................. .9-17
Lock Automatic door locks ............3-6
Door locks ..................3-4
Power door lock ...............3-4
Trunk lid .................. 3-18
Locking with mechanical key ..........3-4
Low fuel warning ............... .2-22
Low outside temperature warning ......2-22
Low tire pressure warning light . . ......2-14
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .....5-3
Low washer fluid warning ...........2-22
Maintenance Battery ................... .8-13
General maintenance ............8-2
Indicators for maintenance
(dot
matrix) ................ 2-23
Inside the vehicle ..............8-3
Maintenance precautions .........8-5
Maintenance requirements . . ......8-2
Outside the vehicle .............8-2
Seat belt maintenance ..........1-20
10-4
—
—
04/30/10—diane


M
Malfunction indicator light (MIL) .......2-17
Map lights .................. .2-54
Master warning light ............. .2-15
Mechanical key (Intelligent Key system) . . .3-3
Memory storage, Automatic drive
positioner ................... .3-30
Meter Trip computer ............... .2-24
Meters and gauges .............. .2-4
Meters and gauges, Instrument brightness
control ..................... .2-36
Mirror Inside mirror ............... .3-25
Outside mirrors .............. 3-26
Monitor, Rearview monitor ..........4-22
Moonroof ................... .2-52
N
New vehicle break-in ............. .5-42
No key warning ................ .2-21
O
Odometer .................... .2-5
Off-road recovery ............... .5-5
Oil Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine oil and filter .......8-9
Checking engine oil level .........8-8Engine oil
..................8-8
Engine oil viscosity .............9-6
Oil filter replacement indicator .....2-23
Operation, Indicators for operation (dot
matrix) ..................... .2-21
Outside air temperature ............2-26
Outside mirrors ................ .3-26
Owner’s Manual/Service Manual order
information .................. .9-25
P
Panic alarm .................. .3-15
Parking Parking brake operation ..........5-18
Parking brake release warning ......2-22
Parking on hills .............. 5-44
Parking brake break-in ............5-49
Personal lights ................ .2-54
Phone, Car phone or CB radio ........4-85
Power Power door lock .............. .3-4
Power
outlet ................ 2-41
Power steering fluid ............8-11
Power steering system ..........5-48
Power windows .............. 2-49
Power front seat adjustment ..........1-3
Pre-crash seat belts ............. .1-16
Precautions Audio operation ............. .4-39
Braking precautions ............5-48
Child restraints ............... 1-21
Cruise control ............... 5-19
Maintenance .................8-5
Seat belt usage ............... 1-12Supplemental restraint system
......1-40
When starting and driving . . .......5-2
Preview function ............... .5-49
Preview function (for Intelligent cruise
control system) ................ .5-42
Preview Function warning light ........2-15
Push starting .................. .6-9
Push-button ignition switch ..........5-7
R
Radio ..................... .4-39
Radio Car phone or CB radio ...........4-85
FM-AM-SAT radio with Compact Disc
(CD) player ................. 4-54
Rain-sensing auto wiper system . . . . . . .2-31
Rapid air pressure loss .............5-6
Readiness for inspection/maintenance
(I/M) test (US only) ............. .9-24
Rear door lock, Child safety rear door lock . .3-6
Rear seats ................... .1-7
Rear window and outside mirror defroster
switch ..................... .2-32
Rearview monitor ............... .4-22
Recorders, Event data .............9-25
Registering your vehicle in
another country ................ .9-11
Remote keyless entry system .........3-14
Reporting safety defects (US only) ......9-23
Roadside assistance program .........6-2
Rollover ..................... .5-5
Roof,

Moonroof ............... .2-53
10-5
—
—
04/30/10—diane
