ECO mode INFINITI G-COUPE 2010 User Guide

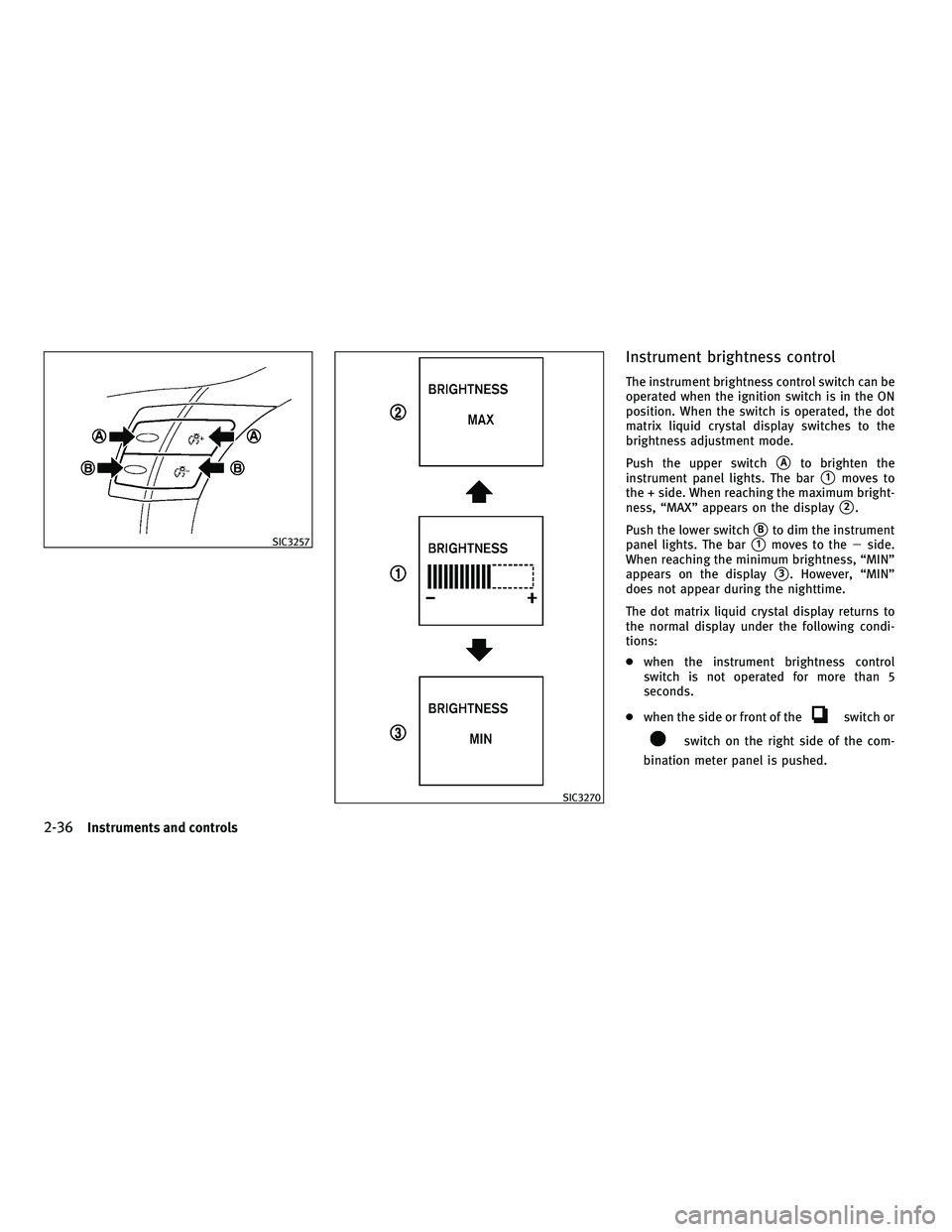

Instrument brightness control
The instrument brightness control switch can be
operated when the ignition switch is in the ON
position. When the switch is operated, the dot
matrix liquid crystal display switches to the
brightness adjustment mode.
Push the upper switch
Ato brighten the
instrument panel lights. The bar
1moves to
the + side. When reaching the maximum bright-
ness, “MAX” appears on the display
2.
Push the lower switch
Bto dim the instrument
panel lights. The bar
1moves to the side.
When reaching the minimum brightness, “MIN”
appears on the display
3. However, “MIN”
does not appear during the nighttime.
The dot matrix liquid crystal display returns to
the normal display under the following condi-
tions:
● when the instrument brightness control
switch is not operated for more than 5
seconds.
● when the side or front of the
switch or
switch on the right side of the com-
bination meter panel is pushed.
SIC3257
SIC3270
2-36Instruments and controls
—
—
10/12/09—tbrooks


For driving or starting the vehicle on snowy
roads or slippery areas, turn on the SNOW
mode switch. The indicator light
1on the
switch will illuminate. When the SNOW mode is
activated, engine output is controlled to avoid
wheel spin. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.) If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
1.
2. To set the clock backward, push the but- ton
2.
3. To move forward or backward faster, push and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section.
SIC3602SIC1881SIC3325
SNOW MODE SWITCH (if so equipped) VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCHCLOCK
2-40Instruments and controls
—
—
04/21/10—debbie


1. To begin, push and hold the 2 outerHomeLink buttons (to clear the memory)
until the indicator light
Ablinks (after 20
seconds). Release both buttons.
2. Position the end of the hand-held trans- mitter 1-3 inches away from the
HomeLink surface. 3. Using both hands, simultaneously push
and hold both the HomeLink button you
want to program and the hand-held trans-
mitter button.
DO NOT release the buttons until step 4
has been completed.
4.
Hold down both buttons until the indicator
light on HomeLink flashes, changing from
a “slow blink” to a “rapid blink”. This
could take up to 90 seconds. When the
indicator light blinks rapidly, both buttons
may be released. The rapidly flashing light
indicates successful programming. To ac-
tivate the garage door or other pro-
grammed device, push and hold the pro-
grammed HomeLink button - releasing
when the device begins to activate.
5. If the indicator light on HomeLink blinks
rapidly for two seconds and then turns
solid, HomeLink has picked up a “rolling
code” garage door opener signal. You will
need to proceed with the next steps to
train HomeLink, completing the pro-
gramming may require a ladder and an-
other person for convenience.
6. Push and release the program button located on the garage door opener’s mo-
tor to activate the “training mode”. This
button is usually located near the an-
tenna wire that hangs down from the
motor. If the wire originates from under a
light lens, you will need to remove the
lens to access the training button.
NOTE:
Once you have pushed and released the
training button on the garage door open-
er’s motor and the “training light” is lit,
you have 30 seconds in which to perform
step 7. For convenience, use the help of a
second person to assist when performing
this step.
SIC3612SIC3613
2-58Instruments and controls
—
—
10/12/09—tbrooks


●You can switch the lock system to the mode
that allows you to open all the doors when
the key is turned once. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, cli-
mate, audio, phone and voice recognition
systems” section.)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
The driver’s door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section).
To open the window, turn the driver’s door key
cylinder to the rear of the vehicle for longer than
1 second . The door is unlocked and the window
keeps opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the
Intelligent Key. (See “REMOTE KEYLESS ENTRY
SYSTEM” later in this section.)
To close the window, turn the driver’s door key
cylinder to the front of the vehicle for longer
than 1 second . The door is locked and the
window keeps closing while turning the key.
LOCKING WITH INSIDE LOCK KNOB
To lock the door individually, move the inside
lock knob to the lock position
1then close the
door.
To unlock, move the inside lock knob to the
unlock position
2.
When locking the door without an Intelligent
Key, be sure not to leave the Intelligent Key
inside the vehicle.
LOCKING WITH POWER DOOR LOCK
SWITCH
Operating the power door lock switch will lock
or unlock all the doors. The switches are lo-
cated on the driver’s and front passenger’s door
armrests.
To lock the doors, push the power door lock
switch to the lock position
1with the driver’s
or front passenger’s door open, then close the
door.
When locking the door this way, be certain not to
leave the Intelligent Key inside the vehicle.
To unlock the doors including the fuel-filler
door, push the power door lock switch to the
unlock position
2.
SPA1814SPA2300
Pre-driving checks and adjustments3-5
—
—
10/12/09—tbrooks


TROUBLESHOOTING GUIDE
SymptomPossible causeAction to take
When pushing the ignition switch to
stop the engine The SHIFT P warning appears on the
display and the inside warning chime
sounds continuously (Automatic
Transmission models). The selector lever is not in the P
(Park) position.
Shift the selector lever to the P
(Park) position.
When opening the driver’s door to
get out of the vehicle The inside warning chime sounds
continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF
position.
The Intelligent Key is in the Intelli-
gent Key port. Remove the Intelligent Key from the
Intelligent Key port.
When closing the door after getting
out of the vehicle The NO KEY warning appears on the
display, the outside chime sounds 3
times and the inside warning chime
sounds for a few seconds.
The ignition switch is in the ACC or
ON position.
Push the ignition switch to the OFF
position.
The SHIFT P warning appears on the
display and the outside chime
sounds continuously (Automatic
Transmission models). The ignition switch is in the ACC or
OFF position and the selector lever is
not in the P (Park) position.
Move the selector lever to the P
(Park) position and push the ignition
switch to the OFF position.
When closing the door with the in-
side lock knob turned to LOCK The outside chime sounds for a few
seconds and all the doors unlock. The Intelligent Key is inside the ve-
hicle or trunk.Carry the Intelligent Key with you.
When pushing the request switch or
LOCK button on the Intelligent Key
to lock the door The outside chime sounds for a few
seconds. The Intelligent Key is inside the ve-
hicle or trunk.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lid The outside chime sounds for ap-
proximately 10 seconds and the
trunk lid opens. The Intelligent Key is inside the
trunk.
Carry the Intelligent Key with you.
Pre-driving checks and adjustments3-13
—
—
10/12/09—tbrooks


Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2318
HOOD
Pre-driving checks and adjustments3-17
—
—
10/12/09—tbrooks


VANITY MIRROR
To use the front vanity mirror, pull down the sun
visor and pull up the cover.The automatic drive positioner system has three
features:
●
Entry/exit function (Automatic Transmission
Sedan models)
● Seat synchronization function
● Memory storage
ENTRY/EXIT FUNCTION (Automatic
Transmission Sedan models)
This system is designed so that the driver’s seat
and steering column will automatically move
when the automatic transmission selector lever
is in the P (Park) position. This allows the driver
to get into and out of the driver’s seat more
easily.
The driver’s seat will slide backward and the
steering wheel will move up when the driver’s
door is opened with the ignition switch in the
LOCK position.
The driver’s seat and steering wheel will return
to the previous positions when one of the
following is operated:
●When the ignition switch is pushed to the
ACC position after the driver’s door is
closed.
● When the ignition switch is pushed to the
ON position. ●
When the Intelligent Key is inserted into the
port after the driver’s door is closed.
The driver’s seat will not return to the previous
positions if the seat or steering adjusting
switch is operated when the seat is at the exit
position.
Cancel or activate entry/exit function
The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated. Note that
the indicator lights may illuminate after 5 sec-
onds while holding the SET switch. This indi-
cates readiness for linking the Intelligent Key to
a stored memory position. Keep the SET switch
pressed for more than 10 seconds to turn on or
off the entry/exit function.
The entry/exit function can also be activated or
canceled if the “Lift Steering Wheel on Exit” key
or “Slide Driver Seat Back on Exit” key is turned
to ON or OFF in the “Comfort & Conv.” settings.
(See “VEHICLE INFORMATION AND SETTINGS” in
AUTOMATIC DRIVE POSITIONER (if so
equipped)
3-28Pre-driving checks and adjustments
—
—
04/21/10—debbie


the “4. Monitor, climate, audio, phone and
voice recognition systems” section.)
Initialize entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is turned from the ON position to the
LOCK position. The entry/exit function will be
activated.
SEAT SYNCHRONIZATION FUNCTION
The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mir-
rors will not move if the seat is adjusted over
the maximum thresholds. The system considers
that the steering wheel and outside mirror
adjustments are not necessary because the
seat may not be adjusted for the driving posi-
tion. Note that the function is set to disabled as
the factory default setting.The seat synchronization function operates un-
der the following conditions:
●
The ignition switch is in the ON position.
● The selector lever is in the P (Park) position
(Automatic Transmission models) or the
parking brake is applied (Manual Transmis-
sion models).
● The seatback is raised (Coupe).
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function
is automatically disabled. Restart the function
by selecting a previously stored seat memory
position using the memory switches (1 or 2). An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in
the seat memory, restart the function by adjust-
ing the steering wheel and outside mirrors
manually for your best driving position and then
drive the vehicle above 4 MPH (7 km/h).
SPA2322
Pre-driving checks and adjustments3-29
—
—
04/21/10—debbie


Cancel or activate seat
synchronization function
For Automatic Transmission models:
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
For Manual Transmission models:
The parking brake must be applied with the
ignition switch in the ACC position.
The seat synchronization function can be acti-
vated or canceled by pushing and holding the
SET switch for more than 10 seconds while the
ignition switch is in the ACC position.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated. Note that
the indicator lights may illuminate after 5 sec-
onds while holding the SET switch. This indi-
cates readiness for linking the Intelligent Key to
a stored memory position. Keep the SET switch
pushed for more than 10 seconds to turn on or
off the seat synchronization function.
MEMORY STORAGE
Two positions for the driver’s seat, steering
column and outside mirrors can be stored in the
automatic drive positioner memory. Follow
these procedures to use the memory system.
1.Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe).
3. Push the ignition switch to the ON posi-
tion.
4. Adjust the driver’s seat, steering column and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information, see
“SEATS” in the “1. Safety — Seats, seat
belts and supplemental restraint system”
section and “TILT/TELESCOPIC STEERING”
page 3-23 and “OUTSIDE MIRRORS” ear-
lier in this section. 5. Push the SET switch and, within 5 sec-
onds, push the memory switch (1 or 2)
fully for at least 1 second.
The indicator light for the pushed memory
switch will stay on for approximately 5 sec-
onds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored
memory position
The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memoryposition.
2. While the indicator light for the memory switch being set is illuminated for 5 sec-
onds, push the
button on the Intel-
ligent Key. If the indicator light blinks, the
Intelligent Key is linked to that memory
setting.
Push the ignition switch to the OFF position,
and then push the
button on the Intelli-
gent Key. The driver’s seat, steering wheel and
outside mirrors will move to the memorized
position.
3-30Pre-driving checks and adjustments
—
—
04/21/10—debbie


Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe). 3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memo-
rized position with the indicator light
flashing, and then the light will stay on for
approximately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h). ●
When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
● When the AT selector lever is moved from the
P (Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
Pre-driving checks and adjustments3-31
—
—
04/21/10—debbie
