4. Connect jumper cables in the sequence asillustrated (
1→2→3→4).
If the battery is disconnected or discharged,
the steering wheel will lock and cannot be
turned. Supply power using jumper cables
before pushing the ignition switch and dis-
engaging the steering lock.
CAUTION
●Always connect positive (+) to positive (+)
and negative () to body ground (as illus-
trated) — not to the battery.
● Make sure the jumper cables do not touch
moving parts in the engine compartment and
that clamps do not contact any other metal.
5. Start the engine of the booster vehicleA
and let it run for a few minutes.
6. Keep the engine speed of the booster vehicle
Aat about 2,000 rpm, and start
the engine of the vehicle being jump
started
B.
CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
7. After starting your engine, carefully dis- connect the negative cable and then the
positive cable (
4→3→2→1).
8. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.
9. Put the battery cover on.
Do not attempt to start the engine by pushing.
CAUTION
● Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
PUSH STARTING
In case of emergency6-9
—
—
04/21/10—debbie

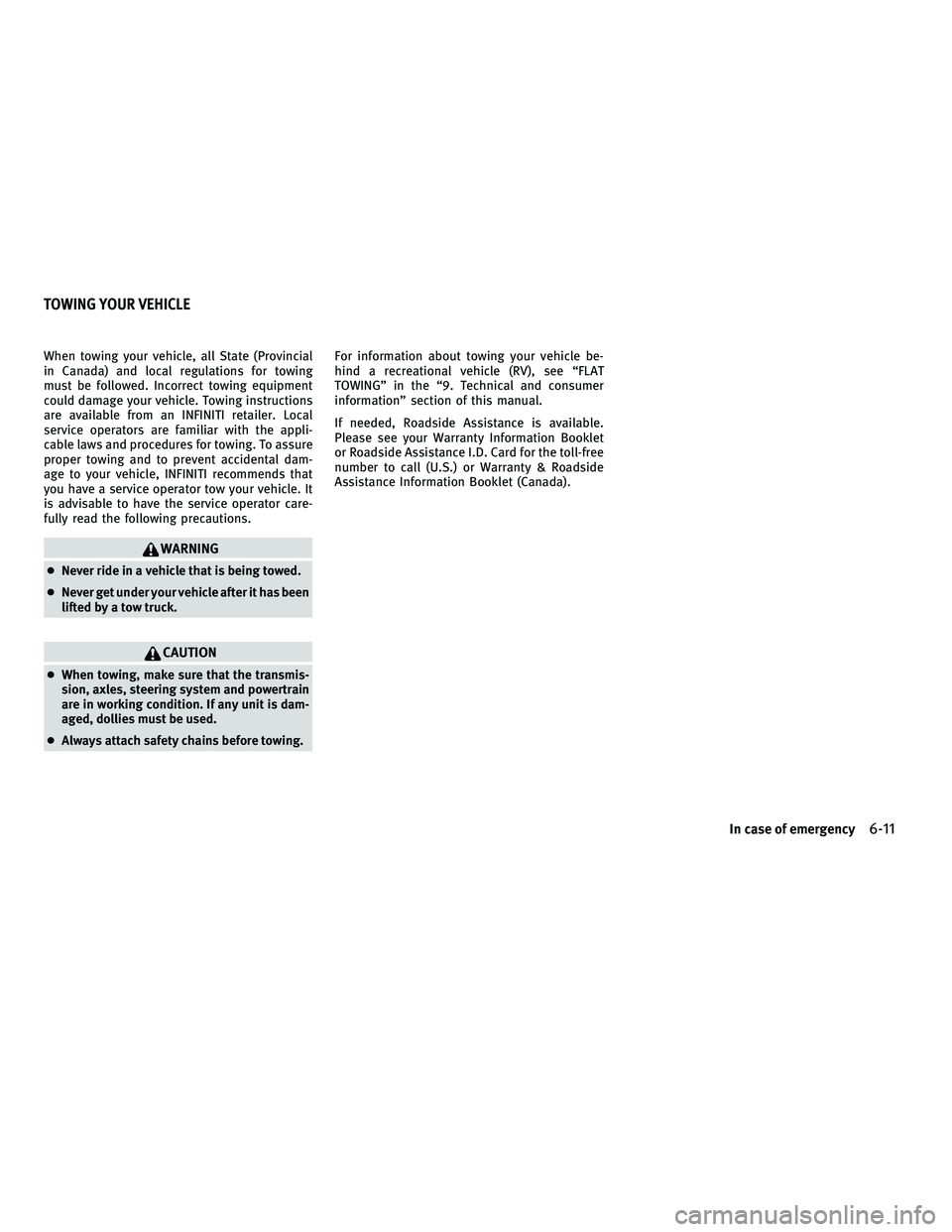

When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.
WARNING
●Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and powertrain
are in working condition. If any unit is dam-
aged, dollies must be used.
● Always attach safety chains before towing. For information about towing your vehicle be-
hind a recreational vehicle (RV), see “FLAT
TOWING” in the “9. Technical and consumer
information” section of this manual.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
TOWING YOUR VEHICLE
In case of emergency6-11
—
—
04/21/10—debbie


TOWING RECOMMENDED BY INFINITI
Two-Wheel Drive (2WD) models
INFINITI recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illustrated.
CAUTION
●Never tow automatic transmission models
with the rear wheels on the ground or four
wheels on the ground (forward or backward),
as this may cause serious and expensive damage to the transmission. If it is neces-
sary to tow the vehicle with the front wheels
raised, always use towing dollies under the
rear wheels.
●
When towing rear wheel drive models with the
front wheels on the ground or on towing dol-
lies: Push the ignition switch to the ACC or ON
position, and secure the steering wheel in a
straight-ahead position with a rope or similar
device. Never secure the steering wheel by
selecting the LOCK position. This may damage
the steering lock mechanism.
● If you have to tow manual transmission mod-
els with the rear wheels on the ground (if you
do not use towing dollies) or four wheels on
the ground:
– Push the ignition switch to the ON posi- tion and turn off all accessories.
– Always release the parking brake.
– Move the transmission shift lever to the N (Neutral) position.
– Observe the following restricted towing speeds and distances for manual trans-
mission models only:
● Rear wheels on the ground:
Speed: Below 50 MPH (80 km/h)
Distance: Less than 50 miles (80 km)
● Four wheels on the ground:
Speed: Below 70 MPH (112 km/h)
Distance: Less than 500 miles (800 km)
– If the speed or distance must necessarily be greater, remove the propeller shaft be-
fore towing to prevent damage to the
transmission.
Two-wheel drive models
SCE0788
6-12In case of emergency
—
—
04/21/10—debbie


All-Wheel Drive (AWD) models
INFINITI recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
CAUTION
Never tow AWD models with any of the wheels
on the ground as this may cause serious and
expensive damage to the powertrain.
VEHICLE RECOVERY (Freeing a stuck
vehicle)
WARNING
●Stand clear of a stuck vehicle.
● Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed spe-
cifically for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.
All-wheel drive models
SCE0488
In case of emergency6-13
—
—
04/21/10—debbie


Front:
1. To remove the hook cover from thebumper with a suitable tool, insert the
tool into the mesh and take off the remov-
able part.
2. Securely install the vehicle recovery hook
1stored with jacking tools as illustrated.
Attach the tow strap to the recovery hook.
Make sure that the hook is properly secured
in the original place after use.
Sedan
SCE0892
Coupe
SCE0893
6-14In case of emergency
—
—
04/21/10—debbie


Rear :
Do not use the tie down hooks
1for towing or
vehicle recovery.
CAUTION
● Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle. Otherwise, the
vehicle body will be damaged.
● Do not use the vehicle tie downs to free a
vehicle stuck in sand, snow, mud, etc.
● Never tow a vehicle using the vehicle tie
downs or recovery hooks. ●
Always pull the cable straight out from the
front of the vehicle. Never pull on the vehicle
at an angle.
● Pulling devices should be routed so they do
not touch any part of the suspension, steer-
ing, brake or cooling systems.
● Pulling devices such as ropes or canvas
straps are not recommended for use in ve-
hicle towing or recovery.
Rocking a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
●Shift back and forth between R (reverse) and
D (drive) (automatic transmission models) or
1st (low) and R (reverse) (manual transmis-
sion models). ●
Apply the accelerator as little as possible to
maintain the rocking motion.
● Release the accelerator pedal before shifting
between R and D (automatic transmission
models) or 1st and R (manual transmission
models).
● Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing ser-
vice to remove the vehicle.
SCE0891
In case of emergency6-15
—
—
04/21/10—debbie


TIRE DRESSING
INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
●Use a water-based tire dressing. The coating
on the tire dissolves more easily with an
oil-based tire dressing.
● Apply a light coat of tire dressing to help
prevent it from entering the tire
tread/grooves (where it would be difficult to
remove).
● Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is com-
pletely removed from the tire tread/grooves.
● Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer. Occasionally remove loose dust from the inte-
rior trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl
and leather surfaces with a clean, soft cloth
dampened in mild soap solution, then wipe
clean with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot steam
cleaners) on the seat. This can damage the seat
or occupant classification sensors. This can
also affect the operation of the air bag system
and result in serious personal injury.
CAUTION
●
Never use benzine, thinner, or any similar
material. ●
Small dirt particles can be abrasive and dam-
aging to the leather surfaces and should be
removed promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning fluids,
solvents, detergents or ammonia-based
cleaners as they may damage the leather’s
natural finish.
● Only use fabric protectors approved by
INFINITI.
● Do not use glass or plastic cleaner on meter
or gauge lens covers. It may damage the lens
cover.
AIR FRESHENERS
Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
● Hanging-type air fresheners can cause per-
manent discoloration when they contact ve-
hicle interior surfaces. Place the air fresh-
ener in a location that allows it to hang free
and not contact an interior surface.
● Liquid-type air fresheners typically clip on
the vents. These products can cause imme-
diate damage and discoloration when
spilled on interior surfaces.
CLEANING INTERIOR
7-4Appearance and care
—
—
04/21/10—debbie


●Tire tread of the TEMPORARY USE ONLY
spare tire will wear at a faster rate than the
standard tire. Replace the spare tire as soon
as the tread wear indicators appear.
● Do not use the spare tire on other vehicles.
● Do not use more than one spare tire at the
same time.
● Do not tow a trailer when the TEMPORARY
USE ONLY spare tire is installed.
CAUTION
● Do not use tire chains on a TEMPORARY USE
ONLY spare tire. Tire chains will not fit prop-
erly and may cause damage to the vehicle.
● Because the TEMPORARY USE ONLY spare
tire is smaller than the original tire, ground
clearance is reduced. To avoid damage to the
vehicle, do not drive over obstacles. Also do
not drive the vehicle through an automatic
car wash since it may get caught.
8-40Maintenance and do-it-yourself
—
—
04/21/10—debbie


9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-4
Engine oil and oil filter recommendation ......... 9-6
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-7
Specifications ..................................... 9-8
Engine ........................................ 9-8
Wheels and tires ............................... 9-9
Dimensions .................................... 9-11
When traveling or registering your vehicle in
another country ................................... 9-11
Vehicle identification ............................. 9-12
Vehicle Identification Number (VIN) plate ........9-12
Vehicle identification number (chassis
number) ...................................... 9-12
Engine serial number .......................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label .........9-13
Emission control information label ..............9-13
Tire and loading information label ..............9-14
Air conditioner specification label ...............9-14
Installing front license plate ........................9-15
Sedan ......................................... 9-15Coupe
........................................ 9-17
Vehicle loading information .......................9-17
Terms ........................................ 9-17
Vehicle load capacity .......................... 9-19
Loading tips .................................. 9-20
Measurement of weights ....................... 9-21
Towing a trailer .................................. 9-21
Flat towing ................................... 9-21
Uniform tire quality grading .......................9-22
Treadwear .................................... 9-22
Traction AA, A, B and C ........................ 9-22
Temperature A, B and C ....................... 9-22
Emission control system warranty .................9-23
Reporting safety defects (US only) .................9-23
Readiness for Inspection/Maintenance (I/M) test
(US only) ........................................ 9-24
Event Data Recorders (EDR) .......................9-25
Owner’s

Manual/Service Manual order
information ...................................... 9-25
In the event of a collision ......................9-26
—
—
04/21/10—debbie


FUEL RECOMMENDATION
VQ37VHR engine
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
●Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
● Avoid full throttle driving and abrupt accel-
eration.
However, for maximum vehicle performance, the
use of unleaded premium gasoline is recom-
mended.
CAUTION
● Using a fuel other than that specified could
adversely affect the emission control sys-
tem, and may also affect warranty coverage.
● Under no circumstances should a leaded
gasoline be used, because this will damage
the three-way catalyst. ●
Do not use E-85 fuel in your vehicle. Your
vehicle is not designed to run on E-85 fuel.
Using E-85 fuel can damage the fuel system
components and is not covered by the
INFINITI vehicle limited warranty.
Gasoline specifications
INFINITI recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifica-
tions where it is available. Many of the automo-
bile manufacturers developed this specification
to improve emission system and vehicle perfor-
mance. Ask your service station manager if the
gasoline meets the World-Wide Fuel Charter
(WWFC) specifications.
Reformulated gasoline
Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are spe-
cially designed to reduce vehicle emissions.
INFINITI supports efforts towards cleaner air
and suggests that you use reformulated gaso-
line when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
INFINITI does not recommend the use of fuels of which the oxygenate content and the fuel com-
patibility for your INFINITI cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please
take the following precautions as the usage of
such fuels may cause vehicle performance prob-
lems and/or fuel system damage.
●
The fuel should be unleaded and have an oc-
tane rating no lower than that recommended
for unleaded gasoline.
● If an oxygenate-blend, excepting a methanol
blend, is used, it should contain no more than
10% oxygenate. (MTBE may, however, be
added up to 15%.)
● If a methanol blend is used, it should contain
no more than 5% methanol (methyl alcohol,
wood alcohol). It should also contain a suit-
able amount of appropriate cosolvents and
corrosion inhibitors. If not properly formu-
lated with appropriate cosolvents and corro-
sion inhibitors, such methanol blends may
cause fuel system damage and/or vehicle
performance problems. At this time, suffi-
cient data is not available to ensure that all
methanol blends are suitable for use in
INFINITI vehicles.
If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
9-4Technical and consumer information
—
—
04/21/10—debbie
