INFINITI G-COUPE 2011 Owners Manual

and it will turn off automatically after a period of
time. To turn it on again, push the DISC·AUX
button again.
DVD operation keys :
When the DVD is playing without the operation
screen being shown, you may use the touch
screen to select items from the displayed video.
You may also use the INFINITI controller to
select an item from the displayed video. When
the operation screen is being shown, use the
INFINITI controller or touch screen to select an
item from the displayed menus.
PAUSE:
Select the “
” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
PLAY:
Select the “
” key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the “
” key to stop playing the DVD.
/Next/Previous Chapter:
Select the “
”or“” key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip:
This function is only for DVD-VIDEO, DVD-VR.
Select the “
”or“” key to skip
forward or backwards by the set amount as
defined in the DVD Settings menu.
Top Menu :
When the “Top Menu” key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
DVD settings
Select the “Settings” key to adjust the following
settings.
Key (DVD-VIDEO) :
Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving the operation key.
Example
SAA2498
4-60Monitor, climate, audio, phone and voice recognition systems

Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (DVD-VIDEO) :
Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.
Title Search (DVD-VIDEO, DVD-VR) :
The scene with the specified title will be dis-
played each time the “+” side or “” side is
selected.
Group Search (VIDEO CD) :
A scene in the specified group will be displayed
each time the “+” side or “” side is selected.
10 Key Search (DVD-VIDEO, VIDEO-CD, CD-DA,
DVD-VR) :
Select the “10 Key Search” key to open the
number entry screen. Input the number to be
searched and select the “OK” key. The specified
Title/Chapter or Group/Track will be played. Select No. (VIDEO-CD) :
Select the “Select No.” key to open the number
entry screen. Input the number to be searched
and select the “OK” key. The specified scene
will be played.
Angle (DVD-VIDEO) :
If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one. Select the “Angle”
key. The angle will change each time the “+”
side or “” side is selected.
Angle Mark (DVD-VIDEO) :
When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.
Menu Skip (DVD-VIDEO) :
DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip” key is turned on. Note that some
discs may not be played directly even if this
item is turned on.
CM Skip (DVD-VIDEO) :
Select the “CM Skip” key. Choose the setting
time from 15, 30 or 60 seconds by selecting the
“+” side or “” side. DRC (DVD-VIDEO, DVD-VR) :
DRC (Dynamic Range Compression) automati-
cally adjusts the soundtrack volume level to
maintain a more even sound to the speakers.
DVD Language (DVD-VIDEO, VIDEO-CD) :
Select the “DVD Language” key to open the
number entry screen. Input the number corre-
sponding to the preferred language and select
the “OK” key. The DVD top menu language will
be changed to the one specified.
Display :
To adjust the image quality of the screen, select
the preferred adjustment items.
Audio :
Select the preferred language for audio.
Subtitle (DVD-VIDEO, DVD-VR) :
Select the preferred language for subtitles.
Display Mode (DVD-VIDEO, VIDEO-CD,
DVD-VR) :
Select from the “Full”, “Wide”, “Normal” or
“Cinema” modes.
Title List (DVD-VR) :
Select the preferred title from the list.
Monitor, climate, audio, phone and voice recognition systems4-61

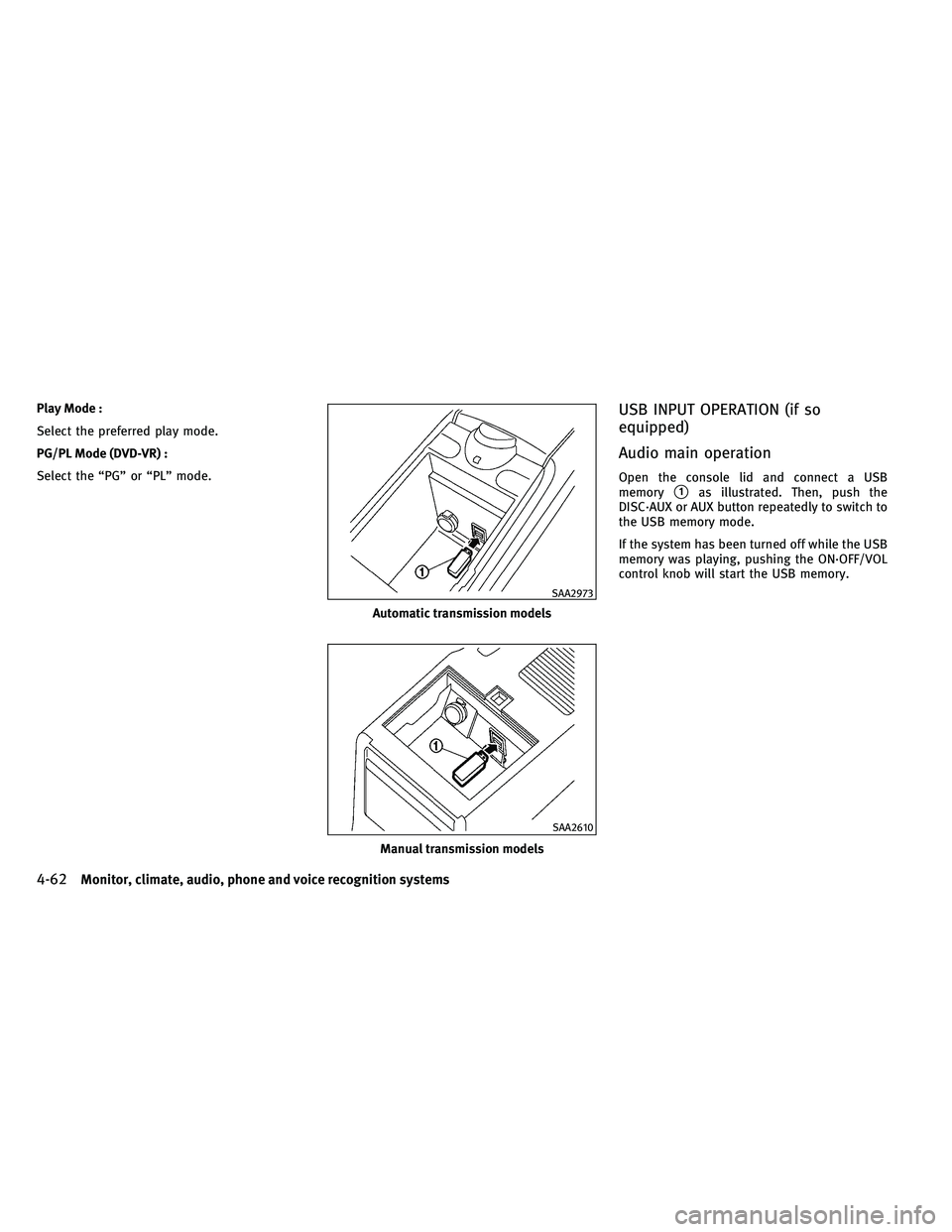

Play Mode :
Select the preferred play mode.
PG/PL Mode (DVD-VR) :
Select the “PG” or “PL” mode.USB INPUT OPERATION (if so
equipped)
Audio main operation
Open the console lid and connect a USB
memory
1as illustrated. Then, push the
DISC·AUX or AUX button repeatedly to switch to
the USB memory mode.
If the system has been turned off while the USB
memory was playing, pushing the ON·OFF/VOL
control knob will start the USB memory.
Automatic transmission models
SAA2973
Manual transmission models
SAA2610
4-62Monitor, climate, audio, phone and voice recognition systems

File selection (models with navigation
system)
When there are both audio and movie files in
the USB memory, the mode select screen is
displayed. Select the preferred contents to play.
When there is only one type of file, the audio or
movie operation screen is displayed and starts
to play.
If a video file restricts the number of playbacks,
a pop-up screen will appear to confirm it is ok to
play. Answer yes or no as requested by the
display.
Audio file operation
orPLAY :
When the DISC·AUX or AUX button is pushed
with the system off and the USB memory in-
serted, the system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX or AUX
button repeatedly until the center display
changes to the USB memory mode.
Next/Previous File and Fast
Forward/Rewind :
When the
(Rewind) or(Fast For-
ward) button is pushed for more than 1.5 sec-
onds while a USB memory is being played, the
USB memory will play while forwarding or re-
winding. When the button is released, the USB
memory will return to normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
The INFINITI controller can also be used to
select tracks when the USB memory is being
played.
SAA2500
Models with navigation system
SAA2501
Models without navigation system
SAA2611
Monitor, climate, audio, phone and voice recognition systems4-63

Folder selection :
To change to another folder in the USB memory,
turn the folder selector or choose a folder
displayed on the screen using the INFINITI
controller.
REPEAT (RPT),
RANDOM (RDM) :
When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
Normal →1 Folder Repeat →1 Track Repeat →
All Random →1 Folder Random →Normal
Text (models without navigation system) :
When the “Text” key is selected on the screen
using the INFINITI controller and then the ENTER
button is pushed while a USB memory is being
played, the music information listed below will
be displayed on the screen.
● Folder title
● File title
● Song title
● Album Title ●
Artist
Menu (models with navigation system) :
There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.
● Movie Playback
Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files.
● Folder List/Track List
Displays the folder or track list. The “Movie Playback” key is also displayed in this list
screen, and enables switching to the movie
playback mode.
● Play Mode
Select the preferred play mode.
SAA2502
4-64Monitor, climate, audio, phone and voice recognition systems

Movie file operation (models with
navigation system)
Park the vehicle in a safe location for the front
seat occupants to operate the USB memory
while watching the images.
PLAY :
When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode. Operation keys :
To operate the USB memory, select the desired
key displayed on the operation screen using the
INFINITI controller.
Pause
Select the “
” key to pause the movie
file. To resume playing the movie file, select the
“
” key.
Play
Select the “
” key to start playing a movie
file, for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie
file.
Skip
(Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip
(Previous chapter)
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the “
” key is
selected.
List :
Select the “List” key on the movie file operation
screen to display the file list.
SAA2503
Monitor, climate, audio, phone and voice recognition systems4-65

Settings :
Select the “Settings” key to adjust the following
settings.
●Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
● Play Mode
Select the “Normal” or “1 Track Repeat” play
mode.
● 10 Key Search
Select the “10 Key Search” key to open the number entry screen.
Input the number to be searched and select
the “OK” key.
The specified folder/file will be played.
● Display
To adjust the image quality of the screen,
select the preferred adjustment items.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Select the preferred language for audio.
● Subtitle
Select the preferred language for subtitle.
● Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode.
BLUETOOTH STREAMING AUDIO
(models with navigation system)
Your INFINITI is equipped with Bluetooth Stream-
ing Audio. If you have a compatible Bluetooth
device with streaming audio (A2DP profile), you
can set up the wireless connection between your
Bluetooth device and the in-vehicle audio sys-
tem. This connection allows you to listen to the
audio from the Bluetooth device using your
vehicle speakers. It also may allow basic control
of the device for playing and skipping audio files
using the AVRCP Bluetooth profile. All
Bluetooth Devices do not have the same level of
controls for AVRCP. Please consult the manual for
your Bluetooth Device for more details.
Once your Bluetooth device is connected to
the in-vehicle audio system, it will automati-
cally reconnect whenever the device is present
in the vehicle and you select Bluetooth Audio
from your audio system. You do not need to
manually reconnect for each usage.
Regulatory information
FCC Regulatory information :
– CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
Example
SAA2504
4-66Monitor, climate, audio, phone and voice recognition systems

– Operation is subject to the following twoconditions:
1) This device may not cause interference and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the
device
IC Regulatory information :
– Operation is subject to the following twoconditions:
1) This device may not cause interference, and
2) This device must accept any interfer- ence, including interference that may
cause undesired operation of the
device.
– This Class B digital apparatus meets allrequirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth trademark:
Bluetooth is a trademark
owned by Bluetooth SIG,
Inc. and licensed to
Clarion Co., Ltd.
Connecting procedure
1. Push the SETTING button and select the “Bluetooth” key. 2. Select the “Connect Bluetooth” key.
SAA2505SAA2506
Monitor, climate, audio, phone and voice recognition systems4-67

3. A confirmation screen will be displayed.Select “No”.
Note: Selecting “Yes” will only connect the
hands free phone portion of a Bluetooth
device.
4. Choose a PIN code to use with the com- patible Bluetooth audio device using the
number input screen. The PIN code will
need to be entered into the Bluetooth
audio device after step 5. Select the “OK”
key. 5. The standby message screen will appear.
Operate the compatible Bluetooth audio
device. For the connecting procedure of
the audio device, see the Bluetooth au-
dio instructions.
When the connecting is completed, the
screen will return to the Bluetooth setup
display.
SAA2507SAA3005SAA3006
4-68Monitor, climate, audio, phone and voice recognition systems

Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button re-
peatedly to switch to the Bluetoothaudio
mode. If the system has been turned off while
the Bluetooth audio device was playing, push-
ing the ON·OFF/VOL control knob will start the
Bluetooth audio device.
The ability to pause, change tracks, fast for-
ward, rewind, randomize and repeat music may
be different between devices. Some or all of
these functions may not be supported on each
device.
DISC·AUX button :
When the DISC·AUX button is pushed with the
system off and the Bluetooth audio device
connected, the system will turn on. If another
audio source is playing and the Bluetooth
audio device is connected, push the DISC·AUX
button repeatedly until the display changes to
the Bluetooth audio mode.
Next/Previous Track and
Fast Forward/Rewind :
When the
orbutton is pushed for
more than 1.5 seconds while a Bluetooth audio
file is being played, the Bluetooth audio de-
vice will play while forwarding or rewinding.
When the button is released, the Bluetooth
audio device will return to normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while a Bluetooth audio
file is being played, the next track or the
beginning of the current track on the
Bluetooth audio device will be played. The
INFINITI controller can also be used to select
tracks when the Bluetooth audio play mode
screen is shown on the display. (“Bluetooth
audio” will be indicated on the header of the
screen.)
REPEAT (RPT), RANDOM (RDM) :
To change the play mode, push the
button repeatedly and the mode changes as
follows.
Normal →Shuffle All Tracks →Shuffle Group →
Repeat 1 Track →Repeat All Tracks →Repeat
Group →Normal
Operation keys :
To operate a Bluetooth audio device, select a
key displayed on the operation screen using the
INFINITI controller.
Play
Select the “
” key to start playing when
pausing. Select this key again to pause the
audio play.
Pause
Select the “
” key to pause the Bluetooth
audio device. Select this key again to resume
playing.
Play Mode :
The play mode setting display will appear when
the “Menu” key is selected.
Choose the preferred play mode from the fol-
lowing items.
SAA2510
Monitor, climate, audio, phone and voice recognition systems4-69
