INFINITI G-COUPE 2011 Owners Manual

CONSEQUENTIAL OR INCIDENTAL DAMAGES OR
FOR ANY LOST PROFITS OR LOST REVENUES.
Copyright :
Music recognition technology and related data
are provided by Gracenote. Gracenote is the
industry standard in music recognition technol-
ogy and related content delivery. For more
information, please visit www.gracenote.com.
CD and music-related data from Gracenote, Inc.,
copyright © 2000-2009 Gracenote. Gracenote
Software, copyright © 2000-2009 Gracenote.
This product and service may practice one or
more of the following U.S. Patents: #5,987,525;
#6,061,680; #6,154,773, #6,161,132,
#6,230,192, #6,230,207, #6,240,459,
#6,330,593, and other patents issued or pend-
ing. Some services supplied under license from
Open Globe, Inc. for U.S. Patent: #6,304,523.
Gracenote and CDDB are registered trademarks
of Gracenote. The Gracenote logo and logotype,
and the “Powered by Gracenote” logo are trade-
marks of Gracenote.

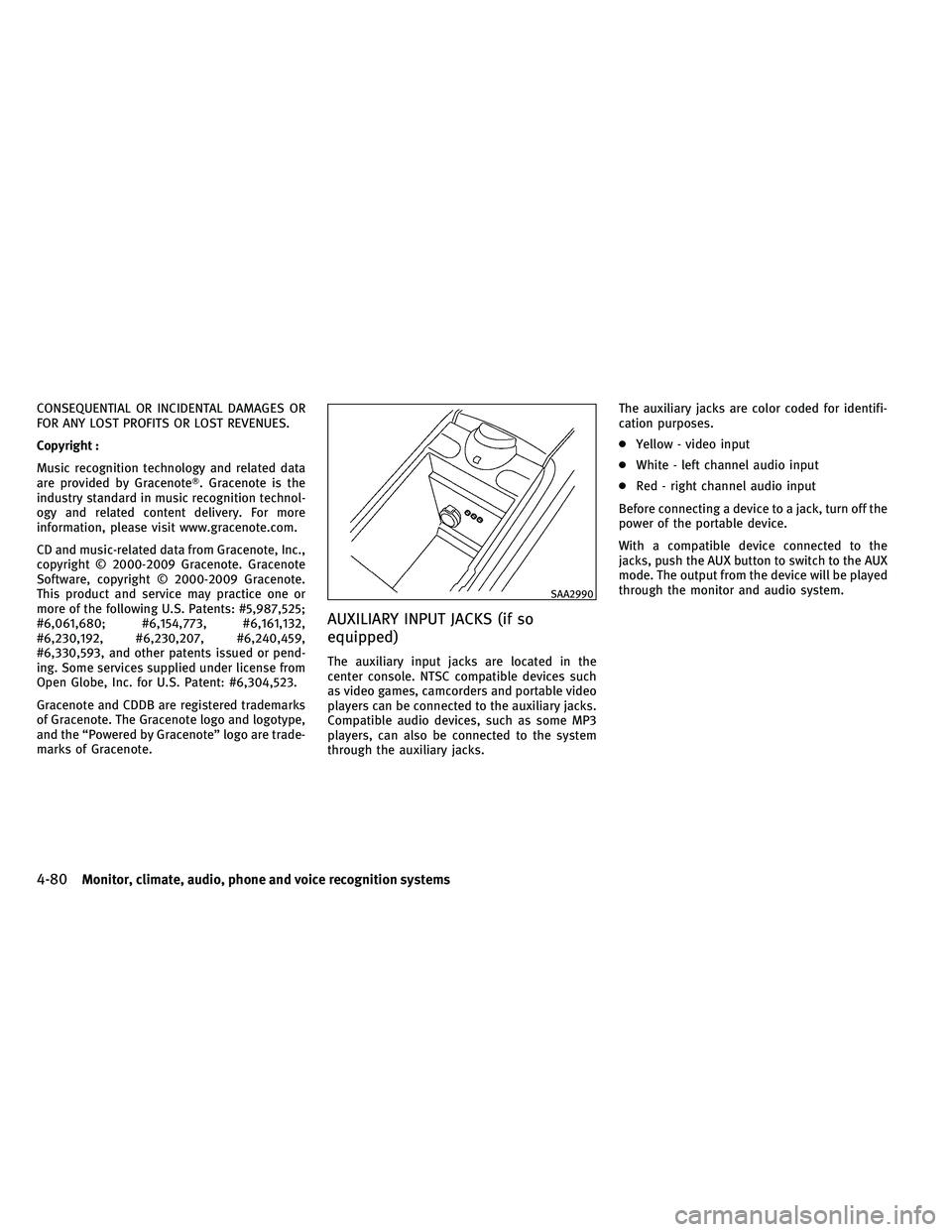

AUXILIARY INPUT JACKS (if so
equipped)
The auxiliary input jacks are located in the
center console. NTSC compatible devices such
as video games, camcorders and portable video
players can be connected to the auxiliary jacks.
Compatible audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary jacks. The auxiliary jacks are color coded for identifi-
cation purposes.
●
Yellow - video input
● White - left channel audio input
● Red - right channel audio input
Before connecting a device to a jack, turn off the
power of the portable device.
With a compatible device connected to the
jacks, push the AUX button to switch to the AUX
mode. The output from the device will be played
through the monitor and audio system.
SAA2990
4-80Monitor, climate, audio, phone and voice recognition systems

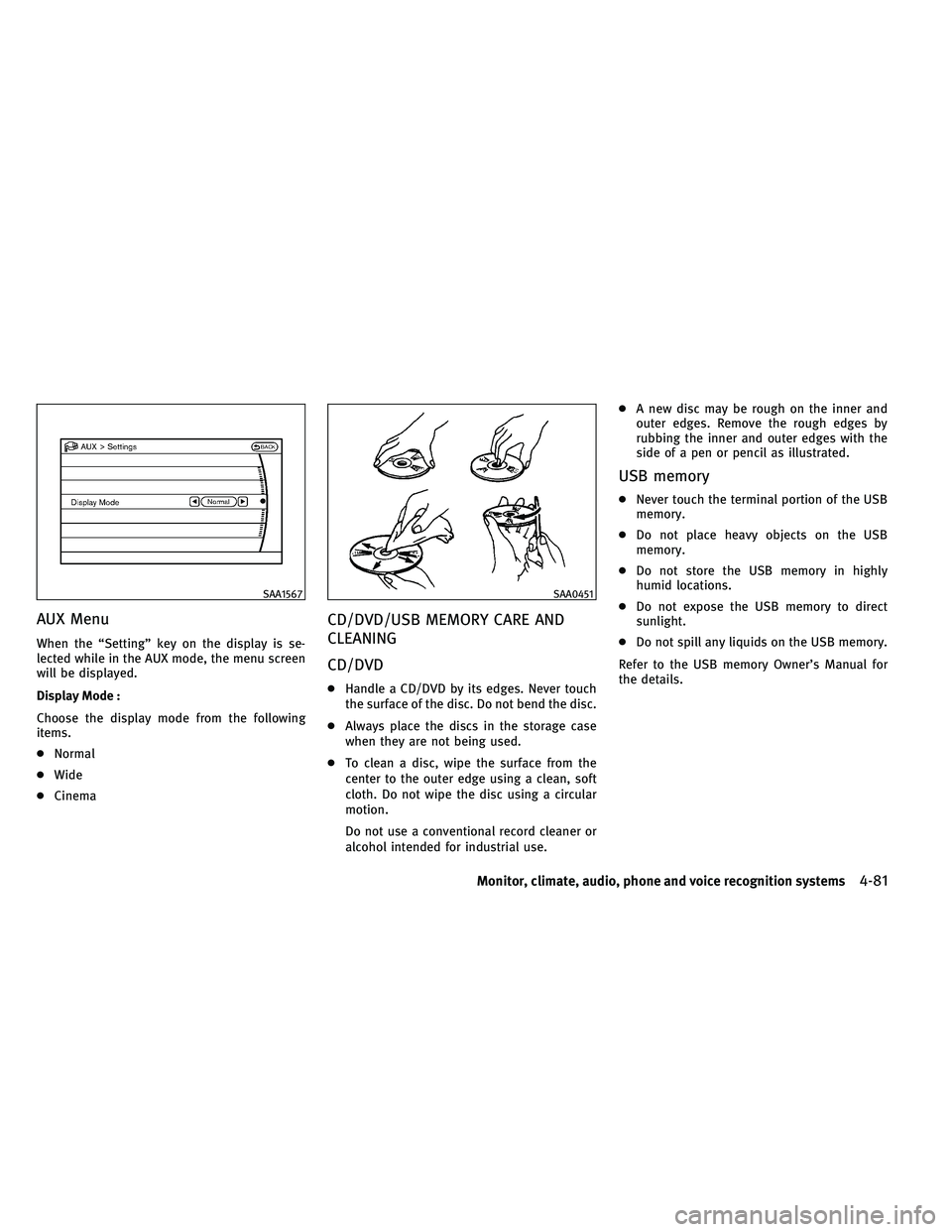

AUX Menu
When the “Setting” key on the display is se-
lected while in the AUX mode, the menu screen
will be displayed.
Display Mode :
Choose the display mode from the following
items.
●Normal
● Wide
● Cinema
CD/DVD/USB MEMORY CARE AND
CLEANING
CD/DVD
●Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the disc.
● Always place the discs in the storage case
when they are not being used.
● To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use. ●
A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memory
● Never touch the terminal portion of the USB
memory.
● Do not place heavy objects on the USB
memory.
● Do not store the USB memory in highly
humid locations.
● Do not expose the USB memory to direct
sunlight.
● Do not spill any liquids on the USB memory.
Refer to the USB memory Owner’s Manual for
the details.
SAA1567SAA0451
Monitor, climate, audio, phone and voice recognition systems4-81

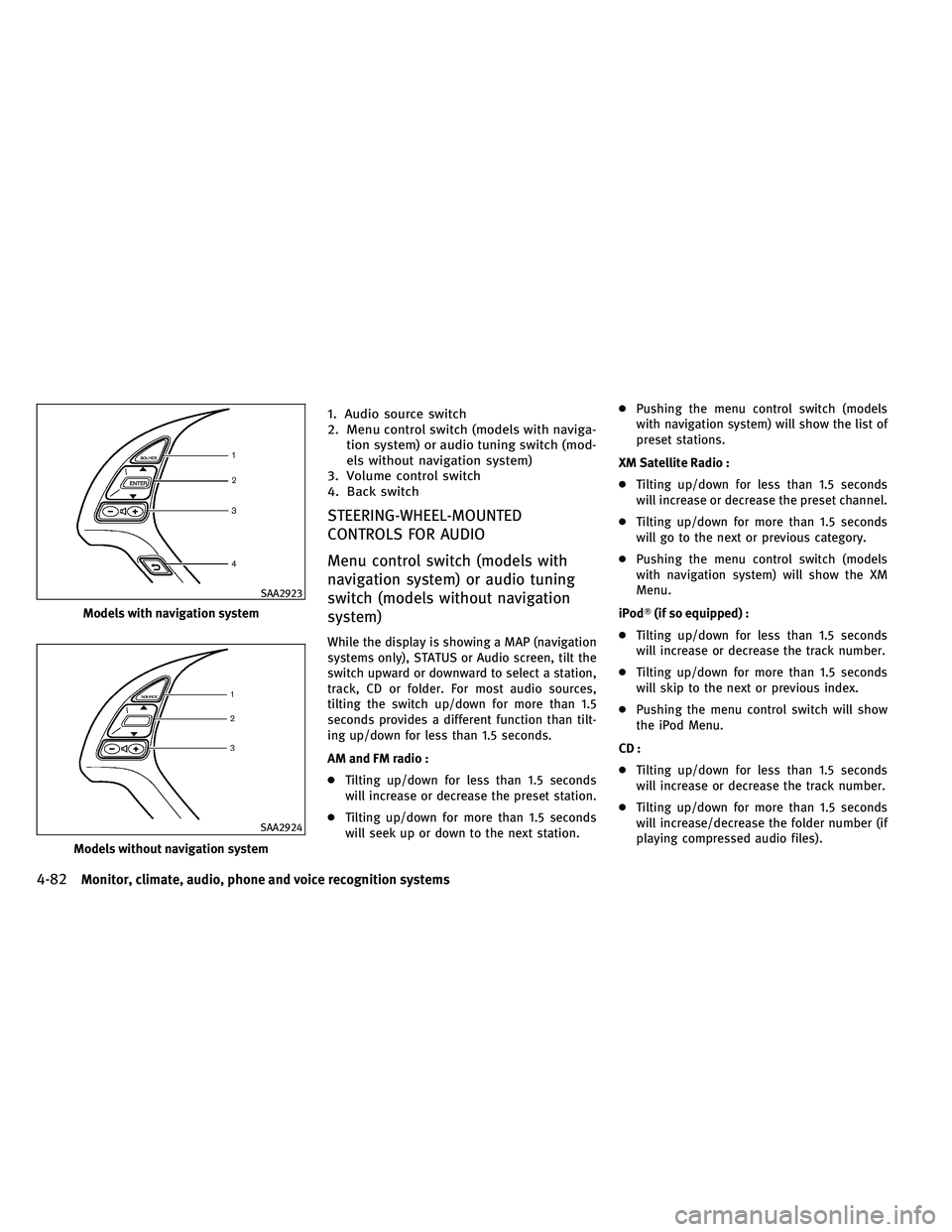

1. Audio source switch
2. Menu control switch (models with naviga-tion system) or audio tuning switch (mod-
els without navigation system)
3. Volume control switch
4. Back switch
STEERING-WHEEL-MOUNTED
CONTROLS FOR AUDIO
Menu control switch (models with
navigation system) or audio tuning
switch (models without navigation
system)
While the display is showing a MAP (navigation
systems only), STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilt-
ing up/down for less than 1.5 seconds.
AM and FM radio :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the preset station.
● Tilting up/down for more than 1.5 seconds
will seek up or down to the next station. ●
Pushing the menu control switch (models
with navigation system) will show the list of
preset stations.
XM Satellite Radio :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the preset channel.
● Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
● Pushing the menu control switch (models
with navigation system) will show the XM
Menu.
iPod (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will skip to the next or previous index.
● Pushing the menu control switch will show
the iPod Menu.
CD :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number (if
playing compressed audio files).
Models with navigation system
SAA2923
Models without navigation system
SAA2924
4-82Monitor, climate, audio, phone and voice recognition systems

●Pushing the menu control switch (models
with navigation system) will show the CD
Menu.
DVD (models with navigation system) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase or decrease the title number.
● Pushing the menu control switch will select
an item from the DVD display.
● When the transparent operation menu ap-
pears, the switch will control the menu.
USB (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number
● Pushing the menu control switch will show
the USB Menu.
Music Box (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the album (folder)
number (if playing compressed audio files). ●
Pushing the menu control switch will show
the Music Box Menu.
Bluetooth Audio (models with navigation sys-
tem) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
AUX (if so equipped) :
● Pushing the menu control switch (models
with navigation system) will show the AUX
Menu.
BACK switch (models with
navigation system)
Push this switch to go back to the previous
screen or cancel the selection if it is not com-
pleted.
Volume control switches
Push the upper (+) or lower () side switch to
increase or decrease the volume.
Audio source switch
Push the audio source switch to change the
mode as follows. Type A:
●
Models with navigation system
AM →FM →SAT →CD/DVD →Music Box
→ USB/iPod →Bluetooth Audio
● Models without navigation system
AM →FM →CD →Music Box →USB/iPod
→ SAT
Type B:
Preset A →Preset B →Preset C →CD
ANTENNA
Window antenna
The antenna pattern is printed inside the rear
window.
CAUTION
●Do not place metalized film near the rear
window glass or attach any metal parts to it.
This may cause poor reception or noise.
● When cleaning the inside of the rear window,
be careful not to scratch or damage the rear
window antenna. Lightly wipe along the an-
tenna with a dampened soft cloth.
Monitor, climate, audio, phone and voice recognition systems4-83

When installing a car phone or a CB radio in
your INFINITI, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
●A cellular telephone should not be used
while driving so full attention may be given
to vehicle operation. Some jurisdictions pro-
hibit the use of cellular telephones while
driving.
● If you must make a call while your vehicle is
in motion, the hands-free cellular phone op-
erational mode (if so equipped) is highly rec-
ommended. Exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If a conversation in a moving vehicle requires
you to take notes, pull off the road to a safe
location and stop your vehicle before doing
so.
CAUTION
● Keep the antenna as far away as possible
from the electronic control modules.
● Keep the antenna wire more than 8 in (20 cm)
away from the electronic control system har-
ness. Do not route the antenna wire next to
any harness.
● Adjust the antenna standing-wave ratio as
recommended by the manufacturer.
● Connect the ground wire from the CB radio
chassis to the body.
● For details, consult an INFINITI retailer.
WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your INFINITI is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth wireless tech-
nology, you can make or receive a telephone
call with your cellular phone in your pocket.
Once a cellular phone is connected to the
in-vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
CAR PHONE OR CB RADIO BLUETOOTHHANDS-FREE PHONE SYSTEM
(models with navigation system)
4-84Monitor, climate, audio, phone and voice recognition systems

phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible. For more
details, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section; page 4-108.
Before using the BluetoothHands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
Hands-Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.InfinitiUSA.com/bluetooth for a recom-
mended phone list.
● You will not be able to use a hands-free
phone under the following conditions: – Your vehicle is outside of the telephone
service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the ON position, it may be impos-
sible to receive a call for a short period of
time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual. ●
If the Bluetooth Hands-Free Phone System
seems to be malfunctioning, please visit
www.InfinitiUSA.com/bluetooth for trouble-
shooting help.
● Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.
● Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
● The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
● Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
● If reception between callers is unclear, ad-
justing the incoming or outgoing call volume
may improve the clarity.
Monitor, climate, audio, phone and voice recognition systems4-85

REGULATORY INFORMATION
FCC Regulatory information
– CAUTION: To maintain compliance with FCC’sRF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two conditions:
1. this device may not cause interference and
2. this device must accept any interference, including interference that may cause
undesired operation of the device
IC Regulatory information
– Operation is subject to the following twoconditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
– This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
Bluetooth
is a trademark
owned by Bluetooth SIG,
Inc., U.S.A. and licensed to
Clarion Co., Ltd.
VOICE COMMANDS
You can use voice commands to operate various
Bluetooth Hands-Free Phone System features
using the INFINITI Voice Recognition system.
For more details, see “INFINITI VOICE RECOGNI-
TION SYSTEM (models with navigation system)”
later in this section; page 4-108.
CONTROL BUTTONS
1) PHONE button
2) TALK/PHONE SEND button
SAA1772
4-86Monitor, climate, audio, phone and voice recognition systems

CONNECTING PROCEDURE
1. Push the PHONE button or thebutton, and select the “Connect Phone”
key.2. When a PIN code appears on the screen,
operate the compatible Bluetooth cellu-
lar phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit
www.InfinitiUSA.com/bluetooth or call
INFINITI Consumer Affairs Department for
instructions on pairing INFINITI recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
PHONE SELECTION
Up to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push PHONE button and select the
“Connected Phones” key. The registered cellu-
lar phones are shown on the list. If you select a
cellular phone that is different from the one
currently connected, the newly selected phone
will be connected to the system.
VEHICLE PHONEBOOK
This vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone’s phonebook into the “Handset
Phonebook”. For the details about downloading
a phonebook, see “PHONE SETTING” later in
this section. If a phonebook does not automati-
cally download, the vehicle phonebook may be
set for up to 1,000 entries. This phonebook
allows the recording of a name to speak while
using voice recognition.SAA2519SAA2520
Monitor, climate, audio, phone and voice recognition systems4-87

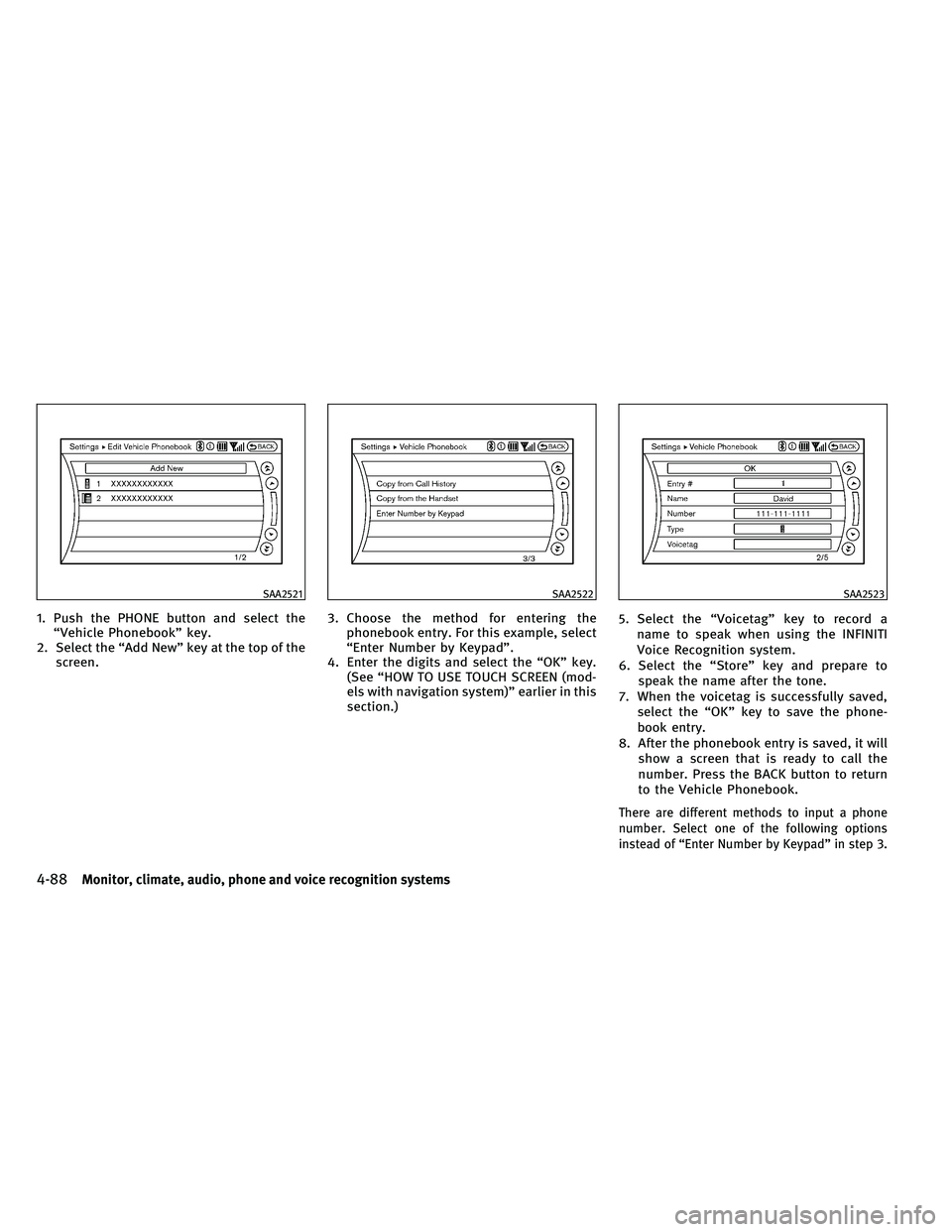

1. Push the PHONE button and select the“Vehicle Phonebook” key.
2. Select the “Add New” key at the top of the screen. 3. Choose the method for entering the
phonebook entry. For this example, select
“Enter Number by Keypad”.
4. Enter the digits and select the “OK” key. (See “HOW TO USE TOUCH SCREEN (mod-
els with navigation system)” earlier in this
section.) 5. Select the “Voicetag” key to record a
name to speak when using the INFINITI
Voice Recognition system.
6. Select the “Store” key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the “OK” key to save the phone-
book entry.
8. After the phonebook entry is saved, it will show a screen that is ready to call the
number. Press the BACK button to return
to the Vehicle Phonebook.
There are different methods to input a phone
number. Select one of the following options
instead of “Enter Number by Keypad” in step 3.
SAA2521SAA2522SAA2523
4-88Monitor, climate, audio, phone and voice recognition systems

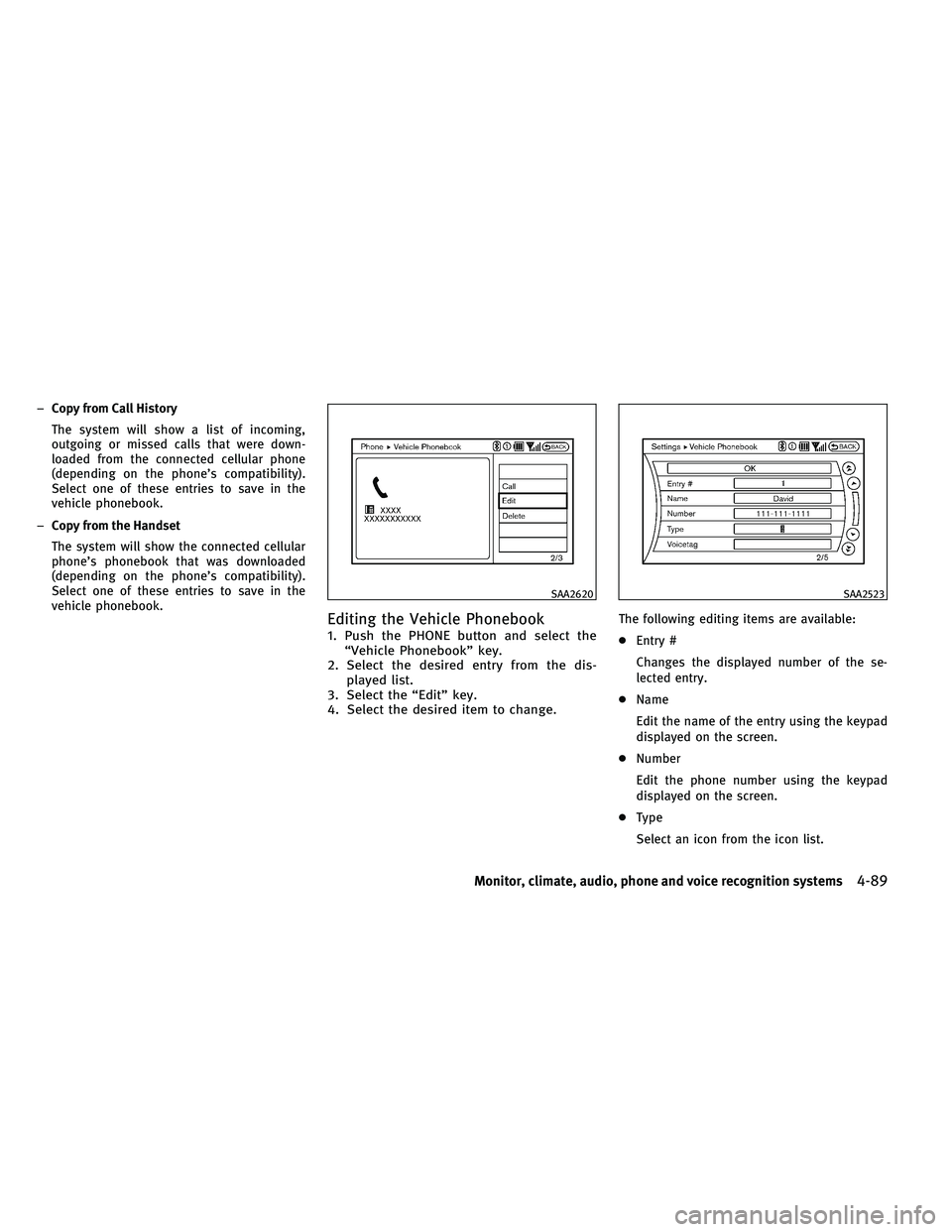

–Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone’s compatibility).
Select one of these entries to save in the
vehicle phonebook.
– Copy from the Handset
The system will show the connected cellular
phone’s phonebook that was downloaded
(depending on the phone’s compatibility).
Select one of these entries to save in the
vehicle phonebook.
Editing the Vehicle Phonebook
1. Push the PHONE button and select the “Vehicle Phonebook” key.
2. Select the desired entry from the dis- played list.
3. Select the “Edit” key.
4. Select the desired item to change.
The following editing items are available:
● Entry #
Changes the displayed number of the se-
lected entry.
● Name
Edit the name of the entry using the keypad
displayed on the screen.
● Number
Edit the phone number using the keypad
displayed on the screen.
● Type
Select an icon from the icon list.
SAA2620SAA2523
Monitor, climate, audio, phone and voice recognition systems4-89
