WARNING
●Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
● Never leave the engine running while the
vehicle is unattended.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
Safe parking procedures require that both
the parking brake be applied and the trans-
mission placed into P (Park) for Automatic
Transmission (AT) model or in an appropri-
ate gear for Manual Transmission (MT)
model. Failure to do so could cause the ve-
hicle to move unexpectedly or roll away and
result in an accident.
● Make sure the automatic transmission se-
lector lever has been pushed as far forward
as it can go and cannot be moved without
depressing the foot brake pedal.
1. Firmly apply the parking brake.
2. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Place the shift lever in the R (Reverse) gear.
When parking on an uphill grade, place the
shift lever in the 1st gear.
3. To help prevent the vehicle from rolling
into the street when parked on a sloping
drive way, it is a good practice to turn the
wheels as illustrated.
●HEADED DOWNHILL WITH CURB:1
Turn the wheels into the curb and move the
vehicle forward until the curb side wheel
gently touches the curb.
● HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.
● HEADED UPHILL OR DOWNHILL, NO CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the
center of the road if it moves.
4. Push the ignition switch to the OFF posi-
tion.
SD1006MA
PARKING/PARKING ON HILLS
5-46Starting and driving

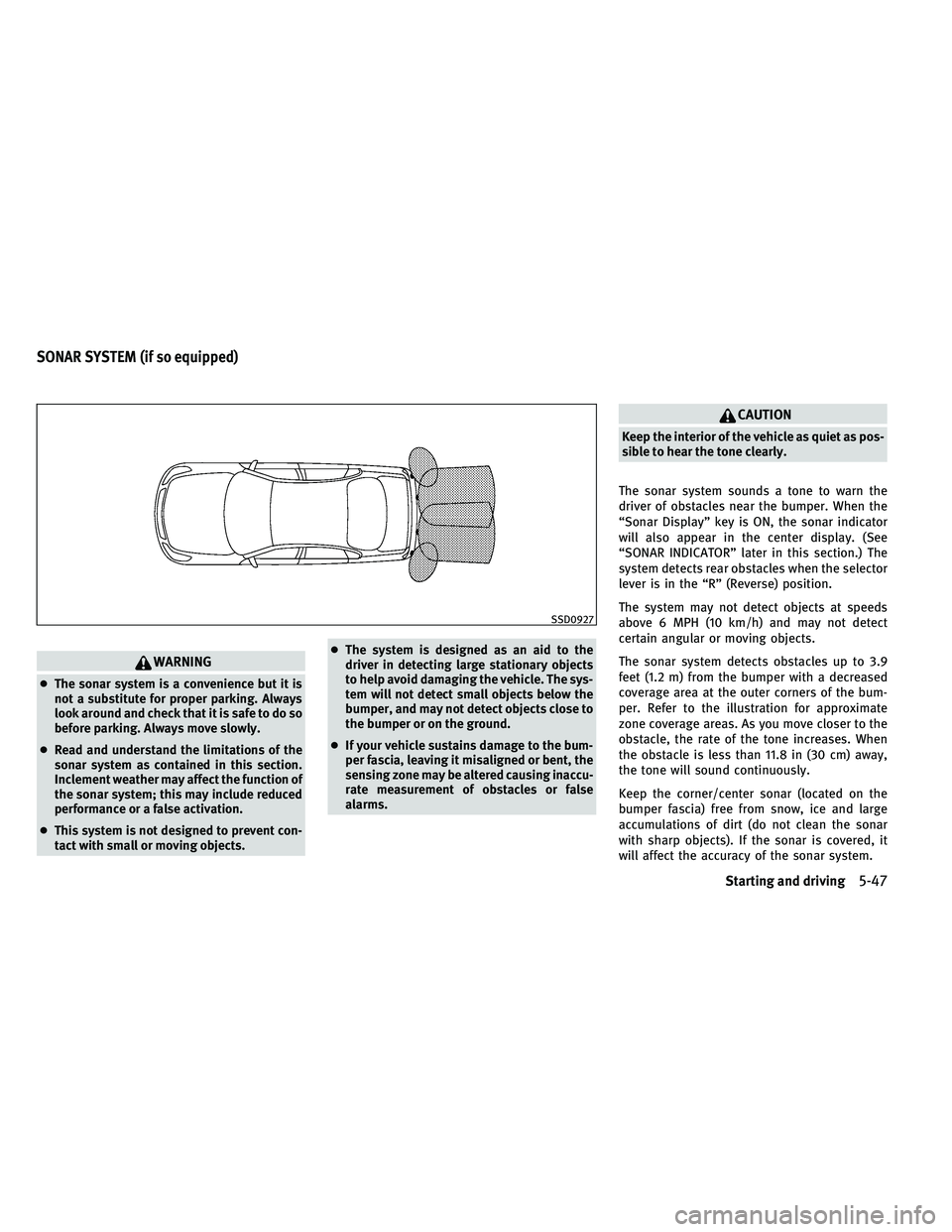

WARNING
●The sonar system is a convenience but it is
not a substitute for proper parking. Always
look around and check that it is safe to do so
before parking. Always move slowly.
● Read and understand the limitations of the
sonar system as contained in this section.
Inclement weather may affect the function of
the sonar system; this may include reduced
performance or a false activation.
● This system is not designed to prevent con-
tact with small or moving objects. ●
The system is designed as an aid to the
driver in detecting large stationary objects
to help avoid damaging the vehicle. The sys-
tem will not detect small objects below the
bumper, and may not detect objects close to
the bumper or on the ground.
● If your vehicle sustains damage to the bum-
per fascia, leaving it misaligned or bent, the
sensing zone may be altered causing inaccu-
rate measurement of obstacles or false
alarms.
CAUTION
Keep the interior of the vehicle as quiet as pos-
sible to hear the tone clearly.
The sonar system sounds a tone to warn the
driver of obstacles near the bumper. When the
“Sonar Display” key is ON, the sonar indicator
will also appear in the center display. (See
“SONAR INDICATOR” later in this section.) The
system detects rear obstacles when the selector
lever is in the “R” (Reverse) position.
The system may not detect objects at speeds
above 6 MPH (10 km/h) and may not detect
certain angular or moving objects.
The sonar system detects obstacles up to 3.9
feet (1.2 m) from the bumper with a decreased
coverage area at the outer corners of the bum-
per. Refer to the illustration for approximate
zone coverage areas. As you move closer to the
obstacle, the rate of the tone increases. When
the obstacle is less than 11.8 in (30 cm) away,
the tone will sound continuously.
Keep the corner/center sonar (located on the
bumper fascia) free from snow, ice and large
accumulations of dirt (do not clean the sonar
with sharp objects). If the sonar is covered, it
will affect the accuracy of the sonar system.
SSD0927
SONAR SYSTEM (if so equipped)
Starting and driving5-47

The sensitivity level of the corner/center sonar
can be adjusted (higher or lower) in the SONAR
setting display. (See “HOW TO USE SETTING
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section
for the “Sonar” settings.)
1Rear view monitor display
ACorner sonar indicator
BCenter sonar indicator
SONAR INDICATOR
With the “Sonar Display” key ON in the “Sonar”
settings, when the corner/center sonar detects
obstacles near the bumper, a tone will sound
and the sonar indicator will appear in the center
display. When the rear view monitor is dis-
played, the sonar indicator will appear in the
upper corner of the display
1.
The sonar indicators
AandBindicate the
position of the object and the distance to the
object with its color and rate of blinking. When an object is detected, the indicator
(green) appears and blinks (the tone sounds
intermittently). When the vehicle moves closer
to the object, the color of the indicator turns
yellow and the rate of blinking increases (the
rate of the tone increases). When the corner of
the vehicle is very close to the object, less than
11.8 in (30 cm) away, the indicator stops blink-
ing and turns red (the tone sounds continu-
ously).
When the rear view monitor is displayed, the
colors of the sonar indicator and the distance
guide lines in the rear view indicate different
distances to the object.
The sonar indicator can be turned off in the
SONAR setting display. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section for the “Sonar” settings.) When the
sonar indicator is off, only a tone sounds when
the sonar detects obstacles.
SSD0928
5-48Starting and driving

SONAR SYSTEM OFF SWITCH
The sonar system OFF switch on the instrument
panel allows the driver to turn the sonar system
on and off. To turn the sonar system on and off,
the ignition switch must be in the “ON” posi-
tion. The indicator light
1on the switch will
illuminate when the system is turned off. If the
indicator light flashes when the sonar system is
not turned off, it may indicate a malfunction in
the sonar system.
WARNING
If the engine is not running or is turned off while
driving, the power assist for the steering will
not work. Steering will be harder to operate.
The power assisted steering uses a hydraulic
pump, driven by the engine, to assist steering.
If the engine stops or the drive belt breaks, you
will still have control of the vehicle. However,
much greater steering effort is needed, espe-
cially in sharp turns and at low speeds.
BRAKING PRECAUTIONS
The brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.
Vacuum assisted brakes
The brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. How-
ever, greater foot pressure on the brake pedal
will be required to stop the vehicle and the
stopping distance will be longer.
When the brake pedal is depressed slowly and
firmly, you may hear a clicking noise and feel a
slight pulsation. This is normal and indicates
that the Brake Assist System is operating.
Wet brakes
When the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly tapping the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.
SSD0929
POWER STEERING BRAKE SYSTEM
Starting and driving5-49

PARKING BRAKE BREAK-IN
Break in the parking brake shoes whenever the
stopping effect of the parking brake is weak-
ened or whenever the parking brake shoes
and/or drums/rotors are replaced, in order to
assure the best braking performance.
This procedure is described in the vehicle ser-
vice manual and can be performed by an
INFINITI retailer.
Using the brakes
Avoid resting your foot on the brake pedal while
driving. This will cause overheating of the
brakes, wearing out the brake and pads faster
and reduce gas mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.
WARNING
●While driving on a slippery surface, be care-
ful when braking, accelerating or downshift-
ing. Abrupt braking or accelerating could
cause the wheels to skid and result in an
accident.
● If the engine is not running or is turned off
while driving, the power assist for the
brakes will not work. Braking will be harder.
BRAKE ASSIST
When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force than
a conventional brake booster even with light
pedal force.
WARNING
The Brake Assist is only an aid to assist braking
operation and is not a collision warning or
avoidance device. It is the driver’s responsibil-
ity to stay alert, drive safely and be in control of
the vehicle at all times.
PREVIEW FUNCTION (Intelligent Cruise
Control system equipped models)
When the Preview Function identifies the need
to apply emergency braking by sensing a ve-
hicle ahead in the same lane and the distance
and relative speed from it, it applies the brake
pre-pressure before the driver depresses the
brake pedal and helps improve brake response
by reducing pedal free play.
● This system will not operate when the ve-
hicle is moving at approximately 20 MPH
(32 km/h) or less.
BRAKE ASSIST
5-50Starting and driving

●The pre-pressure function ceases when the
following conditions are met:
a) When the driver depresses the accel- erator pedal or the brake pedal.
b) If the driver does not operate the ac- celerator or brake pedal within ap-
proximately 1 second.
●The sensor will not detect:a) Pedestrians or objects in the roadway
b) Oncoming vehicles in the same lane
c) Motorcycles traveling offset in the
travel lane as illustrated
WARNING
●This system is only an aid to assist braking
operation and is not a collision warning or
avoidance device. It is the driver’s responsi-
bility to stay alert, drive safely and be in
control of the vehicle at all times. ●
As there is a performance limit to the Pre-
view Function, never rely solely on this sys-
tem. This system does not correct careless
inattentive or absent-minded driving, or
overcome poor visibility in rain, fog, or other
bad weather. Reduce vehicle speed by de-
pressing the brake pedal, in order to main-
tain a safe distance between vehicles.
● The system may not detect the vehicle in
front of you in certain road or weather condi-
tions. The Preview Function may not operate
properly under the following conditions. The
vehicle is still driveable under normal condi-
tions and the Brake Assist will operate.
– When rain, snow or dirt adhere to the sys- tem sensor
– When strong light (for example, at sun- rise or sunset) is directly shining on the
front of the vehicle
– Winding or hilly roads may cause the sen- sor to temporarily not detect a vehicle in
the same lane or may detect objects or
vehicles in other lanes.
– Vehicle position in the lane may cause the sensor to temporarily not detect a vehicle
in the same lane or may detect objects or
vehicles in other lanes.
SSD0338
Starting and driving5-51

●When the Preview Function operates, the
brake pedal may move slightly and may
make a small noise. This is not a system
malfunction.
Warning light and display
When the Preview Function is not operating
properly, a chime sounds and the system warn-
ing light (orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine and resume driving.
If the indicator stays on, it may indicate that the
Preview Function is malfunctioning (the brake is
operative). Although the Vehicle is still drive-
able under normal conditions, have the vehicle
checked at an INFINITI retailer.
How to handle the sensor
The sensor for the Preview Function is common
with Intelligent Cruise Control and is located
below the front bumper.
To keep the Preview Function operating prop-
erly, be sure to observe the following:
● Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
SSD0471
5-52Starting and driving

ANTI-LOCK BRAKING SYSTEM (ABS)
WARNING
●The Anti-lock Braking System (ABS) is a so-
phisticated device, but it cannot prevent ac-
cidents resulting from careless or dangerous
driving techniques. It can help maintain ve-
hicle control during braking on slippery sur-
faces. Remember that stopping distances on
slippery surfaces will be longer than on nor-
mal surfaces even with ABS. Stopping dis-
tances may also be longer on rough, gravel
or snow covered roads, or if you are using
tire chains. Always maintain a safe distance
from the vehicle in front of you. Ultimately,
the driver is responsible for safety.
● Tire type and condition may also affect brak-
ing effectiveness.
– When replacing tires, install the specified size of tires on all four wheels.
– When installing a spare tire, make sure that it is the proper size and type as speci-
fied on the Tire and Loading Information
label. See “TIRE AND LOADING INFORMA-
TION LABEL” in the “9. Technical and con-
sumer information” section of this
manual. – For detailed information, see “WHEELS
AND TIRES” in the “8. Maintenance and
do-it-yourself” section of this manual.
The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle at a low speed in
forward or reverse. When the self-test occurs,
you may hear a “clunk” noise and/or feel a
pulsation in the brake pedal. This is normal and
does not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked by an INFINITI retailer.
Starting and driving5-53

Normal operation
The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h).
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are haz-
ardous and extra care is required while driving.The Vehicle Dynamic Control (VDC) system uses
various sensors to monitor driver inputs and
vehicle motion. Under certain driving condi-
tions, the VDC system helps to perform the
following functions.
●
Controls brake pressure to reduce wheel slip
on one slipping drive wheel so power is
transferred to a non slipping drive wheel on
the same axle.
● Controls brake pressure and engine output
to reduce drive wheel slip based on vehicle
speed (traction control function).
● Controls brake pressure at individual wheels
and engine output to help the driver main-
tain control of the vehicle in the following
conditions:
– understeer (vehicle tends to not follow the steered path despite increased steer-
ing input)
– oversteer (vehicle tends to spin due to certain road or driving conditions).
The VDC system can help the driver to maintain
control of the vehicle, but it cannot prevent loss
of vehicle control in all driving situations.
When the VDC system operates, the VDC warn-
ing light
in the instrument panel flashes
so note the following: ●
The road may be slippery or the system may
determine some action is required to help
keep the vehicle on the steered path.
● You may feel a pulsation in the brake pedal
and hear a noise or vibration from under the
hood. This is normal and indicates that the
VDC system is working properly.
● Adjust your speed and driving to the road
conditions.
See “Vehicle Dynamic Control (VDC) warning
light” in the “2. Instruments and controls”
section.
If a malfunction occurs in the system, the VDC
warning light
illuminates in the instru-
ment panel. The VDC system automatically
turns off.
The VDC OFF switch is used to turn off the VDC
system. The VDC off indicator
illuminates
to indicate the VDC system is off. When the VDC
switch is used to turn off the system, the VDC
system still operates to prevent one drive wheel
from slipping by transferring power to a non
slipping drive wheel. The VDC warning light
flashes if this occurs. All other VDC
functions are off, and the VDC warning light
will not flash. The VDC system is auto-
matically reset to on when the ignition switch is
placed in the off position then back to the on
position.
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM
5-54Starting and driving

See “Vehicle Dynamic Control (VDC) warning
light” in the “2. Instruments and controls”
section and “Vehicle Dynamic Control (VDC) off
indicator light” in the “2. Instruments and con-
trols” section.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle forward or in
reverse at a slow speed. When the self-test
occurs, you may hear a “clunk” noise and/or
feel a pulsation in the brake pedal. This is
normal and is not an indication of a malfunc-
tion.
WARNING
●The VDC system is designed to help the
driver maintain stability but does not pre-
vent accidents due to abrupt steering opera-
tion at high speeds or by careless or danger-
ous driving techniques. Reduce vehicle
speed and be especially careful when driving
and cornering on slippery surfaces and al-
ways drive carefully. ●
Do not modify the vehicle’s suspension. If
suspension parts such as shock absorbers,
struts, springs, stabilizer bars, bushings
and wheels are not INFINITI recommended
for your vehicle or are extremely deterio-
rated, the VDC system may not operate prop-
erly. This could adversely affect vehicle han-
dling performance, and the VDC warning
light
may illuminate.
● If brake related parts such as brake pads,
rotors and calipers are not INFINITI recom-
mended or are extremely deteriorated, the
VDC system may not operate properly and
the VDC warning light
may illuminate.
● If engine control related parts are not
INFINITI recommended or are extremely de-
teriorated, the VDC warning light
may
illuminate.
● When driving on extremely inclined surfaces
such as higher banked corners, the VDC sys-
tem may not operate properly and the VDC
warning light
may illuminate. Do not
drive on these types of roads.
● When driving on an unstable surface such as
a turntable, ferry, elevator or ramp, the VDC
warning light
may illuminate. This is
not a malfunction. Restart the engine after
driving onto a stable surface. ●
If wheels or tires other than the INFINITI rec-
ommended ones are used, the VDC system
may not operate properly and the VDC warn-
ing light
may illuminate.
● The VDC system is not a substitute for winter
tires or tire chains on a snow covered road.
Starting and driving5-55
