INFINITI G-COUPE 2011 Owners Manual

Your new INFINITI has been designed to have
minimum maintenance requirements with long
service intervals to save you both time and
money. However, some day-to-day and regular
maintenance is essential to maintain your
INFINITI’s fine mechanical condition, as well as
its emission and engine performance.
It is the owner’s responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCE
For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “INFINITI Service and
Maintenance Guide”. You must refer to that
guide to ensure that necessary maintenance is
performed on your INFINITI at regular intervals.
GENERAL MAINTENANCE
General maintenance includes those items
which should be checked during normal day-to-
day operation. They are essential for propervehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer,
an INFINITI retailer.
WHERE TO GO FOR SERVICE
If maintenance service is required or your ve-
hicle appears to malfunction, have the systems
checked and serviced by an INFINITI retailer.
INFINITI technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-retailership information systems.
They are completely qualified to work on
INFINITI vehicles
beforework begins.
You can be confident that an INFINITI retailer’s
service department performs the best job to
meet the maintenance requirements on your
vehicle — in a reliable and economical way. During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have an
INFINITI retailer do it promptly. In addition, you
should notify an INFINITI retailer if you think
that repairs are required.
When performing any checks or maintenance
work, see “MAINTENANCE PRECAUTIONS” later
in this section.EXPLANATION OF MAINTENANCE
ITEMS
Additional information on the following items
with “*” is found later in this section.
Outside the vehicle
The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood:
Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
MAINTENANCE REQUIREMENT GENERAL MAINTENANCE
8-2Maintenance and do-it-yourself

When driving in areas using road salt or other
corrosive materials, check lubrication fre-
quently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking the
tires, make sure no wheel nuts are missing, and
check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires should be rotated every
7,500 miles (12,000 km). If your vehicle is
equipped with different sized tires in the front
and rear, tires cannot be rotated.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If nec-
essary, adjust the pressure in all tires, includ-
ing the spare, to the pressure specified. Check
carefully for damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS) trans-
mitter components: Replace the TPMS transmit-
ter grommet seal, valve core and cap when the
tires are replaced due to wear or age.
Tire, wheel alignment and balance: If the vehicle
should pull to either side while driving on a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks or
wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Accelerator pedal: Check the pedal for smooth
operation and make sure the pedal does not
catch or require uneven effort. Keep the floor
mat away from the pedal. Automatic transmission P (Park) mechanism:
On
a fairly steep hill, check that your vehicle is held
securely with the selector lever in the P (Park)
position without applying any brakes.
Brake pedal: Check the pedal for smooth opera-
tion. If the brake pedal suddenly goes down
further than normal, the pedal feels spongy or
the vehicle seems to take longer to stop, see an
INFINITI retailer immediately. Keep the floor mat
away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake opera-
tion regularly. The vehicle should be securely
held on a fairly steep hill with only the parking
brake applied. If the parking brake needs ad-
justed, see an INFINITI retailer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
Maintenance and do-it-yourself8-3

restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Steering wheel:Check for changes in the steer-
ing conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating prop-
erly.
Windshield defroster: Check that the air comes
out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Windshield wiper and washer*: Check that the
wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or un-
der severe condition require frequent checks of
the battery fluid level. Brake fluid level*:
Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that no belt is
frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by an INFINITI retailer. (See
“PRECAUTIONS WHEN STARTING AND DRIVING”
in the “5. Starting and driving” section for
exhaust gas (Carbon monoxide).)
Fluid leaks: Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from
the air conditioner after use is normal. If you
should notice any leaks or if gasoline fumes are
evident, check for the cause and have it cor-
rected immediately. Power steering fluid level* and lines:
Check the
level when the fluid is cold, with the engine off.
Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, being careful
to clean those areas where mud and dirt may
accumulate. For additional information, see
“CLEANING EXTERIOR” in the “7. Appearance
and care” section.
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself

When performing any inspection or mainte-
nance work on your vehicle, always take care to
prevent serious accidental injury to yourself or
damage to the vehicle. The following are gen-
eral precautions which should be closely ob-
served.
WARNING
●Park the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. For
manual transmission models, move the shift
lever to N (Neutral). For automatic transmis-
sion models, move the selector lever to P
(Park).
● Be sure the ignition switch is in the OFF or
LOCK position when performing any parts
replacement or repairs.
● Never connect or disconnect the battery or
any transistorized component while the ig-
nition switch is in the ON position.
● Never leave the engine or automatic trans-
mission related component harnesses dis-
connected while the ignition switch is in the
ON position. ●
If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts.
● It is advisable to secure or remove any loose
clothing and remove any jewelry, such as
rings, watches, etc. before working on your
vehicle.
● Always wear eye protection whenever you
work on your vehicle.
● If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
● Never get under the vehicle while it is sup-
ported only by a jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Keep smoking materials, flame and sparks
away from fuel tank and the battery. ●
Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
key is in the OFF position and the engine is
not running. To avoid injury, always discon-
nect the negative battery cable before work-
ing near the fan.
● The fuel filter or fuel lines should be serviced
by an INFINITI retailer because the fuel lines
are under high pressure even when the en-
gine is off.
CAUTION
● Do not work under the hood while the engine
is hot. Turn the engine off and wait until it
cools down.
● Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil,
coolant, and/or other vehicle fluids can dam-
age the environment. Always conform to lo-
cal regulations for disposal of vehicle fluid.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5

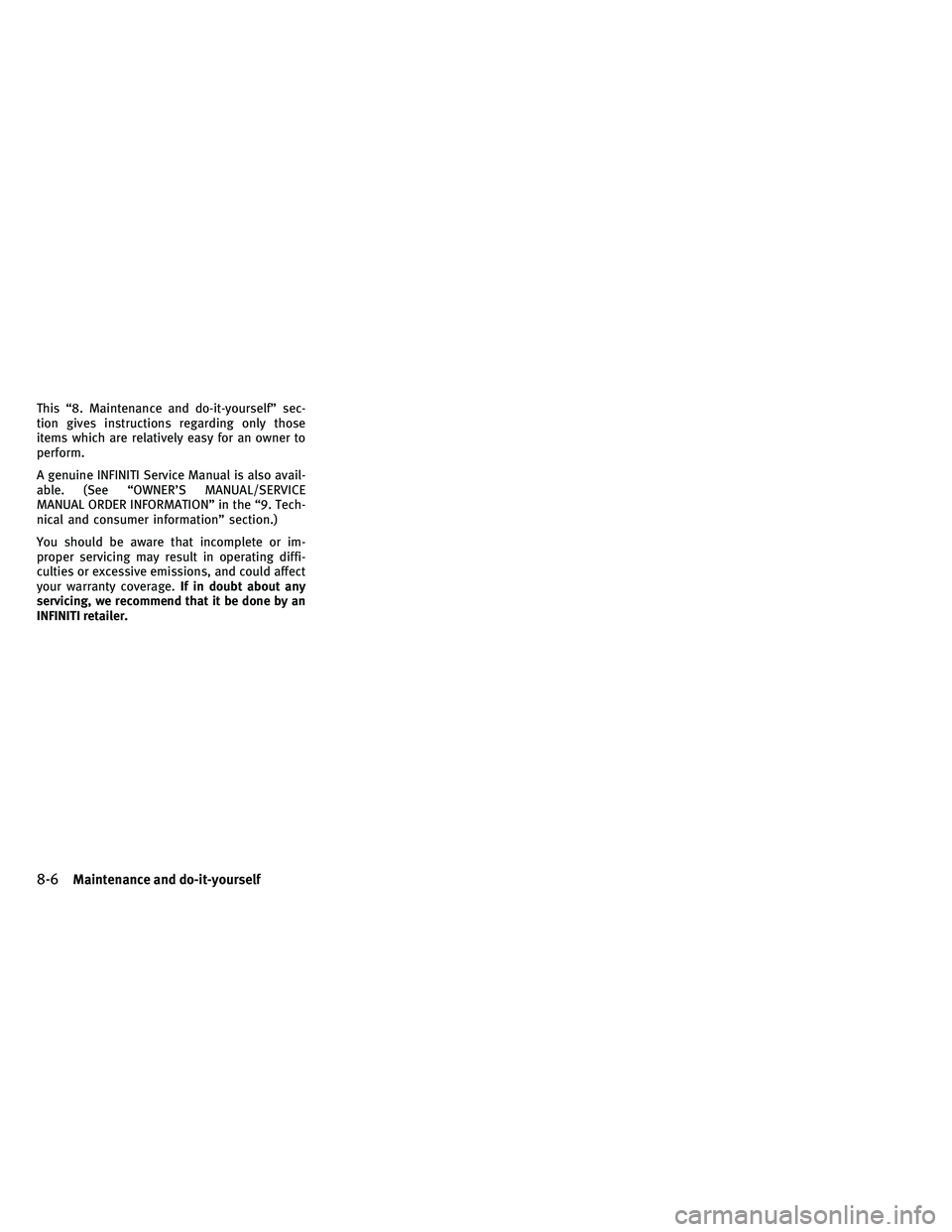

This “8. Maintenance and do-it-yourself” sec-
tion gives instructions regarding only those
items which are relatively easy for an owner to
perform.
A genuine INFINITI Service Manual is also avail-
able. (See “OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION” in the “9. Tech-
nical and consumer information” section.)
You should be aware that incomplete or im-
proper servicing may result in operating diffi-
culties or excessive emissions, and could affect
your warranty coverage.If in doubt about any
servicing, we recommend that it be done by an
INFINITI retailer.
8-6Maintenance and do-it-yourself

VQ25HR/VQ37VHR ENGINE
1. Fuse/fusible link holder
2. Battery
3. Engine oil filler cap
4. Brake fluid reservoir5. Clutch fluid reservoir (Manual Transmis-
sion models)
6. Window washer fluid reservoir
7. Power steering fluid reservoir
8. Air cleaner
9. Radiator filler cap 10. Drive belts
11. Engine coolant reservoir
12. Engine oil dipstick (for VQ37VHR engine
model)
13. Engine oil dipstick (for VQ25HR engine model)
SDI2709
ENGINE COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it-yourself8-7

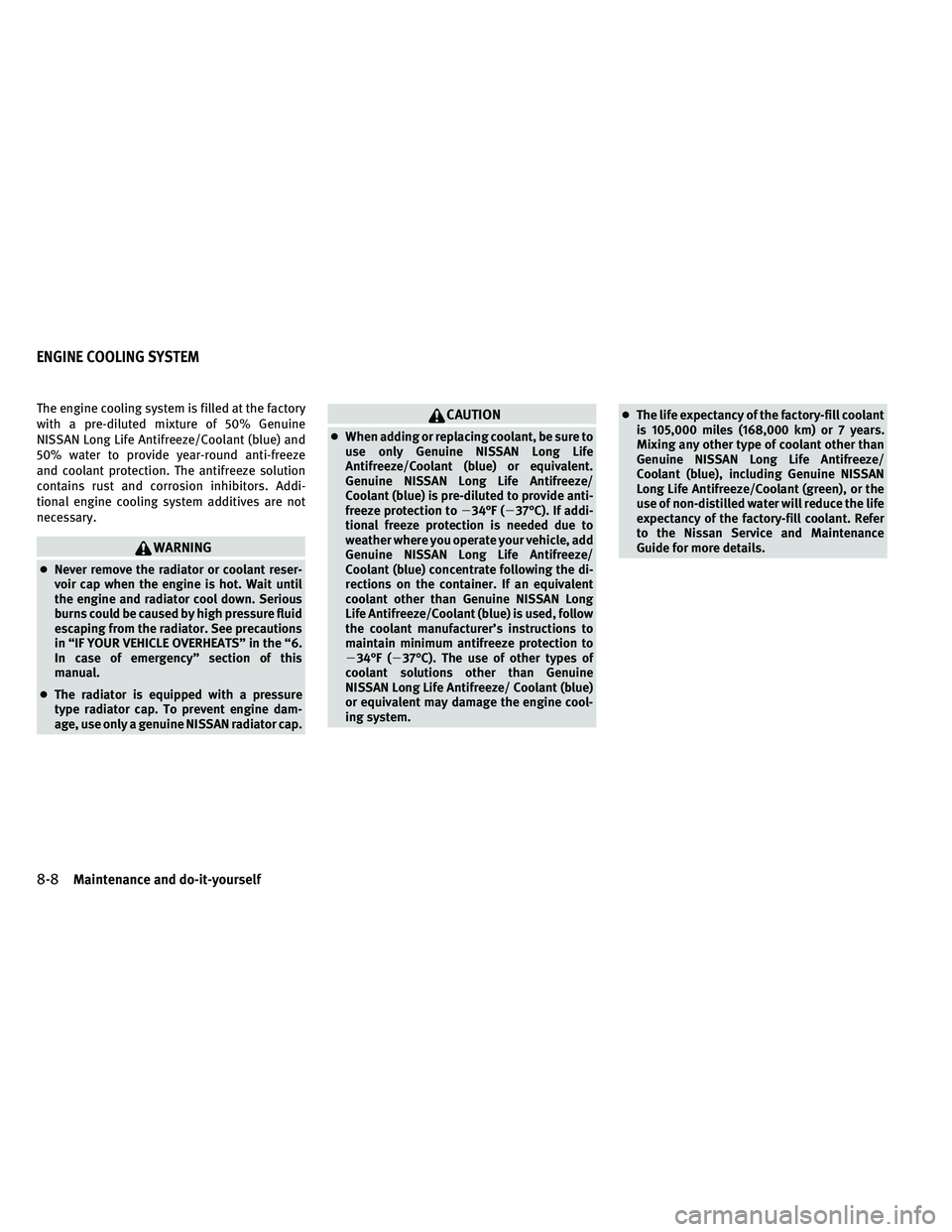

The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze
and coolant protection. The antifreeze solution
contains rust and corrosion inhibitors. Addi-
tional engine cooling system additives are not
necessary.
WARNING
●Never remove the radiator or coolant reser-
voir cap when the engine is hot. Wait until
the engine and radiator cool down. Serious
burns could be caused by high pressure fluid
escaping from the radiator. See precautions
in “IF YOUR VEHICLE OVERHEATS” in the “6.
In case of emergency” section of this
manual.
● The radiator is equipped with a pressure
type radiator cap. To prevent engine dam-
age, use only a genuine NISSAN radiator cap.
CAUTION
● When adding or replacing coolant, be sure to
use only Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent.
Genuine NISSAN Long Life Antifreeze/
Coolant (blue) is pre-diluted to provide anti-
freeze protection to 34°F (37°C). If addi-
tional freeze protection is needed due to
weather where you operate your vehicle, add
Genuine NISSAN Long Life Antifreeze/
Coolant (blue) concentrate following the di-
rections on the container. If an equivalent
coolant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is used, follow
the coolant manufacturer’s instructions to
maintain minimum antifreeze protection to
34°F (37°C). The use of other types of
coolant solutions other than Genuine
NISSAN Long Life Antifreeze/ Coolant (blue)
or equivalent may damage the engine cool-
ing system. ●
The life expectancy of the factory-fill coolant
is 105,000 miles (168,000 km) or 7 years.
Mixing any other type of coolant other than
Genuine NISSAN Long Life Antifreeze/
Coolant (blue), including Genuine NISSAN
Long Life Antifreeze/Coolant (green), or the
use of non-distilled water will reduce the life
expectancy of the factory-fill coolant. Refer
to the Nissan Service and Maintenance
Guide for more details.
ENGINE COOLING SYSTEM
8-8Maintenance and do-it-yourself

CHECKING ENGINE COOLANT LEVEL
Check the coolant levelin the reservoir when the
engine is cold. If the coolant level is below MIN
2, open the reservoir tank cap and add coolant
up to the MAX
1level. If the reservoir tank is
empty, check the coolant level in the radiator
when the engine is cold. If there is insufficient
coolant in the radiator, fill the radiator with
coolant up to the filler opening and also add it
to the reservoir tank up to the MAX level
1.
Tighten the cap securely after adding engine
coolant.
If the cooling system requires coolant fre-
quently, have it checked by an INFINITI retailer.
CHANGING ENGINE COOLANT
Major cooling system repairs should be per-
formed by an INFINITI retailer. The service pro-
cedures can be found in the appropriate INFINITI
Service Manual.
Improper servicing can result in reduced heater
performance and engine overheating.
WARNING
● To avoid the danger of being scalded, never
change the coolant when the engine is hot.
● Never remove the radiator cap when the en-
gine is hot. Serious burns could be caused by
high pressure fluid escaping from the
radiator.
● Avoid direct skin contact with used coolant.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible.
● Keep coolant out of reach of children and
pets.
Engine coolant must be disposed of properly.
Check your local regulations.
SDI2043
VQ25HR engine
SDI2505
VQ37VHR engine
SDI2045
ENGINE OIL
Maintenance and do-it-yourself8-9

CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface andapply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
1.
If the oil level is below
2, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil mainte-
nance intervals or during the break-in period,
depending on the severity of operating condi-
tions.
CAUTION
Oil level should be checked regularly. Operat-
ing the engine with an insufficient amount of oil
can damage the engine, and such damage is
not covered by warranty.
CHANGING ENGINE OIL AND FILTER
Vehicle set-up
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn the engine off and wait more than 15 minutes.
4. Raise and support the vehicle using a suitable floor jack and safety jack stands.
●Place the safety jack stands under the
vehicle jack-up points.
● A suitable adapter should be attached to
the jack stand saddle.
5. Remove the plastic engine undercover.
a. Remove the small plastic clip at the center point of the undercover.
b. Then remove the other bolts that hold the undercover in place.
CAUTION
Make sure the correct lifting and support
points are used to avoid vehicle damage.
Engine oil and filter
1. Place a large drain pan under the drainplug.
2. Remove the oil filler cap.
3. Remove the drain plug
1with a wrench
and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the engine oil
is hot.
Two-wheel drive (2WD) models (VQ25HR/VQ37VHR engine)
SDI2335
8-10Maintenance and do-it-yourself

●Waste oil must be disposed of properly.
● Check your local regulations.
4. (Perform steps 4 to 7 only when the
engine oil filter change is needed.)
Loosen the oil filter2with an oil filter
wrench. Remove the oil filter by turning it by
hand.
5. Wipe the engine oil filter mounting sur- face with a clean rag.
CAUTION
Be sure to remove any old rubber gasket re-
maining on the mounting surface of the engine.
Failure to do so could lead to engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten ad-
ditionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for drain and
refill capacity. The drain and refill capacity
depends on the oil temperature and drain time. Use these specifications for reference only.
Always use the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover into positionas the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into the hole in the frame, then push the
center of the clip in to lock the clip in
place.
d. Install the other bolts that hold the un- dercover in place. Be careful not to strip
the bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
All-wheel drive (AWD) models(VQ25HR/VQ37VHR engine)
SDI2047
Maintenance and do-it-yourself8-11
