INFINITI G COUPE 2013 Owner's Manual

8-6Maintenance and do-it-yourself
WARNING
.Park the vehicle on a level surface, apply
the parking brake securely and block the
wheels to prevent the vehicle from
moving. For manual transmission mod-
els, move the shift lever to N (Neutral).
For automatic transmission models,
move the selector lever to P (Park).
. Be sure the ignition switch is in the OFF
or LOCK position when performing any
parts replacement or repairs.
. Never connect or disconnect the battery
or any transistorized component while
the ignition switch is in the ON position.
. Never leave the engine or automatic
transmission related component har-
nesses disconnected while the ignition
switch is in the ON position.
. If you must work with the engine
running, keep your hands, clothing, hair
MAINTENANCE PRECAUTIONS

CAUTION
.Do not work under the hood while the
engine is hot. Turn the engine off and
wait until it cools down.
. Avoid direct contact with used engine oil
and coolant. Improperly disposed engine
oil, coolant, and/or other vehicle fluids
can damage the environment. Always
conform to local regulations for disposal
of vehicle fluid.
This “8. Maintenance and do-it-yourself”
section gives instructions regarding only
those items which are relatively easy for an
owner to perform.
A genuine INFINITI Service Manual is also
available. (See “Owner’s Manual/Service
Manual order information” (P.9-27).)
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and could affect your warranty coverage.
If in
doubt about any servicing, we recommend
that it be done by an INFINITI retailer.
Maintenance and do-it-yourself8-7

8-8Maintenance and do-it-yourself
GUID-AFE9B83F-FA8B-4F31-955F-26554D8ED4E6
SDI2709
VQ25HR/VQ37VHR ENGINEGUID-7476C613-7968-488E-A6AE-1408D693BF3B

GUID-5C044D87-071E-4DD5-85C9-155F3106646B
WARNING
.Never remove the radiator or coolant
reservoir cap when the engine is hot.
Wait until the engine and radiator cool
down. Serious burns could be caused by
high pressure fluid escaping from the
radiator. See precautions in “If your
vehicle overheats” (P.6-10) of this man-
ual.
. The radiator is equipped with a pressure
type radiator cap. To prevent engine
damage, use only a genuine NISSAN
radiator cap.
CAUTION
.Never use any cooling system additives
such as radiator sealer. Additives may
clog the cooling system and cause
damage to the engine, transmission
and/or cooling system.
. When adding or replacing coolant, be
sure to use only Genuine NISSAN Long
Life Antifreeze/Coolant (blue) or equiva-
lent. Genuine NISSAN Long Life Anti-
freeze/Coolant (blue) is pre-diluted to
provide antifreeze protection to −348F
(−378C). If additional freeze protection is
needed due to weather where you
operate your vehicle, add Genuine
NISSAN Long Life Antifreeze/Coolant
(blue) concentrate following the direc-
tions on the container. If an equivalent
coolant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is used,
follow the coolant manufacturer’s in-
structions to maintain minimum anti-
freeze protection to −348F (−378C). The
use of other types of coolant solutions
other than Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent
may damage the engine cooling system. .
The life expectancy of the factory-fill
coolant is 105,000 miles (168,000 km)
or 7 years. Mixing any other type of
coolant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue), including
Genuine NISSAN Long Life Antifreeze/
Coolant (green), or the use of non-
distilled water will reduce the life
expectancy of the factory-fill coolant.
Refer to the INFINITI Service and Main-
tenance Guide for more details.
Maintenance and do-it-yourself8-9
ENGINE COOLING SYSTEM

8-10Maintenance and do-it-yourself
SDI2043
CHECKING ENGINE COOLANT LEVELGUID-0A58561D-6ED8-4332-9DEB-68F0F2BD40A6
WARNING
.To avoid the danger of being scalded,
never change the coolant when the
engine is hot.
. Never remove the radiator cap when the
engine is hot. Serious burns could be
caused by high pressure fluid escaping
from the radiator.
. Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
. Keep coolant out of reach of children and
pets.
Engine coolant must be disposed of
properly. Check your local regulations.

GUID-FB0623EB-5FAD-40C4-9AB0-442E7E1A0410
SDI2505
VQ25HR engine
SDI2045
VQ37VHR engine
CHECKING ENGINE OIL LEVELGUID-EB400D20-7A84-4713-89BD-9708FBC8D001
CAUTION
Oil level should be checked regularly.
Operating the engine with an insufficient
amount of oil can damage the engine, andsuch damage is not covered by warranty.
CHANGING ENGINE OIL AND FILTERGUID-8EFE39B7-109C-4EBB-91A7-80DFF961CBD7

8-12Maintenance and do-it-yourself
CAUTION
Make sure the correct lifting and support
points are used to avoid vehicle damage.
SDI2335
Two-wheel drive (2WD) models (VQ25HR/VQ37VHR engine)
Engine oil and filterGUID-189A8074-AB5D-4F02-B5E6-2CEF3A0EAAE3
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.
SDI2047
All-wheel drive (AWD) models (VQ25HR/VQ37VHR engine)
.Waste oil must be disposed of
properly.
.Check your local regulations.
4. (Perform steps 4 to 7 only when the engine oil filter change is needed.)
Loosen the oil filter
*2with an oil filter
wrench. Remove the oil filter by turning
it by hand.
5. Wipe the engine oil filter mounting
surface with a clean rag.

CAUTION
Be sure to remove any old rubber gasket
remaining on the mounting surface of the
engine. Failure to do so could lead to engine
damage.
6. Coat the gasket on the new filter withclean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten
additionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the
drain plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
See “Capacities and recommended
fuel/lubricants” (P.9-2) for drain and refill capacity. The drain and refill
capacity depends on the oil tempera-
ture and drain time. Use these specifi-
cations for reference only. Always use
the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operationGUID-28B45484-D2E9-4712-897E-4EBAD29B4BC7
WARNING
. Prolonged and repeated contact with
used engine oil may cause skin cancer.
. Try to avoid direct skin contact with used
oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
. Keep used engine oil out of reach of
children.
Maintenance and do-it-yourself8-13

8-14Maintenance and do-it-yourself
GUID-ABB7B99A-4CD8-484D-A111-E2B0D9730B70
CAUTION
.Use only Genuine NISSAN Matic S ATF.
Do not mix with other fluids.
. Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF will
cause deterioration in driveability and
automatic transmission durability, and
may damage the automatic transmis-
sion, which is not covered by the INFINITI
new vehicle limited warranty.
GUID-D565E040-B16F-4851-A817-C2480F2A6602
SDI1765A
Check the fluid level in the reservoir.
The fluid level should be checked using the
HOT range (
*1: HOT MAX.,*2: HOT MIN.)
at fluid temperatures of 122 to 1768F (50
to 808C) or using the COLD range (
*3:
COLD MAX.,
*4: COLD MIN.) at fluid
temperatures of 32 to 868F (0 to 308C).
If the fluid is below the MIN line, add
Genuine NISSAN PSF or equivalent. Re-
move the cap and fill through the opening.
CAUTION
. Do not overfill.
. Use Genuine NISSAN PSF or equivalent.
AUTOMATIC TRANSMISSION FLUID POWER STEERING FLUID

GUID-7601D96E-EEDD-44AF-87A6-218F86572DA1

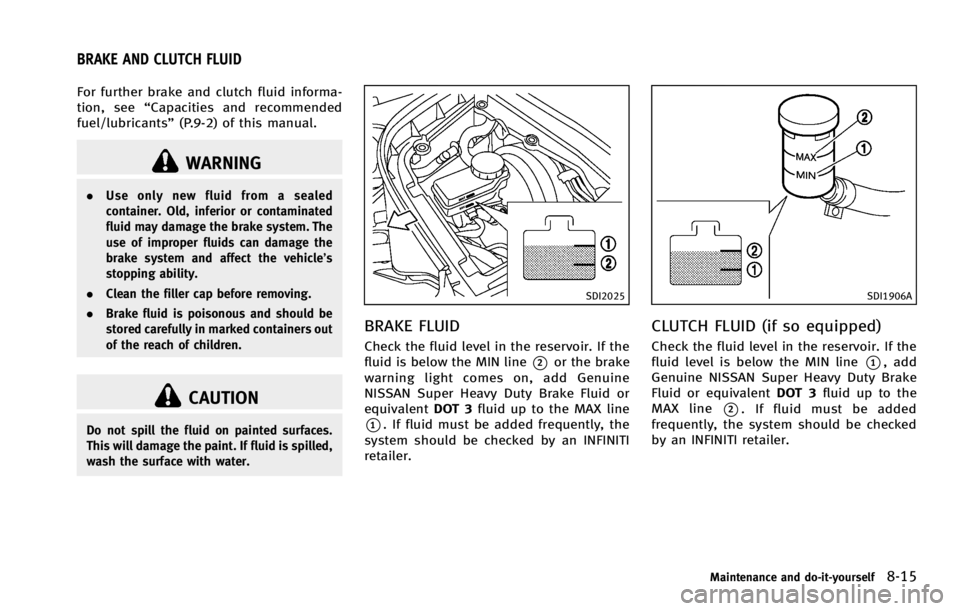

WARNING
.Use only new fluid from a sealed
container. Old, inferior or contaminated
fluid may damage the brake system. The
use of improper fluids can damage the
brake system and affect the vehicle’s
stopping ability.
. Clean the filler cap before removing.
. Brake fluid is poisonous and should be
stored carefully in marked containers out
of the reach of children.
CAUTION
Do not spill the fluid on painted surfaces.
This will damage the paint. If fluid is spilled,
wash the surface with water.
SDI2025
BRAKE FLUIDGUID-99026060-C0AC-4F76-8C26-6B47003C3E51
SDI1906A
CLUTCH FLUID (if so equipped)GUID-27C4E9C5-6E75-49DB-A514-FE503E946A9F
