INFINITI G COUPE 2013 Owner's Manual

8-16Maintenance and do-it-yourself
GUID-9300F307-19B1-4EC9-B93C-3421C155DC4A
SDI2027
WARNING
Antifreeze is poisonous and should be
stored carefully in marked containers out
of the reach of children.
Fill the window washer fluid reservoir
periodically. Add window washer fluid
when the low window washer fluid warning
appears on the dot matrix liquid crystal
display.
To fill the window washer fluid reservoir,
lift the cap off the reservoir tank and pour
the window washer fluid into the tankopening.
Add a washer solvent to the washer for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the
manufacturer’s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of window washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.
CAUTION
.
Do not substitute engine anti-freeze
coolant for window washer solution. This
may result in damage to the paint.
. Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
. Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid into the window washer reservoir tank.
Do not use the window washer reservoir
tank to mix the washer fluid concentrate
and water.
WINDOW WASHER FLUID

GUID-0812140C-014D-49D8-A9C2-56A09433296D

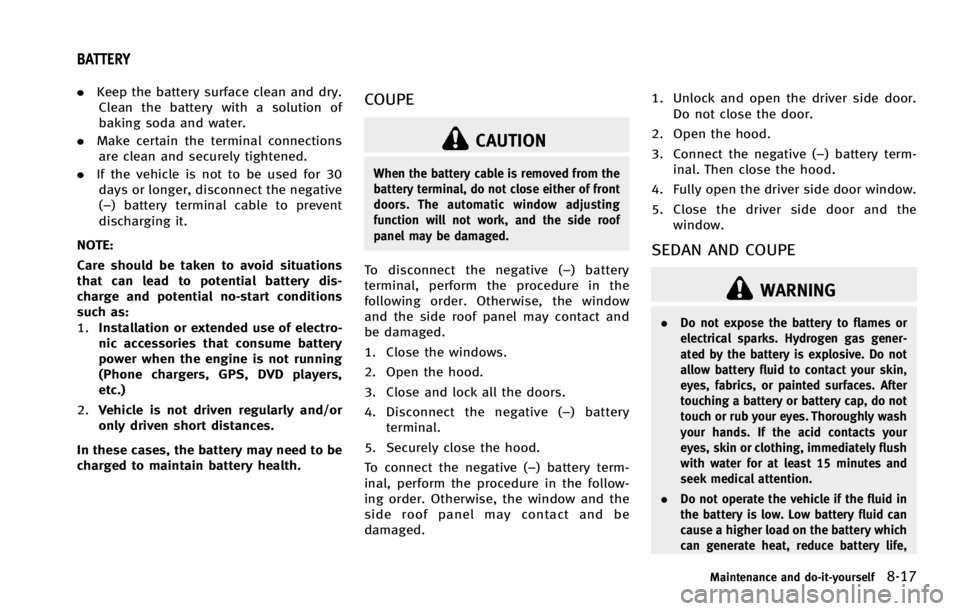

CAUTION
When the battery cable is removed from the
battery terminal, do not close either of front
doors. The automatic window adjusting
function will not work, and the side roof
panel may be damaged.
To disconnect the negative (−) battery
terminal, perform the procedure in the
following order. Otherwise, the window
and the side roof panel may contact and
be damaged.
1. Close the windows.
2. Open the hood.
3. Close and lock all the doors.
4.Disconnect the negative (−) battery
terminal.
5. Securely close the hood.
To connect the negative (−) battery term-
inal, perform the procedure in the follow-
ing order. Otherwise, the window and the
side roof panel may contact and be
damaged. 1. Unlock and open the driver side door.
Do not close the door.
2. Open the hood.
3. Connect the negative (−) battery term- inal. Then close the hood.
4. Fully open the driver side door window.
5. Close the driver side door and the window.
SEDAN AND COUPEGUID-58FD0A1C-91D1-47E9-8C3E-221C89D57EFE
WARNING
. Do not expose the battery to flames or
electrical sparks. Hydrogen gas gener-
ated by the battery is explosive. Do not
allow battery fluid to contact your skin,
eyes, fabrics, or painted surfaces. After
touching a battery or battery cap, do not
touch or rub your eyes. Thoroughly wash
your hands. If the acid contacts your
eyes, skin or clothing, immediately flush
with water for at least 15 minutes and
seek medical attention.

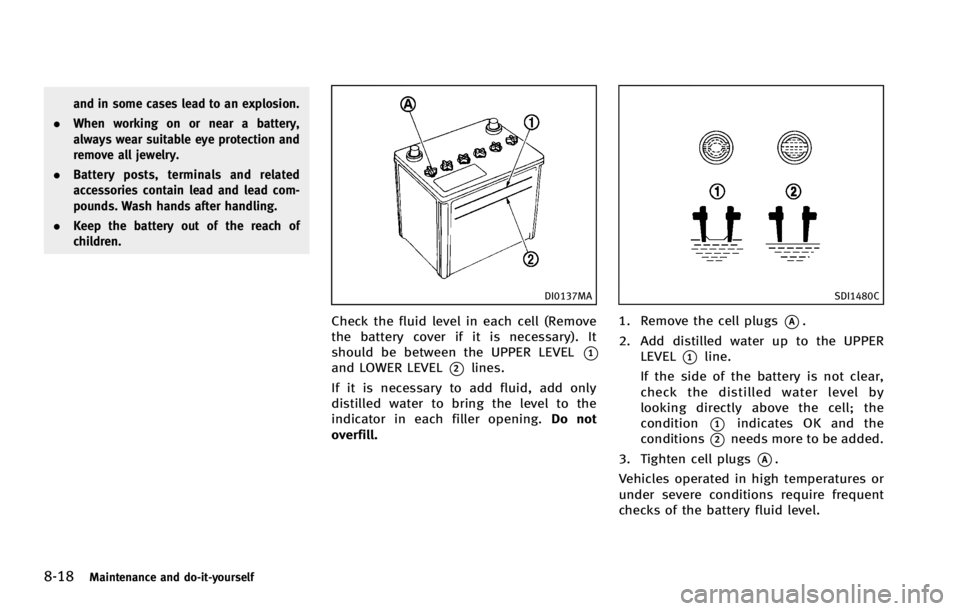

. Do not operate the vehicle if the fluid in
the battery is low. Low battery fluid can
cause a higher load on the battery which
can generate heat, reduce battery life,
Maintenance and do-it-yourself8-17
BATTERY

8-18Maintenance and do-it-yourself
DI0137MA
Check the fluid level in each cell (Remove
the battery cover if it is necessary). It
should be between the UPPER LEVEL
*1and LOWER LEVEL*2lines.
If it is necessary to add fluid, add only
distilled water to bring the level to the
indicator in each filler opening. Do not
overfill.
SDI1480C
1. Remove the cell plugs*A.
2. Add distilled water up to the UPPER LEVEL
*1line.
If the side of the battery is not clear,
check the distilled water level by
looking directly above the cell; the
condition
*1indicates OK and the
conditions
*2needs more to be added.
3. Tighten cell plugs
*A.
Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level.

CAUTION
.Do not ground accessories directly to the
battery terminal. Doing so will bypass
the variable voltage control system and
the vehicle battery may not charge
completely.
. Use electrical accessories with the en-
gine running to avoid discharging the
vehicle battery.
The variable voltage control system mea-
sures the amount of electrical discharge
from the battery and controls voltage
generated by the generator.
GUID-2598C543-2A3B-4E05-90F6-3739930B5F0C
SDI2117
VQ25HR engine
1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
!: Tension checking points
Maintenance and do-it-yourself8-19
VARIABLE VOLTAGE CONTROL SYSTEM DRIVE BELTS

8-20Maintenance and do-it-yourself
SDI2119
VQ37VHR engine
1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNING
Be sure the ignition switch is in the OFF or
LOCK position before servicing drive belts.
The engine could rotate unexpectedly.
1. Visually inspect each belt for signs of
unusual wear, cuts, fraying or loosen- ess. If the belt is in poor condition or
loose, have it replaced or adjusted by
an INFINITI retailer.
2. Have the belts checked regularly for condition and tension in accordance
with the maintenance schedule in your
“INFINITI Service and Maintenance
Guide”.
GUID-B889B2DB-0702-4E25-998D-9EFCEB6380ED
WARNING
Be sure the engine and the ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to remove
the spark plugs. An incorrect socket can
damage the spark plugs.
SPARK PLUGS

SDI2020
REPLACING SPARK PLUGSGUID-89AEBA13-D3D8-4D70-90D6-4674BC5CE9C3
SDI2033
Remove the retainers*1as illustrated and
pull out the filter element
*2.
The filter element should not be cleaned
and reused. Replace it according to the
maintenance intervals. See “INFINITI Ser-
vice and Maintenance Guide” for mainte-
nance intervals. When replacing the filter,
Maintenance and do-it-yourself8-21
AIR CLEANER

8-22Maintenance and do-it-yourself
WARNING
.Operating the engine with the air
cleaner removed can cause you or others
to be burned. The air cleaner not only
cleans the air, it stops flame if the
engine backfires. If it isn’t there, and the
engine backfires, you could be burned.
Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
. Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
GUID-A955C9CB-68EE-4F40-BDE3-B34F06DBBB5F

SDI2048

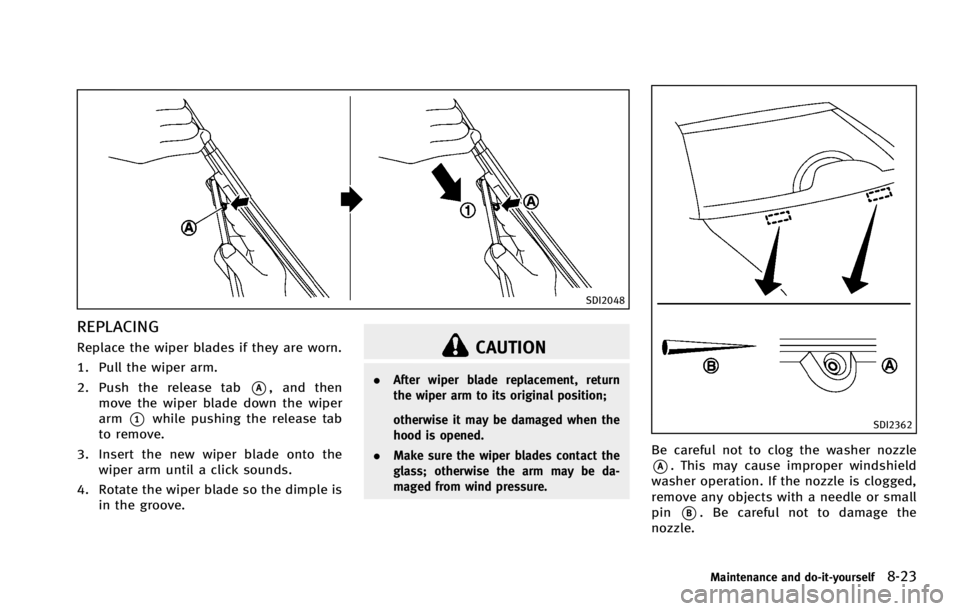

REPLACINGGUID-A30ECE65-328D-496B-A5F2-872EA27D63AACAUTION
.After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
. Make sure the wiper blades contact the
glass; otherwise the arm may be da-
maged from wind pressure.
SDI2362
Be careful not to clog the washer nozzle
*A. This may cause improper windshield
washer operation. If the nozzle is clogged,
remove any objects with a needle or small
pin
*B. Be careful not to damage the
nozzle.
Maintenance and do-it-yourself8-23

8-24Maintenance and do-it-yourself
GUID-32FB5E6D-5B48-42A8-9F60-83E657B04471
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not
return to normal.
BRAKE PAD WEAR WARNINGGUID-0D7DECB1-F0F3-4C66-A768-32FE17341FFF
SDI1479A
ENGINE COMPARTMENTGUID-1BD473A4-2C19-4D87-ADC3-1791751AF8EF
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed tothe OFF or LOCK position and the
headlight switch is turned to OFF.
BRAKES FUSES

2. Open the engine hood and remove thecover on the battery and the fuse/
fusible link holder.
3. Remove the fuse/fusible link holder
cover.
4. Remove the fuse with the fuse puller.
SDI1754
5. If the fuse is open*A, replace it with a
new fuse
*B. Spare fuses are stored in
the passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired
by an INFINITI retailer.
Fusible linksGUID-E9133FFB-99A7-4084-8BC3-32BBC0B20EAC
