6-14In case of emergency
models with the rear wheels on the
ground (if you do not use towing dollies)
or four wheels on the ground:
—Push the ignition switch to the ONposition and turn off all accessories.
—Always release the parking brake.
—Move the transmission shift lever tothe N (Neutral) position.
—Observe the following restrictedtowing speeds and distances for
manual transmission models only:
.Rear wheels on the ground:
Speed: Below 50 MPH (80 km/h)
Distance: Less than 50 miles (80
km)
.Four wheels on the ground:Speed: Below 70 MPH (112 km/h)
Distance: Less than 500 miles
(800 km)
—If the speed or distance mustnecessarily be greater, remove the
propeller shaft before towing to
prevent damage to the transmission.
SCE0488
All-wheel drive models
All-Wheel Drive (AWD) modelsGUID-8E431F7F-D22E-484A-90BA-D840A80CE451INFINITI recommends that towing dollies be
used when towing your vehicle or the
vehicle be placed on a flat bed truck as
illustrated.
CAUTION
Never tow AWD models with any of the
wheels on the ground as this may cause
serious and expensive damage to the
powertrain.
Condition:

Black plate (391,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
VEHICLE RECOVERY (Freeing a stuck
vehicle)
GUID-05991B38-9FB8-40E2-8907-B76FEB2747E1
WARNING
.Stand clear of a stuck vehicle.
. Do not spin your tires at high speed. This
could cause them to explode and result
in serious injury. Parts of your vehicle
could also overheat and be damaged.
Pulling a stuck vehicleGUID-B007B93C-F1B1-4109-8B68-991857140467If your vehicle is stuck in sand, snow, mud,
etc., use a tow strap or other device
designed specifically for vehicle recovery.
Always follow the manufacturer’s instruc-
tions for the recovery device.
SCE0892
Sedan
SCE0893
Coupe (except for INFINITI Performance
Line model)
Front (except for INFINITI Performance Line
model —Coupe):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the hook cover from the
bumper with a suitable tool, insert the
tool into the mesh and take off the
In case of emergency6-15
Condition:

Black plate (392,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
6-16In case of emergency
removable part.
2. Securely install the vehicle recovery hook
*1stored with jacking tools as
illustrated. Attach the tow strap to the
recovery hook.
Make sure that the hook is properly
secured in the original place after use.
SCE0964
Coupe (INFINITI Performance Line model)
Front (INFINITI Performance Line model —
Coupe):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the cover*1from the
bumper with a suitable tool.
2. Pull the cover up
*2and then pull
cover out.
Condition:

Black plate (393,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SCE0965
Coupe (INFINITI Performance Line model)
3. Securely install the vehicle recovery hook
*3stored with jacking tools as
illustrated. Attach the tow strap to the
recovery hook. Wrap the hook
*3and
strap with a cloth to avoid bumper
damage as illustrated. Make sure that
the hook is properly secured in the
original place after use.
SCE0891
Rear:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Do not use the tie down hooks*1for
towing or vehicle recovery.
CAUTION
. Tow chains or cables must be attached
only to the vehicle recovery hooks or
main structural members of the vehicle.
Otherwise, the vehicle body will be
damaged.
. Do not use the vehicle tie downs to free
a vehicle stuck in sand, snow, mud, etc.
In case of emergency6-17
Condition:

Black plate (394,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
6-18In case of emergency

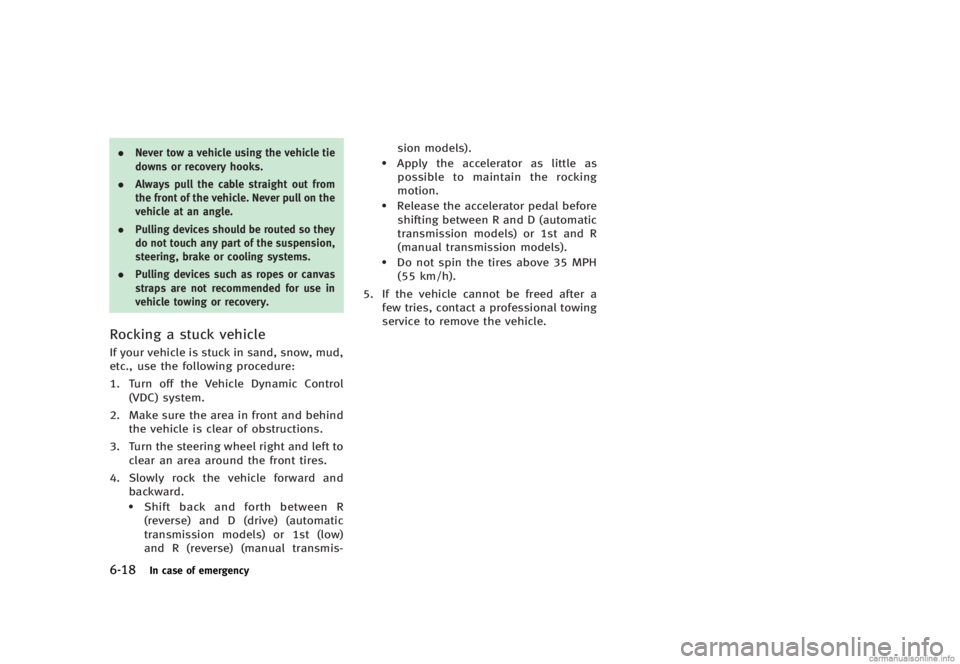

.Never tow a vehicle using the vehicle tie
downs or recovery hooks.
. Always pull the cable straight out from
the front of the vehicle. Never pull on the
vehicle at an angle.
. Pulling devices should be routed so they
do not touch any part of the suspension,
steering, brake or cooling systems.
. Pulling devices such as ropes or canvas
straps are not recommended for use in
vehicle towing or recovery.
Rocking a stuck vehicleGUID-D8ABA446-7649-42A5-93FF-7D6260146444If your vehicle is stuck in sand, snow, mud,
etc., use the following procedure:
1. Turn off the Vehicle Dynamic Control
(VDC) system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and backward.
.Shift back and forth between R
(reverse) and D (drive) (automatic
transmission models) or 1st (low)
and R (reverse) (manual transmis- sion models).
.Apply the accelerator as little as
possible to maintain the rocking
motion.
.Release the accelerator pedal beforeshifting between R and D (automatic
transmission models) or 1st and R
(manual transmission models).
.Do not spin the tires above 35 MPH
(55 km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing
service to remove the vehicle.
Condition:

Black plate (395,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
MEMO
In case of emergency6-19
Condition:

Black plate (396,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
6-20In case of emergency
MEMO
Condition:

Black plate (397,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
7 Appearance and care
Cleaning exterior...
................................................. 7-2
Washing ...
.......................................................... 7-2
Waxing ...
............................................................ 7-2
Removing spots ...
............................................... 7-3
Underbody ...
...................................................... 7-3
Glass ...
............................................................... 7-3
Wheels ...
............................................................ 7-3
Chrome parts ...
.................................................. 7-4
Tire dressing ...
................................................... 7-4 Cleaning interior
...
................................................. 7-4
Air fresheners ...
................................................ 7-5
Floor mats ...
..................................................... 7-5
Seat belts ...
...................................................... 7-6
Corrosion protection ...
............................................ 7-7
Most common factors contributing to
vehicle corrosion ...
........................................... 7-7
Environmental factors influence the rate
of corrosion ...
................................................... 7-7
To protect your vehicle from corrosion ...
........... 7-7
Condition:

Black plate (398,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
7-2Appearance and care

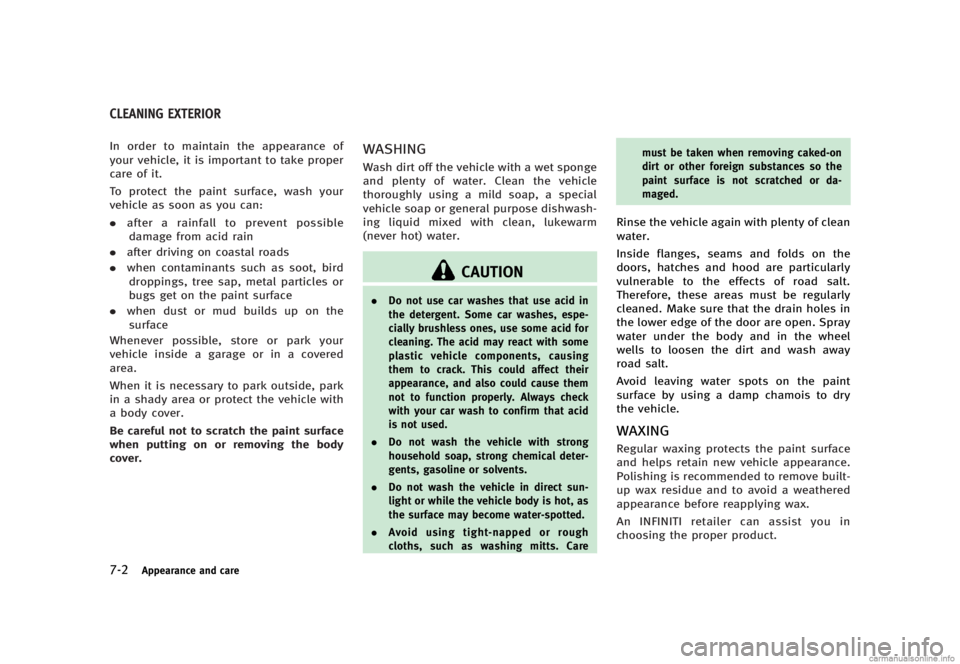

GUID-9249DEB4-52C7-4AFC-8D03-6CF9D0E54C69In order to maintain the appearance of
your vehicle, it is important to take proper
care of it.
To protect the paint surface, wash your
vehicle as soon as you can:
.after a rainfall to prevent possible
damage from acid rain
. after driving on coastal roads
. when contaminants such as soot, bird
droppings, tree sap, metal particles or
bugs get on the paint surface
. when dust or mud builds up on the
surface
Whenever possible, store or park your
vehicle inside a garage or in a covered
area.
When it is necessary to park outside, park
in a shady area or protect the vehicle with
a body cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.WASHINGGUID-836955BF-390D-4BD9-A9ED-E82B3D771DEAWash dirt off the vehicle with a wet sponge
and plenty of water. Clean the vehicle
thoroughly using a mild soap, a special
vehicle soap or general purpose dishwash-
ing liquid mixed with clean, lukewarm
(never hot) water.
CAUTION
. Do not use car washes that use acid in
the detergent. Some car washes, espe-
cially brushless ones, use some acid for
cleaning. The acid may react with some
plastic vehicle components, causing
them to crack. This could affect their
appearance, and also could cause them
not to function properly. Always check
with your car wash to confirm that acid
is not used.
. Do not wash the vehicle with strong
household soap, strong chemical deter-
gents, gasoline or solvents.
. Do not wash the vehicle in direct sun-
light or while the vehicle body is hot, as
the surface may become water-spotted.
. Avoid using tight-napped or rough
cloths, such as washing mitts. Care must be taken when removing caked-on
dirt or other foreign substances so the
paint surface is not scratched or da-
maged.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the
doors, hatches and hood are particularly
vulnerable to the effects of road salt.
Therefore, these areas must be regularly
cleaned. Make sure that the drain holes in
the lower edge of the door are open. Spray
water under the body and in the wheel
wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint
surface by using a damp chamois to dry
the vehicle.
WAXINGGUID-71C0704F-ABE3-4DDE-BBA8-904E37FD8A86Regular waxing protects the paint surface
and helps retain new vehicle appearance.
Polishing is recommended to remove built-
up wax residue and to avoid a weathered
appearance before reapplying wax.
An INFINITI retailer can assist you in
choosing the proper product.
CLEANING EXTERIOR
Condition:

Black plate (399,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
.Wax your vehicle only after a thorough
washing. Follow the instructions sup-
plied with the wax.
. Do not use a wax containing any
abrasives, cutting compounds or clea-
ners that may damage the vehicle
finish.
Machine compound or aggressive polish-
ing on a base coat/clear coat paint finish
may dull the finish or leave swirl marks.
REMOVING SPOTSGUID-6A92BAAD-C79F-4B71-AC08-B8D8170F5C52Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting
damage or staining. Special cleaning
products are available at an INFINITI
retailer or any automotive accessory
stores.
UNDERBODYGUID-235CB819-FCF9-47D3-B2C4-CF42120CA1E4In areas where road salt is used in winter,
the underbody must be cleaned regularly.
This will prevent dirt and salt from building
up and causing the acceleration of corro-
sion on the underbody and suspension.
Before the winter period and again in the
spring, the underseal must be checked
and, if necessary, re-treated.
GLASSGUID-5D4F0140-EB2A-48A1-9AE9-32E16AC93BA3Use glass cleaner to remove smoke and
dust film from the glass surfaces. It is
normal for glass to become coated with a
film after the vehicle is parked in the hot
sun. Glass cleaner and a soft cloth will
easily remove this film.
CAUTION
When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant clea-
ners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.
WHEELSGUID-41803024-4AB1-47D5-838F-E8FDD80A7DF3Wash the wheels when washing the vehicle
to maintain their appearance.
. Clean the inner side of the wheels when
the wheel is changed or the underside
of the vehicle is washed.
. Inspect wheel rims regularly for dents
or corrosion. Such damage may cause
loss of pressure or poor seal at the tire
bead. .
INFINITI recommends that the road
wheels be waxed to protect against
road salt in areas where it is used
during winter.
CAUTION
Do not use abrasive cleaners when washing
the wheels.
Aluminum alloy wheelsGUID-7407AEDF-85CD-42A8-BA1D-79993CC06EC3Wash regularly with a sponge dampened in
a mild soap solution, especially during
winter months in areas where road salt is
used. Salt could discolor the wheels if not
removed.
CAUTION
Follow the directions below to avoid stain-
ing or discoloring the wheels:
. Do not use a cleaner that uses strong
acid or alkali contents to clean the
wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as
Appearance and care7-3
Condition:
