Have the vehicle inspected by an
INFINITI dealer. You do not need to
have your vehicle towed to the re-
tailer.
CAUTIONContinued vehicle operation without having
the emission control system checked and re-
paired as necessary could lead to poor drive-
ability, reduced fuel economy, and possible
damage to the emission control system.
Slip indicator lightThe light will blink when the vehicle dy-
namic control (VDC) system is operating,
thus alerting the driver to the fact that the
road surface is slippery and the vehicle is
nearing its traction limits.
This light also comes on when the igni-
tion switch is turned to the ON position.
The light will turn off if the VDC is opera-
tional.
Snow mode indicator light
(if so equipped)When selecting SNOW mode while the en-
gine is running, this light will illuminate. See ªSNOW MODE SWITCHº in the ª2. In-
struments and controlsº section.
Turn signal/hazard indicator
lights The light flashes when the turn signal
switch lever or hazard switch is turned
on.
Vehicle Dynamic Control
(VDC) off indicator light The light comes on when the vehicle dy-
namic control (VDC) off switch is pushed
to OFF. This indicates that the VDC system
is not operating.
This light also comes on when the igni-
tion switch is turned to the ON position.
The light will turn off if the VDC system is
operational.
When the VDC off indicator light and slip
indicator light come on with the VDC sys-
tem turned on, this light alerts the driver
to the fact that the VDC system fail-safe
mode is operating and the system may
not be functioning properly. Have the sys-
tem checked by an INFINITI dealer. If a
malfunction occurs in the system, the VDC
system function will be canceled but the
vehicle is still driveable. For additional in- formation, see ªVehicle Dynamic Control
(VDC) systemº in the ª5. Starting and
drivingº section of this manual.
AUDIBLE REMINDERS
Key reminder chime The chime will sound if the driver's side
door is opened while the key is left in the
ignition switch (ignition switch is turned
off). Remove the key and take it with you
when leaving the vehicle.
Light reminder chime The chime will sound when the front door
is opened with the headlight switch on
unless the ignition switch is in the ON po-
sition.
Make sure to turn the light switch off
when you leave the vehicle.
Brake pad wear warning The disc brake pads have audible wear
warnings. When a brake pad requires re-
placement, it will make a high pitched
scraping sound when the vehicle is in mo-
tion whether or not the brake pedal is de-
pressed. Have the brakes checked as
soon as possible if the warning sound is
heard.
2-16 Instruments and controls
w 06.1.4/V35-D/V5.0
X

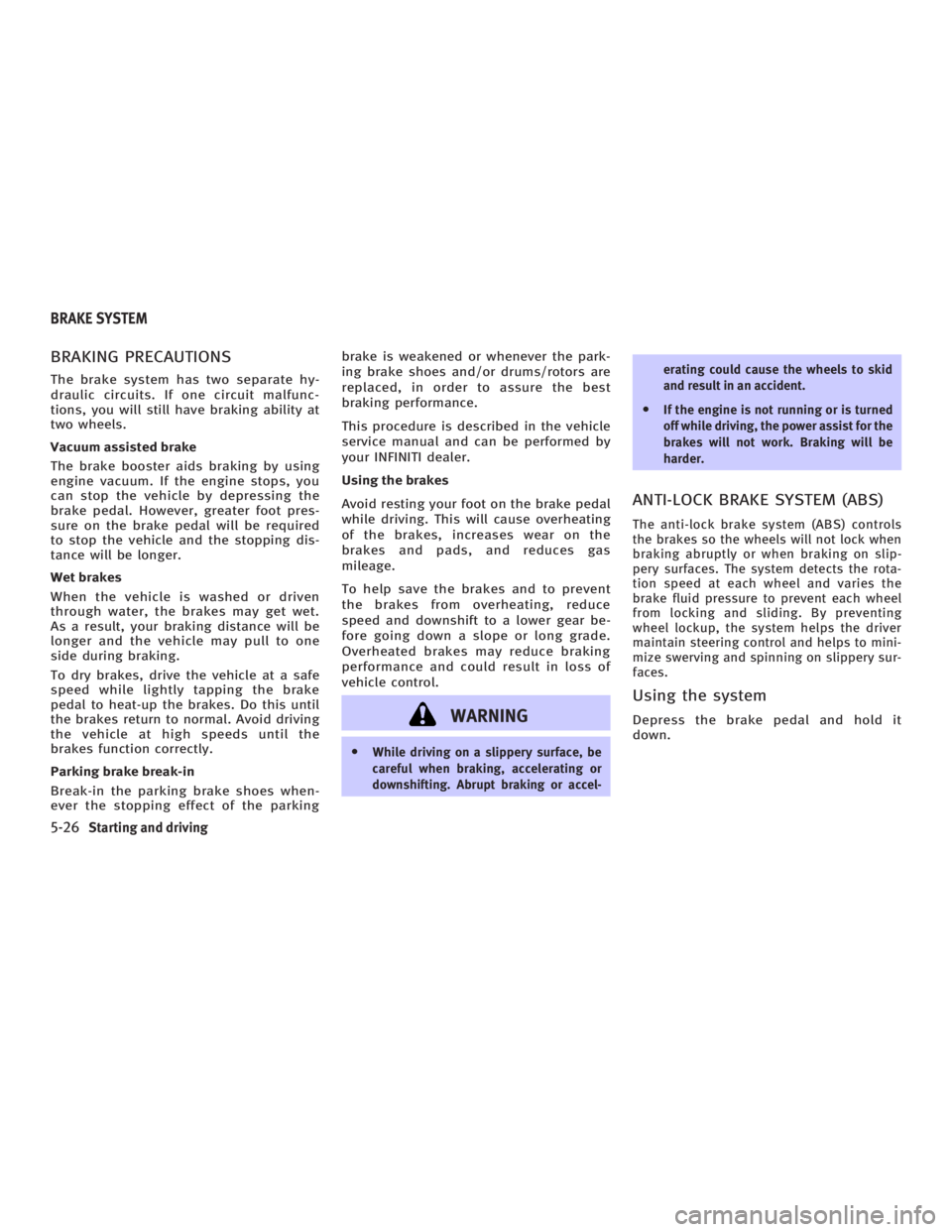

BRAKING PRECAUTIONS The brake system has two separate hy-
draulic circuits. If one circuit malfunc-
tions, you will still have braking ability at
two wheels.
Vacuum assisted brake
The brake booster aids braking by using
engine vacuum. If the engine stops, you
can stop the vehicle by depressing the
brake pedal. However, greater foot pres-
sure on the brake pedal will be required
to stop the vehicle and the stopping dis-
tance will be longer.
Wet brakes
When the vehicle is washed or driven
through water, the brakes may get wet.
As a result, your braking distance will be
longer and the vehicle may pull to one
side during braking.
To dry brakes, drive the vehicle at a safe
speed while lightly tapping the brake
pedal to heat-up the brakes. Do this until
the brakes return to normal. Avoid driving
the vehicle at high speeds until the
brakes function correctly.
Parking brake break-in
Break-in the parking brake shoes when-
ever the stopping effect of the parking brake is weakened or whenever the park-
ing brake shoes and/or drums/rotors are
replaced, in order to assure the best
braking performance.
This procedure is described in the vehicle
service manual and can be performed by
your INFINITI dealer.
Using the brakes
Avoid resting your foot on the brake pedal
while driving. This will cause overheating
of the brakes, increases wear on the
brakes and pads, and reduces gas
mileage.
To help save the brakes and to prevent
the brakes from overheating, reduce
speed and downshift to a lower gear be-
fore going down a slope or long grade.
Overheated brakes may reduce braking
performance and could result in loss of
vehicle control.
WARNING O While driving on a slippery surface, be
careful when braking, accelerating or
downshifting. Abrupt braking or accel- erating could cause the wheels to skid
and result in an accident.
O If the engine is not running or is turned
off while driving, the power assist for the
brakes will not work. Braking will be
harder.
ANTI-LOCK BRAKE SYSTEM (ABS) The anti-lock brake system (ABS) controls
the brakes so the wheels will not lock when
braking abruptly or when braking on slip-
pery surfaces. The system detects the rota-
tion speed at each wheel and varies the
brake fluid pressure to prevent each wheel
from locking and sliding. By preventing
wheel lockup, the system helps the driver
maintain steering control and helps to mini-
mize swerving and spinning on slippery sur-
faces.
Using the system Depress the brake pedal and hold it
down.BRAKE SYSTEM
5-26 Starting and driving
w 06.1.4/V35-D/V5.0
X

O If brake related parts such as brake
pads, rotors and calipers are not stan-
dard equipment or are extremely dete-
riorated, the ªVDC OFFº indicator or
ªSLIPº indicator or both indicator lights
may illuminate.
O When driving on extremely inclined sur-
faces such as higher banked corners, the
Vehicle Dynamic Control system may not
operate properly and the ªVDC OFFº indi-
cator or ªSLIPº indicator or both indi-
cator lights may illuminate. Do not drive
on these types of roads.
O When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the ªVDC OFFº indicator or ªSLIPº
indicator or both indicator lights may il-
luminate. This is not a malfunction. Re-
start the engine after driving onto a
stable surface.
O If wheels or tires other than those rec-
ommended are used, the VDC system
may not operate properly and the ªVDC
OFFº indicator or ªSLIPº indicator or
both indicator lights may illuminate. O The VDC system is not a substitute for
winter tires or tire chains on a snow cov-
ered road. The Rear Active Steer (RAS) system is an
electronically controlled four-wheel
steering system.
The angle of the rear wheels are adjusted
by the RAS system, depending on the ve-
hicle speed and steering angle. The rear
wheels are designed to turn momentarily
in the opposite direction and then change
to the same direction as the front wheels.
At low speeds, the rear wheels will not
turn and the system functions as a two-
wheel steering system.
If a malfunction occurs in the system, the
RAS function will stop but the ordinary
two-wheel steering system will operate
normally. The ªRASº warning light will il-
luminate.
If the light illuminates while you are driv-
ing, contact an INFINITI dealer for repair.REAR ACTIVE STEER (RAS) SYSTEM (if so
equipped)
Starting and driving
5-29
w 06.1.4/V35-D/V5.0
X

Self-adjusting brakes Your vehicle is equipped with self-
adjusting brakes.
The disc-type brakes self-adjust every
time the brake pedal is applied.
WARNINGSee an INFINITI dealer for a brake system
check if the brake pedal height does not re-
turn to normal.
Brake pad wear indicators The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires replacement, it will make a high
pitched scraping or screeching sound when
the vehicle is in motion whether or not the
brake pedal is depressed. Have the brakes
checked as soon as possible if the wear in-
dicator sound is heard.
Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is
normal and does not affect the function or
performance of the brake system. Proper brake inspection intervals should
be followed. For additional information,
see the appropriate maintenance log
shown in the INFINITI Service and Mainte-
nance Guide.
High performance sports brake pads oc-
casionally make squeaks, squeals or
other braking noises because of their very
high friction coefficient.
These occasional brake noises are
normal, but if they continue, see an
INFINITI dealer.
BRAKE BOOSTER Check the brake booster function as fol-
lows:
1. With the engine off, press and release
the brake pedal several times. When
brake pedal movement (distance of
travel) remains the same from one
pedal application to the next, continue
on to the next step.
2. While depressing the brake pedal,
start the engine. The pedal height
should drop a little. 3. With the brake pedal depressed, stop
the engine. Keeping the pedal de-
pressed for about 30 seconds, the
pedal height should not change.
4. Run the engine for one minute without
depressing the brake pedal, then turn
it off. Depress the brake pedal several
times. The pedal travel distance will
decrease gradually with each depres-
sion as the vacuum is released from
the booster.
If the brakes do not operate properly, see
an INFINITI dealer.
