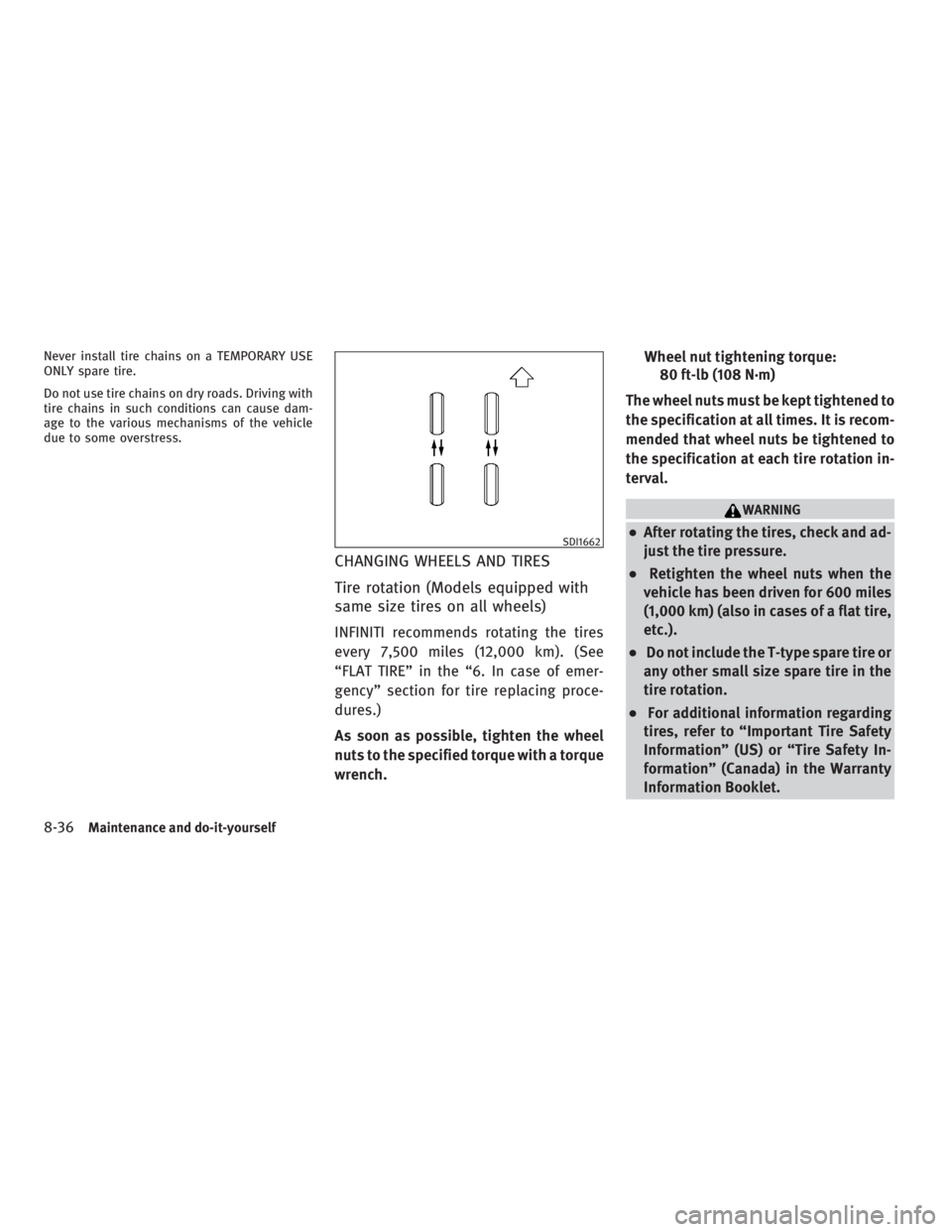

Never install tire chains on a TEMPORARY USE
ONLY spare tire.
Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause dam-
age to the various mechanisms of the vehicle
due to some overstress.
CHANGING WHEELS AND TIRES
Tire rotation (Models equipped with
same size tires on all wheels) INFINITI recommends rotating the tires
every 7,500 miles (12,000 km). (See
“FLAT TIRE” in the “6. In case of emer-
gency” section for tire replacing proce-
dures.)
As soon as possible, tighten the wheel
nuts to the specified torque with a torque
wrench. Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to
the specification at all times. It is recom-
mended that wheel nuts be tightened to
the specification at each tire rotation in-
terval. WARNING●
After rotating the tires, check and ad-
just the tire pressure. ●
Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.). ●
Do not include the T-type spare tire or
any other small size spare tire in the
tire rotation. ●
For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet. SDI1662
8-36 Maintenance and do-it-yourself
 —
—
04/21/10—debbie

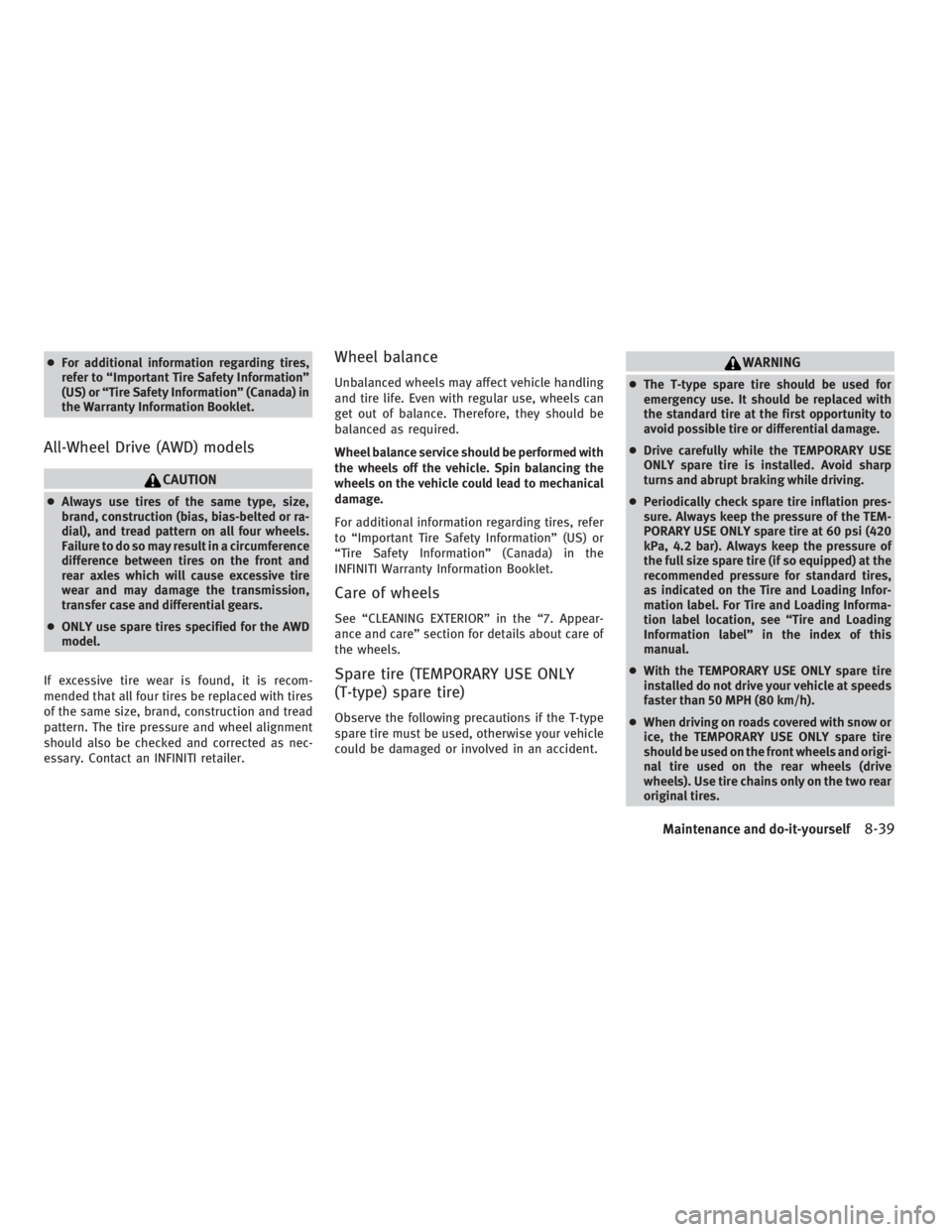

● For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
All-Wheel Drive (AWD) models CAUTION● Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
Failure to do so may result in a circumference
difference between tires on the front and
rear axles which will cause excessive tire
wear and may damage the transmission,
transfer case and differential gears.
● ONLY use spare tires specified for the AWD
model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. Contact an INFINITI retailer. Wheel balance Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed with
the wheels off the vehicle. Spin balancing the
wheels on the vehicle could lead to mechanical
damage.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Care of wheels See “CLEANING EXTERIOR” in the “7. Appear-
ance and care” section for details about care of
the wheels.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire) Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident. WARNING● The T-type spare tire should be used for
emergency use. It should be replaced with
the standard tire at the first opportunity to
avoid possible tire or differential damage.
● Drive carefully while the TEMPORARY USE
ONLY spare tire is installed. Avoid sharp
turns and abrupt braking while driving.
● Periodically check spare tire inflation pres-
sure. Always keep the pressure of the TEM-
PORARY USE ONLY spare tire at 60 psi (420
kPa, 4.2 bar). Always keep the pressure of
the full size spare tire (if so equipped) at the
recommended pressure for standard tires,
as indicated on the Tire and Loading Infor-
mation label. For Tire and Loading Informa-
tion label location, see “Tire and Loading
Information label” in the index of this
manual.
● With the TEMPORARY USE ONLY spare tire
installed do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).
● When driving on roads covered with snow or
ice, the TEMPORARY USE ONLY spare tire
should be used on the front wheels and origi-
nal tire used on the rear wheels (drive
wheels). Use tire chains only on the two rear
original tires.
Maintenance and do-it-yourself
8-39
 —
—
04/21/10—debbie


The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8.
Maintenance and do-it-yourself” section to determine the proper refill capacity. Capacity (Approximate) Recommended specifications
US measure Imp measure Liter
Fuel 20 gal 16-5/8 gal 76 See “FUEL RECOMMENDATION” later in this section.
Engine oil*2
Drain and refill
With oil filter change 5-1/8 qt 4-3/8 qt 4.9 •Engine oil with API Certification Mark*1*2
•Viscosity SAE 5W-30
Without oil filter change 4-7/8 qt 4 qt 4.6
Cooling system
Automatic transmission
model With reservoir 9 qt 7-1/2 qt 8.5 50% Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
50% Demineralized or distilled water
Reservoir 7/8 qt 3/4 qt 0.8
Manual transmission
model With reservoir 9-1/8 qt 7-5/8 qt 8.6
Reservoir 7/8 qt 3/4 qt 0.8
Automatic transmission fluid — — — Genuine NISSAN Matic S ATF*3
Manual transmission gear oil — — — Genuine NISSAN Manual Transmission Fluid (MTF)
HQ Multi 75W-85 or API GL-4, Viscosity SAE 75W-85
Differential gear oil — — — Front:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5
Viscosity SAE 80W-90*4
Rear:
For 7AT 2WD models:
Genuine NISSAN Differential Oil Synthetic 75W-90 or API GL-5 synthetic
gear oil, Viscosity SAE 75W-90*5
All other models:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5
Viscosity SAE 80W-90*4
Transfer fluid — — — Genuine NISSAN Matic J ATF*6
Power steering fluid (PSF) Refill to the proper oil level according to the in-
structions in the “8. Maintenance and do-it-
yourself” section. Genuine NISSAN PSF or equivalent*7
Brake and clutch fluid Genuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3
Multi-purpose grease
Without limited slip differential
NLGI No. 2 (Lithium soap base)
With limited slip differential
Air conditioning system refrigerant — — — HFC-134a (R-134a)*9
Air conditioning system lubricants — — — NISSAN A/C System Oil
Type S or exact equivalent
Window washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalentCAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2 Technical and consumer information
 —
—
04/21/10—debbie


A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing), or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
AWD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be in
what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Push the ignition switch to the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds, the I/M test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
If the MIL indicates the vehicle is in a “not
ready” condition, drive the vehicle through the
following pattern to set the vehicle to the
“ready condition”. If you cannot or do not want
to perform the driving pattern, an INFINITI re-
tailer can conduct it for you.
WARNINGAlways drive the vehicle in a safe and prudent
manner according to traffic conditions and
obey all traffic laws.
1. Start the engine. Allow the engine to idle
until the engine coolant temperature
gauge needle points between the C and H
(normal operating temperature).
2. Accelerate the vehicle to 55 MPH (88
km/h), then quickly release the accelera-
tor pedal completely and keep it released
for at least 10 seconds.
3. Quickly depress the accelerator pedal for
a moment, then drive the vehicle at a
speed of 53 to 60 MPH (86 to 96 km/h) for
at least 9 minutes.
4. Stop the vehicle. Leave the engine run-
ning. 5. Accelerate the vehicle to 55 MPH (88
km/h) and maintain the speed for 2 min-
utes.
6. Repeat steps 4 and 5 at least 10 times.
7. Quickly release the accelerator pedal
completely and keep it released for at
least for 1 minute. Maintain the speed for
at least 5 minutes.
8. Stop the vehicle. Place the automatic
transmission selector lever in the P (Park)
or N (Neutral) position or the manual
transmission shift lever in the N (Neutral)
position.
9. Turn the engine off.
10. Start the engine and allow the engine to
idle for at least 2 hours.
11. Place the ignition switch to the OFF posi-
tion and leave the vehicle for at least 90
minutes.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed.READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)
9-24 Technical and consumer information
 —
—
04/21/10—debbie


This vehicle is equipped with an Event Data Re-
corder (EDR). The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in under-
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less. The
EDR in this vehicle is designed to record such
data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur. NOTE: EDR data are recorded
by your vehicle only if a nontrivial crash situa-
tion occurs; no data are recorded by the EDR
under normal driving conditions and no personal
data (e.g. name, gender, age and crash location)
are recorded. However, other parties, such as
law enforcement, could combine the EDR data with the type of personally identifying data rou-
tinely acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law. A genuine INFINITI Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustra-
tions and step-by-step diagnostic and adjust-
ment procedures, this manual is the same one
used by the factory trained technicians working
at an INFINITI retailer. Also available are genu-
ine INFINITI Owner’s Manuals, and genuine
INFINITI Service and Owner’s Manuals for older
INFINITI models.
In the USA:
For current pricing and availability of genuine
INFINITI Service Manuals for the 2000 model
year and later, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of genuine
INFINITI Service Manuals for the 1999 model
year and prior, see an INFINITI retailer, or
contact:
1-800-247-5321
For current pricing and availability of genuine
INFINITI Owner’s Manuals for this model year
and prior, see an INFINITI retailer, or contact:
1-800-247-5321EVENT DATA RECORDERS (EDR) OWNER’S MANUAL/SERVICE MANUAL
ORDER INFORMATION
Technical and consumer information
9-25
 —
—
04/21/10—debbie


10 Index 4 Wheel Active Steer (4WAS) system .... .5-54
4 Wheel Active Steer (4WAS) warning light . .2-13
A
ABS (Anti-lock Braking System) ....... .5-52
Advanced air bag system .......... .1-45
Air bag system
Advanced air bag system ........ .1-45
Front passenger air bag and status
light ..................... 1-47
Front-seat mounted side-impact
supplemental air bag system ....... 1-50
Roof-mounted curtain side-impact
supplemental air bag system ....... 1-50
Air bag warning labels ............ .1-53
Air bag warning light ......... .1-53 , 2-16
Air cleaner housing filter .......... .8-17
Air conditioner
Air conditioner service .......... .4-38
Air conditioner specification label .... 9-14
Air conditioning system refrigerant and
lubricant recommendations ....... 4-38
Automatic climate control ........ 4-28
In-cabin microfilter ............ 4-38
Operation (See automatic climate
control) ................... 4-28
Alarm, How to stop alarm
(see vehicle security system) ........ .2-28
Alcohol, drugs and driving .......... .5-6
All-wheel drive (AWD) ............ .5-43 All-wheel drive (AWD) driving safety
precautions ................... .5-7
All-wheel drive (AWD) warning light .... .2-12
Antenna .................... .4-84
Anti-lock Braking System (ABS) ....... .5-52
Anti-lock braking system (ABS) warning
light ...................... .2-12
Appearance care
Exterior appearance care ......... .7-2
Interior appearance care ..........7-4
Armrest .................... .1-12
Ashtrays (See cigarette lighter
and ashtrays) ................. .2-42
Audible reminders .............. .2-18
Audio operation precautions ........ .4-39
Audio system ................. .4-39
Audio system, Steering wheel
audio controls ................ .4-83
Autolight system ............... .2-33
Automatic
Automatic adjusting function (front
windows) ................. .2-52
Automatic
climate control ........ 4-30
Automatic transmission fluid (ATF) .... 8-11
Climate control .............. 4-28
Driving with automatic transmission . . . 5-12
Automatic door locks ............. .3-6
Automatic drive positioner ......... .3-28
Automatic seat positione r.......... .3-28
Average fuel consumption and speed . . . .2-25
Avoiding collision and rollover ........ .5-5 B
Battery ..................... .8-13
Battery
Battery saver system ........... .2-35
Intelligent Key ............... 8-22
Variable voltage control system ..... 8-15
Before starting the engine .......... .5-10
Belts (See drive belts) ............ .8-16
Bluetooth  hands-free phone system
(models with navigation system) ...... .4-85
Booster seats ................. .1-35
Brake
Anti-lock Braking System (ABS) ..... .5-52
Brake and clutch fluid ........... 8-12
Brake system ............... 5-48
Parking brake operation . . . ...... 5-18
Brake warning light ............. .2-12
Break-in schedule .............. .5-42
Brightness control and display ON/OFF
button ...................... .4-7
Brightness control, Instrument panel . . . .2-36
Bulb check/instrument panel . . . ..... .2-11
Bulb replacement .............. .8-23
C
Cabin air filter ................ .4-38
Capacities and recommended
fuel/lubricants ................. .9-2
 —
—
04/30/10—diane


Car phone or CB radio ............ .4-85
Card holder .................. .2-47
Cargo net retainers ............. .2-49
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ..... .4-2
Child restraints ................ .1-20
Child restraints
Booster seats ............... .1-35
Installation using LATCH ......... 1-25
Installation using the seat belts ..... 1-29
LATCH system ............... 1-22
Precautions on child restraints ...... 1-21
Top tether strap .............. 1-24
Child safety .................. .1-15
Child safety rear door lock .......... .3-6
Chimes
Audible reminders ............ .2-18
Seat belt warning light and chime .... 2-16
Cigarette lighter and ashtrays ....... .2-42
Circuit breaker, Fusible link ......... .8-21
Cleaning exterior and interior ..... .7-2 , 7-4
Climate control, Automatic
climate control ................ .4-28
Clock ..................... .2-40
Clutch fluid .................. .8-12
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-55
Command (See Bluetooth  Hands-Free
Phone System) ............ .4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-57
Compact spare tire .............. .8-39
Compass .................... .2-8
Console box ................. .2-45 Controller, Center multi-function control
panel ...................... .4-4
Controls
Control panel button (display) ...... .4-2
Heater
and
air conditioner controls
(See automatic climate control) ..... 4-28
Coolant
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant .........8-8
Checking engine coolant level .......8-7
Corrosion protection ............. .7-6
Cruise control ................. .5-19
Cruise control
Fixed speed cruise control (on ICC
system) .................. .5-38
Intelligent cruise control (ICC) system . . 5-21
Cruise indicator ............... .2-22
Cup holders .................. .2-43
Current fuel consumption .......... .2-25
D
Daytime running light system ........ .2-35
Defroster switch, Rear window and outside
mirror defroster switch ........... .2-32
Dimensions .................. .9-11
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance to empty .............. .2-25
Door/trunk open warning .......... .2-22
Dot matrix liquid crystal display ...... .2-19
Drive belts .................. .8-16
Drive positioner ............... .3-28 Driving
All-wheel drive (AWD) .......... .5-43
Cold weather driving ........... 5-55
Driving with automatic transmission . . . 5-12
Driving with manual transmission .... 5-16
Precautions when starting and driving . . 5-2
DS (Drive Sport) mode ............ .5-14
E
Economy, Fuel ................ .5-42
Elapsed time ................. .2-25
Elapsed time and trip odometer ...... .2-25
Emission control information label . . . . . .9-13
Emission control system warranty ..... .9-23
Engine
Before starting the engine ........ .5-10
Break-in schedule ............. 5-42
Capacities and recommended fuel/
lubricants ..................
9 -2
Changing engine coolant . . . . . . . . . 8-8
Changing engine oil and filter .......8-9
Checking engine coolant level .......8-7
Checking engine oil level . . . . . . . . . 8-8
Engine block heater ............ 5-56
Engine compartment check locations . . . 8-6
Engine cooling system ...........8-7
Engine oil ..................8-8
Engine oil and oil filter recommendation . 9-6
Engine oil replacement indicator .... 2-23
Engine oil viscosity .............9-6
Engine serial number ........... 9-12
Engine specifications ............9-8
Engine start operation indicator
(Automatic Transmission models) .... 2-21
10-2
 —
—
04/30/10—diane


Engine start operation indicator (Manual
Transmission models) ........... 2-22
If your vehicle overheats ......... 6-10
Starting the engine ............. 5-11
Engine coolant temperature gauge ..... .2-6
Entry/exit function .............. .3-28
Event Data Recorders (EDR) ......... .9-25
Exhaust gas (carbon monoxide) ....... .5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . .9-13
Filter
Air cleaner housing filter ........ .8-17
Changing engine oil and filter .......8-9
Flashers (See hazard warning
flasher switch) ................ .2-37
Flat tire ..................... .6-2
Flat towing .................. .9-21
Floor mat cleaning ............... .7-5
Fluid
Automatic transmission fluid (ATF) . . . .8-11
Brake and clutch fluid ........... 8-12
Capacities and recommended fuel/
lubricants ..................9-2
Engine coolant ...............8-7
Engine oil ..................8-8
Power steering fluid ............ 8-11
Window washer fluid ........... 8-13
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-54
Fog light switch ............... .2-37
Front passenger air bag and status light . .1-47
Front power seat adjustment ......... .1-3
Front seat, Front seat adjustment ...... .1-3 Front-seat active head restraints ...... .1-11
Fuel
Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ............... 5-42
Fuel economy information (display) ....4-9
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Fuel-filler cap ................ 3-21
Fuel-filler door ............... 3-21
Gauge ....................2-7
Fuses ..................... .8-20
Fusible links ................. .8-21
G
Garage
door opener, HomeLink  Universal
Transceiver .................. .2-57
Gascap .................... .3-21
Gauge ...................... .2-4
Gauge
Engine coolant temperature gauge . . . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ................2-5
Tachometer .................2-6
Trip computer ............... 2-24
General maintenance ............. .8-2
Glove box ................... .2-45
Golf bag stowing ............... .2-48 H
Hands-free phone system, Bluetooth
(with navigation system) .......... .4-85
Hands-free phone system, Bluetooth
(without navigation system) ........ .4-96
Hazard warning flasher switch . . ..... .2-37
Head restraints ................. .1-9
Headlights
Bulb replacement ............ .8-25
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Heated seats ................. .2-38
Heater
Automatic climate control ........ .4-28
Engine block heater ............ 5-56
HomeLink  Universal Transceiver ...... .2-57
Hood release ................. .3-17
Hook, Coat hooks .............. .2-48
Horn ...................... .2-38
Ignition switch
Automatic transmission models ..... .5-12
Manual transmission models . . . . . . . 5-16
I
Ignition switch (Push-button) ......... .5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-38
Indicator
lights ................ .2-16
Indicator,
Dot matrix display ........ .2-19
INFINITI Vehicle Immobilizer System .... .2-29
INFINITI voice recognition standard
mode ..................... .4-109
10-3
 —
—
04/30/10—diane


Tire
Tire replacement indicator ....... .2-23
Tire rotation ................ 8-36
Tire pressure, Low tire pressure warning
light ...................... .2-14
Tires
Flat tire ................... .6-2
Low tire pressure warning system ....5-3
Spare tire ................. 8-39
Tire and Loading information label . . . 8-30
Tire chains ................. 8-35
Tire dressing ................7-4
Tire pressure ................ 8-28
Tire pressure monitoring system
(TPMS) ....................5-3
Types of tires ............... 8-34
Uniform tire quality grading ....... 9-22
Wheel/tire size ...............9-9
Wheels and tires ............. 8-28
Top tether strap child restraints ...... .1-24
Touch screen system ............. .4-4
Towing
Flat towing ................ .9-21
Tow truck towing .............. 6-11
Towing a trailer .............. 9-21
TPMS, Tire pressure monitoring system . . . .5-3
TPMS, Tire pressure warning system .... .6-2
Trailer towing ................. .9-21
Transceiver, HomeLink  Universal
Transceiver .................. .2-57
Transmission
Automatic transmission fluid (ATF) . . . .8-11
Driving with automatic transmission . . . 5-12
Driving with manual transmission .... 5-16
Transmission selector lever
lock release ................. 5-15 Transmitter (See remote keyless entry
system) .................... .3-14
Traveling or registering your vehicle in
another country ................ .9-11
Trip computer ................. .2-24
Trip odometer ................. .2-25
Trunk
Interior trunk lid release ........ .3-20
Trunk lid .................. 3-18
Trunk lid release switch .......... 3-18
Trunk
net for extra window washer
fluid ..................... 2-49
Trunk open request switch ........ 3-19
Trunk release power cancel switch . . . 3-19
Trunk light .................. .2-56
Trunk pass-through .............. .1-12
Turn signal switch .............. .2-37
U
Underbody cleaning .............. .7-3
Uniform tire quality grading ........ .9-22
V
Vanity mirror ................. .3-28
Vanity mirror lights ............. .2-56
Variable voltage control system ....... .8-15
Vehicle
Dimensions ................ .9-11
Recovery (freeing a stuck vehicle) .... 6-13
Vehicle dynamic control (VDC)
off switch ................. 2-40 Vehicle dynamic control (VDC)
system ................... 5-53
Vehicle information and settings
(display) ...................4-7
Vehicle identification number (VIN) ..... .9-12
Vehicle loading information ......... .9-17
Vehicle security system ........... .2-27
Ventilators .................. .4-27
Voice command (See Bluetooth  Hands-Free
Phone System) ............ .4-87 , 4-101
Voice recognition system ......... .4-109
Voice recognition, Alternate command
mode ..................... .4-122
W
Walk-in mechanism .............. .1-6
Warning
Dot matrix display ............ .2-19
Hazard warning flasher switch ...... 2-37
Tire pressure monitoring system
(TPMS) ....................5-3
Warning/indicator lights and audible
reminders .................. 2-11
Warning labels, Air bag warning labels . . .1-53
Warning light
Air bag warning light ........... .1-53
All-wheel drive (AWD) warning light . . . 2-12
Anti-lock braking system (ABS) warning
light ..................... 2-12
Brake warning light ............ 2-12
Intelligent Key warning light ....... 2-14
Low
tire
pressure warning light ..... 2-14
Seat belt warning light and chime .... 2-16
Warning lights ................ .2-12
10-7
 —
—
04/30/10—diane
