DURING A CALL There are some options available during a call.
Select one of the following displayed on the
screen if necessary.
● Hang up
Finish the call.
● Use Handset
Transfer the call to the cellular phone.
● Mute
Mute your voice to the person. ● Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail.
● Cancel Mute
This will appear after “Mute” is selected.
Mute will be canceled.
To adjust the person’s voice to be louder or
quieter, push the volume control switch (+ or  )
on the steering wheel or turn the volume control
knob on the instrument panel while talking on
the phone. This adjustment is also available in
the SETTING mode.
PHONE SETTING To set up the Bluetooth  Hands-Free Phone
System to your preferred settings, push the
SETTING button on the instrument panel and
select the “PHONE” key.
Edit Vehicle Phonebook To edit the vehicle phonebook, use the same
procedure as described in “VEHICLE PHONE-
BOOK” earlier in this section.
Delete Phonebook The vehicle phonebook entries can be deleted
all at the same time or one by one.SAA2526 SAA2527
Monitor, climate, audio, phone and voice recognition systems
4-93
 —
—
04/21/10—debbie


TROUBLESHOOTING GUIDE The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved. Symptom Solution
System fails to interpret the com-
mand correctly. 1. Ensure that the command is valid. (See “INFINITI VOICE RECOGNITION SYSTEM (models with navigation system)”
later in this section; page 4-109.)
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the
vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on). NOTE: If it is
too noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
The system consistently selects the
wrong voicetag. 1. Ensure that the voicetag requested matches what was originally stored. (See “VEHICLE PHONEBOOK” earlier in
this section.)
2. Replace one of the names being confused with a new name.
Monitor, climate, audio, phone and voice recognition systems
4-95
 —
—
04/21/10—debbie


WARNING● Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTIONTo avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a Bluetooth  enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule. With Bluetooth  wireless technology, you
can make or receive a telephone call with your
cellular phone in your pocket.
Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone mod- ule when the ignition switch is pushed to the
“ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time,
the audio mode will mute and will stay muted
until the active call is ended.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible.
Before using the Bluetooth  Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth  Hands-
Free Phone System.
● Some Bluetooth  enabled cellular phones
may not be recognized by the in-vehicle
phone module. ● You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone
service area.
– Your vehicle is in an area where it is
difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not
to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth  wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.BLUETOOTH  HANDS-FREE PHONE SYSTEM
(models without navigation system)
4-96 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


2. A list of commands appears on the screen,
and the system announces, “Please say a
command after the beep. Available com-
mands are: Call, Phonebook, Recent Calls,
Connect Phone or Help”.
3. After the tone sounds and the icon on the
screen changes from to , speak
a command. See the “List of voice com-
mands” later in this section for the voice
command list. Speak “Call” for example.
INFO
Voice commands cannot be recognized as
long as the screen icon is not in the com-
mand recognition mode . 4. The system acknowledges the command
and announces the next set of available
commands.
5. After the tone sounds, speak the phone
number.
6. When you have finished speaking the
phone number, the system repeats it back
and announces the available commands.
7. After system responds, speak “Dial” and
the system dials the spoken numbers.
Operating tips :
● Voice commands cannot be accepted when
the icon is .
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
● Push the switch or the BACK button
once to return to the previous screen.
● If you want to cancel the command, push the
switch. The message “Voice input is
canceled” will be announced. If you want to
adjust the volume of the system feedback,
push the volume control buttons [+] or [  ]
on the steering wheel or use the audio
system volume knob while the system is
making an announcement. How to speak commands :
The Voice Recognition System requires a certain
way to speak voice commands. Speak normally
and clearly in the direction of the microphone
(located in front of the rearview mirror). Every
digit of the number must be spoken individually
and in a normal manner. The hands-free mode
will work best when the telephone number is
spoken in blocks of three to five digits. After
each spoken block is terminated, the system
will repeat the three to five digits and wait for
you to speak the next digit or block of digits
required for the telephone number.
See “List of voice commands” later in this
section for the appropriate commands that can
be spoken for the hands-free mode system.
Example:
In order to initiate a call, speak “Phonebook”.
INFO
● If you are controlling the telephone system
by voice command for the first time or do not
know the appropriate voice command, speak
“Help”. The system announces the available
commands.
● When you speak numbers, you can speak
both “zero” or “oh” for “0”.SAA2574
Monitor, climate, audio, phone and voice recognition systems
4-99
 —
—
04/21/10—debbie


Personal vocabulary (voicetags) :
Voice Recognition System is equipped with the
function called “voicetags”, which can be asso-
ciated with the phone number and name in the
phonebook. Using the voice tag will automati-
cally generate a speed dial to the registered
number.
See “PHONEBOOK REGISTRATION” earlier in
this section.
You can call the identified number using the
following command: “Dial” followed by the
voice tag.
Dialling a name with a voice tag :
It is possible to call up a name via a voice tag
instead of a number, provided the name and
number of your correspondent has been previ-
ously stored in the phonebook.
Dial via a voice tag, according to the following
procedure.
1. Push the switch.
2. The system replies “please say a com-
mand after the beep. Available commands
are: Call, Phonebook, Recent Calls, Con-
nect Phone or Help”. 3. Give your instructions to the system by
saying: “Dial John” for example (“John”
must have been previously set as a voice
tag for John’s phone number) or “Dial
One” if John is classified as one in the
phonebook.
If the system cannot understand your com-
mand, repeat it according to the recommen-
dations mentioned in “How to speak com-
mands” earlier in this section.
4. If the given name (voice tag) is correct,
the phone system will dial the number
registered for “John”.
INFO
To end the voice command phase at any stage
of the procedure, push the switch once
in order to activate the cancel command. Manual command selection :
Commands can be selected manually. While the
commands are displayed on the screen, select a
command by operating the Tune switch, and
then push the button. Once a command
is manually selected, the voice command func-
tion is cancelled. To return to voice command
mode, push the button to cancel the
current operation, and then perform the first
procedure of voice command.
4-100 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


NOTE:
When the user deletes a phone, the associated
phone book for that phone will also be deleted.
● Replace Phone
Use the Replace Phone command to change
the priority level of the active phone.
The priority level determines which phone is
active when more than one paired
Bluetooth  phone is in the vehicle.
The system states the priority level of the
active phone and asks for a new priority
level (1, 2, 3, 4, 5).
If the new priority level is already being used
for another phone, the two phones will swap
priority levels.
For example, if the current priority levels are:
Priority Level 1 = Phone A
Priority Level 2 = Phone B
Priority Level 3 = Phone C
and you change the priority level of Phone C to
Level 1, then:
Priority Level 1 = Phone C
Priority Level 2 = Phone B
Priority Level 3 = Phone A ● Bluetooth On/Off
Use the Bluetooth On/Off command to turn
on/off Bluetooth  Hands-Free Phone Sys-
tem.
● Help
The system announces the available com-
mands.
VOICE ADAPTATION MODE The Voice Adaptation mode allows up to two
users with different dialects to train the system
to improve recognition accuracy. By repeating a
number of commands, the users can create a
voice model of their own voice that is stored in
the system. The system is capable of storing a
different voice adaptation model for each con-
nected phone.
Training procedure 1. Position the vehicle in a reasonably quiet
outdoor location.
2. Sit in the driver’s seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Press the button. 4. Speak: “Help”. The system acknowledges
the command and announces the next set
of available commands.
5. Speak:  Voice Adaptation  . The system
acknowledges the command and displays
the voice adaptation mode screen.
6. Voice memory A or memory B is selected
automatically. If both memory locations
are already in use, the system will prompt
you to overwrite one. Follow the instruc-
tions provided by the system.
7. When preparation is complete and you are
ready to begin, press the button.
8. The voice adaptation mode will be ex-
plained. Follow the instructions provided
by the system.
9. When training is finished, the system will
tell you an adequate number of phrases
have been recorded.
10. The system will ask you to say your
name. Follow the instructions to register
your name.
11. The system will announce that voice ad-
aptation has been completed and the
system is ready.
4-108 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie

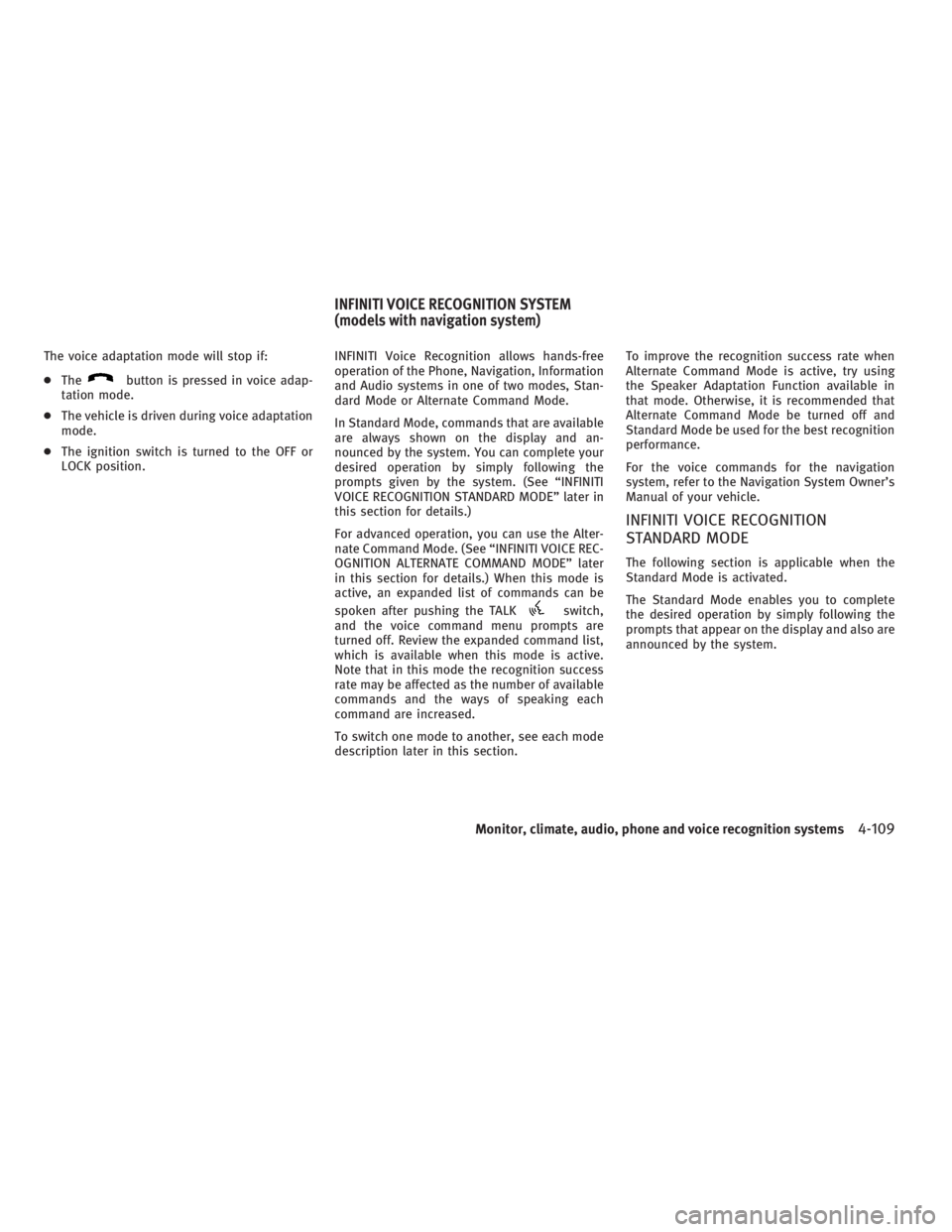

The voice adaptation mode will stop if:
● The
button is pressed in voice adap-
tation mode.
● The vehicle is driven during voice adaptation
mode.
● The ignition switch is turned to the OFF or
LOCK position. INFINITI Voice Recognition allows hands-free
operation of the Phone, Navigation, Information
and Audio systems in one of two modes, Stan-
dard Mode or Alternate Command Mode.
In Standard Mode, commands that are available
are always shown on the display and an-
nounced by the system. You can complete your
desired operation by simply following the
prompts given by the system. (See “INFINITI
VOICE RECOGNITION STANDARD MODE” later in
this section for details.)
For advanced operation, you can use the Alter-
nate Command Mode. (See “INFINITI VOICE REC-
OGNITION ALTERNATE COMMAND MODE” later
in this section for details.) When this mode is
active, an expanded list of commands can be
spoken after pushing the TALK switch,
and the voice command menu prompts are
turned off. Review the expanded command list,
which is available when this mode is active.
Note that in this mode the recognition success
rate may be affected as the number of available
commands and the ways of speaking each
command are increased.
To switch one mode to another, see each mode
description later in this section. To improve the recognition success rate when
Alternate Command Mode is active, try using
the Speaker Adaptation Function available in
that mode. Otherwise, it is recommended that
Alternate Command Mode be turned off and
Standard Mode be used for the best recognition
performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner’s
Manual of your vehicle.
INFINITI VOICE RECOGNITION
STANDARD MODE The following section is applicable when the
Standard Mode is activated.
The Standard Mode enables you to complete
the desired operation by simply following the
prompts that appear on the display and also are
announced by the system.INFINITI VOICE RECOGNITION SYSTEM
(models with navigation system)
Monitor, climate, audio, phone and voice recognition systems
4-109
 —
—
04/21/10—debbie


Activating Standard Mode When the Alternate Command Mode is active,
perform the following steps to switch to the
Standard Mode.
1. Push the SETTING button on the instru-
ment panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key. 4. Select the “Alternate Command Mode”
key.
5. The indicator turns off and the Standard
Mode activates.
Displaying user guide If you use the INFINITI Voice Recognition system
for the first time or you do not know how to
operate it, you can display the User Guide for
confirmation.
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands. 1. Push the INFO button on the instrument
panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “User Guide” key.
5. Select a preferred item.
You can skip steps 1 and 3 above if you say
“Help”.SAA2529 SAA2530 SAA2531
4-110 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


Available items :
● Getting Started
Describes the basics of how to operate the
INFINITI Voice Recognition system.
● Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
● Using the Address Book
Tutorial for entering a destination by using
the Address Book.
● Finding a Street Address (if so equipped)
Tutorial for entering a destination by street
address.
● Placing Calls
Tutorial for making a phone call by voice
command operation.
● Help on Speaking
Displays useful tips of speaking for correct
command recognition by the system.
Note that the Command List feature is only
available when Alternate Command Mode is
active. Getting Started Before using the INFINITI Voice Recognition
system for the first time, you can confirm how to
use commands by viewing the Getting Started
section of the User Guide.
1. Select the “Getting Started” key.
2. You can confirm the page by scrolling the
screen using the INFINITI controller.
Tutorials on the operation of the INFINITI Voice
Recognition system
If you choose “Using the Address Book”, “Find-
ing a Street Address” or “Placing Calls”, you
can view tutorials on how to perform these
operations using INFINITI Voice Recognition. Let’s Practice This mode helps learn how to use the INFINITI
Voice Recognition system.
1. Select the “Let’s Practice” key.
2. After the message screen appears, push
the TALK switch on the steering
wheel.
3. Speak the displayed number after the
tone. The evaluation screen will be dis-
played and the result can be confirmed. SAA2532 SAA2534
Monitor, climate, audio, phone and voice recognition systems
4-111
 —
—
04/21/10—debbie


2. A list of commands appears on the
screen, and the system announces,
“Would you like to access Phone, Naviga-
tion, Information, Audio or Help?”.
3. After the tone sounds and the icon on the
screen changes from to ,
speak a command.
Selecting the “Practice” key will start the
practice mode. See “Let’s Practice” earlier in
this section.
4. Continue to follow the voice menu
prompts and speak after the tone sounds
until your desired operation is completed.
Selecting the “ Help ” key can display the
detailed information of the each command. Operating tips :
● Say a command after the tone.
● Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
● Push the BACK button once to return to the
previous screen.
● To exit the voice recognition system, push
and hold the TALK switch. The mes-
sage, “Voice canceled” will be announced.
● To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Re-
member to speak after the tone.
● If you want to adjust the volume of the
system feedback, push the volume control
buttons [+] or [  ] on the steering switch or
use the audio system volume knob while the
system is making an announcement. How to speak numbers :
INFINITI Voice Recognition requires a certain
way to speak numbers when giving voice com-
mands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot.)
Examples
● 1-800-662-6200
– “One eight zero zero six six two six two
zero zero”
Improving Recognition of Phone numbers
You can improve the recognition of phone num-
bers by saying the phone number in three
groups of numbers. For example, when you try
to call 800-662-6200, say “eight zero zero”
first, and the system will then ask you for the
next three digits. Then, say “six six two”. After
recognition, the system will then ask for the last
four digits. Say, “six two zero zero”. Using this
method of phone digit entry can improve recog-
nition performance.SAA2535
Monitor, climate, audio, phone and voice recognition systems
4-113
 —
—
04/21/10—debbie
