In the event of a roadside emergency, Roadside
Assistance Service is available to you. Please
refer to your Warranty Information Booklet
(U.S.) or Warranty & Roadside Assistance Infor-
mation Booklet (Canada) for details.
Emergency engine shut off To shut off the engine in an emergency situation
while driving perform the following procedure:
− Rapidly push the push-button ignition switch
3 consecutive times, or
− Push and hold the push-button ignition for
more than 2 seconds.
TIRE PRESSURE MONITORING SYSTEM
(TPMS) This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit, one or
more of your tires is significantly under-
inflated. If the vehicle is being driven with low
tire pressure, the TPMS will activate and warn
you of it by the low tire pressure warning light.
This system will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h). For
more details, see “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section and “TIRE PRES-
SURE MONITORING SYSTEM (TPMS)” in the “5.
Starting and driving” section. WARNING● If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.ROADSIDE ASSISTANCE PROGRAM FLAT TIRE
6-2 In case of emergency
 —
—
04/21/10—debbie

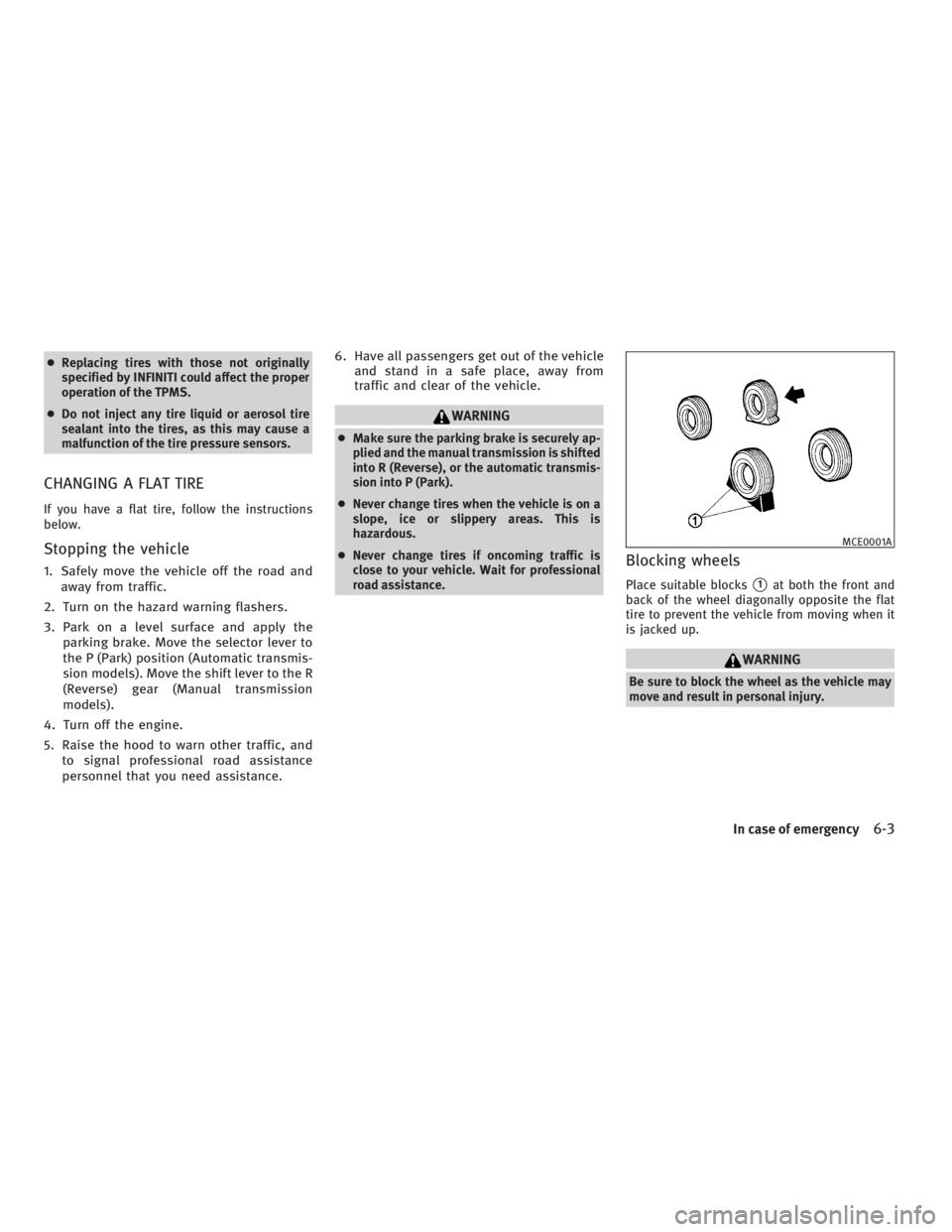

● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE If you have a flat tire, follow the instructions
below.
Stopping the vehicle 1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the
parking brake. Move the selector lever to
the P (Park) position (Automatic transmis-
sion models). Move the shift lever to the R
(Reverse) gear (Manual transmission
models).
4. Turn off the engine.
5. Raise the hood to warn other traffic, and
to signal professional road assistance
personnel that you need assistance. 6. Have all passengers get out of the vehicle
and stand in a safe place, away from
traffic and clear of the vehicle.
WARNING● Make sure the parking brake is securely ap-
plied and the manual transmission is shifted
into R (Reverse), or the automatic transmis-
sion into P (Park).
● Never change tires when the vehicle is on a
slope, ice or slippery areas. This is
hazardous.
● Never change tires if oncoming traffic is
close to your vehicle. Wait for professional
road assistance.
Blocking wheels Place suitable blocks
 1
at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it
is jacked up.
WARNINGBe sure to block the wheel as the vehicle may
move and result in personal injury. MCE0001A
In case of emergency
6-3
 —
—
04/21/10—debbie


When driving in areas using road salt or other
corrosive materials, check lubrication fre-
quently.
Lights*: Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking the
tires, make sure no wheel nuts are missing, and
check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires should be rotated every
7,500 miles (12,000 km). If your vehicle is
equipped with different sized tires in the front
and rear, tires cannot be rotated.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If nec-
essary, adjust the pressure in all tires, includ-
ing the spare, to the pressure specified. Check
carefully for damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS) trans-
mitter components: Replace the TPMS transmit-
ter grommet seal, valve core and cap when the
tires are replaced due to wear or age.
Tire, wheel alignment and balance: If the vehicle
should pull to either side while driving on a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Windshield: Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks or
wear if they do not wipe properly.
Inside the vehicle The maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Accelerator pedal: Check the pedal for smooth
operation and make sure the pedal does not
catch or require uneven effort. Keep the floor
mat away from the pedal. Automatic transmission P (Park) mechanism: On
a fairly steep hill, check that your vehicle is held
securely with the selector lever in the P (Park)
position without applying any brakes.
Brake pedal: Check the pedal for smooth opera-
tion. If the brake pedal suddenly goes down
further than normal, the pedal feels spongy or
the vehicle seems to take longer to stop, see an
INFINITI retailer immediately. Keep the floor mat
away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake opera-
tion regularly. The vehicle should be securely
held on a fairly steep hill with only the parking
brake applied. If the parking brake needs ad-
justed, see an INFINITI retailer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
Maintenance and do-it-yourself
8-3
 —
—
04/21/10—debbie

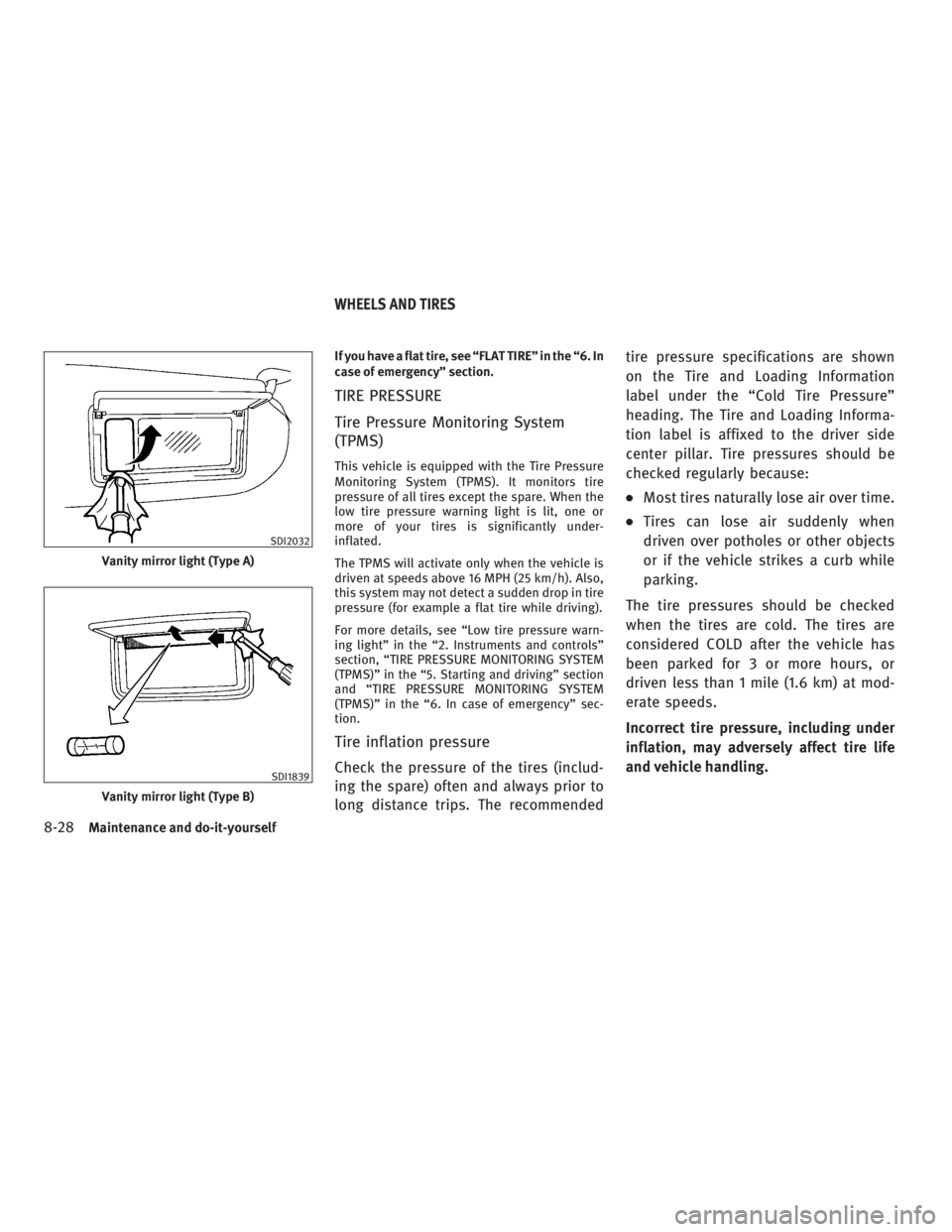

If you have a flat tire, see “FLAT TIRE” in the “6. In
case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS) This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit, one or
more of your tires is significantly under-
inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h). Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving).
For more details, see “Low tire pressure warn-
ing light” in the “2. Instruments and controls”
section, “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “5. Starting and driving” section
and “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “6. In case of emergency” sec-
tion.
Tire inflation pressure
Check the pressure of the tires (includ-
ing the spare) often and always prior to
long distance trips. The recommended tire pressure specifications are shown
on the Tire and Loading Information
label under the “Cold Tire Pressure”
heading. The Tire and Loading Informa-
tion label is affixed to the driver side
center pillar. Tire pressures should be
checked regularly because: ●
Most tires naturally lose air over time. ●
Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
Incorrect tire pressure, including under
inflation, may adversely affect tire life
and vehicle handling.Vanity mirror light (Type A) SDI2032
Vanity mirror light (Type B) SDI1839WHEELS AND TIRES
8-28 Maintenance and do-it-yourself
 —
—
04/21/10—debbie

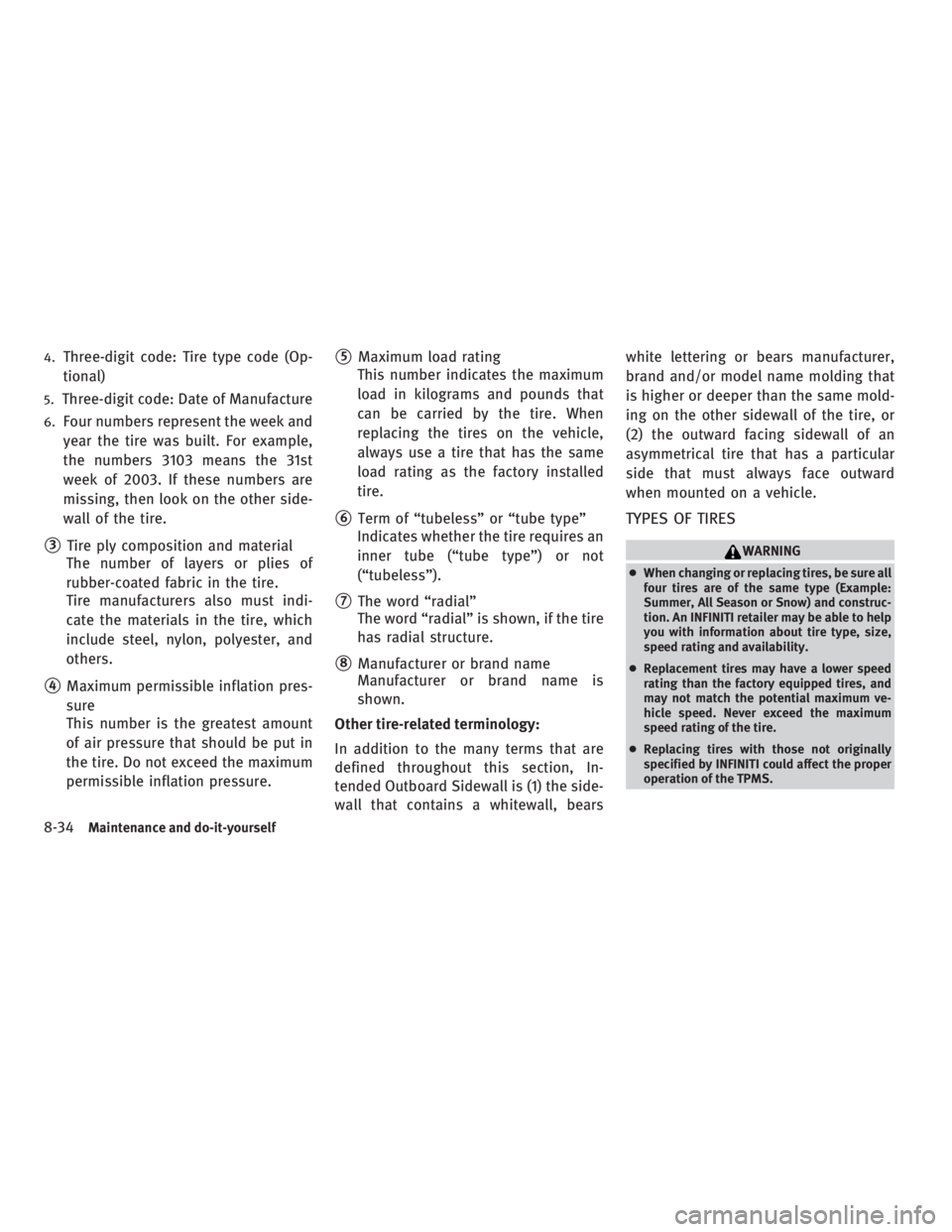

4.
Three-digit code: Tire type code (Op-
tional)5.
Three-digit code: Date of Manufacture6.
Four numbers represent the week and
year the tire was built. For example,
the numbers 3103 means the 31st
week of 2003. If these numbers are
missing, then look on the other side-
wall of the tire.
 3
Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must indi-
cate the materials in the tire, which
include steel, nylon, polyester, and
others.
 4
Maximum permissible inflation pres-
sure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.  5
Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
 6
Term of “tubeless” or “tube type”
Indicates whether the tire requires an
inner tube (“tube type”) or not
(“tubeless”).
 7
The word “radial”
The word “radial” is shown, if the tire
has radial structure.
 8
Manufacturer or brand name
Manufacturer or brand name is
shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, In-
tended Outboard Sidewall is (1) the side-
wall that contains a whitewall, bears white lettering or bears manufacturer,
brand and/or model name molding that
is higher or deeper than the same mold-
ing on the other sidewall of the tire, or
(2) the outward facing sidewall of an
asymmetrical tire that has a particular
side that must always face outward
when mounted on a vehicle.
TYPES OF TIRES WARNING● When changing or replacing tires, be sure all
four tires are of the same type (Example:
Summer, All Season or Snow) and construc-
tion. An INFINITI retailer may be able to help
you with information about tire type, size,
speed rating and availability.
● Replacement tires may have a lower speed
rating than the factory equipped tires, and
may not match the potential maximum ve-
hicle speed. Never exceed the maximum
speed rating of the tire.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
8-34 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


●
The original tires have built-in tread
wear indicators. When wear indica-
tors are visible, the tire(s) should be
replaced.●
Tires degrade with age and use. Have
tires, including the spare, over 6
years old checked by a qualified tech-
nician, because some tire damage
may not be obvious. Replace the tires
as necessary to prevent tire failure
and possible personal injury.●
Improper service of the spare tire may
result in serious personal injury. If it
is necessary to repair the spare tire,
contact an INFINITI retailer.●
For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet. Replacing wheels and tires When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “SPECIFICATIONS”
in the “9. Technical and consumer information”
section for recommended types and sizes of
tires and wheels.)
WARNING● The use of tires other than those recom-
mended or the mixed use of tires of different
brands, construction (bias, bias-belted or ra-
dial), or tread patterns can adversely affect
the ride, braking, handling, ground clear-
ance, body-to-tire clearance, tire chain
clearance, speedometer calibration, head-
light aim and bumper height. Some of these
effects may lead to accidents and could re-
sult in serious personal injury. ● If the wheels are changed for any reason,
always replace with wheels which have the
same off-set dimension. Wheels of a differ-
ent off-set could cause premature tire wear,
degrade vehicle handling characteristics
and/or interference with the brake
discs/drums. Such interference can lead to
decreased braking efficiency and/or early
brake pad/shoe wear. See “WHEELS AND
TIRES” in the “9. Technical and consumer
information” section of this manual for
wheel off-set dimensions.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not install a damaged or deformed wheel
or tire even if it has been repaired. Such
wheels or tires could have structural damage
and could fail without warning.
● The use of retread tire is not recommended.
8-38 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


INFINITI voice recognition system ..... .4-109
INFO button .................. .4-8
Inside mirror ................. .3-25
Inspection/maintenance (I/M) test ..... .9-24
Instrument brightness control ....... .2-36
Instrument panel ............... .2-3
Intelligent cruise control (ICC) system . . . .5-21
Intelligent cruise control (ICC) system main
switch indicator ............... .2-23
Intelligent Cruise Control (ICC) system
warning light ................. .2-14
Intelligent cruise control (ICC) system,
Preview function ............... .5-42
Intelligent Key ................. .3-2
Intelligent Key battery discharge
indicator .................... .2-22
Intelligent Key insertion indicator ..... .2-21
Intelligent Key removal indicator ...... .2-21
Intelligent Key system ............. .3-7
Intelligent Key system
Battery replacement ........... .8-22
Key operating range ............3-8
Key operation ............... 3-10
Warning light ................ 2-14
Warning signals .............. 3-12
Intelligent Key warning light ........ .2-14
Interior light control switch ......... .2-55
Interior light replacement .......... .8-25
Interior lights ................. .2-54
Interior trunk lid release .......... .3-20
iPod  player operation ............ .4-71
ISOFIX child restraint ............. .1-22 J
Jump starting .................. .6-7
K
Keyless entry (See remote keyless entry
system) .................... .3-14
Keys ....................... .3-2
Keys, For Intelligent Key system ....... .3-7
Labels
Air bag warning labels .......... .1-53
Air conditioner specification label .... 9-14
Emission
control
information label .... 9-13
Engine serial number ........... 9-12
F.M.V.S.S./C.M.V.S.S. certification
label ..................... 9-13
Tire and Loading information label . . . 9-14
Vehicle identification number (VIN) . . . 9-12
L
LATCH system ................. .1-22
License plate, Installing front license plate .9-15
Light
Air bag warning light ........... .1-53
Bulb replacement ............. 8-23
Fog light switch .............. 2-37
Headlight switch .............. 2-33
Headlights bulb replacement ....... 8-25
Indicator lights ............... 2-16
Interior light control switch ........ 2-55
Interior lights ............... 2-54 Map lights ................. 2-54
Trunk light ................. 2-56
Vanity mirror lights ............ 2-56
Warning/indicator lights and audible
reminders .................. 2-12
Xenon headlights ............. 2-32
Light replacement .............. .8-23
Lights, Exterior and interior light
replacement ................. .8-25
Loading information (See vehicle loading
information) .................. .9-17
Lock
Automatic door locks ........... .3-6
Door locks ..................3-4
Power door lock ...............3-4
Trunk lid .................. 3-18
Locking with mechanical key ......... .3-4
Low fuel warning ............... .2-22
Low outside temperature warning ..... .2-22
Low tire pressure warning light . . ..... .2-14
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .... .5-3
Low washer fluid warning .......... .2-22
Maintenance
Battery ................... .8-13
General maintenance ............8-2
Indicators for maintenance
(dot
matrix) ................ 2-23
Inside
the vehicle ..............8-3
Maintenance precautions .........8-5
Maintenance requirements . . ......8-2
Outside the vehicle .............8-2
Seat belt maintenance .......... 1-20
10-4
 —
—
04/30/10—diane


Tire
Tire replacement indicator ....... .2-23
Tire rotation ................ 8-36
Tire pressure, Low tire pressure warning
light ...................... .2-14
Tires
Flat tire ................... .6-2
Low tire pressure warning system ....5-3
Spare tire ................. 8-39
Tire and Loading information label . . . 8-30
Tire chains ................. 8-35
Tire dressing ................7-4
Tire pressure ................ 8-28
Tire pressure monitoring system
(TPMS) ....................5-3
Types of tires ............... 8-34
Uniform tire quality grading ....... 9-22
Wheel/tire size ...............9-9
Wheels and tires ............. 8-28
Top tether strap child restraints ...... .1-24
Touch screen system ............. .4-4
Towing
Flat towing ................ .9-21
Tow truck towing .............. 6-11
Towing a trailer .............. 9-21
TPMS, Tire pressure monitoring system . . . .5-3
TPMS, Tire pressure warning system .... .6-2
Trailer towing ................. .9-21
Transceiver, HomeLink  Universal
Transceiver .................. .2-57
Transmission
Automatic transmission fluid (ATF) . . . .8-11
Driving with automatic transmission . . . 5-12
Driving with manual transmission .... 5-16
Transmission selector lever
lock release ................. 5-15 Transmitter (See remote keyless entry
system) .................... .3-14
Traveling or registering your vehicle in
another country ................ .9-11
Trip computer ................. .2-24
Trip odometer ................. .2-25
Trunk
Interior trunk lid release ........ .3-20
Trunk lid .................. 3-18
Trunk lid release switch .......... 3-18
Trunk
net for extra window washer
fluid ..................... 2-49
Trunk open request switch ........ 3-19
Trunk release power cancel switch . . . 3-19
Trunk light .................. .2-56
Trunk pass-through .............. .1-12
Turn signal switch .............. .2-37
U
Underbody cleaning .............. .7-3
Uniform tire quality grading ........ .9-22
V
Vanity mirror ................. .3-28
Vanity mirror lights ............. .2-56
Variable voltage control system ....... .8-15
Vehicle
Dimensions ................ .9-11
Recovery (freeing a stuck vehicle) .... 6-13
Vehicle dynamic control (VDC)
off switch ................. 2-40 Vehicle dynamic control (VDC)
system ................... 5-53
Vehicle information and settings
(display) ...................4-7
Vehicle identification number (VIN) ..... .9-12
Vehicle loading information ......... .9-17
Vehicle security system ........... .2-27
Ventilators .................. .4-27
Voice command (See Bluetooth  Hands-Free
Phone System) ............ .4-87 , 4-101
Voice recognition system ......... .4-109
Voice recognition, Alternate command
mode ..................... .4-122
W
Walk-in mechanism .............. .1-6
Warning
Dot matrix display ............ .2-19
Hazard warning flasher switch ...... 2-37
Tire pressure monitoring system
(TPMS) ....................5-3
Warning/indicator lights and audible
reminders .................. 2-11
Warning labels, Air bag warning labels . . .1-53
Warning light
Air bag warning light ........... .1-53
All-wheel drive (AWD) warning light . . . 2-12
Anti-lock braking system (ABS) warning
light ..................... 2-12
Brake warning light ............ 2-12
Intelligent Key warning light ....... 2-14
Low
tire
pressure warning light ..... 2-14
Seat belt warning light and chime .... 2-16
Warning lights ................ .2-12
10-7
 —
—
04/30/10—diane
