audio INFINITI G37 2010 User Guide

● You can switch the lock system to the mode
that allows you to open all the doors when
the key is turned once. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, cli-
mate, audio, phone and voice recognition
systems” section.)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY The driver’s door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section).
To open the window, turn the driver’s door key
cylinder to the rear of the vehicle for longer than
1 second . The door is unlocked and the window
keeps opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the
Intelligent Key. (See “REMOTE KEYLESS ENTRY
SYSTEM” later in this section.)
To close the window, turn the driver’s door key
cylinder to the front of the vehicle for longer
than 1 second . The door is locked and the
window keeps closing while turning the key. LOCKING WITH INSIDE LOCK KNOB To lock the door individually, move the inside
lock knob to the lock position
 1
then close the
door.
To unlock, move the inside lock knob to the
unlock position
 2
.
When locking the door without an Intelligent
Key, be sure not to leave the Intelligent Key
inside the vehicle. LOCKING WITH POWER DOOR LOCK
SWITCH Operating the power door lock switch will lock
or unlock all the doors. The switches are lo-
cated on the driver’s and front passenger’s door
armrests.
To lock the doors, push the power door lock
switch to the lock position
 1
with the driver’s
or front passenger’s door open, then close the
door.
When locking the door this way, be certain not to
leave the Intelligent Key inside the vehicle.
To unlock the doors including the fuel-filler
door, push the power door lock switch to the
unlock position
 2
.SPA1814 SPA2300
Pre-driving checks and adjustments
3-5
 —
—
10/12/09—tbrooks


Because the steering wheel is locked electri-
cally, unlocking the steering wheel with the
ignition switch in the LOCK position is impos-
sible when the vehicle battery is completely
discharged. Pay special attention that the ve-
hicle battery is not completely discharged.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information
about the purchase and use of additional Intel-
ligent Keys, contact an INFINITI retailer.
CAUTION● Do not allow the Intelligent Key, which con-
tains electrical components, to come into
contact with water or salt water. This could
affect the system function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent Key.
● Wetting may damage the Intelligent Key. If
the Intelligent Key gets wet, immediately
wipe until it is completely dry.
● Do not place the Intelligent Key for an ex-
tended period in an area where tempera-
tures exceed 140°F (60°C). ● Do not attach the Intelligent Key with a key
holder that contains a magnet.
● Do not place the Intelligent Key near equip-
ment that produces a magnetic field, such as
a TV, audio equipment and personal
computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to oper-
ate the vehicle. For information regarding the
erasing procedure, contact an INFINITI retailer.
INTELLIGENT KEY OPERATING RANGE The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
 1
. SPA2538
3-8 Pre-driving checks and adjustments
 —
—
10/12/09—tbrooks


When the Intelligent Key battery is discharged
or strong radio waves are present near the
operating location, the Intelligent Key system’s
operating range becomes narrower, and the
Intelligent Key may not function properly.
The operating range is within 31.50 in (80 cm)
from each request switch
 1
.
If the Intelligent Key is too close to the door
glass, handle or rear bumper the request
switches may not function.
When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors and open the
trunk lid.
DOOR LOCKS/UNLOCKS PRECAUTION ● Do not push the door handle request switch
with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the Intel-
ligent Key is outside the vehicle.
● After locking with the door handle request
switch, verify the doors are securely locked
by testing them.
● To prevent the Intelligent Key from being left
inside the vehicle or the trunk, make sure
you carry the key with you and then lock the
doors or the trunk. ● Do not pull the door handle before pushing
the door handle request switch. The door
will be unlocked but will not open. Release
the door handle once and pull it again to
open the door.
● The Intelligent Key system (opening/closing
doors with the door handle request switch)
can be set to remain inactive. (See “VEHICLE
INFORMATION AND SETTINGS” in the “4.
Monitor, climate, audio, phone and voice
recognition systems” section.) SPA2407
Pre-driving checks and adjustments
3-9
 —
—
10/12/09—tbrooks


the “4. Monitor, climate, audio, phone and
voice recognition systems” section.)
Initialize entry/exit function If the battery cable is disconnected, or if the
fuse opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is turned from the ON position to the
LOCK position. The entry/exit function will be
activated.
SEAT SYNCHRONIZATION FUNCTION The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mir-
rors will not move if the seat is adjusted over
the maximum thresholds. The system considers
that the steering wheel and outside mirror
adjustments are not necessary because the
seat may not be adjusted for the driving posi-
tion. Note that the function is set to disabled as
the factory default setting. The seat synchronization function operates un-
der the following conditions:
● The ignition switch is in the ON position.
● The selector lever is in the P (Park) position
(Automatic Transmission models) or the
parking brake is applied (Manual Transmis-
sion models).
● The seatback is raised (Coupe).
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function
is automatically disabled. Restart the function
by selecting a previously stored seat memory
position using the memory switches (1 or 2). An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in
the seat memory, restart the function by adjust-
ing the steering wheel and outside mirrors
manually for your best driving position and then
drive the vehicle above 4 MPH (7 km/h). SPA2322
Pre-driving checks and adjustments
3-29
 —
—
04/21/10—debbie


4 Monitor, climate, audio, phone and voice
recognition systems Safety note ....................................... 4-2
Center multi-function control panel ................. 4-2

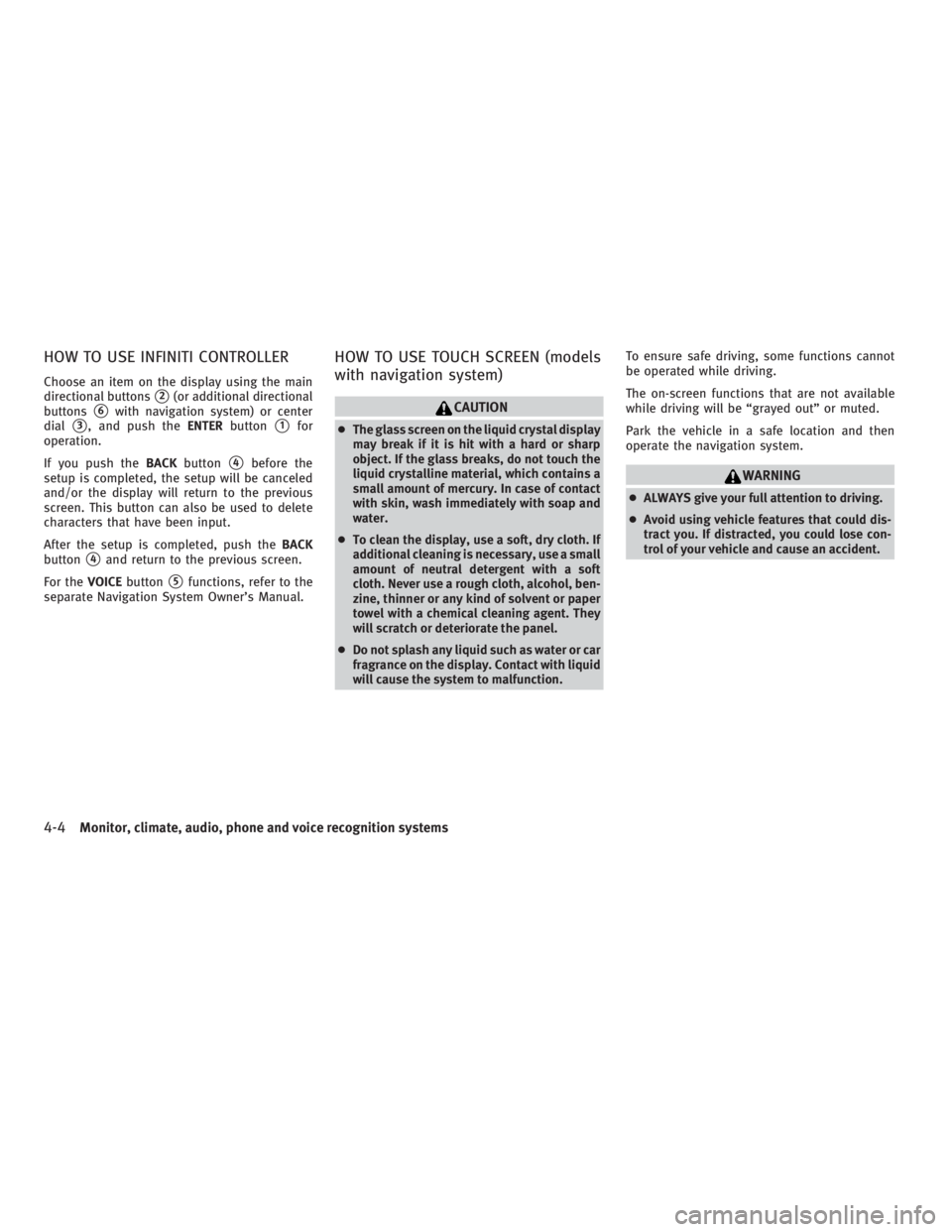

How to use INFINITI controller ................... 4-4
How to use touch screen
(models with navigation system) ................. 4-4
Menu options (models with navigation
system) ....................................... 4-6
How to select menus on the screen .............. 4-7
Vehicle information and settings .................... 4-7
How to use STATUS button ...................... 4-7
How to use brightness control and display
ON/OFF button ................................. 4-7
How to use INFO button ........................ 4-8
How to use SETTING button .................... 4-12
Rearview monitor (if so equipped) ................. 4-22
How to read displayed lines .................... 4-22
How to park with predicted course lines ......... 4-23
Difference between predicted and actual
distances ..................................... 4-24
How to adjust screen .......................... 4-26
Operating tips ................................ 4-26
Ventilators ....................................... 4-27
Automatic climate control ......................... 4-28
Automatic climate control (Type A) .............. 4-30 Automatic climate control (Type B) .............. 4-32
Automatic climate control (Type C) .............. 4-34
Operating tips ................................ 4-37
In-cabin microfilter ............................ 4-38
Servicing climate control ....................... 4-38
Audio system .................................... 4-39
Audio operation precautions ................... 4-39
FM-AM-SAT radio with Compact Disc (CD)
player ........................................ 4-54
DVD (DIGITAL VERSATILE DISC) player
operation (models with navigation system) ...... 4-59
Usb input operation (if so equipped) ............ 4-62
Bluetooth  streaming audio
(models with navigation system) ................ 4-66
iPod  player operation (if so equipped) ......... 4-71
Music box hard-disk drive (if so equipped) ...... 4-73
Auxiliary input jacks (if so equipped) ............ 4-81
Cd/dvd/usb memory care and cleaning ......... 4-82
Steering-wheel-mounted controls for audio ...... 4-83
Antenna ...................................... 4-84
Car phone or CB radio ............................ 4-85
Bluetooth  Hands-Free Phone System
(models with navigation system) ................... 4-85
Regulatory information ......................... 4-87
 —
—
04/21/10—debbie


WARNING● Do not disassemble or modify this system. If
you do, it may result in accidents, fire, or
electric shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or lack
of sound. Continued use of the system may
result in accident, fire or electric shock.
● In case you notice any foreign object in the
system hardware, spill liquid on it, or notice
smoke or smell coming from it, stop using
the system immediately and contact your
nearest INFINITI retailer. Ignoring such con-
ditions may lead to accidents, fire, or electric
shock.
● Park the vehicle in a safe location and apply
the parking brake to view the images on the
front center display screen using devices
connected to the auxiliary input jacks.
Do not attempt to operate the system in extreme
temperature conditions [below  4°F (  20°C)
and above 158°F (70°C)]. Operating this system
under these conditions may result in system
malfunctions. 1. “ STATUS ” status display button (P. 4-7)
2, 6, 7, 10, 11. For navigation system control
buttons (Refer to the sepa-
rate Navigation System Own-
er’s Manual.)
3. INFINITI controller (P. 4-4)
4. “ PHONE ” Bluetooth  Hands-Free Phone
System button (P. 4-85)
5. “ OFF ” brightness control and dis-
play ON/OFF button (P. 4-7) 8. “ AM·FM·SAT ” band selector button
(P. 4-39)
9. “ DISC·AUX ” selector button (P. 4-39)
12. “ INFO ” vehicle and navigation informa-
tion button (P. 4-8)
13. “ SETTING ” button (P. 4-12)Models with navigation system SAA1523
SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL
4-2 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


1. “ AUX ” button (P. 4-39)
2. “ RADIO AM·FM ” band selector button
(P. 4-39)
3. INFINITI controller (P. 4-4)
4. “ OFF ” brightness control and dis-
play ON/OFF button (P. 4-7)
5. “ INFO ” vehicle information button
(P. 4-8)
6. “ DISC ” selector button (P. 4-39)
7. “ STATUS ” status display button (P. 4-7)
8. “ SETTING ” button (P. 4-12) When you use this system, make sure the
engine is running.
If you use the system with the engine not run-
ning (ignition ON or ACC) for a long time, it will
use up all the battery power, and the engine will
not start.Models without navigation system SAA1524
Models with navigation system SAA1541
Models without navigation system SAA1508
Monitor, climate, audio, phone and voice recognition systems
4-3
 —
—
04/21/10—debbie


HOW TO USE INFINITI CONTROLLER Choose an item on the display using the main
directional buttons
 2
(or additional directional
buttons
 6
with navigation system) or center
dial
 3
, and push the ENTER button
 1
for
operation.
If you push the BACK button
 4
before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
 4
and return to the previous screen.
For the VOICE button
 5
functions, refer to the
separate Navigation System Owner’s Manual. HOW TO USE TOUCH SCREEN (models
with navigation system) CAUTION● The glass screen on the liquid crystal display
may break if it is hit with a hard or sharp
object. If the glass breaks, do not touch the
liquid crystalline material, which contains a
small amount of mercury. In case of contact
with skin, wash immediately with soap and
water.
● To clean the display, use a soft, dry cloth. If
additional cleaning is necessary, use a small
amount of neutral detergent with a soft
cloth. Never use a rough cloth, alcohol, ben-
zine, thinner or any kind of solvent or paper
towel with a chemical cleaning agent. They
will scratch or deteriorate the panel.
● Do not splash any liquid such as water or car
fragrance on the display. Contact with liquid
will cause the system to malfunction. To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING● ALWAYS give your full attention to driving.
● Avoid using vehicle features that could dis-
tract you. If distracted, you could lose con-
trol of your vehicle and cause an accident.
4-4 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


Touch screen operation With this system, the same operations as those
for the INFINITI controller are possible using the
touch screen operation.
Selecting the item :
Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
 1
on the
screen.
Touch the “BACK”
 2
key to return to the
previous screen. Adjusting an item :
Touch the +
 1
or
 2
key to adjust the
settings.
Touch the
 3
or
 4
key to move to
the previous or next item.
Touch the
 5
or
 6
key to move to
the previous or next page. Inputting characters :
Touch the letter or number
 1
.
There are some options available when input-
ting characters.
● Uppercase:
Shows uppercase characters.
● Lowercase:
Shows lowercase characters.
● Symbols:
Shows symbols such as the question mark
(?).
● Space:
Inserts a space.SAA2473 SAA2474 SAA2475
Monitor, climate, audio, phone and voice recognition systems
4-5
 —
—
04/21/10—debbie


● Delete:
Deletes the last character that has been
input with one touch. Push and hold to
delete all of the characters.
● OK:
Completes character inputs.
Touch screen maintenance If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then
wipe the screen.
MENU OPTIONS (models with
navigation system) The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is dis-
played, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the
menu control switch up or down, and then
push the menu control switch to select it. Available items Destination/Route :
These items are for the navigation system. See
the separate Navigation System Owner’s
Manual for details.
Info :
Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings :
Displays the settings screen. It is the same
screen that appears when you push the SET-
TING button. SAA1525 SAA2476
4-6 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie
