audio INFINITI G37 2010 Owners Manual

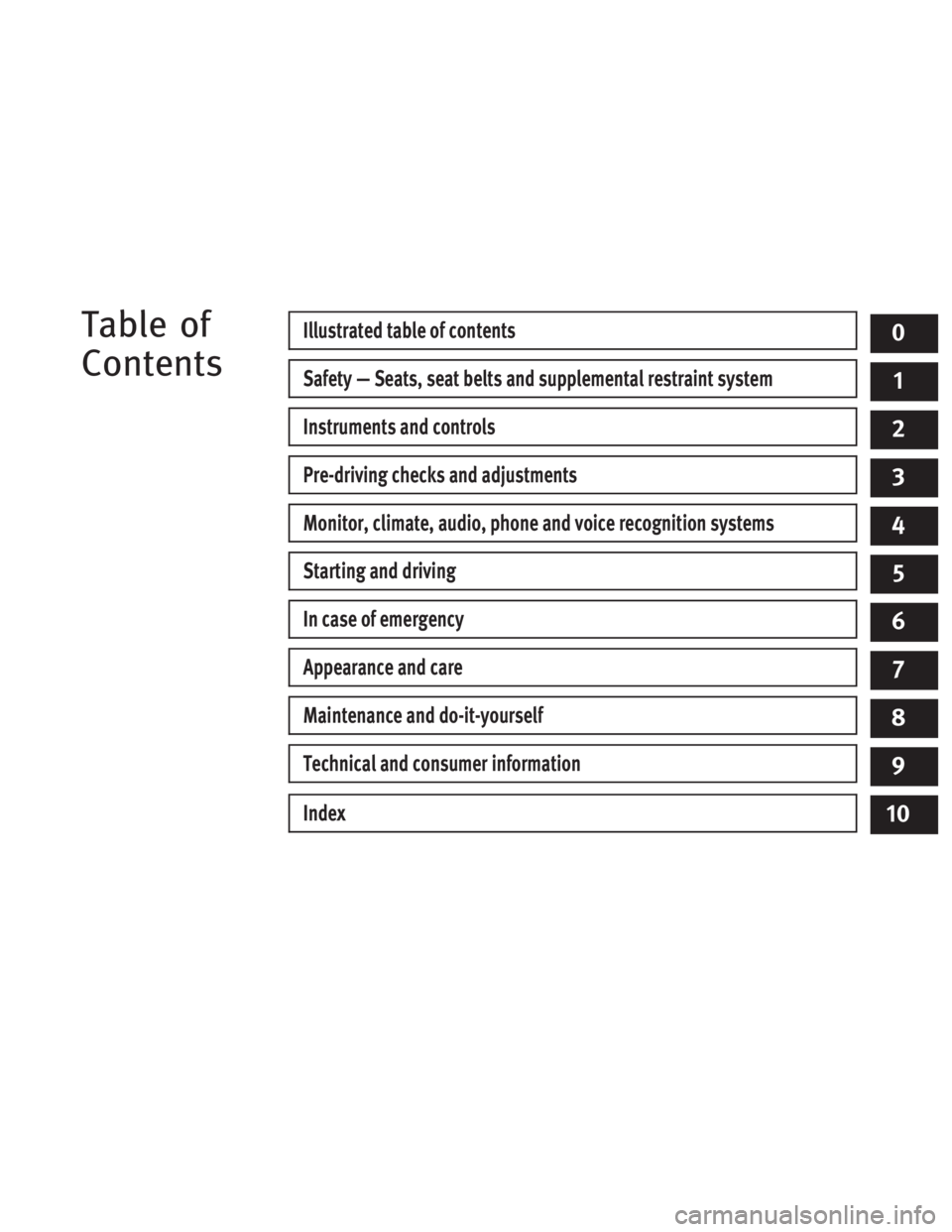

Table of
Contents Illustrated table of contents
Safety — Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index 0
1
2
3
4
5
6
7
8
9
10

1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40) 6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth  Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag
(P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake
(for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system
(P. 4-28)
14. Cigarette lighter and ashtray
(if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission
models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped)
(P. 2-38)
17. SNOW mode switch (if so equipped)
(P. 2-40)
18. Rear window and outside mirror
(if so equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45) SSI0671INSTRUMENT PANEL
0-10 Illustrated table of contents
 —
—
10/12/09—tbrooks


1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40) 6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth  Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag
(P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake
(for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system
(P. 4-28)
14. Cigarette lighter and ashtray
(if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission
models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped)
(P. 2-38)
17. SNOW mode switch (if so equipped)
(P. 2-40)
18. Rear window and outside mirror (if so
equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45) SSI0671INSTRUMENT PANEL
Instruments and controls
2-3
 —
—
10/12/09—tbrooks


Changing the display :
Pushing the TRIP A/B RESET switch
 3
at the
bottom left of the combination meter panel
changes the display as follows:
TRIP A → TRIP B → TRIP A
Resetting the trip odometer :
Pushing the TRIP A/B RESET switch
 3
for more
than 1 second resets the trip odometer to zero.
Average fuel economy and distance to empty
information is also available. (See “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section
and “HOW TO USE STATUS BUTTON” in the “4.
Monitor, climate, audio, phone and voice rec-
ognition systems” section.)
TACHOMETER The tachometer indicates engine speed in revo-
lutions per minute (RPM). Do not rev the engine
into the red zone
 1
.
CAUTIONWhen engine speed approaches the red zone,
shift to a higher gear or reduce engine speed.
Operating the engine in the red zone may cause
serious engine damage. ENGINE COOLANT TEMPERATURE
GAUGE The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
 1
shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions. SIC4290 SIC4291
2-6 Instruments and controls
 —
—
10/12/09—tbrooks


Cruise set switch indicator :
The indicator is displayed while the vehicle
speed is controlled by the cruise control sys-
tem. If the indicator blinks while the engine is
running, it may indicate that the cruise control
system is not functioning properly. Have the
system checked by an INFINITI retailer.
See “CRUISE CONTROL” in the “5. Starting and
driving” section for details.
19. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped) The indicator is displayed when the Intelligent
Cruise Control (ICC) system main switch is
pushed. When the main switch is pushed again,
the indicator disappears. While the main switch
indicator is displayed, the ICC system is
operational. INDICATORS FOR MAINTENANCE
1. Engine oil replacement indicator This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“TRIP COMPUTER” later in this section.)
2. Oil filter replacement indicator This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See
“TRIP COMPUTER” later in this section.)
3. Tire replacement indicator This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “TRIP COM-
PUTER” later in this section.)
4. “OTHER” indicator This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “TRIP COMPUTER”
later in this section.)
More maintenance reminders are also available
on the center display. (See “HOW TO USE INFO
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section.) SIC3281
Instruments and controls
2-23
 —
—
04/21/10—debbie


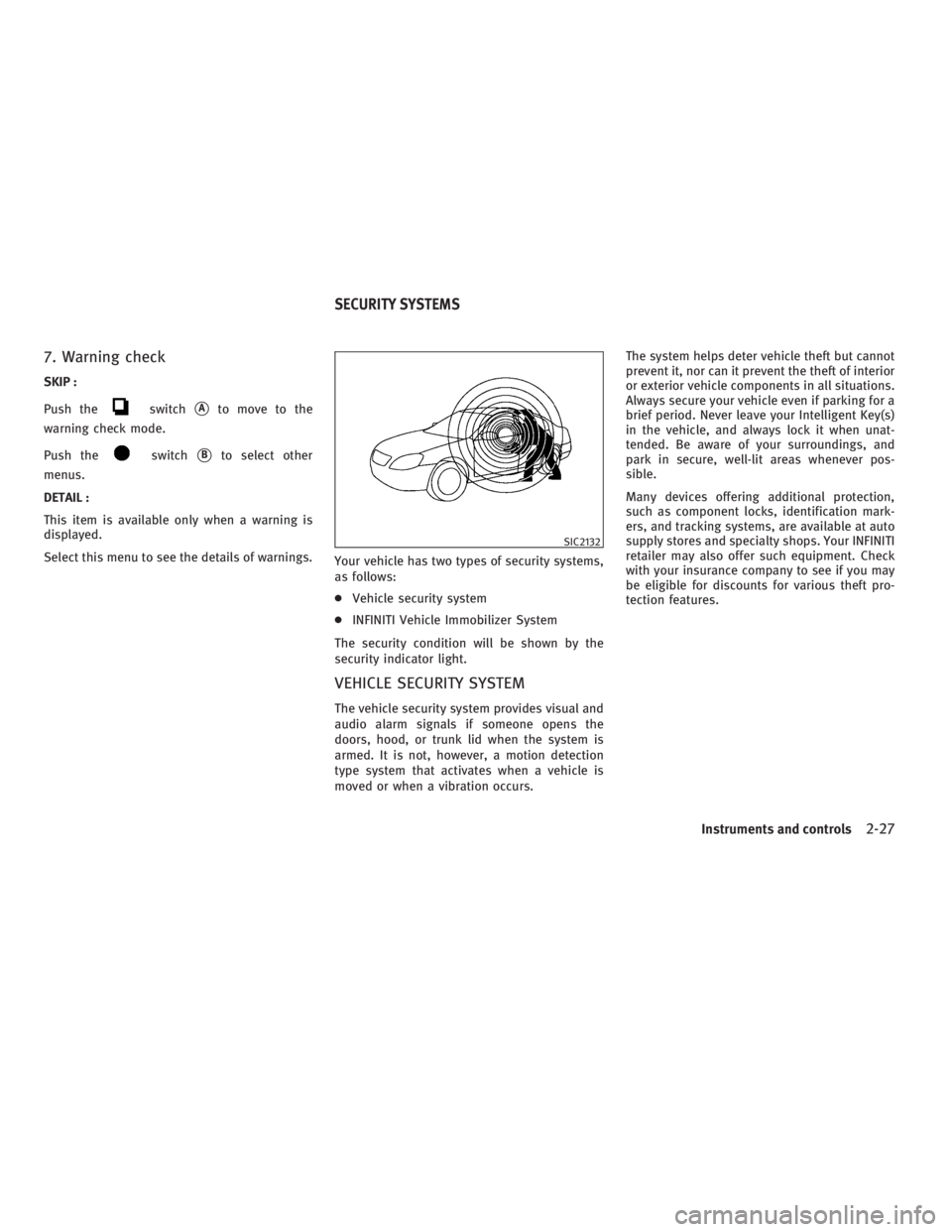

7. Warning check SKIP :
Push the switch
 A
to move to the
warning check mode.
Push the switch
 B
to select other
menus.
DETAIL :
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
Your vehicle has two types of security systems,
as follows:
● Vehicle security system
● INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEM The vehicle security system provides visual and
audio alarm signals if someone opens the
doors, hood, or trunk lid when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when unat-
tended. Be aware of your surroundings, and
park in secure, well-lit areas whenever pos-
sible.
Many devices offering additional protection,
such as component locks, identification mark-
ers, and tracking systems, are available at auto
supply stores and specialty shops. Your INFINITI
retailer may also offer such equipment. Check
with your insurance company to see if you may
be eligible for discounts for various theft pro-
tection features. SIC2132
SECURITY SYSTEMS
Instruments and controls
2-27
 —
—
10/12/09—tbrooks


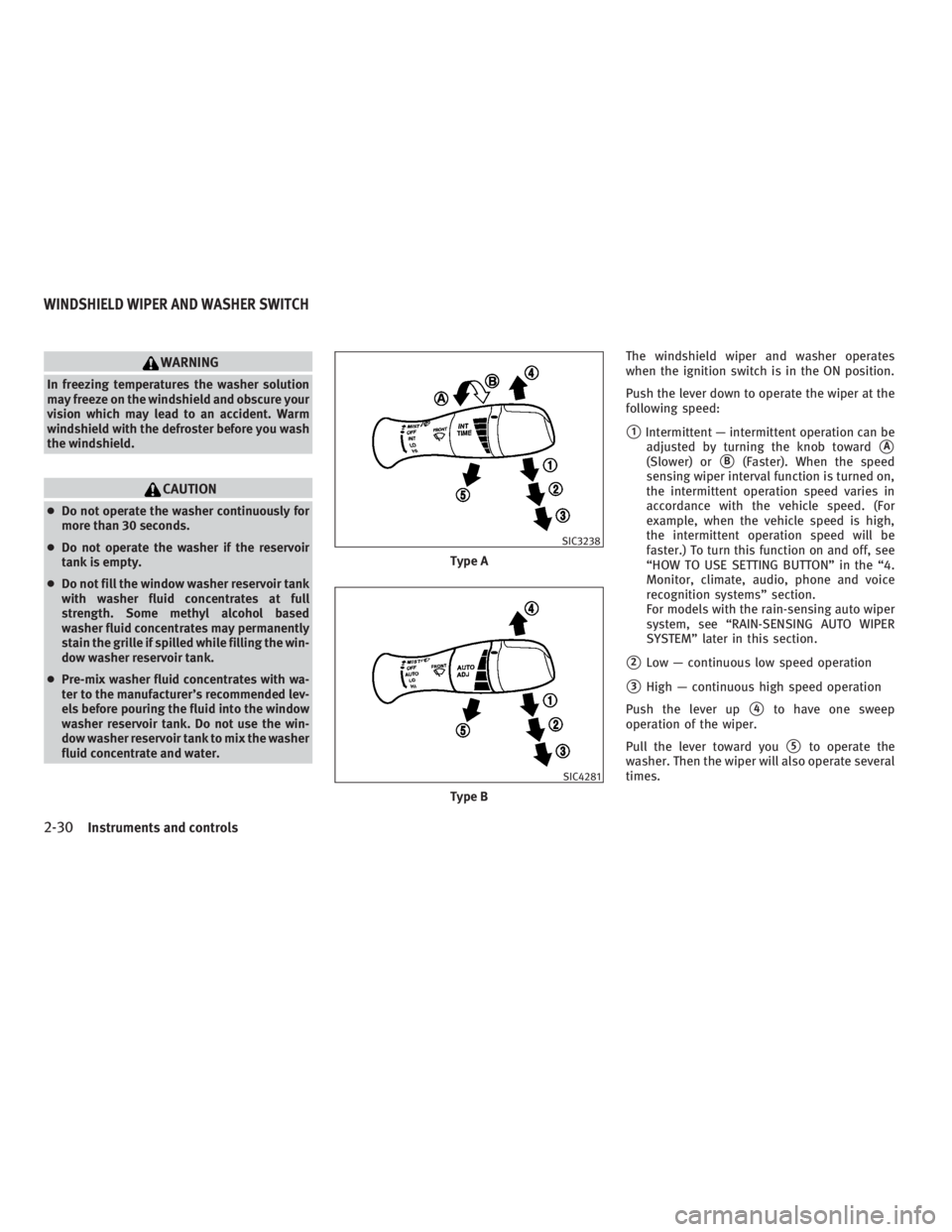

WARNINGIn freezing temperatures the washer solution
may freeze on the windshield and obscure your
vision which may lead to an accident. Warm
windshield with the defroster before you wash
the windshield.
CAUTION● Do not operate the washer continuously for
more than 30 seconds.
● Do not operate the washer if the reservoir
tank is empty.
● Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
● Pre-mix washer fluid concentrates with wa-
ter to the manufacturer’s recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the washer
fluid concentrate and water. The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
 1
Intermittent — intermittent operation can be
adjusted by turning the knob toward
 A
(Slower) or
 B
(Faster). When the speed
sensing wiper interval function is turned on,
the intermittent operation speed varies in
accordance with the vehicle speed. (For
example, when the vehicle speed is high,
the intermittent operation speed will be
faster.) To turn this function on and off, see
“HOW TO USE SETTING BUTTON” in the “4.
Monitor, climate, audio, phone and voice
recognition systems” section.
For models with the rain-sensing auto wiper
system, see “RAIN-SENSING AUTO WIPER
SYSTEM” later in this section.
 2
Low — continuous low speed operation
 3
High — continuous high speed operation
Push the lever up
 4
to have one sweep
operation of the wiper.
Pull the lever toward you
 5
to operate the
washer. Then the wiper will also operate several
times.Type A SIC3238
Type B SIC4281WINDSHIELD WIPER AND WASHER SWITCH
2-30 Instruments and controls
 —
—
10/12/09—tbrooks


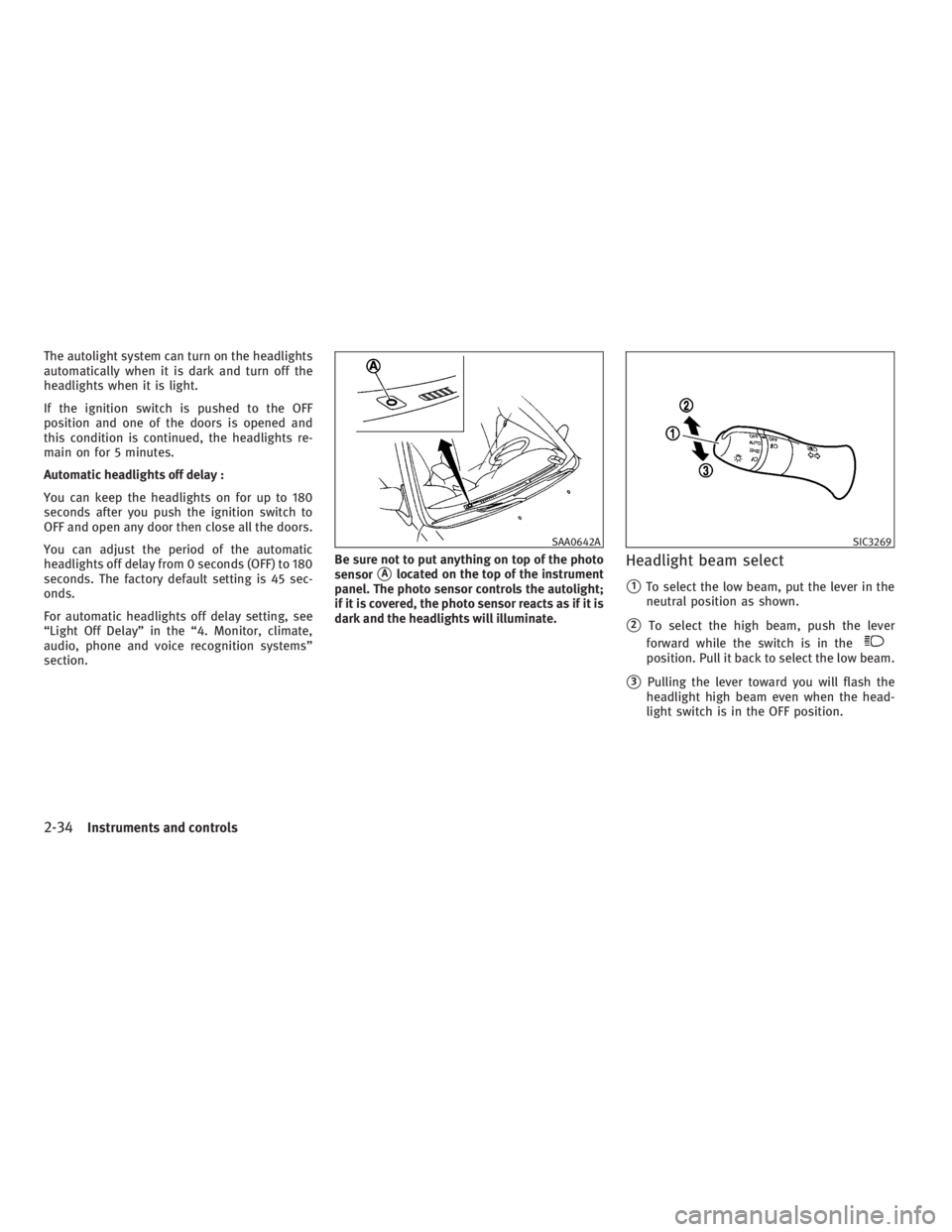

The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes.
Automatic headlights off delay :
You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.
For automatic headlights off delay setting, see
“Light Off Delay” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section. Be sure not to put anything on top of the photo
sensor
 A
located on the top of the instrument
panel. The photo sensor controls the autolight;
if it is covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.
Headlight beam select
 1
To select the low beam, put the lever in the
neutral position as shown.
 2
To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low beam.
 3
Pulling the lever toward you will flash the
headlight high beam even when the head-
light switch is in the OFF position. SAA0642A SIC3269
2-34 Instruments and controls
 —
—
10/12/09—tbrooks


For driving or starting the vehicle on snowy
roads or slippery areas, turn on the SNOW
mode switch. The indicator light
 1
on the
switch will illuminate. When the SNOW mode is
activated, engine output is controlled to avoid
wheel spin. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.) If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME 1. To set the clock forward, push the button
 1
.
2. To set the clock backward, push the but-
ton
 2
.
3. To move forward or backward faster, push
and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section.SIC3602 SIC1881 SIC3325
SNOW MODE SWITCH (if so equipped) VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH CLOCK
2-40 Instruments and controls
 —
—
04/21/10—debbie


INTERIOR LIGHT CONTROL SWITCH The interior light control switch has three posi-
tions: ON, DOOR and OFF.
ON position When the switch is in the ON position
 1
the map
lights and rear personal lights will illuminate.
DOOR position When the switch is in the DOOR position
 2
, the
map lights and rear personal lights will illumi-
nate under the following conditions:
● ignition switch is switched to the LOCK
position
– remain on for about 15 seconds. ● doors are unlocked by pushing the UNLOCK
button on the Intelligent Key or door handle
request switch with the ignition switch in the
LOCK position
– remain on for about 15 seconds.
● any door is opened and then closed with the
ignition switch in the LOCK position
– remain on for about 15 seconds.
● any door is opened with the ignition switch
in the ACC or ON position
– remain on while the door is opened.
When the door is closed, the lights go off.
The lights will also turn off after 15 minutes when
the lights remain illuminated after the ignition
switch has been pushed to the OFF or LOCK po-
sition to prevent the battery from becoming dis-
charged.
When the auto interior illumination is set to the
OFF position (see “VEHICLE INFORMATION AND
SETTINGS” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section),
the lights will illuminate under the following
condition:
● any door is opened with the ignition switch
in any position
– remain on while the door is opened.
When the door is closed, the lights go off. OFF position When the switch is in the OFF position
 3
, the
lights will not illuminate, regardless of the
condition.
CAUTIONDo not use for extended periods of time with
the engine stopped. This could result in a dis-
charged battery.SIC3251
Instruments and controls
2-55
 —
—
10/12/09—tbrooks
