audio INFINITI G37 2010 Service Manual

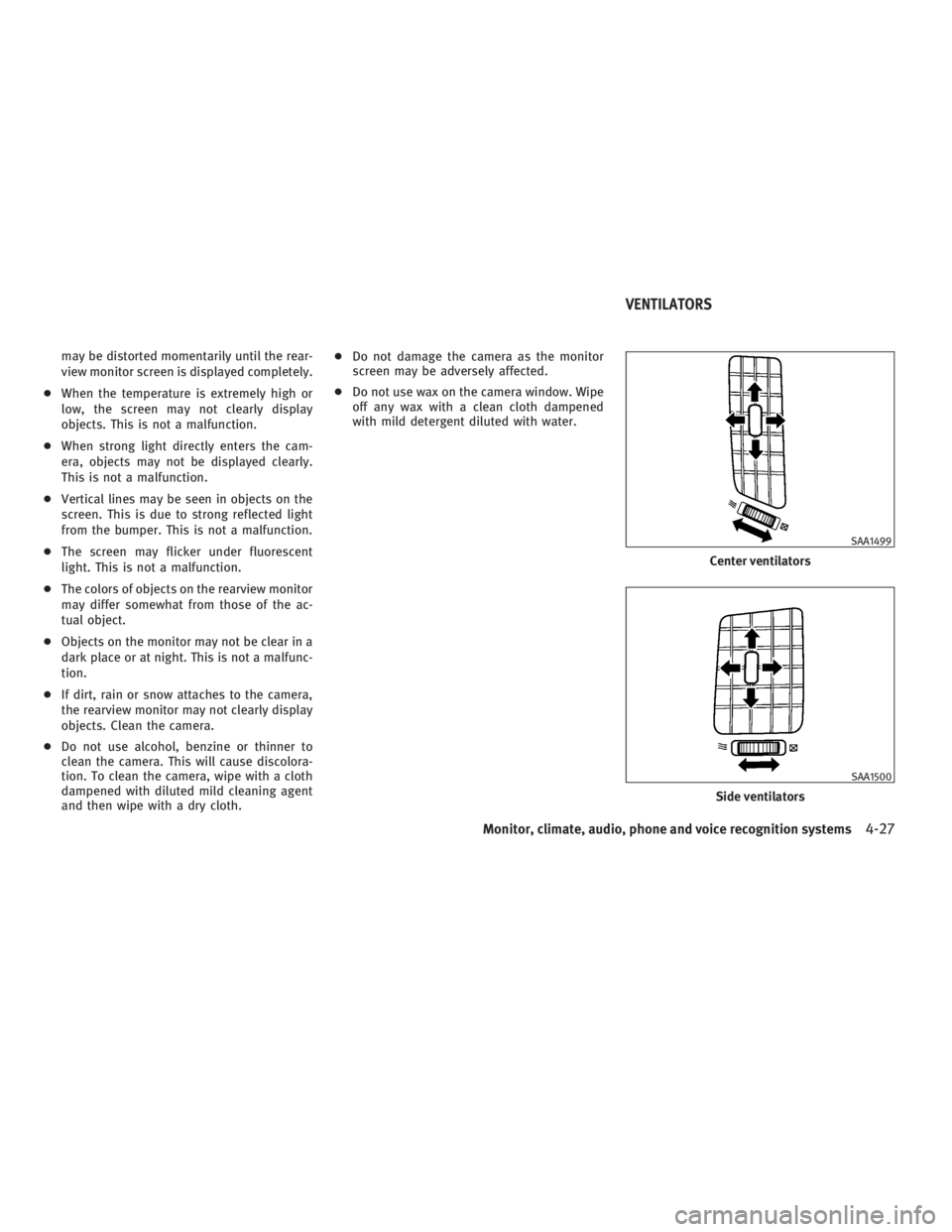

may be distorted momentarily until the rear-
view monitor screen is displayed completely.
● When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
● When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
● Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the rearview monitor
may differ somewhat from those of the ac-
tual object.
● Objects on the monitor may not be clear in a
dark place or at night. This is not a malfunc-
tion.
● If dirt, rain or snow attaches to the camera,
the rearview monitor may not clearly display
objects. Clean the camera.
● Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth. ● Do not damage the camera as the monitor
screen may be adversely affected.
● Do not use wax on the camera window. Wipe
off any wax with a clean cloth dampened
with mild detergent diluted with water.
Center ventilators SAA1499
Side ventilators SAA1500VENTILATORS
Monitor, climate, audio, phone and voice recognition systems
4-27
 —
—
04/21/10—debbie


Open or close, and adjust the air flow direction
of ventilators.
: This symbol indicates that the vents are
closed.
: This symbol indicates that the vents are
open. WARNING● The air conditioner cooling function oper-
ates only when the engine is running.
● Do not leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. On hot, sunny days, temperatures in
a closed vehicle could quickly become high
enough to cause severe or possibly fatal in-
juries to people or animals.
● Do not use the recirculation mode for long
periods as it may cause the interior air to
become stale and the windows to fog up.
Start the engine and operate the automatic
climate control system.
When the “STATUS” button is pushed, the
automatic climate control status screen will
appear. (See “HOW TO USE STATUS BUTTON”
earlier in this section.)Rear (if so equipped) SAA0564B
Models with navigation system SAA2723
Models without navigation system SAA1520AUTOMATIC CLIMATE CONTROL
4-28 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


You can individually set the driver and front
passenger side temperature using each tem-
perature control button.
1. “AUTO” automatic climate control ON
button/Temperature control dial (driver
side)
2. “A/C” air conditioner ON/OFF button
3. “ ” fan speed increase button
4. “ ” front defroster button
5. “MODE” manual air flow control button
6. “DUAL” zone control ON/OFF
button/Temperature control dial (passen-
ger side)
7. “OFF” button for climate control system 8. “ ” fan speed decrease button
9. “ ” rear window defroster button
(See “REAR WINDOW AND OUTSIDE MIR-
ROR DEFROSTER SWITCH” in the “2. In-
struments and controls” section.)
10. “ ” intake air control buttonType A SAA1527
Monitor, climate, audio, phone and voice recognition systems
4-29
 —
—
04/21/10—debbie

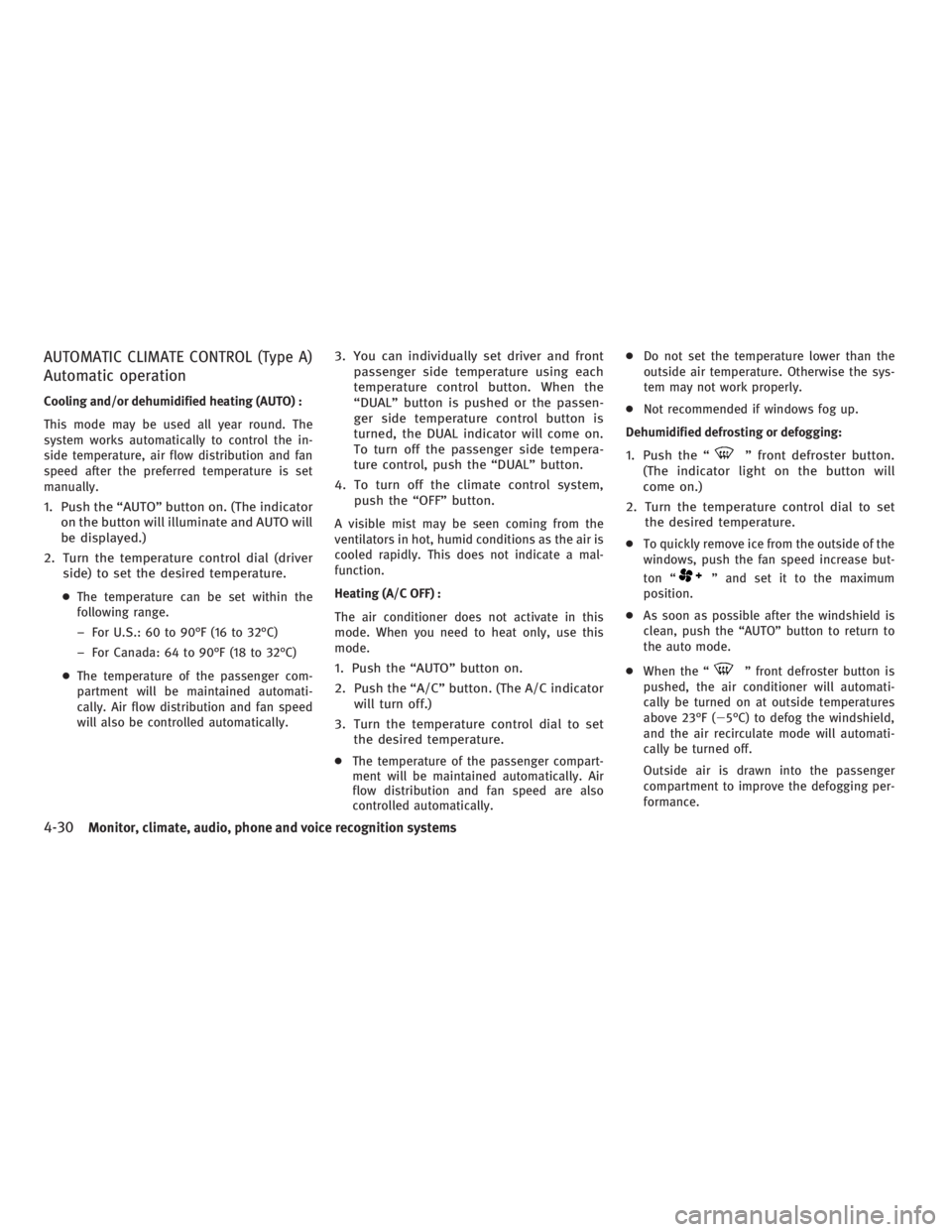

AUTOMATIC CLIMATE CONTROL (Type A )
Automatic operation Cooling and/or dehumidified heating (AUTO) :
This mode may be used all year round. The
system works automatically to control the in-
side temperature, air flow distribution and fan
speed after the preferred temperature is set
manually.
1. Push the “AUTO” button on. (The indicator
on the button will illuminate and AUTO will
be displayed.)
2. Turn the temperature control dial (driver
side) to set the desired temperature.
● The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
● The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically. 3. You can individually set driver and front
passenger side temperature using each
temperature control button. When the
“DUAL” button is pushed or the passen-
ger side temperature control button is
turned, the DUAL indicator will come on.
To turn off the passenger side tempera-
ture control, push the “DUAL” button.
4. To turn off the climate control system,
push the “OFF” button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C OFF) :
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.
1. Push the “AUTO” button on.
2. Push the “A/C” button. (The A/C indicator
will turn off.)
3. Turn the temperature control dial to set
the desired temperature.
● The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically. ● Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.
● Not recommended if windows fog up.
Dehumidified defrosting or defogging:
1. Push the “ ” front defroster button.
(The indicator light on the button will
come on.)
2. Turn the temperature control dial to set
the desired temperature.
● To quickly remove ice from the outside of the
windows, push the fan speed increase but-
ton “ ” and set it to the maximum
position.
● As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.
● When the “ ” front defroster button is
pushed, the air conditioner will automati-
cally be turned on at outside temperatures
above 23°F (  5°C) to defog the windshield,
and the air recirculate mode will automati-
cally be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
4-30 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


Manual operation Fan speed control :
Push the fan speed increase “
”orde-
crease “ ” buttons to manually control the
fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed.
Air recirculation :
Push the intake air control button
“ ” to recirculate interior air inside
the vehicle. The indicator light on the “ ”
side will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrost-
ing mode “ ”.
Outside air circulation :
Push the intake air control button
“ ” to draw outside air into the
passenger compartment. The indicator light on
the “ ” side will come on. Automatic intake air control :
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the
intake air, push the intake air control button
“ ”. To return to the automatic con-
trol mode, push the intake air control button
“ ” for about 2 seconds. The indi-
cator lights (both air recirculation and outside
air circulation sides) will flash twice, and then
the intake air will be controlled automatically.
Air flow control :
Pushing the “MODE” manual air flow control
button selects the air outlet to:
: Air flows from center and side ventila-
tors.
: Air flows from center and side ventila-
tors and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
To turn the system off :
Push the OFF button.
Monitor, climate, audio, phone and voice recognition systems
4-31
 —
—
04/21/10—debbie


1. “AUTO” automatic climate control ON
button/Temperature control dial
2. Air flow control button
3. “ ” Fan speed control dial
4. “OFF” button
5. “
” front defroster button
6. “ ” rear window defroster button
(See “REAR WINDOW AND OUTSIDE MIR-
ROR DEFROSTER SWITCH” in the “2. In-
struments and controls” section.)
7. “ ” intake air control button AUTOMATIC CLIMATE CONTROL (Type B )
Automatic operation Cooling and/or dehumidified heating (AUTO) :
This mode may be used all year round. The
system works automatically to control the in-
side temperature, air flow distribution and fan
speed after the preferred temperature is set
manually.
1. Push the “AUTO” button on. (The indicator
on the button will illuminate and AUTO will
be displayed.) 2. Use the temperature control dial to set
the desired temperature.
● The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
● The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. To turn off the climate control system,
push the “OFF” button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C OFF) :
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.
1. Push the “AUTO” button on.
2. Push the “A/C” button. (The A/C indicator
will turn off.)
3. Turn the temperature control dial to set
the desired temperature.Type B SAA1526
4-32 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


● The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
● Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.
● Not recommended if windows fog up.
Dehumidified defrosting or defogging:
1. Push the “ ” front defroster button.
(The indicator light on the button will
come on.)
2. Turn the temperature control dial to set
the desired temperature.
● To quickly remove ice from the outside of the
windows, turn the “ ” fan speed con-
trol dial and set it to the maximum position.
● As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.
● When the “ ” front defroster button is
pushed, the air conditioner will automati-
cally be turned on at outside temperatures
above 23°F (  5°C) to defog the windshield,
and the air recirculate mode will automati-
cally be turned off. Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
Manual operation Fan speed control :
Turn the “ ” fan speed control dial to
manually control the fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed.
Air recirculation :
Push the intake air control button
“ ” to recirculate interior air inside
the vehicle. The indicator light on the “ ”
side will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrost-
ing mode “ ”.
Outside air circulation :
Push the intake air control button
“ ” to draw outside air into the
passenger compartment. The indicator light on
the “ ” side will come on. Automatic intake air control :

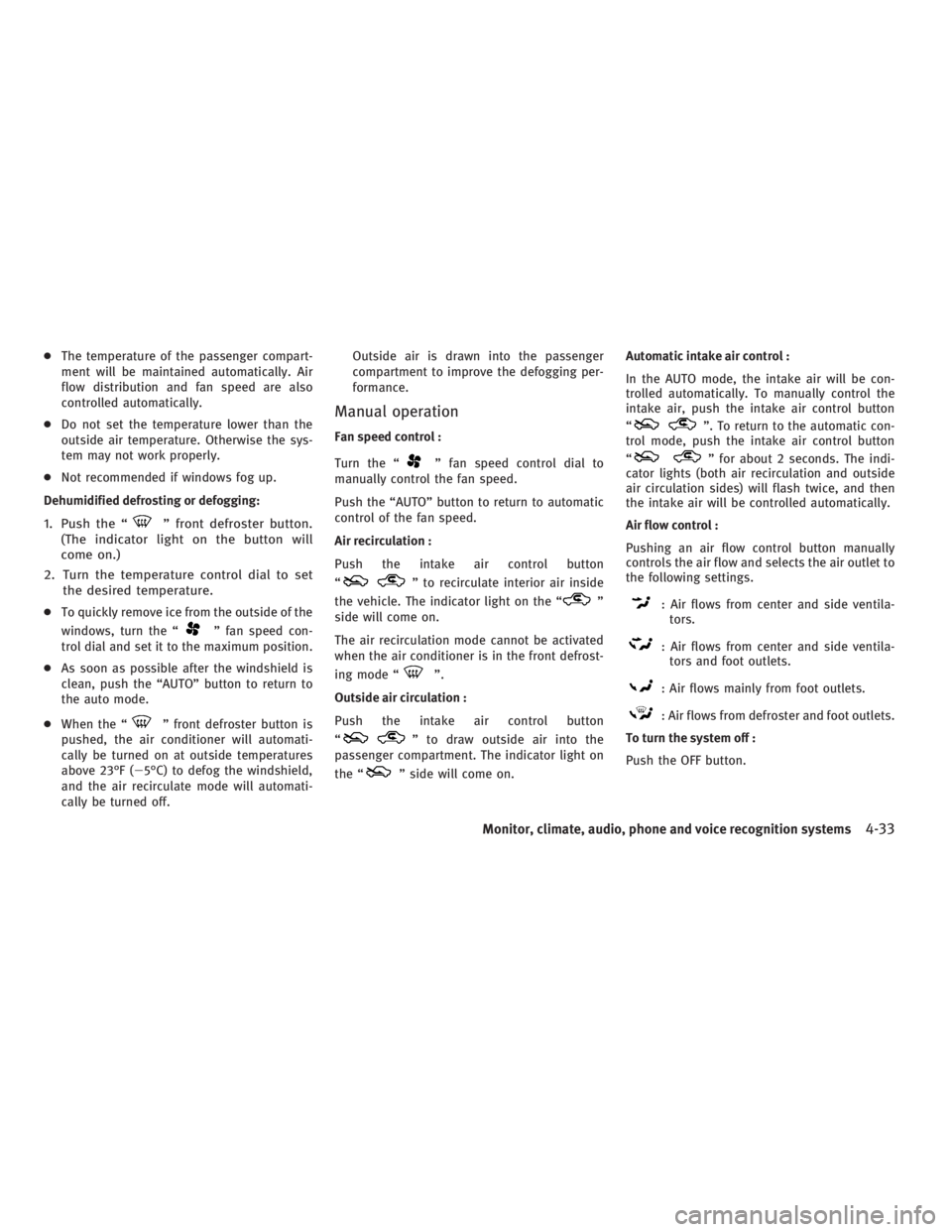

In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the
intake air, push the intake air control button
“ ”. To return to the automatic con-
trol mode, push the intake air control button
“ ” for about 2 seconds. The indi-
cator lights (both air recirculation and outside
air circulation sides) will flash twice, and then
the intake air will be controlled automatically.
Air flow control :
Pushing an air flow control button manually
controls the air flow and selects the air outlet to
the following settings.
: Air flows from center and side ventila-
tors.
: Air flows from center and side ventila-
tors and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
To turn the system off :
Push the OFF button.
Monitor, climate, audio, phone and voice recognition systems
4-33
 —
—
04/21/10—debbie


1. “AUTO” automatic operation button/
Temperature control dial (driver side)
2. “A/C” air conditioner ON/OFF button
3. “ ” fan speed increase button
4. “ ” front defroster button
5. “MODE” manual air flow control button
6. “DUAL” zone control ON/OFF button/
Temperature control dial (passenger side)
7. “OFF” button for climate control system
8. “
” fan speed decrease button 9. “ ” rear window defogger button
(See “REAR WINDOW AND OUTSIDE MIR-
ROR DEFROSTER SWITCH” in the “2. In-
struments and controls” section.)
10. “ ” auto-recirculation
button/intake air control button
AUTOMATIC CLIMATE CONTROL (Type C )
Automatic operation (AUTO) The AUTO mode may be used year-round as the
system automatically controls constant tem- perature, air flow distribution and fan speed
after the desired temperature is set manually.
To turn off the heater and air conditioner, push
the “OFF” button.
Cooling and dehumidified heating:
1. Push the “AUTO” button.
(The AUTO indicator light will illuminate
and “AUTO” will appear on the display.)
2. If the A/C indicator light does not illumi-
nate, push the “A/C” button.
(The A/C indicator light will illuminate.)
3. Turn the temperature control dial (driver’s
side) to set the desired temperature.
● The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
● When the DUAL indicator light is turned
off:
– Pushing the driver’s side “AUTO” but-
ton changes both the driver’s and front
passenger’s side temperature.
– Pushing the passenger’s side “DUAL”
button changes only the front passen-
ger’s side temperature. (The DUAL indi-
cator light will illuminate and “DUAL”
will appear on the display.)Type C SAA2972
4-34 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


● To set separate desired temperatures for
the driver and front passenger, push the
“DUAL” button, the indicator light illumi-
nates, and then turn the corresponding
temperature control dial.
● To cancel the separate temperature set-
ting, push the “DUAL” button, the indica-
tor light turns off, and the driver’s side
temperature setting will be applied to
both the driver’s and front passenger’s
sides.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C off):
1. Push the “AUTO” button.
(The AUTO indicator light will illuminate
and “AUTO” will appear on the display.)
2. If the A/C indicator light illuminates, push
the “A/C” button.
(The A/C indicator light will turn off.)
3. Turn the temperature control dial to set
the desired temperature.

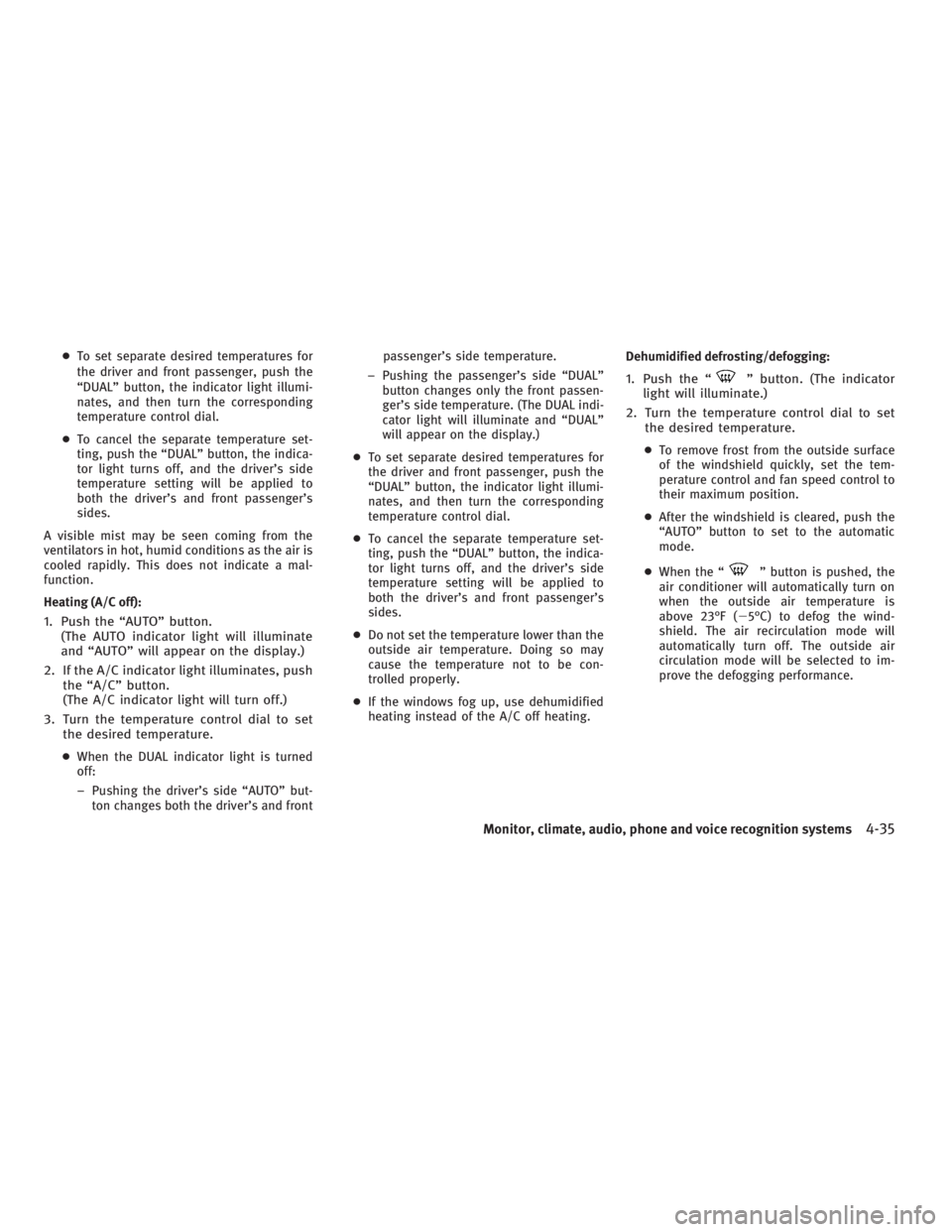

● When the DUAL indicator light is turned
off:
– Pushing the driver’s side “AUTO” but-
ton changes both the driver’s and front passenger’s side temperature.
– Pushing the passenger’s side “DUAL”
button changes only the front passen-
ger’s side temperature. (The DUAL indi-
cator light will illuminate and “DUAL”
will appear on the display.)
● To set separate desired temperatures for
the driver and front passenger, push the
“DUAL” button, the indicator light illumi-
nates, and then turn the corresponding
temperature control dial.
● To cancel the separate temperature set-
ting, push the “DUAL” button, the indica-
tor light turns off, and the driver’s side
temperature setting will be applied to
both the driver’s and front passenger’s
sides.
● Do not set the temperature lower than the
outside air temperature. Doing so may
cause the temperature not to be con-
trolled properly.
● If the windows fog up, use dehumidified
heating instead of the A/C off heating. Dehumidified defrosting/defogging:
1. Push the “ ” button. (The indicator
light will illuminate.)
2. Turn the temperature control dial to set
the desired temperature.
● To remove frost from the outside surface
of the windshield quickly, set the tem-
perature control and fan speed control to
their maximum position.
● After the windshield is cleared, push the
“AUTO” button to set to the automatic
mode.
● When the “ ” button is pushed, the
air conditioner will automatically turn on
when the outside air temperature is
above 23°F (  5°C) to defog the wind-
shield. The air recirculation mode will
automatically turn off. The outside air
circulation mode will be selected to im-
prove the defogging performance.
Monitor, climate, audio, phone and voice recognition systems
4-35
 —
—
04/21/10—debbie

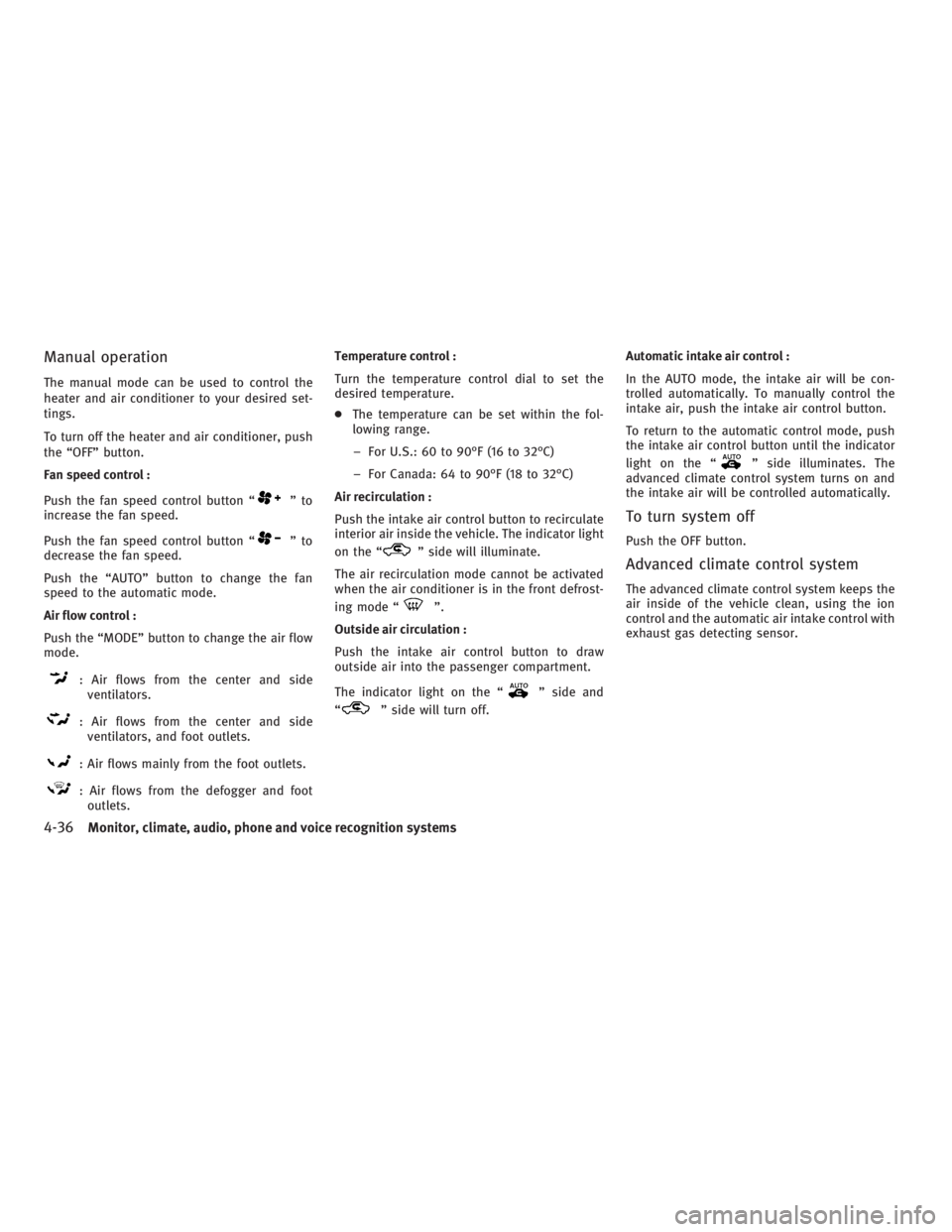

Manual operation The manual mode can be used to control the
heater and air conditioner to your desired set-
tings.
To turn off the heater and air conditioner, push
the “OFF” button.
Fan speed control :
Push the fan speed control button “ ”to
increase the fan speed.
Push the fan speed control button “ ”to
decrease the fan speed.
Push the “AUTO” button to change the fan
speed to the automatic mode.
Air flow control :
Push the “MODE” button to change the air flow
mode.
: Air flows from the center and side
ventilators.
: Air flows from the center and side
ventilators, and foot outlets.
: Air flows mainly from the foot outlets.
: Air flows from the defogger and foot
outlets. Temperature control :
Turn the temperature control dial to set the
desired temperature.
● The temperature can be set within the fol-
lowing range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
Air recirculation :
Push the intake air control button to recirculate
interior air inside the vehicle. The indicator light
on the “ ” side will illuminate.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrost-
ing mode “ ”.
Outside air circulation :
Push the intake air control button to draw
outside air into the passenger compartment.
The indicator light on the “ ” side and
“ ” side will turn off. Automatic intake air control :
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the
intake air, push the intake air control button.
To return to the automatic control mode, push
the intake air control button until the indicator
light on the “ ” side illuminates. The
advanced climate control system turns on and
the intake air will be controlled automatically.
To turn system off Push the OFF button.
Advanced climate control system The advanced climate control system keeps the
air inside of the vehicle clean, using the ion
control and the automatic air intake control with
exhaust gas detecting sensor.
4-36 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie
