Settings :
Select the “Settings” key to adjust the following
settings.
● Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
● Play Mode
Select the “Normal” or “1 Track Repeat” play
mode. ● 10 Key Search
Select the “10 Key Search” key to open the
number entry screen.
Input the number to be searched and select
the “OK” key.
The specified folder/file will be played.
● Display
To adjust the image quality of the screen,
select the preferred adjustment items.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Select the preferred language for audio.
● Subtitle
Select the preferred language for subtitle.
● Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode. BLUETOOTH  STREAMING AUDIO
(models with navigation system) Your INFINITI is equipped with Bluetooth  Stream-
ing Audio. If you have a compatible Bluetooth
device with streaming audio (A2DP profile), you
can set up the wireless connection between your
Bluetooth  device and the in-vehicle audio sys-
tem. This connection allows you to listen to the
audio from the Bluetooth  device using your
vehicle speakers. It also may allow basic control
of the device for playing and skipping audio files
using the AVRCP Bluetooth  profile. All
Bluetooth  Devices do not have the same level of
controls for AVRCP. Please consult the manual for
your Bluetooth  Device for more details.
Once your Bluetooth  device is connected to
the in-vehicle audio system, it will automati-
cally reconnect whenever the device is present
in the vehicle and you select Bluetooth  Audio
from your audio system. You do not need to
manually reconnect for each usage.
Regulatory information FCC Regulatory information :
– CAUTION: To maintain compliance with FCC’s
RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.Example SAA2504
4-66 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


– Operation is subject to the following two
conditions:
1) This device may not cause interference
and
2) This device must accept any interference,
including interference that may cause
undesired operation of the device
IC Regulatory information :
– Operation is subject to the following two
conditions:
1) This device may not cause interference,
and
2) This device must accept any interference,
including interference that may cause
undesired operation of the device.
– This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth trademark:
Bluetooth  is a trademark
owned by Bluetooth SIG,
Inc. and licensed to
Clarion Co., Ltd. Connecting procedure 1. Push the SETTING button and select the
“Bluetooth” key. 2. Select the “Connect Bluetooth” key. SAA2505 SAA2506
Monitor, climate, audio, phone and voice recognition systems
4-67
 —
—
04/21/10—debbie


3. A confirmation screen will be displayed.
Select “No”.
Note: Selecting “Yes” will only connect the
hands free phone portion of a Bluetooth
device. 4. Choose a PIN code to use with the com-
patible Bluetooth  audio device using the
number input screen. The PIN code will
need to be entered into the Bluetooth
audio device after step 5. Select the “OK”
key. 5. The standby message screen will appear.
Operate the compatible Bluetooth  audio
device. For the connecting procedure of
the audio device, see the Bluetooth  au-
dio instructions.
When the connecting is completed, the
screen will return to the Bluetooth  setup
display.SAA2507 SAA3005 SAA2509
4-68 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


Audio main operation Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button re-
peatedly to switch to the Bluetooth  audio
mode. If the system has been turned off while
the Bluetooth  audio device was playing, push-
ing the ON·OFF/VOL control knob will start the
Bluetooth  audio device.
The ability to pause, change tracks, fast for-
ward, rewind, randomize and repeat music may
be different between devices. Some or all of
these functions may not be supported on each
device. DISC·AUX button :
When the DISC·AUX button is pushed with the
system off and the Bluetooth  audio device
connected, the system will turn on. If another
audio source is playing and the Bluetooth
audio device is connected, push the DISC·AUX
button repeatedly until the display changes to
the Bluetooth  audio mode.
Next/Previous Track and
Fast Forward/Rewind :
When the or button is pushed for
more than 1.5 seconds while a Bluetooth  audio
file is being played, the Bluetooth  audio de-
vice will play while forwarding or rewinding.
When the button is released, the Bluetooth
audio device will return to normal play speed.
When the or button is pushed for
less than 1.5 seconds while a Bluetooth  audio
file is being played, the next track or the
beginning of the current track on the
Bluetooth  audio device will be played. The
INFINITI controller can also be used to select
tracks when the Bluetooth  audio play mode
screen is shown on the display. (“Bluetooth
audio” will be indicated on the header of the
screen.) REPEAT (RPT), RANDOM (RDM) :
To change the play mode, push the
button repeatedly and the mode changes as
follows.
Normal → Shuffle All Tracks → Shuffle Group →
Repeat 1 Track → Repeat All Tracks → Repeat
Group → Normal
Operation keys :
To operate a Bluetooth  audio device, select a
key displayed on the operation screen using the
INFINITI controller.
Play
Select the “
” key to start playing when
pausing. Select this key again to pause the
audio play.
Pause
Select the “
” key to pause the Bluetooth
audio device. Select this key again to resume
playing.
Play Mode :
The play mode setting display will appear when
the “Menu” key is selected.SAA2510
Monitor, climate, audio, phone and voice recognition systems
4-69
 —
—
04/21/10—debbie


Choose the preferred play mode from the fol-
lowing items.
● Shuffle
Choose “Shuffle OFF”, “Shuffle All Tracks”
and “Shuffle Group”.
● Repeat
Choose from “Repeat OFF”, “Repeat 1 Track”,
“Repeat All Tracks” and “Repeat Group”.
Bluetooth  settingsTo set up the Bluetooth  device system to the
preferred settings, push the SETTING button
and select the “Bluetooth” key.
Bluetooth :
If this setting is turned off, the connection
between the Bluetooth  devices and the in-
vehicle Bluetooth  module will be canceled.
Connect Bluetooth :
Connects to the Bluetooth  device. See “Con-
necting procedure” earlier in this section. Up to
5 devices can be registered. Connected Devices :
Registered devices are shown on the list. Select
a Bluetooth  device from the list, the following
options will be available.
● Select
Select “Select” to connect the selected de-
vice to the vehicle. If there is a different
device currently connected, the selected de-
vice will replace the current device.
● Edit
Rename the selected Bluetooth  device us-
ing the keypad displayed on the screen. (See
“HOW TO USE TOUCH SCREEN (models with
navigation system)” earlier in this section.)
● Delete
Delete the selected Bluetooth  device.
Edit Bluetooth Info :
Change the name broadcasted by this system
over Bluetooth  . Change the PIN code that is
entered when connecting a hands free device to
this system. SAA2511
4-70 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


Replace Connected Phone :
Replace the Bluetooth  connection with a con-
nected Bluetooth  cellular phone. For details
about Hands-Free Phone System, see
“BLUETOOTH  HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
IPOD  PLAYER OPERATION (if so
equipped)
Connecting iPod  Open the console lid and connect the iPod
cable to the USB connector. If compatible, the
battery of the iPod  is charged while the con-
nection to the vehicle.
Depending on the version of the iPod  , the
display on the iPod  shows an INFINITI or
Accessory Attached screen when the connection
is completed. When the iPod  is connected to
the vehicle, the iPod  music library can only be
operated by the vehicle audio controls.
* iPod  is a trademark of Apple Inc., registered
in the U.S. and other countries.
Compatibility The following models are available:
Models with navigation system :
● Fifth generation iPod  (version 1.2.3 or later)
● iPod Classic  (version 1.1.1 or later)
● First generation iPod touch  (version 2.0.0
or later)
● Second generation iPod touch  (version
1.2.3 or later)Automatic transmission models SAA2974
Manual transmission models SAA2426
Monitor, climate, audio, phone and voice recognition systems
4-71
 —
—
04/21/10—debbie


● Pushing the menu control switch will show
the Music Box Menu.
Bluetooth  Audio (models with navigation sys-
tem) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
AUX (if so equipped) :
● Pushing the menu control switch (models
with navigation system) will show the AUX
Menu.
BACK switch (models with
navigation system)Push this switch to go back to the previous
screen or cancel the selection if it is not com-
pleted.
Volume control switches Push the upper (+) or lower (  ) side switch to
increase or decrease the volume. Audio source switch Push the audio source switch to change the
mode as follows.
Type A:
● Models with navigation system
AM → FM → SAT → CD/DVD → Music Box →
USB/iPod  → Bluetooth  Audio
● Models without navigation system
AM → FM → CD → Music Box → USB/iPod
→ SAT
Type B:
Preset A → Preset B → Preset C → CDANTENNA
Window antenna The antenna pattern is printed inside the rear
window.
CAUTION● Do not place metalized film near the rear
window glass or attach any metal parts to it.
This may cause poor reception or noise.
● When cleaning the inside of the rear window,
be careful not to scratch or damage the rear
window antenna. Lightly wipe along the an-
tenna with a dampened soft cloth.
4-84 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie

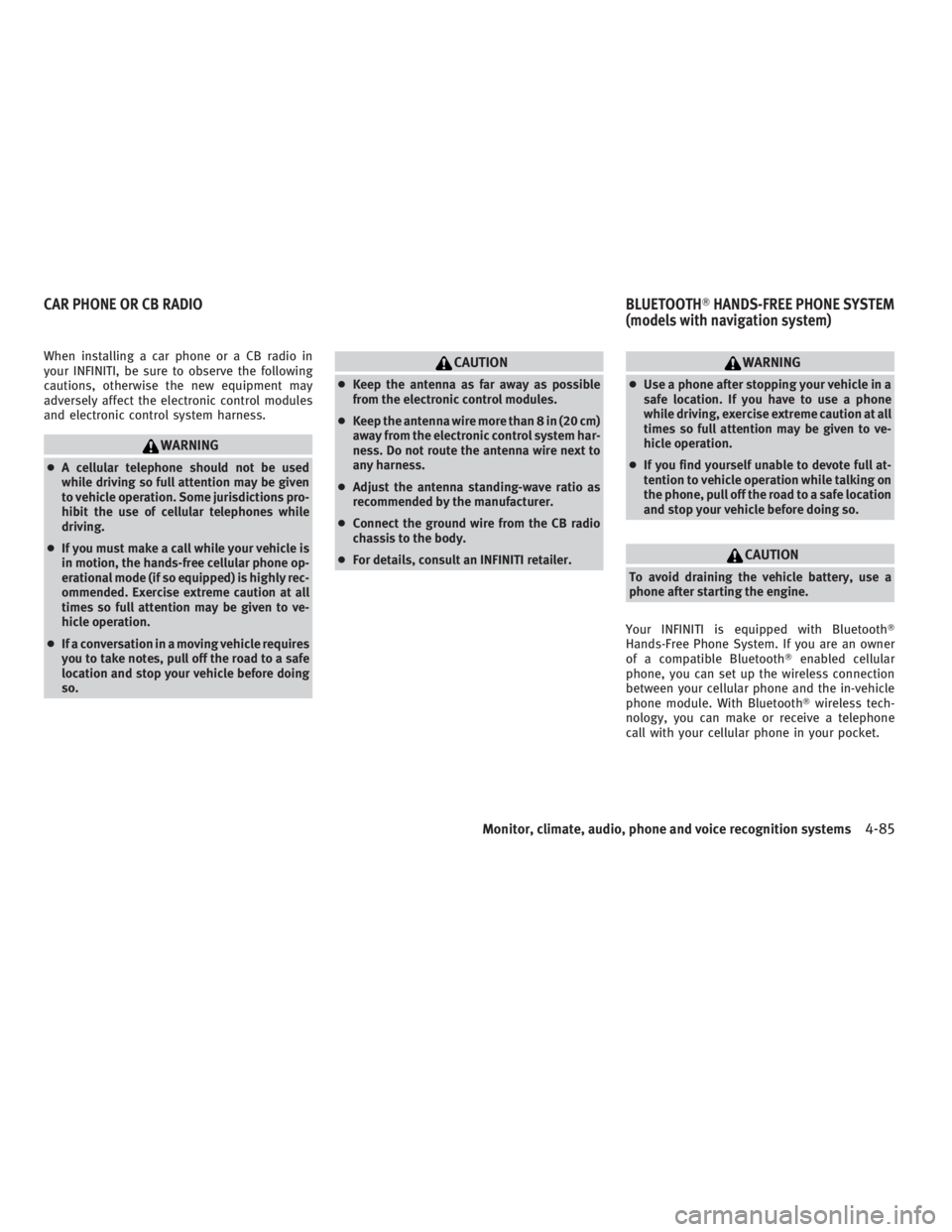

When installing a car phone or a CB radio in
your INFINITI, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING● A cellular telephone should not be used
while driving so full attention may be given
to vehicle operation. Some jurisdictions pro-
hibit the use of cellular telephones while
driving.
● If you must make a call while your vehicle is
in motion, the hands-free cellular phone op-
erational mode (if so equipped) is highly rec-
ommended. Exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If a conversation in a moving vehicle requires
you to take notes, pull off the road to a safe
location and stop your vehicle before doing
so. CAUTION● Keep the antenna as far away as possible
from the electronic control modules.
● Keep the antenna wire more than 8 in (20 cm)
away from the electronic control system har-
ness. Do not route the antenna wire next to
any harness.
● Adjust the antenna standing-wave ratio as
recommended by the manufacturer.
● Connect the ground wire from the CB radio
chassis to the body.
● For details, consult an INFINITI retailer. WARNING● Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTIONTo avoid draining the vehicle battery, use a
phone after starting the engine.
Your INFINITI is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth  enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth  wireless tech-
nology, you can make or receive a telephone
call with your cellular phone in your pocket.CAR PHONE OR CB RADIO BLUETOOTH  HANDS-FREE PHONE SYSTEM
(models with navigation system)
Monitor, climate, audio, phone and voice recognition systems
4-85
 —
—
04/21/10—debbie

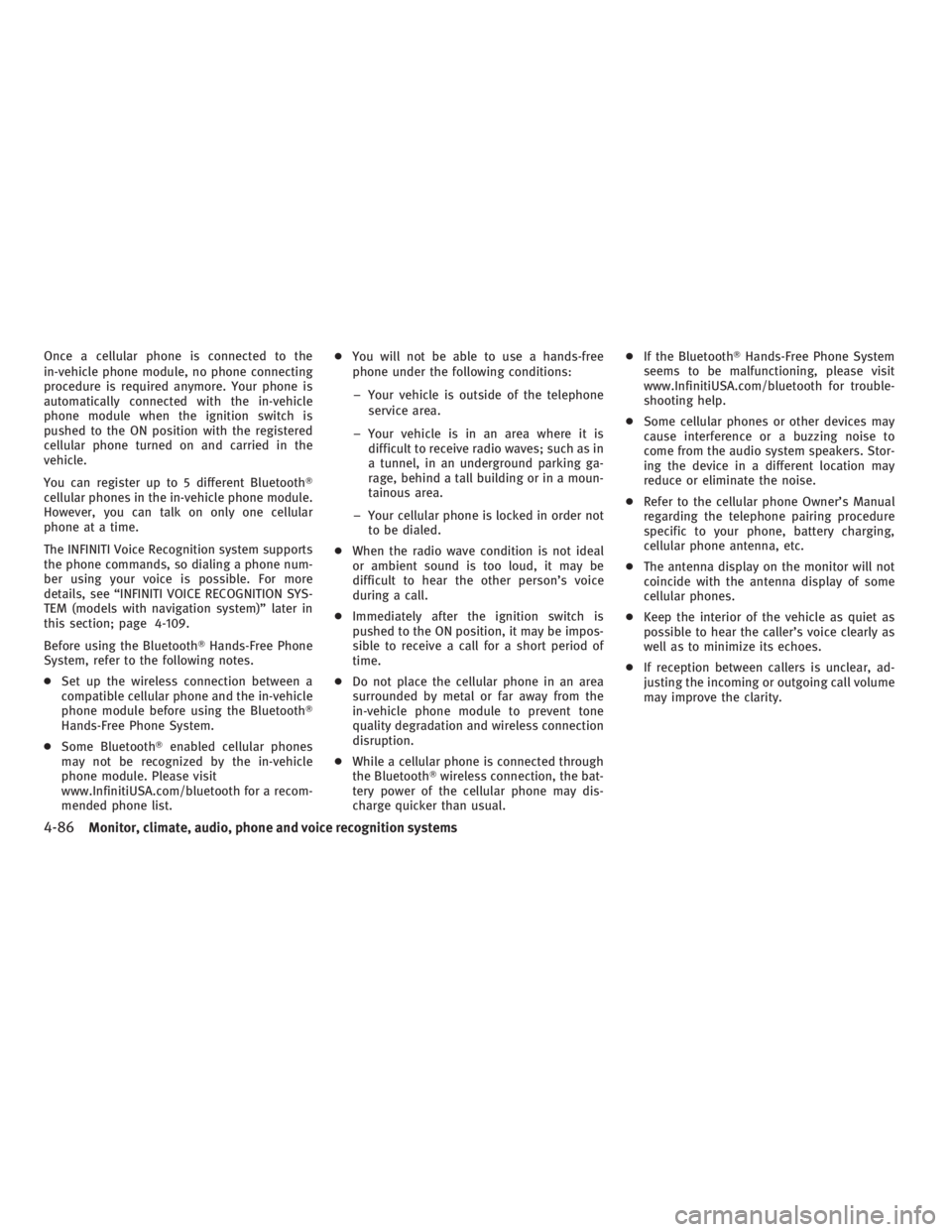

Once a cellular phone is connected to the
in-vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible. For more
details, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section; page 4-109.
Before using the Bluetooth  Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
Hands-Free Phone System.
● Some Bluetooth  enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.InfinitiUSA.com/bluetooth for a recom-
mended phone list. ● You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone
service area.
– Your vehicle is in an area where it is
difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not
to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the ON position, it may be impos-
sible to receive a call for a short period of
time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth  wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual. ● If the Bluetooth  Hands-Free Phone System
seems to be malfunctioning, please visit
www.InfinitiUSA.com/bluetooth for trouble-
shooting help.
● Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.
● Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
● The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
● Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
● If reception between callers is unclear, ad-
justing the incoming or outgoing call volume
may improve the clarity.
4-86 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


REGULATORY INFORMATION
FCC Regulatory information – CAUTION: To maintain compliance with FCC’s
RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two
conditions:
1) this device may not cause interference
and
2) this device must accept any interference,
including interference that may cause un-
desired operation of the device
IC Regulatory information – Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
– This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
BLUETOOTH  is a trade-
mark owned by Bluetooth
SIG, Inc., U.S.A. and li-
censed to Clarion Co., Ltd.
VOICE COMMANDS You can use voice commands to operate various
Bluetooth  Hands-Free Phone System features
using the INFINITI Voice Recognition system.
For more details, see “INFINITI VOICE RECOGNI-
TION SYSTEM (models with navigation system)”
later in this section; page 4-109.
CONTROL BUTTONS 1) PHONE button
2) TALK/PHONE SEND button SAA1772
Monitor, climate, audio, phone and voice recognition systems
4-87
 —
—
04/21/10—debbie
