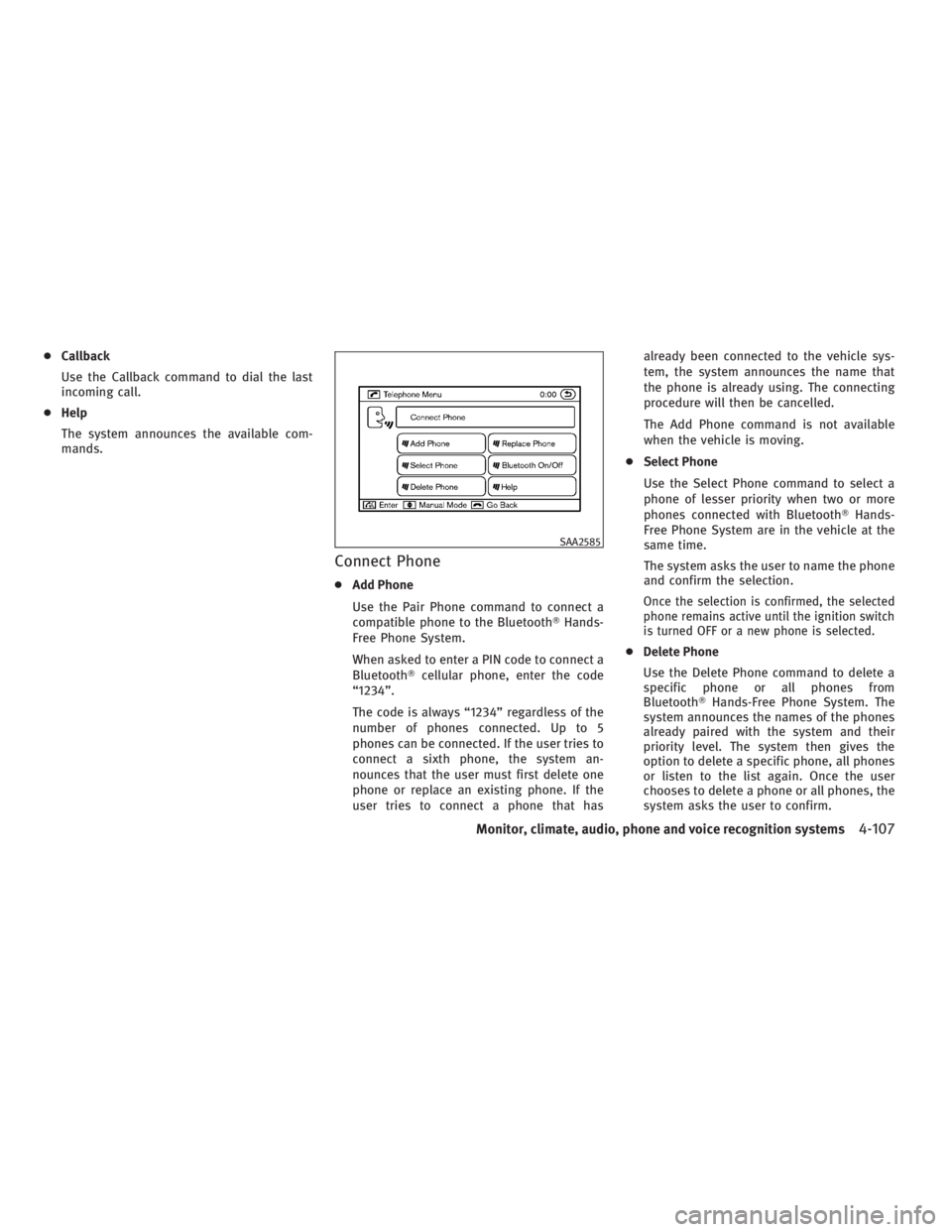

bluetooth INFINITI G37 2010 Owner's Guide

● Callback
Use the Callback command to dial the last
incoming call.
● Help
The system announces the available com-
mands.
Connect Phone ● Add Phone
Use the Pair Phone command to connect a
compatible phone to the Bluetooth  Hands-
Free Phone System.
When asked to enter a PIN code to connect a
Bluetooth  cellular phone, enter the code
“1234”.
The code is always “1234” regardless of the
number of phones connected. Up to 5
phones can be connected. If the user tries to
connect a sixth phone, the system an-
nounces that the user must first delete one
phone or replace an existing phone. If the
user tries to connect a phone that has already been connected to the vehicle sys-
tem, the system announces the name that
the phone is already using. The connecting
procedure will then be cancelled.
The Add Phone command is not available
when the vehicle is moving.
● Select Phone
Use the Select Phone command to select a
phone of lesser priority when two or more
phones connected with Bluetooth  Hands-
Free Phone System are in the vehicle at the
same time.
The system asks the user to name the phone
and confirm the selection.
Once the selection is confirmed, the selected
phone remains active until the ignition switch
is turned OFF or a new phone is selected.
● Delete Phone
Use the Delete Phone command to delete a
specific phone or all phones from
Bluetooth  Hands-Free Phone System. The
system announces the names of the phones
already paired with the system and their
priority level. The system then gives the
option to delete a specific phone, all phones
or listen to the list again. Once the user
chooses to delete a phone or all phones, the
system asks the user to confirm. SAA2585
Monitor, climate, audio, phone and voice recognition systems
4-107
 —
—
04/21/10—debbie


NOTE:
When the user deletes a phone, the associated
phone book for that phone will also be deleted.
● Replace Phone
Use the Replace Phone command to change
the priority level of the active phone.
The priority level determines which phone is
active when more than one paired
Bluetooth  phone is in the vehicle.
The system states the priority level of the
active phone and asks for a new priority
level (1, 2, 3, 4, 5).
If the new priority level is already being used
for another phone, the two phones will swap
priority levels.
For example, if the current priority levels are:
Priority Level 1 = Phone A
Priority Level 2 = Phone B
Priority Level 3 = Phone C
and you change the priority level of Phone C to
Level 1, then:
Priority Level 1 = Phone C
Priority Level 2 = Phone B
Priority Level 3 = Phone A ● Bluetooth On/Off
Use the Bluetooth On/Off command to turn
on/off Bluetooth  Hands-Free Phone Sys-
tem.
● Help
The system announces the available com-
mands.
VOICE ADAPTATION MODE The Voice Adaptation mode allows up to two
users with different dialects to train the system
to improve recognition accuracy. By repeating a
number of commands, the users can create a
voice model of their own voice that is stored in
the system. The system is capable of storing a
different voice adaptation model for each con-
nected phone.
Training procedure 1. Position the vehicle in a reasonably quiet
outdoor location.
2. Sit in the driver’s seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Press the button. 4. Speak: “Help”. The system acknowledges
the command and announces the next set
of available commands.
5. Speak:  Voice Adaptation  . The system
acknowledges the command and displays
the voice adaptation mode screen.
6. Voice memory A or memory B is selected
automatically. If both memory locations
are already in use, the system will prompt
you to overwrite one. Follow the instruc-
tions provided by the system.
7. When preparation is complete and you are
ready to begin, press the button.
8. The voice adaptation mode will be ex-
plained. Follow the instructions provided
by the system.
9. When training is finished, the system will
tell you an adequate number of phrases
have been recorded.
10. The system will ask you to say your
name. Follow the instructions to register
your name.
11. The system will announce that voice ad-
aptation has been completed and the
system is ready.
4-108 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie

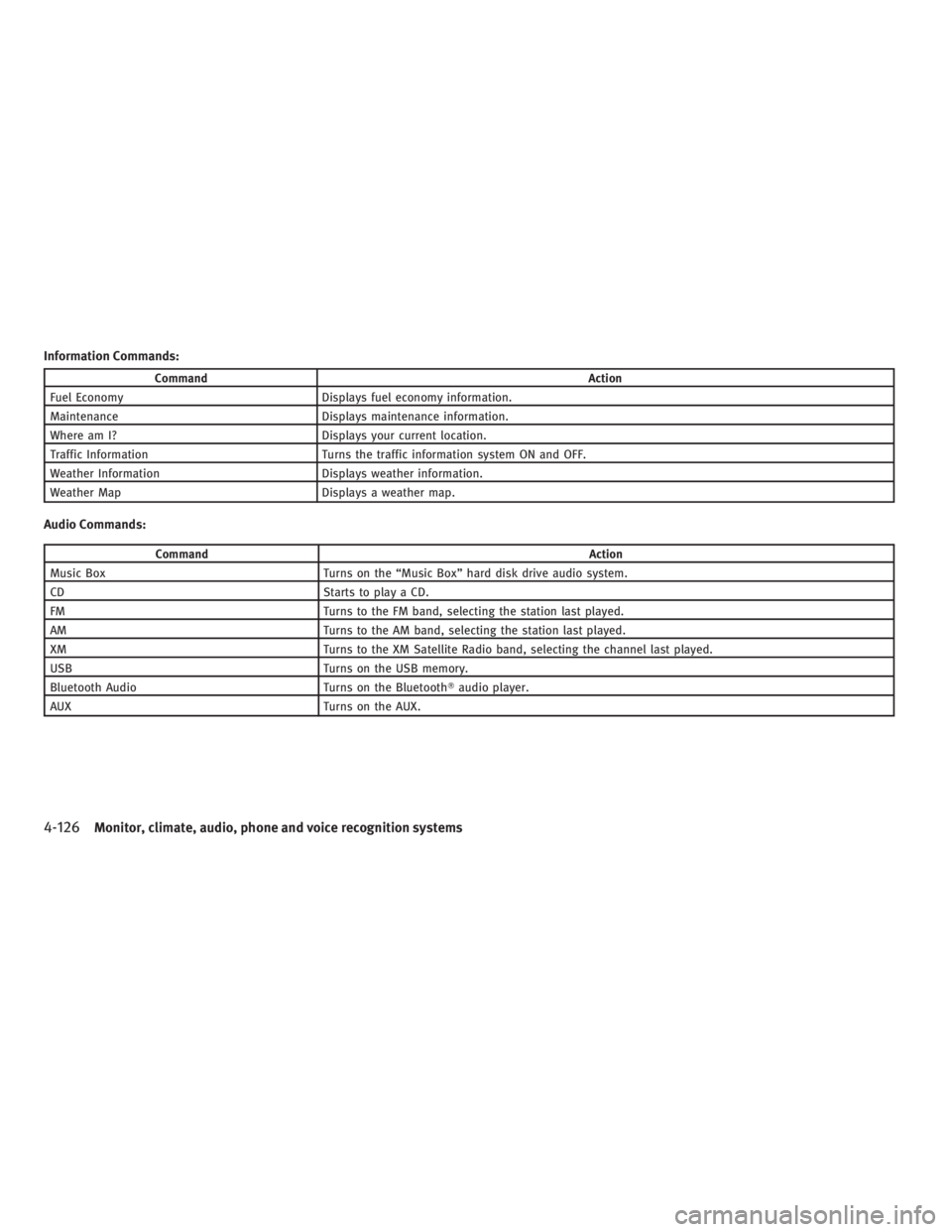

Information Commands: Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Audio Commands: Command Action
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the XM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth  audio player.
AUX Turns on the AUX.
4-126 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


TROUBLESHOOTING GUIDE The system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in this guide for
the appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved. Symptom/error message Solution
Displays “COMMAND NOT RECOGNIZED” or the
system fails to interpret the command correctly. 1. Ensure that the command format is valid, see “Command List” earlier in this section.
2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized. 4. If optional words of the command have been omitted, then the command should be tried with these
in place.
The system consistently selects the wrong voic-
etag in the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. (See “BLUETOOTH  HANDS-
FREE PHONE SYSTEM (models with navigation system)” earlier in this section; page 4-85.)
2. Replace one of the voicetags being confused with a different voicetag.
The system cannot be operated. 1. Make sure that the soft top is usable. If the soft top is not working, contact an INFINITI retailer.
2. Close the retractable hard top.
3. Open and close the retractable hard top before operating the system.
Monitor, climate, audio, phone and voice recognition systems
4-133
 —
—
04/21/10—debbie
