The sunload sensor
 A
on the instrument panel
helps maintain a constant temperature. Do not
put anything on or around this sensor.
IN-CABIN MICROFILTER Type A and B:
The climate control system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner
heats, defogs, and ventilates efficiently, replace
the filter in accordance with the maintenance
schedule in the INFINITI Service and Mainte-
nance Guide. To replace the filter, contact an
INFINITI retailer. The filter should be replaced if air flow is ex-
tremely decreased or when windows fog up eas-
ily when operating heater or air conditioning
system.
Type C:
The climate control system is equipped with a
natural grape seed polyphenol filter which col-
lects and neutralizes dirt, pollen, dust, etc. To
make sure that the air conditioner heats, defogs
and ventilates efficiently, replace the filter in
accordance with the maintenance schedule in
the INFINITI Service and Maintenance Guide. To
replace the filter, contact an INFINITI retailer.
The filter should be replaced if the air flow de-
creases significantly or if windows fog up easily
when operating the heater or air conditioner. SERVICING CLIMATE CONTROL The climate control system in your INFINITI is
charged with a refrigerant designed with the
environment in mind. This refrigerant will not
harm the earth’s ozone layer. However, special
charging equipment and lubricant are required
when servicing your INFINITI air conditioner.
Using improper refrigerants or lubricants will
cause severe damage to your climate control
system. (See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
consumer information” section for climate con-
trol system refrigerant and lubricant recommen-
dations.)
Your INFINITI retailer will be able to service your
environmentally friendly climate control sys-
tem.
WARNINGThe system contains refrigerant under high
pressure. To avoid personal injury, any air con-
ditioner service should be done only by an ex-
perienced technician with the proper
equipment.SIC2768
4-38 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


AUDIO OPERATION PRECAUTIONS
Radio Push the ignition switch to the ACC or ON
position and push the radio band select button
to turn on the radio. If you listen to the radio
with the engine not running, the ignition switch
should be pushed to the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external
influences. Intermittent changes in reception
quality normally are caused by these external
influences.
Using a cellular phone in or near the vehicle may
influence radio reception quality.
Radio reception :
Your INFINITI radio system is equipped with
state-of-the-art electronic circuits to enhance
radio reception. These circuits are designed to
extend reception range, and to enhance the
quality of that reception.
However there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle,
even when the finest equipment is used. These
characteristics are completely normal in a given reception area, and do not indicate any mal-
function in your INFINITI radio system.
Reception conditions will constantly change
because of vehicle movement. Buildings, ter-
rain, signal distance and interference from
other vehicles can work against ideal reception.
Described below are some of the factors that
can affect your radio reception.
Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
FM radio reception :
Range: FM range is normally limited to 25 to 30
miles (40 to 48 km), with monaural (single
channel) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the
FM station is within 25 miles (40 km). The
strength of the FM signal is directly related to
the distance between the transmitter and re-
ceiver. FM signals follow a line-of-sight path,
exhibiting many of the same characteristics as
light. For example they will reflect off objects.
Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to
fade and/or drift. SAA0306
AUDIO SYSTEM
Monitor, climate, audio, phone and voice recognition systems
4-39
 —
—
04/21/10—debbie


Static and flutter: During signal interference
from buildings, large hills or due to antenna
position, usually in conjunction with increased
distance from the station transmitter, static or
flutter can be heard. This can be reduced by
lowering the treble setting to reduce the treble
response.
Multipath reception: Because of the reflective
characteristics of FM signals, direct and re-
flected signals reach the receiver at the same
time. The signals may cancel each other, result-
ing in momentary flutter or loss of sound.
AM radio reception :
AM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics. AM signals are also sub-
ject to interference as they travel from transmit-
ter to receiver.
Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.
Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic
lights. Satellite radio reception (if so equipped) :
When the satellite radio is used for the first time
or the battery has been replaced, the satellite
radio may not work properly. This is not a
malfunction. Wait more than 10 minutes with
the satellite radio ON and the vehicle outside of
any metal or large building for the satellite
radio to receive all of the necessary data.
The satellite radio mode requires an active XM
Satellite Radio subscription. The satellite radio
is not available in Alaska, Hawaii and Guam.
The satellite radio performance may be affected
if cargo carried on the roof blocks the satellite
radio signal.
If possible, do not put cargo near the satellite
antenna.
A build up of ice on the satellite radio antenna
can affect satellite radio performance. Remove
the ice to restore satellite radio reception.
Compact Disc (CD) player ● Do not force a compact disc into the CD
insert slot. This could damage the CD and/or
CD player.
● Trying to load a CD with the CD door closed
could damage the CD and/or CD player. SAA0480
4-40 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


● During cold weather or rainy days, the player
may malfunction due to the humidity. If this
occurs, remove the CD and dehumidify or
ventilate the player completely.
● The player may skip while driving on rough
roads.
● The CD player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
● Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” logo on the disc or packaging.
● Do not expose the CD to direct sunlight.
● CDs that are of poor quality, dirty, scratched,
covered with fingerprints, or that have pin
holes may not work properly.
● The following CDs may not work properly:
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
● Do not use the following CDs as they may
cause the CD player to malfunction.
– 3.1 in (8 cm) discs
– CDs that are not round – CDs with a paper label
– CDs that are warped, scratched, or have
abnormal edges
● This audio system can only play prerecorded
CDs. It has no capabilities to record or burn
CDs.
● If the CD cannot be played, one of the
following messages will be displayed.
CHECK DISC:
– Confirm that the CD is inserted correctly
(the label side is facing up, etc.).
– Confirm that the CD is not bent or warped
and it is free of scratches.
PUSH EJECT:
This is an error due to the temperature inside
the player is too high. Remove the CD by
pushing the EJECT button, and after a short
time reinsert the CD. The CD can be played
when the temperature of the player returns to
normal.
UNPLAYABLE:
The file is unplayable in this audio system
(only MP3 or WMA CD).
DVD (Digital Versatile Disc) player
(models with navigation system) ● Do not force a compact disc into the CD/DVD
insert slot. This could damage the CD/DVD
player. LHA0484
Monitor, climate, audio, phone and voice recognition systems
4-41
 —
—
04/21/10—debbie


● During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the CD/DVD and dehumidify
or ventilate the player completely.
● The player may skip while driving on rough
roads.
● The CD/DVD player sometimes cannot func-
tion when the passenger compartment tem-
perature is extremely high. Decrease the
temperature before use.
● Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” or “DVD Video” logo on the disc or
packaging.
● Do not expose the CD/DVD to direct sunlight.
● CD/DVDs that are of poor quality, dirty,
scratched, covered with fingerprints, or that
have pinholes may not work properly.
● The following CD/DVDs are not guaranteed
to play:
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
– Recordable DVDs (DVD±R, DVD±R DL)
– Rewritable DVDs (DVD±RW, DVD±RW DL) ● Do not use the following CD/DVDs as they
may cause the CD/DVD player to malfunc-
tion.
– 3.1 in (8 cm) discs
– CD/DVDs that are not round
– CD/DVDs with a paper label
– CD/DVDs that are warped, scratched or
have abnormal edges
– This audio system can only play prere-
corded CD/DVDs. It has no capabilities to
record or burn CD/DVDs.
● If the CD/DVD cannot be played, one of the
following messages will be displayed.
Disc Read Error:
– Confirm that the CD/DVD is inserted cor-
rectly (the label side is facing up, etc.).
– Confirm that the CD/DVD is not bent or
warped and it is free of scratches.
Please Eject Disc:
– This may be an error due to the tempera-
ture inside the player being too high.
Remove the CD/DVD by pushing the EJECT
button, and after a short time reinsert the
CD/DVD. The CD/DVD can be played when
the temperature of the player returns to normal. If the error persists, consult your
local retailer.
Unplayable File:
– The file may be copy protected.
– The file is not MP3, WMA, AAC, M4A or
DivX  type.
Region Invalid:
– The DVD is not for region 1 or all regions.
Use DVDs with a region code “1”, “ALL” or
“1 included” for your DVD entertainment
system. (The region code
 A
is displayed
as a small symbol printed on the top of
the DVD
 B
.) This vehicle-installed DVD
player cannot play DVDs with a region
code other than “1” or “ALL”.
Copyright and trademark :
● The technology protected by the U.S. patent
and other intellectual property rights owned
by Macrovision Corporation and other right
holders is adopted for this system.
● This copyright protected technology cannot
be used without a permit from Macrovision
Corporation. It is limited to be personal use,
etc., as long as the permit from Macrovision
Corporation is not issued.
● Modifying or disassembling is prohibited.
4-42 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


● Dolby digital is manufactured under license
from Dolby Laboratories, Inc.
● Dolby and the double D mark “
” are
trademarks of Dolby Laboratories, Inc.
● DTS and DTS 2.0 “
” are registered
trademarks of DTS, Inc.
Parental level (parental control) :
DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selection :
The following disc formats can be played with
the DVD drive.
● DVD-VIDEO
● DVD-AUDIO
● VIDEO-CD
● CD-DA (Conventional Compact Disc)
● DTS-CD
● DVD-AUDIO may not be playable depending
on the system. USB (Universal Serial Bus) This system supports various USB memory
sticks, USB hard drives and iPod  players.
There are some USB devices which may not be
supported with this system.
● Make sure that the USB device is connected
correctly into the USB connector.
● Do not force the memory stick or USB cable
into the USB connector. This could damage
the connector.
● During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the USB device and dehu-
midify or ventilate the USB player com-
pletely.
● The USB player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
● Do not leave USB memory in a place prone to
static electricity or where the air conditioner
blows directly. The data in the USB memory
may be damaged.
● The vehicle is not equipped with a USB
memory stick. ● A USB device cannot be formatted with this
system. To format a USB device, use a
personal computer.
● Partitioned USB devices may not be played
correctly.
● Some characters used in other languages
(Chinese, Japanese, etc.) are not displayed
properly on the vehicle center screen. Using
English language characters with a USB de-
vice is recommended.
● Do not connect a USB device if a connector
or cable is wet. Allow the cable and/or
connectors to dry completely before con-
necting the USB device. If the connector is
exposed to fluids other than water, evapora-
tive residue may cause a short between the
connector pins.
● Large video podcast files cause slow re-
sponses in an iPod  . The vehicle center
display may momentarily black out, but it
will soon recover.
● If an iPod  automatically selects large video
podcast files while in the shuffle mode, the
vehicle center display may momentarily
black out, but it will soon recover.
● Audiobooks may not play in the same order
as they appear on an iPod  .
Monitor, climate, audio, phone and voice recognition systems
4-43
 —
—
04/22/10—debbie


● An iPod nano  (1st Generation) may remain
in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod  .
● An iPod nano  (2nd Generation) will con-
tinue to fast forward or rewind if it is discon-
nected during a seek operation.
● An incorrect song title may appear when the
Play Mode is changed while using the iPod
nano  (2nd Generation)
iPod  is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compressed Audio Files (MP3/WMA/
AAC) Explanation of terms :
● MP3 — MP3 is short for Moving Pictures
Experts Group Audio Layer 3. MP3 is the
most well known compressed digital audio
file format. This format allows for near “CD
quality” sound, but at a fraction of the size
of normal audio files. MP3 conversion of an
audio track can reduce the file size by
approximately a 10:1 ratio (Sampling: 44.1
kHz, Bit rate: 128 kbps) with virtually no
perceptible loss in quality. The compression
reduces certain parts of sound that seem
inaudible to most people. ● WMA — Windows Media Audio (WMA) is a
compressed audio format created by Mi-
crosoft as an alternative to MP3. The WMA
codec offers greater file compression than
the MP3 codec, enabling storage of more
digital audio tracks in the same amount of
space when compared to MP3s at the same
level of quality.
● AAC/M4A — Advanced Audio Coding (AAC) is
a lossy audio compression format. Audio
files that have been encoded with AAC are
generally smaller in size and deliver a higher
quality of sound than MP3.
● Bit rate — Bit rate denotes the number of
bits per second used by a digital music file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.
● Sampling frequency — Sampling frequency
is the rate at which the samples of a signal
are converted from analog to digital (A/D
conversion) per second.
● Multisession — Multisession is one of the
methods for writing data to media. Writing
data once to the media is called a single
session, and writing more than once is
called a multisession. ● ID3/WMA Tag — The ID3/WMA tag is the part
of the encoded MP3 or WMA file that con-
tains information about the digital music file
such as song title, artist, album title, encod-
ing bit rate, track time duration, etc. ID3 tag
information is displayed on the
Album/Artist/Track title line on the display.
* Windows  and Windows Media  are regis-
tered trademarks or trademarks of Microsoft
Corporation in the United States of America
and/or other countries.
4-44 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


Playback order :
● The folder names of folders not containing
compressed audio files are not shown in the
display.
● If there is a file in the top level of a disc/USB,
“Root Folder” is displayed. ● The playback order is the order in which the
files were written by the writing software, so
the files might not play in the desired order.
● Music playback order of compressed audio
files is as illustrated in the next figure.
SAA2494
Monitor, climate, audio, phone and voice recognition systems
4-45
 —
—
04/21/10—debbie

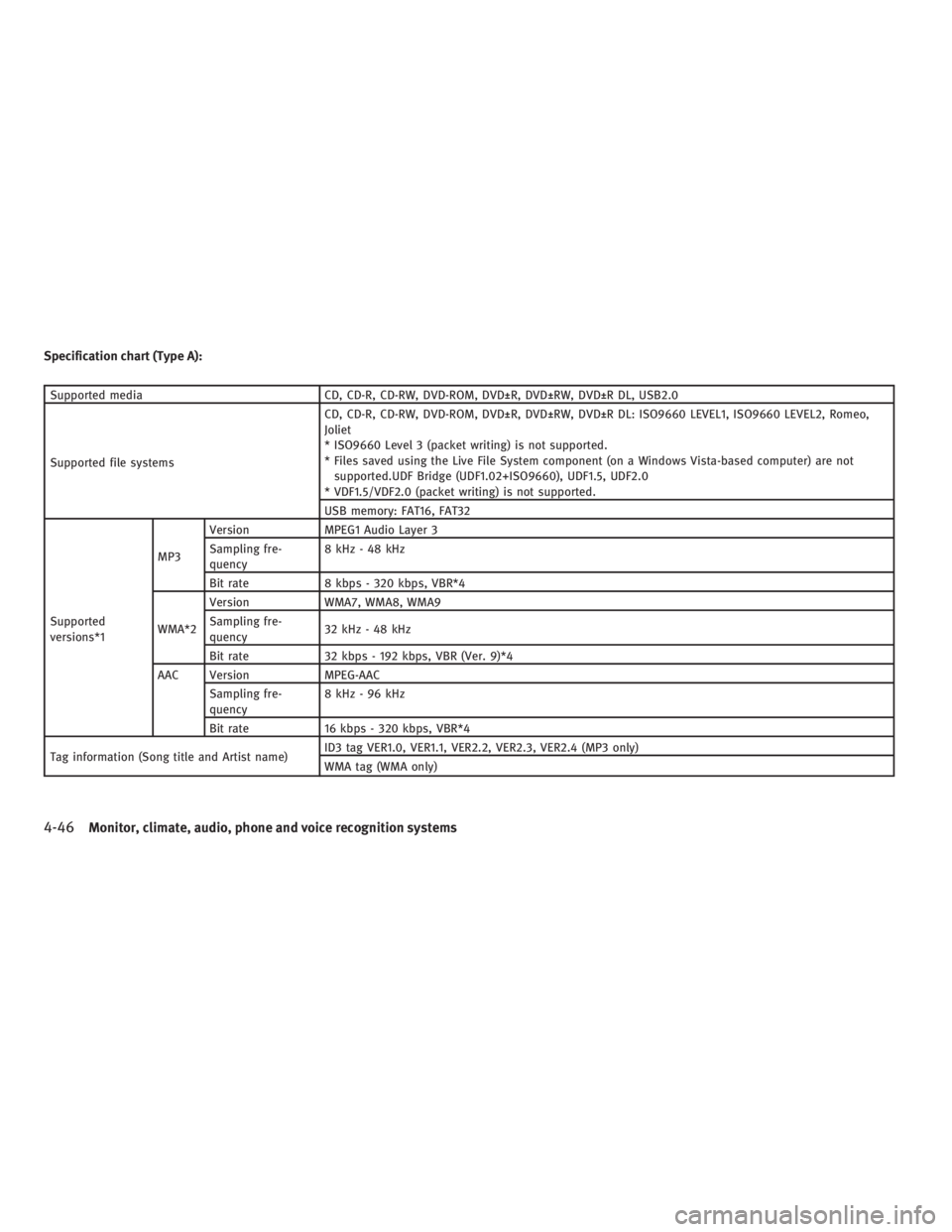

Specification chart (Type A): Supported media CD, CD-R, CD-RW, DVD-ROM, DVD±R, DVD±RW, DVD±R DL, USB2.0
Supported file systems CD, CD-R, CD-RW, DVD-ROM, DVD±R, DVD±RW, DVD±R DL: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo,
Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not
supported.UDF Bridge (UDF1.02+ISO9660), UDF1.5, UDF2.0
* VDF1.5/VDF2.0 (packet writing) is not supported.
USB memory: FAT16, FAT32
Supported
versions*1 MP3 Version MPEG1 Audio Layer 3
Sampling fre-
quency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*2 Version WMA7, WMA8, WMA9
Sampling fre-
quency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR (Ver. 9)*4
AAC Version MPEG-AAC
Sampling fre-
quency 8kHz-96kHz
Bit rate 16 kbps - 320 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
4-46 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie

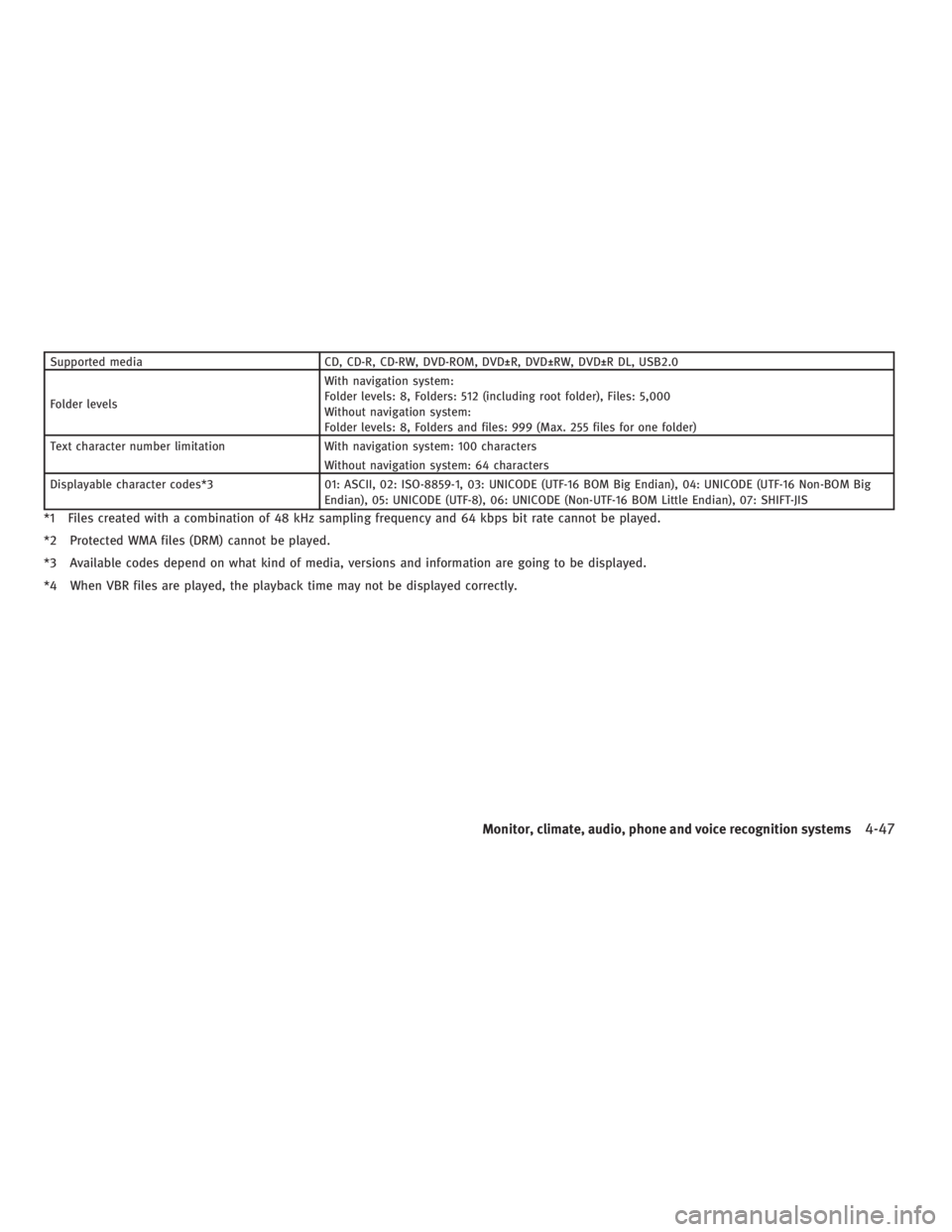

Supported media CD, CD-R, CD-RW, DVD-ROM, DVD±R, DVD±RW, DVD±R DL, USB2.0
Folder levels With navigation system:
Folder levels: 8, Folders: 512 (including root folder), Files: 5,000
Without navigation system:
Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)
Text character number limitation With navigation system: 100 characters
Without navigation system: 64 characters
Displayable character codes*3 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big
Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian), 07: SHIFT-JIS
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions and information are going to be displayed.
*4 When VBR files are played, the playback time may not be displayed correctly.
Monitor, climate, audio, phone and voice recognition systems
4-47
 —
—
04/21/10—debbie
