1. Crash zone sensor
2. Supplemental front air bag modules
(INFINITI Advanced Air Bags)
3. Front seat-mounted side-impact
supplemental air bags 4. Occupant classification sensor
(pattern sensor)
5. Occupant classification system control unit
6. Roof-mounted curtain side-impact
supplemental air bags 7. Roof-mounted curtain side-impact
supplemental air bag inflators
8. Air bag Control Unit (ACU)
9. Satellite sensors
10. Seat belts with pretensioners
INFINITI ADVANCED AIR BAG SYSTEM
(front seats) This vehicle is equipped with the INFINITI Ad-
vanced Air Bag System for the driver and front
passenger seats. This system is designed to
meet certification requirements under U.S. regu-
lations. It is also permitted in Canada. However,
all of the information, cautions and warnings in
this manual still apply and must be followed.
The driver supplemental front-impact air bag is
located in the center of the steering wheel. The
front passenger supplemental front-impact air
bag is mounted in the instrument panel above
the glove box. The front air bags are designed
to inflate in higher severity frontal collisions,
although they may inflate if the forces in an-
other type of collision are similar to those of a
higher severity frontal impact. They may not
inflate in certain frontal collisions. Vehicle dam-
age (or lack of it) is not always an indication of
proper front air bag operation.Sedan SSS0683
Safety — Seats, seat belts and supplemental restraint system
1-45
 —
—
10/12/09—tbrooks


Front air bags, along with the use of seat belts,
help to cushion the impact force on the head
and chest of the front occupants. They can help
save lives and reduce serious injuries. However,
an inflating front air bag may cause facial
abrasions or other injuries. Front air bags do
not provide restraint to the lower body.
Even with INFINITI advanced air bags, seat belts
should be correctly worn and the driver and
passenger seated upright as far as practical
away from the steering wheel or instrument
panel. The front air bags inflate quickly in order
to help protect the front occupants. Because of
this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the air bag module
during inflation.
The front air bags deflate quickly after a colli-
sion.
The supplemental front air bags operate only
when the ignition switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational. Front passenger air bag and status
light WARNINGThe front passenger air bag is designed to au-
tomatically turn OFF under some conditions.
Read this section carefully to learn how it oper-
ates. Proper use of the seat, seat belt and child
restraints is necessary for most effective pro-
tection. Failure to follow all instructions in this
manual concerning the use of seats, seat belts
and child restraints can increase the risk or
severity of injury in an accident. Status light :
The front passenger air bag status light
is located above the ashtray. The light operates
as follows:
● Unoccupied passenger seat: The
is
OFF and the front passenger air bag is OFF
and will not inflate in a crash.
● Passenger seat occupied by a small adult,
child or child restraint as outlined in this
section: The illuminates to indicate
that the front passenger air bag is OFF and
will not inflate in a crash.
● Occupied passenger seat and the passenger
meets the conditions outlined in this sec-
tion: The light is OFF to indicate that
the front passenger air bag is operational.
Front passenger air bag :
The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as described
below as permitted by U.S. regulations. If the
front passenger air bag is OFF, it will not inflate
in a crash. The driver air bag and other air bags
in your vehicle are not part of this system.Front passenger air bag status light SSS0676
Safety — Seats, seat belts and supplemental restraint system
1-47
 —
—
10/12/09—tbrooks


retailer that your air bag is working properly,
reposition the occupant or child restraint in a
rear seat.
The INFINITI advanced air bag system and pas-
senger air bag status light will take a few
seconds to register a change in the passenger
seat status. However, if the seat becomes un-
occupied, the air bag status light will remain
off.
If a malfunction occurs in the front passenger
air bag system, the supplemental air bag warn-
ing light , located in the meter and
gauges area will blink. Have the system
checked by an INFINITI retailer.
Other supplemental front-impact air
bag precautions WARNING● Do not place any objects on the steering
wheel pad or on the instrument panel. Also,
do not place any objects between any occu-
pant and the steering wheel or instrument
panel. Such objects may become dangerous
projectiles and cause injury if the front air
bags inflate. ● Do not place objects with sharp edges on the
seat. Also, do not place heavy objects on the
seat that will leave permanent impressions
in the seat. Such objects can damage the
seat or occupant classification sensor (pat-
tern sensor). This can affect the operation of
the air bag system and result in serious per-
sonal injury.
● Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification sen-
sor. This can also affect the operation of the
air bag system and result in serious personal
injury.
● Immediately after inflation, several front air
bag system components will be hot. Do not
touch them; you may severely burn yourself.
● No unauthorized changes should be made to
any components or wiring of the air bag sys-
tem. This is to prevent accidental inflation of
the supplemental air bag or damage to the
supplemental air bag system.
● Do not make unauthorized changes to your
vehicle’s electrical system, suspension sys-
tem or front end structure. This could affect
proper operation of the front air bag system. ● Tampering with the air bag system may re-
sult in serious personal injury. Tampering
includes changes to the steering wheel and
the instrument panel assembly by placing
material over the steering wheel pad and
above the instrument panel or by installing
additional trim material around the air bag
system.
● Modifying or tampering with the front pas-
senger seat may result in serious personal
injury. For example, do not change the front
seats by placing material on the seat cush-
ion or by installing additional trim material,
such as seat covers, on the seat that is not
specifically designed to assure proper air
bag operation. Additionally, do not stow any
objects under the front passenger seat or the
seat cushion and seatback. Such objects
may interfere with the proper operation of
the occupant classification sensor.
● No unauthorized changes should be made to
any components or wiring of the seat belt
system. This may affect the front air bag
system. Tampering with the seat belt system
may result in serious personal injury.
Safety — Seats, seat belts and supplemental restraint system
1-49
 —
—
10/12/09—tbrooks


● Work on and around the front air bag system
should be done by an INFINITI retailer. Instal-
lation of electrical equipment should also be
done by an INFINITI retailer. The Supplemen-
tal Restraint System (SRS) wiring har-
nesses* should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices should not
be used on the air bag system.
● A cracked windshield should be replaced im-
mediately by a qualified repair facility. A
cracked windshield could affect the function
of the supplemental air bag system.
* The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
FRONT SEAT-MOUNTED SIDE-IMPACT
SUPPLEMENTAL AIR BAG AND
ROOF-MOUNTED CURTAIN SIDE-
IMPACT SUPPLEMENTAL AIR BAG
SYSTEMS The side air bags are located in the outside of
the seatback of the front seats. The curtain air
bags are located in the side roof rails. These
systems are designed to meet voluntary guide-
lines to help reduce the risk of injury to out-of-
position occupants. However, all of the informa-
tion, cautions and warnings in this manual still
apply and must be followed. The side air bags
and curtain air bags are designed to inflate in
higher severity side collisions, although they
may inflate if the forces in another type of collision are similar to those of a higher severity
side impact. They are designed to inflate on the
side where the vehicle is impacted. They may
not inflate in certain side collisions on the side
where the vehicle is impacted.
Vehicle damage (or lack of it) is not always an
indication of proper supplemental side air bag
and curtain side-impact air bag operation.
When side air bags and curtain air bags inflate,
a fairly loud noise may be heard, followed by
release of smoke. This smoke is not harmful
and does not indicate a fire. Care should be
taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvis of the front occupants. Curtain air
bags help to cushion the impact force to the
head of occupants in the front and rear out-
board seating positions. They can help save
lives and reduce serious injuries. However, an
inflating side air bags and curtain air bags may
cause abrasions or other injuries. Side air bags
and curtain air bags do not provide restraint to
the lower body. SSS0521
1-50 Safety — Seats, seat belts and supplemental restraint system
 —
—
10/13/09—pattie


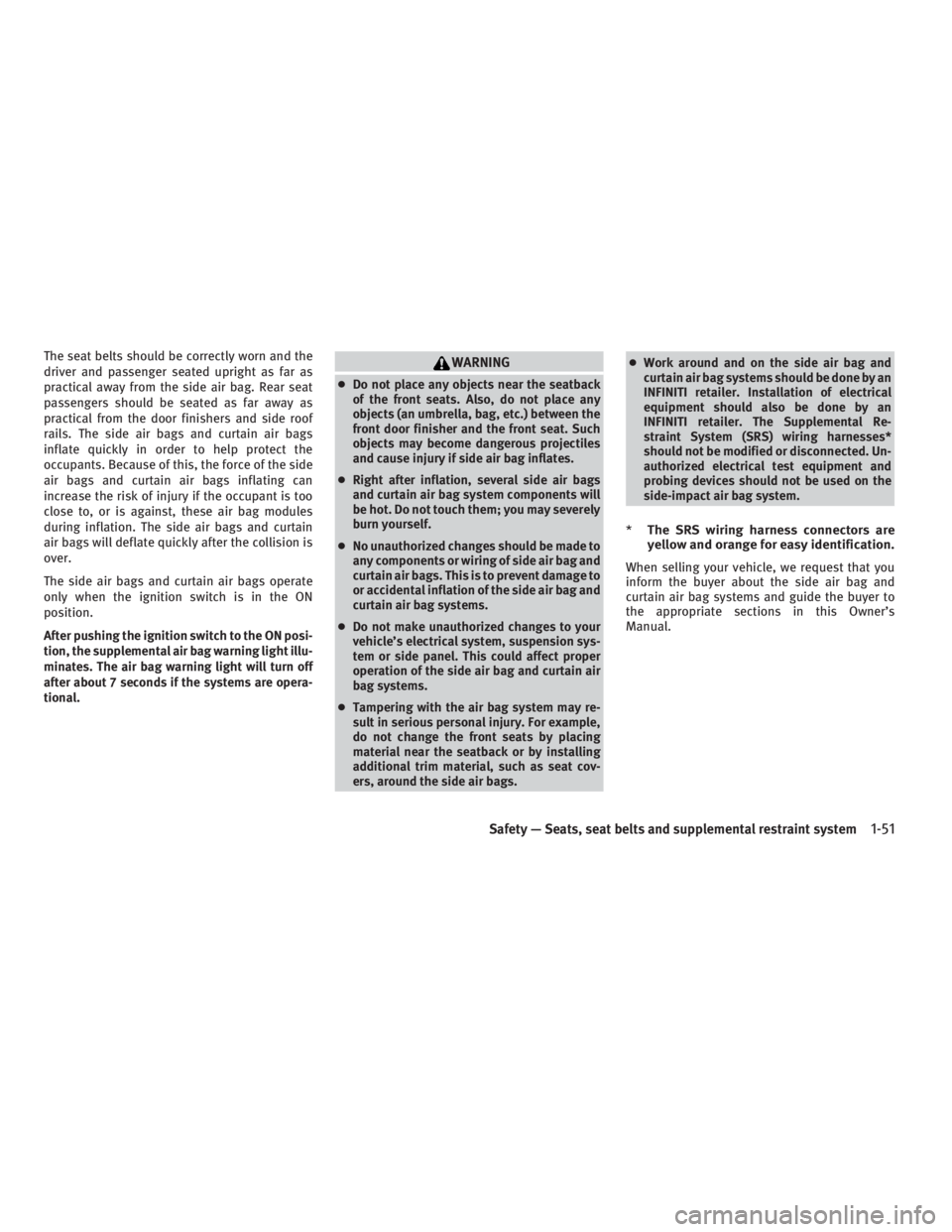

The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bag. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain air bags
inflate quickly in order to help protect the
occupants. Because of this, the force of the side
air bags and curtain air bags inflating can
increase the risk of injury if the occupant is too
close to, or is against, these air bag modules
during inflation. The side air bags and curtain
air bags will deflate quickly after the collision is
over.
The side air bags and curtain air bags operate
only when the ignition switch is in the ON
position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The air bag warning light will turn off
after about 7 seconds if the systems are opera-
tional. WARNING● Do not place any objects near the seatback
of the front seats. Also, do not place any
objects (an umbrella, bag, etc.) between the
front door finisher and the front seat. Such
objects may become dangerous projectiles
and cause injury if side air bag inflates.
● Right after inflation, several side air bags
and curtain air bag system components will
be hot. Do not touch them; you may severely
burn yourself.
● No unauthorized changes should be made to
any components or wiring of side air bag and
curtain air bags. This is to prevent damage to
or accidental inflation of the side air bag and
curtain air bag systems.
● Do not make unauthorized changes to your
vehicle’s electrical system, suspension sys-
tem or side panel. This could affect proper
operation of the side air bag and curtain air
bag systems.
● Tampering with the air bag system may re-
sult in serious personal injury. For example,
do not change the front seats by placing
material near the seatback or by installing
additional trim material, such as seat cov-
ers, around the side air bags. ● Work around and on the side air bag and
curtain air bag systems should be done by an
INFINITI retailer. Installation of electrical
equipment should also be done by an
INFINITI retailer. The Supplemental Re-
straint System (SRS) wiring harnesses*
should not be modified or disconnected. Un-
authorized electrical test equipment and
probing devices should not be used on the
side-impact air bag system.
* The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner’s
Manual.
Safety — Seats, seat belts and supplemental restraint system
1-51
 —
—
11/25/09—tbrooks

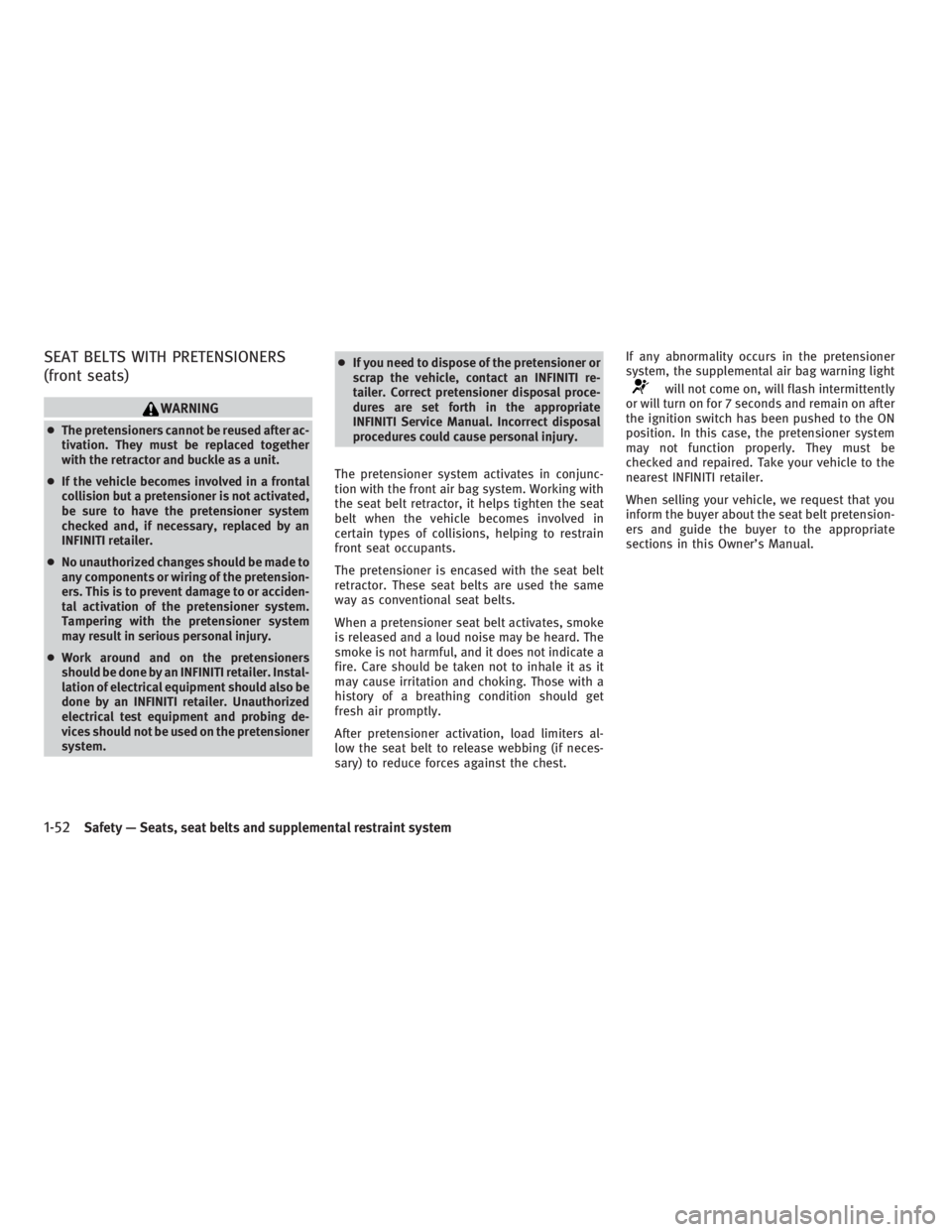

SEAT BELTS WITH PRETENSIONERS
(front seats) WARNING● The pretensioners cannot be reused after ac-
tivation. They must be replaced together
with the retractor and buckle as a unit.
● If the vehicle becomes involved in a frontal
collision but a pretensioner is not activated,
be sure to have the pretensioner system
checked and, if necessary, replaced by an
INFINITI retailer.
● No unauthorized changes should be made to
any components or wiring of the pretension-
ers. This is to prevent damage to or acciden-
tal activation of the pretensioner system.
Tampering with the pretensioner system
may result in serious personal injury.
● Work around and on the pretensioners
should be done by an INFINITI retailer. Instal-
lation of electrical equipment should also be
done by an INFINITI retailer. Unauthorized
electrical test equipment and probing de-
vices should not be used on the pretensioner
system. ● If you need to dispose of the pretensioner or
scrap the vehicle, contact an INFINITI re-
tailer. Correct pretensioner disposal proce-
dures are set forth in the appropriate
INFINITI Service Manual. Incorrect disposal
procedures could cause personal injury.
The pretensioner system activates in conjunc-
tion with the front air bag system. Working with
the seat belt retractor, it helps tighten the seat
belt when the vehicle becomes involved in
certain types of collisions, helping to restrain
front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner seat belt activates, smoke
is released and a loud noise may be heard. The
smoke is not harmful, and it does not indicate a
fire. Care should be taken not to inhale it as it
may cause irritation and choking. Those with a
history of a breathing condition should get
fresh air promptly.
After pretensioner activation, load limiters al-
low the seat belt to release webbing (if neces-
sary) to reduce forces against the chest. If any abnormality occurs in the pretensioner
system, the supplemental air bag warning light
will not come on, will flash intermittently
or will turn on for 7 seconds and remain on after
the ignition switch has been pushed to the ON
position. In this case, the pretensioner system
may not function properly. They must be
checked and repaired. Take your vehicle to the
nearest INFINITI retailer.
When selling your vehicle, we request that you
inform the buyer about the seat belt pretension-
ers and guide the buyer to the appropriate
sections in this Owner’s Manual.
1-52 Safety — Seats, seat belts and supplemental restraint system
 —
—
10/12/09—tbrooks


SUPPLEMENTAL AIR BAG WARNING
LABELS Warning labels about the supplemental front-
impact air bag systems are placed in the vehicle
as shown in the illustration.
SRS air bag The warning labels
 1
are located on the
surface of the sun visors. SUPPLEMENTAL AIR BAG WARNING
LIGHT The supplemental air bag warning light, dis-
playing in the instrument panel, moni-
tors the circuits of the supplemental front-
impact air bag, front seat-mounted side-impact
supplemental air bag, roof-mounted curtain
side-impact supplemental air bag, and seat belt
pretensioner systems. The monitored circuits
include the Air bag Control Unit (ACU), satellite
sensors, crash zone sensor, occupant classifi-
cation system, front air bag modules, side air
bag modules, curtain air bag modules, preten-
sioner and all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi- nates for about 7 seconds and then turns off.
This means the system is operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag and
pretensioner systems need servicing:
● The supplemental air bag warning light re-
mains on approximately 7 seconds after the
ignition switch is pushed to the ON position.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side
air bag, curtain air bag or pretensioner systems
may not operate properly. They must be
checked and repaired. Take your vehicle to the
nearest INFINITI retailer.
WARNINGIf the supplemental air bag warning light is on,
it could mean that the front air bag, side air
bag, curtain air bag and/or pretensioner sys-
tems will not operate in an accident. To help
avoid injury to yourself or others, have your
vehicle checked by a retailer as soon as
possible.SSS1016 SPA1097
Safety — Seats, seat belts and supplemental restraint system
1-53
 —
—
10/12/09—tbrooks

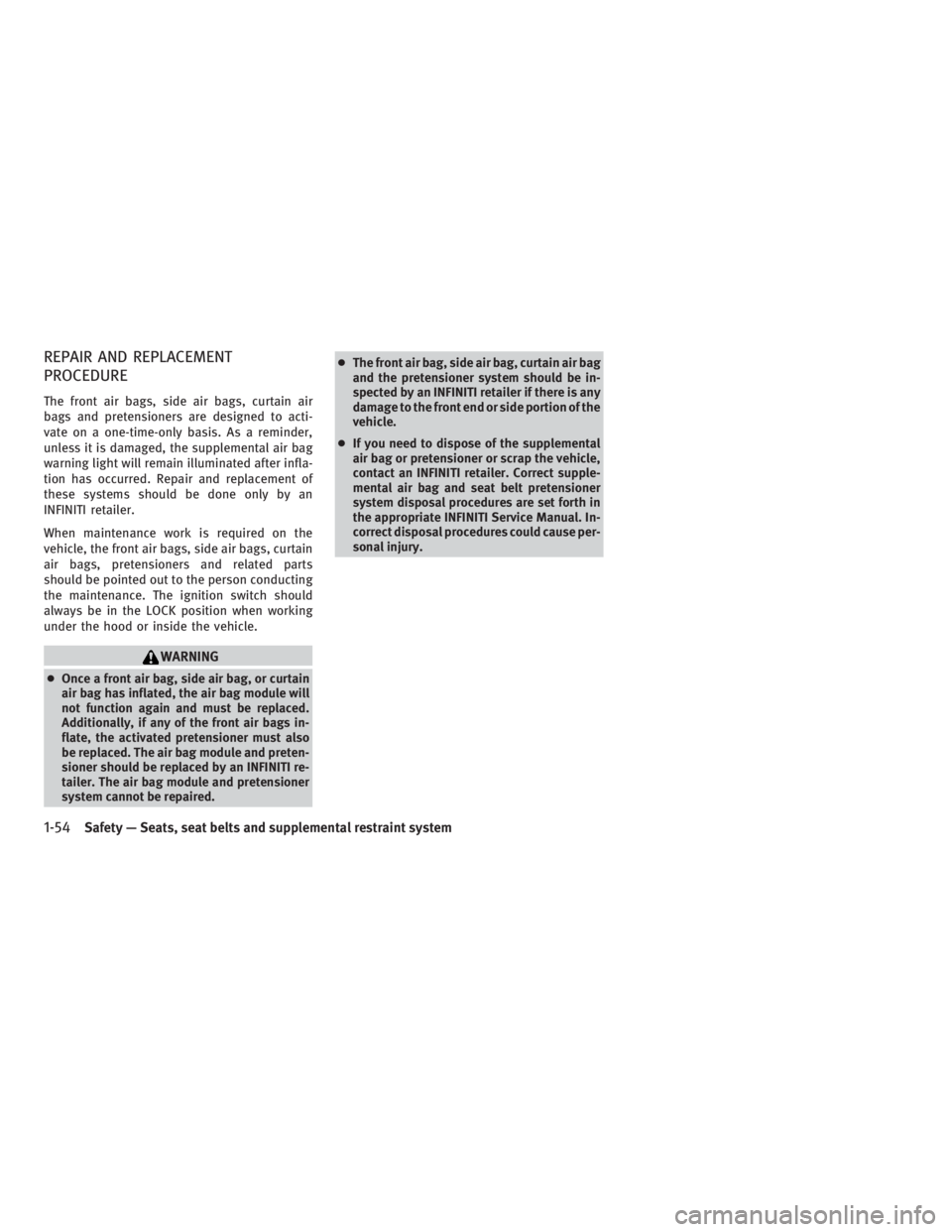

REPAIR AND REPLACEMENT
PROCEDURE The front air bags, side air bags, curtain air
bags and pretensioners are designed to acti-
vate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light will remain illuminated after infla-
tion has occurred. Repair and replacement of
these systems should be done only by an
INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags, pretensioners and related parts
should be pointed out to the person conducting
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING● Once a front air bag, side air bag, or curtain
air bag has inflated, the air bag module will
not function again and must be replaced.
Additionally, if any of the front air bags in-
flate, the activated pretensioner must also
be replaced. The air bag module and preten-
sioner should be replaced by an INFINITI re-
tailer. The air bag module and pretensioner
system cannot be repaired. ● The front air bag, side air bag, curtain air bag
and the pretensioner system should be in-
spected by an INFINITI retailer if there is any
damage to the front end or side portion of the
vehicle.
● If you need to dispose of the supplemental
air bag or pretensioner or scrap the vehicle,
contact an INFINITI retailer. Correct supple-
mental air bag and seat belt pretensioner
system disposal procedures are set forth in
the appropriate INFINITI Service Manual. In-
correct disposal procedures could cause per-
sonal injury.
1-54 Safety — Seats, seat belts and supplemental restraint system
 —
—
10/12/09—tbrooks


2 Instruments and controls Cockpit ........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Compass (if so equipped) .......................... 2-8
Zone variation change procedure ................ 2-9
Warning/indicator lights and audible reminders ...... 2-11
Checking bulbs ................................ 2-11
Warning lights ................................ 2-12
Indicator lights ................................ 2-16
Audible reminders ............................. 2-18
Dot matrix liquid crystal display ................... 2-19
Indicators for operation ........................ 2-21
Indicators for maintenance ..................... 2-23
Trip computer ................................. 2-24
Security systems ................................. 2-27
Vehicle security system ........................ 2-27
INFINITI Vehicle Immobilizer System ............ 2-29
Windshield wiper and washer switch ............... 2-30 Rain-sensing auto wiper system
(if so equipped) ............................... 2-31
Rear window and outside mirror defroster switch . . . 2-32
Headlight and turn signal switch .................. 2-32
Xenon headlights ............................. 2-32
Headlight switch .............................. 2-33
Turn signal switch ............................. 2-37
Fog light switch ............................... 2-37
Hazard warning flasher switch ..................... 2-37
Horn ............................................ 2-38
Heated seats (if so equipped) ..................... 2-38
SNOW mode switch (if so equipped) ............... 2-40
Vehicle Dynamic Control (VDC) OFF switch .......... 2-40
Clock ............................................ 2-40
Adjusting the time ............................. 2-40
Power outlet ..................................... 2-41
Cigarette lighter and ashtrays (if so equipped) ...... 2-42
Front ......................................... 2-42
Rear ......................................... 2-42
Storage ......................................... 2-43
Cup holders .................................. 2-43
Sunglasses holder ............................. 2-45
 —
—
10/12/09—tbrooks


1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-39)
5. Clock (P. 2-40) 6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth  Hands-Free Phone System
(P. 4-85)
— Audio system (P. 4-39) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-37)
9. Front passenger supplemental air bag
(P. 1-40)
10. Fuse box cover (P. 8-20)
11. Parking brake
(for Automatic Transmission models)
— Parking (P. 5-18)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system
(P. 4-28)
14. Cigarette lighter and ashtray
(if so equipped) (P. 2-42) or storage box
(if so equipped) (P. 2-47)
— Power outlet (if so equipped) (P. 2-41)
15. Parking brake (for Manual Transmission
models)
— Parking (P. 5-18)
16. Heated seat switch (if so equipped)
(P. 2-38)
17. SNOW mode switch (if so equipped)
(P. 2-40)
18. Rear window and outside mirror (if so
equipped) defogger switch (P. 2-32)
19. Glove box lid release handle (P. 2-45) SSI0671INSTRUMENT PANEL
Instruments and controls
2-3
 —
—
10/12/09—tbrooks
