WARNINGThe Intelligent Key transmits radio waves when
the buttons are pushed. The FAA advises that
the radio waves may affect aircraft navigation
and communication systems. Do not operate
the Intelligent Key while on an airplane. Make
sure the buttons are not operated unintention-
ally when the unit is stored during a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the Intelli-
gent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent Key
can operate at a distance of approximately 33 ft
(10 m) from the vehicle. (The effective distance
depends upon the conditions around the ve-
hicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact an INFINITI retailer. The lock and unlock buttons on the Intelligent
Key will not operate when:
● the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m).
● the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies de-
pending on the environment. To securely oper-
ate the lock and unlock buttons, approach the
vehicle to about 3 ft (1 m) from the door.
1. LOCK button
2. UNLOCK button
3. TRUNK button
4. PANIC button
HOW TO USE REMOTE KEYLESS ENTRY
SYSTEM When you lock or unlock the doors or the trunk
lid, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, see “Setting hazard indicator
and horn mode” later in this section. SPA2100
REMOTE KEYLESS ENTRY SYSTEM
3-14 Pre-driving checks and adjustments
 —
—
10/12/09—tbrooks

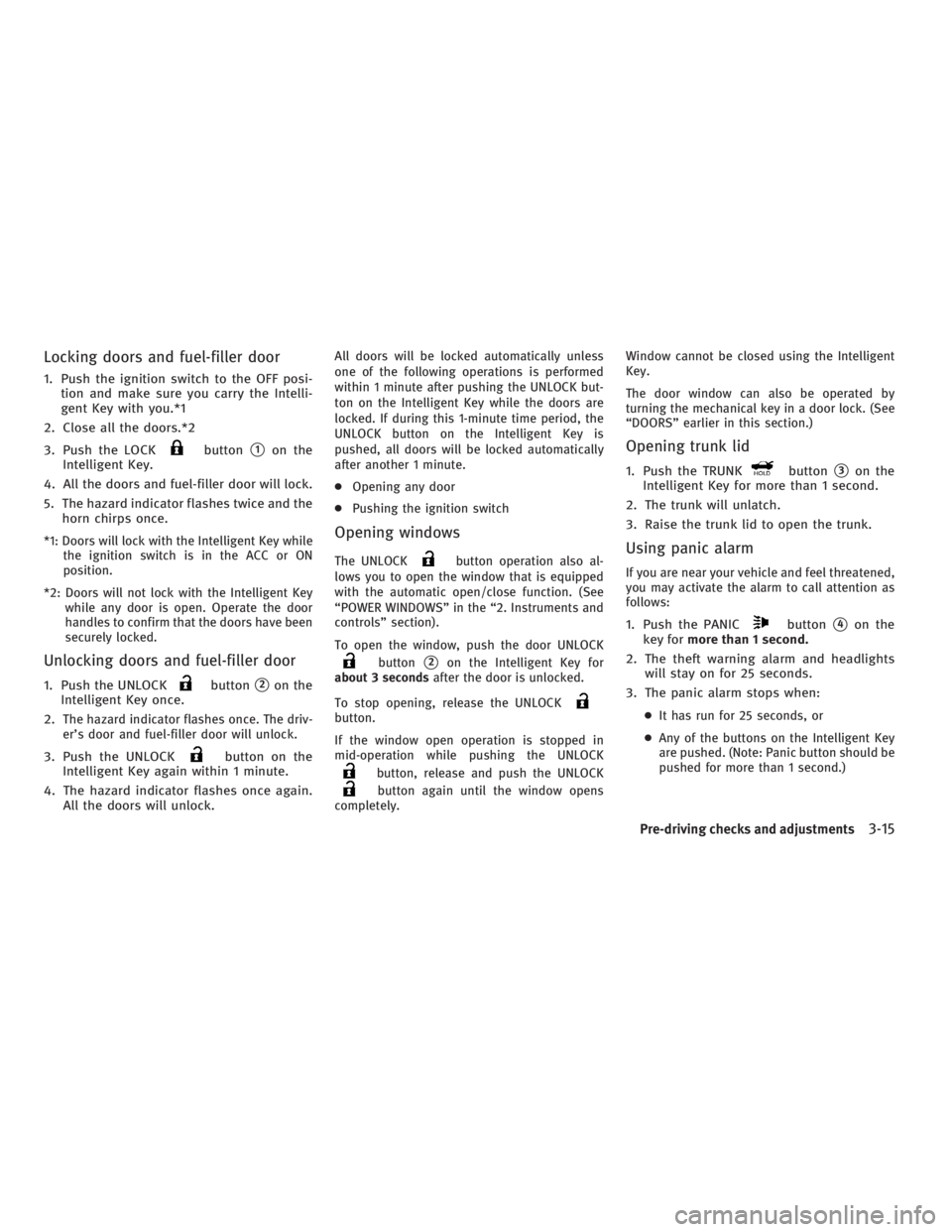

Locking doors and fuel-filler door 1. Push the ignition switch to the OFF posi-
tion and make sure you carry the Intelli-
gent Key with you.*1
2. Close all the doors.*2
3. Push the LOCK button
 1
on the
Intelligent Key.
4. All the doors and fuel-filler door will lock.
5. The hazard indicator flashes twice and the
horn chirps once.
*1: Doors will lock with the Intelligent Key while
the ignition switch is in the ACC or ON
position.
*2: Doors will not lock with the Intelligent Key
while any door is open. Operate the door
handles to confirm that the doors have been
securely locked.
Unlocking doors and fuel-filler door 1. Push the UNLOCK button
 2
on the
Intelligent Key once.
2. The hazard indicator flashes once. The driv-
er’s door and fuel-filler door will unlock.
3. Push the UNLOCK button on the
Intelligent Key again within 1 minute.
4. The hazard indicator flashes once again.
All the doors will unlock. All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pushing the UNLOCK but-
ton on the Intelligent Key while the doors are
locked. If during this 1-minute time period, the
UNLOCK button on the Intelligent Key is
pushed, all doors will be locked automatically
after another 1 minute.
● Opening any door
● Pushing the ignition switch
Opening windows The UNLOCK button operation also al-
lows you to open the window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section).
To open the window, push the door UNLOCK
button
 2
on the Intelligent Key for
about 3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
If the window open operation is stopped in
mid-operation while pushing the UNLOCK
button, release and push the UNLOCK
button again until the window opens
completely. Window cannot be closed using the Intelligent
Key.
The door window can also be operated by
turning the mechanical key in a door lock. (See
“DOORS” earlier in this section.)
Opening trunk lid 1. Push the TRUNK button
 3
on the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Using panic alarm If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC button
 4
on the
key for more than 1 second.
2. The theft warning alarm and headlights
will stay on for 25 seconds.
3. The panic alarm stops when:
● It has run for 25 seconds, or
● Any of the buttons on the Intelligent Key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)
Pre-driving checks and adjustments
3-15
 —
—
10/12/09—tbrooks


Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
 1
and UN-
LOCK
 2
buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle
 1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
 2
up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the
hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place. WARNING● Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood. SPA2318
HOOD
Pre-driving checks and adjustments
3-17
 —
—
10/12/09—tbrooks


WARNING● Do not drive with the trunk lid open. This
could allow dangerous exhaust gases to be
drawn into the vehicle. See “EXHAUST GAS
(carbon monoxide)” in the “5. Starting and
driving” section of this manual.
● Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where they
could be seriously injured. Keep the car
locked, with the trunk closed, when not in
use, and prevent children’s access to Intelli-
gent Keys.
TRUNK LID RELEASE SWITCH The trunk lid release switch
 A
is located on the
instrument panel.
To open the trunk lid, push the release switch
down as illustrated. To close, push the trunk lid
down.
You can open the trunk lid with Intelligent Key.
(See “INTELLIGENT KEY SYSTEM” page 3-7 or
“REMOTE KEYLESS ENTRY SYSTEM” earlier in
this section.) SPA2307
Sedan SPA2304
Coupe SPA2404TRUNK LID
3-18 Pre-driving checks and adjustments
 —
—
10/12/09—tbrooks


INTERIOR TRUNK LID RELEASE WARNINGClosely supervise children when they are
around cars to prevent them from playing and
becoming locked in the trunk where they could
be seriously injured. Keep the car locked, with
the trunk lid securely latched, when not in use,
and prevent children’s access to Intelligent
Keys.
The interior trunk lid release mechanism allows
opening of the trunk lid in the event that people
become locked inside the trunk or in the event
of the loss of electrical power such as a dis-
charged battery.
Releasing inside the trunk To open the trunk lid from the inside, pull the
release handle
 1
until the lock releases and
push up on the trunk lid. The release lever is
made of a material that glows in the dark after
a brief exposure to ambient light.
The handle is located on the back of the trunk
lid as illustrated. Releasing from the rear seat Sedan :
You can access the release handle through the
trunk pass-through (rear seat armrest). (See
“ARMREST” in the “1. Safety — Seats, seat belts
and supplemental restraint system” section.)
To open the trunk lid from the rear seat, pull the
release handle towards front of vehicle until the
lock releases.
Coupe :
You can access the release handle by folding
the rear seat.
Pull the strap, located at the center bottom of
the seatback, and then fold down the seatback.
(See “REAR SEATS” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section.)
To open the trunk lid from the rear seat, pull the
release handle towards front of vehicle until the
lock releases.Sedan SPA2553
Coupe SPA2402
3-20 Pre-driving checks and adjustments
 —
—
10/12/09—tbrooks


OPENING THE FUEL-FILLER DOOR To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the right side of the door (Sedan) or
push the left side of the door (Coupe).
● Push the door handle request switch with
the Intelligent Key carried with you.
● Push the UNLOCK button on the Intelligent
Key.
● Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle.
● Push the power door lock switch to the
UNLOCK position.
To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch. FUEL-FILLER CAP WARNING● Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the malfunction indicator
light (MIL) to come on.
● Never pour fuel into the throttle body to at-
tempt to start your vehicle.Sedan SPA2554
Coupe SPA1562AFUEL-FILLER DOOR
Pre-driving checks and adjustments
3-21
 —
—
04/21/10—debbie


● Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can cause
an explosion of flammable liquid, vapor or
gas in any vehicle or trailer. To reduce the
risk of serious injury or death when filling
portable fuel containers:
– Always place the container on the ground
when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the
container while you are filling it.
– Use only approved portable fuel contain-
ers for flammable liquid. CAUTION● If fuel is spilled on the vehicle body, flush it
away with water to avoid paint damage.
● Insert the cap straight into the fuel-filler
tube, then tighten until the fuel-filler cap
clicks. Failure to tighten the fuel-filler cap
properly may cause the malfunction
indicator light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten or in-
stall the cap and continue to drive the ve-
hicle. The light should turn off after a
few driving trips. If the light does not
turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer.
● If your vehicle is equipped with the LOOSE
FUEL CAP warning, the LOOSE FUEL CAP
warning will illuminate if the fuel-filler cap is
not properly tightened. Failure to tighten the
fuel-filler cap properly after the LOOSE FUEL
CAP warning illuminates may cause the
malfunction indicator light (MIL) to
illuminate. To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise to
remove.
2. Put the fuel-filler cap on the cap holder
 A
while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the
fuel-filler tube.
2. Turn the fuel-filler cap clockwise until it
clicks. The fuel-filler cap is a ratcheting
type. Sedan SPA2720
3-22 Pre-driving checks and adjustments
 —
—
04/22/10—debbie


LOOSE FUEL CAP warning (if so
equipped) The LOOSE FUEL CAP warning appears on the
dot matrix liquid crystal display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled.
To turn off the warning, perform the following:
1. Remove and install the fuel-filler cap as
soon as possible. (See “FUEL-FILLER
CAP”).
2. Tighten the fuel-filler cap until it clicks.
3. Push the reset switch
 A
on the right side
of the combination meter panel for about
1 second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap. WARNING● Do not adjust the steering wheel while driv-
ing. You could lose control of your vehicle
and cause an accident.
● Do not adjust the steering wheel any closer
to you than is necessary for proper steering
operation and comfort. The driver’s air bag
inflates with great force. If you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the air bag if you are up against it when
it inflates. Always sit back against the seat-
back and as far away as practical from the
steering wheel. Always use the seat belts.Coupe SPA2721 SPA2802
TILT/TELESCOPIC STEERING
Pre-driving checks and adjustments
3-23
 —
—
04/22/10—debbie


CAUTION● Do not store the main sun visor before stor-
ing the extension sun visor.
● Do not pull the extension sun visor forcedly
downward.
1. To block out glare from the front, swing
down the main sun visor
 1
.
2. To block glare from the side, remove the
main sun visor from the center mount and
swing it to the side
 2
.
3. Draw out the extension sun visor
 3
from
the main sun visor to block from further
glare.
INSIDE MIRROR Adjust the height and the angle of the inside
mirror to the desired position.
Manual anti-glare type The night position
 1
will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
 2
when driving in day-
light hours.
WARNINGUse the night position only when necessary,
because it reduces rear view clarity. SPA2447 SPA2143
MIRRORS
Pre-driving checks and adjustments
3-25
 —
—
04/21/10—debbie


Automatic anti-glare type The inside mirror is designed so that it auto-
matically changes reflection according to the
intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed to
the ON position.
When the anti-glare system is turned on, the
indicator light
 A
will illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced. Push the “  ” switch
 C
to make the inside
rearview mirror operate normally. The indicator
light will turn off. Push the “I” switch
 D
to turn
the system on.
Do not allow any object to cover the sensors
 E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation.
For the compass (if so equipped) operation, see
“COMPASS” in the “2. Instruments and con-
trols” section.
For the HomeLink  Universal Transceiver opera-
tion, see “HomeLink  UNIVERSAL TRANS-
CEIVER” in the “2. Instruments and controls”
section.
OUTSIDE MIRRORS WARNINGObjects viewed in the outside mirror on the
passenger side are closer than they appear. Be
careful when moving to the right. Using only
this mirror could cause an accident. Use the
inside mirror or glance over your shoulder to
properly judge distances to other objects.SPA2450 SPA2319
3-26 Pre-driving checks and adjustments
 —
—
04/21/10—debbie
