hood release INFINITI G37 2010 Owners Manual

1. Vehicle Dynamic Control (VDC) OFF switch
(P. 5-53)
2. Trunk lid release switch (P. 3-18)
3. Sonar system off switch (if so equipped)
(P. 5-48) 4. Instrument brightness control switch
(P. 2-36)
5. TRIP/RESET switch for twin trip odometer
(P. 2-5)
6. Headlight, fog light and turn signal switch
(P. 2-32) 7. Paddle shifter (if so equipped) (P. 5-14)
8. Steering-wheel-mounted controls
(left side)
— ENTER or tuning switch (P. 4-83)
— BACK switch (P. 4-83)
— TALK switch (if so equipped)
(P. 4-109)/Phone switch (if so equipped)
(P. 4-85)
— Volume control switches (P. 4-83)
— Source select switch (P. 4-83)
9. Trip computer switch (P. 2-24)
10. Windshield wiper and washer switch
(P. 2-30)
11. Steering-wheel-mounted controls
(right side)
— Cruise control switches (P. 5-19)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-21)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-10)
14. Electric tilting/telescopic steering wheel
lever (if so equipped) (P. 3-23)
15. Manual tilting/telescopic steering wheel
lever (if so equipped) (P. 3-23)
16. Steering wheel
— Horn (P. 2-38)
— Driver supplemental air bag (P. 1-40) SSI0670COCKPIT
Illustrated table of contents
0-9
 —
—
10/12/09—tbrooks


1. Vehicle Dynamic Control (VDC) OFF switch
(P. 5-53)
2. Trunk lid release switch (P. 3-18)
3. Sonar system off switch (if so equipped)
(P. 5-48) 4. Instrument brightness control switch
(P. 2-36)
5. TRIP/RESET switch for twin trip odometer
(P. 2-5)
6. Headlight, fog light and turn signal switch
(P. 2-32) 7. Paddle shifter (if so equipped) (P. 5-14)
8. Steering-wheel-mounted controls
(left side)
— ENTER or tuning switch (P. 4-83)
— BACK switch (P. 4-83)
— TALK switch (if so equipped)
(P. 4-109)/Phone switch (if so equipped)
(P. 4-85)
— Volume control switches (P. 4-83)
— Source select switch (P. 4-83)
9. Trip computer switch (P. 2-24)
10. Windshield wiper and washer switch
(P. 2-30)
11. Steering-wheel-mounted controls
(right side)
— Cruise control switches (P. 5-19)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-21)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-10)
14. Electric tilting/telescopic steering wheel
lever (if so equipped) (P. 3-23)
15. Manual tilting/telescopic steering wheel
lever (if so equipped) (P. 3-23)
16. Steering wheel
— Horn (P. 2-38)
— Driver supplemental air bag (P. 1-40) SSI0670COCKPIT
2-2 Instruments and controls
 —
—
10/12/09—tbrooks


WARNING● If the light does not illuminate with the ignition
switch pushed ON, have the vehicle checked
by an INFINITI retailer as soon as possible.
● If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting. ● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
CAUTION● The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Master warning light When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning ● Loose fuel cap warning (if so equipped)
● Check tire pressure warning (if so equipped)
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped) The light comes on if there is a malfunction in the
Brake Assist (with Preview Function) system.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Instruments and controls
2-15
 —
—
04/21/10—debbie


How to arm the vehicle security
system 1. Close all windows.
The system can be armed even if the windows
are open.
2. Push the ignition switch to the OFF posi-
tion.
3. Remove the Intelligent Key from the ve-
hicle.
4. Close all doors, hood and trunk. Lock all
doors. The doors can be locked with the
Intelligent Key, door handle request
switch, power door lock switch or me-
chanical key. 5. Confirm that the security indicator light
comes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.
Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.
Vehicle security system activation The vehicle security system will give the follow-
ing alarm:
● The headlights blink and the horn sounds
intermittently.
● The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
● Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key. The alarm will not stop if
the ignition switch is pushed to the ACC or ON
position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.SIC2045
2-28 Instruments and controls
 —
—
10/12/09—tbrooks


3 Pre-driving checks and adjustments Keys ............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-5
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-6
Child safety rear door lock (Sedan) .............. 3-6
Intelligent Key system ............................. 3-7
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ....................... 3-10
Battery saver system .......................... 3-12
Warning signals ............................... 3-12
Troubleshooting guide ......................... 3-13
Remote keyless entry system ...................... 3-14
How to use remote keyless entry system ........ 3-14
Hood ............................................. 3-17
Trunk lid ........................................ 3-18 Trunk lid release switch ........................ 3-18
Trunk open request switch ..................... 3-19
Trunk release power cancel switch .............. 3-19
Interior trunk lid release ....................... 3-20
Fuel-filler door ................................... 3-21
Opening the fuel-filler door .................... 3-21
Fuel-filler cap ................................. 3-21
Tilt/telescopic steering ........................... 3-23
Manual operation (if so equipped) .............. 3-24
Electric operation (if so equipped) .............. 3-24
Sun visors ....................................... 3-24
Mirrors .......................................... 3-25
Inside mirror .................................. 3-25
Outside mirrors ............................... 3-26
Vanity mirror .................................. 3-28
Automatic drive positioner (if so equipped) ......... 3-28
Entry/exit function (Automatic Transmission
Sedan models) ................................ 3-28
Seat synchronization
function .................. 3-29
Memory storage ............................... 3-30
System operation ............................. 3-31
 —
—
10/12/09—tbrooks


Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
 1
and UN-
LOCK
 2
buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle
 1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
 2
up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the
hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place. WARNING● Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood. SPA2318
HOOD
Pre-driving checks and adjustments
3-17
 —
—
10/12/09—tbrooks


● If you decide that it is not safe to return the
vehicle to the road surface based on vehicle,
road or traffic conditions, gradually slow the
vehicle to a stop in a safe place off the road.
RAPID AIR PRESSURE LOSS Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged due
to hitting a curb or pothole. Rapid air pressure
loss can also be caused by driving on under-
inflated tires.
Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at high-
way speeds.
Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage. See
“WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section of this manual.
If a tire rapidly loses air pressure or “blows-out”
while driving maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic. WARNINGThe following actions can increase the chance
of losing control of the vehicle if there is a
sudden loss of tire air pressure. Losing control
of the vehicle may cause a collision and result
in personal injury.
● The vehicle generally moves or pulls in the
direction of the flat tire.
● Do not rapidly apply the brakes.
● Do not rapidly release the accelerator pedal.
● Do not rapidly turn the steering wheel.
1. Remain calm and do not overreact.
2. Maintain a firm grip on the steering wheel
with both hands and try to hold a straight
course.
3. When appropriate, slowly release the ac-
celerator pedal to gradually slow the ve-
hicle.
4. Gradually steer the vehicle to a safe loca-
tion off the road and away from traffic if
possible.
5. Lightly apply the brake pedal to gradually
stop the vehicle. 6. Turn on the hazard warning flashers and
either contact a roadside emergency ser-
vice to change the tire or see “CHANGING
A FLAT TIRE” in the “6. In case of emer-
gency” section of this Owner’s Manual.
DRINKING ALCOHOL/DRUGS AND
DRIVING WARNINGNever drive under the influence of alcohol or
drugs. Alcohol in the bloodstream reduces co-
ordination, delays reaction time and impairs
judgement. Driving after drinking alcohol in-
creases the likelihood of being involved in an
accident injuring yourself and others. Addition-
ally, if you are injured in an accident, alcohol
can increase the severity of the injury.
INFINITI is committed to safe driving. However,
you must choose not to drive under the influ-
ence of alcohol. Every year thousands of people
are injured or killed in alcohol-related acci-
dents. Although the local laws vary on what is
considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of alco-
hol.
5-6 Starting and driving
 —
—
04/21/10—debbie

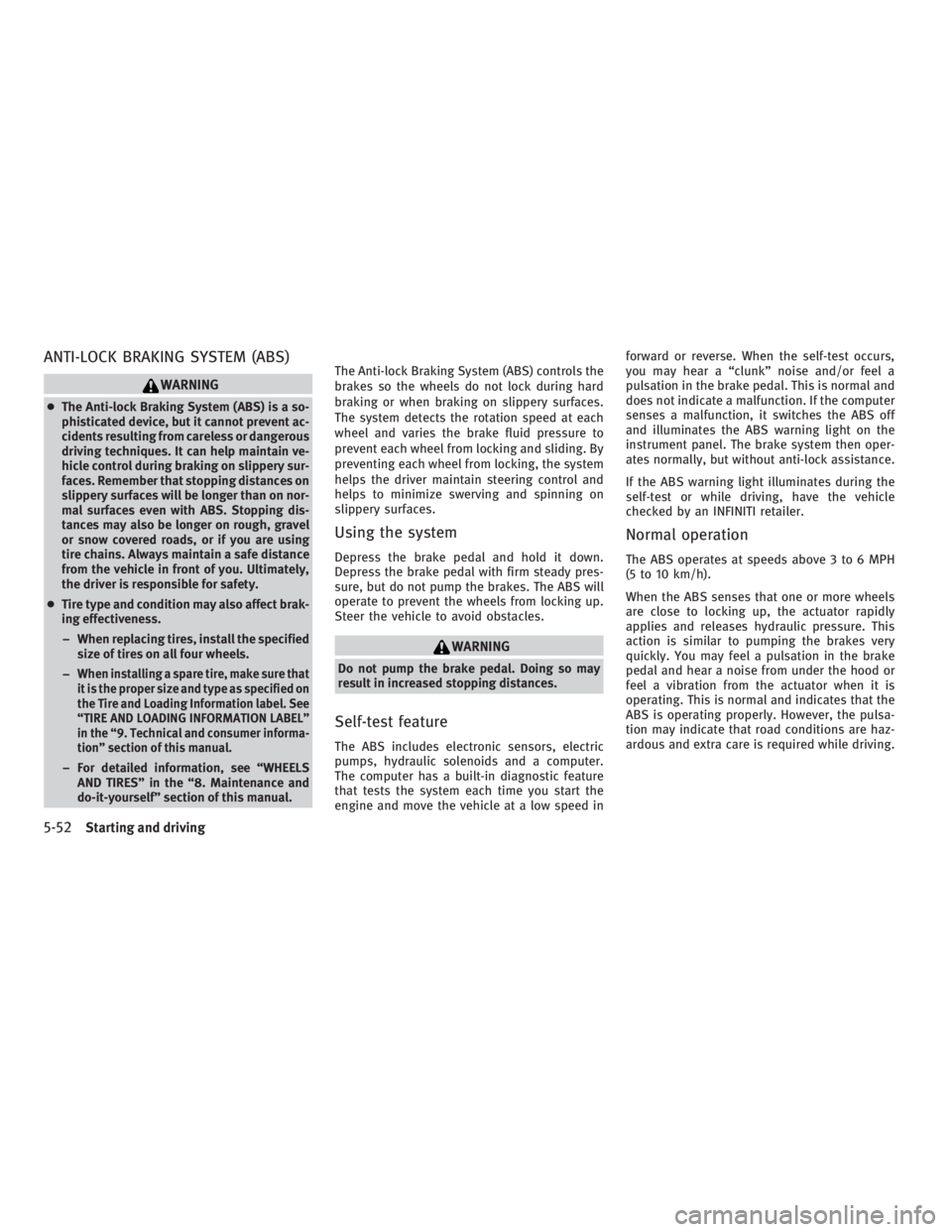

ANTI-LOCK BRAKING SYSTEM (ABS) WARNING● The Anti-lock Braking System (ABS) is a so-
phisticated device, but it cannot prevent ac-
cidents resulting from careless or dangerous
driving techniques. It can help maintain ve-
hicle control during braking on slippery sur-
faces. Remember that stopping distances on
slippery surfaces will be longer than on nor-
mal surfaces even with ABS. Stopping dis-
tances may also be longer on rough, gravel
or snow covered roads, or if you are using
tire chains. Always maintain a safe distance
from the vehicle in front of you. Ultimately,
the driver is responsible for safety.
● Tire type and condition may also affect brak-
ing effectiveness.
– When replacing tires, install the specified
size of tires on all four wheels.
– When installing a spare tire, make sure that
it is the proper size and type as specified on
the Tire and Loading Information label. See
“TIRE AND LOADING INFORMATION LABEL”
in the “9. Technical and consumer informa-
tion” section of this manual.
– For detailed information, see “WHEELS
AND TIRES” in the “8. Maintenance and
do-it-yourself” section of this manual. The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using the system Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNINGDo not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle at a low speed in forward or reverse. When the self-test occurs,
you may hear a “clunk” noise and/or feel a
pulsation in the brake pedal. This is normal and
does not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked by an INFINITI retailer.
Normal operation The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h).
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are haz-
ardous and extra care is required while driving.
5-52 Starting and driving
 —
—
04/29/10—pattie


Your new INFINITI has been designed to have
minimum maintenance requirements with long
service intervals to save you both time and
money. However, some day-to-day and regular
maintenance is essential to maintain your IN-
FINITI’s fine mechanical condition, as well as its
emission and engine performance.
It is the owner’s responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCE For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “INFINITI Service and
Maintenance Guide”. You must refer to that
guide to ensure that necessary maintenance is
performed on your INFINITI at regular intervals.
GENERAL MAINTENANCE General maintenance includes those items
which should be checked during normal day-to-
day operation. They are essential for proper vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer,
an INFINITI retailer.
WHERE TO GO FOR SERVICE If maintenance service is required or your ve-
hicle appears to malfunction, have the systems
checked and serviced by an INFINITI retailer.
INFINITI technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-retailership information systems.
They are completely qualified to work on
INFINITI vehicles before work begins.
You can be confident that an INFINITI retailer’s
service department performs the best job to
meet the maintenance requirements on your
vehicle — in a reliable and economical way. During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have an
INFINITI retailer do it promptly. In addition, you
should notify an INFINITI retailer if you think
that repairs are required.
When performing any checks or maintenance
work, see “MAINTENANCE PRECAUTIONS” later
in this section.
EXPLANATION OF MAINTENANCE
ITEMS Additional information on the following items
with “*” is found later in this section.
Outside the vehicle The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood: Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.MAINTENANCE REQUIREMENT GENERAL MAINTENANCE
8-2 Maintenance and do-it-yourself
 —
—
04/21/10—debbie


CLEANING If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blade with clear water. If
your windshield is still not clear after cleaning
the blades and using the wiper, replace the
blades.
Worn windshield wiper blades can damage the
windshield and impair driver vision.
REPLACING Replace the wiper blades if they are worn.
1. Pull the wiper arm.
2. Push the release tab
 A
, and then move
the wiper blade down the wiper arm
 1
while pushing the release tab to remove.
3. Insert the new wiper blade onto the wiper
arm until a click sounds.
4. Rotate the wiper blade so the dimple is in
the groove. CAUTION● After wiper blade replacement, return the
wiper arm to its original position;
otherwise it may be damaged when the hood
is opened.
● Make sure the wiper blades contact the
glass; otherwise the arm may be damaged
from wind pressure. SDI2048
WINDSHIELD WIPER BLADES
8-18 Maintenance and do-it-yourself
 —
—
04/21/10—debbie
