● While the automatic drive positioner oper-
ates.
● When the automatic drive positioner
switches are pushed.
● When the seatback switch is pushed.
● When the seat position is adjusted.
Note that the seat must be moved to the
front-most position by operating the walk-in
function or the seat adjusting switches after the
battery is disconnected. Otherwise, the seat will
not move backward during the walk-in function.
REAR SEATS
Folding (Coupe only) WARNING● Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-down
position. Use of these areas by passengers
without proper restraints could result in se-
rious injury in an accident or sudden stop.
● Properly secure all cargo with ropes or
straps to help prevent it from sliding or shift-
ing. Do not place cargo higher than the seat-
backs. In a sudden stop or collision, unse-
cured cargo could cause personal injury. ● When returning the seatbacks to the upright
position, be certain they are completely se-
cured in the latched position. If they are not
completely secured, passengers may be in-
jured in an accident or sudden stop.
● Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where they
could be seriously injured. Keep the car
locked, with the rear seatback and trunk lid
securely latched when not in use, and pre-
vent children’s access to car keys.
The rear seatback can be folded according to
the following procedure. To fold from the trunk:
1. Open the trunk lid.
2. Pull the handle
 1
located on the left side
of the trunk. The rear seatback will be
unlatched. SSS0220A
Safety — Seats, seat belts and supplemental restraint system
1-7
 —
—
10/12/09—tbrooks

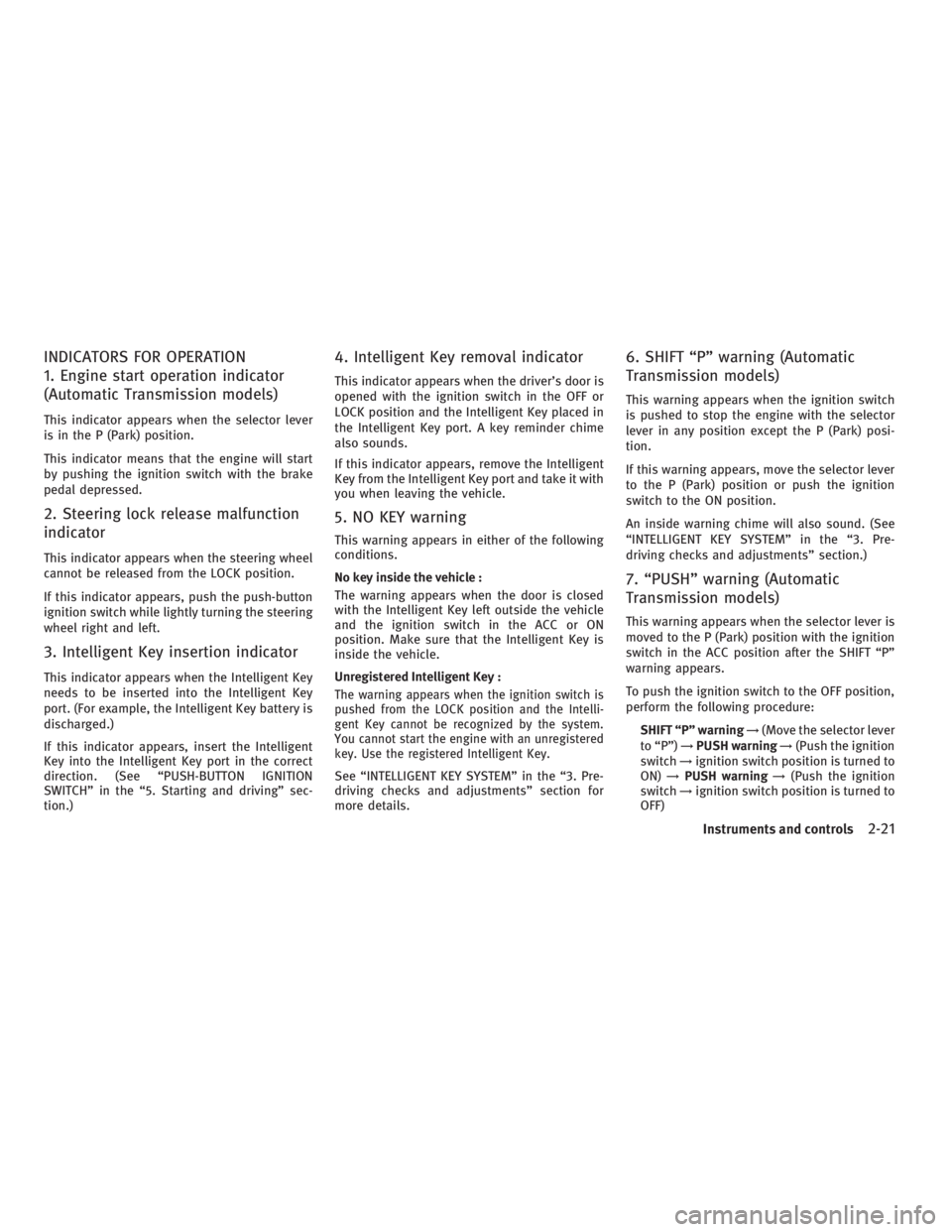

INDICATORS FOR OPERATION
1. Engine start operation indicator
(Automatic Transmission models) This indicator appears when the selector lever
is in the P (Park) position.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed.
2. Steering lock release malfunction
indicator This indicator appears when the steering wheel
cannot be released from the LOCK position.
If this indicator appears, push the push-button
ignition switch while lightly turning the steering
wheel right and left.
3. Intelligent Key insertion indicator This indicator appears when the Intelligent Key
needs to be inserted into the Intelligent Key
port. (For example, the Intelligent Key battery is
discharged.)
If this indicator appears, insert the Intelligent
Key into the Intelligent Key port in the correct
direction. (See “PUSH-BUTTON IGNITION
SWITCH” in the “5. Starting and driving” sec-
tion.) 4. Intelligent Key removal indicator This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the Intelligent Key port. A key reminder chime
also sounds.
If this indicator appears, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
5. NO KEY warning This warning appears in either of the following
conditions.
No key inside the vehicle :
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key :
The warning appears when the ignition switch is
pushed from the LOCK position and the Intelli-
gent Key cannot be recognized by the system.
You cannot start the engine with an unregistered
key. Use the registered Intelligent Key.
See “INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section for
more details. 6. SHIFT “P” warning (Automatic
Transmission models) This warning appears when the ignition switch
is pushed to stop the engine with the selector
lever in any position except the P (Park) posi-
tion.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.)
7. “PUSH” warning (Automatic
Transmission models) This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT “P” warning → (Move the selector lever
to “P”) → PUSH warning → (Push the ignition
switch → ignition switch position is turned to
ON) → PUSH warning → (Push the ignition
switch → ignition switch position is turned to
OFF)
Instruments and controls
2-21
 —
—
10/12/09—tbrooks


8. Intelligent Key battery discharge
indicator This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models) This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position. 12. Low washer fluid warning This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position) This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning (if so
equipped) This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning (if so
equipped) This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres- sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
WARNING SYSTEM (TPMS)” in the “5. Starting
and driving” section.)
16. “Time to rest” indicator This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
2-22 Instruments and controls
 —
—
05/10/10—tbrooks


INTERIOR LIGHT CONTROL SWITCH The interior light control switch has three posi-
tions: ON, DOOR and OFF.
ON position When the switch is in the ON position
 1
the map
lights and rear personal lights will illuminate.
DOOR position When the switch is in the DOOR position
 2
, the
map lights and rear personal lights will illumi-
nate under the following conditions:
● ignition switch is switched to the LOCK
position
– remain on for about 15 seconds. ● doors are unlocked by pushing the UNLOCK
button on the Intelligent Key or door handle
request switch with the ignition switch in the
LOCK position
– remain on for about 15 seconds.
● any door is opened and then closed with the
ignition switch in the LOCK position
– remain on for about 15 seconds.
● any door is opened with the ignition switch
in the ACC or ON position
– remain on while the door is opened.
When the door is closed, the lights go off.
The lights will also turn off after 15 minutes when
the lights remain illuminated after the ignition
switch has been pushed to the OFF or LOCK po-
sition to prevent the battery from becoming dis-
charged.
When the auto interior illumination is set to the
OFF position (see “VEHICLE INFORMATION AND
SETTINGS” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section),
the lights will illuminate under the following
condition:
● any door is opened with the ignition switch
in any position
– remain on while the door is opened.
When the door is closed, the lights go off. OFF position When the switch is in the OFF position
 3
, the
lights will not illuminate, regardless of the
condition.
CAUTIONDo not use for extended periods of time with
the engine stopped. This could result in a dis-
charged battery.SIC3251
Instruments and controls
2-55
 —
—
10/12/09—tbrooks


3 Pre-driving checks and adjustments Keys ............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-5
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-6
Child safety rear door lock (Sedan) .............. 3-6
Intelligent Key system ............................. 3-7
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ....................... 3-10

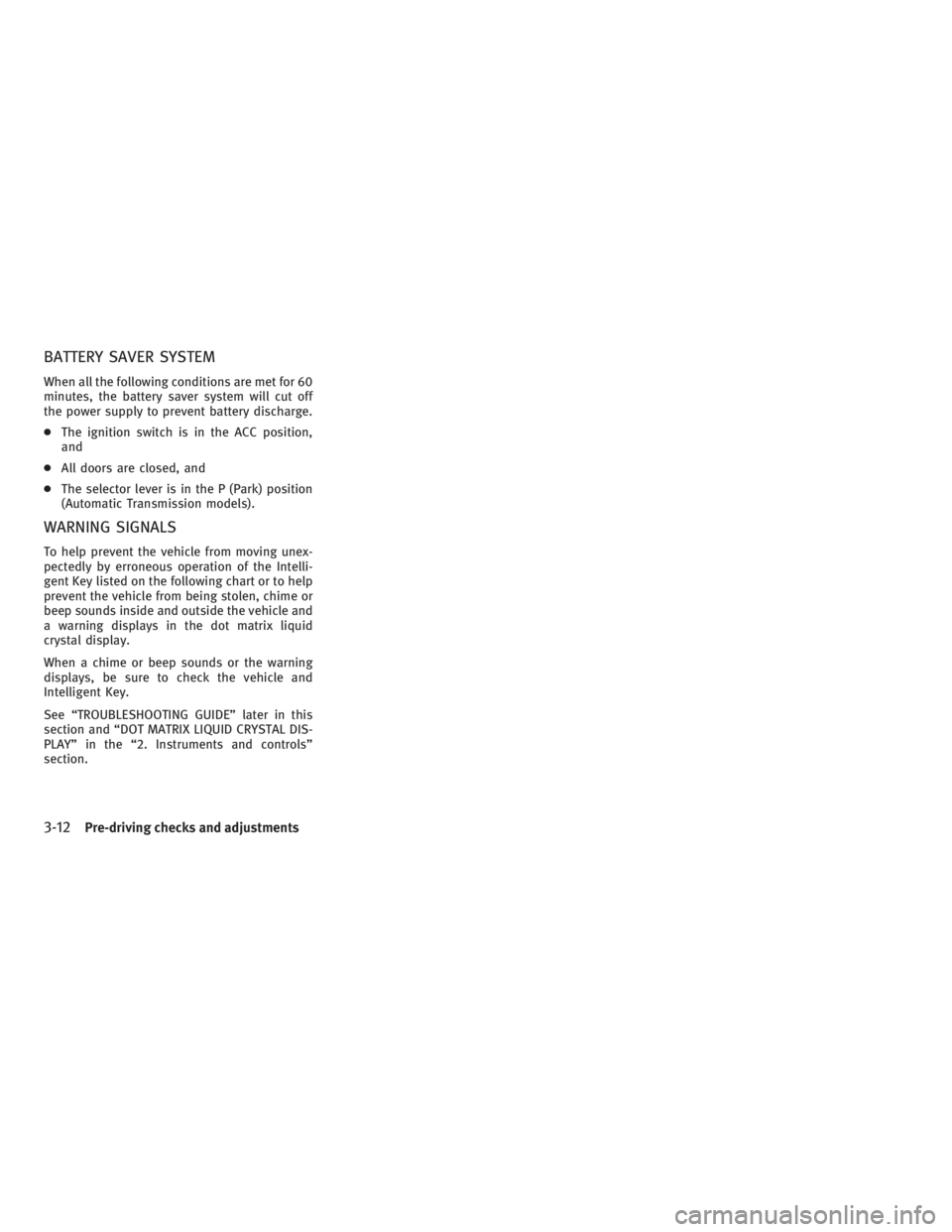

Battery saver system .......................... 3-12
Warning signals ............................... 3-12
Troubleshooting guide ......................... 3-13
Remote keyless entry system ...................... 3-14
How to use remote keyless entry system ........ 3-14
Hood ............................................. 3-17
Trunk lid ........................................ 3-18 Trunk lid release switch ........................ 3-18
Trunk open request switch ..................... 3-19
Trunk release power cancel switch .............. 3-19
Interior trunk lid release ....................... 3-20
Fuel-filler door ................................... 3-21
Opening the fuel-filler door .................... 3-21
Fuel-filler cap ................................. 3-21
Tilt/telescopic steering ........................... 3-23
Manual operation (if so equipped) .............. 3-24
Electric operation (if so equipped) .............. 3-24
Sun visors ....................................... 3-24
Mirrors .......................................... 3-25
Inside mirror .................................. 3-25
Outside mirrors ............................... 3-26
Vanity mirror .................................. 3-28
Automatic drive positioner (if so equipped) ......... 3-28
Entry/exit function (Automatic Transmission
Sedan models) ................................ 3-28
Seat synchronization
function .................. 3-29
Memory storage ............................... 3-30
System operation ............................. 3-31
 —
—
10/12/09—tbrooks


WARNING● Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
● The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not op-
erated unintentionally when the unit is
stored during a flight.
The Intelligent Key system can operate all the
doors and the trunk lid using the remote con-
troller function or pushing the request switch
on the vehicle without taking the key out from a
pocket or purse. The operating environment
and/or conditions may affect the Intelligent Key
system operation.
Be sure to read the following before using the
Intelligent Key system. CAUTION● Be sure to carry the Intelligent Key with you
when operating the vehicle.
● Never leave the Intelligent Key in the vehicle
when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
● When operating near a location where strong
radio waves are transmitted, such as a TV
tower, power station and broadcasting sta-
tion.
● When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
● When the Intelligent Key is in contact with or
covered by metallic materials.
● When any type of radio wave remote control
is used nearby.
● When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter. ● When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. Replace
the discharged battery with a new one as soon
as possible. For more details, see “PUSH-
BUTTON IGNITION SWITCH” in the “5. Starting
and driving” section.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section.INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments
3-7
 —
—
10/12/09—tbrooks


Because the steering wheel is locked electri-
cally, unlocking the steering wheel with the
ignition switch in the LOCK position is impos-
sible when the vehicle battery is completely
discharged. Pay special attention that the ve-
hicle battery is not completely discharged.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information
about the purchase and use of additional Intel-
ligent Keys, contact an INFINITI retailer.
CAUTION● Do not allow the Intelligent Key, which con-
tains electrical components, to come into
contact with water or salt water. This could
affect the system function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent Key.
● Wetting may damage the Intelligent Key. If
the Intelligent Key gets wet, immediately
wipe until it is completely dry.
● Do not place the Intelligent Key for an ex-
tended period in an area where tempera-
tures exceed 140°F (60°C). ● Do not attach the Intelligent Key with a key
holder that contains a magnet.
● Do not place the Intelligent Key near equip-
ment that produces a magnetic field, such as
a TV, audio equipment and personal
computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to oper-
ate the vehicle. For information regarding the
erasing procedure, contact an INFINITI retailer.
INTELLIGENT KEY OPERATING RANGE The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
 1
. SPA2538
3-8 Pre-driving checks and adjustments
 —
—
10/12/09—tbrooks


When the Intelligent Key battery is discharged
or strong radio waves are present near the
operating location, the Intelligent Key system’s
operating range becomes narrower, and the
Intelligent Key may not function properly.
The operating range is within 31.50 in (80 cm)
from each request switch
 1
.
If the Intelligent Key is too close to the door
glass, handle or rear bumper the request
switches may not function.
When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors and open the
trunk lid.
DOOR LOCKS/UNLOCKS PRECAUTION ● Do not push the door handle request switch
with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the Intel-
ligent Key is outside the vehicle.
● After locking with the door handle request
switch, verify the doors are securely locked
by testing them.
● To prevent the Intelligent Key from being left
inside the vehicle or the trunk, make sure
you carry the key with you and then lock the
doors or the trunk. ● Do not pull the door handle before pushing
the door handle request switch. The door
will be unlocked but will not open. Release
the door handle once and pull it again to
open the door.
● The Intelligent Key system (opening/closing
doors with the door handle request switch)
can be set to remain inactive. (See “VEHICLE
INFORMATION AND SETTINGS” in the “4.
Monitor, climate, audio, phone and voice
recognition systems” section.) SPA2407
Pre-driving checks and adjustments
3-9
 —
—
10/12/09—tbrooks


BATTERY SAVER SYSTEM When all the following conditions are met for 60
minutes, the battery saver system will cut off
the power supply to prevent battery discharge.
● The ignition switch is in the ACC position,
and
● All doors are closed, and
● The selector lever is in the P (Park) position
(Automatic Transmission models).
WARNING SIGNALS To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelli-
gent Key listed on the following chart or to help
prevent the vehicle from being stolen, chime or
beep sounds inside and outside the vehicle and
a warning displays in the dot matrix liquid
crystal display.
When a chime or beep sounds or the warning
displays, be sure to check the vehicle and
Intelligent Key.
See “TROUBLESHOOTING GUIDE” later in this
section and “DOT MATRIX LIQUID CRYSTAL DIS-
PLAY” in the “2. Instruments and controls”
section.
3-12 Pre-driving checks and adjustments
 —
—
10/12/09—tbrooks


WARNINGThe Intelligent Key transmits radio waves when
the buttons are pushed. The FAA advises that
the radio waves may affect aircraft navigation
and communication systems. Do not operate
the Intelligent Key while on an airplane. Make
sure the buttons are not operated unintention-
ally when the unit is stored during a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the Intelli-
gent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent Key
can operate at a distance of approximately 33 ft
(10 m) from the vehicle. (The effective distance
depends upon the conditions around the ve-
hicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact an INFINITI retailer. The lock and unlock buttons on the Intelligent
Key will not operate when:
● the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m).
● the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies de-
pending on the environment. To securely oper-
ate the lock and unlock buttons, approach the
vehicle to about 3 ft (1 m) from the door.
1. LOCK button
2. UNLOCK button
3. TRUNK button
4. PANIC button
HOW TO USE REMOTE KEYLESS ENTRY
SYSTEM When you lock or unlock the doors or the trunk
lid, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, see “Setting hazard indicator
and horn mode” later in this section. SPA2100
REMOTE KEYLESS ENTRY SYSTEM
3-14 Pre-driving checks and adjustments
 —
—
10/12/09—tbrooks
