language INFINITI G37 2010 Owners Manual

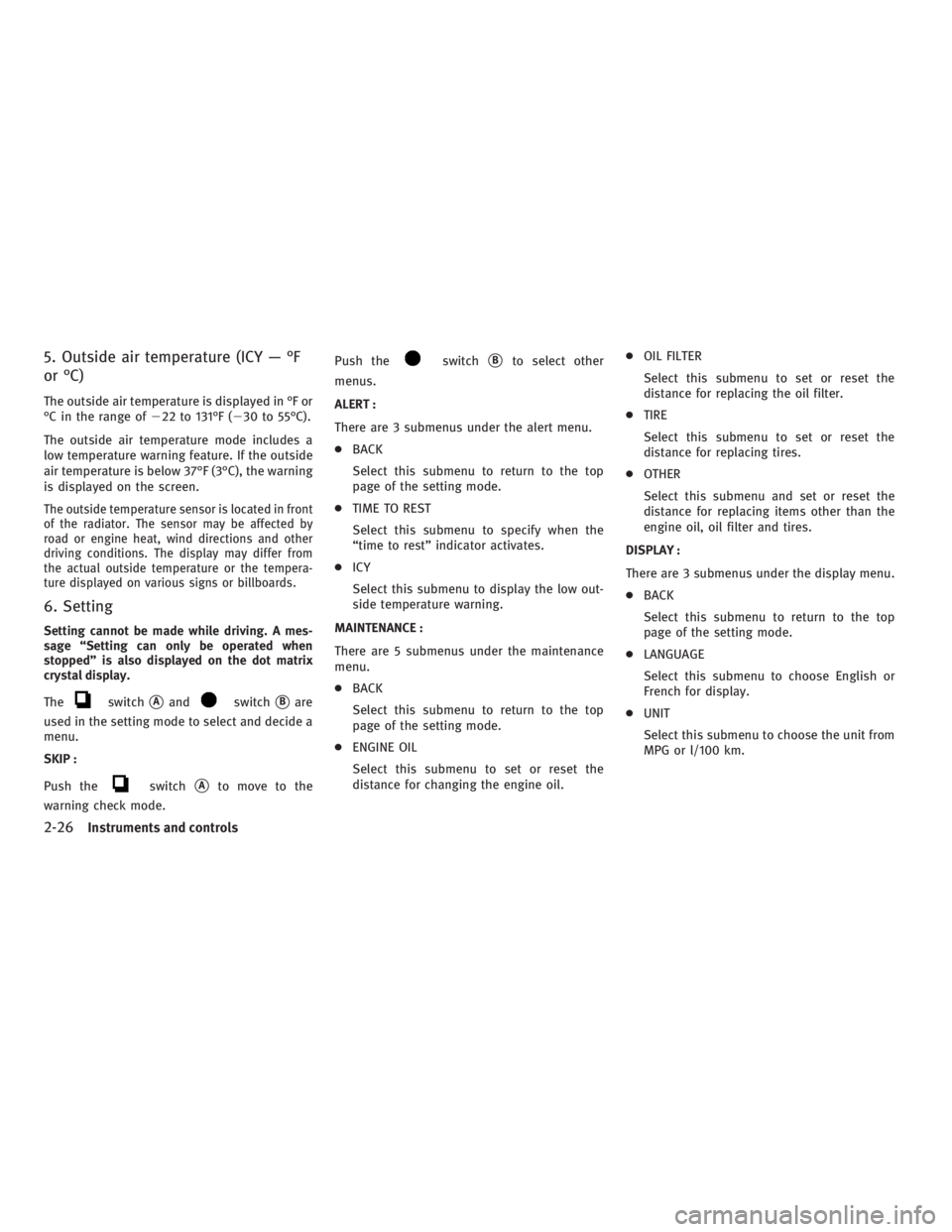

5. Outside air temperature (ICY — °F
or °C) The outside air temperature is displayed in °F or
°C in the range of  22 to 131°F (  30 to 55°C).
The outside air temperature mode includes a
low temperature warning feature. If the outside
air temperature is below 37°F (3°C), the warning
is displayed on the screen.
The outside temperature sensor is located in front
of the radiator. The sensor may be affected by
road or engine heat, wind directions and other
driving conditions. The display may differ from
the actual outside temperature or the tempera-
ture displayed on various signs or billboards.
6. Setting Setting cannot be made while driving. A mes-
sage “Setting can only be operated when
stopped” is also displayed on the dot matrix
crystal display.
The switch
 A
and switch
 B
are
used in the setting mode to select and decide a
menu.
SKIP :
Push the switch
 A
to move to the
warning check mode. Push the switch
 B
to select other
menus.
ALERT :
There are 3 submenus under the alert menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● TIME TO REST
Select this submenu to specify when the
“time to rest” indicator activates.
● ICY
Select this submenu to display the low out-
side temperature warning.
MAINTENANCE :
There are 5 submenus under the maintenance
menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● ENGINE OIL
Select this submenu to set or reset the
distance for changing the engine oil. ● OIL FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
● TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
DISPLAY :
There are 3 submenus under the display menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English or
French for display.
● UNIT
Select this submenu to choose the unit from
MPG or l/100 km.
2-26 Instruments and controls
 —
—
10/12/09—tbrooks


Others settings (models with
navigation system) The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
● Comfort
● Language & Units
● Voice Recognition
● Camera (if so equipped)
● Sonar
● Image Viewer Comfort settings The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Comfort”
key. This key does not appear on the display
until the ignition switch is pushed to the ON
position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so equipped) :
When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the steering wheel moves to the pre-
vious position.
Slide Driver Seat Back on Exit (if so equipped) :
When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicleSAA3019
Models with navigation system SAA2488
Models without navigation system SAA2739
Monitor, climate, audio, phone and voice recognition systems
4-17
 —
—
04/21/10—debbie


and pushing the ignition switch to the ACC
position, the driver’s seat moves to the previous
position.
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval :
When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once. Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.
Language & Units settings The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language & Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language &
Units” key.
Select Language :
Select the “Select Language” key. Choose “En-
glish”, “Français” or “Español” for your favorite
display appearance. SAA2490
4-18 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


If you select the “Français” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “OWNER’S
MANUAL/SERVICE MANUAL ORDER INFORMA-
TION” in the “9. Technical and consumer infor-
mation” section.
Select Units :
Select the “Select Units” key. Choose “US”
(Mile, °F, MPG) or “Metric” (km, °C, L/100 km)
for your favorite display appearance.
Voice Recognition settings (models
with navigation system) For details about the “Voice Recognition” set-
tings, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section. Camera settings (if so equipped) The “CAMERA” screen will appear when select-
ing the “Camera” key with the INFINITI control-
ler and pushing the ENTER button.
For the details about the camera system opera-
tion, see “REARVIEW MONITOR” later in this
section.
Predictive Course Lines :
When this item is turned to ON, the predicted
course lines will be displayed on the monitor
when the selector/shift lever is in the “R”
(Reverse) position.
Models with navigation system SAA2404
Models without navigation system SAA2606
Monitor, climate, audio, phone and voice recognition systems
4-19
 —
—
04/21/10—debbie

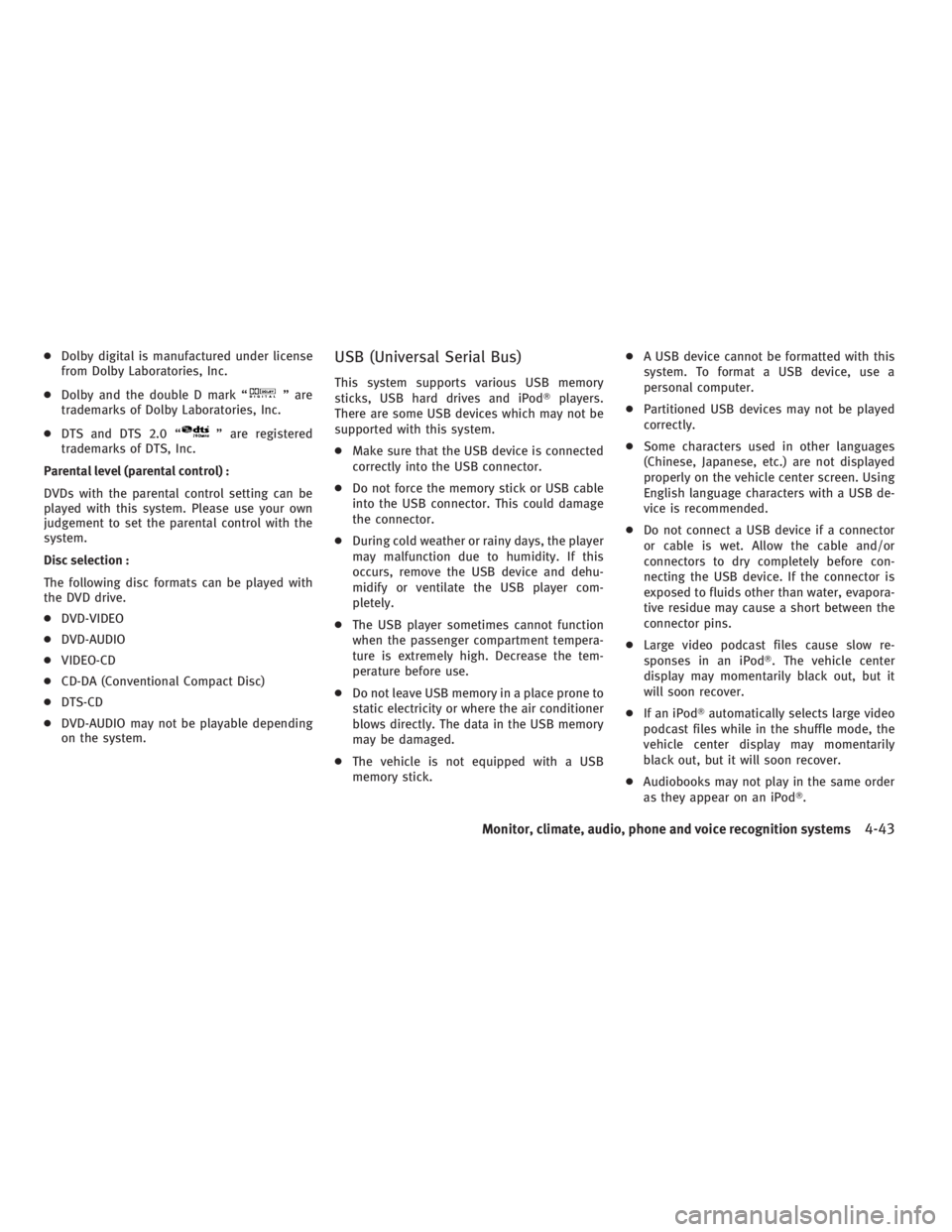

● Dolby digital is manufactured under license
from Dolby Laboratories, Inc.
● Dolby and the double D mark “
” are
trademarks of Dolby Laboratories, Inc.
● DTS and DTS 2.0 “
” are registered
trademarks of DTS, Inc.
Parental level (parental control) :
DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selection :
The following disc formats can be played with
the DVD drive.
● DVD-VIDEO
● DVD-AUDIO
● VIDEO-CD
● CD-DA (Conventional Compact Disc)
● DTS-CD
● DVD-AUDIO may not be playable depending
on the system. USB (Universal Serial Bus) This system supports various USB memory
sticks, USB hard drives and iPod  players.
There are some USB devices which may not be
supported with this system.
● Make sure that the USB device is connected
correctly into the USB connector.
● Do not force the memory stick or USB cable
into the USB connector. This could damage
the connector.
● During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the USB device and dehu-
midify or ventilate the USB player com-
pletely.
● The USB player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
● Do not leave USB memory in a place prone to
static electricity or where the air conditioner
blows directly. The data in the USB memory
may be damaged.
● The vehicle is not equipped with a USB
memory stick. ● A USB device cannot be formatted with this
system. To format a USB device, use a
personal computer.
● Partitioned USB devices may not be played
correctly.
● Some characters used in other languages
(Chinese, Japanese, etc.) are not displayed
properly on the vehicle center screen. Using
English language characters with a USB de-
vice is recommended.
● Do not connect a USB device if a connector
or cable is wet. Allow the cable and/or
connectors to dry completely before con-
necting the USB device. If the connector is
exposed to fluids other than water, evapora-
tive residue may cause a short between the
connector pins.
● Large video podcast files cause slow re-
sponses in an iPod  . The vehicle center
display may momentarily black out, but it
will soon recover.
● If an iPod  automatically selects large video
podcast files while in the shuffle mode, the
vehicle center display may momentarily
black out, but it will soon recover.
● Audiobooks may not play in the same order
as they appear on an iPod  .
Monitor, climate, audio, phone and voice recognition systems
4-43
 —
—
04/22/10—debbie

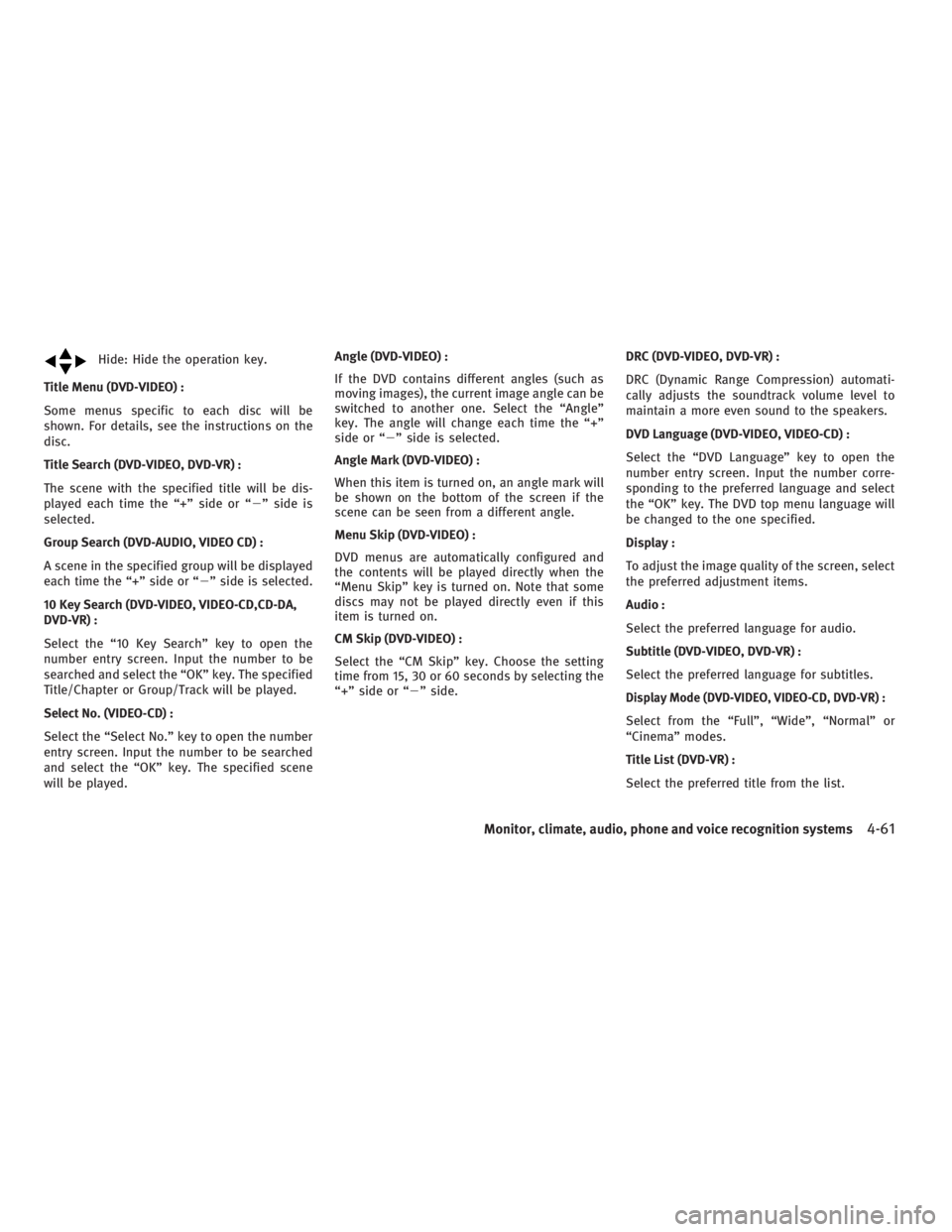

Hide: Hide the operation key.
Title Menu (DVD-VIDEO) :
Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.
Title Search (DVD-VIDEO, DVD-VR) :
The scene with the specified title will be dis-
played each time the “+” side or “  ” side is
selected.
Group Search (DVD-AUDIO, VIDEO CD) :
A scene in the specified group will be displayed
each time the “+” side or “  ” side is selected.
10 Key Search (DVD-VIDEO, VIDEO-CD,CD-DA,
DVD-VR) :
Select the “10 Key Search” key to open the
number entry screen. Input the number to be
searched and select the “OK” key. The specified
Title/Chapter or Group/Track will be played.
Select No. (VIDEO-CD) :
Select the “Select No.” key to open the number
entry screen. Input the number to be searched
and select the “OK” key. The specified scene
will be played. Angle (DVD-VIDEO) :
If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one. Select the “Angle”
key. The angle will change each time the “+”
side or “  ” side is selected.
Angle Mark (DVD-VIDEO) :
When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.
Menu Skip (DVD-VIDEO) :
DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip” key is turned on. Note that some
discs may not be played directly even if this
item is turned on.
CM Skip (DVD-VIDEO) :
Select the “CM Skip” key. Choose the setting
time from 15, 30 or 60 seconds by selecting the
“+” side or “  ” side. DRC (DVD-VIDEO, DVD-VR) :
DRC (Dynamic Range Compression) automati-
cally adjusts the soundtrack volume level to
maintain a more even sound to the speakers.
DVD Language (DVD-VIDEO, VIDEO-CD) :
Select the “DVD Language” key to open the
number entry screen. Input the number corre-
sponding to the preferred language and select
the “OK” key. The DVD top menu language will
be changed to the one specified.
Display :
To adjust the image quality of the screen, select
the preferred adjustment items.
Audio :
Select the preferred language for audio.
Subtitle (DVD-VIDEO, DVD-VR) :
Select the preferred language for subtitles.
Display Mode (DVD-VIDEO, VIDEO-CD, DVD-VR) :
Select from the “Full”, “Wide”, “Normal” or
“Cinema” modes.
Title List (DVD-VR) :
Select the preferred title from the list.
Monitor, climate, audio, phone and voice recognition systems
4-61
 —
—
04/21/10—debbie


Settings :
Select the “Settings” key to adjust the following
settings.
● Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
● Play Mode
Select the “Normal” or “1 Track Repeat” play
mode. ● 10 Key Search
Select the “10 Key Search” key to open the
number entry screen.
Input the number to be searched and select
the “OK” key.
The specified folder/file will be played.
● Display
To adjust the image quality of the screen,
select the preferred adjustment items.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Select the preferred language for audio.
● Subtitle
Select the preferred language for subtitle.
● Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode. BLUETOOTH  STREAMING AUDIO
(models with navigation system) Your INFINITI is equipped with Bluetooth  Stream-
ing Audio. If you have a compatible Bluetooth
device with streaming audio (A2DP profile), you
can set up the wireless connection between your
Bluetooth  device and the in-vehicle audio sys-
tem. This connection allows you to listen to the
audio from the Bluetooth  device using your
vehicle speakers. It also may allow basic control
of the device for playing and skipping audio files
using the AVRCP Bluetooth  profile. All
Bluetooth  Devices do not have the same level of
controls for AVRCP. Please consult the manual for
your Bluetooth  Device for more details.
Once your Bluetooth  device is connected to
the in-vehicle audio system, it will automati-
cally reconnect whenever the device is present
in the vehicle and you select Bluetooth  Audio
from your audio system. You do not need to
manually reconnect for each usage.
Regulatory information FCC Regulatory information :
– CAUTION: To maintain compliance with FCC’s
RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.Example SAA2504
4-66 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


VOICE RECOGNITION SYSTEM You can also use the Bluetooth  hands-free
phone system with Voice Recognition System.
INFO
● The available voice commands are only ap-
plicable to the relevant language set in the
LANGUAGE setting screen. (See “HOW TO
USE SETTING BUTTON” earlier in this sec-
tion.)
● If the vehicle is in motion, some commands
may not be available so full attention may be
given to vehicle operation.
Using system Initialization :
When the ignition switch is pushed to the ON
position, Voice Recognition System is initial-
ized, which takes a few seconds. When com-
pleted, the system is ready to accept voice
commands. If the switch on the steering
wheel is pushed before the initialization com-
pletes, the system will not accept any com-
mand. Before starting :
To get the best performance out of the Voice
Recognition System, observe the following:
● Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● Wait until a tone sounds before speaking a
command.
● Speak a voice command within 5 seconds
after the beep sound. If no voice command is
given, the system will ask you for a number.
If no further command is given, the session
ends.
● Speak in a natural voice without pausing
between words. Giving voice command:
1. Push and release the switch located
on the steering wheel. SAA2643
4-98 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie
