display INFINITI G37 2012 Owner's Manual

Black plate (120,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]2-42 Instruments and controls GUID-D6E40EC7-7E3A-4BCB-BCDD-525F5F5A56AE
JVS0022X
The vehicle should be driven with the
Vehicle Dynamic Control (VDC) system on
for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is
depressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will illumi-
nate.
Push the VDC OFF switch again or restart
the engine to turn on the system. (See “ Vehicle Dynamic Control (VDC) system ”
(P.5-55).) GUID-DC9CAC82-B97F-47EC-AD18-AF6DB1F26506
SIC3325
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIME GUID-9687E000-FB4A-4A09-9D4E-BA64FB958022
1. To set the clock forward, push the
button
* 1
.
2. To set the clock backward, push the
button
* 2
.
3. To move forward or backward faster,
push and hold the button more than 5
seconds.
For details about display clock adjustment
(if so equipped), see “ How to use SETTING
button ” (P.4-14).VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH CLOCK

Black plate (154,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]3-12 Pre-driving checks and adjustments JVP0077X
SPA2324
Sedan SPA2404
Coupe
Opening trunk lid GUID-8CAC547B-02BB-4FF9-92E6-7281A6D2F40E
1. Push the trunk open request switch
* A
for more than 1 second.
2. The trunk will unlatch. An outside
chime will sound four times.
3. Raise the trunk lid to open the trunk.
Lockout protection: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
To prevent the Intelligent Key from being
accidentally locked in the trunk, lockout
protection is equipped with the Intelligent
Key system.
When the trunk lid is closed with the
Intelligent Key inside the trunk, the outside chime will sound and the trunk will open.
BATTERY SAVER SYSTEM GUID-87E6AD4D-E5E1-4DF0-9F8D-89D71C40D4AA
When all the following conditions are met
for 60 minutes, the battery saver system
will cut off the power supply to prevent
battery discharge.
. The ignition switch is in the ACC
position, and
. All doors are closed, and
. The selector lever is in the P (Park)
position (Automatic Transmission mod-
els).
WARNING SIGNALS GUID-40E3A686-E7C6-4718-82C0-51E40924B2FE
To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key listed on the following
chart or to help prevent the vehicle from
being stolen, chime or beep sounds inside
and outside the vehicle and a warning
displays in the dot matrix liquid crystal
display.
When a chime or beep sounds or the
warning displays, be sure to check the
vehicle and Intelligent Key.
See “ Troubleshooting guide ” (P.3-13) and
“ Dot matrix liquid crystal display ” (P.2-20).

Black plate (155,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]TROUBLESHOOTING GUIDE GUID-74EA3136-2453-48A5-9A65-B4F622B666A0
Symptom Possible cause Action to take
When pushing the ignition switch
to stop the engine The SHIFT P warning appears on the display
and the inside warning chime sounds con-
tinuously (Automatic Transmission models). The selector lever is not in the P (Park)
position. Shift the selector lever to the P (Park)
position.
When shifting the selector lever
to the P (Park) position. The inside warning chime sounds continu-
ously. The ignition switch is in the ACC or ON
position. Push the ignition switch to the OFF position.
When opening the driver ’ s door to
get out of the vehicle The inside warning chime sounds continu-
ously. The ignition switch is in the ACC
position. Push the ignition switch to the OFF position.
The Intelligent Key is in the Intelligent
Key port. Remove the Intelligent Key from the Intel-
ligent Key port.
When closing the door after get-
ting out of the vehicle The NO KEY warning appears on the display,
the outside chime sounds 3 times and the
inside warning chime sounds for a few
seconds. The ignition switch is in the ACC or ON
position. Push the ignition switch to the OFF position.
The SHIFT P warning appears on the display
and the outside chime sounds continuously
(Automatic Transmission models). The ignition switch is in the ACC or OFF
position and the selector lever is not in
the P (Park) position. Move the selector lever to the P (Park)
position and push the ignition switch to the
OFF position.
When closing the door with the
inside lock knob turned to LOCK The outside chime sounds for a few seconds
and all the doors unlock. The Intelligent Key is inside the vehicle
or trunk. Carry the Intelligent Key with you.
When pushing the request switch
or LOCK button on the Intelligent
Key to lock the door The outside chime sounds for a few seconds. The Intelligent Key is inside the vehicle
or trunk. Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lid The outside chime sounds for approximately
10 seconds and the trunk lid opens. The Intelligent Key is inside the trunk. Carry the Intelligent Key with you.
Pre-driving checks and adjustments
3-13

Black plate (166,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]3-24 Pre-driving checks and adjustments. Do not fill a portable fuel container in

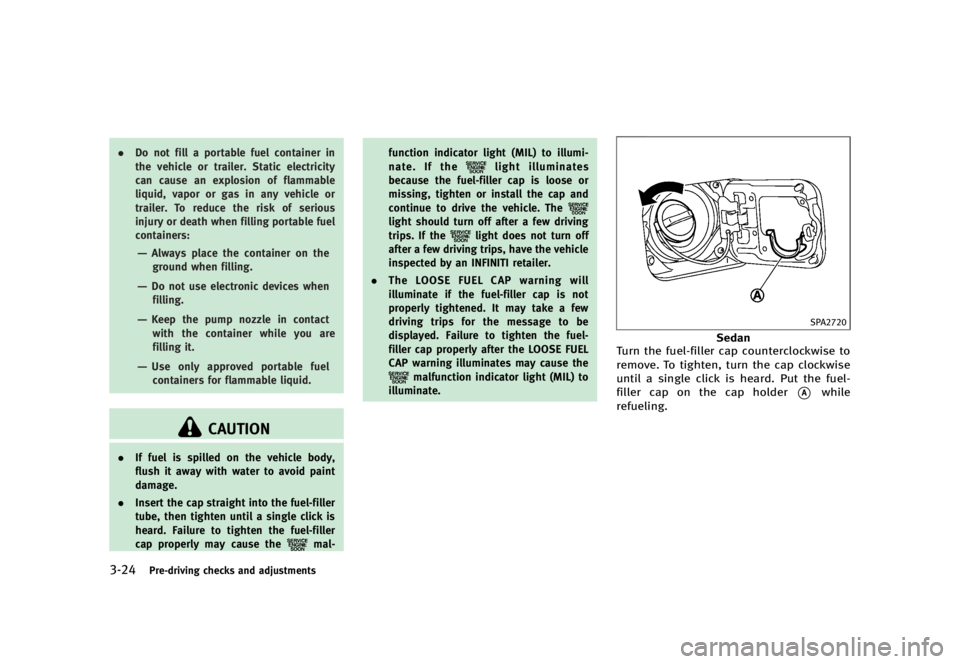

the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable fuel
containers:
— Always place the container on the
ground when filling.
— Do not use electronic devices when
filling.
— Keep the pump nozzle in contact
with the container while you are
filling it.
— Use only approved portable fuel
containers for flammable liquid.
CAUTION. If fuel is spilled on the vehicle body,
flush it away with water to avoid paint
damage.
. Insert the cap straight into the fuel-filler
tube, then tighten until a single click is
heard. Failure to tighten the fuel-filler
cap properly may cause the
mal- function indicator light (MIL) to illumi-
nate. If the
light illuminates
because the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few driving
trips. If the
light does not turn off
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
. The LOOSE FUEL CAP warning will
illuminate if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the fuel-
filler cap properly after the LOOSE FUEL
CAP warning illuminates may cause the
malfunction indicator light (MIL) to
illuminate. SPA2720
Sedan
Turn the fuel-filler cap counterclockwise to
remove. To tighten, turn the cap clockwise
until a single click is heard. Put the fuel-
filler cap on the cap holder
* A
while
refueling.

Black plate (167,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]SPA2838
Coupe SPA2802
LOOSE FUEL CAP warning GUID-C419E1AB-BE96-4CEE-A3A0-A424103B7C58
The LOOSE FUEL CAP warning appears on
the dot matrix liquid crystal display when
the fuel-filler cap is not tightened correctly
after the vehicle has been refueled. It may
take a few driving trips for the message to
be displayed.
To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap as
soon as possible. (See “ Fuel-filler cap ”
(P.3-23).).
2. Tighten the fuel-filler cap until a single
click is heard. 3. Push the reset switch
* A
on the right
side of the combination meter panel for
about 1 second to turn off the LOOSE
FUEL CAP warning after tightening the
fuel cap.
Pre-driving checks and adjustments
3-25

Black plate (179,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4 Monitor, climate, audio, phone and voice recogni-
tion systems Safety note ............................................................. 4-3
Center multi-function control panel ......................... 4-3
How to use INFINITI controller ............................. 4-5
How to use touch screen (models with
navigation system) ............................................. 4-5
Menu options (models with
navigation system) ............................................. 4-7
How to select menus on the screen .................... 4-8
Vehicle information and settings ............................. 4-9
How to use STATUS button ................................. 4-9
How to use brightness control and display
ON/OFF button ................................................... 4-9
How to use INFO button ..................................... 4-9
How to use SETTING button .............................. 4-14
RearView monitor (if so equipped) ........................ 4-23
How to read displayed lines ............................. 4-24
How to park with predicted course lines ........... 4-24
Difference between predicted and
actual distances ............................................... 4-26
Predictive course line settings .......................... 4-29
How to adjust screen ....................................... 4-29
Operating tips .................................................. 4-29
Ventilators ............................................................ 4-30
Automatic climate control ..................................... 4-31
Automatic climate control (Type A) .................... 4-32 Automatic climate control (Type B) .................. 4-34
Automatic climate control (Type C) .................. 4-37
Operating tips ................................................. 4-40
In-cabin microfilter .......................................... 4-40
Servicing climate control ................................. 4-41
Audio system ....................................................... 4-41
Audio operation precautions ........................... 4-41
FM-AM-SAT radio with Compact Disc
(CD) player ...................................................... 4-57
DVD (Digital Versatile Disc) player operation
(models with navigation system) ..................... 4-62
USB input operation (if so equipped) .............. 4-66
Bluetooth ®
streaming audio (models with
navigation system) .......................................... 4-70
iPod ®
player operation (if so equipped) .......... 4-75
Music Box ®
(if so equipped) ........................... 4-77
Auxiliary input jacks (if so equipped) .............. 4-85
CD/DVD/USB memory care and cleaning ......... 4-86
Steering-wheel-mounted controls
for audio ........................................................ 4-87
Antenna .......................................................... 4-89
Car phone or CB radio ......................................... 4-89
Bluetooth ®
Hands-Free Phone System
(models with navigation system) .......................... 4-90
Regulatory information .................................... 4-91

Black plate (181,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-B399574C-759D-4EDD-9D8B-240757C36DDF
WARNING. Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
. In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest INFINITI retailer.
Ignoring such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.
Do not attempt to operate the system in
extreme temperature conditions [below
− 4 8 F ( − 20 8 C) and above 158 8 F (70 8 C)].
Operating this system under these condi-
tions may result in system malfunctions. GUID-7F90DABA-37C8-4571-9C5A-2974CEC5AA7A
SAA1523
Models with navigation system
1. “ STATUS ” status display button
(P.4-9)
2, 6, 7, 10, 11.
For navigation system control buttons
(Refer to the separate Navigation
System Owner ’ s Manual.)
3. INFINITI controller (P.4-5)
4. “ PHONE ” Bluetooth ®
Hands-Free
Phone System button (P.4-90)
5. “
OFF ” brightness control and
display ON/OFF button (P.4-9)
8. “ AM·FM·SAT ” band selector button
(P.4-41) 9. “ DISC·AUX ” selector button (P.4-41)
12. “ INFO ” vehicle and navigation infor-
mation button (P.4-9)
13. “ SETTING ” button (P.4-14)
Monitor, climate, audio, phone and voice recognition systems
4-3SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL

Black plate (182,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4-4 Monitor, climate, audio, phone and voice recognition systems SAA1524
Models without navigation system
1. “ AUX ” button (P.4-41)
2. “ RADIO AM·FM ” band selector button
(P.4-41)
3. INFINITI controller (P.4-5)
4. “
OFF ” brightness control and
display ON/OFF button (P.4-9)
5. “ INFO ” vehicle information button
(P.4-9)
6. “ DISC ” selector button (P.4-41)
7. “ STATUS ” status display button
(P.4-9)
8. “ SETTING ” button (P.4-14)
When you use this system, make sure the
engine is running. If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start. SAA1541
Models with navigation system
SAA1508
Models without navigation system

Black plate (183,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]HOW TO USE INFINITI CONTROLLER GUID-7A498997-935F-4751-B393-57B01CF46DDF
Choose an item on the display using the
main directional buttons
* 2
(or additional
directional buttons
* 6
with navigation
system) or center dial
* 3
, and push the
ENTER button
* 1
for operation.
If you push the BACK button
* 4
before the
setup is completed, the setup will be
canceled and/or the display will return to
the previous screen. This button can also
be used to delete characters that have
been input.
After the setup is completed, push the
BACK button
* 4
and return to the previous
screen.
For the VOICE button
* 5
functions, refer to
the separate Navigation System Owner ’ s
Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system) GUID-6611C03E-CDBF-4D30-B540-4F9F66BCB2C5
CAUTION. The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. Do not touch the glass if
it breaks. Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not
available while driving will be “ grayed
out ” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING . ALWAYS give your full attention to
driving.
. Avoid using vehicle features that could distract you. If distracted, you could lose
control of your vehicle and cause an
accident.
Touch screen operation GUID-9E906F90-D180-4427-8288-7815C56B83FB
With this system, the same operations as
those for the INFINITI controller are possi-
ble using the touch screen operation.
Monitor, climate, audio, phone and voice recognition systems
4-5

Black plate (185,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]. Delete:
Deletes the last character that has been
input with one touch. Push and hold to
delete all of the characters.
. OK:
Completes character inputs.
Touch screen maintenance GUID-E3D8C2B3-B87F-4DBB-8AF4-655EF548D2BC
If you clean the display screen, use a dry,
soft cloth. If additional cleaning is neces-
sary, use a small amount of neutral
detergent with a soft cloth. Never spray
the screen with water or detergent. Dam-
pen the cloth first, and then wipe the
screen. SAA1525
MENU OPTIONS (models with navi-
gation system) GUID-4E5C1330-69EB-4862-A681-1F1045FB93F1
The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is
displayed, push and hold the menu
control switch until the “ Menu Options ”
screen appears.
2. Highlight the preferred item by tilting
the menu control switch up or down,
and then push the menu control switch
to select it. SAA2476
Available items GUID-924ADD2F-5CCF-4D9C-BA75-D6B9E03DFA00
Destination/Route: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
These items are for the navigation system.
See the separate Navigation System Own-
er ’ s Manual for details.
Info: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Displays the information screen. It is the
same screen that appears when you push
the INFO button.
Settings: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
Monitor, climate, audio, phone and voice recognition systems
4-7
