INFINITI G37 2012 Owners Manual

Black plate (380,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-60 Starting and drivingMEMO

Black plate (381,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]6 In case of emergency Roadside assistance program ................................. 6-2
Emergency engine shut off ..................................... 6-2
Flat tire ................................................................... 6-2
Tire Pressure Monitoring System (TPMS) ............. 6-2
Changing a flat tire ............................................ 6-3 Jump starting ......................................................... 6-8
Push starting ....................................................... 6-10
If your vehicle overheats ...................................... 6-10
Towing your vehicle ............................................. 6-11
Towing recommended by INFINITI .................... 6-12
Vehicle recovery (Freeing a stuck vehicle) ....... 6-13

Black plate (382,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]6-2 In case of emergency GUID-B26201B1-5E14-45EB-9707-DC8F1E4219FD
In the event of a roadside emergency,
Roadside Assistance Service is available to
you. Please refer to your Warranty Informa-
tion Booklet (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada)
for details. GUID-FB799410-A0CC-4EDA-A522-6DA1F88B3F1E
To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
. Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds. GUID-17D7421B-973E-4FF8-B56B-831261C859DB
TIRE PRESSURE MONITORING SYS-
TEM (TPMS) GUID-EFDE8E6D-AFA0-4243-A90D-0D01CCEE6814
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
If the vehicle is being driven with low tire
pressure, the TPMS will activate and warn
you of it by the low tire pressure warning
light. This system will activate only when
the vehicle is driven at speeds above 16
MPH (25 km/h). For more details, see
“ Warning/indicator lights and audible re-
minders ” (P.2-12) and “ Tire Pressure Mon-
itoring System (TPMS) ” (P.5-4).
WARNING . If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damageROADSIDE ASSISTANCE PROGRAM EMERGENCY ENGINE SHUT OFF FLAT TIRE

Black plate (383,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE GUID-17392640-59D1-4ABE-91EE-2C0B6371262B
If you have a flat tire, follow the instruc-
tions below.
Stopping the vehicle GUID-D581A789-AFAC-489C-91F1-2711C20E7205
1. Safely move the vehicle off the road
and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the
parking brake. Move the selector lever
to the P (Park) position (Automatic
transmission models). Move the shift
lever to the R (Reverse) gear (Manual
transmission models).
4. Turn off the engine.
5. Raise the hood to warn other traffic,
and to signal professional road assis-
tance personnel that you need assis-
tance.
6. Have all passengers get out of the
vehicle and stand in a safe place, away
from traffic and clear of the vehicle. WARNING . Make sure the parking brake is securely
applied and the manual transmission is
shifted into R (Reverse), or the automatic
transmission into P (Park).
. Never change tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.
. Never change tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.
In case of emergency
6-3

Black plate (384,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]6-4 In case of emergency MCE0001A
Blocking wheels GUID-3C94532B-2516-4404-914E-93CE5BA671EB
Place suitable blocks
* 1
at both the front
and back of the wheel diagonally opposite
the flat tire to prevent the vehicle from
moving when it is jacked up.
WARNINGBe sure to block the wheel as the vehicle
may move and result in personal injury. SCE0659
Jacking tools — Sedan
SCE0695
Jacking tools — Coupe SCE0702
Spare — Sedan and Coupe
Getting the spare tire and tools GUID-C576D95E-0683-468D-83C2-E81C7014F5D8
Raise the trunk floor cover
* 1
using the
tab
* A
.
Remove jacking tools located inside the
trunk as illustrated.
The spare tire is located under the jacking
tools. Remove the cap
* 2
holding the
spare tire.

Black plate (385,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Jacking up the vehicle and remov-
ing the damaged tire GUID-BE8A1300-D9E3-444A-93C3-9EA14A49879E
WARNING. Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use only the jack provided with your
vehicle to lift the vehicle. Do not use the
jack provided with your vehicle on other
vehicles. The jack is designed for lifting
only your vehicle during a tire change.
. Use the correct jack-up points. Never use
any other part of the vehicle for jack
support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the jack.
. Do not start or run the engine while
vehicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip differ-
entials.
. Do not allow passengers to stay in the
vehicle while it is on the jack. Carefully read the caution label attached to
the jack body and the following instruc-
tions.
CE1089-A
Jack-up point
1. Place the jack directly under the jack-up
point as illustrated so the top of the
jack contacts the vehicle at the jack-up
point. Align the jack head between the
two notches in the front or the rear as
shown. Also fit the groove of the jack
head between the notches as shown.
The jack should be used on level firm
ground.
In case of emergency
6-5

Black plate (386,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]6-6 In case of emergency SCE0504
2. Loosen each wheel nut one or two turns
by turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
3. Carefully raise the vehicle until the tire
clears the ground. To lift the vehicle,
securely hold the jack lever and rod
with both hands as shown above.
Remove the wheel nuts, and then
remove the tire. SCE0661
Installing the spare tire GUID-4746005A-8947-492C-A2AA-FAC1609582B5
The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading “ Wheels and tires ” (P.8-
33).)
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the spare tire on and
tighten the wheel nuts finger tight.
Models equipped with different sized
tires in the front and rear:
When replacing a front tire, make sure
that the hole in the spare tire wheel is
aligned with the pin on the brake rotor.

Black plate (387,1)

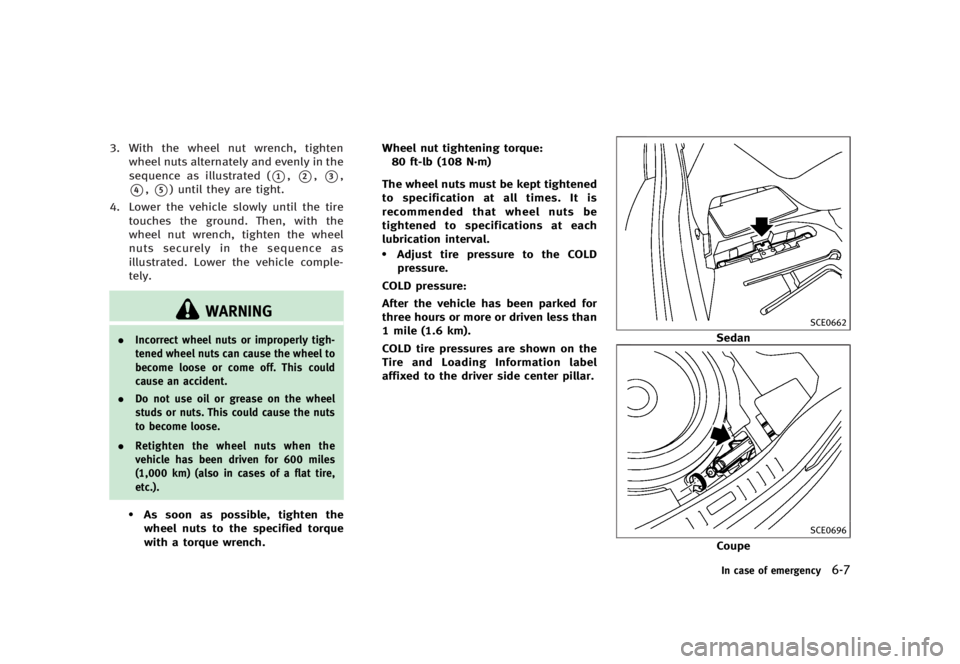

[ Edit: 2012/ 1/ 17 Model: V36-D ]3. With the wheel nut wrench, tighten
wheel nuts alternately and evenly in the
sequence as illustrated (
* 1
,
* 2
,
* 3
,
* 4
,
* 5
) until they are tight.
4. Lower the vehicle slowly until the tire
touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as
illustrated. Lower the vehicle comple-
tely.
WARNING. Incorrect wheel nuts or improperly tigh-
tened wheel nuts can cause the wheel to
become loose or come off. This could
cause an accident.
. Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.). .
As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench. Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tightened
to specification at all times. It is
recommended that wheel nuts be
tightened to specifications at each
lubrication interval. .
Adjust tire pressure to the COLD
pressure.
COLD pressure:
After the vehicle has been parked for
three hours or more or driven less than
1 mile (1.6 km).
COLD tire pressures are shown on the
Tire and Loading Information label
affixed to the driver side center pillar. SCE0662
Sedan
SCE0696
Coupe
In case of emergency
6-7

Black plate (388,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]6-8 In case of emergency5. Securely store the flat tire and jacking
equipment in the vehicle.
6. Place the spare tire cover and the trunk
floor carpeting over the damaged tire.
7. Close the trunk.
WARNING. Always make sure that the spare tire and
jacking equipment are properly secured
after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
. The T-type spare tire and small size
spare tire are designed for emergency
use. See specific instructions under the
heading “ Wheels and tires ” (P.8-33).
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada). GUID-AB535234-DC9B-4E72-BAB2-7645DFBFC702
To start your engine with a booster battery,
the instructions and precautions below
must be followed.
WARNING . If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also
damage your vehicle.
. Explosive hydrogen gas is always pre-
sent in the vicinity of the battery. Keep
all sparks and flames away from the
battery.
. Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulphuric acid solution which
can cause severe burns. If the fluid
should come into contact with anything,
immediately flush the contacted area
with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle. . Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.
. Do not attempt to jump start a frozen
battery. It could explode and cause
serious injury.
. Your vehicle has an automatic engine
cooling fan. It could come on at any time.
Keep hands and other objects away from
it.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).JUMP STARTING

Black plate (389,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SCE0653
WARNINGAlways follow the instructions below. Failure
to do so could result in damage to the
charging system and cause personal injury.
1. If the booster battery is in another
vehicle
* A
, position the two vehicles
(
* A
and
* B
) to bring their batteries
into close proximity to each other.
Do not allow the two vehicles to touch.
2. Apply parking brake. Move the selector
lever to the P (Park) position (Automatic transmission models). Move the shift
lever to the N (Neutral) position (Man-
ual transmission models). Switch off all
unnecessary electrical systems (light,
heater, air conditioner, etc.).
3. Remove vent caps on the battery (if so
equipped). Cover the battery with a
firmly wrung out moist cloth
* C
to
reduce explosion hazard.
4. Connect jumper cables in the sequence
as illustrated (
* 1
?
* 2
?
* 3
?
* 4
).CAUTION . Always connect positive (+) to positive
(+) and negative ( − ) to body ground (as
illustrated) — not to the battery.
. Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that clamps do not contact
any other metal.
5. Start the engine of the booster vehicle
* A
and let it run for a few minutes.
6. Keep the engine speed of the booster
vehicle
* A
at about 2,000 rpm, and
start the engine of the vehicle being
jump started
* B
.
CAUTION Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, push the ignition
switch to the OFF position and wait 10
seconds before trying again.
7. After starting your engine, carefully
disconnect the negative cable and then
In case of emergency
6-9
