[ Edit: 2012/ 1/ 17 Model: V36-D ]7-2 Appearance and care GUID-9249DEB4-52C7-4AFC-8D03-6CF9D0E54C69

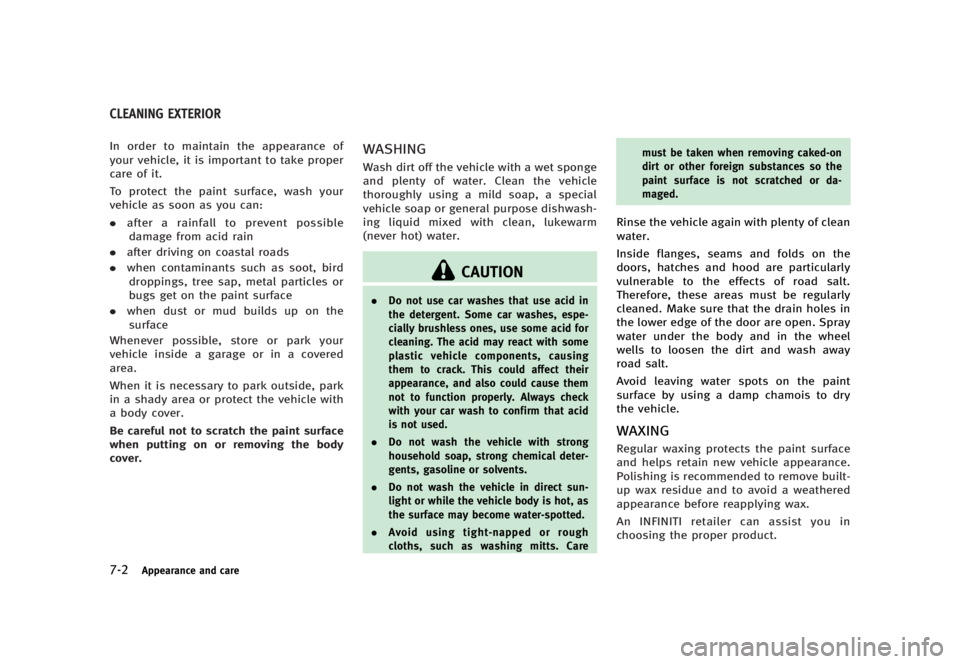

In order to maintain the appearance of
your vehicle, it is important to take proper
care of it.
To protect the paint surface, wash your
vehicle as soon as you can:
. after a rainfall to prevent possible
damage from acid rain
. after driving on coastal roads
. when contaminants such as soot, bird
droppings, tree sap, metal particles or
bugs get on the paint surface
. when dust or mud builds up on the
surface
Whenever possible, store or park your
vehicle inside a garage or in a covered
area.
When it is necessary to park outside, park
in a shady area or protect the vehicle with
a body cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover. WASHING GUID-836955BF-390D-4BD9-A9ED-E82B3D771DEA
Wash dirt off the vehicle with a wet sponge
and plenty of water. Clean the vehicle
thoroughly using a mild soap, a special
vehicle soap or general purpose dishwash-
ing liquid mixed with clean, lukewarm
(never hot) water.
CAUTION . Do not use car washes that use acid in
the detergent. Some car washes, espe-
cially brushless ones, use some acid for
cleaning. The acid may react with some
plastic vehicle components, causing
them to crack. This could affect their
appearance, and also could cause them
not to function properly. Always check
with your car wash to confirm that acid
is not used.
. Do not wash the vehicle with strong
household soap, strong chemical deter-
gents, gasoline or solvents.
. Do not wash the vehicle in direct sun-
light or while the vehicle body is hot, as
the surface may become water-spotted.
. Avoid using tight-napped or rough
cloths, such as washing mitts. Care must be taken when removing caked-on
dirt or other foreign substances so the
paint surface is not scratched or da-
maged.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the
doors, hatches and hood are particularly
vulnerable to the effects of road salt.
Therefore, these areas must be regularly
cleaned. Make sure that the drain holes in
the lower edge of the door are open. Spray
water under the body and in the wheel
wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint
surface by using a damp chamois to dry
the vehicle.
WAXING GUID-71C0704F-ABE3-4DDE-BBA8-904E37FD8A86
Regular waxing protects the paint surface
and helps retain new vehicle appearance.
Polishing is recommended to remove built-
up wax residue and to avoid a weathered
appearance before reapplying wax.
An INFINITI retailer can assist you in
choosing the proper product.CLEANING EXTERIOR

Black plate (401,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]. Wax your vehicle only after a thorough
washing. Follow the instructions sup-
plied with the wax.
. Do not use a wax containing any
abrasives, cutting compounds or clea-
ners that may damage the vehicle
finish.
Machine compound or aggressive polish-
ing on a base coat/clear coat paint finish
may dull the finish or leave swirl marks.
REMOVING SPOTS GUID-6A92BAAD-C79F-4B71-AC08-B8D8170F5C52
Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting
damage or staining. Special cleaning
products are available at an INFINITI
retailer or any automotive accessory
stores.
UNDERBODY GUID-235CB819-FCF9-47D3-B2C4-CF42120CA1E4
In areas where road salt is used in winter,
the underbody must be cleaned regularly.
This will prevent dirt and salt from building
up and causing the acceleration of corro-
sion on the underbody and suspension.
Before the winter period and again in the
spring, the underseal must be checked
and, if necessary, re-treated. GLASS GUID-5D4F0140-EB2A-48A1-9AE9-32E16AC93BA3
Use glass cleaner to remove smoke and
dust film from the glass surfaces. It is
normal for glass to become coated with a
film after the vehicle is parked in the hot
sun. Glass cleaner and a soft cloth will
easily remove this film.
CAUTION When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant clea-
ners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.
WHEELS GUID-41803024-4AB1-47D5-838F-E8FDD80A7DF3
Wash the wheels when washing the vehicle
to maintain their appearance.
. Clean the inner side of the wheels when
the wheel is changed or the underside
of the vehicle is washed.
. Inspect wheel rims regularly for dents
or corrosion. Such damage may cause
loss of pressure or poor seal at the tire
bead. . INFINITI recommends that the road
wheels be waxed to protect against
road salt in areas where it is used
during winter.
CAUTION Do not use abrasive cleaners when washing
the wheels.
Aluminum alloy wheels GUID-7407AEDF-85CD-42A8-BA1D-79993CC06EC3
Wash regularly with a sponge dampened in
a mild soap solution, especially during
winter months in areas where road salt is
used. Salt could discolor the wheels if not
removed.
CAUTION Follow the directions below to avoid stain-
ing or discoloring the wheels:
. Do not use a cleaner that uses strong
acid or alkali contents to clean the
wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as
Appearance and care
7-3

Black plate (402,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]7-4 Appearance and careambient temperature.
. Rinse the wheel to completely remove
the cleaner within 15 minutes after the
cleaner is applied.
CHROME PARTS GUID-C79FFE25-59C5-419E-9237-879139BCBF04
Clean chrome parts regularly with a non-
abrasive chrome polish to maintain the
finish.
TIRE DRESSING GUID-09CB5FA2-E9A2-41B9-AA7D-C91CDF0A574B
INFINITI does not recommend the use of
tire dressings. Tire manufacturers apply a
coating to the tires to help reduce dis-
coloration of the rubber. If a tire dressing is
applied to the tires, it may react with the
coating and form a compound. This com-
pound may come off the tire while driving
and stain the vehicle paint.
If you choose to use a tire dressing, take
the following precautions:
. Use a water-based tire dressing. The
coating on the tire dissolves more
easily with an oil-based tire dressing.
. Apply a light coat of tire dressing to
help prevent it from entering the tire
tread/grooves (where it would be diffi-
cult to remove). . Wipe off excess tire dressing using a
dry towel. Make sure the tire dressing
is completely removed from the tire
tread/grooves.
. Allow the tire dressing to dry as
recommended by tire dressing manu-
facturer. GUID-034A0946-EF38-47A8-A5CE-6863A1683EE3
Occasionally remove loose dust from the
interior trim, plastic parts and seats using
a vacuum cleaner or soft bristled brush.
Wipe the vinyl and leather surfaces with a
clean, soft cloth dampened in mild soap
solution, then wipe clean with a dry soft
cloth.
Regular care and cleaning is required in
order to maintain the appearance of the
leather.
Before using any fabric protector, read the
manufacturer ’ s recommendations. Some
fabric protectors contain chemicals that
may stain or bleach the seat material.
Use a cloth dampened only with water, to
clean the meter and gauge lens.
WARNING Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classification
sensors. This can also affect the operation
of the air bag system and result in serious
personal injury.CLEANING INTERIOR

Black plate (403,1)

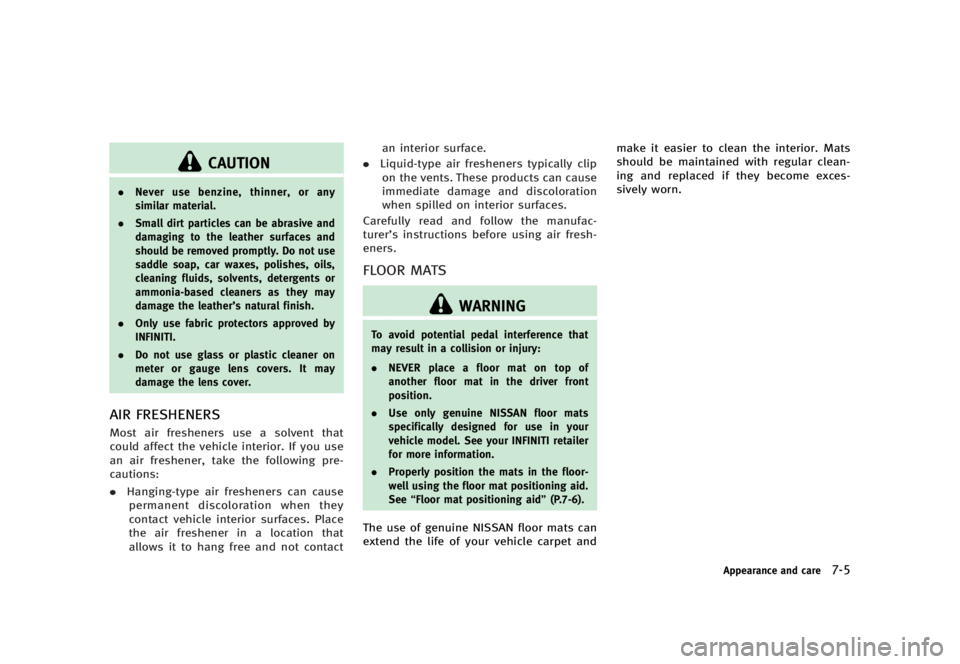

[ Edit: 2012/ 1/ 17 Model: V36-D ]CAUTION. Never use benzine, thinner, or any
similar material.
. Small dirt particles can be abrasive and
damaging to the leather surfaces and
should be removed promptly. Do not use
saddle soap, car waxes, polishes, oils,
cleaning fluids, solvents, detergents or
ammonia-based cleaners as they may
damage the leather ’ s natural finish.
. Only use fabric protectors approved by
INFINITI.
. Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
AIR FRESHENERS GUID-C6A06011-FC8F-4E60-988D-F01757F64AC4
Most air fresheners use a solvent that
could affect the vehicle interior. If you use
an air freshener, take the following pre-
cautions:
. Hanging-type air fresheners can cause
permanent discoloration when they
contact vehicle interior surfaces. Place
the air freshener in a location that
allows it to hang free and not contact an interior surface.
. Liquid-type air fresheners typically clip
on the vents. These products can cause
immediate damage and discoloration
when spilled on interior surfaces.
Carefully read and follow the manufac-
turer ’ s instructions before using air fresh-
eners.
FLOOR MATS GUID-D61B91F3-8DFF-4E86-867F-52D47A9504E1
WARNING To avoid potential pedal interference that
may result in a collision or injury:
. NEVER place a floor mat on top of
another floor mat in the driver front
position.
. Use only genuine NISSAN floor mats
specifically designed for use in your
vehicle model. See your INFINITI retailer
for more information.
. Properly position the mats in the floor-
well using the floor mat positioning aid.
See “ Floor mat positioning aid ” (P.7-6).
The use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it easier to clean the interior. Mats
should be maintained with regular clean-
ing and replaced if they become exces-
sively worn.
Appearance and care
7-5

Black plate (404,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]7-6 Appearance and care SAI0031
Floor mat positioning aid GUID-2EE1D01F-4AE9-4797-BF8B-64379C7B6F88
This model includes front floor mat brack-
ets to act as floor mat positioning aids.
NISSAN floor mats have been specially
designed for your vehicle model. The
driver ’ s and passenger ’ s side floor mats
have a grommet hole incorporated in them.
Position the mat by placing the floor mat
bracket hook through the floor mat grom-
met hole while centering the mat in the
footwell.
Periodically check to make certain that the
mats are properly positioned. SEAT BELTS GUID-DFA125ED-2912-4124-B176-2F6B3D8B0E4D
The seat belts can be cleaned by wiping
them with a sponge dampened in a mild
soap solution. Allow the belts to dry
completely before using them.
See “ Seat belts ” (P.1-14).
WARNING Do not allow wet seat belts to roll up in the
retractor. NEVER use bleach, dye, or chemi-
cal solvents to clean the seat belts, since
these materials may severely weaken the
seat belt webbing. GUID-BD98F166-0102-46A0-A119-AB54E21AD3DF
MOST COMMON FACTORS CONTRI-
BUTING TO VEHICLE CORROSION GUID-3B69BF24-842C-4193-8541-964011F92DDC
. The accumulation of moisture-retaining
dirt and debris in body panel sections,
cavities, and other areas.
. Damage to paint and other protective
coatings caused by gravel and stone
chips or minor traffic accidents.
ENVIRONMENTAL FACTORS INFLU-
ENCE THE RATE OF CORROSION GUID-40A1E323-8534-45DB-A599-5EFAED969FF5
Moisture GUID-027B03C5-237A-4F0A-8536-0117E8BC5E85
Accumulation of sand, dirt and water on
the vehicle body underside can accelerate
corrosion. Wet floor coverings will not dry
completely inside the vehicle, and should
be removed for drying to avoid floor panel
corrosion.
Relative humidity GUID-3616F87C-F07F-44CB-A171-3215CC669846
Corrosion will be accelerated in areas of
high relative humidity, especially those
areas where the temperatures stay above
freezing where atmospheric pollution ex-
ists, or where road salt is used.CORROSION PROTECTION

Black plate (405,1)

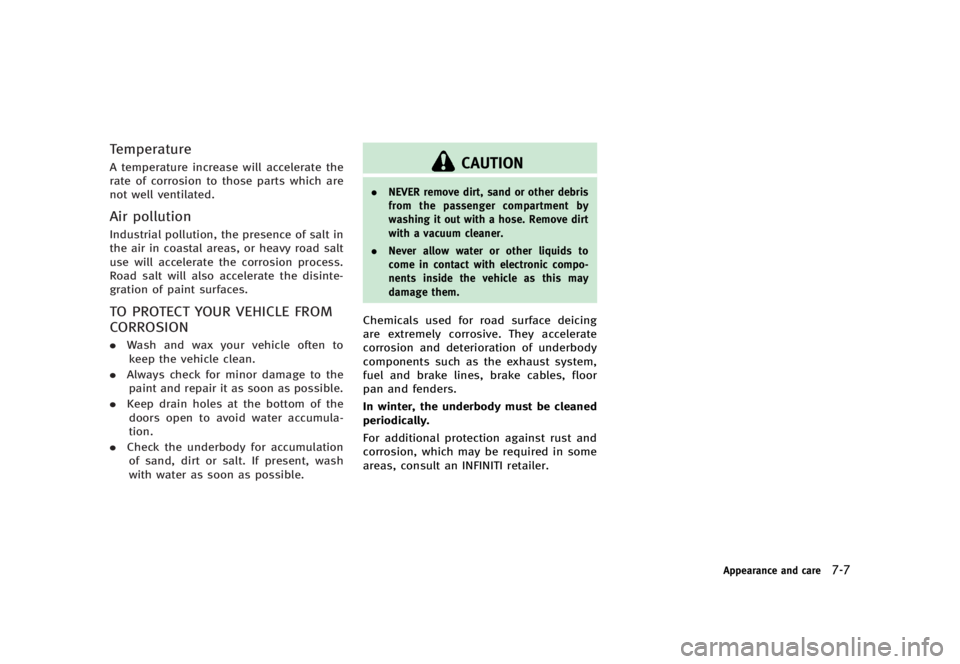

[ Edit: 2012/ 1/ 17 Model: V36-D ]Temperature GUID-246D2D79-4C02-402E-9F82-253795EB2C48
A temperature increase will accelerate the
rate of corrosion to those parts which are
not well ventilated.
Air pollution GUID-4BFD5430-CA7D-4539-87D3-A8165FDCDA5E
Industrial pollution, the presence of salt in
the air in coastal areas, or heavy road salt
use will accelerate the corrosion process.
Road salt will also accelerate the disinte-
gration of paint surfaces.
TO PROTECT YOUR VEHICLE FROM
CORROSION GUID-652024BB-1DF4-471C-8A1C-D87DE033F27A
. Wash and wax your vehicle often to
keep the vehicle clean.
. Always check for minor damage to the
paint and repair it as soon as possible.
. Keep drain holes at the bottom of the
doors open to avoid water accumula-
tion.
. Check the underbody for accumulation
of sand, dirt or salt. If present, wash
with water as soon as possible. CAUTION . NEVER remove dirt, sand or other debris
from the passenger compartment by
washing it out with a hose. Remove dirt
with a vacuum cleaner.
. Never allow water or other liquids to
come in contact with electronic compo-
nents inside the vehicle as this may
damage them.
Chemicals used for road surface deicing
are extremely corrosive. They accelerate
corrosion and deterioration of underbody
components such as the exhaust system,
fuel and brake lines, brake cables, floor
pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some
areas, consult an INFINITI retailer.
Appearance and care
7-7

Black plate (406,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]7-8 Appearance and careMEMO

Black plate (407,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8 Maintenance and do-it-yourself Maintenance requirement ....................................... 8-3
Scheduled maintenance ..................................... 8-3
General maintenance .......................................... 8-3
Where to go for service ...................................... 8-3
General maintenance .............................................. 8-4
Explanation of maintenance items ...................... 8-4
Maintenance precautions ........................................ 8-6
Engine compartment check locations ...................... 8-8
VQ25HR/VQ37VHR engine .................................. 8-8
Engine cooling system ............................................ 8-9
Checking engine coolant level .......................... 8-10
Changing engine coolant .................................. 8-10
Engine oil ............................................................. 8-11
Checking engine oil level .................................. 8-11
Changing engine oil and filter .......................... 8-11
Automatic transmission fluid ................................ 8-14
Power steering fluid .............................................. 8-14
Brake and clutch fluid .......................................... 8-15
Brake fluid ....................................................... 8-15
Clutch fluid (if so equipped) ............................. 8-15
Window washer fluid ............................................ 8-16 Battery ................................................................. 8-17
Coupe ............................................................. 8-17
Sedan and coupe ............................................ 8-17
Jump starting .................................................. 8-18
Variable voltage control system ............................ 8-19
Drive belts ........................................................... 8-19
Spark plugs ......................................................... 8-20
Replacing spark plugs .................................... 8-20
Air cleaner ........................................................... 8-21
Windshield wiper blades ...................................... 8-22
Cleaning ......................................................... 8-22
Replacing ........................................................ 8-22
Brakes ................................................................. 8-23
Self-adjusting brakes ...................................... 8-23
Brake pad wear warning ................................. 8-23
Fuses ................................................................... 8-24
Engine compartment ....................................... 8-24
Passenger compartment .................................. 8-25
Intelligent Key battery replacement ...................... 8-26

Black plate (408,1)

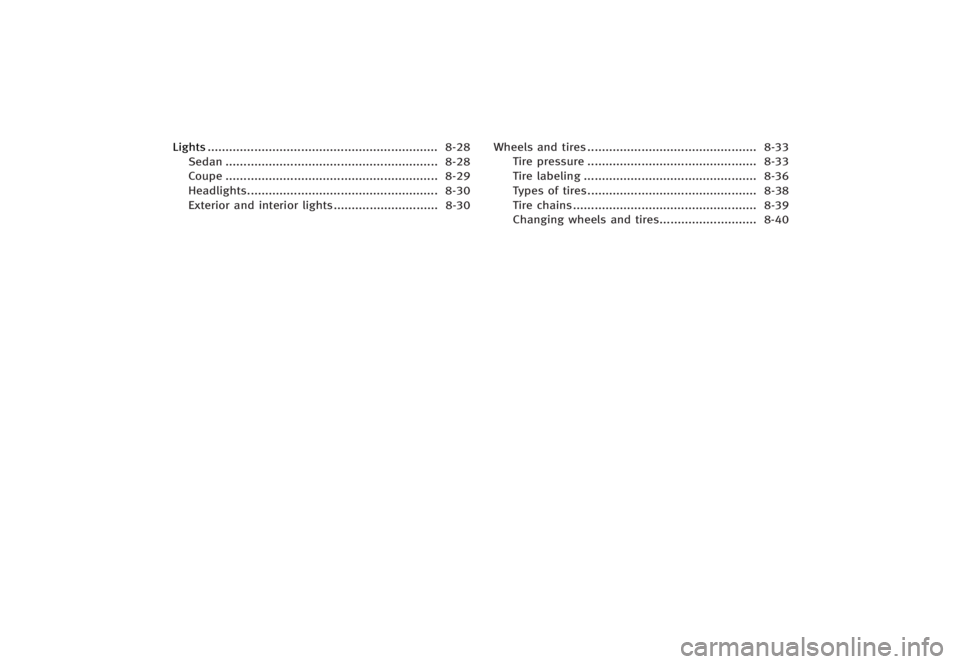

[ Edit: 2012/ 1/ 17 Model: V36-D ]Lights ................................................................... 8-28
Sedan .............................................................. 8-28
Coupe .............................................................. 8-29
Headlights ........................................................ 8-30
Exterior and interior lights ................................ 8-30 Wheels and tires .................................................. 8-33
Tire pressure .................................................. 8-33
Tire labeling ................................................... 8-36
Types of tires .................................................. 8-38
Tire chains ...................................................... 8-39
Changing wheels and tires .............................. 8-40

Black plate (409,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-7909F151-D270-426B-9317-ECCCF136345A
Your new INFINITI has been designed to
have minimum maintenance requirements
with long service intervals to save you both
time and money. However, some day-to-
day and regular maintenance is essential
to maintain your INFINITI ’ s fine mechanical
condition, as well as its emission and
engine performance.
It is the owner ’ s responsibility to make
sure that the scheduled maintenance, as
well as general maintenance, is performed.
As the vehicle owner, you are the only one
who can ensure that your vehicle receives
the proper maintenance care. You are a
vital link in the maintenance chain.
SCHEDULED MAINTENANCE GUID-F67C0E74-FE81-4021-BFE9-6DCAA8B62868
For your convenience, both required and
optional scheduled maintenance items are
described and listed in your “ INFINITI
Service and Maintenance Guide ” . You must
refer to that guide to ensure that necessary
maintenance is performed on your INFINITI
at regular intervals. GENERAL MAINTENANCE GUID-F5FB4C7E-7009-4482-8936-6B69512CBAEF
General maintenance includes those items
which should be checked during normal
day-to-day operation. They are essential for
proper vehicle operation. It is your respon-
sibility to perform these procedures reg-
ularly as prescribed.
Performing general maintenance checks
requires minimal mechanical skill and only
a few general automotive tools.
These checks or inspections can be done
by yourself, a qualified technician or, if you
prefer, an INFINITI retailer.
WHERE TO GO FOR SERVICE GUID-36AD273A-936D-4E75-BA34-F3522084B4D1
If maintenance service is required or your
vehicle appears to malfunction, have the
systems checked and serviced by an
INFINITI retailer.
INFINITI technicians are well-trained spe-
cialists and are kept up to date with the
latest service information through techni-
cal bulletins, service tips, and in-retailer-
ship information systems. They are
completely qualified to work on INFINITI
vehicles before work begins.
You can be confident that an INFINITI
retailer ’ s service department performs the best job to meet the maintenance require-
ments on your vehicle — in a reliable and
economical way.
Maintenance and do-it-yourself
8-3MAINTENANCE REQUIREMENT
