[ Edit: 2012/ 1/ 17 Model: V36-D ]8-14 Maintenance and do-it-yourself GUID-ABB7B99A-4CD8-484D-A111-E2B0D9730B70
When checking or replacement is required,
we recommend an INFINITI retailer for
servicing.
CAUTION. Use only Genuine NISSAN Matic S ATF.
Do not mix with other fluids.
. Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF will
cause deterioration in driveability and
automatic transmission durability, and
may damage the automatic transmis-
sion, which is not covered by the INFINITI
new vehicle limited warranty. GUID-D565E040-B16F-4851-A817-C2480F2A6602
SDI1765A
Check the fluid level in the reservoir.
The fluid level should be checked using the
HOT range (
* 1
: HOT MAX.,
* 2
: HOT MIN.)
at fluid temperatures of 122 to 176 8 F (50
to 80 8 C) or using the COLD range (
* 3
:
COLD MAX.,
* 4
: COLD MIN.) at fluid
temperatures of 32 to 86 8 F (0 to 30 8 C).
If the fluid is below the MIN line, add
Genuine NISSAN PSF or equivalent. Re-
move the cap and fill through the opening. CAUTION . Do not overfill.
. Use Genuine NISSAN PSF or equivalent.
AUTOMATIC TRANSMISSION FLUID POWER STEERING FLUID

Black plate (421,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-7601D96E-EEDD-44AF-87A6-218F86572DA1
For further brake and clutch fluid informa-
tion, see “ Capacities and recommended
fuel/lubricants ” (P.9-2) of this manual.
WARNING. Use only new fluid from a sealed
container. Old, inferior or contaminated
fluid may damage the brake system. The
use of improper fluids can damage the
brake system and affect the vehicle ’ s
stopping ability.
. Clean the filler cap before removing.
. Brake fluid is poisonous and should be
stored carefully in marked containers out
of the reach of children.
CAUTIONDo not spill the fluid on painted surfaces.
This will damage the paint. If fluid is spilled,
wash the surface with water. SDI2025
BRAKE FLUID GUID-99026060-C0AC-4F76-8C26-6B47003C3E51
Check the fluid level in the reservoir. If the
fluid is below the MIN line
* 2
or the brake
warning light comes on, add Genuine
NISSAN Super Heavy Duty Brake Fluid or
equivalent DOT 3 fluid up to the MAX line
* 1
. If fluid must be added frequently, the
system should be checked by an INFINITI
retailer. SDI1906A
CLUTCH FLUID (if so equipped) GUID-27C4E9C5-6E75-49DB-A514-FE503E946A9F
Check the fluid level in the reservoir. If the
fluid level is below the MIN line
* 1
, add
Genuine NISSAN Super Heavy Duty Brake
Fluid or equivalent DOT 3 fluid up to the
MAX line
* 2
. If fluid must be added
frequently, the system should be checked
by an INFINITI retailer.
Maintenance and do-it-yourself
8-15BRAKE AND CLUTCH FLUID

Black plate (422,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-16 Maintenance and do-it-yourself GUID-9300F307-19B1-4EC9-B93C-3421C155DC4A
SDI2027
WARNINGAntifreeze is poisonous and should be
stored carefully in marked containers out
of the reach of children.
Fill the window washer fluid reservoir
periodically. Add window washer fluid
when the low window washer fluid warning
light comes on.
To fill the window washer fluid reservoir,
lift the cap off the reservoir tank and pour
the window washer fluid into the tank
opening. Add a washer solvent to the washer for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the
manufacturer ’ s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of window washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.
CAUTION . Do not substitute engine anti-freeze
coolant for window washer solution. This
may result in damage to the paint.
. Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
. Pre-mix washer fluid concentrates with
water to the manufacturer ’ s recom-
mended levels before pouring the fluid
into the window washer reservoir tank. Do not use the window washer reservoir
tank to mix the washer fluid concentrate
and water.
WINDOW WASHER FLUID

Black plate (423,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-0812140C-014D-49D8-A9C2-56A09433296D

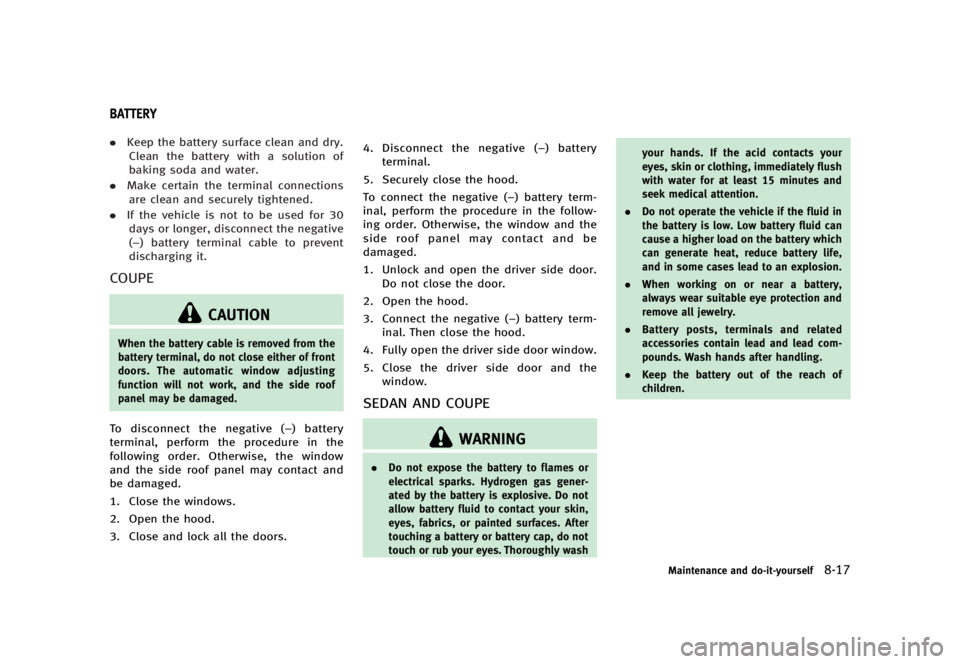

. Keep the battery surface clean and dry.
Clean the battery with a solution of
baking soda and water.
. Make certain the terminal connections
are clean and securely tightened.
. If the vehicle is not to be used for 30
days or longer, disconnect the negative
( − ) battery terminal cable to prevent
discharging it.
COUPE GUID-00B900F7-3B34-4FD5-A774-AFF428AF9228
CAUTIONWhen the battery cable is removed from the
battery terminal, do not close either of front
doors. The automatic window adjusting
function will not work, and the side roof
panel may be damaged.
To disconnect the negative ( − ) battery
terminal, perform the procedure in the
following order. Otherwise, the window
and the side roof panel may contact and
be damaged.
1. Close the windows.
2. Open the hood.
3. Close and lock all the doors. 4. Disconnect the negative ( − ) battery
terminal.
5. Securely close the hood.
To connect the negative ( − ) battery term-
inal, perform the procedure in the follow-
ing order. Otherwise, the window and the
side roof panel may contact and be
damaged.
1. Unlock and open the driver side door.
Do not close the door.
2. Open the hood.
3. Connect the negative ( − ) battery term-
inal. Then close the hood.
4. Fully open the driver side door window.
5. Close the driver side door and the
window.
SEDAN AND COUPE GUID-58FD0A1C-91D1-47E9-8C3E-221C89D57EFE
WARNING . Do not expose the battery to flames or
electrical sparks. Hydrogen gas gener-
ated by the battery is explosive. Do not
allow battery fluid to contact your skin,
eyes, fabrics, or painted surfaces. After
touching a battery or battery cap, do not
touch or rub your eyes. Thoroughly wash your hands. If the acid contacts your
eyes, skin or clothing, immediately flush
with water for at least 15 minutes and
seek medical attention.
. Do not operate the vehicle if the fluid in
the battery is low. Low battery fluid can
cause a higher load on the battery which
can generate heat, reduce battery life,
and in some cases lead to an explosion.
. When working on or near a battery,
always wear suitable eye protection and
remove all jewelry.
. Battery posts, terminals and related
accessories contain lead and lead com-
pounds. Wash hands after handling.
. Keep the battery out of the reach of
children.
Maintenance and do-it-yourself
8-17BATTERY

Black plate (424,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-18 Maintenance and do-it-yourself DI0137MA
Check the fluid level in each cell (Remove
the battery cover if it is necessary). It
should be between the UPPER LEVEL
* 1
and LOWER LEVEL
* 2
lines.
If it is necessary to add fluid, add only
distilled water to bring the level to the
indicator in each filler opening. Do not
overfill. SDI1480C
1. Remove the cell plugs
* A
.
2. Add distilled water up to the UPPER
LEVEL
* 1
line.
If the side of the battery is not clear,
check the distilled water level by
looking directly above the cell; the
condition
* 1
indicates OK and the
conditions
* 2
needs more to be added.
3. Tighten cell plugs
* A
.
Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level. JUMP STARTING GUID-6645B036-2286-48B9-B8ED-5E16B522CC2D
If jump starting is necessary, see “ Jump
starting ” (P.6-8). If the engine does not
start by jump starting, the battery may
have to be replaced. Contact an INFINITI
retailer.

Black plate (425,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-943BC148-9A3A-474D-8113-30A996E2E73B
CAUTION. Do not ground accessories directly to the
battery terminal. Doing so will bypass
the variable voltage control system and
the vehicle battery may not charge
completely.
. Use electrical accessories with the en-
gine running to avoid discharging the
vehicle battery.
The variable voltage control system mea-
sures the amount of electrical discharge
from the battery and controls voltage
generated by the generator. GUID-2598C543-2A3B-4E05-90F6-3739930B5F0C
SDI2117
VQ25HR engine
1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
! : Tension checking points SDI2119
VQ37VHR engine
1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNING Be sure the ignition switch is in the OFF or
LOCK position before servicing drive belts.
The engine could rotate unexpectedly.
1. Visually inspect each belt for signs of
unusual wear, cuts, fraying or loosen-
Maintenance and do-it-yourself
8-19VARIABLE VOLTAGE CONTROL SYSTEM DRIVE BELTS

Black plate (426,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-20 Maintenance and do-it-yourselfess. If the belt is in poor condition or
loose, have it replaced or adjusted by
an INFINITI retailer.
2. Have the belts checked regularly for
condition and tension in accordance
with the maintenance schedule in your
“ INFINITI Service and Maintenance
Guide ” . GUID-B889B2DB-0702-4E25-998D-9EFCEB6380ED
WARNING Be sure the engine and the ignition switch
are off and that the parking brake is
engaged securely.
CAUTION Be sure to use the correct socket to remove
the spark plugs. An incorrect socket can
damage the spark plugs. SDI2020
REPLACING SPARK PLUGS GUID-89AEBA13-D3D8-4D70-90D6-4674BC5CE9C3
If replacement is required, see an INFINITI
retailer for servicing.
Iridium-tipped spark plugs GUID-4C8CEFDE-424F-4945-8A13-7DFAE22BFEE0
It is not necessary to replace the iridium-
tipped spark plugs as frequently as the
conventional type spark plugs since they
will last much longer. Follow the main-
tenance schedule in “ INFINITI Service and
Maintenance Guide ” , but do not reuse
them by cleaning or regapping.SPARK PLUGS

Black plate (427,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Always replace spark plugs with recom-
mended or equivalent ones. GUID-FC3BF8A1-4ABE-43E9-86D6-8E1A682A1F74
SDI2033
Remove the retainers
* 1
as illustrated and
pull out the filter element
* 2
.
The filter element should not be cleaned
and reused. Replace it according to the
maintenance intervals. See “ INFINITI Ser-
vice and Maintenance Guide ” for mainte-
nance intervals. When replacing the filter, wipe the inside of the air cleaner housing
and the cover with a damp cloth.
WARNING . Operating the engine with the air
cleaner removed can cause you or others
to be burned. The air cleaner not only
cleans the air, it stops flame if the
engine backfires. If it isn ’ t there, and the
engine backfires, you could be burned.
Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
. Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
Maintenance and do-it-yourself
8-21AIR CLEANER

Black plate (428,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-22 Maintenance and do-it-yourself GUID-A955C9CB-68EE-4F40-BDE3-B34F06DBBB5F
CLEANING GUID-6C23CE69-2F5F-4308-B251-F9AFF7FCD33D
If your windshield is not clear after using
the windshield washer or if a wiper blade
chatters when running, wax or other
material may be on the blade or wind-
shield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild
detergent. Then rinse the blade with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.
Worn windshield wiper blades can damage
the windshield and impair driver vision. SDI2048
REPLACING GUID-A30ECE65-328D-496B-A5F2-872EA27D63AA
Replace the wiper blades if they are worn.
1. Pull the wiper arm.
2. Push the release tab
* A
, and then
move the wiper blade down the wiper
arm
* 1
while pushing the release tab
to remove.
3. Insert the new wiper blade onto the
wiper arm until a click sounds.
4. Rotate the wiper blade so the dimple is
in the groove. CAUTION . After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
. Make sure the wiper blades contact the
glass; otherwise the arm may be da-
maged from wind pressure.WINDSHIELD WIPER BLADES

Black plate (429,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]SDI2362
Be careful not to clog the washer nozzle
* A
. This may cause improper windshield
washer operation. If the nozzle is clogged,
remove any objects with a needle or small
pin
* B
. Be careful not to damage the
nozzle. GUID-32FB5E6D-5B48-42A8-9F60-83E657B04471
If the brakes do not operate properly, have
the brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES GUID-2D98160D-8918-4BF3-999B-F13E2922E177
Your vehicle is equipped with self-adjust-
ing brakes.
The disc-type brakes self-adjust every time
the brake pedal is applied.
WARNING See an INFINITI retailer for a brake system
check if the brake pedal height does not
return to normal.
BRAKE PAD WEAR WARNING GUID-0D7DECB1-F0F3-4C66-A768-32FE17341FFF
The disc brake pads have audible wear
warnings. When a brake pad requires
replacement, it will make a high pitched
scraping sound when the vehicle is in
motion. This scraping sound will first occur
only when the brake pedal is depressed.
After more wear of the brake pad, the
sound will always be heard even if the
brake pedal is not depressed. Have the
brakes checked as soon as possible if the
wear warning sound is heard.
Under some driving or climate conditions, occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is
normal and does not affect the function or
performance of the brake system.
Proper brake inspection intervals should
be followed. For additional information,
see the maintenance log section of your
“ INFINITI Service and Maintenance Guide ”
for maintenance intervals.
Maintenance and do-it-yourself
8-23BRAKES
