Black plate (17,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-5BF1CCAC-1271-471E-83A1-FF109419BE46
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)
6. Center multi-function control panel — Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth ®
Hands-Free Phone Sys-
tem (if so equipped) (P.4-90, P.4-100) — Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys-
tem* (if so equipped)
8. Hazard warning flasher switch (P.2-39)
9. Front passenger supplemental air bag
(P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans-
mission models)
— Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system
(P.4-31)
14. Cigarette lighter and ashtray (if so
equipped) (P.2-44) or storage box (if
so equipped) (P.2-50)
— Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis-
sion models)
— Parking (P.5-20)
16. Heated seat switch (if so equipped)
(P.2-40)
17. SNOW mode switch (if so equipped)
(P.2-41)
18. Rear window and outside mirror (if so
equipped) defroster switch (P.2-34)
Illustrated table of contents
0-11INSTRUMENT PANEL

Black plate (18,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]0-12 Illustrated table of contents19. Glove box lid release handle (P.2-47)
20. Trunk release power cancel switch
(P.3-20)
*: Refer to the separate Navigation
System Owner ’ s Manual.

Black plate (82,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]2-4 Instruments and controls GUID-F966D69B-15F8-48D0-A86B-A60F682B16E9
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)
6. Center multi-function control panel — Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth ®
Hands-Free Phone Sys-
tem (if so equipped) (P.4-90, P.4-100) — Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys-
tem* (if so equipped)
8. Hazard warning flasher switch (P.2-39)
9. Front passenger supplemental air bag
(P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans-
mission models)
— Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system
(P.4-31)
14. Cigarette lighter and ashtray (if so
equipped) (P.2-44) or storage box (if
so equipped) (P.2-50)
— Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis-
sion models)
— Parking (P.5-20)
16. Heated seat switch (if so equipped)
(P.2-40)
17. SNOW mode switch (if so equipped)
(P.2-41)
18. Rear window and outside mirror (if so
equipped) defroster switch (P.2-34)INSTRUMENT PANEL

Black plate (83,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]19. Glove box lid release handle (P.2-47)
20. Trunk release power cancel switch
(P.3-20)
*: Refer to the separate Navigation
System Owner ’ s Manual.
Instruments and controls
2-5

Black plate (149,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-E775A3D7-CE8E-4FE0-9FB8-238232937EE5
WARNING. Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufacturer
for the possible influences before use.
. The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.
The Intelligent Key system can operate all
the doors and the trunk lid using the
remote controller function or pushing the
request switch on the vehicle without
taking the key out from a pocket or purse.
The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.
Be sure to read the following before using
the Intelligent Key system. CAUTION . Be sure to carry the Intelligent Key with
you when operating the vehicle.
. Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicat-
ing with the vehicle as it receives radio
waves. The Intelligent Key system trans-
mits weak radio waves. Environmental
conditions may interfere with the operation
of the Intelligent Key system under the
following operating conditions.
. When operating near a location where
strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.
. When in possession of wireless equip-
ment, such as a cellular telephone,
transceiver, and CB radio.
. When the Intelligent Key is in contact
with or covered by metallic materials.
. When any type of radio wave remote
control is used nearby.
. When the Intelligent Key is placed near
an electric appliance such as a perso- nal computer.
. When the vehicle is parked near a
parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key
function or use the mechanical key.
Although the life of the battery varies
depending on the operating conditions,
the battery ’ s life is approximately 2 years.
If the battery is discharged, replace it with
a new one.
When the Intelligent Key battery is almost
discharged, insert the Intelligent Key into
the Intelligent Key port to start the engine.
Replace the discharged battery with a new
one as soon as possible. For more details,
see “ Push-button ignition switch ” (P.5-9).
Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
For information regarding replacement of a
battery, see “ Intelligent Key battery repla-
cement ” (P.8-26).
As many as 4 Intelligent Keys can be
registered and used with one vehicle. For
Pre-driving checks and adjustments
3-7INTELLIGENT KEY SYSTEM

Black plate (156,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]3-14 Pre-driving checks and adjustments GUID-CD166E42-9584-4DAB-A5B7-A738C3B4BCBB
WARNINGThe Intelligent Key transmits radio waves
when the buttons are pushed. The FAA
advises that the radio waves may affect
aircraft navigation and communication sys-
tems. Do not operate the Intelligent Key
while on an airplane. Make sure the buttons
are not operated unintentionally when the
unit is stored during a flight.
It is possible to lock/unlock all doors, fuel-
filler door, activate the panic alarm and
open the windows by pushing the buttons
on the Intelligent Key from outside the
vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelli-
gent Key can operate at a distance of
approximately 33 ft (10 m) from the
vehicle. (The effective distance depends
upon the conditions around the vehicle.)
As many as 4 Intelligent Keys can be used
with one vehicle. For information concern-
ing the purchase and use of additional
Intelligent Keys, contact an INFINITI retai-
ler. The lock and unlock buttons on the
Intelligent Key will not operate when:
. the distance between the Intelligent Key
and the vehicle is over 33 ft (10 m).
. the Intelligent Key battery is dis-
charged.
After locking with the remote keyless entry
function, pull the door handle to make sure
the doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons,
approach the vehicle to about 3 ft (1 m)
from the door. SPA2100
1. LOCK button
2. UNLOCK button
3. TRUNK button
4. PANIC button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM GUID-62E72898-3584-4B12-9DFF-C68F94BD6708
When you lock or unlock the doors or the
trunk lid, the hazard indicator will flash
and the horn (or the outside chime) will
sound as a confirmation. For details, see
“ Setting hazard indicator and horn mode ”
(P.3-16).REMOTE KEYLESS ENTRY SYSTEM

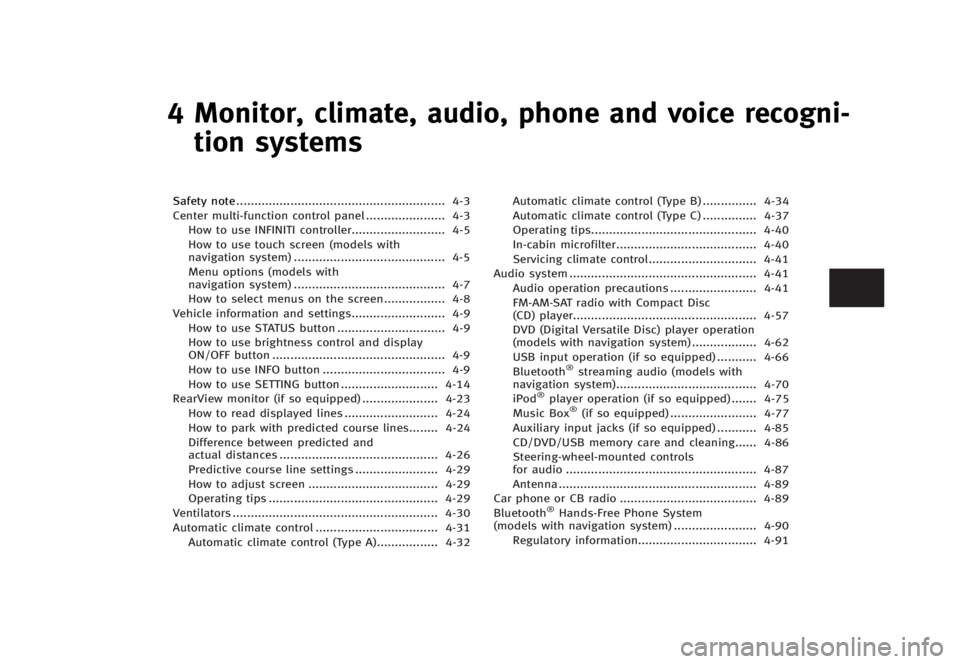

Black plate (179,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4 Monitor, climate, audio, phone and voice recogni-
tion systems Safety note ............................................................. 4-3
Center multi-function control panel ......................... 4-3
How to use INFINITI controller ............................. 4-5
How to use touch screen (models with
navigation system) ............................................. 4-5
Menu options (models with
navigation system) ............................................. 4-7
How to select menus on the screen .................... 4-8
Vehicle information and settings ............................. 4-9
How to use STATUS button ................................. 4-9
How to use brightness control and display
ON/OFF button ................................................... 4-9
How to use INFO button ..................................... 4-9
How to use SETTING button .............................. 4-14
RearView monitor (if so equipped) ........................ 4-23
How to read displayed lines ............................. 4-24
How to park with predicted course lines ........... 4-24
Difference between predicted and
actual distances ............................................... 4-26
Predictive course line settings .......................... 4-29
How to adjust screen ....................................... 4-29
Operating tips .................................................. 4-29
Ventilators ............................................................ 4-30
Automatic climate control ..................................... 4-31
Automatic climate control (Type A) .................... 4-32 Automatic climate control (Type B) .................. 4-34
Automatic climate control (Type C) .................. 4-37
Operating tips ................................................. 4-40
In-cabin microfilter .......................................... 4-40
Servicing climate control ................................. 4-41
Audio system ....................................................... 4-41
Audio operation precautions ........................... 4-41
FM-AM-SAT radio with Compact Disc
(CD) player ...................................................... 4-57
DVD (Digital Versatile Disc) player operation
(models with navigation system) ..................... 4-62
USB input operation (if so equipped) .............. 4-66
Bluetooth ®
streaming audio (models with
navigation system) .......................................... 4-70
iPod ®
player operation (if so equipped) .......... 4-75
Music Box ®
(if so equipped) ........................... 4-77
Auxiliary input jacks (if so equipped) .............. 4-85
CD/DVD/USB memory care and cleaning ......... 4-86
Steering-wheel-mounted controls
for audio ........................................................ 4-87
Antenna .......................................................... 4-89
Car phone or CB radio ......................................... 4-89
Bluetooth ®
Hands-Free Phone System
(models with navigation system) .......................... 4-90
Regulatory information .................................... 4-91

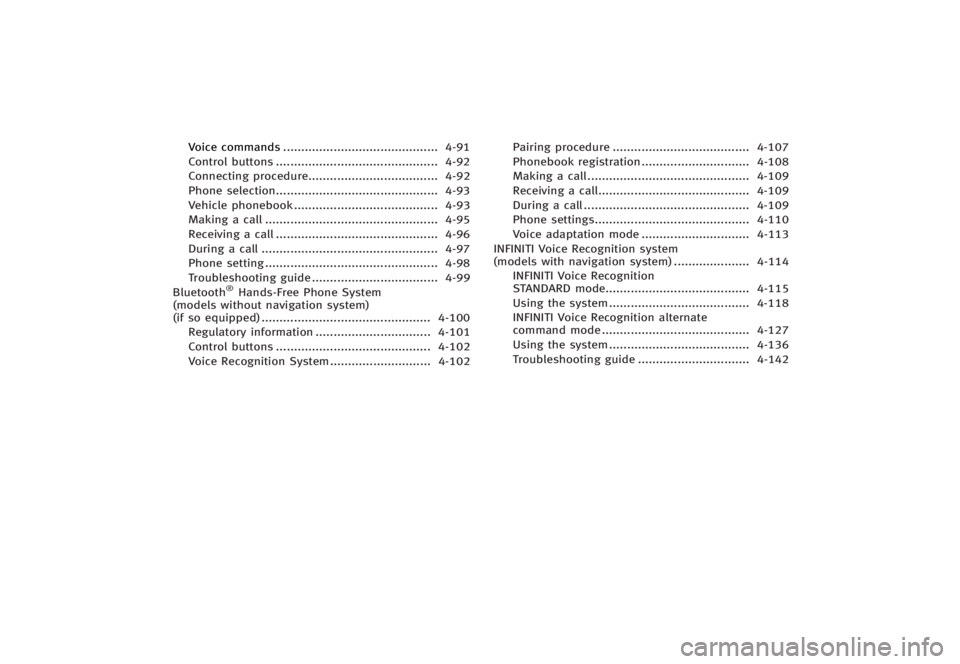

Black plate (180,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Voice commands .............................................. 4-91
Control buttons ................................................ 4-92
Connecting procedure ....................................... 4-92
Phone selection ................................................ 4-93
Vehicle phonebook ........................................... 4-93
Making a call ................................................... 4-95
Receiving a call ................................................ 4-96
During a call .................................................... 4-97
Phone setting ................................................... 4-98
Troubleshooting guide ...................................... 4-99
Bluetooth ®
Hands-Free Phone System
(models without navigation system)
(if so equipped) .................................................. 4-100
Regulatory information ................................... 4-101
Control buttons .............................................. 4-102
Voice Recognition System ............................... 4-102 Pairing procedure ......................................... 4-107
Phonebook registration ................................. 4-108
Making a call ................................................ 4-109
Receiving a call ............................................. 4-109
During a call ................................................. 4-109
Phone settings .............................................. 4-110
Voice adaptation mode ................................. 4-113
INFINITI Voice Recognition system
(models with navigation system) ........................ 4-114
INFINITI Voice Recognition
STANDARD mode ........................................... 4-115
Using the system .......................................... 4-118
INFINITI Voice Recognition alternate
command mode ............................................ 4-127
Using the system .......................................... 4-136
Troubleshooting guide .................................. 4-142

Black plate (181,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-B399574C-759D-4EDD-9D8B-240757C36DDF
WARNING. Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
. In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest INFINITI retailer.
Ignoring such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.
Do not attempt to operate the system in
extreme temperature conditions [below
− 4 8 F ( − 20 8 C) and above 158 8 F (70 8 C)].
Operating this system under these condi-
tions may result in system malfunctions. GUID-7F90DABA-37C8-4571-9C5A-2974CEC5AA7A
SAA1523
Models with navigation system
1. “ STATUS ” status display button
(P.4-9)
2, 6, 7, 10, 11.
For navigation system control buttons
(Refer to the separate Navigation
System Owner ’ s Manual.)
3. INFINITI controller (P.4-5)
4. “ PHONE ” Bluetooth ®
Hands-Free
Phone System button (P.4-90)
5. “
OFF ” brightness control and
display ON/OFF button (P.4-9)
8. “ AM·FM·SAT ” band selector button
(P.4-41) 9. “ DISC·AUX ” selector button (P.4-41)
12. “ INFO ” vehicle and navigation infor-
mation button (P.4-9)
13. “ SETTING ” button (P.4-14)
Monitor, climate, audio, phone and voice recognition systems
4-3SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL

Black plate (182,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4-4 Monitor, climate, audio, phone and voice recognition systems SAA1524
Models without navigation system
1. “ AUX ” button (P.4-41)
2. “ RADIO AM·FM ” band selector button
(P.4-41)
3. INFINITI controller (P.4-5)
4. “
OFF ” brightness control and
display ON/OFF button (P.4-9)
5. “ INFO ” vehicle information button
(P.4-9)
6. “ DISC ” selector button (P.4-41)
7. “ STATUS ” status display button
(P.4-9)
8. “ SETTING ” button (P.4-14)
When you use this system, make sure the
engine is running. If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start. SAA1541
Models with navigation system
SAA1508
Models without navigation system
