INFINITI JX 2013 User Guide

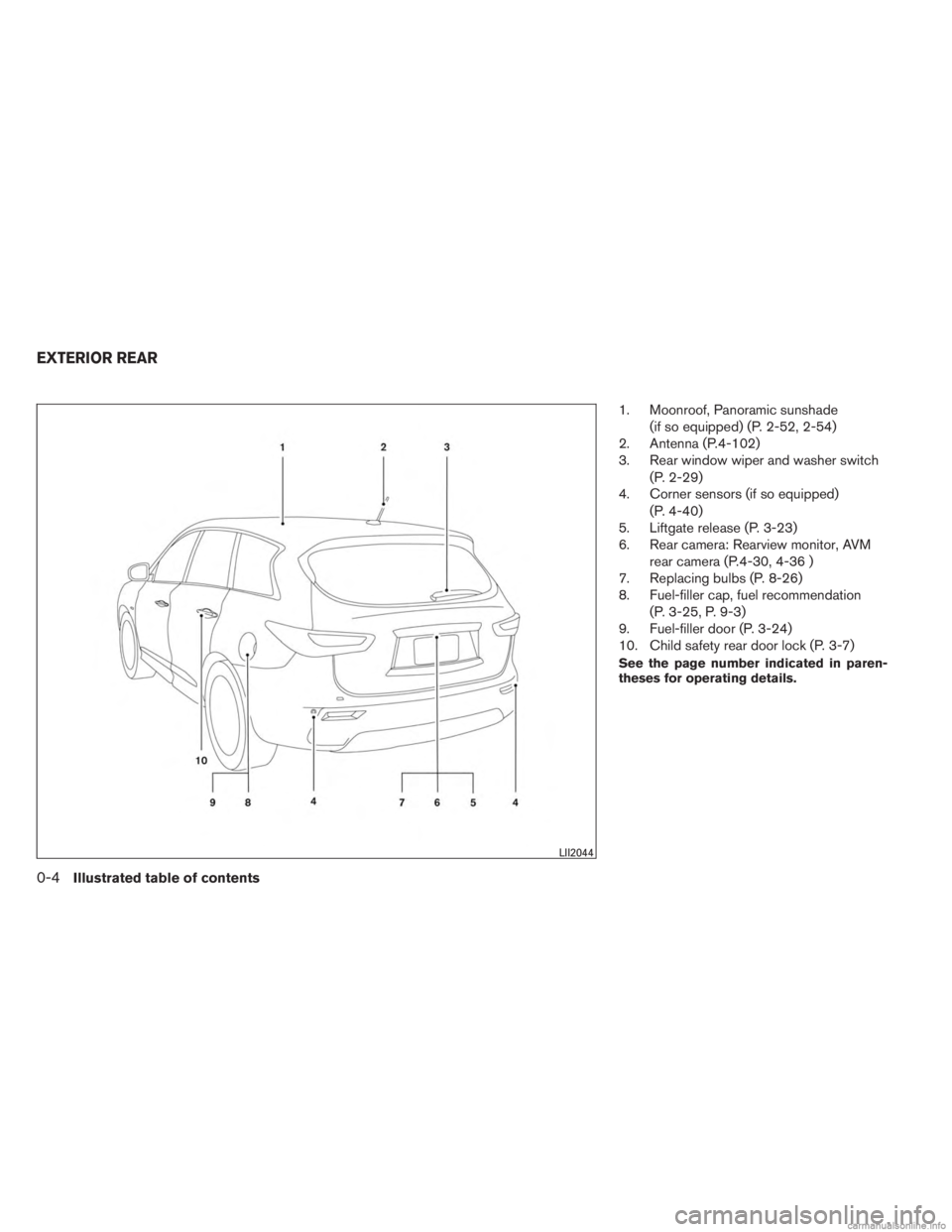

1. Moonroof, Panoramic sunshade(if so equipped) (P. 2-52, 2-54)
2. Antenna (P.4-102)
3. Rear window wiper and washer switch
(P. 2-29)
4. Corner sensors (if so equipped)
(P. 4-40)
5. Liftgate release (P. 3-23)
6. Rear camera: Rearview monitor, AVM
rear camera (P.4-30, 4-36 )
7. Replacing bulbs (P. 8-26)
8. Fuel-filler cap, fuel recommendation
(P. 3-25, P. 9-3)
9. Fuel-filler door (P. 3-24)
10. Child safety rear door lock (P. 3-7)
See the page number indicated in paren-
theses for operating details.
LII2044
EXTERIOR REAR
0-4Illustrated table of contents

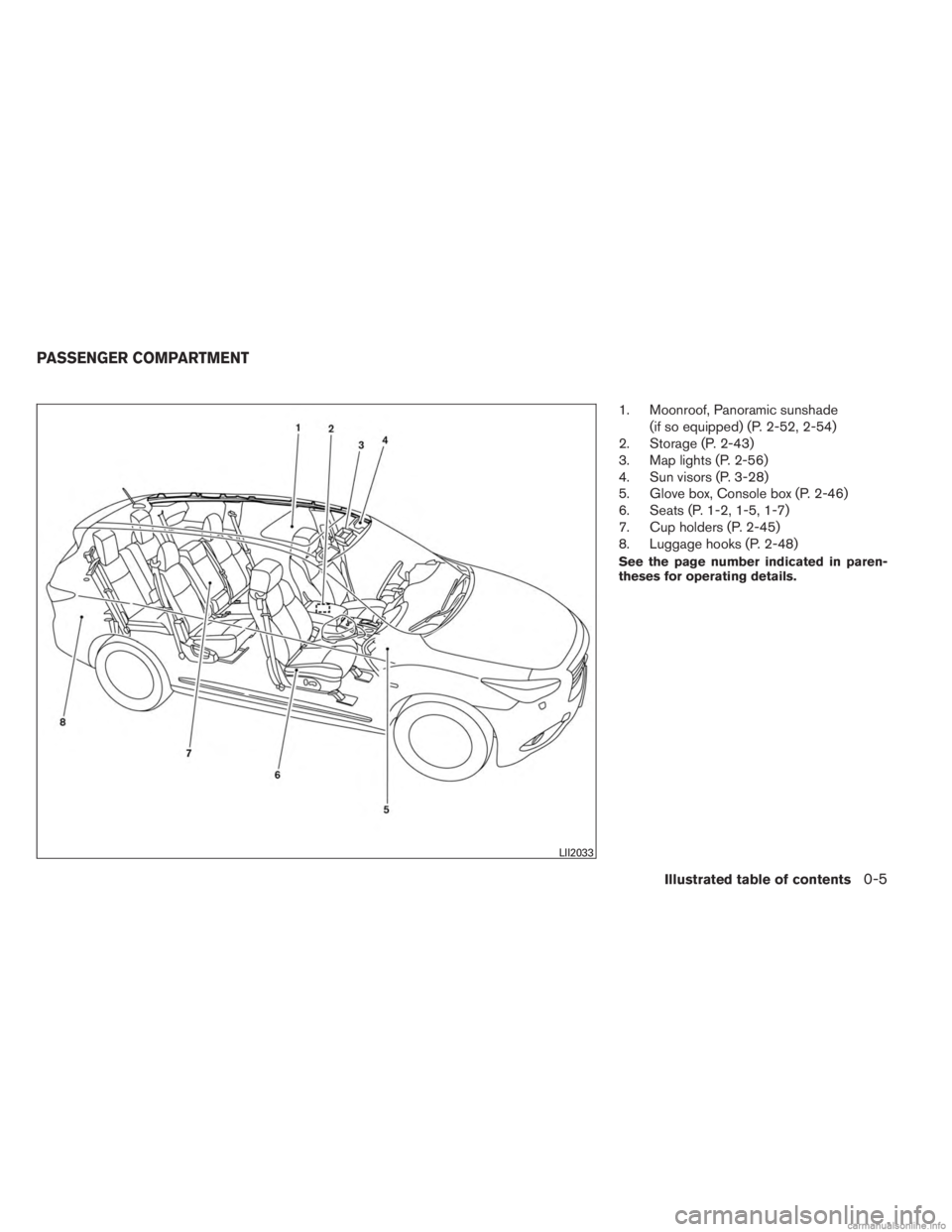

1. Moonroof, Panoramic sunshade(if so equipped) (P. 2-52, 2-54)
2. Storage (P. 2-43)
3. Map lights (P. 2-56)
4. Sun visors (P. 3-28)
5. Glove box, Console box (P. 2-46)
6. Seats (P. 1-2, 1-5, 1-7)
7. Cup holders (P. 2-45)
8. Luggage hooks (P. 2-48)
See the page number indicated in paren-
theses for operating details.
LII2033
PASSENGER COMPARTMENT
Illustrated table of contents0-5

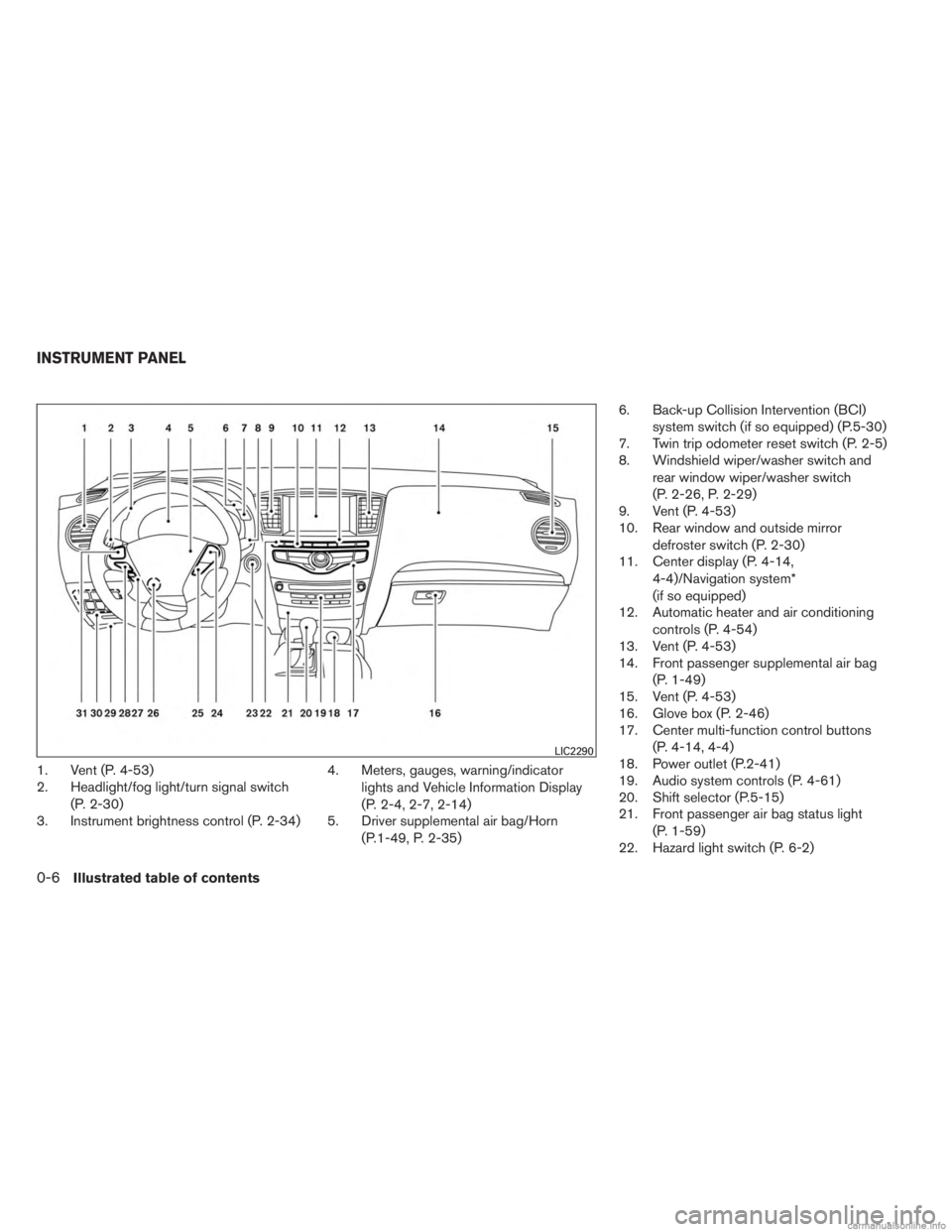

1. Vent (P. 4-53)
2. Headlight/fog light/turn signal switch(P. 2-30)
3. Instrument brightness control (P. 2-34) 4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-7, 2-14)
5. Driver supplemental air bag/Horn
(P.1-49, P. 2-35) 6. Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-30)
7. Twin trip odometer reset switch (P. 2-5)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-26, P. 2-29)
9. Vent (P. 4-53)
10. Rear window and outside mirror
defroster switch (P. 2-30)
11. Center display (P. 4-14,
4-4)/Navigation system*
(if so equipped)
12. Automatic heater and air conditioning
controls (P. 4-54)
13. Vent (P. 4-53)
14. Front passenger supplemental air bag
(P. 1-49)
15. Vent (P. 4-53)
16. Glove box (P. 2-46)
17. Center multi-function control buttons
(P. 4-14, 4-4)
18. Power outlet (P.2-41)
19. Audio system controls (P. 4-61)
20. Shift selector (P.5-15)
21. Front passenger air bag status light
(P. 1-59)
22. Hazard light switch (P. 6-2)
LIC2290
INSTRUMENT PANEL
0-6Illustrated table of contents

23. Ignition switch (P. 5-10)
24. Cruise control main/set switches (if soequipped) and Intelligent cruise control
main/set switches (if so equipped)
(P. 5-47, P.5-49)
25. Distance Control Assist (DCA) system
switch (if so equipped) (P. 5-68)
26. Tilt steering wheel control (P. 3-26)
27. Bluetooth® Hands-Free Phone System
(P. 4-115, 4-129)
28. Steering wheel switch for audio control
(P.4-101)
29. Hood release (P. 3-20)
30. Vehicle dynamic control (VDC) OFF
switch (P. 2-41)
Heated steering wheel switch
(if so equipped) (P.2-39)
Headlight aiming control (P. 2-33)
Warning System switch
(if so equipped) (P. 2-40)
Power inverter switch (if so equipped)
(P. 2-41)
Liftgate release switch (P.3-20)
Power liftgate main switch (P. 3-23)
31. Control panel and Vehicle Information
Display switches (P.4-17, 2-14)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

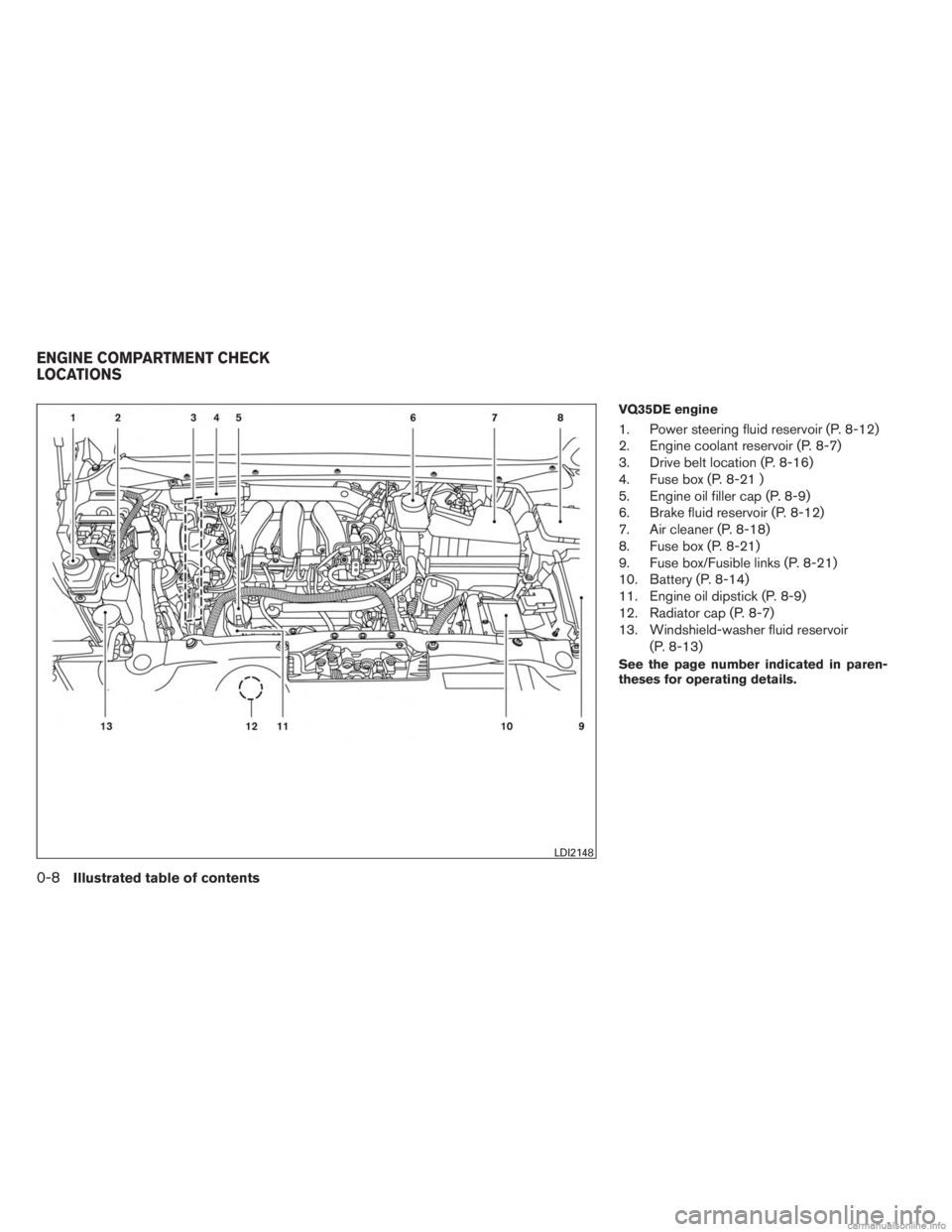

VQ35DE engine
1. Power steering fluid reservoir (P. 8-12)
2. Engine coolant reservoir (P. 8-7)
3. Drive belt location (P. 8-16)
4. Fuse box (P. 8-21 )
5. Engine oil filler cap (P. 8-9)
6. Brake fluid reservoir (P. 8-12)
7. Air cleaner (P. 8-18)
8. Fuse box (P. 8-21)
9. Fuse box/Fusible links (P. 8-21)
10. Battery (P. 8-14)
11. Engine oil dipstick (P. 8-9)
12. Radiator cap (P. 8-7)
13. Windshield-washer fluid reservoir(P. 8-13)
See the page number indicated in paren-
theses for operating details.
LDI2148
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
Anti-lock Braking
System (ABS) warn-
ing light 2-7
or
Brake warning light 2-8
Charge warning
light
2-8
Low tire pressure
warning light2-8
Master warning light 2-10
Power steering
warning light2-10
Seat belt warning
light and chime2-11
Warning
light Name Page
Supplemental air
bag warning light 2-11
Indicator
light Name Page
Fog light indicator
light 2-11
Front passenger air
bag status light2-11
High beam indicator
light (blue)2-11
Intelligent Brake
Assist (IBA) off indi-
cator light (if so
equipped)2-12
Malfunction indica-
tor light (MIL)
2-12
Security indicator
light2-13
Indicator
light Name Page
Side light and head-
light indicator light
(green) 2-13
Slip indicator light 2-13
Turn signal/hazard
indicator lights
2-13
Vehicle Dynamic
Control (VDC) off
indicator light2-13
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

MEMO
0-10Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front power seat adjustment . . ...................1-3
2nd row bench seat adjustment ..................1-5
3rd row bench seat adjustment ..................1-7
Head restraints (1st row only) ....................1-8
Head restraints (2nd row) ......................1-10
Adjustable headrest ........................... 1-13
Head restraints (3rd row) .......................1-16
Flexible seating ................................ 1-17
Seat belts ....................................... 1-20
Precautions on seat belt usage ..................1-20
Pregnant women .............................. 1-23
Injured persons ................................ 1-23
Pre-crash seat belts with comfort function
(front seats) (if so equipped) . . ..................1-23
Three-point type seat belt with retractor ..........1-23
Seat belt extenders ............................ 1-27
Seat belt maintenance ......................... 1-27
Child safety ...................................... 1-28
Infants ........................................ 1-28
Small children ................................. 1-29
Larger children ................................ 1-29Child restraints
................................... 1-29
Precautions on child restraints ..................1-29
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-31
Rear-facing child restraint installation using
LATCH....................................... 1-34
Rear-facing child restraint installation using
the seat belts . . ............................... 1-36
Forward-facing child restraint installation
using LATCH. . . ............................... 1-39
Forward-facing child restraint installation
using the seat belts ............................ 1-41
Installing top tether strap
(2nd row bench seat) .......................... 1-44
Installing top tether strap
(3rd row bench seat) ........................... 1-45
Booster seats ................................. 1-45
Supplemental restraint system .....................1-49
Precautions on supplemental restraint
system ....................................... 1-49
Supplemental air

bag warning labels .............1-64
Supplemental air bag warning light ..............1-64

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

FRONT POWER SEAT ADJUSTMENT
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner” in “Pre-driving
checks and adjustments” for automatic drive po-
sitioner operation.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park) .
LRS2130
Safety—Seats, seat belts and supplemental restraint system1-3
