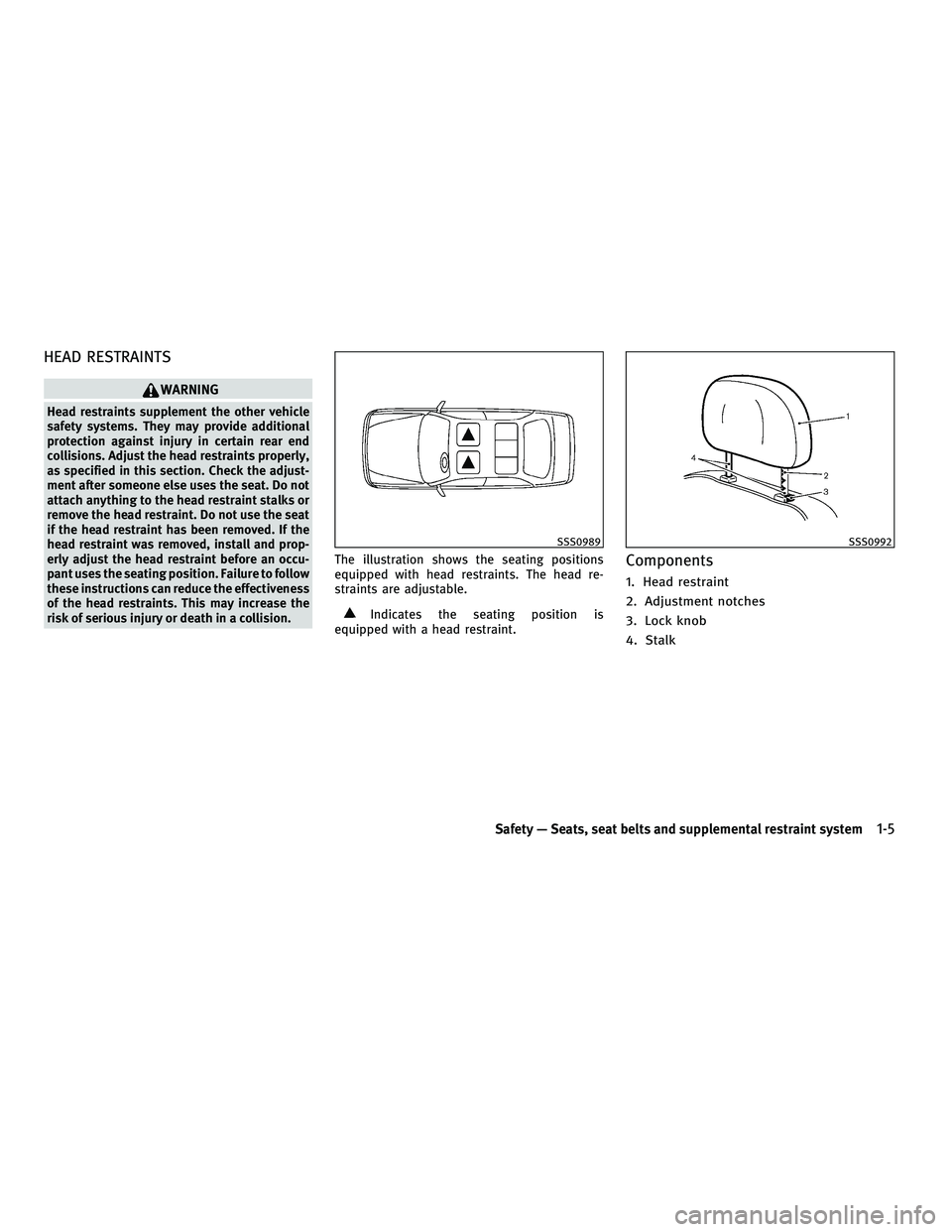

HEAD RESTRAINTS
WARNING
Head restraints supplement the other vehicle
safety systems. They may provide additional
protection against injury in certain rear end
collisions. Adjust the head restraints properly,
as specified in this section. Check the adjust-
ment after someone else uses the seat. Do not
attach anything to the head restraint stalks or
remove the head restraint. Do not use the seat
if the head restraint has been removed. If the
head restraint was removed, install and prop-
erly adjust the head restraint before an occu-
pant uses the seating position. Failure to follow
these instructions can reduce the effectiveness
of the head restraints. This may increase the
risk of serious injury or death in a collision.The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is
equipped with a head restraint.
Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalk
SSS0989SSS0992
Safety Ð Seats, seat belts and supplemental restraint system1-5
wÐ
Ð
05/14/09Ðpattie
X

Front-seat Active Head Restraints
The Active Head Restraint moves forward utiliz-
ing the force that the seatback receives from
the occupant in a rear-end collision. The move-
ment of the head restraint helps support the
occupant's head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is
said that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.Adjust the Active Head Restraints properly as
described earlier in this section.
ADJUSTABLE HEADRESTS
WARNING
The adjustable headrests supplement the
other vehicle safety systems. They may provide
additional protection against injury in certain
rear end collisions. Adjust the headrest prop-
erly, as specified in this section. Check the ad-
justment after someone else uses the seat. Do
not attach anything to the headrest stalks or
remove the headrest. Do not use the seat if the
headrest has been removed. If the headrest
was removed, install and properly adjust the
headrest before an occupant uses the seating
position. Failure to follow these instructions
can reduce the effectiveness of the headrests.
This may increase the risk of serious injury or
death in a collision.
The illustration shows the seating positions
equipped with adjustable headrests.
Indicates the seating position is
equipped with an adjustable headrest.
SSS0508SSS1015
1-8Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

WARNING
cEvery person who drives or rides in this ve-
hicle should use a seat belt at all times. Chil-
dren should be properly restrained in the
rear seat and, if appropriate, in a child
restraint.
c The seat belt should be properly adjusted to
a snug fit. Failure to do so may reduce the
effectiveness of the entire restraint system
and increase the chance or severity of injury
in an accident. Serious injury or death can
occur if the seat belt is not worn properly.
c Always route the shoulder belt over your
shoulder and across your chest. Never put
the belt behind your back, under your arm or
across your neck. The belt should be away
from your face and neck, but not falling off
your shoulder.
c Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE WAIST.
A lap belt worn too high could increase the
risk of internal injuries in an accident.
c Be sure the seat belt tongue is securely fas-
tened to the proper buckle.
c Do not wear the seat belt inside out or
twisted. Doing so may reduce its
effectiveness. c
Do not allow more than one person to use the
same seat belt.
c Never carry more people in the vehicle than
there are seat belts.
c If the seat belt warning light glows continu-
ously while the ignition is turned ON with all
doors closed and all seat belts fastened, it
may indicate a malfunction in the system.
Have the system checked by an INFINITI
retailer.
c No changes should be made to the seat belt
system. For example, do not modify the seat
belt, add material, or install devices that
may change the seat belt routing or tension.
Doing so may affect the operation of the seat
belt system. Modifying or tampering with
the seat belt system may result in serious
personal injury.
c Once a seat belt pretensioner has activated,
it cannot be reused and must be replaced
together with the retractor. See an INFINITI
retailer.
c Removal and installation of the pretensioner
system components should be done by an
INFINITI retailer.
SSS0016
SSS0014
Safety Ð Seats, seat belts and supplemental restraint system1-13
wÐ
Ð
05/14/09Ðpattie
X

cAll seat belt assemblies, including retractors
and attaching hardware, should be in-
spected after any collision by an INFINITI re-
tailer. INFINITI recommends that all seat belt
assemblies in use during a collision be re-
placed unless the collision was minor and
the belts show no damage and continue to
operate properly. Seat belt assemblies not
in use during a collision should also be in-
spected and replaced if either damage or
improper operation is noted.
c All child restraints and attaching hardware
should be inspected after any collision. Al-
ways follow the restraint manufacturer's in-
spection instructions and replacement rec-
ommendations. The child restraints should
be replaced if they are damaged.
CHILD SAFETY
Children need adults to help protect them. They
need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices, and
community organizations. Every child is differ-
ent, so be sure to learn the best way to trans-
port your child. There are three basic types of child restraint
systems:
c
Rear-facing child restraint
c Front-facing child restraint
c Booster seat
The proper restraint depends on the child's
size. Generally, infants (up to about 1 year and
less than 20 lb (9 kg)) should be placed in
rear-facing child restraints. Front-facing child
restraints are available for children who out-
grow rear-facing child restraints and are at least
1 year old. Booster seats are used to help
position a vehicle lap/shoulder belt on a child
who can no longer use a front-facing child
restraint.
WARNING
Infants and children need special protection.
The vehicle's seat belts may not fit them prop-
erly. The shoulder belt may come too close to
the face or neck. The lap belt may not fit over
their small hip bones. In an accident, an im-
properly fitting seat belt could cause serious or
fatal injury. Always use appropriate child
restraints.
All U.S. states and Canadian provinces or terri-
tories require the use of approved child re- straints for infants and small children. (See
ªCHILD RESTRAINTSº later in this section.)
Also, there are other types of child restraints
available for larger children for additional pro-
tection.
INFINITI recommends that all pre-teens and chil-
dren be restrained in the rear seat. According to
accident statistics, children are safer when
properly restrained in the rear seat than in the
front seat.
This is especially important because your ve-
hicle has a supplemental restraint system (air
bag system) for the front passenger. (See
ªSUPPLEMENTAL RESTRAINT SYSTEMº later in
this section.)
Infants
Infants up to at least 1 year old should be
placed in a rear-facing child restraint. INFINITI
recommends that infants be placed in child
restraints that comply with Federal Motor Ve-
hicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer's instructions for in-
stallation and use.
1-14Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

Small children
Children that are over 1 year old and weigh at
least 20 lb (9 kg) can be placed in a front-facing
child restraint. Refer to the manufacturer's in-
structions for minimum and maximum weight
and height recommendations. INFINITI recom-
mends that small children be placed in child
restraints that comply with Federal Motor Ve-
hicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer's instructions for in-
stallation and use.
Larger children
Children who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may not
fit properly if the child is less than 4 ft 9 in
(142.5 cm) tall and weighs between 40 lb (18 kg)
and 80 lb (36 kg). A booster seat should be
used to obtain proper seat belt fit.
INFINITI recommends that a child be placed in a
commercially available booster seat if the
shoulder belt in the child's seating position fits
close to the face or neck or if the lap portion of
the seat belt goes across the abdomen. The
booster seat should raise the child so that the
shoulder belt is properly positioned across the
top, middle portion of the shoulder and the lapbelt is low on the hips. A booster seat can only
be used in seating positions that have a three-
point type seat belt. The booster seat should fit
the vehicle seat and have a label certifying that
it complies with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. Once the child has grown so the
shoulder belt is no longer on or near the face
and neck, use the shoulder belt without the
booster seat.
WARNING
Never let a child stand or kneel on any seat and
do not allow a child in the cargo areas while the
vehicle is moving. The child could be seriously
injured or killed in an accident or sudden stop.
PREGNANT WOMEN
INFINITI recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never run the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.
INJURED PERSONS
INFINITI recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.
PRE-CRASH SEAT BELTS (front seats)
The pre-crash seat belt tightens the seat belt to
help restrain front seat occupants under emer-
gency braking. This can help reduce the risk of
injury when a collision occurs.
Pre-crash seat belt will not be activated when:
c
the brake pedal is not depressed
c the seat belt is not fastened
c the selector lever is in the R (Reverse) posi-
tion
c the vehicle speed is under 10 MPH (15 km/h)
Always wear your seat belt correctly and sit
upright and well back in the seat with both feet
on the floor.
If the seat belt warning light blinks even if the
driver's and front passenger's seat belts are
fastened, it may indicate the pre-crash seat belt
system has a malfunction. Have your INFINITI
retailer check and repair the system.
Safety Ð Seats, seat belts and supplemental restraint system1-15
wÐ
Ð
05/14/09Ðpattie
X

THREE-POINT TYPE SEAT BELT
WARNING
cEvery person who drives or rides in this ve-
hicle should use a seat belt at all times.
c Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
c For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly.
Fastening the seat belts
1. Adjust the seat. (See ªSEATSº earlier in
this section.)
2. Slowly pull the seat belt out of the retrac- tor and insert the tongue into the buckle
until you hear and feel the latch engage.
cThe retractor is designed to lock during a
sudden stop or on impact. A slow pulling mo-
tion permits the belt to move, and allows you
some freedom of movement in the seat.
c If the seat belt cannot be pulled from its fully
retracted position, firmly pull the belt and
release it. Then smoothly pull the belt out of
the retractor.
3. Position the lap belt portion low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure
the shoulder belt is routed over your
shoulder and across your chest.
The front passenger and the rear seating posi-
tions three-point type seat belts have two
modes of operation:
cEmergency Locking Retractor (ELR)
c Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom
SSS0292SSS0290
1-16Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during certain impacts.
The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.
When the ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see ªCHILD RESTRAINTSº later in
this section.
The ALR mode should be used only for child
restraint installation. During normal seat belt
use by an occupant, the ALR mode should not be
activated. If it is activated it may cause uncom-
fortable seat belt tension. It can also change the
operation of the front passenger air bag. See
ªFront passenger air bag and status lightº later
in this section.
WARNING
When fastening the seat belts, be certain that
seatbacks are completely secured in the
latched position. If they are not completely se-
cured, passengers may be injured in an acci-
dent or sudden stop.
Unfastening the seat belts
To unfasten the seat belt, push the button on
the buckle. The seat belt automatically retracts.
Checking seat belt operation
Seat belt retractors are designed to lock seat
belt movement by two separate methods:
cWhen the belt is pulled quickly from the
retractor.
c When the vehicle slows down rapidly.
To increase your confidence in the seat belts,
check the operation as follows:
c Grasp the shoulder belt and pull forward
quickly. The retractor should lock and re-
strict further belt movement.
If the retractor does not lock during this check
or if you have any question about seat belt
operation, see an INFINITI retailer.
SSS0326
Safety Ð Seats, seat belts and supplemental restraint system1-17
wÐ
Ð
05/14/09Ðpattie
X

Center of rear seat
Selecting correct set of seat belts :
The center seat belt buckle is identified by the
CENTER mark
sA. The center seat belt tongue
can be fastened onlyinto the center seat belt
buckle.
Shoulder belt height adjustment
(front seats)
The shoulder belt anchor height should be
adjusted to the position best for you. (See
ªPRECAUTIONS ON SEAT BELT USAGEº earlier in
this section.)
To adjust, push the adjustment button
sA, and
then move the shoulder belt anchor to the
desired position, so that the belt passes over
the center of the shoulder. The belt should be
away from your face and neck, but not falling off
of your shoulder. Release the adjustment but-
ton to lock the shoulder belt anchor into posi-
tion.
WARNING
c After adjustment, release the adjustment
button and try to move the shoulder belt
anchor up and down to make sure it is se-
curely fixed in position.
c The shoulder belt anchor height should be
adjusted to the position best for you. Failure
to do so may reduce the effectiveness of the
entire restraint system and increase the
chance or severity of injury in an accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender is available that is
compatible with the installed seat belts. The
extender adds approximately 8 in (200 mm) of
length and may be used for either the driver or
front passenger seating position. See an
INFINITI retailer for assistance if an extender is
required.
WARNING
cOnly INFINITI seat belt extenders, made by
the same company which made the original
equipment seat belts, should be used with
the INFINITI seat belts.
SPA1836SSS0294A
1-18Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

cAdults and children who can use the stan-
dard seat belt should not use an extender.
Such unnecessary use could result in seri-
ous personal injury in the event of an
accident.
c Never use seat belt extenders to install child
restraints. If the child restraint is not se-
cured properly, the child could be seriously
injured in a collision or a sudden stop.
SEAT BELT MAINTENANCE
c To clean the seat belt webbing, apply a mild
soap solution or any solution recommended
for cleaning upholstery or carpets. Then,
wipe with a cloth and allow the seat belts to
dry in the shade. Do not allow the seat belts
to retract until they are completely dry.
c If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.
c Periodically check to see that the seat belt
and the metal components , such as buckles,
tongues, retractors, flexible wires and an-
chors work properly. If loose parts, deterio-
ration, cuts or other damage on the webbing
is found, the entire seat belt assembly
should be replaced.
PRECAUTIONS ON CHILD RESTRAINTS
WARNING
c Infants and small children should always be
placed in an appropriate child restraint
while riding in the vehicle. Failure to use a
child restraint can result in serious injury or
death.
c Infants and small children should never be
carried on your lap. It is not possible for even
the strongest adult to resist the forces of a
severe accident. The child could be crushed
between the adult and parts of the vehicle.
Also, do not put the same seat belt around
both your child and yourself.
c Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front seat. An inflating front air
bag could seriously injure or kill your child. A
rear-facing child restraint must only be used
in the rear seat.
SSS0099
SSS0100
CHILD RESTRAINTS
Safety Ð Seats, seat belts and supplemental restraint system1-19
wÐ
Ð
05/14/09Ðpattie
X

LATCH lower anchor point locations
The LATCH anchors are located at the rear of the
seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH anchors.
WARNING
cAttach LATCH system compatible child re-
straints only at the locations shown in the
illustration. If a child restraint is not secured
properly, your child could be seriously in-
jured or killed in an accident.
c Do not secure a child restraint in the center
rear seating position using the LATCH an-
chors. The child restraint will not be secured
properly.
c Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
Installing child restraint LATCH
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with the LATCH system. This infor-
mation may also be in the instructions provided
by the child restraint manufacturer.
LATCH lower anchor location (Type A)
SSS0659
LATCH lower anchor location (Type B)
SSS0637
LATCH webbing-mounted attachment
SSS0643
1-22Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X
