INFINITI M 2010 Workshop Manual

2. Position the child restraint on the seat.Always follow the child restraint manufac-
turer's instructions.
The back of the child restraint should be
secured against the seatback. If necessary,
adjust or remove the head restraint to ob-
tain the correct child restraint fit. (See
ªHEAD RESTRAINTSº earlier in this section.)
If the head restraint is removed, store it in a
secure place. Be sure to reinstall the head
restraint when the child restraint is re-
moved.
If the seating position does not have an
adjustable head restraint and it is interfer-
ing with the proper child restraint fit, try
another seating position or a different child
restraint.
3. Route the seat belt tongue through thechild restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer's instructions for belt routing. 4. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt re-
tractor is in the Automatic Locking Retrac-
tor (ALR) mode (child restraint mode). It
reverts to the Emergency Locking Retrac-
tor (ELR) mode when the seat belt is fully
retracted.
Front-facing Ð step 3
SSS0360B
Front-facing Ð step 4
SSS0651
1-30Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

5. Allow the seat belt to retract. Pull up onthe shoulder belt to remove any slack in
the belt. 6. Remove any additional slack from the
seat belt; press downward and rearward
firmly in the center of the child restraint
with your knee to compress the vehicle
seat cushion and seatback while pulling
up on the seat belt. 7. If the child restraint is equipped with a
top tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point (rear seat installation only).
(See ªTOP TETHER STRAP CHILD RE-
STRAINTº earlier in this section.) Do not
install child restraints that require the use
of a top tether strap to seating positions
that do not have a top tether anchor.
Front-facing Ð step 5
SSS0652
Front-facing Ð step 6
SSS0653
Safety Ð Seats, seat belts and supplemental restraint system1-31
wÐ
Ð
05/14/09Ðpattie
X

8. After attaching the child restraint, test itbefore you place the child in it. Push it
from side to side while holding the seat
near the seat belt path. The child restraint
should not move more than 1 inch (25
mm) from side to side. Try to tug it
forward and check to see if the belt holds
the restraint in place. If the restraint is
not secure, tighten the belt as necessary,
or put the restraint in another seat and
test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles. 9. Check that the retractor is in the ALR
mode by trying to pull more seat belt out
of the retractor. If you cannot pull any
more belt webbing out of the retractor,
the retractor is in the ALR mode.
10. Check to make sure the child restraint is properly secured prior to each use. If the
seat belt is not locked, repeat steps 3
through 9.
11. If the child restraint is installed in thefront passenger seat, push the ignition
switch to the ON position. The front pas-
senger air bag status light
should
illuminate. If this light is not illuminated,
see ªFront passenger air bag and status
lightº later in this section. Move the child
restraint to another seating position .
Have the system checked by an INFINITI
retailer.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child
restraint mode) is canceled.
Front-facing Ð step 8
SSS0641
Front-facing Ð step 11
SSS0481
1-32Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

Rear-facing
Follow these steps to install a rear-facing child
restraint using the vehicle seat belt in the rear
seat:
1.Child restraints for infants must be used in
the rear-facing direction and therefore
must not be used in the front seat.
If your vehicle is equipped with rear power
seat adjustment, adjust the rear outboard
seats to the upright and rearmost position.
(See ªREAR SEATSº earlier in this section.)
2. Position the child restraint on the seat.
Always follow the restraint manufacturer's
instructions. 3. Route the seat belt tongue through the
child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer's instructions for belt routing. 4. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt re-
tractor is in the Automatic Locking Retrac-
tor (ALR) mode (child restraint mode). It
reverts to the Emergency Locking Retrac-
tor (ELR) mode when the seat belt is fully
retracted.
SSS0100
Rear-facing Ð step 3
SSS0654
Rear-facing Ð step 4
SSS0655
Safety Ð Seats, seat belts and supplemental restraint system1-33
wÐ
Ð
05/14/09Ðpattie
X

5. Allow the seat belt to retract. Pull up onthe shoulder belt to remove any slack in
the belt. 6. Remove any additional slack from the
child restraint; press downward and rear-
ward firmly in the center of the child
restraint with your hand to compress the
vehicle seat cushion and seatback while
pulling up on the seat belt. 7. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the seat
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm)
from side to side. Try to tug it forward and
check to see if the belt holds the restraint
in place. If the restraint is not secure,
tighten the belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
Rear-facing Ð step 5
SSS0656
Rear-facing Ð step 6
SSS0657
Rear-facing Ð step 7
SSS0658
1-34Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

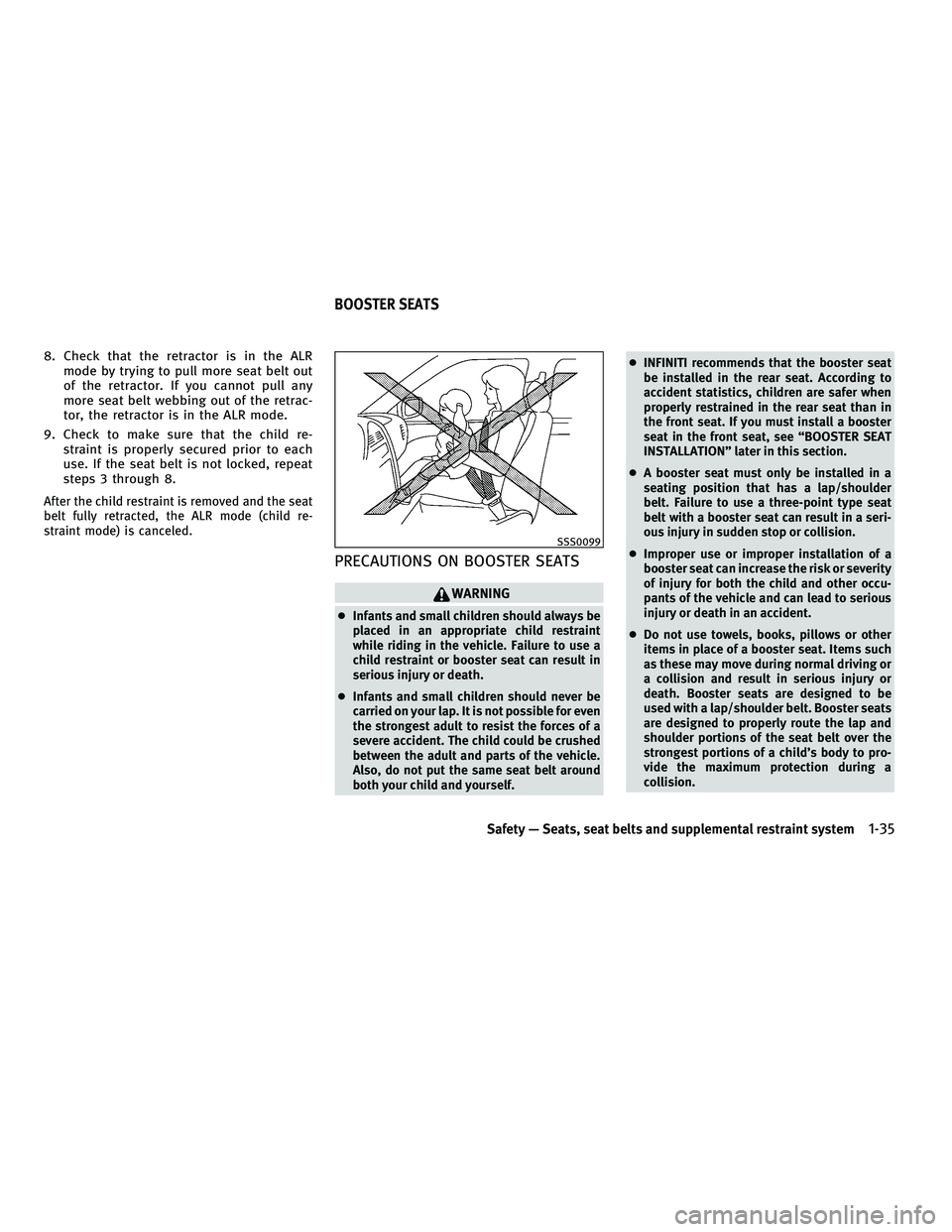

8. Check that the retractor is in the ALRmode by trying to pull more seat belt out
of the retractor. If you cannot pull any
more seat belt webbing out of the retrac-
tor, the retractor is in the ALR mode.
9. Check to make sure that the child re- straint is properly secured prior to each
use. If the seat belt is not locked, repeat
steps 3 through 8.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child re-
straint mode) is canceled.
PRECAUTIONS ON BOOSTER SEATS
WARNING
cInfants and small children should always be
placed in an appropriate child restraint
while riding in the vehicle. Failure to use a
child restraint or booster seat can result in
serious injury or death.
c Infants and small children should never be
carried on your lap. It is not possible for even
the strongest adult to resist the forces of a
severe accident. The child could be crushed
between the adult and parts of the vehicle.
Also, do not put the same seat belt around
both your child and yourself. c
INFINITI recommends that the booster seat
be installed in the rear seat. According to
accident statistics, children are safer when
properly restrained in the rear seat than in
the front seat. If you must install a booster
seat in the front seat, see ªBOOSTER SEAT
INSTALLATIONº later in this section.
c A booster seat must only be installed in a
seating position that has a lap/shoulder
belt. Failure to use a three-point type seat
belt with a booster seat can result in a seri-
ous injury in sudden stop or collision.
c Improper use or improper installation of a
booster seat can increase the risk or severity
of injury for both the child and other occu-
pants of the vehicle and can lead to serious
injury or death in an accident.
c Do not use towels, books, pillows or other
items in place of a booster seat. Items such
as these may move during normal driving or
a collision and result in serious injury or
death. Booster seats are designed to be
used with a lap/shoulder belt. Booster seats
are designed to properly route the lap and
shoulder portions of the seat belt over the
strongest portions of a child's body to pro-
vide the maximum protection during a
collision.
SSS0099
BOOSTER SEATS
Safety Ð Seats, seat belts and supplemental restraint system1-35
wÐ
Ð
05/14/09Ðpattie
X

cFollow all of the booster seat manufacturer's
instructions for installation and use. When
purchasing a booster seat, be sure to select
one which will fit your child and vehicle. It
may not be possible to properly install some
types of booster seats in your vehicle.
c If the booster seat and seat belt is not used
properly, the risk of a child being injured in a
collision or a sudden stop greatly increases.
c Adjustable seatbacks should be positioned
to fit the booster seat, but as up- right as
possible.
c After placing the child in the booster seat
and fastening the seat belt, make sure the
shoulder portion of the belt is away from the
child's face and neck and the lap portion of
the belt does not cross the abdomen.
c Do not put the shoulder belt behind the child
or under the child's arm. If you must install a
booster seat in the front seat, see ªBOOSTER
SEAT INSTALLATIONº later in this section.
c When your booster seat is not in use, keep it
secured with a seat belt to prevent it from
being thrown around in case of a sudden
stop or accident.CAUTION
Remember that a booster seat left in a closed
vehicle can become very hot. Check the seating
surface and buckles before placing your child in
the booster seat.
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
cChoose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
c Check the booster seat in your vehicle to be
sure it is compatible with the vehicle's seat
and seat belt system.
LRS0455
1-36Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

cMake sure the child's head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child's ears. For example, if a
low back booster seat
s1is chosen, the
vehicle seatback must be at or above the
center of the child's ears. If the seatback is
lower than the center of the child's ears, a
high back booster seat
s2should be used. c
If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with
your child. Always follow all recommended
procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
BOOSTER SEAT INSTALLATION
WARNING
INFINITI recommends that booster seats be in-
stalled in the rear seat. However, if you must
install a booster seat in the front passenger
seat, move the passenger's seat to the rear-
most position.
CAUTION
Do not use the lap/shoulder belt Automatic
Locking Retractor (ALR) mode when using a
booster seat with the seat belts.
Follow these steps to install a booster seat in
the rear seat or in the front passenger seat:LRS0453LRS0464
Safety Ð Seats, seat belts and supplemental restraint system1-37
wÐ
Ð
05/14/09Ðpattie
X

1. If your vehicle is equipped with rear powerseat adjustment, adjust the rear outboard
seats to the upright and rearmost posi-
tion. (See ªREAR SEATSº earlier in this
section.)
If you must install a booster seat in the front
seat, move the seat to the rearmost position.
2. Position the booster seat on the seat. Only place it in a front-facing direction.
Always follow the booster seat manufac-
turer's instructions. 3. The booster seat should be positioned on
the vehicle seat so that it is stable. If
necessary, adjust or remove the head
restraint to obtain the correct booster
seat fit. (See ªHEAD RESTRAINTSº earlier
in this section.)
If the head restraint is removed, store it in a
secure place. Be sure to reinstall the head
restraint when the booster seat is removed. If the seating position does not have an adjust-
able head restraint and it is interfering with the
proper booster seat fit, try another seating
position or a different booster seat.
4. Position the lap portion of the seat belt
low and snug on the child's hips. Be sure
to follow the booster seat manufacturer's
instructions for adjusting the seat belt
routing.
Front passenger seat
SSS0640
Rear center position
LRS0451
Rear outboard position
LRS0452
1-38Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

5. Pull the shoulder belt portion of the seatbelt toward the retractor to take up extra
slack. Be sure the shoulder belt is posi-
tioned across the top, middle portion of
the child's shoulder. Be sure to follow the
booster seat manufacturer's instructions
for adjusting the seat belt routing. 6. Follow the warnings, cautions and in-
structions for properly fastening a seat
belt shown in the ªTHREE-POINT TYPE
SEAT BELTº earlier in this section.
7. If the booster seat is installed in the frontpassenger seat, push the ignition switch
to the ON position. The front passenger
air bag status lightmay or may not
be illuminated depending on the size of
the child and the type of booster seat
used. (See ªFront passenger air bag and
status lightº later in this section.)
Front passenger seat
LRS0454SSS0481
Safety Ð Seats, seat belts and supplemental restraint system1-39
wÐ
Ð
05/15/09Ðpattie
X
