LANE DEPARTURE WARNING (LDW)
SYSTEM
Precautions on LDW system
WARNING
●This system is only a warning device to in-
form the driver of a potential unintended
lane departure. It will not steer the vehicle or
prevent loss of control. It is the driver’s re-
sponsibility to stay alert, drive safely, keep
the vehicle in the traveling lane, and be in
control of the vehicle at all times.
● The system will not operate at speeds below
approximately 45 MPH or if it cannot detect
lane markers.
● If the LDW system malfunctions, it will can-
cel automatically, and the lane departure
warning light (orange) will illuminate.
● If the lane departure warning light (orange)
illuminates, pull off the road to a safe loca-
tion and stop the vehicle. Turn the engine off
and restart the engine. If the lane departure
warning light (orange) continues to illumi-
nate, have the system checked by an INFINITI
retailer. ●
Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
The system may not function properly under the
following conditions:
● On roads where there are multiple parallel
lane markers; lane markers that are faded or
not painted clearly; yellow painted lane
markers; non-standard lane markers; or lane
markers covered with water, dirt, snow, etc.
● On roads where the discontinued lane mark-
ers are still detectable.
● On roads where there are sharp curves.
● On roads where there are sharply contrast-
ing objects, such as shadows, snow, water,
wheel ruts, seams or lines remaining after
road repairs. (The LDW system could detect
these items as lane markers.)
● On roads where the traveling lane merges or
separates.
● When the vehicle’s traveling direction does
not align with the lane marker.
● When traveling close to the vehicle in front
of you, which obstructs the lane camera unit
detection range. ●
When rain, snow or dirt adheres to the
windshield in front of the lane camera unit.
● When the headlights are not bright due to
dirt on the lens or if the aiming is not
adjusted properly.
● When strong light enters the lane camera
unit. (For example, the light directly shines
on the front of the vehicle at sunrise or
sunset.)
● When a sudden change in brightness occurs.
(For example, when the vehicle enters or
exits a tunnel or under a bridge.)
Starting and driving5-21
—
—
01/12/10—pattie

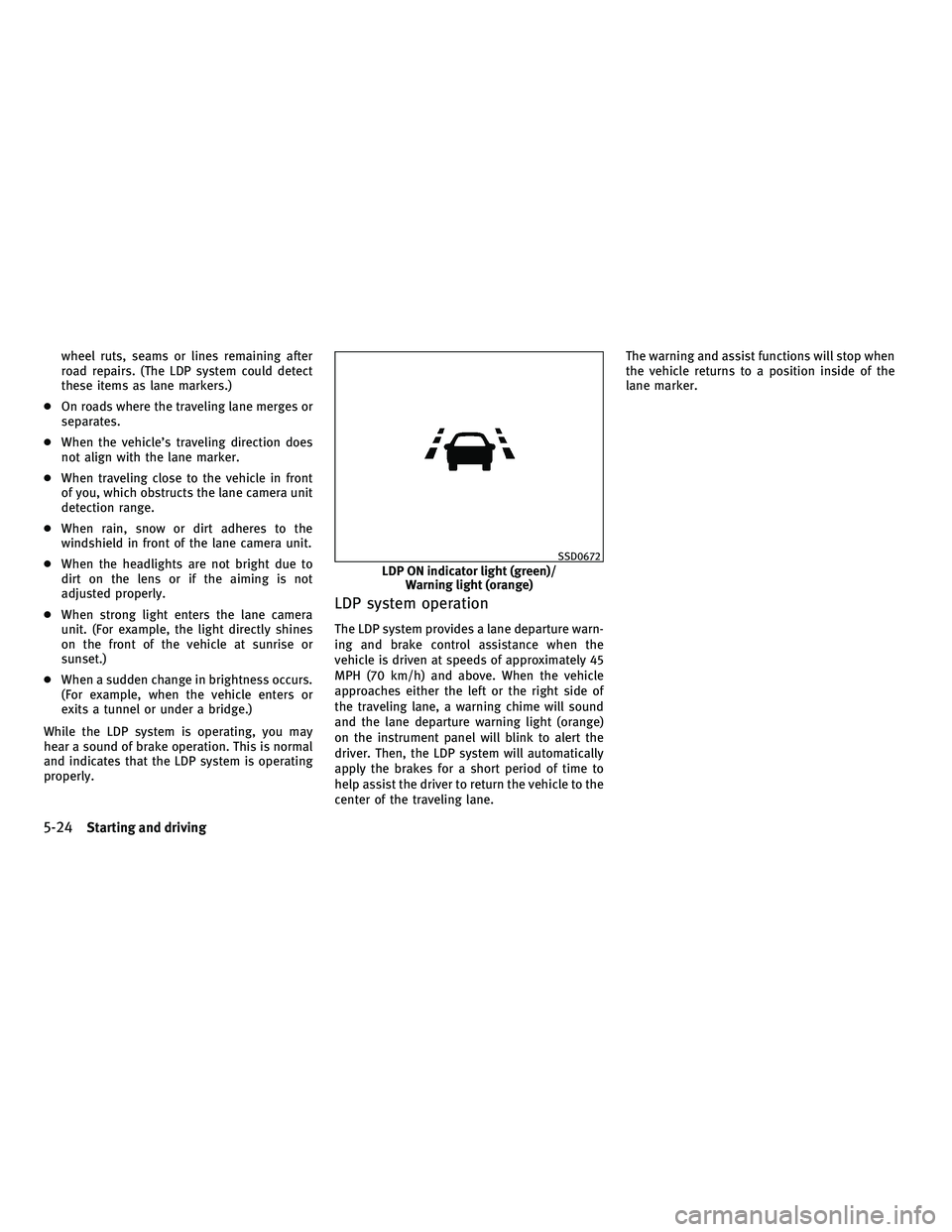

wheel ruts, seams or lines remaining after
road repairs. (The LDP system could detect
these items as lane markers.)
● On roads where the traveling lane merges or
separates.
● When the vehicle’s traveling direction does
not align with the lane marker.
● When traveling close to the vehicle in front
of you, which obstructs the lane camera unit
detection range.
● When rain, snow or dirt adheres to the
windshield in front of the lane camera unit.
● When the headlights are not bright due to
dirt on the lens or if the aiming is not
adjusted properly.
● When strong light enters the lane camera
unit. (For example, the light directly shines
on the front of the vehicle at sunrise or
sunset.)
● When a sudden change in brightness occurs.
(For example, when the vehicle enters or
exits a tunnel or under a bridge.)
While the LDP system is operating, you may
hear a sound of brake operation. This is normal
and indicates that the LDP system is operating
properly.
LDP system operation
The LDP system provides a lane departure warn-
ing and brake control assistance when the
vehicle is driven at speeds of approximately 45
MPH (70 km/h) and above. When the vehicle
approaches either the left or the right side of
the traveling lane, a warning chime will sound
and the lane departure warning light (orange)
on the instrument panel will blink to alert the
driver. Then, the LDP system will automatically
apply the brakes for a short period of time to
help assist the driver to return the vehicle to the
center of the traveling lane. The warning and assist functions will stop when
the vehicle returns to a position inside of the
lane marker.
LDP ON indicator light (green)/
Warning light (orange)SSD0672
5-24Starting and driving
—
—
01/13/10—tbrooks


●The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an adja-
cent lane. When driving in a narrow lane, the
radar sensors may detect vehicles driving
two lanes away.
● The radar sensors are designed to ignore
most stationary objects, however objects
such as guardrails, walls, foliage and parked
vehicles may occasionally be detected. This
is a normal operating condition.
● The camera may not detect lane markers in
the following situations and the BSI system
may not operate properly.
– On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; lane markers covered with wa-
ter, dirt, snow, etc.
– On roads where discontinued lane mark- ers are still detectable.
– On roads where there are sharp curves.
– On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. – On roads where the traveling lane merges
or separates.
– When the vehicle’s traveling direction does not align with the lane markers.
– When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
– When rain, snow or dirt adheres to the windshield in front of a lane camera unit.
– When the headlights are not bright due to dirt on the lens or if aiming is not ad-
justed properly.
– When strong light enters a lane camera unit. (e.g. light directly shines on the front
of the vehicle at sunrise or sunset.)
– When a sudden change in brightness occurs. (e.g. when the vehicle enters or
exits a tunnel or under a bridge.)
BSW/BSI DRIVING SITUATIONS
Another vehicle approaching from
behind
The BSW/BSI indicator light illuminates if a
vehicle enters the detection zone from behind
in an adjacent lane.
However, if the overtaking vehicle is traveling
much faster than your vehicle, the indicator
light may not illuminate before the detected
vehicle is beside your vehicle. Always use the
side and rear mirrors and turn and look in the
direction your vehicle will move to ensure it is
safe to change lanes.
SSD1026
Starting and driving5-33
—
—
01/13/10—tbrooks


8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
Vk56vd engine ................................. 8-6
VQ37VHR engine ............................... 8-8
Engine cooling system ............................ 8-10
Checking engine coolant level ..................8-10
Changing engine coolant ........................ 8-11
Engine oil ........................................ 8-11
Checking engine oil level .......................8-11
Changing engine oil and filter ..................8-12
Automatic transmission fluid ......................8-14
Power steering fluid .............................. 8-14
Brake fluid ...................................... 8-15
Brake fluid ................................... 8-15
Window washer fluid ............................. 8-15
Battery .......................................... 8-16
Jump starting ................................. 8-17
Variable voltage control system ...................8-18Drive belts
....................................... 8-18
Spark plugs ..................................... 8-19
Replacing spark plugs ......................... 8-19
Air cleaner ....................................... 8-19
Windshield wiper blades .......................... 8-20
Cleaning ...................................... 8-20
Replacing ..................................... 8-21
Brakes .......................................... 8-22
Self-adjusting brakes .......................... 8-22
Brake pad wear warning ....................... 8-22
Fuses ........................................... 8-22
Engine compartment ........................... 8-23
Passenger compartment ....................... 8-24
Intelligent Key battery replacement ................8-25
Lights ........................................... 8-27
Headlights .................................... 8-28
Exterior

and interior lights ..................... 8-28
Wheels and tires ................................. 8-30
Tire pressure .................................. 8-30
Tire labeling .................................. 8-34
Types of tires ................................. 8-36
Tire chains ................................... 8-37
Changing wheels and tires..................... 8-37
—
—
07/26/10—dmoore

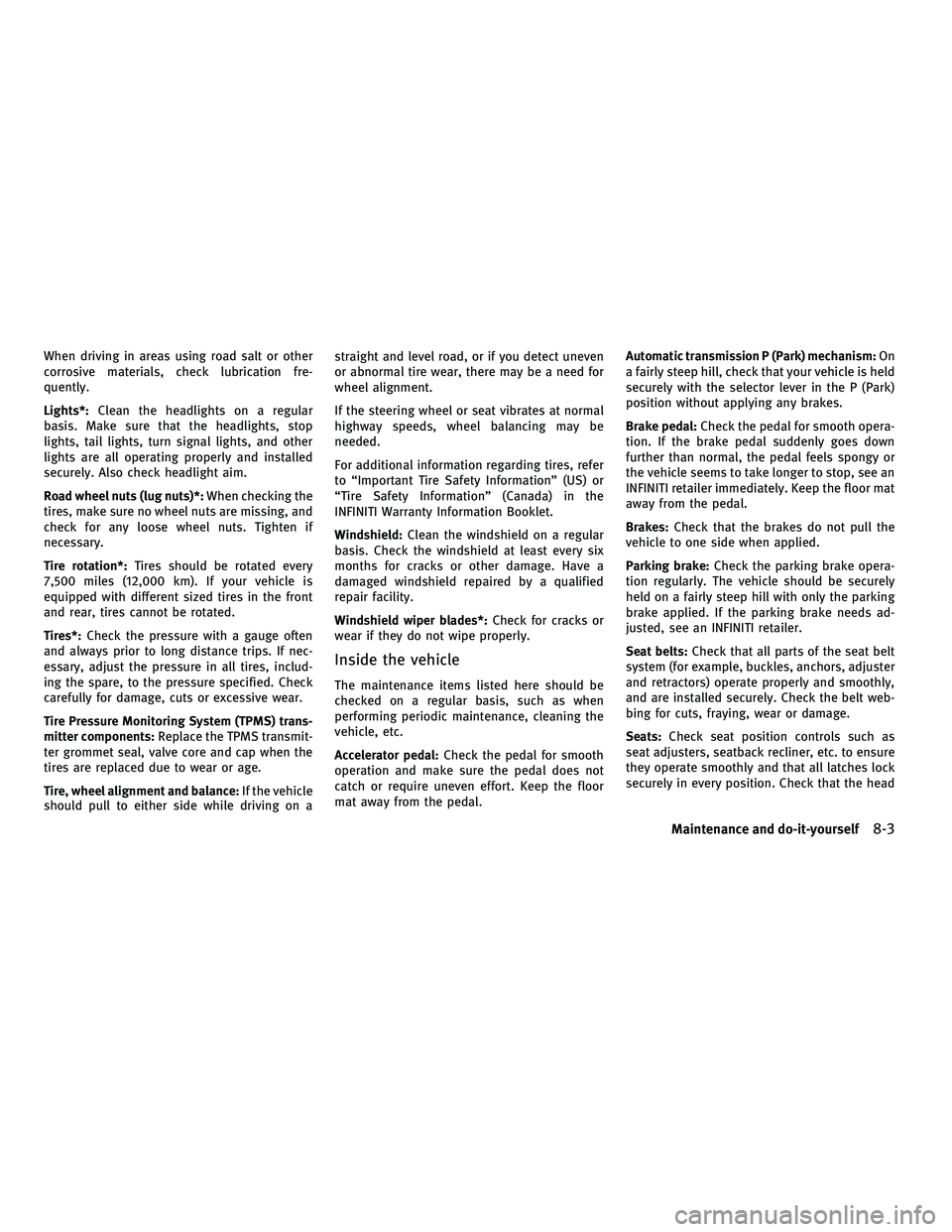

When driving in areas using road salt or other
corrosive materials, check lubrication fre-
quently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking the
tires, make sure no wheel nuts are missing, and
check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires should be rotated every
7,500 miles (12,000 km). If your vehicle is
equipped with different sized tires in the front
and rear, tires cannot be rotated.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If nec-
essary, adjust the pressure in all tires, includ-
ing the spare, to the pressure specified. Check
carefully for damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS) trans-
mitter components: Replace the TPMS transmit-
ter grommet seal, valve core and cap when the
tires are replaced due to wear or age.
Tire, wheel alignment and balance: If the vehicle
should pull to either side while driving on a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks or
wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Accelerator pedal: Check the pedal for smooth
operation and make sure the pedal does not
catch or require uneven effort. Keep the floor
mat away from the pedal. Automatic transmission P (Park) mechanism:
On
a fairly steep hill, check that your vehicle is held
securely with the selector lever in the P (Park)
position without applying any brakes.
Brake pedal: Check the pedal for smooth opera-
tion. If the brake pedal suddenly goes down
further than normal, the pedal feels spongy or
the vehicle seems to take longer to stop, see an
INFINITI retailer immediately. Keep the floor mat
away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake opera-
tion regularly. The vehicle should be securely
held on a fairly steep hill with only the parking
brake applied. If the parking brake needs ad-
justed, see an INFINITI retailer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
Maintenance and do-it-yourself8-3
—
—
01/13/10—pattie


HEADLIGHTS
Replacing
Xenon headlight bulb :
WARNING
HIGH VOLTAGE
When xenon headlights are on, they produce a
high voltage. To prevent an electric shock,
never attempt to modify or disassemble. Al-
ways have your xenon headlights replaced at
an INFINITI retailer. For additional information,
see “HEADLIGHT AND TURN SIGNAL SWITCH” in
the “2. Instruments and controls” section.
Use the same number and wattage shown in the
following chart as originally installed.
If replacement is required, see an INFINITI re-
tailer.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact an INFINITI retailer.
EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 21WY21W
Front fog light* 35H8
Park light and front side marker light* 5W5W
Rear combination light* back-up 16W16W
turn signal 21WY21W
stop/tail/side marker LED—
License plate light* 5W5W
Map light 8—
Rear personal light 8—
Vanity mirror light 2—
Step light* 5—
Trunk light* 3.4—
Courtesy light LED—
High-mounted stop light* LED—
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest information about
parts.
8-28Maintenance and do-it-yourself
—
—
07/26/10—dmoore


Event Data Recorders (EDR)..........9-23
Exhaust gas (carbon monoxide) ........5-2
Filter Air cleaner housing filter .........8-19
Changing engine oil and filter ......8-12
F
Flashers
(See hazard warning flasher switch) .....2-37
Flat tire ..................... .6-2
Flat towing .................. .9-19
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-14
Brake fluid ................. 8-15
Capacities and recommended
fuel/lubricants ...............9-2
Engine coolant ............... 8-10
Engine oil .................. 8-11
Power steering fluid ............8-14
Window washer fluid ...........8-15
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-58
F.M.V.S.S./C.M.V.S.S. certification label . . .9-12
Fog light switch ............... .2-37
Forward Collision Warning (FCW) system . .5-73
Front passenger air bag and status light . .1-43
Front power seat adjustment ..........1-3
Front-seat active head restraints ........1-7
Front seat, Front seat adjustment .......1-3
Fuel Capacities and recommended
fuel/lubricants ............... .9-2
Fuel economy ................ 5-81
Fuel economy information (display) . . . 4-10 Fuel-filler cap
................ 3-19
Fuel-filler door ............... 3-19
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Gauge ....................2-8
Fuses ..................... .8-22
Fusible links ................. .8-23
G
Garage door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-19
Gauge ...................... .2-5
Gauge Engine coolant temperature gauge .
. . .2-7
Fuel gauge ..................2-8
Odometer ..................2-6
Speedometer ................2-6
Tachometer .................2-7
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-47
H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-86
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch ........2-37
Headlights Aiming control (See adaptive front
lighting system (AFS)) ...........2-35 Bulb replacement
............. 8-28
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Head restraints ................. .1-4
Heated seats ................. .2-39
Heated steering wheel .............2-38
Heater Automatic climate control . . . . .....4-30
Engine block heater ............5-93
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-16
Hook, Coat hooks .............. .2-48
Horn ...................... .2-39
I
Ignition switch, Automatic transmission
models ..................... .5-12
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-43
Indicator, Dot matrix display .........2-19
Indicator lights ................ .2-15
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
INFINITI

voice recognition system ......4-109
INFO button .................. .4-8
Inside mirror ................. .3-23
Inspection/maintenance (I/M) test ......9-22
Instrument brightness control ........2-36
Instrument panel ............... .2-4
Intelligent Brake Assist (IBA) off indicator
light ...................... .2-16
Intelligent Brake Assist (IBA) system .....5-77
10-3
—
—
07/26/10—dmoore


Intelligent cruise control (ICC) system . . . .5-41
Intelligent Cruise Control (ICC) system
MAIN switch indicator.............2-22
Intelligent cruise control (ICC) system,
Preview function ............... .5-62
Intelligent Cruise Control (ICC) system
warning light ................. .2-12
Intelligent Key ................. .3-2
Intelligent Key system .............3-6
Intelligent Key system Battery replacement ............8-24
Key operating range ............3-8
Key operation ................3-9
Warning signals .............. 3-11
Interior light control switch ..........2-55
Interior light replacement ...........8-28
Interior lights ................. .2-54
Interior trunk lid release ............3-19
iPod player operation ............4-74
ISOFIX child restraint ............. .1-21
J
Jump starting ................. .6-8
K
Keyless entry
(See remote keyless entry system) ......3-13
Keys ....................... .3-2
Keys, For Intelligent Key system ........3-6
Labels Air bag warning labels ...........1-48
Air conditioner specification label ....9-13
Emission control information label . . . 9-12 Engine serial number
...........9-12
F.M.V.S.S./C.M.V.S.S. certification
label ..................... 9-12
Tire and Loading information label . . . 9-13
Vehicle identification number (VIN) . . . 9-11
L
Lane Departure Prevention (LDP) ON
indicator light ................. .2-17
Lane Departure Prevention (LDP) system . .5-23
Lane departure warning (LDW) system . . . .5-21
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system ......5-20
Lane departure warning light .........2-13
LATCH system ................. .1-21
License plate, Installing front license
plate ...................... .9-14
Light Air bag warning light ...........1-48
Bulb

replacement ............. 8-27
Fog light switch .............. 2-37
Headlights bulb replacement ......8-28
Headlight switch .............. 2-33
Indicator lights ............... 2-15
Interior light control switch ........2-55
Interior lights ............... 2-54
Map lights ................. 2-54
Personal lights ............... 2-55
Trunk light ................. 2-56
Vanity mirror lights ............2-56
Warning/indicator lights and audible
reminders .................. 2-10
Xenon headlights ............. 2-32
Light replacement .............. .8-27Lights, Exterior and interior light
replacement
................. .8-28
Loading information
(See vehicle loading information) .......9-15
Lock Automatic door locks ............3-5
Door locks ..................3-4
Power door lock ...............3-4
Trunk lid .................. 3-17
Locking with mechanical key ..........3-4
Low outside temperature warning ......2-22
Low tire pressure warning light ........2-13
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .....5-3
Maintenance Battery ................... .8-16
General maintenance ............8-2
Indicators for maintenance
(dot matrix) ................ 2-23
Inside the vehicle ..............8-3
Maintenance precautions .........8-5
Maintenance requirements . . ......8-2
Outside the vehicle .............8-2
Seat belt maintenance ...........1-17
M
Malfunction indicator light (MIL) . . . . . . .2-17
Map lights .................. .2-54
Master warning light ............. .2-14
Mechanical key (Intelligent Key system) . . .3-3
Memory
storage, Automatic drive
positioner ................... .3-27
Meter Trip computer ............... .2-24
10-4
—
—
07/26/10—dmoore


Touch screen system..............4-4
Towing Flat towing ................ .9-19
Towing a trailer .............. 9-19
Tow truck towing ............. 6-12
TPMS, Tire pressure monitoring system . . . .5-3
TPMS, Tire pressure warning system .....6-2
Trailer towing ................. .9-19
Transceiver, HomeLink Universal
Transceiver .................. .2-57
Transmission Automatic transmission fluid (ATF) . . . .8-14
Driving with automatic transmission . . . 5-12
Transmission selector lever lock
release ................... 5-15
Transmitter
(See remote keyless entry system) ......3-13
Traveling or registering your vehicle in
another country ................ .9-10
Trip computer ................. .2-24
Trip odometer ................. .2-25
Trunk Interior trunk lid release ..........3-19
Trunk lid .................. 3-17
Trunk lid release switch ..........3-17
Trunk open request switch ........3-17
Trunk release power cancel switch . . . 3-18
Trunk light .................. .2-56
Trunk pass-through .............. .1-10
Turn signal switch .............. .2-37
U
Underbody cleaning .............. .7-3
Uniform tire quality grading .........9-20 V
Vanity mirror ................. .3-26
Vanity mirror lights ............. .2-56
Variable voltage control system .......8-18
Vehicle Dimensions ................ .9-10
Recovery (freeing a stuck vehicle) ....6-15
Vehicle dynamic control (VDC) off
switch ................... 2-43
Vehicle dynamic control (VDC) system . . 5-89Vehicle information and settings (display) . . 4-8Vehicle identification number (VIN) ......9-11
Vehicle loading information ..........9-15
Vehicle security system ............2-27
Ventilators .................. .4-30
Voice command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Voice recognition, Alternate command
mode ..................... .4-122
Voice recognition system ..........4-109
Warning Dot matrix display .............2-19
Hazard warning flasher switch ......2-37
Lane departure warning (LDW) system . . 5-21
Tire pressure monitoring system (TPMS) . . 5-3Warning/indicator lights and audible
reminders ..................2-9
W
Warning labels, Air bag warning labels . . .1-48
Warning light Air bag warning light ...........1-48 Anti-lock braking system (ABS) warning
light
..................... 2-10
Brake warning light ............2-11
Lane departure warning light .......2-13
Low tire pressure warning light . . . . . 2-13
Seat belt warning light and chime ....2-14
Warning lights ................ .2-10
Warranty, Emission control system
warranty .................... .9-21
Washer switch, Windshield wiper and
washer switch ................ .2-30
Washing .................... .7-2
Waxing ..................... .7-2
Welcome light ................ .2-54
Wheels and tires ............... .8-30
Wheels and tires Care of wheels ............... .7-3
Cleaning aluminum alloy wheels . . . . . 7-3
Wheel/tire size ................ .9-9
Window(s) Cleaning .................. .7-3
Power windows .............. 2-49
Window washer fluid ............. .8-15
Windshield wiper and washer switch . . . .2-30
Wiper Rain-sensing auto wiper system .....2-31
Windshield wiper and washer switch . . 2-30
Wiper blades ................ 8-20
X
Xenon headlights ............... .2-32
10-7
—
—
07/26/10—dmoore
