2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-4
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-7
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-8
Warning/indicator lights and audible reminders ...... 2-9
Checking bulbs ............................... 2-10
Warning lights ................................ 2-10
Indicator lights ................................. 2-15
Audible reminders ............................. 2-18
Dot matrix liquid crystal display ...................2-19
Indicators for operation ........................ 2-21
Indicators for maintenance .....................2-23
Trip computer ................................. 2-24
Security systems ................................. 2-27
Vehicle security system ........................ 2-27
INFINITI Vehicle Immobilizer System ............2-29
Windshield wiper and washer switch ...............2-30
Rain-sensing auto wiper system ................2-31
Rear window and outside mirror defroster switch . . . 2-32
Headlight and turn signal switch ..................2-32Xenon headlights
............................. 2-32
Headlight switch .............................. 2-33

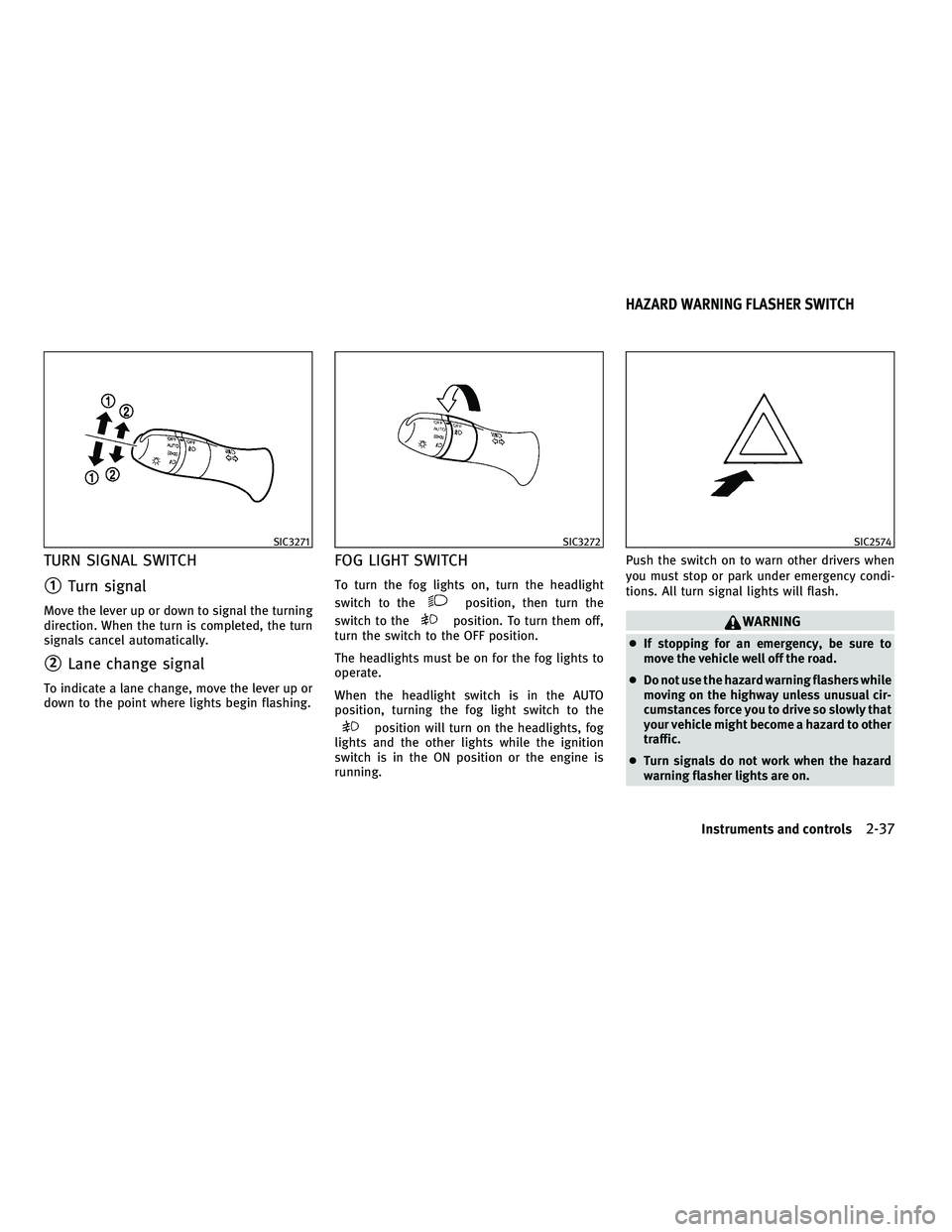

Turn signal switch ............................. 2-37
Fog light switch ............................... 2-37
Hazard warning flasher switch .....................2-37
Heated steering wheel (if so equipped) .............2-38
Horn ............................................ 2-39
Heated seats (if so equipped) .....................2-39
Climate controlled seats (if so equipped) ...........2-40
Warning systems switch (if so equipped) ...........2-41
Intelligent Brake Assist (IBA) OFF switch (if so
equipped) ....................................... 2-42
Vehicle Dynamic Control (VDC) OFF switch ..........2-43
Clock ............................................ 2-43
Adjusting the time ............................. 2-43

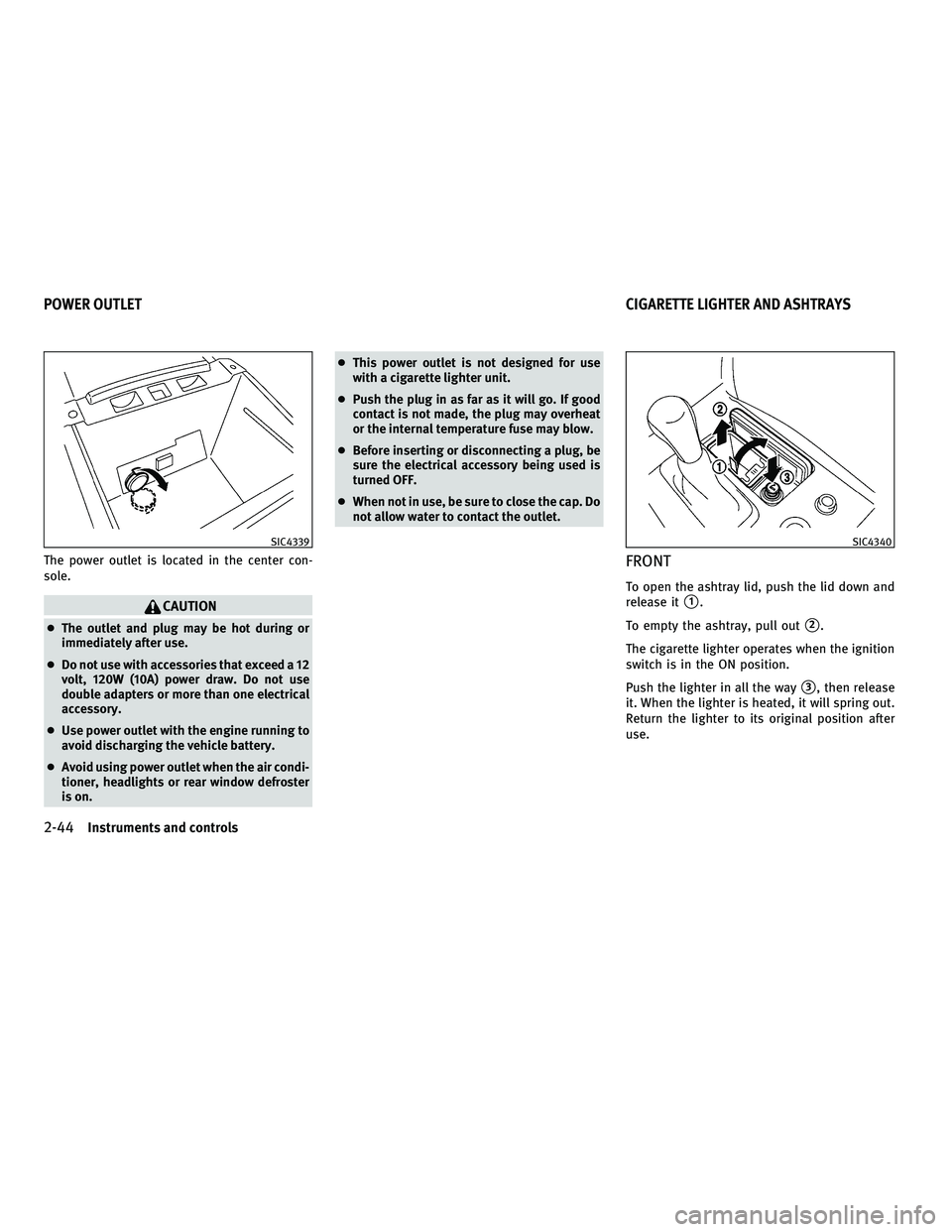

Power outlet ..................................... 2-44
Cigarette
lighter and ashtrays ..................... 2-44
Front ......................................... 2-44
Rear ......................................... 2-45
Storage ......................................... 2-45
Cup holders .................................. 2-45
Sunglasses holder ............................. 2-46
Glove box .................................... 2-47
—
—
07/15/10—tbrooks

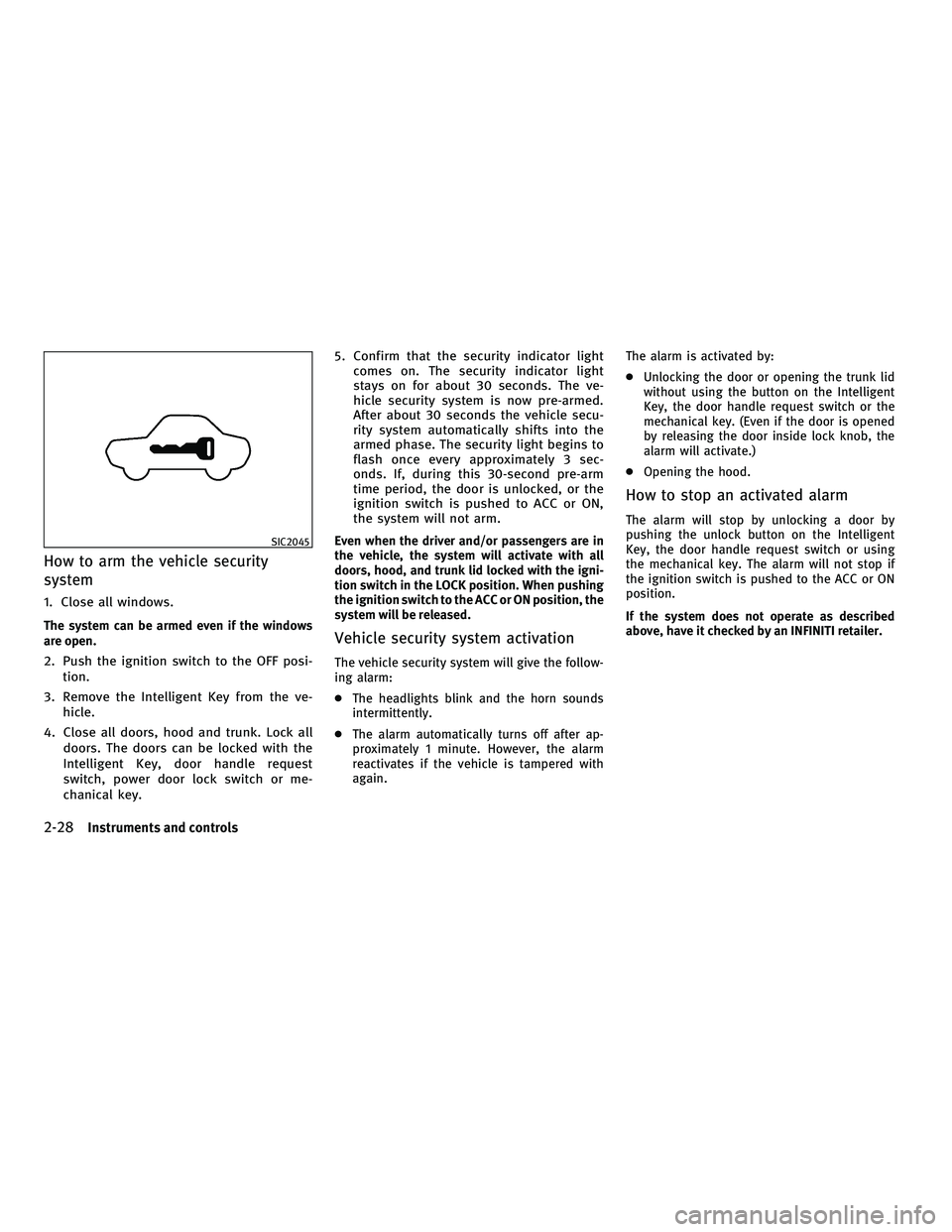

How to arm the vehicle security
system
1. Close all windows.
The system can be armed even if the windows
are open.
2. Push the ignition switch to the OFF posi-tion.
3. Remove the Intelligent Key from the ve- hicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request
switch, power door lock switch or me-
chanical key. 5. Confirm that the security indicator light
comes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.
Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.
Vehicle security system activation
The vehicle security system will give the follow-
ing alarm:
● The headlights blink and the horn sounds
intermittently.
● The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
●
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key. The alarm will not stop if
the ignition switch is pushed to the ACC or ON
position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
SIC2045
2-28Instruments and controls
—
—
07/15/10—tbrooks


To defog/defrost the rear window glass and
outside mirrors, start the engine and push the
switch
1on. The indicator light2will come
on. Push the switch again to turn the defroster
off.
It will automatically turn off in approximately 30
minutes.
CAUTION
When cleaning the inner side of the rear win-
dow, be careful not to scratch or damage the
rear window defroster.
XENON HEADLIGHTS
WARNING
HIGH VOLTAGE
● When xenon headlights are on, they produce
a high voltage. To prevent an electric shock,
never attempt to modify or disassemble.
Always have your xenon headlights replaced
at an INFINITI retailer.
● Xenon headlights provide considerably more
light than conventional headlights. If they
are not correctly aimed, they might
temporarily blind an oncoming driver or the
driver ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your vehicle to
an INFINITI retailer and have the headlights
adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize. ●
The life of xenon headlights will be shortened
by frequent on-off operation. It is generally
desirable not to turn off the headlights for
short intervals (for example, when the ve-
hicle stops at a traffic signal). Even when the
daytime running lights are active (Canada
only), the xenon headlights do not turn on.
This way the life of the xenon headlights is
not reduced.
● If the xenon headlight bulb is close to burn-
ing out, the brightness will drastically de-
crease, the light will start blinking, or the
color of the light will become reddish. If one
or more of the above signs appear, contact an
INFINITI retailer.
SIC4330
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH
2-32Instruments and controls
—
—
07/15/10—tbrooks


HEADLIGHT SWITCH
Lighting
1Turn the switch to theposition:
The front park, side marker, tail and license
plate lights will come on.
2Turn the switch to theposition:
Headlights will come on and all the other
lights remain on.
Autolight system
The autolight system allows the headlights to
be set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the
AUTO position
1.
2. Push the ignition switch to the ON posi- tion.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
orposition. The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
For US models: The headlights will also be
turned on automatically at twilight or in rainy
weather (when the windshield wiper is operated
continuously).
If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes.
Automatic headlights off delay :
You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.
For automatic headlights off delay setting, see
“Light Off Delay” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section.
SIC3267SIC3268
Instruments and controls2-33
—
—
07/15/10—tbrooks


Be sure not to put anything on top of the photo
sensor
Alocated on the top of the instrument
panel. The photo sensor controls the autolight;
if it is covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.Headlight beam select
1To select the low beam, put the lever in the
neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low beam.
3Pulling the lever toward you will flash the
headlight high beam even when the head-
light switch is in the OFF position.
Battery saver system
A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the
ACC, OFF or LOCK position.
When the headlight switch is in the
or
position while the ignition switch is in
the ON position, the lights will automatically
turn off 5 minutes after the ignition switch has
been pushed to the OFF position.
When the headlight switch remains in the
orposition after the lights auto-
matically turn off, the lights will turn on when
the ignition switch is pushed to the ON posi-
tion.
CAUTION
● When you turn on the headlight switch again
after the lights automatically turn off, the
lights will not turn off automatically. Be sure
to turn the light switch to the OFF position
when you leave the vehicle for extended pe-
riods of time, otherwise the battery will be
discharged.
● Never leave the light switch on when the
engine is not running for extended periods of
time even if the headlights turn off
automatically.
SAA0642ASIC3269
2-34Instruments and controls
—
—
07/15/10—tbrooks


Daytime running light system
(Canada only)
The daytime running lights automatically illumi-
nate when the engine is started with the park-
ing brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the
headlight switch to the
position for full
illumination when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illumi-
nate once the parking brake is released. The
daytime running lights will remain on until the
ignition switch is pushed to the OFF position.
Adaptive Front lighting System (AFS)
(if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low beam)
toward the turning direction to improve the
driver’s view. When the headlight switch is ON
and the driver operates the steering wheel in a
turn, the AFS system will be activated.
The AFS will operate:
● when the headlight switch is ON.
● when the selector lever is in any position
other than P (Park) or R (Reverse).
● when the vehicle is driven at above 16 MPH
(25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is below 3 MPH (5 km/h) and the
steering wheel is turned. The vehicle must
attain a speed above 16 MPH (25 km/h)
before AFS activates the left-side headlight. To turn the AFS off, push the AFS switch. (The
AFS OFF indicator light will illuminate.) Push the
switch again to turn the system on again.
AFS will also adjust the headlight to a proper
axis automatically, depending on the number of
occupants in the vehicle, the load the vehicle is
carrying and the road conditions.
If the AFS OFF indicator light blinks after the
ignition switch has been pushed to the ON
position, this may indicate that the AFS is not
functioning properly. Have the system checked
by an INFINITI retailer. When the engine is
started, the headlights will vibrate to check the
system condition. This is not a malfunction.
SIC4333
Instruments and controls2-35
—
—
07/15/10—tbrooks


TURN SIGNAL SWITCH
1Turn signal
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
2Lane change signal
To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
FOG LIGHT SWITCH
To turn the fog lights on, turn the headlight
switch to the
position, then turn the
switch to the
position. To turn them off,
turn the switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight switch is in the AUTO
position, turning the fog light switch to the
position will turn on the headlights, fog
lights and the other lights while the ignition
switch is in the ON position or the engine is
running. Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.
WARNING
●
If stopping for an emergency, be sure to
move the vehicle well off the road.
● Do not use the hazard warning flashers while
moving on the highway unless unusual cir-
cumstances force you to drive so slowly that
your vehicle might become a hazard to other
traffic.
● Turn signals do not work when the hazard
warning flasher lights are on.
SIC3271SIC3272SIC2574
HAZARD WARNING FLASHER SWITCH
Instruments and controls2-37
—
—
07/15/10—tbrooks


The power outlet is located in the center con-
sole.
CAUTION
●The outlet and plug may be hot during or
immediately after use.
● Do not use with accessories that exceed a 12
volt, 120W (10A) power draw. Do not use
double adapters or more than one electrical
accessory.
● Use power outlet with the engine running to
avoid discharging the vehicle battery.
● Avoid using power outlet when the air condi-
tioner, headlights or rear window defroster
is on. ●
This power outlet is not designed for use
with a cigarette lighter unit.
● Push the plug in as far as it will go. If good
contact is not made, the plug may overheat
or the internal temperature fuse may blow.
● Before inserting or disconnecting a plug, be
sure the electrical accessory being used is
turned OFF.
● When not in use, be sure to close the cap. Do
not allow water to contact the outlet.
FRONT
To open the ashtray lid, push the lid down and
release it
1.
To empty the ashtray, pull out
2.
The cigarette lighter operates when the ignition
switch is in the ON position.
Push the lighter in all the way
3, then release
it. When the lighter is heated, it will spring out.
Return the lighter to its original position after
use.
SIC4339SIC4340
POWER OUTLET CIGARETTE LIGHTER AND ASHTRAYS
2-44Instruments and controls
—
—
07/15/10—tbrooks

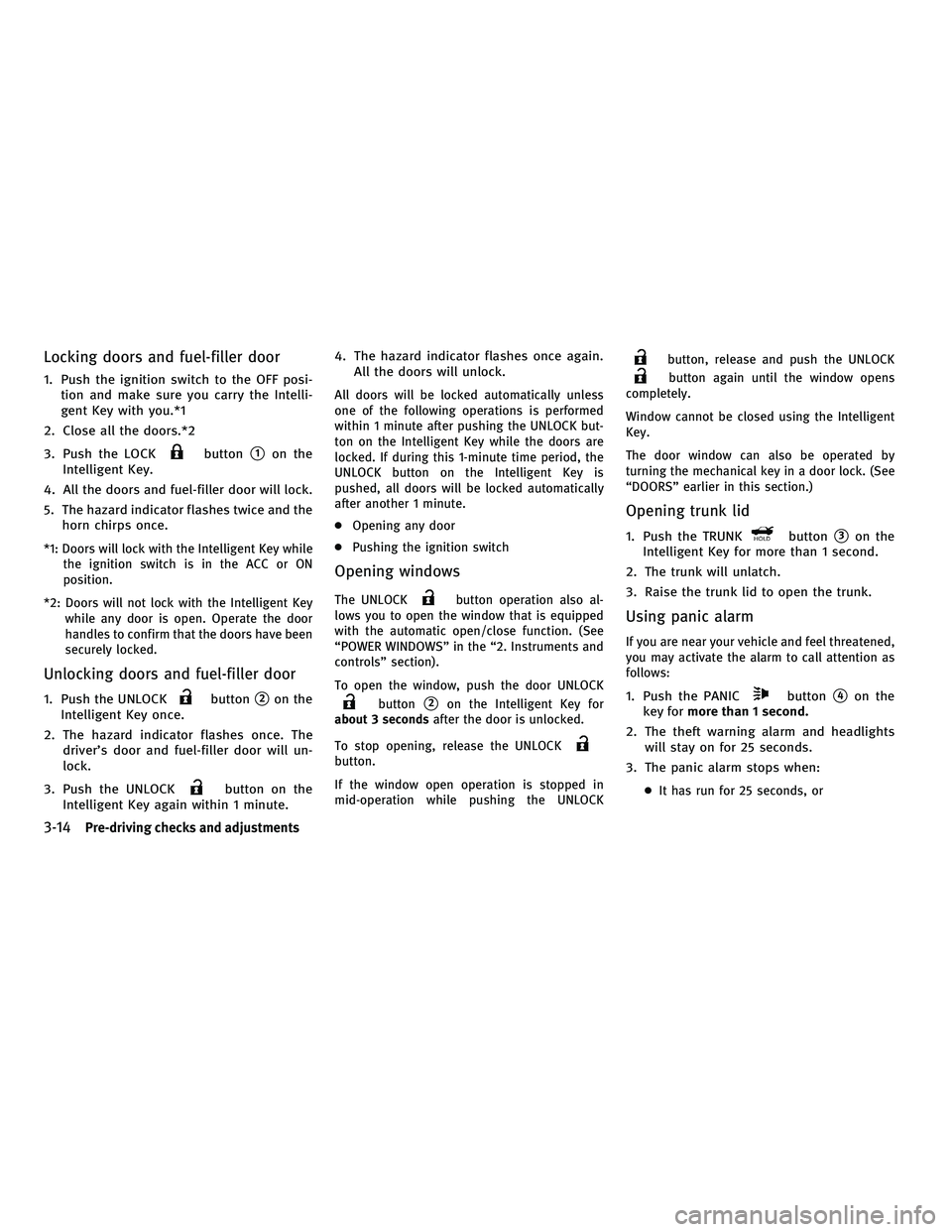

Locking doors and fuel-filler door
1. Push the ignition switch to the OFF posi-tion and make sure you carry the Intelli-
gent Key with you.*1
2. Close all the doors.*2
3. Push the LOCK
button1on the
Intelligent Key.
4. All the doors and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON
position.
*2: Doors will not lock with the Intelligent Key while any door is open. Operate the door
handles to confirm that the doors have been
securely locked.
Unlocking doors and fuel-filler door
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driver’s door and fuel-filler door will un-
lock.
3. Push the UNLOCK
button on the
Intelligent Key again within 1 minute. 4. The hazard indicator flashes once again.
All the doors will unlock.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pushing the UNLOCK but-
ton on the Intelligent Key while the doors are
locked. If during this 1-minute time period, the
UNLOCK button on the Intelligent Key is
pushed, all doors will be locked automatically
after another 1 minute.
●Opening any door
● Pushing the ignition switch
Opening windows
The UNLOCKbutton operation also al-
lows you to open the window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section).
To open the window, push the door UNLOCK
button2on the Intelligent Key for
about 3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
If the window open operation is stopped in
mid-operation while pushing the UNLOCK
button, release and push the UNLOCK
button again until the window opens
completely.
Window cannot be closed using the Intelligent
Key.
The door window can also be operated by
turning the mechanical key in a door lock. (See
“DOORS” earlier in this section.)
Opening trunk lid
1. Push the TRUNKbutton3on the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANICbutton4on the
key for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
● It has run for 25 seconds, or
3-14Pre-driving checks and adjustments
—
—
01/12/10—pattie


INSIDE MIRROR
Adjust the height and the angle of the inside
mirror to the desired position.
Automatic anti-glare type
The inside mirror is designed so that it auto-
matically changes reflection according to the
intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed to
the ON position.
When the anti-glare system is turned on, the
indicator light
Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced. Push the “” switch
Cto make the inside
rearview mirror operate normally. The indicator
light will turn off. Push the “I” switch
Dto turn
the system on.
Do not allow any object to cover the sensors
E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation.
For the HomeLink Universal Transceiver opera-
tion, see “HomeLink UNIVERSAL TRANS-
CEIVER” in the “2. Instruments and controls”
section.
SPA2447SPA2450
MIRRORS
Pre-driving checks and adjustments3-23
—
—
07/14/10—dstomski
